CONTACT INFORMATION
• www.supermicro.com (Email: [email protected])
• Manuals: http://www.supermicro.com/support/manuals
• Drivers & Utilities: ftp://ftp.supermicro.com
• Safety: http://www.supermicro.com/about/policies/safety_information.cfm
PACKAGE CONTENTS
(Applies to single-pack only)
X9DRX+-F
QUICK REFERENCE GUIDE REV. 1.0A
• One (1) Supermicro Motherboard
• Six (6) Serial ATA Cables
• One (1) I/O Shield
MNL-1323-QRG REV. 1.0A
© 2012 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
This motherboard supports up to 512 GB of 240-pin Registered (RDIMM)/Load
Reduced (LRDIMM) ECC or up to 128 GB of Unbuffered (UDIMM) ECC/Non-ECC
DDR3 800/1066/1333/1600 MHz 4-channel (per CPU) memory in 16 DIMM slots.
Note:Formemory optimization,useonly DIMMmodulesthat havebeenvalidated bySupermicro.
For the latest memory updates, please refer to our website at http://www.supermicro.com/
products/motherboard.
S-SATA0
S-SATA1
S-SATA2
S-SATA3
I-SATA0
FAN/ PCH
SP1
JSD1
JPI2C1
JPW4
JITP2
BIOS
LED3
FAN8/CPU2
FAN7/CPU1
FAN6
FAN5
FAN1
FANA
FAN4
FAN3
FANB
JVRM_I2C2
JVRM_I2C1
JPG1 JPL1JPB1 JWD1
JPW1
J4
JPW3 JPW2
3-SPGPIO3
3-SPGPIO1
3-SPGPIO2
JIPMI1
JF1
JI2C1
JI2C2
JL1
JOH1
JD1
JSTBY1
JTPM1
JBAT1
(IN X8)
KB/MOUSE
USB2/3
IPMI_LAN
TPM/PORT80
CPU2 Slot 7 PCI-E 3.0 x 8
CPU2 Slot 5 PCI-E 3.0 x 8
CPU1 Slot 3 PCI-E 3.0 x 8
CPU1 Slot 1 PCI-E 3.0 x 8
USB8/9
USB6/7
P2-DIMMG1
P2-DIMMH2
P2-DIMMH1
P2-DIMMG2
P2-DIMME2
P2-DIMME1
P2-DIMMF2
P2-DIMMF1
P1-DIMMD1
P1-DIMMC2
P1-DIMMC1
P1-DIMMD2
P1-DIMMA1
P1-DIMMA2
P1-DIMMB1
CPU1 Slot 2 PCI-E 3.0 x 8
CPU1 Slot 4 PCI-E 3.0 x 8
CPU2 Slot 6 PCI-E 3.0 x 8
CPU1 Slot 8 PCI-E 3.0 x 8
CPU2 Slot 9 PCI-E 3.0 x 8
CPU2 Slot 10 PCI-E 3.0 x 8
CPU2 Slot 11 PCI-E 2.0 x 4
P1-DIMMB2
COM2
UID VGA
LAN2 LAN1
COM1
I-SATA2
I-SATA4
I-SATA1
I-SATA3
I-SATA5
JPT1
USB4 USB5
JITP1
LED1
BMC CTRL
LAN
CTRL
FAN2
LED2
JBT1
X9DRX+-F
Rev. 1.01
PCH
USB0/1
CPLD
BMC Firmware
Clock Chip
JPME1
JPME2
CPU1
CPU2
Insert the desired number of DIMMs into the memory slots, starting with P1-DIMMA1.
For memory to work properly, follow the tables below for memory population order.
Refer to the motherboard layout (at left) for the location of the DIMM slots.
Processors and their Corresponding Memory Modules
CPU# Corresponding DIMM Modules
CPU 1 P1-
DIMMA1 P1- DIMMB1 P1- DIMMC1 P1- DIMMD1 P1- DIMMA2 P1- DIMMB2 P1- DIMMC2 P1- DIMMD2
CPU2 P2-
DIMME1 P2- DIMMF1 P2- DIMMG1 P2- DIMMH1 P2- DIMME2 P2- DIMMF2 P2- DIMMG2 P2- DIMMH2
Processor and Memory Module Population for Optimal Performance
Number of
CPUs+DIMMs CPU and Memory Population Configuration Table (For memory to work properly, please follow the instructions below.)
1 CPU &
2 DIMMs CPU1 P1-DIMMA1/P1-DIMMB1
1 CPU &
4 DIMMs CPU1 P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
1 CPU &
5-8 DIMMs CPU1 P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + Any memory pairs in P1-
DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slots
2 CPUs &
4 DIMMs CPU1 + CPU2 P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs &
6 DIMMs CPU1 + CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1
2 CPUs &
8 DIMMs CPU1 + CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-
DIMMG1/P2-DIMMH1
2 CPUs &
10-16 DIMMs CPU1/CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-
DIMMG1/P2-DIMMH1 + Any memory pairs in P1, P2 DIMM slots
2 CPUs &
16 DIMMs CPU1/CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/
P2-DIMMG1/P2-DIMMH1,P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-
DIMME2/P2-DIMMF2/P2-DIMMG2/P2-DIMMH2
OPEN1st
OPEN1st
Connector Item # Description
COM1/COM2 1, 13 Backplane COM Port1/Front Accessible COM2 Header
Fan 1~4 42, 40, 49, 50 CPU/System 4-Pin Fan Headers
Fan 5~8 9, 11, 41, 47 CPU/System 4-Pin Fan Headers (Fan 7/8 CPU 1/2 Fans)
FanA, FanB 39, 28 CPU/System 4-Pin Fan Headers
FAN PCH 35 3-Pin PCH Fan Header
JD1 32 Speaker/Power LED Indicator
JF1 31 Front Panel Control Header
JIPMI1 14 4-pin External BMC I2C Header (for an IPMI Card)
JL1 27 Chassis Intrusion
JOH1 38 Overheat LED Indicator
JPI2C1 45 Power Supply SMBbus I2C Header
JPW1 43 ATX 24-Pin Power Connector
JPW2/3 44, 46 12V 8-Pin Power Connectors
JPW4 48 12V 4-Pin Power Connector (optional)
JSTBY1 20 3V Standby Power Header
JTPM1 36 TPM (Trusted Platform Module)/Port 80 Header
JSD1 25 SATA Device Power Connector
LAN1/LAN2 5, 6 G-bit Ethernet Ports 1/2
(IPMI) LAN 3 IPMI Dedicated LAN
(I)-SATA0/1 24 Intel SB I-SATA3.0 Connectors #0/1
(I)-SATA2~5 23 Intel PCH SATA2.0 Connectors 2~5 (Color: Black)
(S)-SATA0~3 29 Intel SB S-SATA2.0 Connectors #0~3
SP1 33 Onboard Buzzer (Internal Speaker)
3-SGPIO 1/2/3 26 Serial Link General Purpose I/O Headers
USB 0/1, 2/3 2, 4 Back Panel USB 0/1, 2/3
USB 4, 5 21, 22 Front Panel TypeA USB Connections
USB 6/7, USB 8/9 30 Front PanelAccessible USB Connections
UID 8 UID (Unit Identification) Switch
VGA 7 Backpanel VGA Port
Note: Item numbers are listed in counterclockwise order.
LED Item # Description Color/State Status
LED1 12 BMC Heartbeat LED Green: Blinking BMC Normal
LED2 37 Onboard PWR LED Green: On Main Power On
LED3 10 UID Switch LED

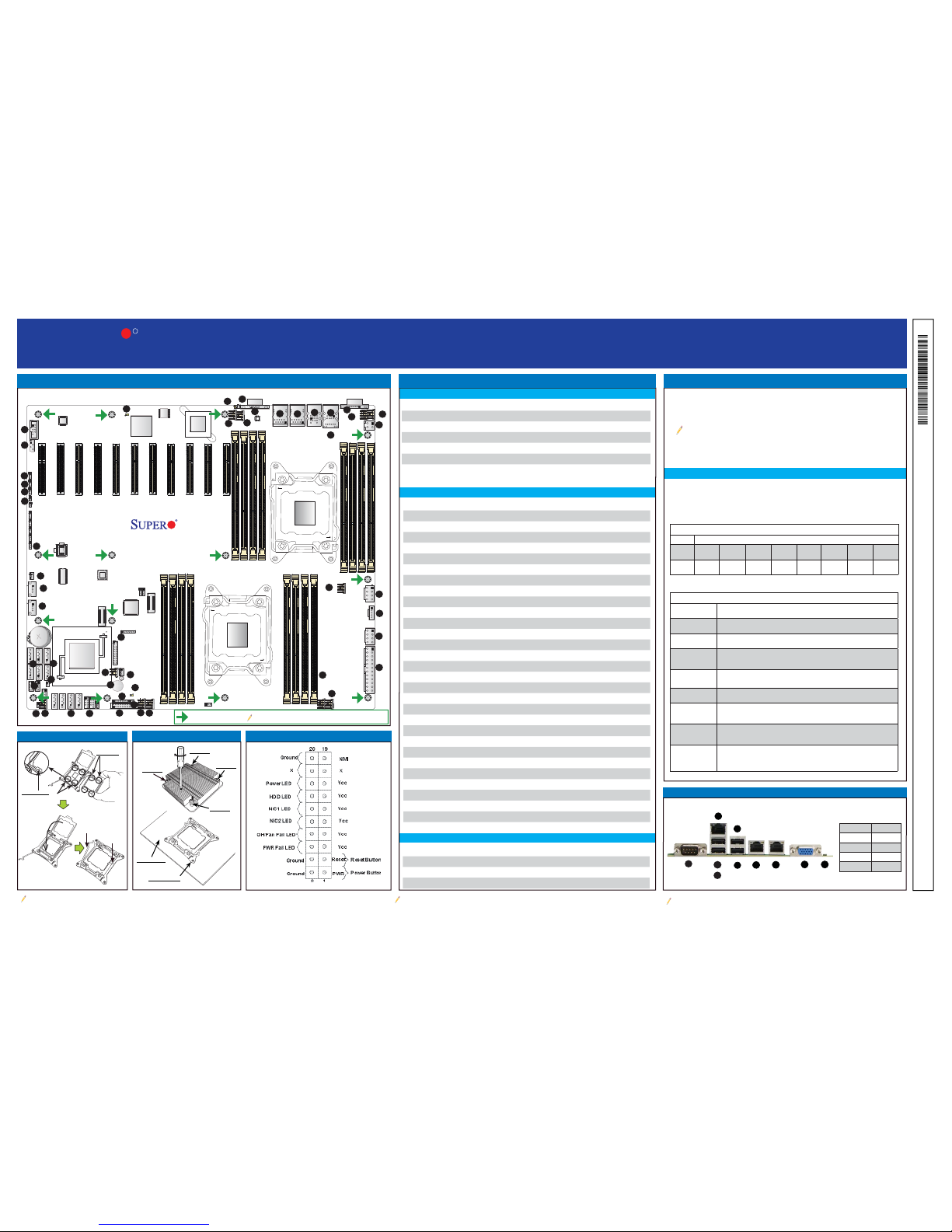

Motherboard Layout and Features Jumpers, Connectors and LED Indicators
Back Panel IO Connectors
Memory Support
Jumpers
Connectors
LED Indicators
CPU Installation
Socket Keys
1.
2.
CPU Keys
Note: Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this guide. Note: Refer to Chapter 2 of the User Manual for detailed information on jumpers, connectors, and LED indicators. Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/
motherboard installation instructions.
= mounting hole
Heatsink Installation
DIMM Installation
Front Panel Control (JF1)
1
5
1
9
1
14
1
10
1
15
1
4
1
8
1
13 1
3
1
7
1
12
1
17
1
18
1
19
1
20
1
2
1
6
1
11
1
16
1
21
1
26
1
31
1
36
1
41
1
37 1
42
1
43
1
44
1
45
1
46
1
47
1
48
1
49
1
50
1
38
1
39 1
40
1
32
1
33
1
34
1
35
1
27 1
28 1
29 1
30
1
22
1
23 1
24
1
25
1
1
OPEN1st
OPEN1st
Screw #1 Screw #2
Screw #4
Motherboard
Screw #3
Mounting Hole
A
B
C
D
E
F
G
HIJ
A. COM1 F. USB 3
B. USB 0 G. GLAN1
C. USB 1 H. GLAN2
D. IPMI LAN I. VGA
E. USB 2 J. UID
Jumper Item # Description Default
JBT1 34 Clear CMOS See Chpt. 2 in User Manual
JI2C1/JI2C2 18 SMB to PCI-E Slots Off (Disabled)
JPB1 17 BMC Enabled Pins 1-2 (Enabled)
JPG1 15 VGA Enabled Pins 1-2 (Enabled)
JPL1 16 GLAN1/GLAN2 Enable Pins 1-2 (Enabled)
JWD1 19 Watch Dog Timer Enable Pins 1-2 (Reset)
