Supermicro 6028R-WTR User manual

SUPERSERVER
6028R-WTR
6028R-WTRT
®
SUPER
USER’S MANUAL
Revision 1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.
IN NO EVENT WILLSUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATASTORED OR USED WITHTHE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall be
the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims
will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Manual Revision 1.0
Release Date: August 14, 2014
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2014 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America

iii
Preface
Preface
About This Manual
This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the SuperServer 6028R-WTR(T).
Installation and maintainance should be performed by experienced technicians only.
The SuperServer 6028R-WTR(T) is a high-end server based on the
SC815TS-R740WBP 2U rackmountable chassis and the X10DRW-i(T) dual
processor serverboard. The SuperServer 6028R-WTR(T) system's WIO platform
has major advantages over E-ATX/ATX platforms in small form factor 1U and 2U
systems by increasing I/O performance by use of multiple full-height, full-length
add-on cards. Please refer to our web site for updates on supported processors.
The only difference between the 6028R-WTR and 6028R-WTRT servers is that
the 6028R-WTR use 1Gps dual LAN ports and the 6028R-WTRT uses 10Gps dual
LAN ports.
Manual Organization
Chapter 1: Introduction
The first chapter provides a checklist of the main components included with the
server system and describes the main features of the X10DRW-i(T) serverboard
and the SC815TS-R740WBP chassis.
Chapter 2: Server Installation
Thischapterdescribesthe stepsnecessarytoinstalltheSuperServer6028R-WTR(T)
into a rack and check out the server configuration prior to powering up the system.
If your server was ordered without processor and memory components, this chapter
will refer you to the appropriate sections of the manual for their installation.
Chapter 3: System Interface
Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.
Chapter 4: System Safety
You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SuperServer 6028R-WTR(T).

SUPERSERVER 6028R-WTR(T) USER'S MANUAL
iv
Chapter 5: Advanced Serverboard Setup
Chapter 5 provides detailed information on the X10DRW-i(T) serverboard,
including the locations and functions of connections, headers and jumpers. Refer
to this chapter when adding or removing processors or main memory and when
reconfiguring the serverboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC815TS-R740WBP server
chassis. You should follow the procedures given in this chapter when installing,
removing or reconfiguring SAS/SATA or peripheral drives and when replacing
system power supply units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed information
on running the CMOS Setup Utility.
Appendix A: BIOS Error Beep Codes
Appendix B: System Specifications

Notes
Preface
v

vi
Table of Contents
Chapter 1 Introduction
1-1 Overview .........................................................................................................1-1
1-2 Serverboard Features..................................................................................... 1-2
Processors ......................................................................................................1-2
Memory ...........................................................................................................1-2
SAS/SATA........................................................................................................1-2
PCI Expansion Slots....................................................................................... 1-2
Rear I/O Ports.................................................................................................1-3
1-3 Server Chassis Features ................................................................................1-3
System Power................................................................................................. 1-3
Hard Drive Subsystem.................................................................................... 1-3
Front Control Panel.........................................................................................1-3
Cooling System............................................................................................... 1-3
1-6 Advanced Power Management.......................................................................1-4
Intel® Intelligent Power Node Manager (IPNM) .............................................1-4
Manageability Engine (ME)............................................................................. 1-4
1-4 Contacting Supermicro....................................................................................1-6
Chapter 2 Server Installation
2-1 Overview .........................................................................................................2-1
2-2 Unpacking the System.................................................................................... 2-1
2-3 Preparing for Setup.........................................................................................2-1
Choosing a Setup Location............................................................................. 2-2
2-4 Warnings and Precautions.............................................................................. 2-2
Rack Precautions............................................................................................ 2-2
Server Precautions..........................................................................................2-2
Rack Mounting Considerations....................................................................... 2-3
Ambient Operating Temperature................................................................2-3
Reduced Airflow .........................................................................................2-3
Mechanical Loading ................................................................................... 2-3
Circuit Overloading.....................................................................................2-3
Reliable Ground ......................................................................................... 2-3
2-4 Installing the System into a Rack ...................................................................2-4
Separating the Sections of the Rack Rails.....................................................2-4
Installing the Inner Rail Extension..................................................................2-4
Outer Rack Rails.............................................................................................2-5
SUPERSERVER 6028R-WTR(T) USER'S MANUAL

vii
Chapter 3 System Interface
3-1 Overview .........................................................................................................3-1
3-2 Control Panel Buttons..................................................................................... 3-1
Reset...............................................................................................................3-1
Power.............................................................................................................. 3-1
3-3 Control Panel LEDs ........................................................................................3-2
Power Fail.......................................................................................................3-2
Information LED.............................................................................................. 3-2
NIC1................................................................................................................ 3-2
NIC2................................................................................................................ 3-3
HDD................................................................................................................. 3-3
Power.............................................................................................................. 3-3
3-4 Drive Carrier LEDs..........................................................................................3-3
Chapter 4 Standardized Warning Statements for AC Systems
4-1 About Standardized Warning Statements.......................................................4-1
Warning Definition...........................................................................................4-1
Installation Instructions.................................................................................... 4-4
Circuit Breaker ................................................................................................ 4-5
Power Disconnection Warning........................................................................4-6
Equipment Installation.....................................................................................4-8
Restricted Area................................................................................................ 4-9
Battery Handling............................................................................................ 4-10
Redundant Power Supplies ..........................................................................4-12
Backplane Voltage ........................................................................................ 4-13
Comply with Local and National Electrical Codes........................................4-14
Product Disposal........................................................................................... 4-15
Hot Swap Fan Warning................................................................................. 4-16
Power Cable and AC Adapter ......................................................................4-18
Chapter 5 Advanced Serverboard Setup
5-1 Handling the Serverboard............................................................................... 5-1
Precautions .....................................................................................................5-1
Unpacking .......................................................................................................5-1
5-2 Connecting Cables..........................................................................................5-2
Connecting Data Cables................................................................................. 5-2
Connecting Power Cables ..............................................................................5-2
Connecting the Control Panel......................................................................... 5-3
5-3 Rear I/O Ports.................................................................................................5-4
Table of Contents

viii
SUPERSERVER 6028R-WTR(T) USER'S MANUAL
5-4 Installing the Processor and Heatsink ............................................................5-5
Installing an LGA 2011 Processor...................................................................5-5
Installing a Passive CPU Heatsink .................................................................5-8
Removing the Heatsink................................................................................... 5-9
5-5 Installing Memory.......................................................................................... 5-10
Memory Support............................................................................................5-10
DIMM Installation .......................................................................................... 5-10
5-6 Adding PCI Add-On Cards............................................................................5-13
5-7 Serverboard Details ...................................................................................... 5-14
5-8 Connector Definitions ...................................................................................5-17
5-9 Jumper Settings............................................................................................ 5-23
Explanation of Jumpers ................................................................................5-23
5-10 Onboard LED Indicators ...............................................................................5-26
5-11 SATA Connections......................................................................................... 5-27
5-12 Installing Software.........................................................................................5-28
SuperDoctor 5............................................................................................... 5-29
5-13 Serverboard Battery...................................................................................... 5-31
Chapter 6 Advanced Chassis Setup
6-1 Static-Sensitive Devices..................................................................................6-1
Precautions .....................................................................................................6-1
Unpacking .......................................................................................................6-1
6-2 Control Panel .................................................................................................. 6-2
6-3 System Fans................................................................................................... 6-2
System Fan Failure......................................................................................... 6-2
Replacing System Fans.................................................................................. 6-3
6-4 Drive Bay Installation/Removal.......................................................................6-4
Accessing the Drive Bays............................................................................... 6-4
SAS/SATA Drive Installation............................................................................6-4
Hard Drive Backplane..................................................................................... 6-5
DVD-ROM Installation (Optional)....................................................................6-6
6-5 Power Supply..................................................................................................6-7
Power Supply Failure...................................................................................... 6-7
Removing/Replacing the Power Supply.......................................................... 6-7

ix
Table of Contents
Chapter 7 BIOS
7-1 Introduction...................................................................................................... 7-1
Starting BIOS Setup Utility..............................................................................7-1
How To Change the Configuration Data......................................................... 7-2
Starting the Setup Utility................................................................................. 7-2
7-2 Main Setup......................................................................................................7-2
7-3 Advanced Setup Configurations......................................................................7-3
7-4 Event Logs....................................................................................................7-23
7-5 IPMI...............................................................................................................7-25
7-6 Boot...............................................................................................................7-27
7-7 Security......................................................................................................... 7-28
7-8 Save & Exit................................................................................................... 7-29
Appendix A BIOS Error Beep Codes
Appendix B System Specifications

SUPERSERVER 6028R-WTR(T) USER'S MANUAL
x
Notes

Chapter 1
Introduction
1-1 Overview
The SuperServer 6028R-WTR(T) is a high-end server comprised of two main
subsystems: the SC815TS-R740WBP 2U chassis and the X10DRW-i(T) dual
processor serverboard. Please refer to our web site for information on operating
systems that have been certified for use with the system (www.supermicro.com).
In addition to the serverboard and chassis, various hardware components have been
included with the SuperServer 6028R-WTR(T), as listed below:
• One (1) SC815/826/216/213 DP X9, X8 air shroud (MCP-310-29001-0N)
• Heatsinks:
One (1) Passive CPU heatsink (SNK-P0048PS)
One (1) Passive CPU heatsink (SNK-P0048PSC)
• Three (3) 8-cm hot-swap PWM fans (FAN-0126L4)
• One (1) 76-cm 16-pin to 16-pin 28AWG front control cable (CBL-0071L)
• SATA Accessories:
One (1) SATA backplane (BPN-SAS-825TQ-O-P)
Eight (8) drive carriers (MCP-220-00075-0B)
Two (2) sets of four SATA 56/45.5/35/23-cm 26AWG cables (CBL-0186L)
Two (2) 40-cm 8-pin to 8-pin 28AWG SGPIO cables (CBL-CDAT-0661)
• Riser Cards:
One (1) riser card (RSC-R2UW-2E8R-O-P)
One (1) riser card (RSC-R2UW-4E8-O-P)
• One (1) rackmount kit (MCP-290-00053-0N)
Note: For your system to work properly, please follow the links below to download
all necessary drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: ftp://ftp.supermicro.com
• Product safety information:
http://super-dev/about/policies/safety_information.cfm
• If you have any questions, please contact our support team at:
[email protected]
Chapter 1: Introduction
1-1

1-2
SUPERSERVER 6028R-WTR(T) USER'S MANUAL
1-2 Serverboard Features
The SuperServer 6028R-WTR(T) is built around the X10DRW-i(T), a dual processor
serverboard based on the Intel PCH-C612 chipset and designed to provide
maximum performance. Below are the main features of the X10DRW-i(T),. (See
Figure 1-1 for a block diagram of the chipset.)
Processors
The X10DRW-i(T) supports single or dual Intel® Xeon E5-2600v3 Series processors
in 288-pin Socket R3-LGA2011 sockets. Please refer to the serverboard description
pages on our web site for a complete listing of supported processors (www.
supermicro.com).
Memory
The X10DRW-i(T) has sixteen (16) DIMM slots that can support up to 1024 GB
of ECC RDIMM or LRDIMM DDR4 2133/1866/1600/1333 MHz speed memory in
1 GB, 2 GB, 4 GB, 8 GB, 16 GB, 32 GB and 64 GB size @ 1.2V voltage. See
Chapter 5 for details.
Note: For the latest CPU/memory updates, please refer to our website at http://
www.supermicro.com/products/serverboard.
SAS/SATA
A SATA controller is also integrated into the chipset to provide up to ten SATA 3.0
(6/Gbps) ports, which are RAID 0, 1, 5, 10 supported. The SATA drives are hot-
swappable units.
The SAS/SATA backplane (BPN-SAS-825TQ-O-P) with a SAS RAID/HBA add-on
card can support SAS HDD in your system.
Note: The operating system you use must have RAID support to enable the hot-
swap capability and RAID function of the SATA drives.
PCI Expansion Slots
The X10DRW-i(T) has one (1) SMC-proprietary PCI-E 3.0 x16 slot, one (1) SMC-
proprietary PCI-E 3.0 x16+x16 slot, and one (1) PCI-E 3.0 x16 Add-On-Module
(AOM) slot for a mezzanine HBAcard. PCI slots are controlled by CPUs: both CPUs
must be installed to utilize all slots. See Chapter 5 for details.

1-3
Chapter 1: Introduction
Rear I/O Ports
Ports on the I/O backplane includes a VGA port, four USB 2.0 ports, two gigabit
(6028R-WTR) or 10-gigabit (6028R-WTRT) Ethernet ports and one IPMI port.AUID
(Unit Identifier) button and LED are also located beside the VGA port.
1-3 Server Chassis Features
The SC815TS-R740WBP is an ATX form factor chassis designed to be used in a
2U rackmount configuration. The following is a general outline of the main features
of the SC815TS-R740WBP server chassis.
System Power
The SC815 features a redundant 740 Watt power supply composed of two separate
power modules. This power redundancy feature allows you to replace a failed power
supply module without shutting down the system.
Note: The power supplies are both redundant, hot-plug.
Hard Drive Subsystem
The SC815 chassis was designed to support eight (8) SATA-3 hot-swap hard
drives. The SuperServer 6028R-WTR(T) system can use 2.5" SATA hot-swap hard
drives or SSD with a conversion kit (P/N" MCP-220-00043-0N).
Front Control Panel
The control panel on the SC815 provides you with system monitoring and control.
LEDs indicate system power, HDD activity, network activity, system information
and power supply failure. A main power button and a system reset button are also
included. As an option, two USB ports may be incorporated into the control panel
to provide front side USB access.
Cooling System
The SC815 chassis has an innovative cooling design that includes three (3) 8-cm
hot-plug system cooling fans located in the middle section of the chassis. The power
supply module also includes a cooling fan.
Note: The fans in this system are redundant, hot-plug.

1-4
SUPERSERVER 6028R-WTR(T) USER'S MANUAL
1-6 Advanced Power Management
Intel® Intelligent Power Node Manager (IPNM)
The Intel®Intelligent Power Node Manager (IPNM) provides your system with
real-time thermal control and power management for maximum energy efficiency.
Although IPNM Specification Version 2.0 is supported by the BMC (Baseboard
Management Controller), your system must also have IPNM-compatible
Manageability Engine (ME) 2.0 firmware installed to use this feature.
Manageability Engine (ME)
The Manageability Engine, which is an ARC controller embedded in the IOH (I/O
Hub), provides Server Platform Services (SPS) to your system. The services
provided by SPS are different from those proveded by the ME on client platforms.

1-5
Chapter 1: Introduction

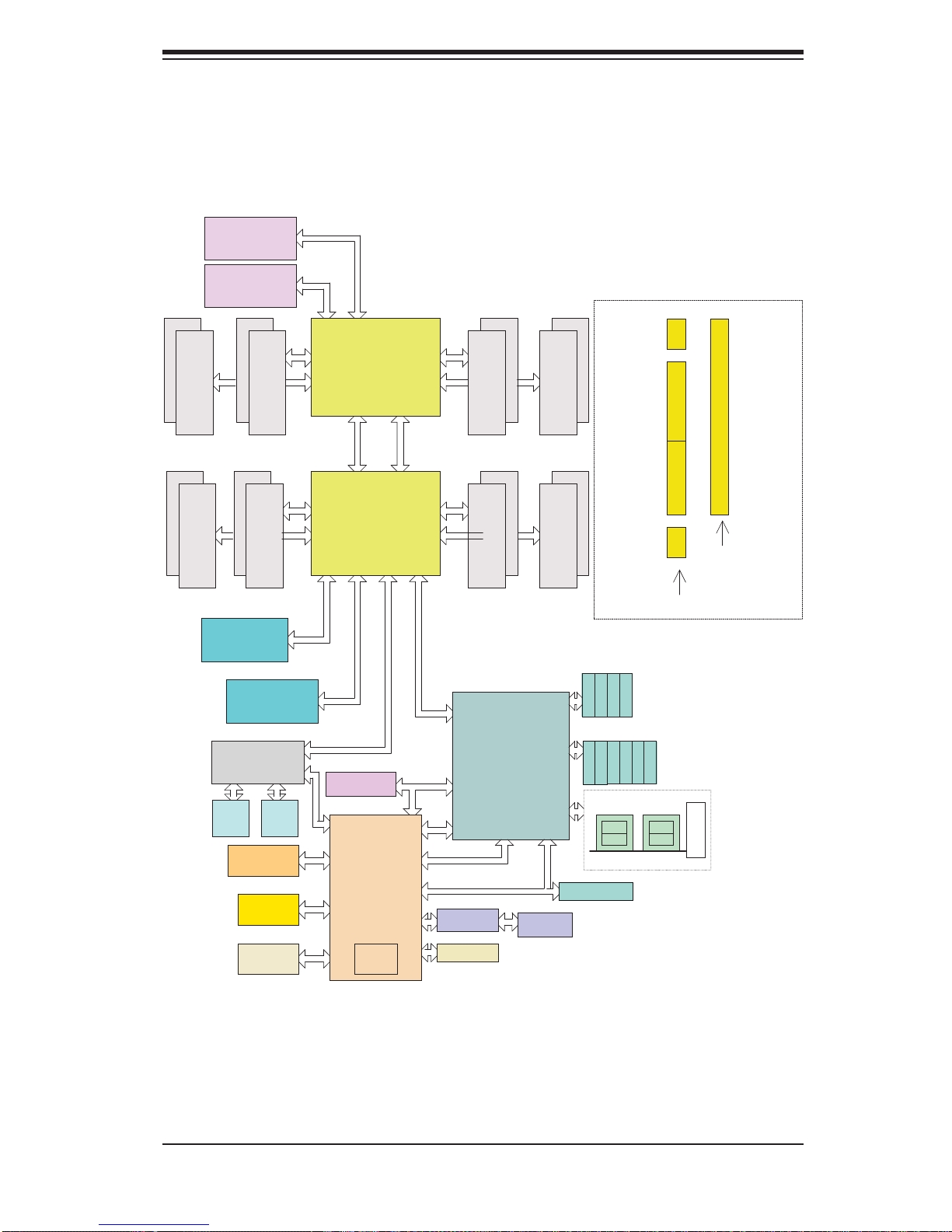

Figure 1-1. Intel PCH-C612 Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
x16
P1
P1
P0
P0
CPU
FRONT
CPU
DMI
PE1
PE2
PE3
PE3 PE1PE2
DDR4 DIMM
4,5
port 0,1
REAR
DDR4 DIMM
#1
#2
DDR4 DIMM
A
G
x16
RIGHT
SLOT
SXB2
PCIE3.0 x16
x16
RJ45
JLAN1
UL1
RJ45
JLAN2
PHY
RTL8211E
PET
[3,4,6,7]
DMI
PET5
LPC
USB2.0
[6]
QPI
DualLAN
I350BT2
PROCESSOR
PROCESSOR
QPI
DDR4 DIMM
#2#1
DDR4 DIMM
DDR4 DIMM
BMC
SATA
Gen3
[0..5]
2,3
REAR
AST2400
DDR4 DIMM
B
DDR4 DIMM
CD
SocketID 01
EH
F
#1
#2
#1
#2
#1 2#
2
##1
#1
#2
#1 #2
x16
Left
SLOT
SXB1B
(lower)
PCIE
3.0
x16
SocketID 00
Left
SLOT
SXB1B
(Upper)
PCIE 3.0x16
AOM
J35
PCIE
3.0 x16
PCH
SPI
SPI
FLASH
32MB
BMC
DDR3
VGA
IPMI
LAN
RJ45
TPM Header
sSATA
Gen3
[0..3]
HDR2x5
WIO Slots
SXB1A
SXB1B
SXB1C
SXB2
PCIE x16
Upper Lower
PCIE x16 PCIE x16
Left Slot
Right Slot
HWM COM1
USB2.0
[0..5]
USB3.0
[1..6]
NC _SI(RMII)
x8
S-SATA3
SPI
FLASH
16MB
BIOS
DMI
S-SATA2
S-SATA1
S-SATA0 I-SATA0
I-SATA1
I-SATA2
I-SATA3
I-SATA4
I-SATA5
Rear

1-6
SUPERSERVER 6028R-WTR(T) USER'S MANUAL
1-4 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
