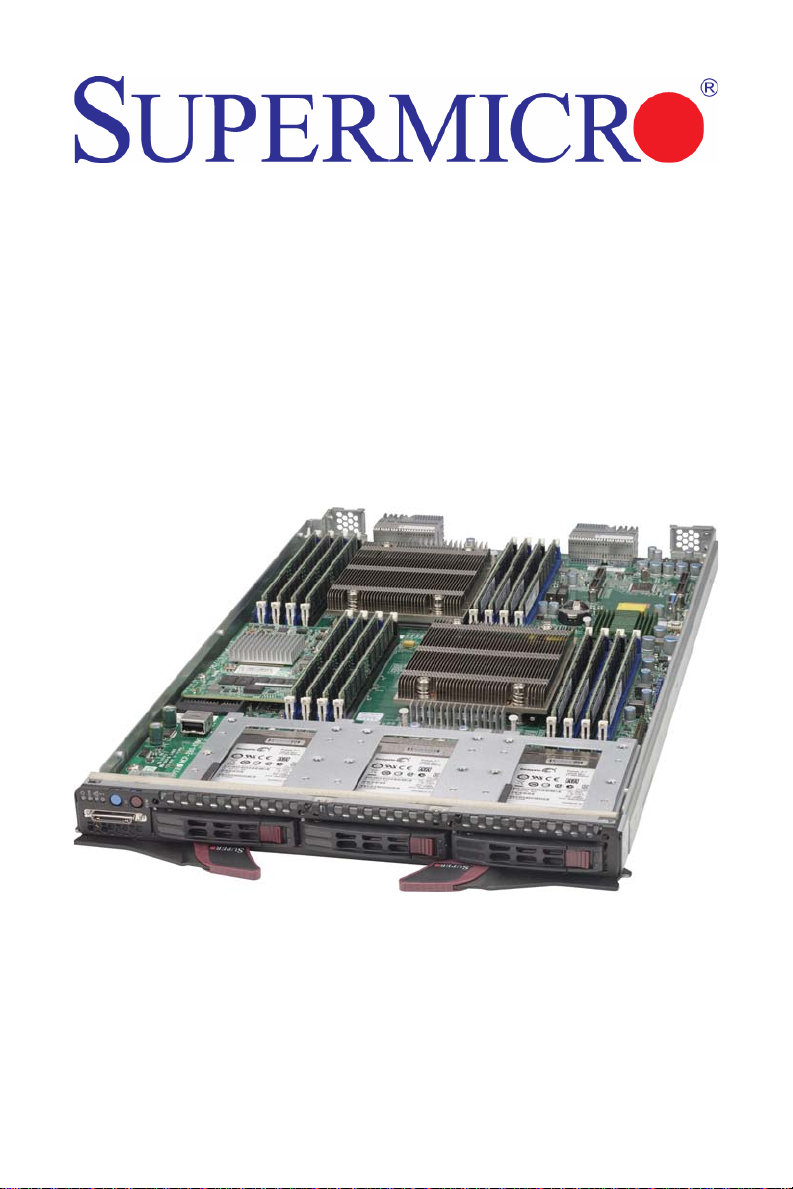

Supermicro SBI-7428R-C3 User manual

SBI-7428R-C3
SBI-7428R-C3N
Blade Module
User’s Manual
Revison 1.0a

SBI-7428R-C3/C3N Blade Module User’s Manual
ii
The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The
vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no
commitment to update or to keep current the information in this manual, or to notify any person or
organization of the updates. Please Note: For the most up-to-date version of this manual, please see
our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described
in this manual at any time and without notice. This product, including software and documentation, is the
property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction
of this product is not allowed, except as expressly permitted by the terms of said license.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE
THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE,
SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF
REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE,
SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara
County in the State of California, USA. The State of California, County of Santa Clara shall be the
exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not
exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the manufacturer’s instruction manual, may cause harmful interference with radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference,
in which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning
applies only to products containing CR (Manganese Dioxide) Lithium coin cells. Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate for further
details.
Manual Revison 1.0a
Release Date: January 27, 2015
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy
any part of this document.
Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2015 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
WARNING: HANDLING OF LEAD SOLDER MATERIALS USED IN THIS
PRODUCT MAY EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS AND OTHER
REPRODUCTIVE HARM.

iii
Preface
About this Manual
This manual is written for professional system integrators, Information Technology
professionals, service personnel and technicians. It provides information for the
installation and use of Supermicro's SBI-7428R-C3/C3N blade module. Installation and
maintenance should be performed by experienced professionals only.
The only difference between the SBI-7428R-C3 and SBI-7428R-C3N blade modules is
that the SBI-7428R-C3N supports NVMe drives and the SBI-7428R-C3 does not.
Manual Organization
Chapter 1: Introduction
The first chapter provides a checklist of the main components included with
SBI-7428R-C3/C3N blade module and describes their main features.
Chapter 2: Standardized Warning Statements
You should familiarize yourself with this chapter for a general overview of safety
precautions that should be followed when installing and servicing SBI-7428R-C3/C3N
blade module.
Chapter 3: Setup and Installation
Refer to this chapter for details on installing the SBI-7428R-C3/C3N blade module into
the SuperBlade®chassis. Other sections cover the installation and placement of
memory modules and the installation of hard disk drives into the blade module.
Chapter 4: Blade Module Features
This chapter coves features and component information about SBI-7428R-C3/C3N
blade module. Included here are descriptions and information for serverboard
components, connectors, LEDs and other features of the blade module.
Chapter 5: RAID Setup Procedure
RAID setup and operations for SBI-7428R-C3/C3N blade module are covered in this
chapter.
Chapter 6: BIOS
BIOS setup is covered in this chapter for SBI-7428R-C3/C3N blade module.
Appendix A: BIOS POST Codes
BIOS POST Codes for SBI-7428R-C3/C3N blade module are explained in this
appendix.

SBI-7428R-C3/C3N Blade Module User’s Manual
iv
Notes

v
Table of Contents
Chapter 1 Introduction.......................................................................1-1
1-1 Overview.............................................................................................1-1
1-2 Product Checklist of Typical Components.....................................1-1
1-3 Blade Module Features....................................................................1-2
Processors..............................................................................................1-2
Memory...................................................................................................1-2
Storage....................................................................................................1-3
NVMe......................................................................................................1-3
Density....................................................................................................1-3
1-4 Contacting Supermicro.....................................................................1-4
Chapter 2 Standardized Warning Statements.....................2-1
2-1 About Standardized Warning Statements......................................2-1
Warning Definition...................................................................................2-1
Installation Instructions ...........................................................................2-3
Circuit Breaker........................................................................................2-4
Power Disconnection Warning................................................................2-5
Equipment Installation.............................................................................2-6
Restricted Area.......................................................................................2-7
Battery Handling .....................................................................................2-9
Redundant Power Supplies ..................................................................2-10
Backplane Voltage................................................................................2-11
Comply with Local and National Electrical Codes.................................2-12
Product Disposal...................................................................................2-13
Hot Swap Fan Warning.........................................................................2-14
Power Cable and AC Adapter ..............................................................2-15
Chapter 3 Setup and Installation.................................................3-1
3-1 Overview.............................................................................................3-1
3-2 Installing Blade Modules..................................................................3-1
Powering Up a Blade Unit.......................................................................3-1
Powering Down a Blade Unit ..................................................................3-1
Removing a Blade Unit from the Enclosure............................................3-2
Removing/Replacing the Blade Cover....................................................3-2
Installing a Blade Unit into the Enclosure ...............................................3-2
3-3 Processor Installation.......................................................................3-4

SBI-7428R-C3/C3N Blade Module User’s Manual
vi
3-4 Onboard Battery Installation............................................................3-9
3-5 Memory Installation...........................................................................3-9
Populating Memory Slots........................................................................3-9
DIMM Installation ..................................................................................3-11
3-6 Hard Disk Drive Installation...........................................................3-12
3-7 Installing the Operating System....................................................3-13
Installing with an External USB CD-ROM Drive....................................3-13
Installing via PXE Boot..........................................................................3-13
Installing via Virtual Media (Drive Redirection) .....................................3-14
3-8 Management Software...................................................................3-14
3-9 Configuring and Setting up RAID.................................................3-14
Chapter 4 Blade Module Features..............................................4-1
4-1 Control Panel.....................................................................................4-2
Power Button ..........................................................................................4-3
KVM Button.............................................................................................4-3
LED Indicators ........................................................................................4-3
KVM Connector.......................................................................................4-3
4-2 Serverboard .......................................................................................4-4
Jumpers..................................................................................................4-6
CMOS Clear............................................................................................4-6
4-3 Blade Unit Components...................................................................4-7
Memory Support .....................................................................................4-8
Hard Disk Drives.....................................................................................4-8
Chapter 5 RAID Setup Procedure...............................................5-1
5-1 RAID Configurations.........................................................................5-1
5-2 Preparing for Setup...........................................................................5-1
5-3 RAID Setup Procedure.....................................................................5-2
Chapter 6 BIOS.......................................................................................6-1
6-1 Introduction.........................................................................................6-1
System BIOS ..........................................................................................6-1
How To Change the Configuration Data .................................................6-1
Starting the Setup Utility..........................................................................6-1
6-2 BIOS Updates....................................................................................6-2
Flashing BIOS.........................................................................................6-2
6-3 Running Setup...................................................................................6-3
6-4 Main BIOS Setup...............................................................................6-4

vii
Table of Contents
6-5 Advanced Setup................................................................................6-5
6-6 Event Logs Setup............................................................................6-17
6-7 IPMI Setup........................................................................................6-19
6-8 Security.............................................................................................6-20
6-9 Boot...................................................................................................6-21
6-10 Save & Exit.....................................................................................6-22
Appendix A BIOS POST Codes....................................................A-1
A-1 BIOS POST Messages....................................................................A-1
A-2 BIOS POST Codes...........................................................................A-3
Recoverable POST Errors......................................................................A-4
Terminal POST Errors.............................................................................A-4

SBI-7428R-C3/C3N Blade Module User’s Manual
viii
Notes

1-1
Chapter 1
Introduction
1-1 Overview
This user’s manual covers the SBI-7428R-C3/C3N blade module. This blade module is
a compact self-contained server that connects into a pre-cabled enclosure that provides
power, cooling, management and networking functions. One enclosure for the
SBI-7428R-C3/C3N blade module can hold fourteen blade units.
In this manual, “blade system” refers to the entire system (including the enclosure and
blades units), “blade” or “blade unit” refers to a single blade module and “blade
enclosure” is the chassis that the blades, power supplies and modules are housed
within.
Please refer to our web site for information on operating systems that have been
certified for use with the SuperBlade (www.supermicro.com/products/superblade/).
1-2 Product Checklist of Typical Components
Your blade module ships with its B10DRC serverboard already installed in its chassis.
Memory, hard disk drives and the CPU must all be installed by the user after shipment.
See Chapter 3: "Setup and Installation" on page 3-1 for details on installation of these
components.
Aside from the blade module unit itself, the following optional Mezzanine add-on cards
(with Infiniband Switch) may be ordered for your blade module:
• AOC-IBH-X3QD
• AOC-IBH-X3QS
• AOC-XEH-iN2
• AOC-IBH-XDD
• AOC-IBH-XQD
• AOC-IBH-XQS
• AOC-IBH-XDS
See the Supermicro website and the SuperBlade Network Modules User’s Manual on
your SuperBlade system’s CD-ROM for more details on these add-on cards.

SBI-7428R-C3/C3N Blade Module User’s Manual
1-2
1-3 Blade Module Features
Table 1-1 lists the main features of the SBI-7428R-C3/C3N blade module. See the
proceeding section for components typically included in a blade system and other
optional components. Specific details for the SBI-7428R-C3/C3N blade module are
found in Chapter 4: "Blade Module Features" on page 4-1.
Processors
The SBI-7428R-C3/C3N blade module supports dual 2011-pin (LGA 2011 Socket R3)
Intel Xeon E5-2600 v3 series processors.
Refer to the Supermicro web site for a complete listing of supported processors (http://
www.supermicro.com/products/superblade). Please note that you will need to check the
detailed specifications of a particular blade module for a list of the CPUs it supports.
Details on installation of the processor into the SBI-7428R-C3/C3N blade module are
found in Chapter 3: "Setup and Installation" on page 3-1.
Memory
The SBI-7428R-C3/C3N blade module has sixteen (16) 288-pin DDR4 DIMM sockets
that can support up to 256 GB of 16 GB, 8 GB or 4 GB VLP RDIMM size, 2133/1866/
1600 MHz speed SDRAM. Memory is interleaved, which requires modules of the same
size and speed to be installed in groups (of two or three).
Please refer to the Supermicro web site for a list of supported memory
(www.supermicro.com/products/superblade). The detailed specifications for a blade
module will contain a link to a list of recommended memory sizes and manufacturers.
Table 1-1. SBI-7428R-C3/C3N Blade Module Specification Features
Serverboard B10DRC (proprietary form factor)
Chassis Dimensions (HxWxD): 11.32"x 1.19" x18.9" (288-mm x 30.2-mm x
480-mm)
Processors Dual or quad core Intserverboardel™Xeon®E5-2600 v3 series 2011-pin
processors. Please refer to our web site for a complete listing of supported
processors.
FSB Speed QPI up to 9.6 GT/s
Chipset Intel C612
Graphics Controller Aspeed AST2400 BMC Graphics
BIOS 128 MB SPI Flash EEPROM with AMI® BIOS
Memory Capacity Supports up to 256 GB memory in 16 GB, 8 GB or 4 GB VLP RDIMM size, 2133/1866/1600 MHz speed SDRAM in sixteen (16) 288-pin DDR4 DIMM
sockets
SATA Controller Intel C612 on-chip controller for three SAS3 drives
Hard Drive Bays Includes three hot-swap drive bays for 2.5" Hot-swap HDD/SSD/NVMe
SAS3 disk drives (RAID 0. 1 and 5)

1-3
Chapter 1: Introduction
Details on installation of memory modules into the SBI-7428R-C3/C3N blade module
are found in Chapter 3: "Setup and Installation" on page 3-1.
Storage
The SBI-7428R-C3/C3N blade module can have three 2.5" Hot-swap HDD/SSD/NVMe
SAS3 hard disk drives in front-mounted easy removable carriers. Only the
SBI-7428R-C3N blade module can support NVMe drives. See Chapter 3: "Setup and
Installation" on page 3-1 for storage installation details.
The SBI-7428R-C3/C3N blade module also has two SuperDOM ports for attaching
SuperDOM drives to the serverboard. See http://www.supermicro.com/products/nfo/
satadom.cfm for details on SuperDOM ports. Note that these ports ONLY support
SuperDOM devices and DO NOT support SATADOM devices.
NVMe
The NVM Express ports available in the SBI-7428R-C3N blade module provide
high-speed, low-latency connections directly from the CPU to NVMe Solid State drives
(SSDs). This greatly increases SSD throughput and significantly reduces storage device
latency by simplifying driver and software requirements resulting from the direct PCI-E
interface between the CPU and the NVMe SSD drives.
Density
A maximum of fourteen blade modules may be installed into a single blade enclosure.
Each blade enclosure is a 7U form factor, so a standard 42U rack may accommodate up
to six 14-blade enclosures with 84 blade modules, or the equivalent of 84 1U servers.
With the inclusion of six CMM modules, twelve Gigabit Ethernet switches and six
InfiniBand switches, this would occupy up to 108U space in a conventional 1U server
configuration.

SBI-7428R-C3/C3N Blade Module User’s Manual
1-4
1-4 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
‘s-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email:
[email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacific
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 23511
Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Website: www.supermicro.com.tw
Technical Support:
Email: [email protected]

2-1
Chapter 2
Standardized Warning Statements
2-1 About Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of
situations which have the potential for bodily injury. Should you have questions or
experience difficulty, contact Supermicro's Technical Support department for assistance.
Only certified technicians should attempt to install or configure components.
