USER’S MANUAL
Revision 1.0d
SuperServer®
SYS-221BT-HNR
SYS-221BT-HNTR
SYS-221BT-HNC8R
SYS-221BT-HNC9R

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGESARISING FROM THE USE OR INABILITYTO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in industrial environment for Class A device or in residential
environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate”.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical
systems whose failure to perform be reasonably expected to result in signicant injury or loss of life or catastrophic
property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0d
Release Date: July 10, 2023
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this
document. Information in this document is subject to change without notice. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2023 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America

3
Preface
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of the server. Installation and maintenance should be
performed by experienced technicians only.
Please refer to the SYS-221BT-H Series server specications page on our website for updates
on supported memory, processors and operating systems (http://www.supermicro.com).
Notes
For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wdl
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
If you have any questions, please contact our support team at:
[email protected]m
This manual may be periodically updated without notice. Please check the Supermicro website
for possible updates to the manual revision level.
Secure Data Deletion
A secure data deletion tool designed to fully erase all data from storage devices can be found
on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/
Lot9_Secure_Data_Deletion_Utility/
Warnings
Special attention should be given to the following symbols used in this manual.
Warning! Indicates high voltage may be encountered when performing a procedure.
Warning! Indicates important information given to prevent equipment/property damage
or personal injury.

4
Preface
Contents
Chapter 1 Introduction
1.1 Overview...............................................................................................................................9
1.2 System Features ................................................................................................................11

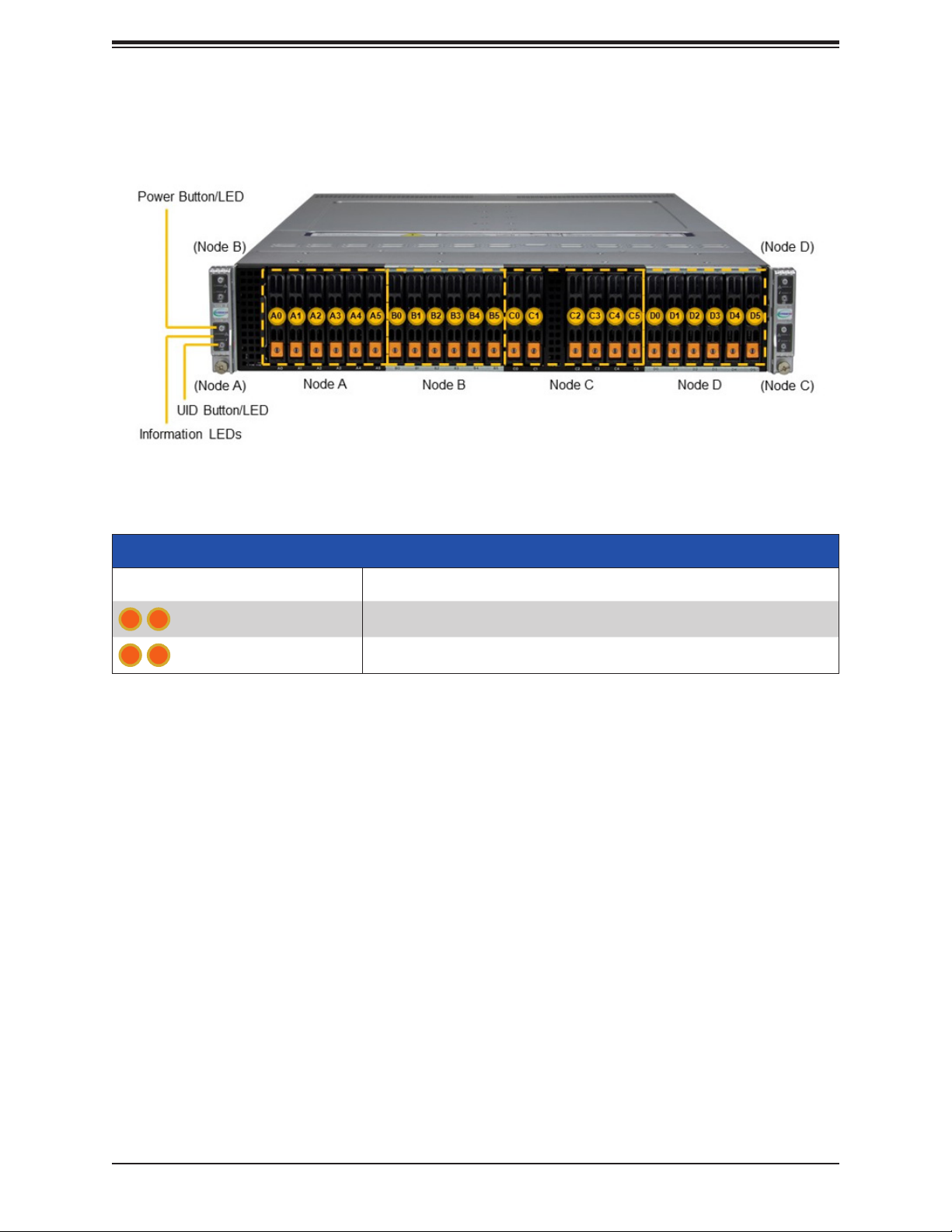

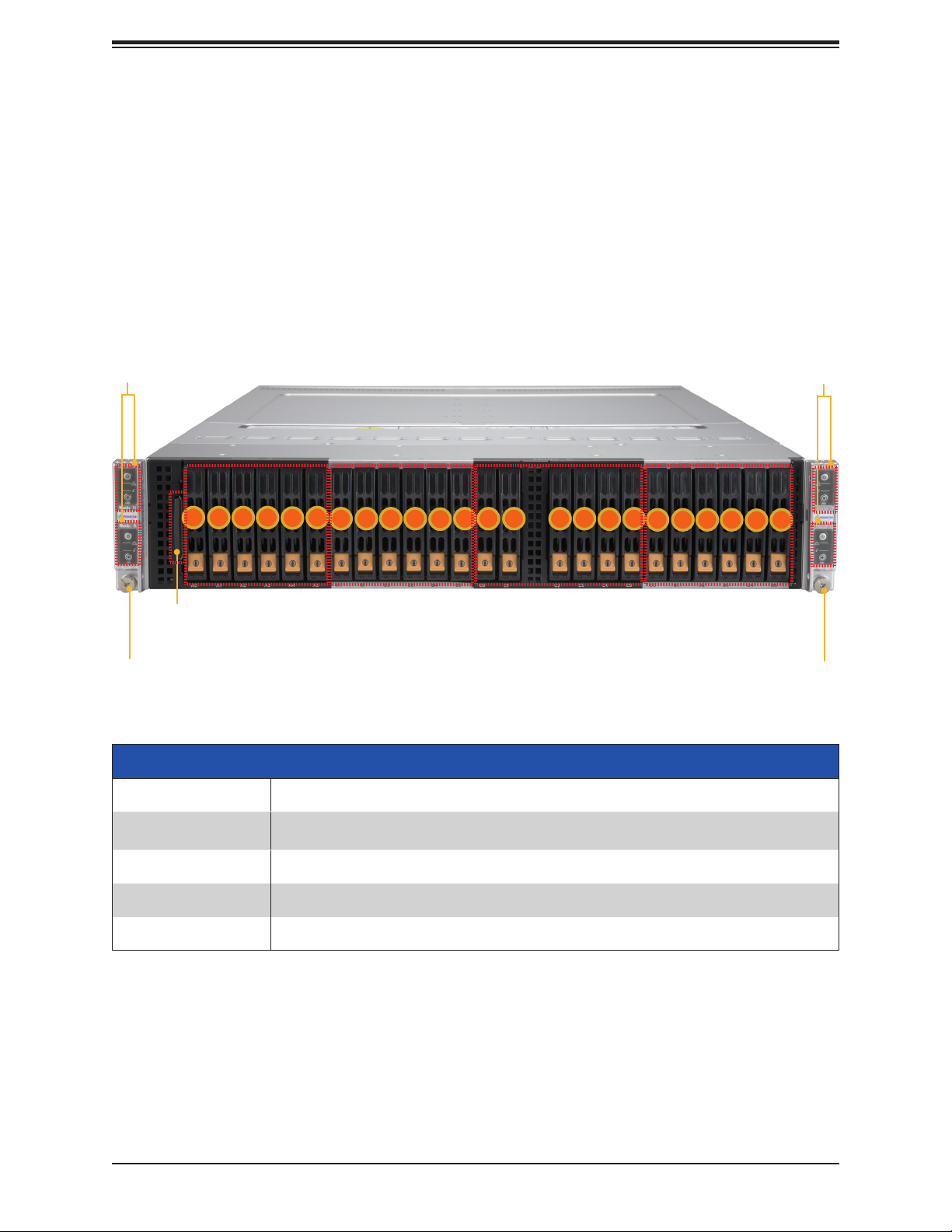

Front View .........................................................................................................................11
Front View: SYS-221BT-HNR ...........................................................................................12
Front View: SYS-221BT-HNTR .........................................................................................13
Front View: SYS-221BT-HNC8R.......................................................................................14
Front View: SYS-221BT-HNC9R.......................................................................................15
Control Panel.................................................................................................................16
Rear View..........................................................................................................................17
1.3 System Architecture ...........................................................................................................18

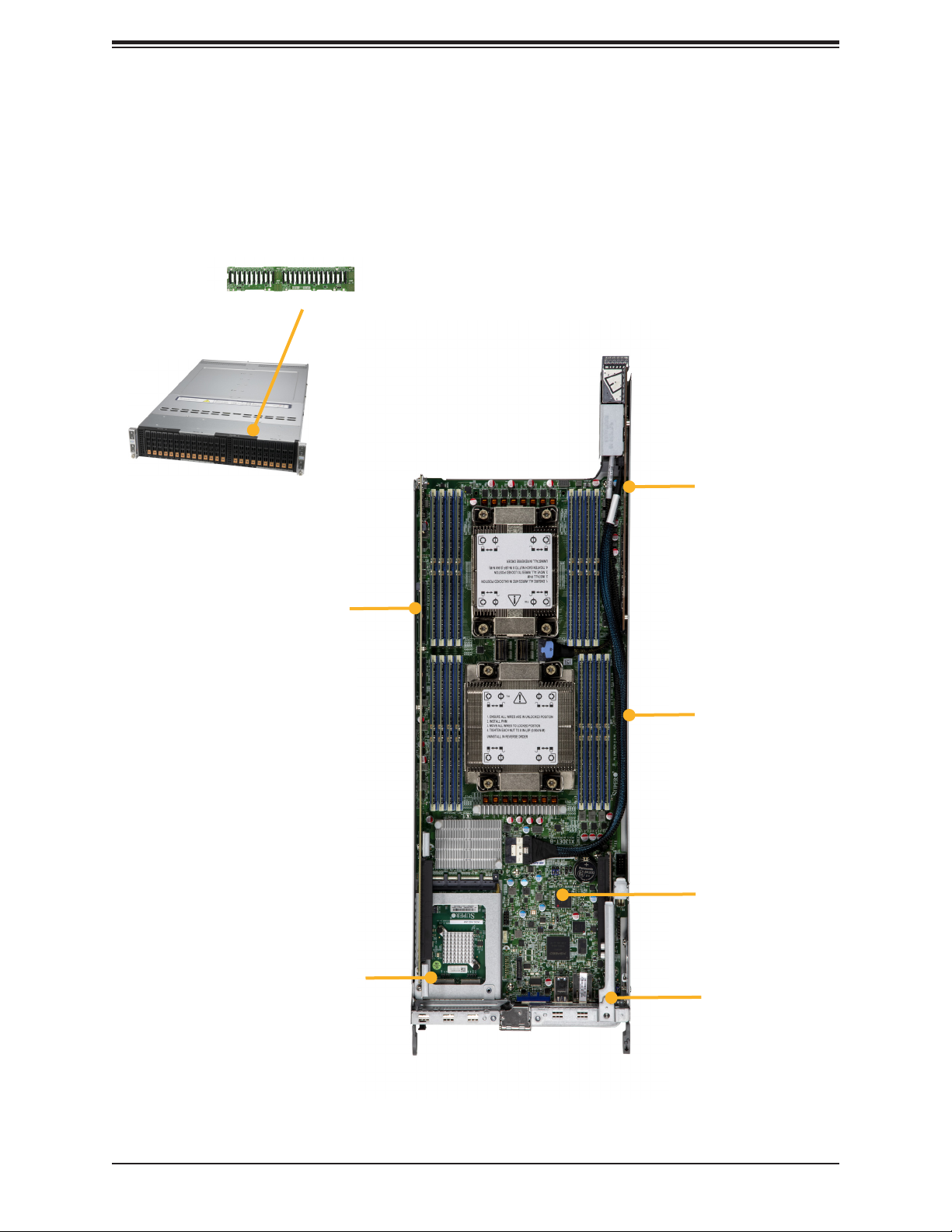

Main Components .............................................................................................................18

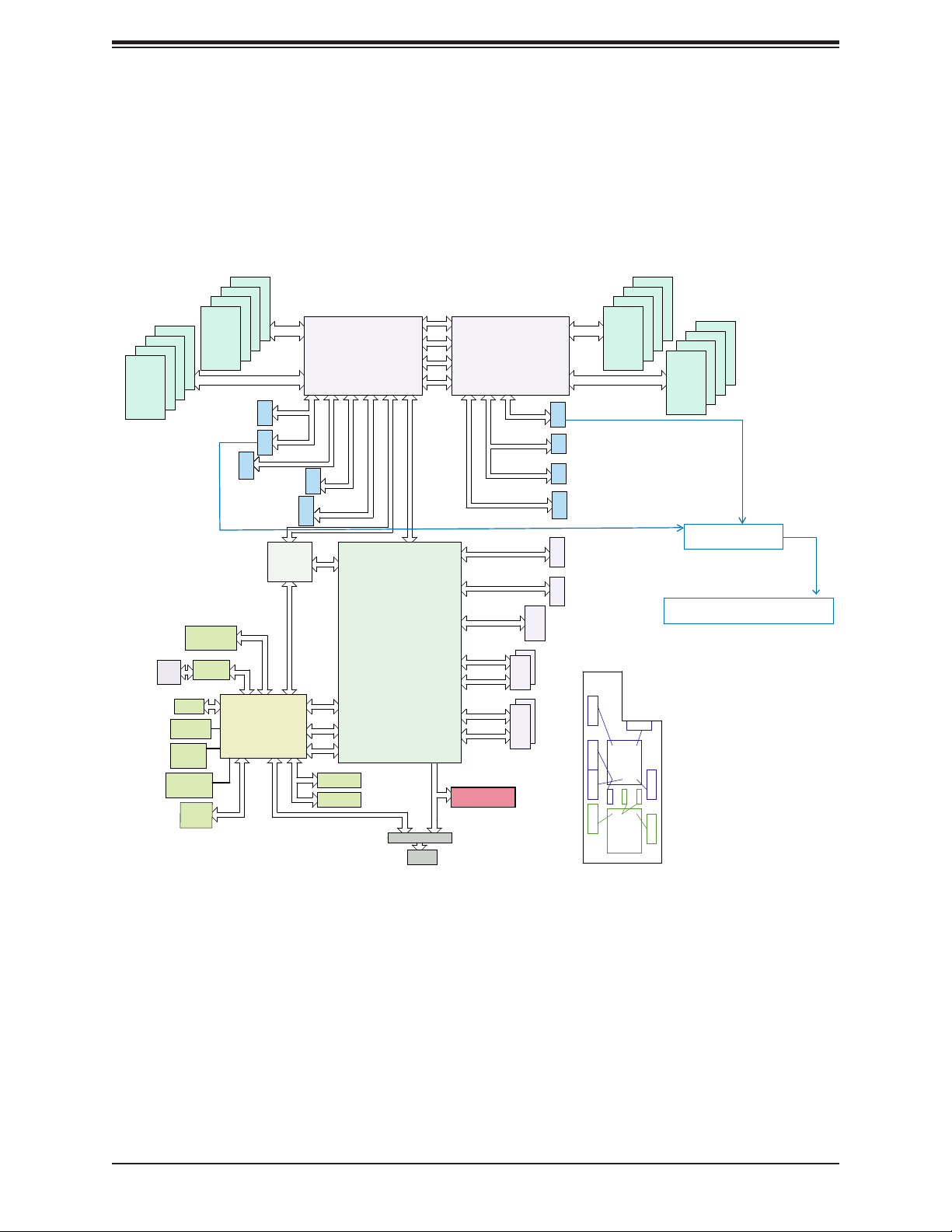

System Block Diagram......................................................................................................19
1.4 Motherboard Layout ...........................................................................................................23
Quick Reference Table......................................................................................................24
Chapter 2 Server Installation
2.1 Overview.............................................................................................................................26
2.2 Unpacking the System .......................................................................................................26
2.3 Preparing for Setup ............................................................................................................26
Choosing a Setup Location...............................................................................................26
Rack Precautions ..............................................................................................................27
Server Precautions............................................................................................................27
Rack Mounting Considerations .........................................................................................27
Ambient Operating Temperature....................................................................................27
Airow ............................................................................................................................28
Mechanical Loading.......................................................................................................28
Circuit Overloading ........................................................................................................28
Reliable Ground.............................................................................................................28
2.4 Rack Mounting Instructions................................................................................................30
Overview of the Rack Rails...............................................................................................30
Adjusting the Rail Length ..............................................................................................30
Installing the Rails on a Rack ...........................................................................................31

5
Preface
Chassis Installation ...........................................................................................................32
Chapter 3 Maintenance and Component Installation
3.1 Removing Power ...............................................................................................................33
3.2 Accessing the System........................................................................................................34
Removing a Computing Node Drawer ..............................................................................34
Removing the Chassis Cover ...........................................................................................35
3.3 Processor and Heatsink Installation...................................................................................36
Installation Overview .........................................................................................................37
Removal Overview ............................................................................................................37
Create the Processor Carrier Assembly ...........................................................................38
Creating the PHM .............................................................................................................42
Preparing the CPU Socket for Installation........................................................................44
Installing the PHM into the CPU Socket...........................................................................45
Removing the PHM from the CPU Socket .......................................................................46
Removing the Processor Carrier Assembly from the PHM ..............................................47
Removing the Processor from the Processor Carrier Assembly ......................................48
3.4 Motherboard Installation.....................................................................................................49
Tools Needed ....................................................................................................................49
Location of Mounting Holes ..............................................................................................49
Installing the Motherboard.................................................................................................50
3.5 Memory...............................................................................................................................51
Memory Support................................................................................................................51
Memory Installation Sequence..........................................................................................51
General Memory Population Requirements......................................................................51
DDR5 Memory Population Guidelines ..............................................................................52
DIMM Installation ..............................................................................................................54
DIMM Removal .................................................................................................................54
3.6 Motherboard Battery...........................................................................................................55
3.7 Storage Drives....................................................................................................................56
Drive Carriers ....................................................................................................................56
Drive Conguration ...........................................................................................................57
Installing Drives.................................................................................................................58
Hot-Swap for NVMe Drives...............................................................................................60
Checking the Temperature of an NVMe Drive ..............................................................61
3.8 System Cooling ..................................................................................................................62

6
Preface
Fans ..................................................................................................................................62
Installing the Air Shroud....................................................................................................64
3.9 Power Supply .....................................................................................................................65
3.10 AIOM Card ........................................................................................................................66
3.11Expansion Cards ................................................................................................................67
3.12 Backplane..........................................................................................................................72
3.13 Storage Adapters ..............................................................................................................72
3.14 Cable Routing Diagrams...................................................................................................73
All Flash NVMe Gen5 .......................................................................................................73
NVMe and SATA ...............................................................................................................74
NVMe and SAS via onboard 3808....................................................................................75
NVMe and SAS via 3908 AOC .........................................................................................76
Chapter 4 Motherboard Connections
4.1 Power Connections ............................................................................................................77
4.2 Headers and Connectors ...................................................................................................78
4.3 Input/Output Ports ..............................................................................................................81
4.4 Jumpers..............................................................................................................................83
How Jumpers Work...........................................................................................................83
4.5 LED Indicators....................................................................................................................85
Chapter 5 Software
5.1 Microsoft Windows OS Installation.....................................................................................86
5.2 Driver Installation................................................................................................................88
5.3 SuperDoctor®5...................................................................................................................89
5.4 BMC....................................................................................................................................90
BMC ADMIN User Password ............................................................................................90
Chapter 6 Optional Components
6.1 Optional Parts List..............................................................................................................91
6.2 TPM Security Module.........................................................................................................91
6.3 Intel Virtual RAID on CPU (VROC)....................................................................................92
Requirements and Restrictions.........................................................................................92
Supported SSDs and Operating Sytems ..........................................................................92
Additional Information .......................................................................................................93
Hardware Key ...................................................................................................................93
Conguring Intel VMD.......................................................................................................94
Conguring VMD Manually............................................................................................94

7
Preface
Creating NVMe RAID Congurations................................................................................98
Status Indications..............................................................................................................99
Hot-Swap Drives ...............................................................................................................99
Hot-unplug .....................................................................................................................99
Hot-plug .........................................................................................................................99
Related Information Links .................................................................................................99
Chapter 7 Troubleshooting and Support
7.1 Information Resources .....................................................................................................100
Website ...........................................................................................................................100
Direct Links for the SYS-221BT-H Series System ......................................................100
Direct Links for General Support and Information .....................................................101
7.2 Baseboard Management Controller (BMC)......................................................................101
7.3 Troubleshooting Procedures ...........................................................................................102
General Technique ..........................................................................................................102
No Power ........................................................................................................................102
No Video .........................................................................................................................103
System Boot Failure .......................................................................................................103
Memory Errors ................................................................................................................103
Losing the System Setup Conguration .........................................................................103
When the System Becomes Unstable ............................................................................103
7.4 Crash Dump Using BMC..................................................................................................105
7.5 UEFI BIOS Recovery .......................................................................................................106
Overview .........................................................................................................................106
Recovering the UEFI BIOS Image..................................................................................106
Recovering the Main BIOS Block with a USB Device....................................................106
7.6 CMOS Clear .....................................................................................................................111
7.7 Where to Get Replacement Components........................................................................112
7.8 Reporting an Issue ...........................................................................................................112
Technical Support Procedures ........................................................................................112
Returning Merchandise for Service.................................................................................112
Vendor Support Filing System ........................................................................................113
7.9 Feedback..........................................................................................................................113
Appendix A Standardized Warning Statements for AC Systems
Appendix B System Specications
BSMI/RoHS .............................................................................................................................137

8
Preface
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Sales Inquiries)
[email protected] (Gov. Sales Inquiries)
[email protected] (Technical Support)
[email protected] (RMA Support)
[email protected] (Webmaster)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (Sales Inquiries)
[email protected] (Technical Support)
[email protected] (RMA Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [email protected] (Sales Inquiries)
[email protected] (Technical Support)
[email protected] (RMA Support)
Website: www.supermicro.com.tw

9
Chapter 1: Introduction
Chapter 1
Introduction
1.1 Overview
This chapter provides a brief outline of the functions and features of the SuperServer
SYS-221BT-H Series. It provides four nodes for e󰀩cient power sharing, OCP 3.0 interfaces,
and an optional M.2 NVMe physical RAID controller. The SuperServer SYS-221BT-H Series
is based on the X13DET-B motherboard and the CSE-217BQ2-R3K04P chassis.
System Overview
Motherboard X13DET-B
Chassis CSE-217BQ2-R3K04P
Processor
Support
Supports dual 4th Gen Intel Xeon Scalable Processors (in Socket E LGA4677) with four UPIs (max
16GT/s) and a TDP (thermal design power) of up to 350 W per node.
Supports SP XCC, SP MCC, and HBM SKU on the X13DET-B.
Chipset Intel C741 PCH
Memory Supports up to 4 TB RDIMM DDR5 (288-pin) ECC memory with speeds up to 4800 MT/s in 16 DIMM
slots
Drive Support
Front hot-swappable drives include:
24 NVMe drives for SYS-221BT-HNR (all drives are PCIe 5.0)
24 NVMe/SATA drives for SYS-221BT-HNTR (the rst two drives are PCIe 5.0 in each node)
24 NVMe/SAS drives for SYS-221BT-HNC8R (the rst two drives are PCIe 5.0 in each node)
24 NVMe/SAS drives for SYS-221BT-HNC9R (the rst two drives are PCIe 5.0 in each node)
Internal M.2 drives per node includes one of the following:
Carrier with two M.2 NVMe Gen 4 SSDs in the 22110 form factor
Carrier with two M.2 NVMe Gen 3 SSDs in the 2280 form factor
Internal Connector:
VROC key header
Expansion Slots Two PCIe 5.0 x16 slots for each node
Networking One AIOM or any compliant OCP 3.0 SFF Network Interface Card per node
One dedicated LAN port for BMC per node
I/O Ports
Two USB 3.1 ports per node
One VGA port per node
One internal COM port per node
System Cooling
Four 8-cm mid-chassis fans
Two CPU heatsinks per node
One air shroud per node
Power Redundant 3000 W modules, 80Plus level Titanium
Form Factor 2U rackmount; (WxHxD) 17.6 x 3.5 x 28.8 in (447 x 88 x 730 mm)
Notes: A Quick Reference Guide can be found on the product page of the Supermicro website.
The following safety models associated with the SYS-221BT-H Series have been certied as
compliant with CSA or UL models: 217B-22, 217B-30, 217B-R22X13, 217B-R30X13.

10
Chapter 1: Introduction
System Models
Models Storage Capabilities (per node)
SYS-221BT-HNR Six NVMe drives via backplane and NVMe cables
SYS-221BT-HNTR Six hybrid NVMe/SATA drives via backplane and NVMe and SATA cables
SYS-221BT-HNC8R Six hybrid NVMe/SAS drives via backplane and NVMe cables and 3808 SAS card
SYS-221BT-HNC9R Six hybrid NVMe/SAS drives via backplane and NVMe cables, riser card, and 3908 add-
on card
Note: Of the six hybrid drives, two support PCIe 5.0 NVMe and four support PCIe 4.0 NVMe.
The SYS-221BT-HNR supports PCIe 5.0 NVMe on all slots.

11
Chapter 1: Introduction
1.2 System Features
The CSE-217BQ2-R3K04P is a 2U chassis that supports 24 front hot-swappable drives and
four rear hot-pluggable nodes.
Front View
The chassis front o󰀨ers access to the storage drives, a control panel for each node, and a
pull-out service tag.
Figure 1-1. Front View
System Features: Front
Feature Description
Control Panels Four control panels with labels for each node. The four control panels are located as
follows: node A bottom left, node B top left, node C bottom right, and node D top right.
Service Tag Pull-out service tag with BMC password label
Drive Bays 24 2.5" hot-swappable drive bays
Thumbscrews Two thumbscrews to secure the server onto the rack
Control Panels for Node A
(bottom) and Node B (top)
Service Tag
A0 A2A1 A4 A3 A5 B0 B2B1 B4
B3 B5 C0 C2C1 C4 C3 C5 D0 D2D1 D4
D3 D5
Control Panels for Node C
(bottom) and Node D (top)
Thumbscrew Thumbscrew

12
Chapter 1: Introduction
Front View: SYS-221BT-HNR
Figure 1-2. Front View
Drive Bays
Drive Bays (Node A - Node D) Description
0-1Two 2.5" Hot-Swap NVMe Gen 5 (CPU1) Drive Bays
2-5Four 2.5" Hot-Swap NVMe Gen 5 (CPU2) Drive Bays

13
Chapter 1: Introduction
Front View: SYS-221BT-HNTR
Figure 1-3. Front View
Drive Bays
Drive Bays (Node A - Node D) Description
0-1Two 2.5" Hot-Swap NVMe Gen 5 (CPU1) Drive Bays
2-5Four 2.5" Hot-Swap NVMe Gen 5 (CPU2) Drive Bays

14
Chapter 1: Introduction
Front View: SYS-221BT-HNC8R
Figure 1-4. Front View
Drive Bays
Drive Bays (Node A - Node D) Description
0-1Two 2.5" Hot-Swap NVMe Gen 5 (CPU1) Drive Bays
2-5Four 2.5" Hot-Swap NVMe Gen 5 (CPU2) Drive Bays

15
Chapter 1: Introduction
Front View: SYS-221BT-HNC9R
Figure 1-5. Front View
Drive Bays
Drive Bays (Node A - Node D) Description
0-1Two 2.5" Hot-Swap NVMe Gen 5 (CPU1)/SAS Drive Bays
2-5Four 2.5" Hot-Swap NVMe Gen 4 (CPU2)/SAS Drive Bays

16
Chapter 1: Introduction
Control Panel Features (One Per Node)
Feature Description
Power Button The main power switch applies or removes primary power from the power supply to the
server but maintains standby power.
NIC LED Indicates network activity on the LAN when ashing.
Information LED Universal information LED (see table below for details).
UID LED
The unit identication (UID) button turns on or o󰀨 the blue light function of the Information
LED and a blue LED on the rear of the chassis. These are used to locate the server in large
racks and server banks.
Node Label Label with the name of the node that is connected to the control panel. Labels for nodes A
and C are above their control panel. Labels for nodes B and D are below their control panel.
Control Panel
Figure 1-6. Control Panel (One Per Node)
Power Button
UID LED
NIC LED
Information LED
Node Label
Information LED
Color, Status Description
Red, solid An overheat condition has occurred.
Red, blinking at 1 Hz Fan failure, check for an inoperative fan.
Red, blinking at 0.25 Hz Power failure, check for a non-operational
power supply.
Red, solid, with Power LED blinking green Fault detected
Blue and red, blinking at 10 Hz Recovery mode
Blue, solid UID has been activated locally to locate
the server in a rack environment.
Blue, blinking at 1 Hz UID has been activated using the BMC to
locate the server in a rack environment.
Blue, blinking at 2 Hz BMC is resetting
Blue, blinking at 4 Hz BMC is setting factory defaults
Blue, blinking at 10 Hz with Power LED blinking
green BMC/BIOS rmware is updating

17
Chapter 1: Introduction
Rear View
Figure 1-7. System: Rear View
System Features: Rear
Feature Description
Nodes A, B, C, D Independent computing nodes
Power Supplies Two 3000 W redundant power supplies
VGA Port Video port
USB Ports Two USB 3.1 ports
LAN Port Dedicated BMC LAN port
Dual Function Switch A switch that can function as either a UID LED switch or a BMC reset switch. See
Chapter 4 for a description of the dual function switch.
A1 x16 AIOM slot (CPU1) in each node
Node C Node A
Node D Node B
Power Supply
1
2
Node Handle
2
2
2
1
A1
1
Expansion Slot Locations
Item Description (all PCIe 5.0)
1x16 low prole slot (CPU1) in each node
2x16 low prole slot (CPU2) in each node
VGA Port
USB Ports
BMC LAN
Dual Function Switch
1
A1
A1
A1
CPU1 CPU2

18
Chapter 1: Introduction
1.3 System Architecture
This section covers the printed circuit board (PCB) locations and the system block diagrams.
Main Components
Figure 1-8. SYS-221BT-HNTR Board Locations
Storage Adapter
Motherboard
Riser Card for
SYS-221BT-HNC9R
AOC SAS3908
M.2 Card Carrier
SAS Card for
SYS-221BT-HNC8R
AIOM
Storage Backplane

19
Chapter 1: Introduction
Figure 1-9. SYS-221BT-HNR System Block Diagram
System Block Diagram
The block diagram below shows the connections and relationships between the subsystems
and major components of the overall system.
Note: The gure is for illustrative purposes only. See the memory section and expansion card
section for more details about possible congurations.
SXB3
PCIe x16
SXB1
#2
PCIe X16
SOCKET ID:0
#4
PECI:30
#0
PECI:31
PCIe x8
NCSI
master
PCIe x1
#1
DMI3
NCSI Header
#1
P3
#3
DMI3
SPI
#3
SOCKET ID:1
PCIe X8
eMMC
DIMMH1
CPU#1
DIMMG1
UPI
P1
UPIDIMME1
VGA CONN
DDR5
UPI
SATA1
CPU#2
DIMMF1
UPI
AIOM
UPI
12.8G/14.4G/16GT/s
DDR5
DDR5
IMC0 4CH
DIMMA1
DIMMB1
SLOT1
DIMMC1
P0
NS2
AST2600
COM1
Header
DDR4 BMC
SXB5
DDR5
4800
IMC1 4CH
P0
LAN3
USB 2.0
RGRMII
RTL8211F
RJ45
ESPI
USB2.0
15W
PCIe X8
P1
RMII/NCSI
SXB4
DDR5
USB 3.1
USB
USB 2.0
DDR5
PCH
PCIe X16
IMC0 4CH
SLOT2
DIMMA1
DIMMC1
DIMMD1
DIMMB1
Temp Sensor
NCT7718W
8 x SATA3
6.0 Gb/S
SXB5
DIMMD1
4800
P2
DIMMG1
DIMME1
DIMMF1
DIMMH1
P2
4800
4800
IMC1 4CHP3
#0
DMI3
DMI3
SATA2
4 x SATA3
6.0 Gb/S
BMC Flash
eMMC
#2
PCIe x8
SPI
BIOS
MUX
TPM HEADER
#4
SPIBMC TPM
Onboard
NS1
PCIe X8
NS3
PCIe X8
PCIe X16
USB 3.1
USB 2.0
USB Header
2 x SATA3
X16
X8
X8
X16X16
SLOT1
X16
SXB1
X8
SLOT2
SXB4SXB3
AIOM
CPU2
CPU1
SXB5
NS1 NS2 NS3
SYS-221BT-HNR Block Diagram
PCIe x16
SCC-P6NG5-B1
BPN-NVME5-217BHQ-S6
PCIe x8

20
Chapter 1: Introduction
Figure 1-10. SYS-221BT-HNTR System Block Diagram
SXB3
PCIe x16
SXB1
#2
PCIe X16
SOCKET ID:0
#4
PECI:30
#0
PECI:31
PCIe x8
NCSI
master
PCIe x1
#1
DMI3
NCSI Header
#1
P3
#3
DMI3
SPI
#3
SOCKET ID:1
PCIe X8
eMMC
DIMMH1
CPU#1
DIMMG1
UPI
P1
UPIDIMME1
VGA CONN
DDR5
UPI
SATA1
CPU#2
DIMMF1
UPI
AIOM
UPI
12.8G/14.4G/16GT/s
DDR5
DDR5
IMC0 4CH
DIMMA1
DIMMB1
SLOT1
DIMMC1
P0
NS2
AST2600
COM1
Header
DDR4 BMC
SXB5
DDR5
4800
IMC1 4CH
P0
LAN3
USB 2.0
RGRMII
RTL8211F
RJ45
ESPI
USB2.0
15W
PCIe X8
P1
RMII/NCSI
SXB4
DDR5
USB 3.1
USB
USB 2.0
DDR5
PCH
PCIe X16
IMC0 4CH
SLOT2
DIMMA1
DIMMC1
DIMMD1
DIMMB1
Temp Sensor
NCT7718W
8 x SATA3
6.0 Gb/S
SXB5
DIMMD1
4800
P2
DIMMG1
DIMME1
DIMMF1
DIMMH1
P2
4800
4800
IMC1 4CHP3
#0
DMI3
DMI3
SATA2
4 x SATA3
6.0 Gb/S
BMC Flash
eMMC
#2
PCIe x8
SPI
BIOS
MUX
TPM HEADER
#4
SPIBMC TPM
Onboard
NS1
PCIe X8
NS3
PCIe X8
PCIe X16
USB 3.1
USB 2.0
USB Header
2 x SATA3
X16
X8
X8
X16X16
SLOT1
X16
SXB1
X8
SLOT2
SXB4SXB3
AIOM
CPU2
CPU1
SXB5
NS1 NS2 NS3
SYS-221BT-HNTR Block Diagram
8 x SATA3
PCIe x16
SCC-P6N6SGH-B1
BPN-NVME5-217BHQ-S6
PCIe x8
Note: The gure is for illustrative purposes only. See the memory section and expansion card
section for more details about possible congurations.
