SUPREME AMBIANCE Elegance 40 User manual

Elegance 40
Owner’s Manual
Model Number: 32SF
This product is proudly developed and manufactured in North America by SUPREME FIREPLACES INC.
3594 Jarry East, Montreal, QC H1Z 2G4
T: 877-593-4722, F: 514-593-4424
www.supremem.com
Revised: October 2022
IMPORTANT: Keep the owner’s manual for future use.

ii
CONTENTS
SAFETY ..........................................................................................................................................................................1
GENERAL INFORMATION.............................................................................................................................................2
2.1 Overall Dimensions.................................................................................................................................................2
2.1.1 Traditional Dimensions....................................................................................................................................2
2.1.2 Clean Face Dimensions..................................................................................................................................3
2.2 Specifications..........................................................................................................................................................4
2.3 Combustion Air Control...........................................................................................................................................5
2.4 Cold Hand Key........................................................................................................................................................5
2.5 Chimney Sweeping Cap..........................................................................................................................................5
2.6 Door.........................................................................................................................................................................5
2.7 Certification Label....................................................................................................................................................6
2.8 Removable Ash Lip.................................................................................................................................................6
2.9 SUPREME Radiation Shield Offset.........................................................................................................................6
2.10 Baffle Secondary Burn Technology.........................................................................................................................6
2.11 Soapstone Interior...................................................................................................................................................7
2.12 Blower Kit................................................................................................................................................................7
2.13 Optional Hot Air Kit..................................................................................................................................................7
2.14 Optional Fresh Air Kit..............................................................................................................................................7
INSTALLATION INSTRUCTIONS...................................................................................................................................8
3.1 Location...................................................................................................................................................................8
3.2 Chimney Installation................................................................................................................................................9
3.2.1 General Rules and Guidelines ........................................................................................................................9
3.2.2 Listed UL 103 / ULC S629 Approved Chimney Models (Reference Table)..................................................10
3.2.3 Chimney Installation Instructions ..................................................................................................................10
3.2.4 Offset Installation...........................................................................................................................................11
3.2.5 Angled Wall Radiation Shield........................................................................................................................11
3.2.6 Connecting to a Masonry Chimney...............................................................................................................11
3.3 Framing .................................................................................................................................................................13
3.4 Surround Installation .............................................................................................................................................14
3.4.1 Traditional Surround......................................................................................................................................14
3.4.2 Clean face Surround .....................................................................................................................................15
3.5 Gravity Kit Installation ...........................................................................................................................................17

iii
3.5.1 Dual Louver Gravity Ducts ............................................................................................................................17
3.5.2 Single Linear Front Louver............................................................................................................................19
3.6 Hearth Extension...................................................................................................................................................23
3.7 Chase Installation..................................................................................................................................................24
3.8 Clearances to Combustibles .................................................................................................................................25
3.9 Blower Kit..............................................................................................................................................................26
OPTIONS......................................................................................................................................................................28
4.1 Hot Air Kit..............................................................................................................................................................28
4.2 Fresh Air Kit...........................................................................................................................................................30
OPERATION INSTRUCTIONS.....................................................................................................................................31
5.1 Fuel .......................................................................................................................................................................31
5.2 First Fires ..............................................................................................................................................................31
5.3 Operating the Combustion Air Control..................................................................................................................32
5.4 Starting a High Efficiency Fire...............................................................................................................................32
5.5 Adding a New Load of Wood ................................................................................................................................33
5.6 Blower Kit Operation .............................................................................................................................................33
TROUBLESHOOTING..................................................................................................................................................34
6.1 Backdraft / Smoking..............................................................................................................................................34
6.2 Over Firing.............................................................................................................................................................34
MAINTENANCE............................................................................................................................................................35
7.1 Disposal of Ashes..................................................................................................................................................35
7.2 Chimney Maintenance ..........................................................................................................................................35
7.3 Cleaning of Glass..................................................................................................................................................36
7.4 Replacing a Soapstone Panel...............................................................................................................................36
7.5 Replacing the Door Gasket...................................................................................................................................36
7.6 Replacing the Glass Panel....................................................................................................................................37
7.7 Door Latch Maintenance.......................................................................................................................................38
7.8 Paint ......................................................................................................................................................................38
7.9 Replacement Parts................................................................................................................................................39
WARRANTY..................................................................................................................................................................40
8.1 Warranty Limitations: ............................................................................................................................................40

1
SAFETY
SUPREME FIREPLACES INC. congratulates you on purchasing an Elegance 40 wood burning fireplace. This
manual describes the installation and operation of the Elegance 40 non-catalytic wood heater. This heater
meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after
May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from
12,430 to 29,274 Btu/hr. In addition, this fireplace complies with the ULC-S610 and UL-127 standards.
SAFETY NOTICE: Carefully read this manual before installation and operation of this fireplace. A house
fire may result if not properly installed. To reduce the risk of a fire, follow the installation instructions.
Failure to follow instructions presented in this manual can lead to property damage, bodily injury or
even death. Alterations or modifications made on the unit or the installation is strictly forbidden as it
may predispose the user to hazardous risks. Contact your local building or fire officials for restrictions
and installation inspection requirements in your area and the need to obtain a permit.
WARNING: This unit is hot during operation; keep children, pets, flammable liquids, or combustible
materials at a safe distance. Ensure that all clearances to combustible materials are respected. Contact
with the unit during operation may cause severe harm. Install a safety screen to keep children and pets
away.
CAUTION:
•Do not connect this unit to a chimney flue serving another appliance.
•Do not connect to any air distribution duct or system.
•Never use chemicals to ignite the fire.
•Never burn waste or flammable fluids (such as gasoline, naphtha, or engine oil).
•Only burn dry natural cordwood.
•Never leave the unit unattended with the door open or unlatched.
•Only refuel this unit when the wood is reduced to embers.
•Always keep the door closed during operation.
•Do not operate this unit with a fireplace grate.
•Do not install an unvented gas log set into the firebox.
•Do not install this unit in a mobile home.
•Do not clean or service the unit while it is hot.
•Allow proper air flow by keeping the louvers/openings clear of any obstructions.
Note: Failure to respect the above cautions may cause damages to the unit, damages to personal property,
bodily harm and will void the warranty. “This wood heater needs periodic inspection and repair for proper
operation. It is against federal regulations to operate this wood heater in a manner inconsistent with
operating instructions in this manual.”
This product can expose you to chemicals including carbon monoxide, which is known to
the State of California to cause cancer, birth defects or other reproductive harm. For
more information go to www.P65warnings.ca.gov/

2

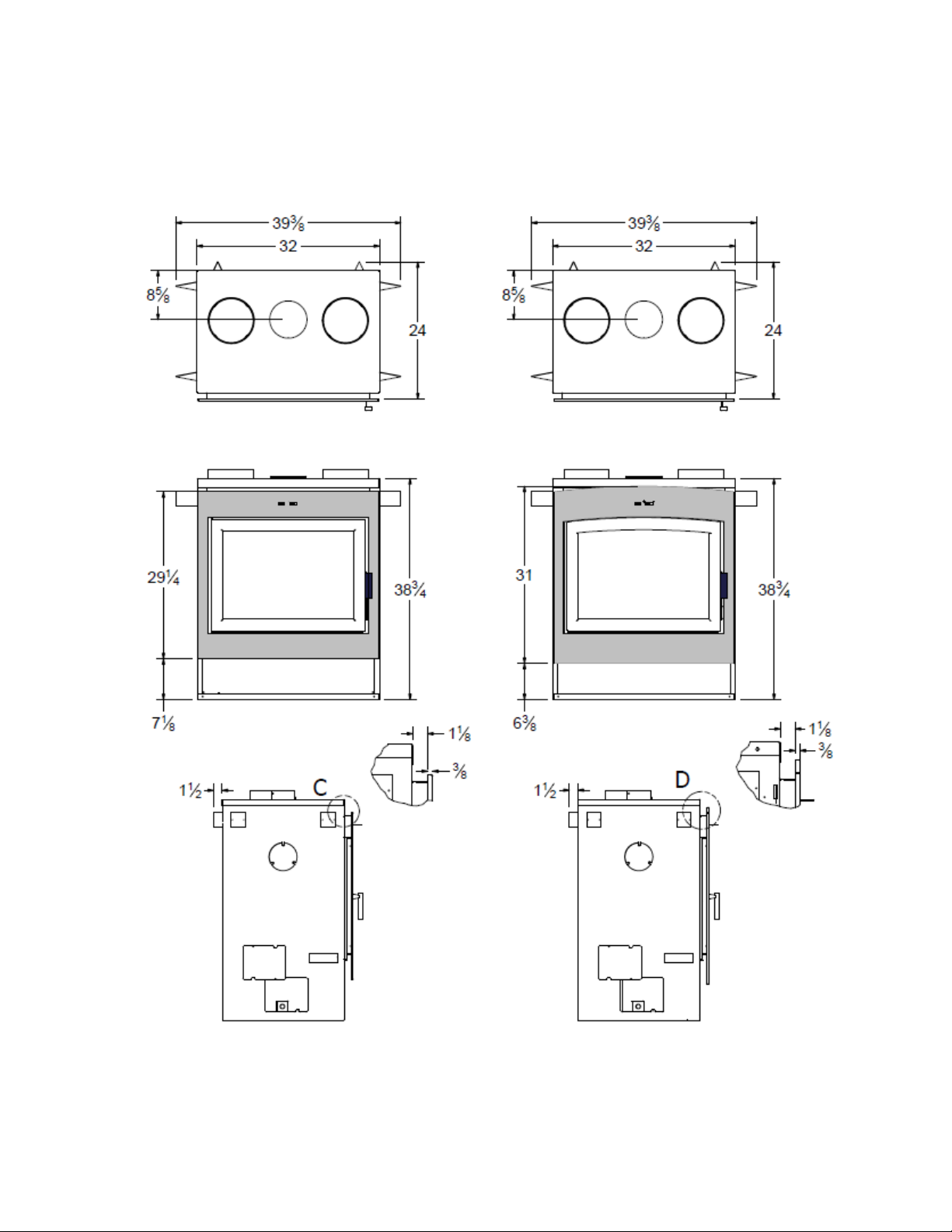

Figure 2-1: Elegance 40 Traditional Rectangular Dimensions
Figure 2-2: Elegance 40 Traditional Arched Dimensions
GENERAL INFORMATION
2.1 Overall Dimensions
2.1.1 Traditional Dimensions

3
Figure 2-3: Elegance 40 Clean Face Rectangular Dimensions
Figure 2-4: Elegance 40 Clean Face Arched Dimensions
2.1.2 Clean Face Dimensions

4
WARRANTY REGISTRATION
Please register your SUPREME product online at http://www.supremem.com/warranty.php to ensure full
warranty coverage. Proof of purchase is required for all warranty claims.
2.2 Specifications
Appliance Type:
Adjustable Burn Rate Wood Heater –Non-Catalytic
Fuel Type:
Dry Cordwood
Maximum Log Length:
20 in (60.8 cm)
Burn Time1:
6 to 12 hrs
Firebox Volume:
3.2 ft3 (0.091 m3)
Heating Area:
1,000 to 2,000 ft2(93 to 185 m2)
Average Particulate Emissions Rate2:
1.47 g/hr
Average CO Emissions Rate3:
1.97 g/min
EPA Protocol:
Method 28R, ASTM2780-10, and ASTM2515-11
Efficiency (Crib Wood):
HHV4: 67.3% | LHV5: 71.9%
Heat Output (Crib Wood):
12,430 to 29,274 BTU/hr (3,643 to 8,579 W)
Optimum Efficiency:
75%
Optimum Heat Output:
100,000 BTU (29.3 kWh)
Efficiency Protocol:
CSA B415.1-10
1
Depending on combustion air control setting (see Section 5.3 for further details).
2
Officially tested and certified by an independent laboratory.
3
Note that rate is smaller for low to medium/low burn rates.
4
Higher Heating Value.
5
Lower Heating Value.

5
Figure 2-5: Combustion Air Control’s
Activator and Burn Rate Selector
Figure 2-6: Cold Hand Key
Figure 2-7: Chimney Sweeping Cap
2.3 Combustion Air Control
The Combustion Air Control is a patented mechanism (Patent No: US
7,325,541 B2) that regulates the air flow into the firebox based on the
temperature of the unit. It is located on the top of the firebox, at the front
center of the unit. The combustion air control of the Elegance 40 has two
components: the Activator and the Burn Rate Selector (see Figure 2-5). The
left combustion control lever is the Activator. When starting a fire or adding a
new load of wood, the Activator must be pushed in to allow a primary source
of air to enter the firebox. The Activator will retract automatically with heat.
The right combustion control lever is the Burn Rate Selector. The Burn Rate
Selector can slide sideways to achieve different burn rates. When the Burn
Rate Selector is positioned to the left, a maximum burn rate is achieved and
when it is positioned to the right, a minimum burn rate is set.
WARNING: Never manipulate the Combustion Air Control with bare
hands as it gets hot when the Elegance 40 is in operation. Use the Cold
Hand Key (see Section 2.4) to adjust the Combustion Air Control.
2.4 Cold Hand Key
The Cold Hand Key is an accessory that comes standard with the Elegance 40
fireplace (Figure 2-6). The Cold Hand Key is a tool used to manipulate the
Combustion Air Control Levers when they are hot.
2.5 Chimney Sweeping Cap
The chimney sweeping cap found at the baffle of the Elegance
40 allows easy access for chimney sweeping without having to
remove any components of the firebox (Figure 2-7).
WARNING: The chimney sweeping cap should be
blocking the access to the chimney at all times during
combustion. A chimney sweeping cap that is not blocking
the baffle hole during combustion is a safety hazard, will
overheat the fireplace and void the warranty.
2.6 Door
The Elegance 40 wood burning fireplace comes with a
Pyroceramic glass panel door. Pyroceramic is the highest
grade available for fireplaces and stoves and can withstand
temperatures up to 1300oF. To remove the door, open the
door, lift it and pull it towards the bottom until the rod exits
from the hinge holes.

6
Figure 2-8: Location of Certification Label with Product
Serial Number

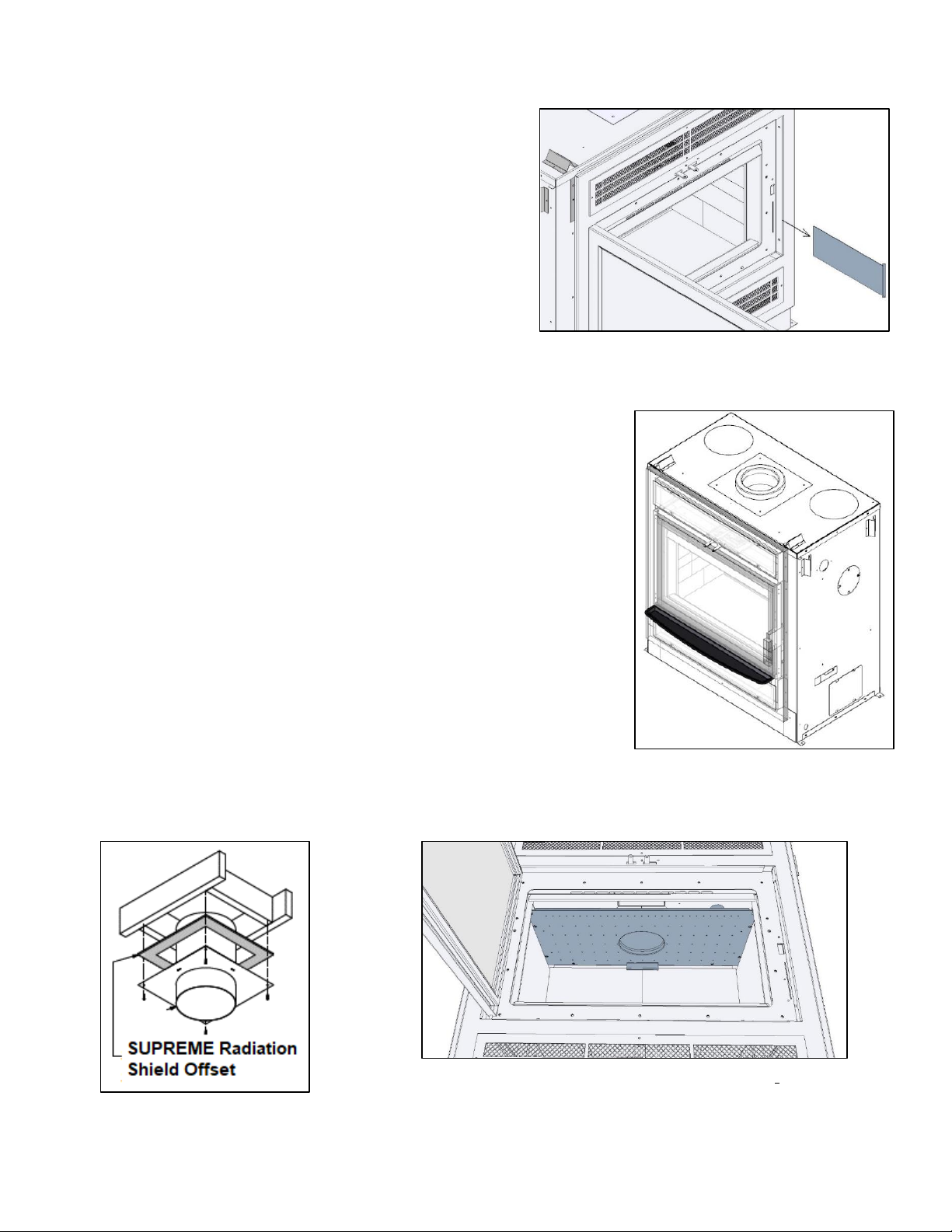

Figure 2-9: Removable Ash Lip
Figure 2-10: SUPREME Radiation
Shield Offset
Figure 2-11: Baffle Secondary Burn Technologyr
2.7 Certification Label
The certification label contains important information
regarding the installation and operation of the Elegance 40
fireplace. In addition, the serial number of the unit is
permanently embossed onto the top right corner. See
Figure 2-8 for the location of the certification label.
2.8 Removable Ash Lip
The Ash Lip is a removable accessory that comes standard
with the Elegance 40 fireplace (Figure 2-9). It is installed on
the door holder (under the two small angled tags below the
door) and prevents ashes from falling onto the front of the
hearth. The Ash Lip can be installed with the door open or
closed. It is safe to operate the unit without the Ash Lip.
NOTE: The door of the Elegance 40 must remain closed at all times
during operation.

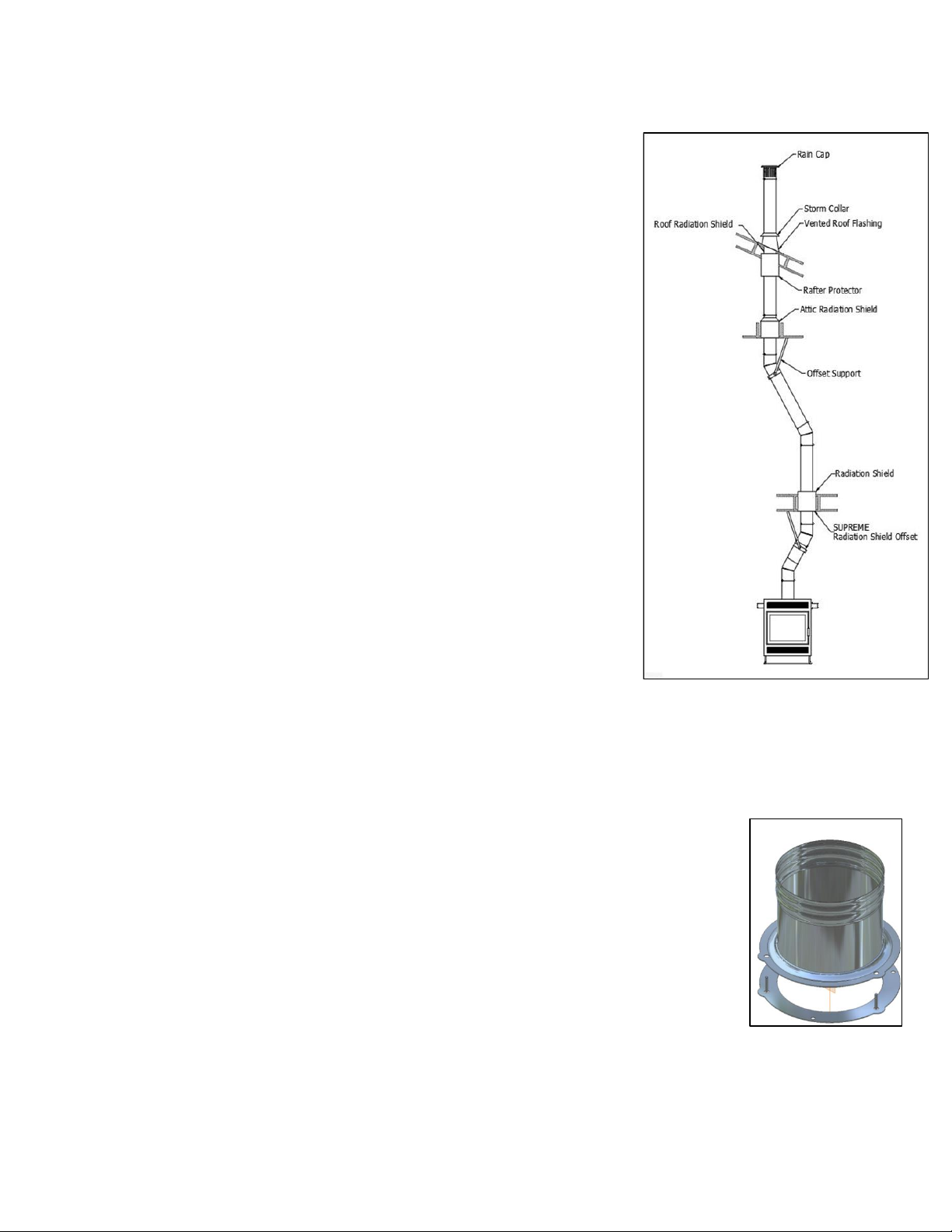

2.9 SUPREME Radiation Shield Offset
The SUPREME Radiation Shield Offset is a standard component for the
Elegance 40 fireplace (Figure 2-10). Prior to installing the chimney
manufacturer’s radiation shield, the SUPREME Radiation Shield Offset is
fastened below the chimney opening within the chase, with the flanges
along the component providing a ½” offset.
2.10 Baffle Secondary Burn Technology
An innovative baffle design comprises of carefully engineered perforations
that allow the introduction of secondary air to increase the efficiency and
heat output while offering an uncompromising view of the fire (Figure 2-
11).

7
2.11 Soapstone Interior
The Elegance 40 is lined with 1.25 inch thick soapstone slabs. Soapstone offers unparalleled advantages in a
fireplace beyond its natural aesthetics: it radiates five times more heat and absorbs 15% more heat when
compared to firebrick.
2.12 Blower Kit
An AC tangential blower (electrical rating: 115V, 60Hz, and 56W) with a variable speed control is installed into
the Elegance 40 wood burning fireplace to maximize efficiency. Refer to Section 3.9 for installation instructions.
WARNING: Make certain that the fireplace in not in operation and the blower is unplugged (breaker off)
before accessing the electrical wiring of the blower kit.
CAUTION: Only a blower provided by SUPREME FIREPLACES INC. can be installed into the fireplace.
Substituting the blower kit may result in overheating, will void the warranty and can be hazardous.
2.13 Optional Hot Air Kit
The Optional Hot Air Kit (kit number SU250) allows heat to be drawn from the unit by a thermostatically
controlled blower (electrical rating: 115 V and 60 Hz) and dispersed to different areas of the house. This option
is recommended when the fireplace is installed in an area below the maximum heating space. A total of three
kits can be installed onto one unit with a maximum distance of 25 feet each. Note that a 5 inch insulated duct
(part number UCAC5) is required for the installation (item ordered separately). Refer to Section 4.1 for
installation instructions.
WARNING: Make certain that the fireplace in not in operation and that hot air blower is not powered
(breaker off) before accessing the electrical wiring of the hot air kit.
CAUTION: Only a hot air kit provided by SUPREME FIREPLACES INC. can be installed onto the
fireplace. Substituting the hot air kit may result in overheating, will void the warranty and can be
hazardous.
2.14 Optional Fresh Air Kit
The Optional Fresh Air Kit (kit number UPEA4) allows for exterior air (outdoors) to be drawn into the fireplace
during operation of the unit. Note that a 4 inch insulated duct is required for the installation (item ordered
separately). Refer to Section 4.2 for installation instructions. Contact your local building official regarding
mandatory fresh air kit installations within your area.
CAUTION: Only a fresh air kit provided by SUPREME FIREPLACES INC. can be installed onto the
fireplace. Substituting the fresh air kit may result in overheating and will void the warranty.

8

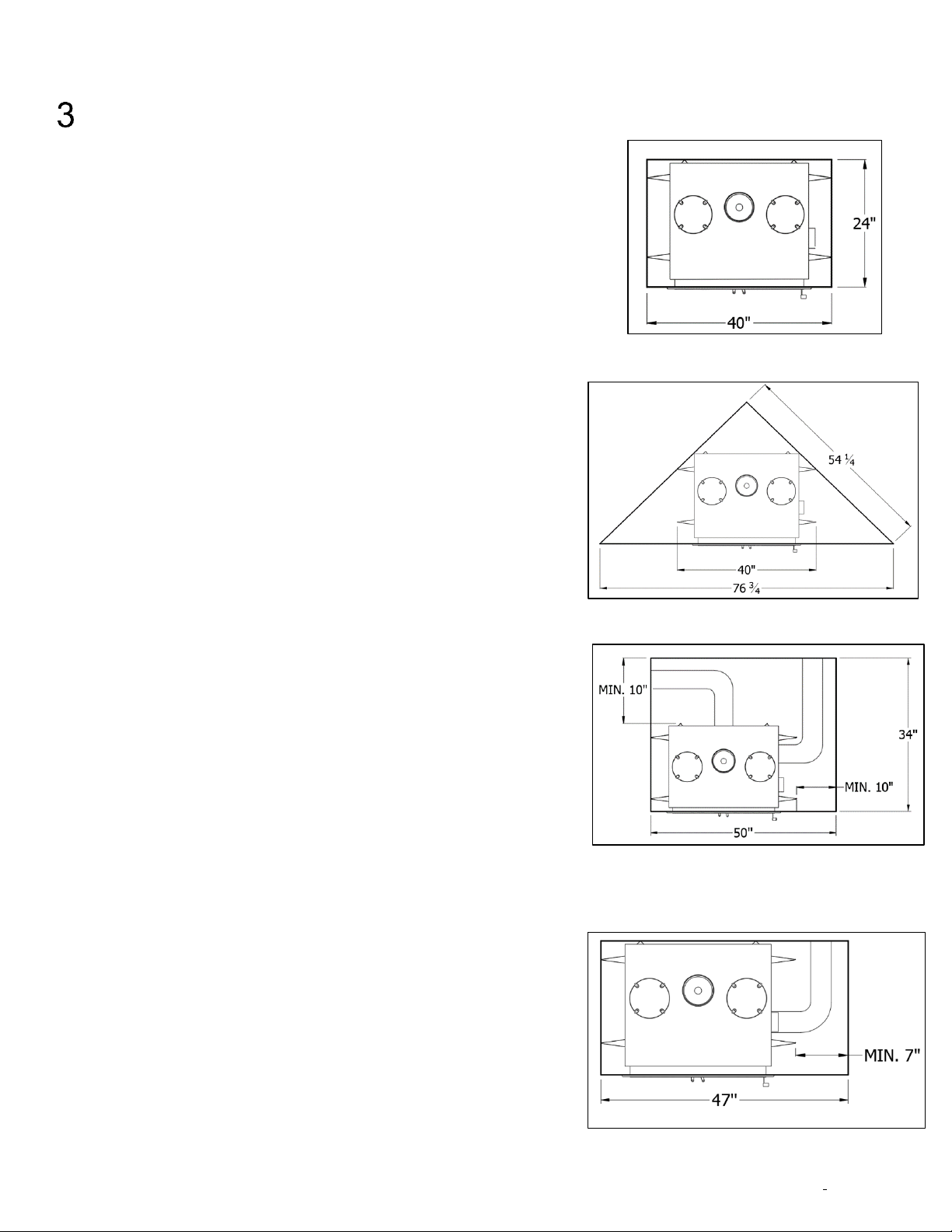

Figure 3-1: Straight Wall Installation
Figure 3-2: Corner Installation
Figure 3-3: Space Required for Forced Hot Air System
Installations
Refer to Sections 4.1 and 4.2
Figure 3-4: Space Required for Fresh Air Kit
Installations
Refer to Sections 4.1 and 4.2
INSTALLATION INSTRUCTIONS
Before installing the unit, consult an authority having jurisdiction
(such as your municipal building department, your fire department,
your fire prevention department...) for any local codes and whether
a permit is required. In the absence of local codes, refer to the CSA
B365 Installation Code for Solid Burning Appliances and Equipment
(Canada) or the ANSI NFPA 211 Standard for Chimneys,
Fireplaces, Vents and Solid Fuel-Burning Appliances (USA).
CAUTION: Modifications/alterations to the unit/installation
without written authorization from SUPREME FIREPLACES
INC. are strictly forbidden and will void the warranty. Refer to
Section 1 for further safety information. Carefully read the
instructions below before installing your Elegance 40.
3.1 Location
Determine the location of the Elegance 40 by taking into
consideration the following criteria:
•The size of the room with respect to the heat output of the
fireplace.
•The proximity of windows, doors, and traffic flow.
•The necessary amount of space in front of the unit for the hearth
extension and mantel (Refer to Sections 3.6 and 3.8).
•The clearances to combustible materials.
•The passage of the chimney.
If possible, select a location for the fireplace that will minimize the
number of offsets in the chimney course. Offsets will reduce the
draft, complicate the chimney sweeper’s work, and increase
installation costs. Do not install an offset directly onto the
unit/anchor plate. Technical drawings outlining the chimney route
should be prepared prior to the installation. NOTE: The cutting of
joists and rafters for floor, ceiling, and roof chimney penetrations will
affect the load bearing capacities of the dwelling structure. To
determine whether additional support is required, consult your local
building codes. Improper cutting of chimney openings in the attic
and roof will affect the bearing and thermal insulating capacity, as
well as the weather tightness of the dwelling. Avoid incorrect
workmanship by consulting a professional engineer or a certified
installer.
Through examination of the floor construction, ensure that the
fireplace and chimney system is resting on a surface capable of
withstanding its weight. Consult your building codes to see whether
additional structural supports are required (applicable for rare and
isolated cases).
Avoid having the chimney outlet near any obstructions (such as
trees and roof offsets) as the draft of the chimney may be affected
by wind turbulence. Ideally position the outlet of the chimney at the
highest area of the roof.
NOTE: It is strongly recommended to install a carbon monoxide
(CO) and smoke detector near the location of the unit.

9

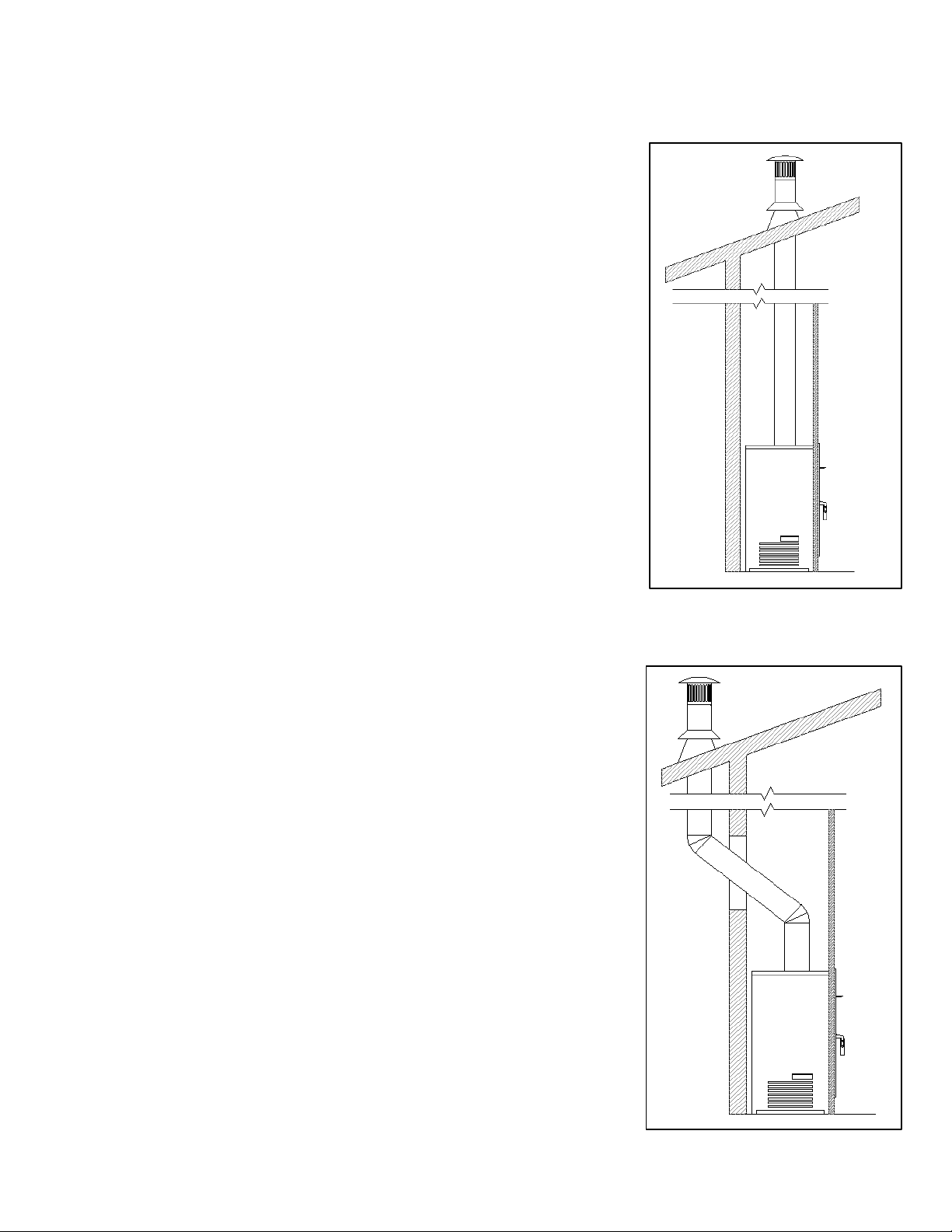

Figure 3-5: Straight Interior Installation
Figure 3-6: Exterior Installation
3.2 Chimney Installation
The Elegance 40 is approved with a 6” chimney that is listed under the UL
103 / ULC S629 standards (refer to Table 3-1). WARNING: Mixing
chimney components from different brands is a safety hazard and will
void the warranty on the unit. When connecting the unit to an existing
chimney, thoroughly inspect the condition of the chimney and that the
installation conforms to the requirements of the chimney manufacturer and
the building codes. Note that to avoid any unnecessary risk, it is often
recommended to replace the chimney system. Always respect the
clearances to combustibles from the chimney manufacturers; a minimum
clearance of 2 inches is usually required for prefabricated chimneys.
3.2.1 General Rules and Guidelines
1. Carefully read the instructions from the chimney manufacturer prior to
installation (manuals can be obtained from the chimney manufacturer’s
website or from the vendor). Unless specified, follow the chimney
manufacturer’s instructions for proper installation.
2. For optimal performance of the unit, it is recommended to install the
chimney system in an interior setting. To prevent drafting issues and
creosote buildups, avoid exterior installations of the chimney system in
regions that experience extreme cold conditions.
3. The minimum and the maximum height of the chimney from the base of
the unit are 15 and 35 feet respectively.
4. A minimum length of 12 inches of straight chimney is required from the
top of the unit before having an offset.
5. Only chimneys approved under the UL 103 / ULC S629 standards can
be installed onto the unit (refer to Table 3-1 in Section 3.2.2).
6. A 6 inch anchor plate is required to connect the fireplace to the chimney
system. The anchor plate can be secured onto the unit with 4 self-
tapping screws.
7. The chimney installed onto the unit cannot be connected to another
appliance.
8. Enclose any portion of the chimney that extends to accessible spaces.
9. The clearance of the chimney to any combustible material cannot be
less than 2 inches; the 2 inch clearance cannot be filled with insulation
or any non-combustible material.
10. At least one support is to be incorporated in any chimney installation.
11. A firestop is required in the joists/frames where the chimney goes
through (ceilings, floors, walls, and attic).
12. A roof and a vented flashing is required in the installation of the
Elegance 40.
13. To prevent drafting issues, avoid deviations wherever possible.
14. The chimney shall extend at least 3 feet above its point of contact with
the roof and at least 2 feet higher than any wall, roof, or adjacent
building within a 10 foot radius.
15. A secure brace is to be installed if the chimney extends a minimum of 5
feet above the contact point with the roof.
16. A rain cap must be installed on top of the chimney to avoid internal
damage and/or corrosion.
17. Consult the chimney manufacturer for clearances to combustibles when
installing a combustible chimney enclosure above the roof.

10
3.2.2 Listed UL 103 / ULC S629 Approved Chimney Models (Reference Table)
Note that only chimney models listed in Table 3-1 can be installed for the Elegance 40.
Table 3-1: List of Approved Chimney Models
Manufacturer
Models
American Metal
•HS, AC Triple Wall, 6” inner diameter
•HSS, AC Triple Wall, 6” inner diameter
FMI (US only)
•AC, AC Triple Wall, 6” inner diameter
ICC
•Excel 2100, 1” Solid Pack, 6” inner diameter
Metal Fab
•Temp Guard, 1” Solid Pack, 6” inner diameter
Olympia Chimney
•Ventis, 1” Solid Pack, 6” inner diameter
Security Chimney
•ASHT+, 1” Solid Pack, 6” inner diameter
•S-2100+, 2” Solid Pack, 6” inner diameter
Selkirk
•Super Pro (SPR), 1” Solid Pack, 6” inner diameter
•Super Pro 2100 (ALT), 2” Solid Pack, 6” inner diameter
•Hart & Cooley (TLC), 1” Solid Pack, 6” inner diameter
•Sure-Temp (ST), 1” Solid Pack, 6” inner diameter
•Super Vent (JSC), 1” Solid Pack, 6” inner diameter
•Super Vent 2100 (JM), 2” Solid Pack, 6” inner diameter
•Ultra-Temp (UT), 1” Solid Pack, 6” inner diameter
•UltimateOne, 1” Solid Pack, 6” inner diameter
•CF Sentinel (CF), 2” Solid Pack, 6” inner diameter
Simpson Dura-Vent
•Dura Tech, 1” Solid Pack, 6” inner diameter
•Dura Plus HTC, 2” Solid Pack, 6” inner diameter
•Dura Plus, AC Triple Wall, 6” inner diameter
3.2.3 Chimney Installation Instructions
1. Cut and frame square openings in the floors, ceilings, and roof where the chimney will pass through while
taking into consideration the minimum clearance to combustibles.
2. For an installation with the chimney running through the ceiling, install the SUPREME Radiation Shield
Offset below the chimney opening prior to installing the radiation shield (refer to Figures 2-10 and 3-7).
3. In the ceiling/floor openings, install a chimney manufacturer’s firestop from below. Install the chimney
manufacturer’s attic radiation shield from above in the chimney opening to the attic. Install the chimney
manufacturer’s roof radiation shield in the opening of the roof –adjust the shield so that it is extruding
approximately 1” above the roof surface. Ensure to install the appropriate firestop for ceilings and walls.
4. Install the chimney manufacturer’s anchor plate onto the unit.
5. Install the chimney lengths according the manufacturer’s instructions and ensure proper fastening/locking
of the joints.
6. Install the roof support once the desired height has been reached.
7. Position the vented roof flashing. Note that for sloping roofs, position the upper portion of the vented
flashing under the shingles and position the lower portion of the vented flashing above the shingles. Seal
the joint between the roof and the vented flashing with roofing cement or silicone. Secure the vented
flashing to the roof with roofing nails.
8. Install the storm collar over the vented flashing by tightening the supplied bolt or through the flange
mechanism (depends on chimney brand). Seal the joint between the storm collar and the chimney using a
silicone caulking. WARNING: Do not seal, caulk, or obstruct the ventilation openings.
9. Install the chimney rain cap.
Refer to Figures 3-5 and 3-6 for typical chimney installations.

11
Figure 3-8: 6CON Liner
Connector
3.2.4 Offset Installation
An offset installation (Figure 3-7) consists of the use of elbows to deviate
from unavoidable obstacles or to extend the chimney outside. The following
list is a few general rules to take note when installing offsets:
•A maximum of 2 offsets (2 elbows per offset) is permitted per
installation.
•A minimum length of 12 inches of straight chimney is required from the
top of the unit before having an offset.
•The maximum deviation is 45oin Canada and 30oin the US.
•Secure the elbows and the chimney components according the
instructions from the chimney manufacturer.
•A support strap, a wall support, or a roof support must be installed
above each offset to allow adequate support to the vertical chimney
lengths.
•Never install an elbow in an opening of a floor, wall, ceiling, or
roof. In addition, only vertical chimney sections can be installed within
ceiling/floor openings.
•A minimum length of 12 inches of straight chimney is required from the
top of the unit before having an offset.
•Install a support for the first 15 feet of chimney.
The following are instructions for offset installations:
1. Rotate the elbow in the required direction and secure it to the adjacent
chimney section according to the chimney manufacturer’s instructions.
2. Follow the chimney manufacturer’s instructions to install the chimney
length(s) necessary for the offset.
3. Once the desired offset length has been achieved, install the second
elbow to redirect the venting to the vertical position.
4. Cut an opening in the floor/ceiling to allow the chimney to pass through.
5. Install the appropriate firestop.
CAUTION: For offset installations, always install a ventilated flashing and a roof firestop unless
otherwise specified by the chimney manufacturer. Never install an elbow directly onto the unit.
3.2.5 Angled Wall Radiation Shield
For chimney installations requiring to pass through a combustible wall at a 30o(Canada)
or 45o(Canada and US) angle, an angled firestop or an angled wall radiation shield from
the chimney manufacturer must be installed within the wall opening. Install the angled
firestop and angled wall radiation shield according to the manufacturer’s instructions. It is
recommended to use an insulated angled wall radiation shield in areas that experience
cold climates.
3.2.6 Connecting to a Masonry Chimney
The Elegance 40 fireplace can be connected to a masonry chimney that complies with
current national and municipal building codes. A 6 inch chimney liner that complies with
ULC S635 M2000 (Canada) or UL 1777 (US) standards must be installed within the
existing masonry chimney. Note that the 6CON connector (manufactured by SUPREME
FIREPLACES INC.) must be installed to connect the prefabricated chimney to the liner
(6CON sold separately). Refer to figure 3-8.
Figure 3-7: Offset Installation

12

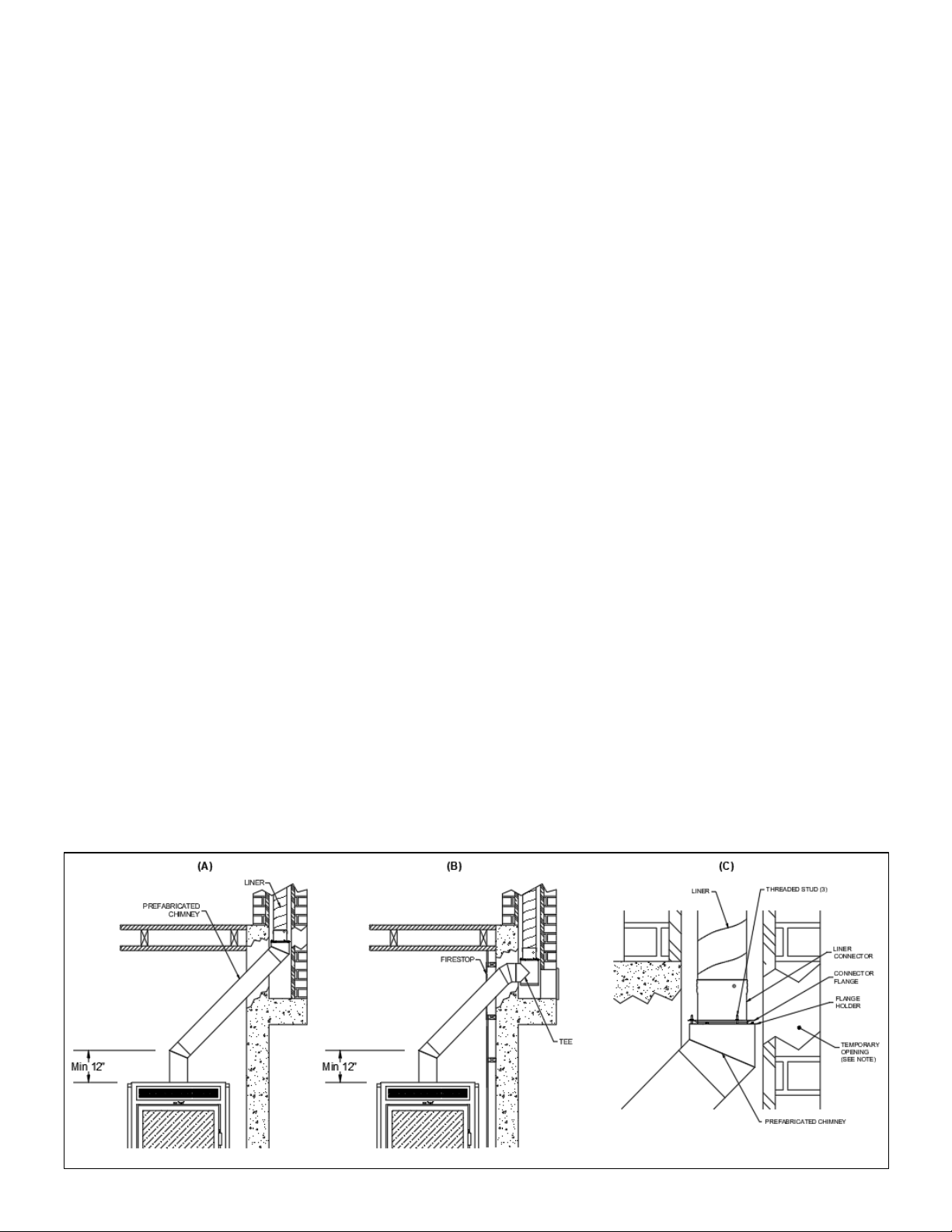

Figure 3-9: (A) Connection into a masonry chimney through an elbow/liner; (B) connection into a masonry chimney through a tee/liner; (C)
detailed drawing of masonry chimney connection.
Note that prior to installation, an inspection from an authority having jurisdiction is required to determine
whether the masonry chimney:
•Is constructed in accordance with national and municipal building codes.
•Is in good condition. Note that repairs must be performed on any cracked or missing bricks.
•Is thoroughly cleaned of any soot or creosote.
•Is not connected to another appliance such as a furnace, hot water heater, or another fireplace.
•Has a flue of adequate size for proper installation of the venting.
•Respects minimum clearances to combustibles.
It is recommended to position the fireplace as close as possible to the masonry chimney to ensure proper
venting. The prefabricated chimney must penetrate at least 3 inches within the masonry chimney before
connecting the liner. Elbows can be used within the masonry chimney, with a maximum deviation of 30oin US
and 45oin the Canada. Note: A minimum length of 12 inches of straight chimney is required from the top
of the unit before having an offset.
The installation of the prefabricated chimney and the liner must comply with the manufacturer’s instructions.
The following are instructions in installing the venting of the Elegance 40 running through a masonry chimney:
1. Install the anchor plate onto the unit.
2. Position the fireplace to the recommended location.
3. Install the initial prefabricated chimney lengths and elbows.
4. Mark the area where the prefabricated chimney will penetrate the masonry chimney.
5. Remove the fireplace to allow for sufficient space to work.
6. Make a hole to the required size to allow for the prefabricated chimney to be inserted freely in the
masonry chimney. Note that the appropriate firestops need to be installed if running the prefabricated
chimney through a combustible wall.
7. Install the remaining prefabricated chimney components center with the masonry chimney.
8. Align the flange holder of the 6CON connector with the studs facing upwards to the center of the
prefabricated chimney section (elbow or tee) and secure it with three self-tapping screws.
9. Reposition the fireplace to its initial position.
10. Overlap by 1 inch the lower end of the liner in the expanded portion of the 6CON connector and secure
the joint with 3 #8 stainless steel self-tapping screws.
11. From the roof, slide the liner down the masonry chimney until it reaches the upper end of the
prefabricated chimney.
12. Install the upper portion of the 6CON liner connector to the flange holder by aligning the threaded studs
to the holes and complete the connection by tightening the wing nuts.
13. Seal any openings around the prefabricated chimney and the 6CON connector with refractory cement
resistant to high temperatures.

13
Figure 3-10: Minimum Elegance 40 Framing Dimensions
Figure 3-11: Minimum Framing Dimensions for Single Linear Front
Louver Gravity Kit Installations
Refer to Figure 3-10 for minimum non-combustible framing
dimensions
3.3 Framing
The Elegance 40 can be placed directly onto or against normal, combustible construction materials such as
lumber, plywood, millboard, particleboard, drywall and decorative wood paneling. The fireplace should NOT be
placed directly against or be in contact with an insulation material. A portion of the framing on the face of the
chase must be constructed with nominal 2" x 3" or 2" x 4" metal studs and the remainder can be constructed
with nominal 2" x 3" or 2" x 4" lumber. Refer to Figure 3-10 for an example of a framing design and Figure 3-11
for the framing for installations of the single linear front louver gravity kit. The framing must be nailed or
screwed onto the floor and to the ceiling.
The recommended framing dimensions of the single linear front louver is 40” x 7.5”. A minimum distance from
the ceiling to the top of the louver is 5.5”. The base of the louver must be at least 64” from the base of the unit.
CAUTION: Respect the framing design outlined in Figure 3-10 as well as the chimney manufacturer’s
clearances to combustibles.
WARNING: Do not nail or screw framing components onto the fireplace.

14
Figure 3-12: Intake Swivel Cover Closed
WARNING: For Traditional Surround Installations Only
Figure 3-13: Traditional Surround Installation
3.4 Surround Installation
The Elegance 40 can be installed with either the traditional surround or the clean face surround.
3.4.1 Traditional Surround
The traditional surround comprises louvers below (intake) and above (outtake) the door. All components and
fasteners are included in the surround kit. Refer to Figures 3-13 and 3-14 and Tables 3-2 and 3-3 for the
instructions below.
1. Remove the door of the unit and place it on a soft surface, such as a carpet or cardboard, to avoid any
scratches or damages.
2. Align the lower support bracket (Item 6) to the intake opening and fasten it in place (Figure 3-13).
3. Bend the ends of the upper support bracket (Item 7), align it to the outtake opening and fasten it in
place (Figure 3-13).
4. Place the surround (Item 1 in Figure 3-14 or Item 3 in Figure 3-15) within the door holder and secure it
in place with four black screws (one on each corner). Make sure that the handles of the Combustion Air
Control pass through the slots of the surround.
5. Reinstall the door onto the unit.
6. Secure the Intake Swivel Covers on the bottom sides of the unit to the closed position (Figure 3-12).
WARNING: For traditional surround installations only.

15
Figure 3-14: Traditional Rectangular Surround
Components
Figure 3-15: Traditional Arched Surround
Components
3.4.2 Clean face Surround
The Clean Face surround comprises no louvers; however, an intake into the chase and an outtake through
gravity ducts is required for this configuration. The instructions below describe the installation of the Clean
Face surround. Refer to Figures 3-18 and 3-19 and Tables 3-4 and 3-5 for the instructions below. Refer to
Section 3.5 for Gravity Kit installation instructions.
1. Remove the door of the unit and place it on a soft surface, such as a carpet or cardboard, to avoid any
scratches or damages.
2. Align the Clean Face lower cover (Item 8) and fasten it in place (Figure 3-17).
3. Bend the ends of the Clean Face upper cover (Item 7), align it and fasten it in place (Figure 3-17).
4. Place the surround (Item 4 in Figure 3-18 or Item 5 in Figure 3-19) within the door holder and secure it
in place with 4 black screws (one on each corner). Make sure that the handles of the Combustion Air
Control pass through the slots of the surround.
5. Reinstall the door onto the unit.
6. Secure the Intake Swivel Covers on the bottom sides of the unit to the open position (Figure 3-16).
7. Remove the two 8” knockouts at the top of the unit using a flat head screwdriver (Figure 3-20).
8. Through the openings of the knockouts, cut the exposed insulation. Make sure to remove any pieces of
insulation that has fallen into the unit.
9. Bend the tabs inside the 8 inch knockouts (Figure 3-21) upwards.
10. Install the 8 inch duct adapters (Item 9 in Figure 3-17) through the newly cut knockouts and screw them
to the bent tabs (Figure 3-22).
Table 3-2: UWA600 Components
TRADITIONAL RECTANGULAR
ITEM
DESCRIPTION
QTY
1
Traditional Rectangular Surround
1
6
Lower Support Bracket
1
7
Upper Support Bracket
1
Table 3-3: UWA610 Components
TRADITIONAL ARCHED
ITEM
DESCRIPTION
QTY
3
Traditional Arched Surround
1
6
Lower Support Bracket
1
7
Upper Support Bracket
1

16
Figure 3-16: Intake Swivel Cover Kept Open for Clean Face
Installations
Figure 3-19: Clean Face Arched Surround
Components
Figure 3-18: Clean Face Rectangular Surround
Components
Figure 3-17: Clean Face Surround Installation
Table 3-4: UWA620 Components
CLEAN FACE RECTANGULAR
ITEM
DESCRIPTION
QTY
4
Clean Face Rectangular Surround
1
7
Clean Face Upper Cover
1
8
Clean Face Lower Cover
1
9
Duct Adapter
2
Table 3-5: UWA630 Components
CLEAN FACE ARCHED
ITEM
DESCRIPTION
QTY
5
Clean Face Arched Surround
1
7
Clean Face Upper Cover
1
8
Clean Face Lower Cover
1
9
Duct Adapter
2

17
Figure 3-20: 8 Inch Knockouts for Gravity Kit
Figure 3-21: Tabs Inside the 8 Inch Knockouts
Figure 3-22: Installation of 8 Inch Duct Adapters
3.5 Gravity Kit Installation
The Clean Face surround comprises no louvers; however, an intake into the chase and an outtake through
gravity ducts is required for this configuration. The instructions below describe the installation of the intake
openings, and the gravity ducts/outtakes. Note that in order to connect the gravity ducts to the sides of the
chase, the sides of the chase need to be constructed and the front of the chase needs to remain open; to
connect the gravity ducts to the front of the chase, the sides need to remain open and the front of the chase
needs to be constructed (Figure 3-24). Please note that the SUPREME KG540 kit and the UCAC8 semi-rigid
insulated ducts are required for the Gravity Kit installation (Figure 3-23).
3.5.1 Dual Louver Gravity Ducts
1. Determine the two locations of the air intakes on the chase and cut a rectangular opening 10.5” (W) X
9.5” (H). Note that a distance of 5” is required from the floor.
2. Determine the two locations of the air outtakes on the chase and cut a rectangular opening 10.5” (W) X
9.5” (H). Note that a minimum distance of 64” is required from the floor and a minimum of 6” is required
from the ceiling (Figure 3-40). Please note that the air outtake grilles can be installed in the same room
or in different rooms from each other. If the grilles are installed at different heights, more heat will be
distributed to the highest one.
3. From the exterior of the chase, place the duct/louver adapter into the air outtake hole and secure it onto
the wall with screws. Repeat for the other outtake.
4. Within the chase, place the grooved end of the adjustable 45oelbow into the flange of the duct/louver
adapter and secure it using aluminum tape. Repeat for the other outtake.
5. Measure the distance between the duct adapter on top of the unit and the flange of the duct/louver
adapter and cut the 8” semi-rigid insulated duct (SUPREME part number UCAC8) to the necessary
length. Repeat for the other outtake.
6. Complete the connections by sliding the ducts over the duct adapters and the flanges of the duct/louver
adapters and tighten both ends with the worm gear clamps.
7. From the exterior of the chase, fasten the grilles over the intake and outtake openings with the beige
screws.
