Sure-Lites FBP-2-40H User manual

Installation Instructions For FBP-2-40H
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS
BE OBSERVED INCLUDING THE FOLLOWING:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Do not use outdoors.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized
personnel.
5. The use of accessory equipment not recommended by Sure-Lites may cause an unsafe condition.
6. Do not use this equipment for other than its intended purpose.
7. SAVE THESE INSTRUCTIONS
Step 1. To prevent high voltage from being present on the output leads (red and yellow), do not join the battery connector until installation is complete and
AC power is supplied to the emergency ballast.
Step 2. This product is for use with 17W through 215W single and bipin fluorescent lamps, including standard, energy saving, HO, VHO, circline, U-shaped
and rapid-start long compact and 18W through 28W 4-pin compact fluorescent lamp(s) without integral starters.
Step 3. Make sure all connections are in accordance with the National Electrical Code and any local regulations.
Step 4. To reduce the risk of electrical shock, disconnect both normal and emergency power supplies and battery connector of the emergency ballast
before servicing.
Step 5. This emergency ballast is for factory or field installation in either the ballast channel or on top of the fixture..
Step 6. This product is for use in indoor fixtures except air handling heated air outlets, and wet, damp or hazardous location fixtures.
Step 7. An unswitched AC power source is required. (120 or 277 volts).
Step 8. Do not attempt to service the battery. A sealed, no-maintenance battery is used that is not field replaceable. Contact the manufacturer for
information on service.
Step 9. Servicing should be performed by qualified service personnel.
SURE-LITES
SURE-LITES 1121 Highway 74 South Peachtree City, GA 30269 5/98 024000085
LISTED
®
CONTAINS NICKEL-CADMIUM
RECHARGEABLE BATTERY.
MUST BE RECYCLED OR
DISPOSED OF PROPERLY.

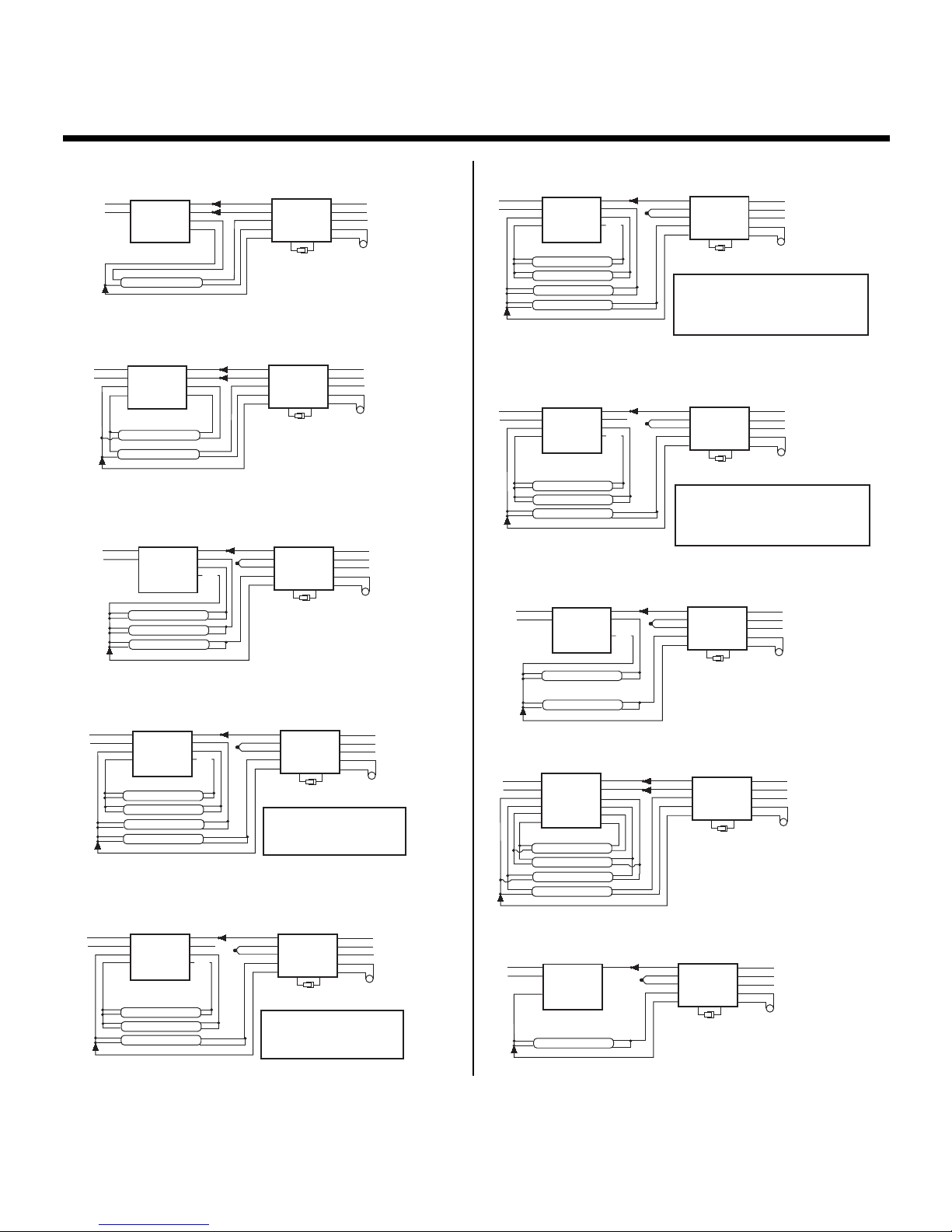

ADDITIONAL WIRING DIAGRAMS-2 LAMP EMERGENCY OPERATION
NOTE: WIRING DIAGRAMS (THIS SIDE) ONLYFOR EMERGENCY BALLASTS RATED FOR 2-LAMP EMERGENCY OPERATION.
CHECK UNIT LABEL TO DETERMINE NUMBER OF LAMPS THAT CAN BE OPERATED IN EMERGENCY. DETERMINE
APPROPRIATE DIAGRAM USING NUMBER AND COLORS OF AC BALLAST LEAD WIRES.
FOR MODELS WITH BROWN LAMP CONNECTOR WIRES, SEE SPECIFIC MODEL'S INSTRUCTION FOR WHEN TO CONNECT
3B. 2-LAMP RAPID START
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
BLUE BLUE
BLU/WHT
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
AC BALLAST
WHITE
BLACK
LINE BLUE
RED
RED YELL/BLK
YELLOW
YELLOW
YELLOW
RED
LAMP 2 (EMERGENCY)
(EMERGENCY)
(EMERGENCY)
(EMERGENCY)
(EMERGENCY)
LAMP 1
4B. 2-LAMP LEAD-LAG INSTANT START SLIMLINE
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
BLUE BLUE
BLU/WHT
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
AC BALLAST
WHITE
BLACK
LINE
RED
YELL/BLK
YELLOW
RED
LAMP 2 (EMERGENCY)
LAMP 1
7B. 3-LAMP INSTANT START
BLUE
BLUE
BLUE
BLU/WHT
BLUE
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
RED
RED
YELLOW
LAMP 1
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 2
LAMP 3 (EMERGENCY)
(EMERGENCY)
11B. 4-LAMP INSTANT START
RED
BLUE
RED
BLUE
BLU/WHT
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
YELLOW
YELLOW
RED
BLUE
LAMP 2
LAMP 1
LAMP 3
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 4 (EMERGENCY)
AC BALLASTS
VALMONT
E432PI120
E432PI277
11D. 4-LAMP INSTANT START (3 Lamps Used)
RED
CAP
BLUE
BLUE
BLUE
BLU/WHT
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
YELLOW
YELLOW
RED
RED
LAMP 2
LAMP 1
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 3 (EMERGENCY)
AC BALLASTS
VALMONT
E432PI120
E432PI277
]
or
14B. 4-LAMP INSTANT START
BLUE
RED
RED
BLUEBLUE
BLU/WHT
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
YELLOW
YELLOW
RED
LAMP 2
LAMP 1
LAMP 3
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
MAGNETEK
MAGNETEK
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 4 (EMERGENCY)
(EMERGENCY)
14D. 4-LAMP INSTANT START (3 Lamps Used)
BLUE
BLUE
RED
BLUE
BLU/WHT
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
YELLOW
YELLOW
RED
RED
CAP
LAMP 2
LAMP 1
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 3 (EMERGENCY)
(EMERGENCY)
AC BALLASTS
ADVANCE EBT UNIVERSAL, TRIAD
REL-4P32-RH-TP SS82-277-4/32ISLH B432I120
REL-4P32-TP B432I277
VEL-4P32-RH-TP OSRAM
VEL-4P32-TP QT-4x32/120IS
QT-4x32/277IS
AC BALLASTS
ADVANCE EBT UNIVERSAL, TRIAD
REL-4P32-RH-TP SS82-277-4/32ISLH B432I120
REL-4P32-TP B432I277
VEL-4P32-RH-TP OSRAM
VEL-4P32-TP QT-4x32/120IS
QT-4x32/277IS
36B. 2-LAMP INSTANT START
BLUE
BLUE
BLUE
BLU/WHT
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
RED
RED
LAMP 1
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 2 (EMERGENCY)
(EMERGENCY)
51B. 4-LAMP RAPID START
RED
RED
BLU/WHT
BLU/WHT
BLUE
BLU/WHT
AC BALLAST
WHITE
BLACK
LINE
YELL/BLK
YELLOW
YELLOW
YELLOW
RED
BLUE
BLUE
BROWN
BROWN
LAMP 2
LAMP 1
LAMP 3
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
BLACK
WHITE
277V
120V
COM
TO UNSWITCHED AC
USE PROPER TAP
CAP UNUSED LEAD
EMERGENCY
BALLAST
LAMP 4 (EMERGENCY)
(EMERGENCY)

INSTALLATION
WARNING: TO PREVENT HIGH VOLTAGE ON RED & YELLOW OUTPUT LEADS PRIOR TO
INSTALLATION, BATTERY CONNECTOR MUST BE OPEN. JOIN BATTERY CONNECTOR
AFTER INSTALLATION, AND AFTER AC POWER IS TURNED ON.
NOTE: Make sure that the necessary branch circuit wiring is available. An unswitched source
of power is required. The emergency ballast must be fed from the same branch circuit
as the AC ballast.
1. Disconnect AC power from the fixture. Remove the ballast channel cover and install the
emergency ballast either in the ballast channel (See Illustrations 1 & 2) or on top of the fixture*
(See Illustration 3).
2. Select the appropiate wiring diagram to connect the emergency ballast to the AC ballast and
lamp. Make sure all connections are in accordance with the National Electrical Code and any local
regulations.
3. Install the test switch through the ballast channel cover of a troffer or through the side of a strip fixture.
Drill a 1/2" hole and install the switch as shown (See Illustrations 1 & 2). Wire the test switch so that it
removes AC power from both the emergency ballast and the AC ballast at the same time (See Illustration 4).
4. Refer to Illustration 5 and install the charging indicator light so that it will be visible after the fixture is installed.
NOTE: After installing the charging indicator light and test switch, mark each with the appropiate
label. If a detached charging indicator light is used, connect by matching wire colors and
install as shown in Illustration 5.
5. In a readily visible location, attach the label “CAUTION-This Unit Has More Than One Power Connection
Point. To Reduce The Risk Of Electric Shock, Disconnect Both The Branch Circuit-Breakers Or Fuses and
Emergency Power Supplies Before Servicing.”
Emergency
Ballast
Charging
Indicator
Light
Test
Switch
Ballast
Channel
Cover
Emergency
Ballast
Charging
Indicator
Light
Test
Switch
Wire Bundle
Cover
*
Wire Bundle
Cover
*
Drill 1/8"
Hole For
Mounting
Screws
Emergency
Ballast
1/2" Std.
Knockout
7/8" Hole
W/ Bushing
ILLUSTRATION 1 ILLUSTRATION 2 ILLUSTRATION 3
ILLUSTRATION 4
HOT
COM
BLACK
WHITE
WHITE AC
BALLAST
Emergency
Ballast
120V
OR
ORANGE 277V
(CAP UNUSED LEAD)
BLACK
TEST
SWITCH
RED RED
UNSWITCHED FIXTURE SWITCHED FIXTURE
BLACK BLACK HOT
COM
BLACK
WHITE
WHITE AC
BALLAST
Emergency
Ballast
120V
OR
ORANGE 277V
(CAP UNUSED LEAD)
BLACK
TEST
SWITCH
WALL
SWITCH
RED RED
BLACK BLACK
*For installation on top of the fixture, wire bundle covers may be required by state or local codes. These covers are
available from the manufacturer as an accessory kit and must be ordered separately. Call your local distributor or the
factory for complete information.
ADDITIONAL WIRING DIAGRAMS-1 LAMP EMERGENCY OPERATION
DETERMINE APPROPRIATE DIAGRAM USING NUMBER AND COLORS OF AC BALLAST LEAD WIRES
FOR MODELS WITH BROWN LAMP CONNECTOR WIRES, SEE SPECIFIC MODEL'S INSTRUCTION FOR WHEN TO CONNECT
NOTE: These wiring diagrams are suitable for electronic AC ballast.
2A. 1-LAMP RAPID START
RED WHITE
BATTERY CONNECTOR
INDICATOR LIGHT
ORANGE
