Swann SI30150N User manual

wan
designed for life
v1.0

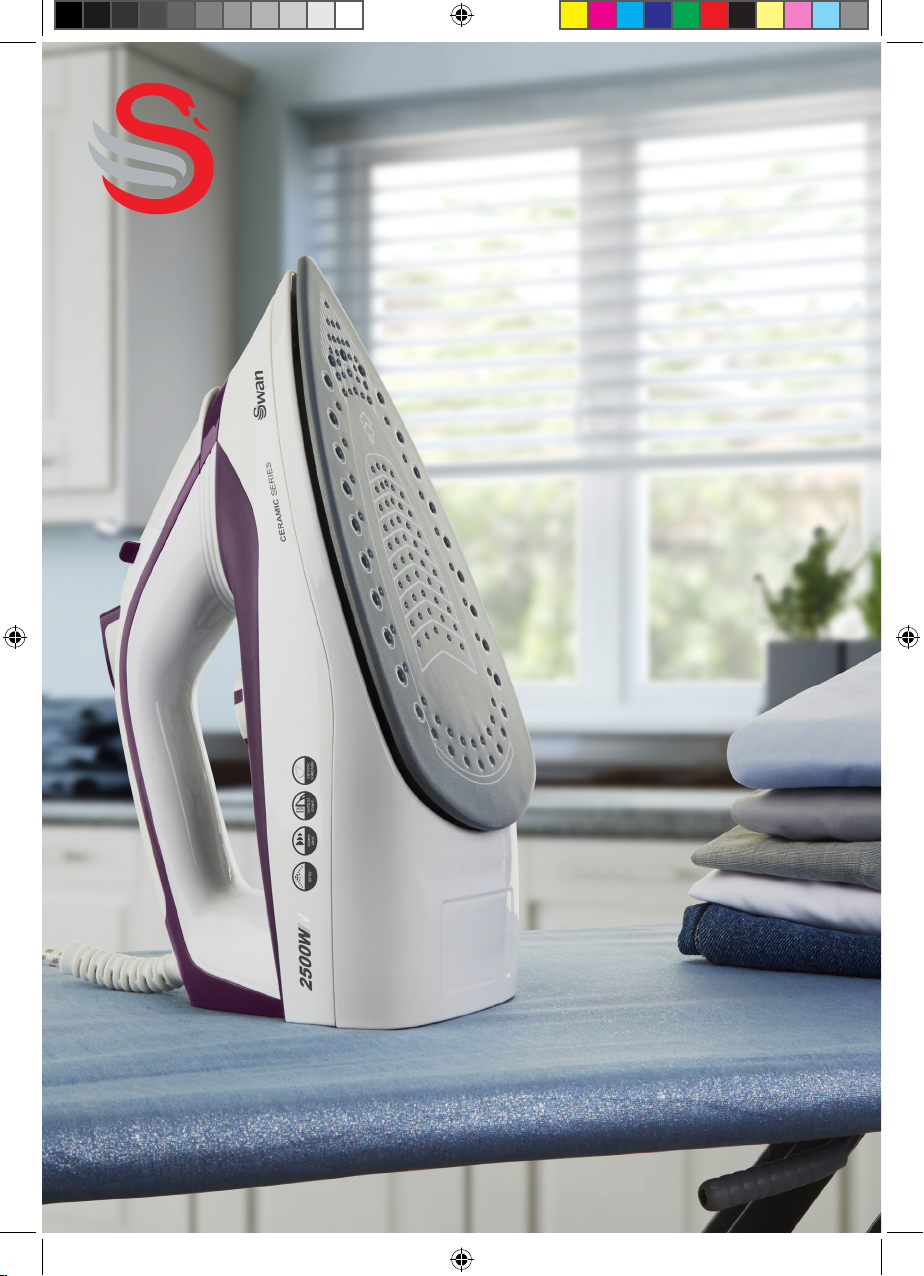

Steam iron
Model: SI30150N
Help line
0871 200 0003
SI30150N_IM.indd 1 12/02/2018 14:52

2
When using any electrical appliance, basic safety
precautions should always be followed including the
following:
• Always ensure that the voltage on the rating label
corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the
appliance and cause injury to the user.
• This appliance can be used by children aged from 8
years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and
user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than 8
years. Check the power cord and plug regularly for any
damage. If the cord or the plug is damaged, it must be
replaced by the manufacturer or qualified person in order
to avoid an electrical hazard.
• Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
• Do not use the appliance if it has been dropped or
damaged in any way. In case of damage, take the unit in
for examination and/or repair by an authorised service
agent.
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SI30150N_IM.indd 2 12/02/2018 14:52

3
• Never immerse the unit in water or any other liquid for
cleaning purposes.
• Remove the plug from the socket by gripping the plug.
Do not pull on the cord to disconnect the appliance from
the mains. Always unplug the unit when not in use, before
cleaning or when adding or removing parts.
• The use of accessory attachments that are not
recommended or supplied by the manufacturer may
result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or
counter. Ensure that the cord is not in a position where it
can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not
place on or near a hot gas or electric burner or in a
heated oven.
• Do not use the appliance on a gas or electric cooking top
or over or near an open flame.
• Use of an extension cord with this appliance is not
recommended. However, if it is necessary to use an
extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of
extension cord, appliance or plug point. Do not place the
extension cord in a position where it can be pulled on by
children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use
the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SI30150N_IM.indd 3 12/02/2018 14:52

4
unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable
surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any
damage or injury caused by improper or incorrect use, or
for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and
do not attempt to repair it yourself. Return the appliance to
an authorised service facility for examination, adjustment
or repair. Always insist on the use of original spare parts.
Failure to comply with the above mentions precautions
and instructions, could affect the safe operation of this
product.
• Your appliance must never be switched on through an
external timer or any kind of separate remote control
system
• This appliance is intended to be used in household and
similar applications such as: staff kitchen areas, in shops,
offices and other working environments; farm houses;
by clients in hotels, motels and other residential type
environments; bed and breakfast type environments.
CAUTION: SURFACES BECOME HOT DURING USE.
DO NOT IMMERSE IN WATER
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SI30150N_IM.indd 4 12/02/2018 14:52

5
PARTS
1. Spray button
2. Steamshot button
3. Thermostat
4. Soleplate
5. Filler cap
6. Steam control
7. Self clean button
1
6
2
3
4
57
TEMPERATURE GUIDE
SI30150N_IM.indd 5 12/02/2018 14:52

6
HOW TO USE
Before first use
Remove any stickers, protective foil or storage cover from the sole plate.
Heat up the iron to maximum temperature and iron over a piece of damp
cloth for several minutes for the purpose of removing any residue on the sole
plate.
Note: It is normal for a strange odour to come from the unit during the first
use. This is due to light oils used to preserve components during manufacture.
The odour will disappear after first use.
Operation
Open the water tank cover, then add clean water into the water tank (use
beaker not tap). For best results and longer product life, use bottled or
purified water – especially if you live in a hard water area. Make sure not
to exceed Max level on the tank. NOTE: IF YOU OVER FILL THE TANK THE
WATER WILL LEAK BACK OUT AGAIN WHEN YOU PUT THE IRON UPRIGHT.
Press down cover of water tank and you will hear a click if it is in the correct
position.
Connect plug to outlet and turn temperature dial to your desired setting,
which is determined by the type of fabric you intend to iron. The indicator light
will illuminate.
Make sure steam control is on dry (0) position then place the iron vertically
Once sole plate temperature has reached the preset temperature, indicator
light will turn off, then set steam dial to your desired steam output or dry
position and begin ironing. WARNING: Not touch the sole plate at any time
during ironing. It will be very hot.
SI30150N_IM.indd 6 12/02/2018 14:52

7
HOW TO USE
Press spray button a couple of times to moisten the laundry if necessary,
before spraying make sure that there is enough water in water tank. A few
presses might be required to pump the water through on first use
Steam shot function is best used at max temperature, as it helps remove
stubborn creases.
The iron has an anti-drip function: if you are ironing dense garments for a long
time, the sole plate temperature can drop. To prevent water coming from the
sole plate, the iron will automatically reduce the steam output.
“Steam shot” can also be applied when holding the iron in a vertical position,
so this is useful for removing creases from hung clothes, curtains, etc.
Always check first whether a label with ironing instructions is attached to the article.
The iron heats up quicker than it cools down, therefore, you should start ironing the
articles requiring the lowest temperature such as those made of synthetic fibres.
If the fabric consists of various kinds of fibres, you must always select the lowest
ironing temperature to iron the composition of those fibres.
Silk and other fabrics that are likely to become shiny should be ironed on the inner
side.
To prevent staining do not spray water straight on silk or other delicate fabrics.
Velvet and other textures that rapidly become shiny should be ironed in one direction
with light pressure applied. Always keep the iron moving at any given moment.
Pure woollen fabrics (100% wool) may be ironed with the iron set a steam position.
Preferably set steam button to the maximum position and use a dry cloth as a mat.
Note: when ironing woollen fabrics, shining of the fabric may occur. So it is suggested
that you should turn the article inside out and iron the reverse side.
IRONING TIPS
SI30150N_IM.indd 7 12/02/2018 14:52

8
CLEANING & MAINTENANCE
AFTER IRONING
Disconnect power supply and empty the water left in water tank. Reconnect
the power supply and disconnect after indicator light goes off, this dries the
sole plate.
Let the iron completely cool down, then wipe flakes and any other deposits on
the sole plate with a damp cloth or a non-abrasive (liquid) cleaner. Clean the
upper part of iron with a damp cloth. Always store the emptied iron horizontally
on a stable surface with a cloth protecting the sole plate.
DE-SCALING
It will be necessary to de-scale the iron regularly. The frequency of de-scaling
will depend on where you live. This is easy to do using a lemon juice solution.
One part lemon juice to ten parts water.
Fill the iron with the solution, switch on and allow to come to temperature.
Press and hold the self clean button until most of the solution has worked
through the iron. Empty remaining solution from tank then repeat the above
procedure with clean water.
There are also many proprietary de-scaling products available from
supermarkets.
Your warranty does not cover damage caused by excessive
lime scale build up
SI30150N_IM.indd 8 12/02/2018 14:52

9
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
BS PLUG
WARRANTY
This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty
materials of workmanship the faulty products must be returned to the place of purchase. Refunds or
replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide, including regular de-scaling
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.
SI30150N_IM.indd 9 12/02/2018 14:52

10
DISPOSAL OF UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You
are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information
about the recycling of electrical items. Please visit www.weeeireland.ie for access to information
about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in
August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange
to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
SWAN BRAND HERITAGE
Did you know...
In 1933 most homes were heating their
irons over t he gas r ing or s till putting
hot coal i n them. This Swan i ron was
basically a n element w ith a handle,
which plugged straight into a light bulb
socket. And a t a mere 1 4 s hillings
(70p), it meant many households could
own a prestigious Swan Product.
