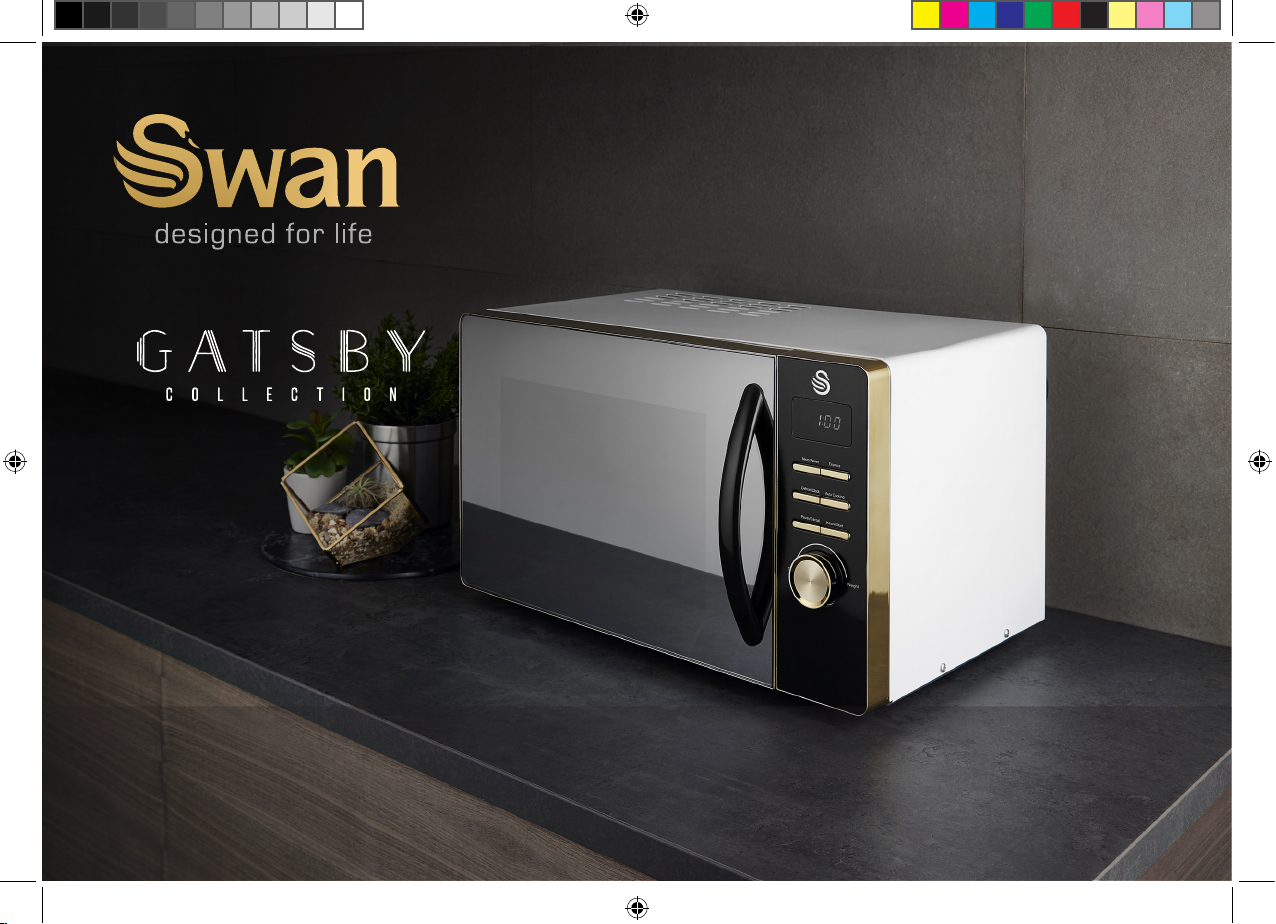

Swann GATSBY SM22045 User manual

1
Help line: 0333 220 6050 v1.0
23L Microwave
Model: SM22045 (all colours)
SM22045_IM.indd 1 06/09/2019 08:57

2
IMPORTANT SAFEGUARDS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
The following basic precautions should always be followed when using electrical appliance:
1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to the one shown on the rating label of
the appliance. And the wall socket is properly grounded.
3. To reduce the risk of fire in the oven cavity:
a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food
splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.
e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and
disconnect the power supply.
f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility
of ignition.
4. To reduce the risk of explosion and sudden boiling:
a. WARNING: Liquids and other foods must not be heated in sealed container since they are
liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed
containers.
SM22045_IM.indd 2 06/09/2019 08:57

3
IMPORTANT SAFEGUARDS
b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed
out immediately. Several moments should be waited before removing. In order to avoid possible
hazards caused by delayed eruptive boiling of liquids.
c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their
shell, whole hard -boiled eggs should not be heated in microwave ovens since they may explode,
even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temper-
ature is to be checked before consumption, in order to avoid burns.
5. WARNING: In case of damage to the oven door or its adjacent components, do not attempt to
operate the microwave until it is repaired by a qualified service technician.
6. WARNING: Except for qualified service personnel, it is dangerous for others to perform main-
tenance operations, including removing protective covers that prevent microwave leakage.
7. If the power cord is damaged, it must be replaced by a professional technician of the manufac-
turer, its service department or similar department in order to avoid danger.
8. Use oven mitts or similar when removing cooked food.
9. When popcorn is finished, be careful when removing the plastic wrap on the surface to avoid
burns to the hands and face. NOTE: Use PFOA-free popcorn bags only. Check with maker.
SM22045_IM.indd 3 06/09/2019 08:57

4
IMPORTANT SAFEGUARDS
10. To prevent damage to the turntable, note the following:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
d. Make sure that the turntable does not touch the inner surface of the cavity when cooking.
11. Make sure cooking vessels or utensils for microwave, do not touch the interior walls during
cooking.
12. Do not store food or any other things inside the oven.
13. Do not use metal utensils in the microwave. It poses a fire risk.
14. WARNING: Children can be allowed to use the microwave oven unsupervised only if adequate
guidance has been provided so that the child can use the microwave oven in a safe manner and
understands that improper use poses a hazard.
15. Be careful with microwave radiation. When the microwave oven is working, no items can be
placed at the vents to avoid affecting the normal heat dissipation of the microwave oven.
16. The microwave should be cleaned regularly and all food waste from the microwave oven
should be removed. Clean the door seals and wipe away any condensation from the cavity or
door after each use.
17. Failure to clean the microwave oven can cause deterioration of the surface of the appliance,
which can lead to corrosion and hazard.
SM22045_IM.indd 4 06/09/2019 08:57

5
IMPORTANT SAFEGUARDS
18. The microwave oven cannot be operated by external timer or a separate remote con-
trol system.
19. Do not use any accessories not recommended by the manufacturer.
20. Do not use the microwave outdoors.
21. Please save this manual for future reference.
HOUSEHOLD USE ONLY
CAUTION: SURFACES BECOME HOT DURING USE
SM22045_IM.indd 5 06/09/2019 08:57

6
INSTALLATION
1. Before first use, remove all packaging and any promotional stickers etc. Carefully
check the microwave for transit damage - especially if you bought it via mail order. Check:
a. The external metal surfaces show signs of dents or deformation.
b. Whether the oven door is properly aligned.
c. Whether the metal insulation mesh on the oven door is bent or deformed.
d. The power cord is loose or damaged.
If you find any of the above, please contact your dealer or our service maintenance depart-
ment immediately.
2. The microwave oven must be placed flat in a ventilated, dry, non-corrosive environment,
away from high temperatures and vapours. The surface must be capable of supporting
the weight of the microwave.
3. Do not place any objects on the top of the microwave. In order to have sufficient air
circulation space, the product should be placed 85cm above the ground. The distance
between the sides of the microwave oven and the wall should be no less than 5cm, the
distance between the back of the oven and the wall should be no less than 10cm and the
distance from the top wall cabinet should be no less than 20cm.
4. The microwave oven should be away from the TV, radio and antenna (generally greater
than 5m), otherwise it will cause interference.
SM22045_IM.indd 6 06/09/2019 08:57

7
INSTALLATION
5. The microwave oven should be placed in the place where the power cable is convenient
to plug in. The cable should not be stretched. The power supply must be earthed to pre-
vent electric shock.
6. Be sure to operate the microwave oven with the door closed.
7. Do not place the microwave in a cabinet.
8. When using the microwave oven for the first time, you may notice a slight odour. The is
the evaporation of preserving oils used in manufacture and it normal. The odour will disap-
pear after a couple of uses.
SM22045_IM.indd 7 06/09/2019 08:57

8
GET TO KNOW YOUR MICROWAVE
UTENSILS GUIDELINE
Only use containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of
heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use metal containers for microwave cooking.
• Do not remove the Waveguide cover during
cleaning
• Make sure the Waveguide cover is properly
in place during cooking
1. Door lock. Microwave oven door must be
properly closed in order for it to operate
2. Viewing window Allow user to see the cook-
ing status
3. Rotating axis The glass turntable sits on
the axis; the motor underneath it drives the
turntable to rotate
4. Rotating ring The glass turntable sits on its
wheels; it supports the turntable and helps it
to balance when rotating
5. Turntable The food sits on the turntable, its
rotation during operation helps to cook food
evenly. Place the rotating ring first. Fit the
turntable onto the rotating axis and make
sure that it is geared in properly
6. Control panel See below for more informa-
tion
7. Wave guide cover.
SM22045_IM.indd 8 06/09/2019 08:57

9
HOW TO USE YOUR MICROWAVE
CONTROL PANEL
Display
Time/weight knob
1. START
After power-on, the LED will flash 3 times, then enter the standby state
and display the clock
2. TIME/WEIGHT KNOB
When setting up the cooking program, you can increase or decrease
the cooking time, adjust the defrosting and the automatic menu weight
by turning the “Time/Weight” knob.
3. PAUSE/CANCEL
Press the “Pause/Cancel” button to cancel the set power, cooking or
defrosting procedure. When cooking, press the “Pause/Cancel” button
once to pause and press twice to cancel the procedure. When you reset
the cooking procedure, you must press this button to cancel the previ-
ous settings.
4. AUTO REMINDER
When the cooking or defrosting procedure is completed, you will hear
3 beeps. If the oven door is not opened or the “Pause/Cancel” button is
not pressed, the microwave oven will emit 3 beeps every 3 minutes.
Micro Power/
Express buttons
Defrost/clock. Auto
cook buttons
Pause/cancel. In-
stant/Start buttons
SM22045_IM.indd 9 06/09/2019 08:57

10
HOW TO USE YOUR MICROWAVE
POWER SETTINGS
HIGH 100% POWER QUICK COOKING
M.HIGH 80% POWER NORMAL COOKING
MED 60% POWER SLOW COOKING or
STEAMING
M.LOW 40% POWER DEFROSTING
DEFROST 20% POWER KEEP WARM
5. CLOCK SETTING
• In standby mode, press and hold the “Defrost/Clock”
button for 3 seconds to enter the clock setting mode.
• Rotate the time/weight knob and enter the hour.
• Press the “Defrost/Clock” button again to enter the
minute setting.
• Rotate the time/weight knob, and enter the minute.
• Finally, press the “Defrost/Clock” button to confirm (or
automatically confirm the time set after 60 seconds).
• The “:” symbol will flash to indicate the clock is running.
6. MICROWAVE COOKING
Press the “Micro Power” button, the LED display “micro-
wave” illuminates, cycles to show 100P, 80P, 60P, 40P,
20P. The “P” stands for “percent”.
• The max time which can be set is 60 minutes.
• Never operate the oven empty. Do not use metal utensils to
avoid damage to the microwave oven or danger.
• If you turn the food during operation, press Start button once
and the preset cooking procedure will continue.
• If you intend to remove the food before the preset time, you
must press Pause/Cancel button once to clear the preset
procedure to avoid unintended operation on next time use.
• In order to avoid long-term deterioration affecting the life
of the microwave oven, after a certain period of high-pow-
er work, it will automatically reduce the power.
Example: To cook at 80P for 10 minutes.
Steps Display
1. Power on
2. Press the Microwave/Power button
twice to select the required microwave
power
80P
3. Turn the Time/Weigh knob and set the
time to 10:00
10:00
4. Press the Start button and the LED will
show remaining cooking time
SM22045_IM.indd 10 06/09/2019 08:57

11
HOW TO USE YOUR MICROWAVE
7. FAST COOKING
Press the “Instant/Start” button. Each time you press, the
display will increment by 30 seconds. The LED display will
show: “0:30”, “1:00”, “1:30” etc.
8. DEFROST
In standby mode, press the “Defrost/Clock” button, the
“Thaw” symbol on the display lights up, and dEF is displayed.
dEF--- suitable for defrosting meat, the range of defrosting is
0.1-1.5 kg
• Microwaves penetrate the food to a depth of 4cm from
all sides.
• Thicker and larger pieces is should be turned over from
time to time to prevent hot spots in one part and cold
spots in others.
• Generally, defrosting food takes longer than cooking food.
• When the food can be cut with a knife, it can be consid-
ered to be defrosted.
Example: Defrosting 0.4kg of meat
Steps Display
1 Power on
2 Press the “Defrost/Clock” button to select
the defrosting function
dEF
3 Turn the “Time/Weight” knob to set the
food weight to 0.4
4 Press the “Instant/Start” button to start
cooking (the display will show the remain-
ing cooking time)
5 When the program runs to the turning
point, you will hear a “beep” sound, remind
you to turn the food, open the oven door
and turn the food over and close the oven
door. Press the “Instant/Start” button to
continue defrosting until the timer is 0.
9. AUTO COOKING
In standby mode, press the “Auto Cooking” button to display:
A.1, A.2, A.3, A.4, A.5, A.6, A.7, A.8, A.1... cycle. After selecting
the menu, turn the “Time/Weight” knob to select the menu
weight, then press the “Instant/Start” button to start cooking,
the microwave oven starts working, and the LED shows the
remaining cooking time.
SM22045_IM.indd 11 06/09/2019 08:57

12
Display Kind Method
A.1 Popcorn Cooking weight (0.1 kg)
A.2 Reheat There are five cooking weight op-
tions (0.2 kg, 0.4 kg, 0.6 kg, 0.8 kg,
1.0 kg)
A.3 Beverage Cooking cups (1 cup, 2 cups, 3
cups)
A.4 Pizza Servings (1 serving, 2 servings)
A.5 Potato There are two cooking weight op-
tions (0.45 kg, 0.65 kg)
A.6 Vegetable There are five cooking weight op-
tions (0.1 kg, 0.2 kg, 0.3 kg, 0.4 kg,
0.5 kg)
A.7 Meat There are five cooking weight op-
tions (0.1 kg, 0.2 kg, 0.3 kg, 0.4 kg,
0.5 kg)
A.8 Fish There are five cooking weight op-
tions (0.1 kg, 0.2 kg, 0.3 kg, 0.4 kg,
0.5 kg)
HOW TO USE YOUR MICROWAVE
• The Auto Cook procedure is designed according to the
temperature of food at 20-25 °C. If the food is at different
temperatures, the cooking effect will be different. Please
adjust it according to the actual situation.
• When cooking potatoes, etc., it is recommended to cover
the food with a layer of wrap to prevent evaporation of
water during cooking.
• The shape, weight and temperature of the food will affect
the cooking result. If in doubt, cook it manually.
Example: Cooking 0.4kg of vegetables
Steps Display
1 Power on
2 Press the “Auto Cooking” button to select
the automatic menu A.6
A6
3 Turn the “Time/Weight” knob to set the
food weight to 0.4
0.4
4 Press the “Instant/Start” button to start
cooking (the display will show the remain-
ing cooking time)
5 Start cooking by pressing the Instant/
Start button
SM22045_IM.indd 12 06/09/2019 08:57

13
Example: Now it is 12:30. If you want the microwave to automatically start
cooking with 100P microwave power for 9 minutes and 30 seconds at
14:20
Steps Display
1. Set the clock to current time
1.1 Press the “Defrost/Clock” button, “1” starts to flash
1.2 Turn the “Time/Weight” knob to set the hour to “12” 12:00
1.3 Press the “Defrost/Clock” button again to confirm
1.4 Turn the “Time/Weight” knob to set the minute to
“30”
12:30
1.5 Press the “Defrost/Clock” button or wait for 60
seconds to enter the clock state
2 Set cooking program and cooking time
2.1 Press the microwave power button to select micro-
wave power
100P
2.2 Turn the “Time/Weight” knob to set the cooking
time
9.30
2.3 Press the “Defrost/Clock” button for 3 seconds to
return to the current clock
12:30
3 Repeat steps 1.2, 1.3, 1.4 to set the startup time 14:20
4 After pressing the “Defrost/Clock” button to confirm
the delay menu, the menu is activated automatically
at 14:20
5 Press the “Defrost/Clock” button to view the preset
startup time
HOW TO USE YOUR MICROWAVE
10. AUTOMATIC DELAYED FUNCTION
See table on the left. If you do not want the menu to be started imme-
diately, the desired startup time can be preset, and when the preset
time is reached, the microwave oven will automatically start the
preset program. The setting will consist of 2 steps:
1. Setting the current clock;
2. Setting the cooking menu and time.
11. MULTI-SEQUENCE COOKING
In order to get better cooking results, some recipes require different
cooking modes or time to cook. You can set the following personalized
menu.
Example: cooking with 100P microwave power for 3 minutes and then cook-
ing with 20P for 9 minutes
Steps Display
1 Set 100P microwave power for 3 minutes
1.1 Press the “microwave” button to set the microwave
power 100P
100P
1.2 Turn the “Time/Weight” knob to set the microwave
cooking time for 3 minutes
3:00
2 Set 20P cooking for 9 minutes
2.1 Press the “microwave” button to select 20P 20P
2.2 Turn the “Time/Weight” knob to set the cooking time
for 9 minutes
9:00
3 Press the “Instant/Start” button to start cooking
SM22045_IM.indd 13 06/09/2019 08:57

14
HOW TO USE YOUR MICROWAVE
UTENSILS GUIDELINE
It is strongly recommended to use the containers which are
suitable and safe for microwave cooking. Generally speaking,
the containers which are made of heat-resistant ceramic,
glass or plastic are suitable for microwave cooking. Never use
the metal containers for microwave cooking as sparks are
likely to occur. You can take the reference of below table
Material M.wave Note
Heat resistant ceramic Yes No metal rims or print
Heat resistant plastic Yes Refer to instructions on container
Heat resistant glass Yes
Plastic film Yes Don’t use with meat
Metal container No Microwaves cannot penetrate metal
and can cause sparking inside cavity
• When the 100P microwave power cooking stage is com-
pleted, it will automatically enter the next cooking stage.
• Maximum stages that can be set is 4
12. CHILD LOCK FUNCTION
This feature is primarily intended to prevent children from us-
ing the microwave oven without adult guidance or to protect
the control panel when cleaning. When in child safety lock
mode, all buttons will be locked.
Set child lock: Hold “Pause/Cancel” button about 3 seconds.
Cancel child lock: Hold “Pause/Cancel” button about 3 sec-
onds.
SM22045_IM.indd 14 06/09/2019 08:57

15
HOW TO USE YOUR MICROWAVE
Cooking Tips
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part towards the Centre and spread it evenly. Do not overlap if possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may
result in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable,
stir it from outside to centre of dish once or twice during cooking
Allow standing time
After cooking time ends, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and
cools it down in a gradual manner
Whether the food is done. Colour and hardness of food help to determine if it is done, these include:
- Steam coming out from all parts of food, not just the edge
- Joints of poultry can be moved easily
- Pork or poultry shows no signs of blood
- Fish is opaque and can be sliced easily with a fork
SM22045_IM.indd 15 06/09/2019 08:57

16
HOW TO USE YOUR MICROWAVE
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the
preheating time specified in the dish instruction manual must not be exceeded.
SPECIFICATIONS
Output: 700-800 Watts
Input voltage: 220-240V ~ 50Hz
Input power: 1150-1280 Watts
Microwave frequency: 2450MHz HOT SURFACES
SM22045_IM.indd 16 06/09/2019 08:57

17
CLEANING & MAINTENANCE
The oven should be cleaned regularly and any food deposits removed.
1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to microwave energy
2. Remove the power cord from the wall outlet before cleaning. Don’t immerse the appliance in water or other fluids when
cleaning.
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the
life of the appliance and possibly result in a hazardous situation
4. The oven should be cleaned regularly and any food deposits removed
5. Details for cleaning door seals, cavities and adjacent parts.
6. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
7. Do not remove the waveguide cover
8. When the microwave oven has been used for a long time, there may be some strange odours in the oven, Following 3
methods can get rid of them: a. Place several lemon slices in a cup, then heat with high power for 2-3 min. b. Place a cup
of red tea in oven, then heat with high power. c. Put some orange peel into oven, and then heat them with high power for 1
minute.
Wipe exterior parts with a dampened soft cloth
Wipe clean the interior surfaces with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed on it
Turntable / Rotation ring / Rotation axis:
Wash with mild soapy water. Rinse with clean water and allow drying thoroughly. Glass turntable is OK to put in the dishwasher
SM22045_IM.indd 17 06/09/2019 08:57

18
SERVICING
Please check the following before calling for service:
a. Place one cup of water (approx.150ml)in a glass measure in the oven and close the door securely. Oven lamp should go off if
the door is closed properly. Let the oven work for 1 min.
b. Does the oven lamp light?
c. Does the cooling fan work? (Put your hand over the rear ventilation openings and feel for air flow.)
d. Does the turntable rotate? (The turntable can rotate Clockwise or counter Clockwise. This is quite normal.)
e. Is the water inside the oven hot?
If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.
If both the wall socket and the fuse are functioning properly, CONTACT SERVICE using number on front of this manual
If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which
involves removal of any cover which gives protection against exposure to microwave energy.
Liquids or other foods must not be heated in sealed containers since they are liable to explode.
SPARES
The following spares are available for this microwave via our web site at: www.swan-brand.co.uk:
SM22030N001 - glass turntable
SM22030N002 - plastic rotating ring
SM22045_IM.indd 18 06/09/2019 08:57

19
MICROWAVE RADIATION!
It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which
involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible
surfaces may be high when the appliance is operating
The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chas-
sis (use a screwdriver) to discharge before touching.
During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.
1. Magnetron
2. High voltage transformer
3. High voltage capacitor
4. High voltage diode
5. High voltage fuse
The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron; Improper
matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been
damaged.
SERVICING SAFEGUARDS
SM22045_IM.indd 19 06/09/2019 08:57

20
BS Plug Wiring
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as
follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN
must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
WEEE Directive
Disposal of Unit
Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed
of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.
co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006,
states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site
for recycling, once it has reached the end of its life.
SM22045_IM.indd 20 06/09/2019 08:57
