IMPORTANT SAFEGUARDS
• The following basic precautions should always be followed when using electrical
appliance:
• Read all instructions before using.
• Make sure the voltage in your area corresponds to the one shown on the rating label
of the appliance and the wall socket is properly earthed.
• To reduce the risk of fire in the oven cavity:
a. Do not overcook the food.
b. Remove wire twist ties from paper or plastic bags before placing bags in the
oven.
c. Do not heat oil or fat for deep frying as the temperature of oil cannot be
controlled
d. After use, wipe the waveguide cover with a damp cloth, followed by dry cloth to
remove any food splashes and grease.
e. Built -up grease may overheat and begin to cause smoke or catch fire.
f. If materials inside the oven should smoke or ignite, keep oven door closed, turn
oven off and disconnect the power supply.
g. When heating food in plastic or paper containers, keep an eye on the oven due to
the possibility of ignition.
SM22038_IM.indd 2 22/06/2020 16:36

3
IMPORTANT SAFEGUARDS
• WARNING: Liquids and other foods must not be heated in sealed container since
they are liable to explode:
a. Baby bottles fitted with a screw cap or teat are considered to be sealed
containers.
b. Use the wide-mouthed containers to cook liquid, and the cooked liquid should be
allowed to stand for at least a minute before removing.
c. Potatoes, sausage and chestnut should be peeled or pierced before cooking.
Eggs in their shell, whole hard -boiled eggs should not be heated in microwave
ovens since they may explode, even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars are to be stirred or shaken
and the temperature is to be checked before consumption, in order to avoid
burns.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a qualified technician in order to avoid a shock hazard.
• After cooking, the container is very hot. Use gloves to take out the food and avoid
steam burns by directing steam away from the face and hands.
• Slowly lift the furthest edge of dish covers and microwave plastic wrap.
SM22038_IM.indd 3 22/06/2020 16:36

4
IMPORTANT SAFEGUARDS
• To prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
• Make sure the utensils do not touch the interior walls during cooking.
• Only use utensils that are suitable for use in microwave ovens.
• Do not store food or any other things inside the oven.
• Do not operate the oven without any liquid or food inside the oven. This would do
damage to the oven.
• When the appliance is operated in the combination mode, children should only use the
oven under adult supervision due to the temperatures generated.
• Any accessories not recommended by the manufacturer may cause injuries to
persons.
• Do not use outdoors.
• Save these instructions.
• WARNING: If the door or door seals are damaged or the oven is malfunctioning, it
must not be operated until it has been repaired by a competent person.
• WARNING: It is hazardous for anyone other than a competent person to carry out
SM22038_IM.indd 4 22/06/2020 16:36

5
IMPORTANT SAFEGUARDS
any service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in
order to stifle any flames
• Microwave heating of beverages can result in delayed eruptive boiling; therefore care
must be taken when handling the container;
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
glass since they can scratch the surface, which may result in shattering of the glass.
• The lamp of microwave oven is not intended for other purposes.
• The appliance is not intended to be operated by means of an external timer or
separate remote -control system.
• This appliance is intended to be used in household and similar applications, such as:
a. Staff kitchen areas in shops, offices and other working environments;
b. Farm houses;
c. By clients in hotels, motels and other residential environments;
d. Bed and breakfast type environments.
• The microwave oven is intended for heating food and beverages. Drying of food or
clothing and heating of warming pads, slippers, sponges, damp cloth and similar may
SM22038_IM.indd 5 22/06/2020 16:36

6
IMPORTANT SAFEGUARDS
lead to risk of injury, ignition or fire.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the appli-
ance. Cleaning and user maintenance shall not be made by children unless they are
older than 8 and supervised. Keep the appliance and its cord out of reach of children
less than 8 years.
• Do not use a steam cleaner to clean any part of this appliance
• The door or the outer surface may get hot when the appliance is operating.
• WARNING: Accessible parts may become hot during use. Young children should be
kept away.
Household use only
We do not recommend the use of microwave popcorn in bags. Many of these produce PFOA
chemicals, which have been identified as a potential carcinogen. Instead we recommend using
a microwave-approved bowl and lid.
SM22038_IM.indd 6 22/06/2020 16:36

7
GET TO KNOW YOUR MICROWAVE
UTENSILS GUIDELINE
Only use containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of
heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use metal containers for microwave cooking.
• Do not remove the Waveguide cover during cleaning
1
3
4
6
7

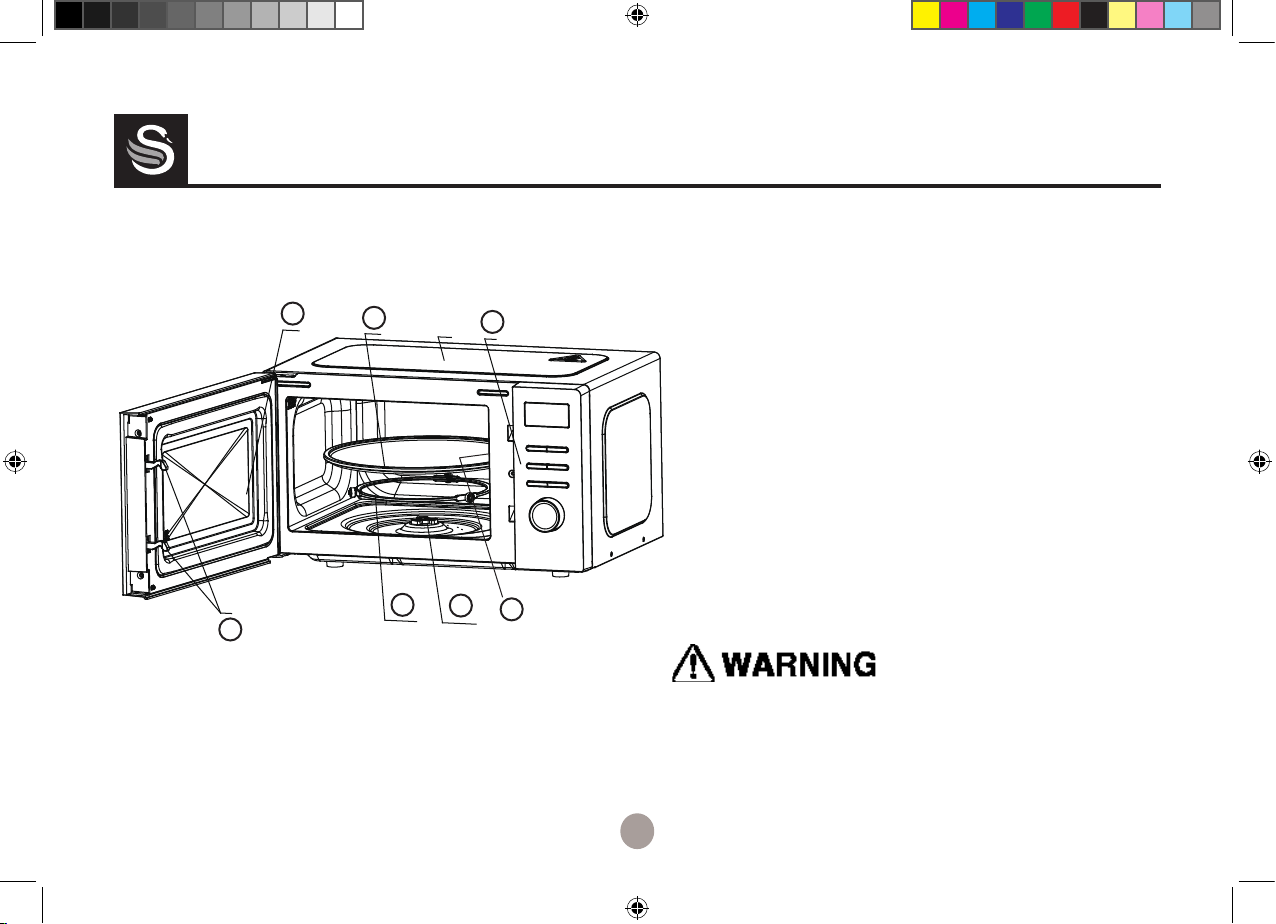

251. Door Microwave oven door must be properly closed in
order for it to operate
2. Viewing window Allow user to see the cooking status
3. Rotating axis The glass turntable sits on the axis; the
motor underneath it drives the turntable to rotate
4. Rotating ring The glass turntable sits on its wheels;
it supports the turntable and helps it to balance when
rotating
5. Turntable The food sits on the turntable, its rotation
during operation helps to cook food evenly. Place the
rotating ring first. Fit the turntable onto the rotating
axis and make sure that it is geared in properly
6. Control panel See below for more information
7. Wave guide cover
SM22038_IM.indd 7 22/06/2020 16:36

8
HOW TO USE YOUR MICROWAVE

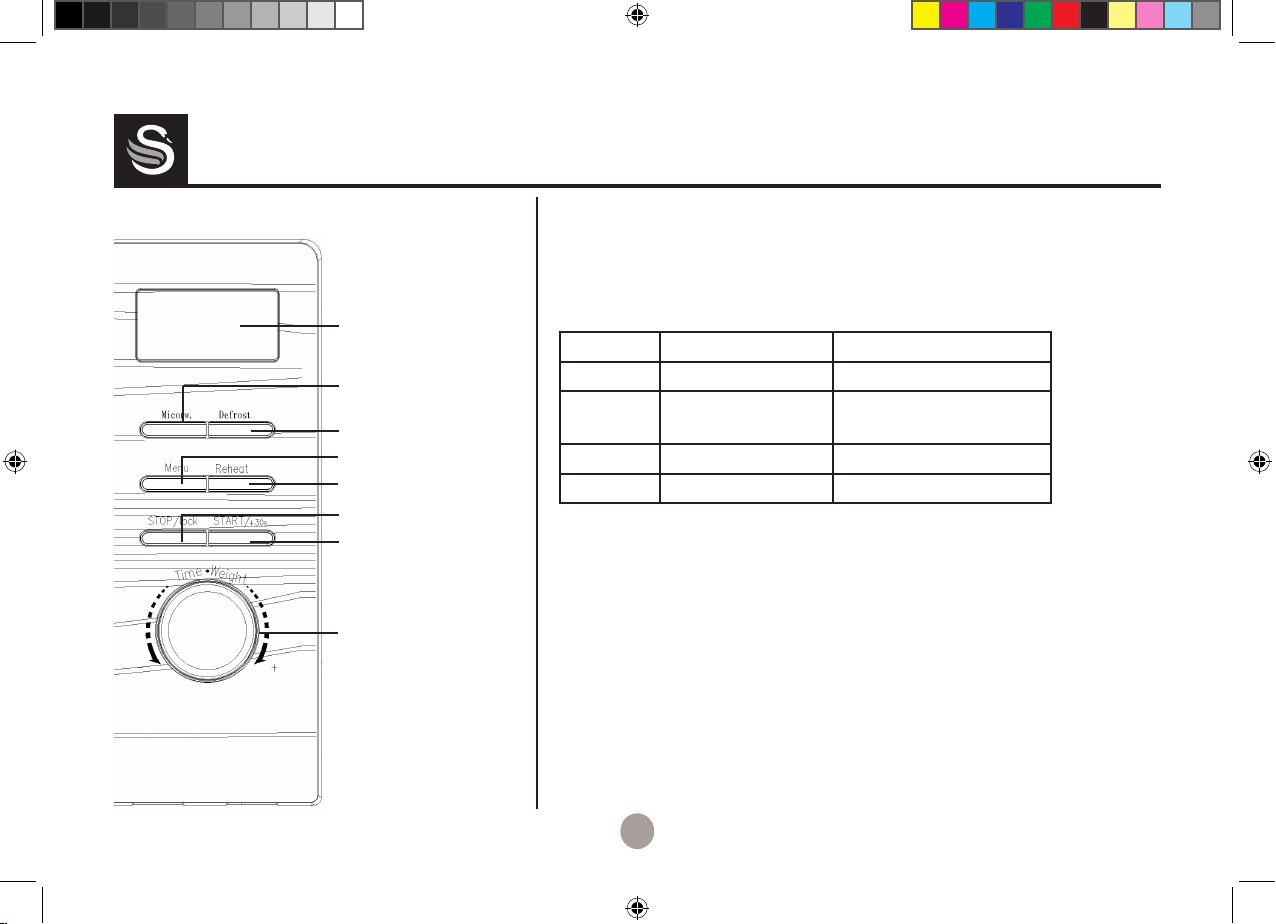

CONTROL PANEL
Display
Micro Power
Defrost
Time/weight knob
Menu
Reheat
Stop/lock
Start/+30s
BEFORE COOKING
The LED flashes 3 times when plugged in the power supply. Then it
flashes “0:00”, prompting you to input the cooking menu and time.
MICRO POWER
There are 5 levels as shown below:
HIGH 100% POWER QUICK COOKING
M.HIGH 80% POWER MEDIUM COOKING
MED 50% POWER SLOW COOKING or
STEAMING
M.LOW 30% POWER DEFROSTING
DEFROST 10% POWER KEEP WARM
Press the “Microw.” button continuously and select the desired micro-
wave power. Turn the “Time. Weight” knob to increase or decrease cook-
ing time. You can select the time range 0:10 to 60:00. After selecting
the time, press “START/+30s” button to start cooking. A beep sound
will notify completion of the operation.
SM22038_IM.indd 8 22/06/2020 16:36

9
HOW TO USE YOUR MICROWAVE
! CAUTION:
a. The max time which can be set is 60 minutes
b. Never operate the oven empty.
c. At the maximum microwave power, the oven will automatically
lower the power after a certain time of cooking to lengthen the
service life.
d. If you turn the food during operation, press the START/+30s
button once and the preset cooking procedure will continue.
e. If you intend to remove the food before the preset time,
you must press STOP/LOCK button once to clear the preset
procedure to avoid unintended operation of next time use.
DEFROST
There are two defrost modes, dEF1 and dEF2, respectively.
dEF1 for defrost by weight and dEF2 for defrost by time. Press
“Defrost” button continuously to select the defrost mode then
turn the “Time. Weight” knob to chose the food weight or
defrost time. dEF1 selectable option range of weight is 100g ~
1500g. dEF2 selectable option range of time is 0:10 ~ 60:00.
After selecting, press the “START/+30s” button start to work.
A beep will sound to notify completion of the operation. The
dEF1 defrost mode by weight will have a beeping sound to
prompt the food to be turned over during defrosting.
a. It is necessary to turn over the food during operation to
obtain a uniform effect.
b. Usually defrosting will need a longer time than that of cooking
the food.
c. If the food can be cut by a knife, the defrosting process can
be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is
not advised to put back to fridge and freeze again.
dEF1: for defrosting weight range from 0.1 to 1.5kg
dEF2: for defrosting time range from 0:10 to 60:00
AUTO COOKING
There are eight automatic menus A.1 to A.8, Potato,
Pasta, Pizza, Popcorn, Vegetable, Beverage, Meat and Fish
respectively. Press the “Menu” button continuously to select
the desired menu, then turn the “Time.Weight” knob to select
the weight of the menu.
After selecting the weight and cooking weight, press
“START/+30s” button to start cooking. A beep will sound to
notify completion of the operation. Auto cook settings on next
page:
SM22038_IM.indd 9 22/06/2020 16:36

10
HOW TO USE YOUR MICROWAVE
NOTE:
a. The temperature of food before cooking would be 20-25°C.
Higher or lower temperature of the food before cooking would
require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely
influence the cooking effect. If any deviation has been found to
the factor noted on above menu, you can adjust the cooking
time for best results.
REHEAT
Reheat function is mainly to facilitate users to heat food
according to the weight of food, press “Reheat” button
continuously, select the appropriate weight of food, the weight
range can be selected is 200g,400g, 600g, 800g and 1000g.
After selecting the weight, press “START/+30s” button to
start cooking, A beep will sound to notify completion of the
operation.
STOP
In the process of cooking settings, you can press “STOP”
button to cancel the settings and return to standby state.
During cooking you can press “STOP” button to pause.
Display Kind Method
A.1 Popcorn Cooking weight (0.1 kg)
A.2 Reheat There are five cooking weight op-
tions (0.2 kg, 0.4 kg, 0.6 kg, 0.8 kg,
1.0 kg)
A.3 Beverage Cooking cups (1 cup, 2 cups, 3
cups)
A.4 Pizza Servings (1 serving, 2 servings)
A.5 Potato There are two cooking weight op-
tions (0.45 kg, 0.65 kg)
A.6 Vegetable There are five cooking weight op-
tions (0.1 kg, 0.2 kg, 0.3 kg, 0.4 kg,
0.5 kg)
A.7 Meat There are five cooking weight op-
tions (0.1 kg, 0.2 kg, 0.3 kg, 0.4 kg,
0.5 kg)
A.8 Fish There are five cooking weight op-
tions (0.1 kg, 0.2 kg, 0.3 kg, 0.4 kg,
0.5 kg)
SM22038_IM.indd 10 22/06/2020 16:36

11
HOW TO USE YOUR MICROWAVE
START/+30s
In standby state, press “START/+30s” button to start
microwave oven immediately, microwave oven starts to work
in 30 seconds with high power, which is convenient for users
to heat food quickly.
During cooking you can press “START/+30s” button to
increase time, press one time to increase by 30 seconds.
Note: This cannot be adjusted in the menu mode and weight
defrosting mode. In pause state, you can press “START/+30s”
button to resume cooking.
CHILD LOCK FUNCTION
Use this feature to lock the control panel when you are cleaning
or so that children can not use the oven unsupervised. All the
buttons are rendered inoperable in this mode.
1) Set lock: Hold STOP button about 3 seconds.
2) Cancel lock: Hold STOP button about 3 seconds
UTENSILS GUIDELINE
It is strongly recommended to use the containers which are
suitable and safe for microwave cooking. Generally speaking,
the containers which are made of heat-resistant ceramic,
glass or plastic are suitable for microwave cooking. Never use
the metal containers for microwave cooking as sparks are
likely to occur. You can take the reference of below table
Material M.wave Note
Heat resistant ceramic Yes No metal rims or print
Heat resistant plastic Yes Refer to instructions on container
Heat resistant glass Yes
Plastic film Yes Don’t use with meat
Metal container No Microwaves cannot penetrate metal
and can cause sparking inside the
cavity
Be especially careful with ceramic glazes that may contain
glitter or other metal elements. These cannot be used in the
microwave.
Most modern containers have a “microwave safe” symbol
underneath.
SM22038_IM.indd 11 22/06/2020 16:36

12
HOW TO USE YOUR MICROWAVE
Cooking Tips
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part towards the Centre and spread it evenly. Do not overlap if possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may
result in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable,
stir it from outside to centre of dish once or twice during cooking
Allow standing time
After cooking time ends, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and
cools it down in a gradual manner
Whether the food is done. Colour and hardness of food help to determine if it is done, these include:
- Steam coming out from all parts of food, not just the edge
- Joints of poultry can be moved easily
- Pork or poultry shows no signs of blood
- Fish is opaque and can be sliced easily with a fork
SM22038_IM.indd 12 22/06/2020 16:36

13
HOW TO USE YOUR MICROWAVE
Browning dish
When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it
to prevent damage to the turntable and rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the
preheating time specified in the dish instruction manual must not be exceeded
SPECIFICATIONS
Output: 700 Watts
Input voltage: 220-240V ~ 50Hz
Input power: 1100 Watts
Microwave frequency: 2450MHz HOT SURFACES
SM22038_IM.indd 13 22/06/2020 16:36

14
CLEANING & MAINTENANCE
The oven should be cleaned regularly and any food deposits removed.
1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to microwave energy
2. Remove the power cord from the wall outlet before cleaning. Don’t immerse the appliance in water or other fluids when
cleaning.
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the
life of the appliance and possibly result in a hazardous situation
4. The oven should be cleaned regularly and any food deposits removed
5. Details for cleaning door seals, cavities and adjacent parts.
6. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
7. Do not remove the waveguide cover
8. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3
methods can get rid of them: a. Place several lemon slices in a cup, then heat with high power for 2-3 min. b. Place a cup
of red tea in oven, then heat with high power. c. Put some orange peel into oven, and then heat them with high power for 1
minute.
Wipe exterior parts with a dampened soft cloth
Wipe clean the interior surfaces with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed on it
Turntable / Rotation ring / Rotation axis:
Wash with mild soapy water. Rinse with clean water and allow drying thoroughly. Glass turntable is OK to put in the dishwasher
SM22038_IM.indd 14 22/06/2020 16:36

15
SERVICING
Please check the following before calling for service:
a. Place one cup of water (approx.150ml)in a glass measure in the oven and close the door securely. Oven lamp should go off if
the door is closed properly. Let the oven work for 1 min.
b. Does the oven lamp light?
c. Does the cooling fan work? (Put your hand over the rear ventilation openings.)
d. Does the turntable rotate? (The turntable can rotate Clockwise or counter Clockwise. This is quite normal.)
e. Is the water inside the oven hot?
If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.
If both the wall socket and the fuse are functioning properly, CONTACT SERVICE using number on front of this manual
If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which
involves removal of any cover which gives protection against exposure to microwave energy.
Liquids or other foods must not be heated in sealed containers since they are liable to explode.
SPARES
The following spares are available for this microwave via our web site at: www.swan-brand.co.uk:
SM22030N001 - glass turntable
SM22030N002 - plastic rotating ring
SM22038_IM.indd 15 22/06/2020 16:36

16
MICROWAVE RADIATION!
It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which
involves removal of any cover which gives protection against exposure to microwave energy. The temperature of accessible
surfaces may be high when the appliance is operating
The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chas-
sis (use a screwdriver) to discharge before touching.
During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.
1. Magnetron
2. High voltage transformer 3. High voltage capacitor
4. High voltage diode
5. High voltage fuse
The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron; Improper
matching of door interlock, door hinge and door; Improper fitting of switch support; If the door, door seal or enclosure has
been damaged.
SERVICING SAFEGUARDS
1. If LED displays Err0 during working, it indicates that sensor has been short circuited and you need replace it at the near-
est service centre. Call our help line for details
2. If LED displays Err1 during working, it indicates that sensor is open circuit and you need replace it at the nearest service
centre. Call our help line for details.
SM22038_IM.indd 16 22/06/2020 16:36

17
BS Plug Wiring
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
GREEN/YELLOW EARTH
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as
follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN
must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the
terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.
WARNING: THIS APPLIANCE MUST BE EARTHED
WEEE Directive
Disposal of Unit
Disposal instructions for Swan items in accordance with the
WEEE directive. Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish. You are required
to dispose of old electrical and electronic appliances like this
separately. Please visit www.recyclemore.co.uk, or www.
recyclenow.co.uk for access to information about the recycling
of electrical items. The WEEE directive, introduced in August
2006, states that all electrical items must be recycled, rather
than taken to landfill. Please arrange to take this appliance to
your local Civic Amenity site for recycling, once it has reached
the end of its life.
Warranty
This product is guaranteed for 2 years from the date of original purchase. If
any defect arises due to faulty materials of workmanship the faulty products
must be returned to the place of purchase. Refunds or replacement is at the
discretion of the store.
The following conditions apply:
The product must be returned to the retailer with proof of purchase.
The product must be installed and used in accordance with the instructions
contained in this instruction guide. It must be used only for domestic purposes.
It does not cover wear and tear, damage, misuse or consumable parts. Swan
Products Ltd has limited liability for incidental or consequential loss or damage.
This guarantee is valid in the UK and Eire Only.
SM22038_IM.indd 17 22/06/2020 16:36

18
NOTES
SM22038_IM.indd 18 22/06/2020 16:36

19
NOTES
SM22038_IM.indd 19 22/06/2020 16:36

www.swan-brand.co.uk
Copyright ©
Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
Est.1931
We love
what we do
s
2year
GUARANTEE
we’re proud
of our quality
Scan this QR code
to hear about
our story
Find us on Facebook
SM22038_IM.indd 20 22/06/2020 16:36
