Swann S243-4NU User manual

Easy to
connect hood &
mount to
walls & ceilings
Water resistant
& usable in
freezing
conditions
www.swannsecurity.com
Enquiries: [email protected]
Product Code: S243-4NU
High Resolution CCD Cameras

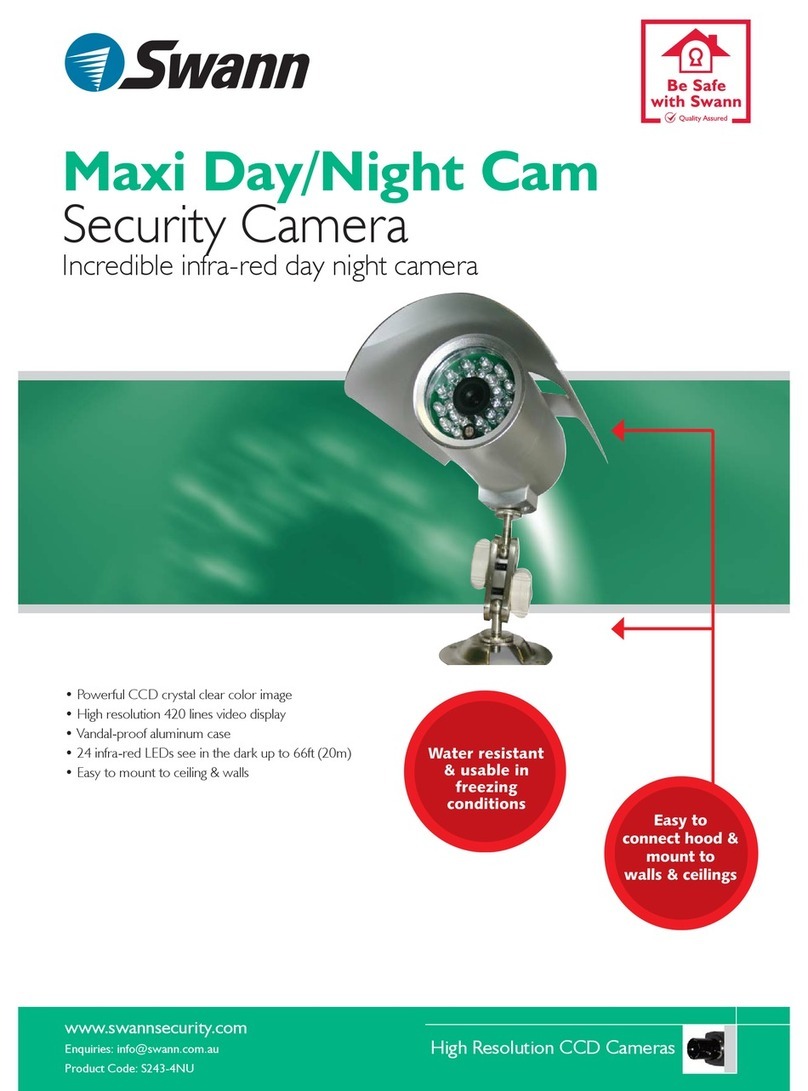

Maxi Day/Night Cam
Security Camera
Incredible infra-red day night camera
• Powerful CCD crystal clear color image
• High resolution 420 lines video display
• Vandal-proof aluminum case
• 24 infra-red LEDs see in the dark up to 66ft (20m)
• Easy to mount to ceiling & walls

Maxi Day/Night Cam
Security Camera
Incredible infra-red day night camera
Get the most out of your Swann Maxi Cam Security Camera. The adaptive
mounting bracket can easily be installed to ceilings and walls giving you numerous
positions to monitor. It’s powerful infra-red LED’s and sharp picture display
features gives you the ability to monitor day & night. It is easy to install, just plug
‘n’ play into your TV, VCR & DVR.
www.swannsecurity.com
Please note that the information
contained within this document is
subject to change without notification.
Home &Business Monitoring:
Backyard security Front door security After hours surveillance Parking lot security
Infra-red night vision
Sees in the dark
up to 70 feet
Image Sensor
Picture Elements
Resolution
S/N Ratio
Minimum Illumination
Video Output
Power Supply
Operating Current
Video Output Connector
Infrared Wavelength
: ¼” SuperHAD CCD
: NTSC 510 (H) x 492 (V)
PAL 500 (H) x 582 (V)
: 420 TV Lines
: More than 48db
: 0 Lux
: 1.0V(P-P)75
: DC 12V
: 150mA-280mA
: BNC
: 24 units 850nm
: Up to 66ft/20m
: Night (IR on)/
Day(IR off)
: Aluminum Alloy
: 4” x 23/4” x 63/4”
(99mm x 71mm x 169mm)
Illumination Distance
Auto Switch
Housing
Size
Pictures used on brochure are for illustration
purposes only
Product Specifications
- Maxi Day/Night Camera
- Camera Hood & Stand
- Power Adapter
- BNC Adapter
- Bonus Lens
- Theft Deterrent Stickers x 4
- Quick Start Guide
Package Contents:
Weather
Resistant
