Swann PTZ INTERNAL Speed Dome User manual

www.swannsecurity.com
Enquiries: [email protected]
Product Code: S281-SDI
High Resolution CCD Cameras
PTZ INTERNAL Speed Dome
Dome Camera with 27x Optical,
10x Digital Zoom
The ideal solution for high performance surveillance with
480 TVL & 0.01 lux
• 1/4” Sony SUPERHAD CCD with minimum illumination of 0.01 lux
• Built-in 27X Optical Zoom /10X Digital Zoom color camera
• Continuous 360 degrees Pan Rotation
• Continuous auto focus to target subject accurately
• 64 presets available
• RS-485 Communication Protocol and fully compatible with all DVR systems
• On Screen Display for camera control
• Auto protection function when there is a power failure
• Outdoor Wall mounting support bracket included
• Support Auto Cruise and Cruise between two presets
• Auto Flip dome rotation
• Focusing System: Auto-Sensing, manually, interval AF, Zoom trigger AF
• Auto white balance, backlight compensation, auto iris control, electronic shuttle
• No IP Rating (for indoor use)
• No heater/fan inside
• Temperature of 0°C~50°C
Optional straight mounting
bracket for ceilings
Dimension:
9.72”/247mm
8.26”/210mm
7.08”/180mm

www.swannsecurity.com
Please note that the information
contained within this document is
subject to change without notification.
Indoor/Outdoor
Zoom
Image sensor
Resolution
Angle of View(H)
Min.Illum
Day/Night mode
Address
Pan range
Tilt range
Manual Pan speed
Manual Tilt speed
: Indoor
: 27x optical / 10x digital
: 1/4” Sony Super HAD CCD
: 480 TV lines
: 47° wide end to 3.0° tele end view(H)
: 1.0 Lux /Day 0.01 Lux/Night
: Yes
: 0-255
: 360° Continue
: 0°-90° Flip
: 0.1°-36°/Sec
: 0.1°-36°/Sec
: 100°/Sec
: ±0.10°
: 64 points
: 6 Programmable group
(Dwell time/speed/preset point)
: Pelco P/D auto detect
: Yes ( 3 programable speed)
: N/A
: 32°F~122°F / 0°C~50°C
: N/A
: 24V/AC
: 6.29inches / 160mm
Preset speed
Preset accuracy
Preset points
To u r s
Protocal
Auto Scan
IP 66
Temperature
Heater / Fan
Power
Compact size
Product Specifications
- Swann PTZ Internal Speed
Dome Camera
- Mounting Bracket
- 24Volt Power Supply
- User Manual
Package Contents:
Weather
Resistant
PTZ INTERNAL Speed Dome
Dome Camera with 27x Optical,10x Digital Zoom
The ideal solution for high performance surveillance with 480 TVL & 0.01 lux

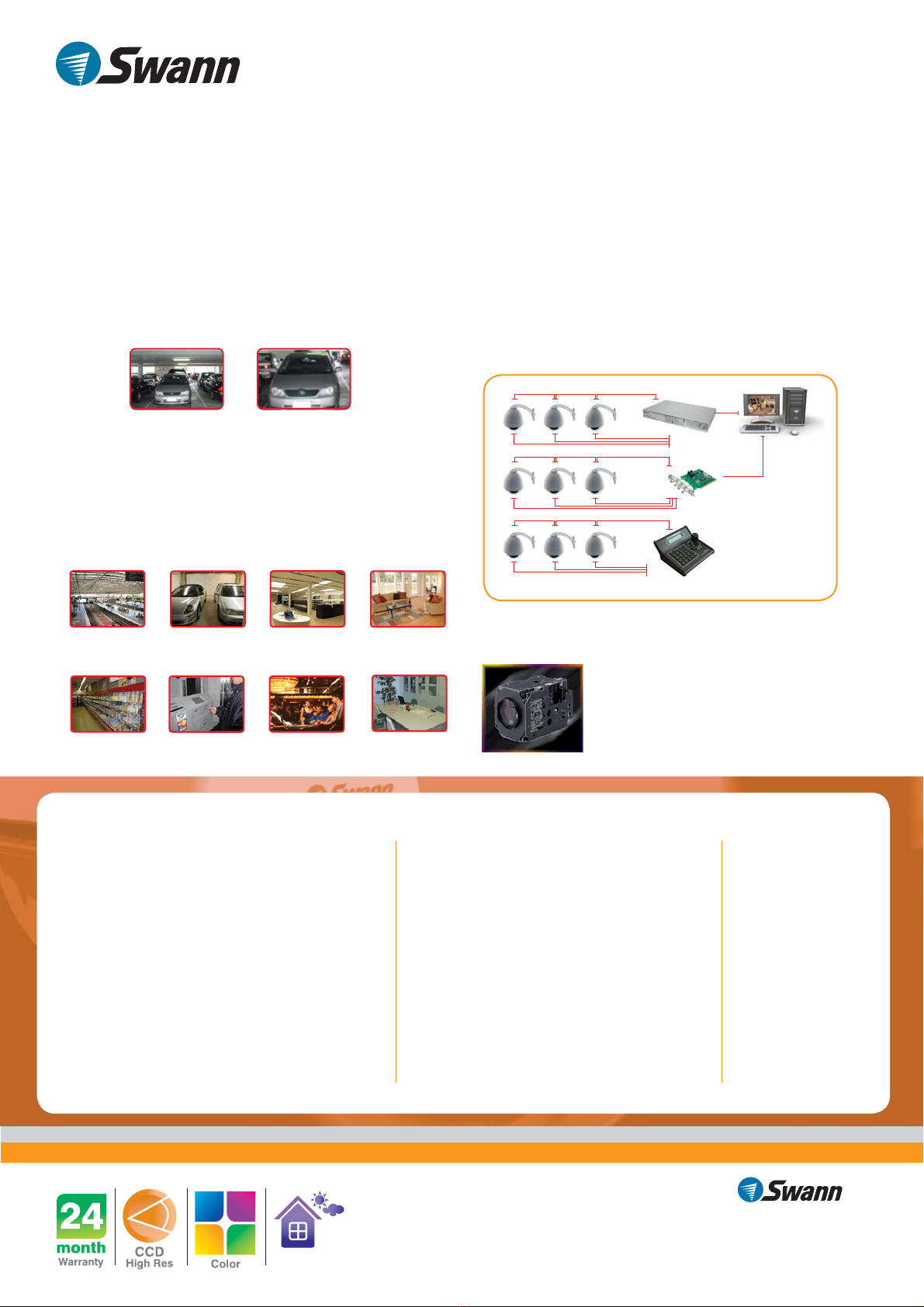

Product Highlights
Combination of electronic and optical zoom
For an extended magnification range, the PTZ camera combine both opti-
cal lens-based zoom 27X and electronic image zoom 10x that can provide
magnifications of 270X zoom (see image example below).
System Configuration
Through the embedded RS-485 communication protocol, Swann’s
high speed domes can connect to our keyboard controller and any
DVR systems or IP servers. Through our integrated Pelco P and D type
protocols, Swann’s high speed domes are also compatible with our IP
server, DVR systems and other well known brands of IP servers and
DVR systems for remote functions.
Built-in 27x Optical Zoom & 10x Digital Zoom
Color Camera:
-1/4” type Super HAD CCD sensor
-Max. 27 times power optical and 10 times
digital zoom camera
-Day & night function (0.01 Lux with electronic
sensitive up)
-DSS (digital slow shutter) available (optional extra)
Video
RS-485 RS-485 RS-485
RS-485 RS-485 RS-485
RS-485 RS-485 RS-485
Video Video
Video Video Video
Video Video Video
Remote PC
DVR
PC DVR
Control Keyboard
Application Uses:
Swann offers a full line of PTZ cameras that deliver extraordinary capabili-
ties in both image quality, and day-to-day performance for banks, petrol
stations, casinos, parking lots, supermarkets, hotels, restaurants, offices,
airports and highway surveillance.
Stations Parking lots Libraries
Supermarkets
Homes
Offices
Casinos
Banks
27x Zoom In/Out 1x~270x Zoom In/Out
