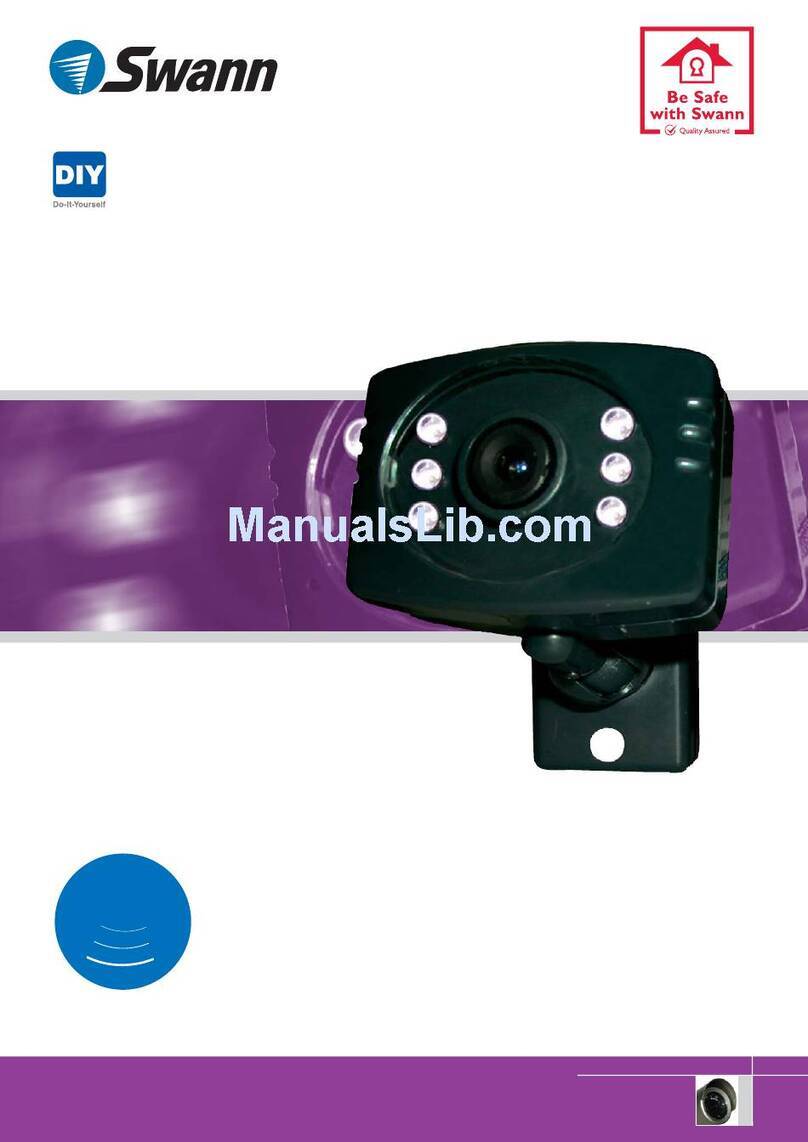

Swann SW231-WMX User manual

Product Code: SW231-WMX
25ft 8m
superior night vision
easily connects
to your TV
weather resistant
robust metal casing
up to 165ft 50m
wireless transmission
good video quality
1/4” CMOS 380 TV lines
380
www.swannsecurity.com
Wireless / Wired
Security Camera
PPW-250™
Wireless camera with wired optionfor added flexibility
™
™
Advanced securit
y
made eas
y
Wireless or wired option
For locations with wireless routers or cordless phones nearby,
the wired option is recommended
See more day & night
Good video image clarity
Mount to walls or ceilings
Deters intruders & protect property
Fight back against crime
Deter intruders & protect property
Do it yourself
Plug into your TV’s yellow AV socket
plug&playwireless

www.swannsecurity.com
™
Please note that the information contained within this document is subject to change without notification.
Camera Specifications
Image Resolution
Image Sensor 1/3” Super CMOS
Video Quality 400 TV lines
No. of Effective Pixels NTSC: 510(h) x 492(v)
/ PAL: 628(h) x 582(v)
Minimum Illumination 0 Lux (IR on)
Day/Night Mode Automatic
White Balance Automatic
Signal Ratio > 48 dB
Electronic Shutter NTSC: 1/60~1/15,000, /
PAL:1/50~1/15,000
Gain Control Automatic
Back Light Compensation Automatic
Lens 6mm standard
Viewing Angle 54 degrees
Night Vision
Number of Infra-Red LEDs 30
Infra-Red Wavelength 850nm
Night Vision Distance 30ft / 9m
Infra-Red LED Life 10,000hrs
Package Contents
all installation accessories included
• PPW-250™ Camera
• Wireless Receiver
• BNC Cable 32ft / 10m
• Power / Video Cable 3ft / 1m
• RCA Cable 3ft / 1m
• Mounting Screws & Plugs
• Power Adapters x 2
• Instruction Manual
General
Power Supply DC 12V
Operation Temperature 14°F to 122°F / -10°C to +50°C
Body Plastic with black finish
Dimensions - Camera 2.6“ (l) x 2.6” (w) x 5.3” (h)
65mm (l) x 65mm (w) x 135mm (h)
Dimensions –
Camera with bracket 6.7“ (l) x 2.6” (w) x 5.3” (h)
170mm (l) x 65mm (w) x 135mm (h)
Weight – Camera only 0.44lbs / 200g
Weight – Camera w/bracket 0.55lbs / 250g
Cable Length 32ft / 10m BNC
Wireless
Digital or Analog Analog
Max. Transmission Range 165ft / 50m*
Frequency 2.4GHz
Transmission Channels 4
All trademarks remain properties of their respective owners.
™
™
Advanced securit
y
made eas
y
plug&playwireless
* Depending on local conditions
warranty
MONTHS
12
x4
BONUS
STICKERS
SECURITY
Wireless / Wired
Security Camera
PPW-250™
Wireless camera with wired optionfor added flexibility
