Swisher L116-245001 User manual

PREDATOR TALON
24” WALK BEHIND
ROUGH CUT
OWNER’S
MANUAL
SWISHER ACQUISITION INC.
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
PHONE [phone] FAX [phone]
MODEL NO.
Operation
Service and Adjustment
Repair Parts
REV 16-245
WBRC11524C
WBRC11524CXP
swisherinc.com
19706
STARTING SERIAL #:
L116-245001
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
ade I The
USA
of US and Global Parts

2
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer. All transportation charges, damage, or loss incurred during transportation of parts
submitted for replacement or repair under this warranty shall be borne by the purchaser. Should you
have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The
model number, serial number, date of purchase, and the name of the authorized Swisher dealer from
whom you purchased the mower will be needed before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty may
last, so the above limitations or exclusions may not apply to you. This warranty gives you specific
legal rights and you may have other rights, which vary from state-to-state. This is a limited warranty
as defined by the Magnuson-Moss Act of 1975.
LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects
in materials and workmanship for a period of (1) year from the date of purchase by the original
consumer purchaser. We will repair or replace, at our discretion, parts found to be defective due to
materials or workmanship. This warranty is subject to the following limitations and exclusions:
TABLE OF CONTENTS
WARRANTY………………....….2
INTRODUCTION………………..3
SAFETY..……………………….3-4
PRE-OPERATING..….……..……4
OPERATION.……………………….5-7
DECALS…..………….……………….8

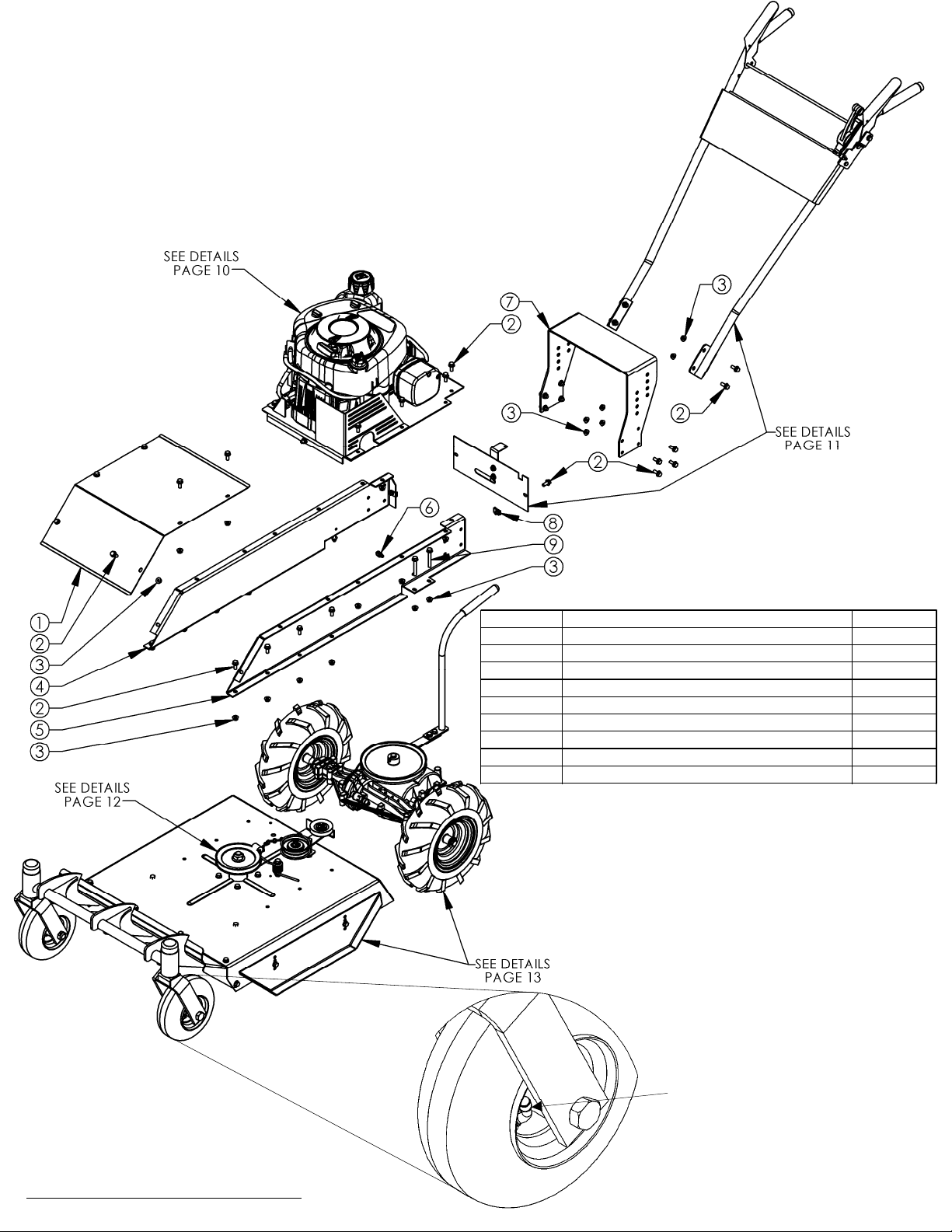

PARTS BREAKDOWN…………….9-13
MAINTENANCE LOG..…………..…15
1) Engine Warranty All engines utilized on our products have a separate warranty extended
to them by the individual engine manufacturer. Any engine service
difficulty is the responsibility of the engine manufacturer and in no
way is Swisher or its agents responsible for the engine warranty. The
Briggs & Stratton Engine Service Hot-Line is 1-800-233-3723.
2) Commercial Use This product is not intended for commercial use and carries no
commercial warranty.
3) Limitation This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the instructions
contained within this manual. This warranty does not apply to any
product of Swisher that has been subject to alteration, misuse, abuse,
improper assembly or installation, shipping damage, or to normal wear
of product.
4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and
normal maintenance.

SAFETY PRECAUTIONS
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands and feet, and
throw objects. Failure to observe the following safety instructions could result in
serious injury or death.
Thank you for choosing Swisher’s 24” Walk Behind Rough Cut. Before
operating your Walk Behind, please read, understand and follow all of the safety
precautions and other instructions explained in this manual. As with all power
equipment, lawn mowers can be potentially dangerous if not properly used.
3
• Read the manual. Learn to operate this machine safely.
• Always disconnect the spark plug wire and place the wire where it cannot contact the
spark plug, to prevent accidental starting the engine when setting up, transporting,
adjusting or making repairs.
• Keep all shields and guards in place.
• Understand the speed, steering and stability of this machine. Know the positions and
operations of all controls before you operate this machine. Check all of the controls in
a safe area before starting to work with this machine.
• Allow only responsible adults who are familiar with these instructions to operate this
machine. Never allow children to operate this machine.
• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and
thrown by the blade.
• Be sure the area is clear of other people before mowing. Be aware of the mower
discharge direction and do not point at anyone. Stop the machine if anyone enters the
mowing area. Children are often attracted to the machine and the mowing activity.
Never assume that children will remain where you last saw them. Keep children
under the watchful care of another responsible adult.
•No riders!
• Do not put hands or feet near or under rotating parts.
• Do not mow in reverse. Always look down and behind before and during backing.

• Turn off the blade when not mowing. Before leaving the machine, turn off the blade
and stop the engine.
• Watch for traffic when operating near or crossing roadways.
• Do not operate the mower if it has been dropped or damaged in any manner or if the
mower vibrates excessively. Excessive vibration is an indication of damage. Repair mower
as necessary.
• Dress properly. Do not operate the mower when barefoot or wearing open sandals. Wear
only solid shoes with good traction when mowing.
• Never allow operation by untrained persons.
• Do not operate the machine while under the influence of alcohol or drugs.
• Do not operate on slopes greater than 15 degrees.
• Never tamper with safety devices. Check their proper operation regularly.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before
restarting. Never make adjustments or repairs with the engine running.
• Mower blades are sharp and can cut. Wrap the blades or wear gloves, and use extra
caution when servicing them.
• Do not operate at too fast a rate.
• Disengage spark plug wire and place where it cannot make a connection.
• Check engine oil. All engines are filled with oil at the factory. Verify oil level and
add if necessary before starting engine (See Engine Owner’s Manual).
• Verify fuel level and add if necessary before starting engine.
• Reconnect spark plug wire.
• Refer to pages 5-7 in this manual for proper operating procedures.
PRE-OPERATING INSTRUCTIONS
4

The operation of any mower can produce foreign objects to be thrown into the
eyes, resulting in severe eye damage. Always wear certified safety glasses or
wide-vision safety goggles over spectacles before starting any cutting machine and
while operating such a machine.
The operation of any mower produces sound waves that are damaging to the
human ear. Ear protection is recommended.
CAUTION!
Tragic accidents can occur if the operator is not alert to the presence of
children. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
OPERATING YOUR NEW WALK BEHIND
INTENDED USE
This is not a lawn mower. The Predator Talon is designed for cutting overgrown brush,
weeds, and other types of organic growth. This unit is capable of clearing small saplings
of 1.5” in diameter or less at a height of approximately 4”.
PROPULSION
The Predator Talon is self-propelled and is controlled by a “GROUND CONTROL”
lever. To engage the drive, put the transaxle in a gear and activate the left lever.
Releasing the lever will disengage the self-propel.
Under most conditions cutting should be done in a low gear (1st or 2nd). Upper gears
should be used for conditions where weeds and brush are thinned out or not as tall. In
confined areas the machine can be pushed forwards or backwards by releasing the
“GROUND CONTROL” lever, placing the transaxle in neutral, and pushing the
machine.
TRAVEL SPEED
Speed can be varied by choosing a higher or lower gear using the gearshift lever at the
rear of the machine or by changing the engine speed with the engine throttle. Do not
adjust speed with the blade engaged. To shift the cutter into reverse, release “GROUND
CONTROL” lever, disengage blade, and rotate the shift lever to the left. When the lever
stops, lift up the reverse lockout latch and continue to move the shift lever to the left until
it stops again.
ENGAGING BLADE
An “OPERATOR PRESENCE” lever and a “BLADE ENGAGE DRIVE” control work
together to engage the blade. Both devices must be activated before the blade will work.
Releasing the “OPERATOR PRESENCE” lever will disengage both the blade and the
“BLADE ENGAGE DRIVE” control.
5

STARTING THE ENGINE
See engine manufacturer’s recommendations for the type and amount of oil and fuel used.
Engine must be level to accurately check and fill oil. Do not overfill.
• Make sure unit is level, blade is disengaged, and transaxle in “NEUTRAL”
• Check spark plug wire, oil level, and fuel level.
• Check all electrical connections for build-up of debris.
• If needed set “CHOKE” to choke position.
• Flip the engine control switch to “ON” position.
• Set engine throttle control to ½ throttle position.
• Pull rope with a single fluid motion.
• After engine has started set “CHOKE” to “RUN” position.
STOPPING
• Bring the Walk Behind to a complete stop by releasing the “GROUND CONTROL”
lever (left).
• Disengage mower blade by releasing the “BLADE ENGAGE DRIVE” control (right).
• Reduce engine idle speed, and allow engine to run momentarily for cooling.
• Place transaxle in the “NEUTRAL” position.
• Flip the engine control switch to “OFF” position.
BREAKING IN YOUR WALK BEHIND
• Start engine properly.
• Slowly engage blade control.
• Under supervision, allow blade to rotate and engine to idle for 5 minutes.
• Disengage blade.
• Shift through each gear. While in each gear engage the “GROUND CONTROL” lever
and travel 20 yards to ensure transaxle works properly.
BEGIN CUTTING
• Make sure area is clear of all bystanders.
• Make sure that all guards, belt guides, and the spark plug wire are properly attached.
• Start engine, set engine throttle control at maximum engine idle speed for best results.
• Allow engine to run a few moments and slowly engage blade.
• Move transaxle into low gear and activate “GROUND CONTROL” lever.
• Turning is done by rotating the handles left or right. This machine has significant
weight and may take more effort to turn than one may expect. Turning could take
practice.
BACKING UP
• Disengage blade.
• Check behind you for safety.
• Move transaxle into “REVERSE” position.
• Activate “GROUND CONTROL” lever.
6
IMPORTANT: This engine is not equipped with a spark arrester muffler. It is a violation of
California Public Resource Code Section 4442 to use or operate the engine on any forest-covered,
brush-covered, or grass-covered land. Other states or federal areas may have similar laws.

TRANSPORTING
• Shut off engine.
• Secure in place while unit is being transported.
• Unit should be left in low gear to avoid any slight rolling.
SUGGESTED PRACTICES
• Always operate engine at full throttle when cutting to assure the best cutting
performance and proper discharge of material.
• If grass is wet, allow it to dry. Wet grass clumps will collect on the bottom of the
deck.
• Go slow when cutting dense areas. Some dense areas may need to be gone over
twice. Better results occur if the second cut is 90 degrees to the first cut.
BEFORE EACH SEASON
A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run
better and last longer.
• Replace the spark plug.
• Clean or replace the air filter.
• Check blades and belts for wear.
BEFORE EACH USE
• Check engine oil level. Do this twice to ensure an accurate reading.
• Check condition of air filter and clean or replace if necessary.
• Check blade operation.
• Check for loose fasteners.
• Check tires for proper inflation. See tires for maximum inflation.
- Rear tire valve stems are located on the inside of the wheel rim.
- Front tire valve stems should be turned to avoid contact with caster yoke.
DAILY MAINTENANCE
Make sure all nuts and bolts are tight and cotter pins and retainer springs are secure.
Keep blades sharp. Observe all safety precautions.
BLADE CARE AND SERVICE
For best results blades must be kept sharp. The blades can be sharpened with a few strokes of a
file or grinding wheel. Do Not attempt to sharpen blades while they are on the machine.
Important: Replace blades that have been damaged or deeply nicked.
Important: Check blade and spindle hardware on a regular basis to make sure nuts are
tight.
7

SAFETY AND OPERATIONAL DECALS
Replace decal immediately if damaged. Order by part number from Swisher.
19976--SWISHER FLAG DECAL
OD55--DANGER DECAL OD45--WARNING DECAL
OD83--RN1234 SHIFT DECAL 10749--REVERSE LOCK DECAL
OD87--Rugged Cut 24 4SP Trans White Decal
8
OD99112--LARGE LOGO WHITE DECAL
OD99156--SMALL LOGO WHITE DECAL
19722-- Predator Talon LH Decal
19732-- Predator Talon RH Decal
DECALS NOT SHOWN

ASSEMBLY DETAIL
9
When ordering replacement parts
*USE PAINT CODE: TK=BLACK
Item # Description Part #
1 Cover - Belt 10682*
2 Bolt - Serrated Flange 5/16-18 X 3/4 NB596
3 Nut - Serrated Flange 5/16-18 NB170
4 Channel - Right Side 19211*
5 Channel - Left Side 19212*
6 Clip - Twistlock, Nylon 1/2" NB683
7 Height Adjustment Mount 19214*
8 Clip - Tinnerman 5/16-18 3706
9 Bolt - Serrated Flange 5/16-18 X 2 1/4 NB622
Tip: Valve stems should be turned
to avoid contact with caster yoke.

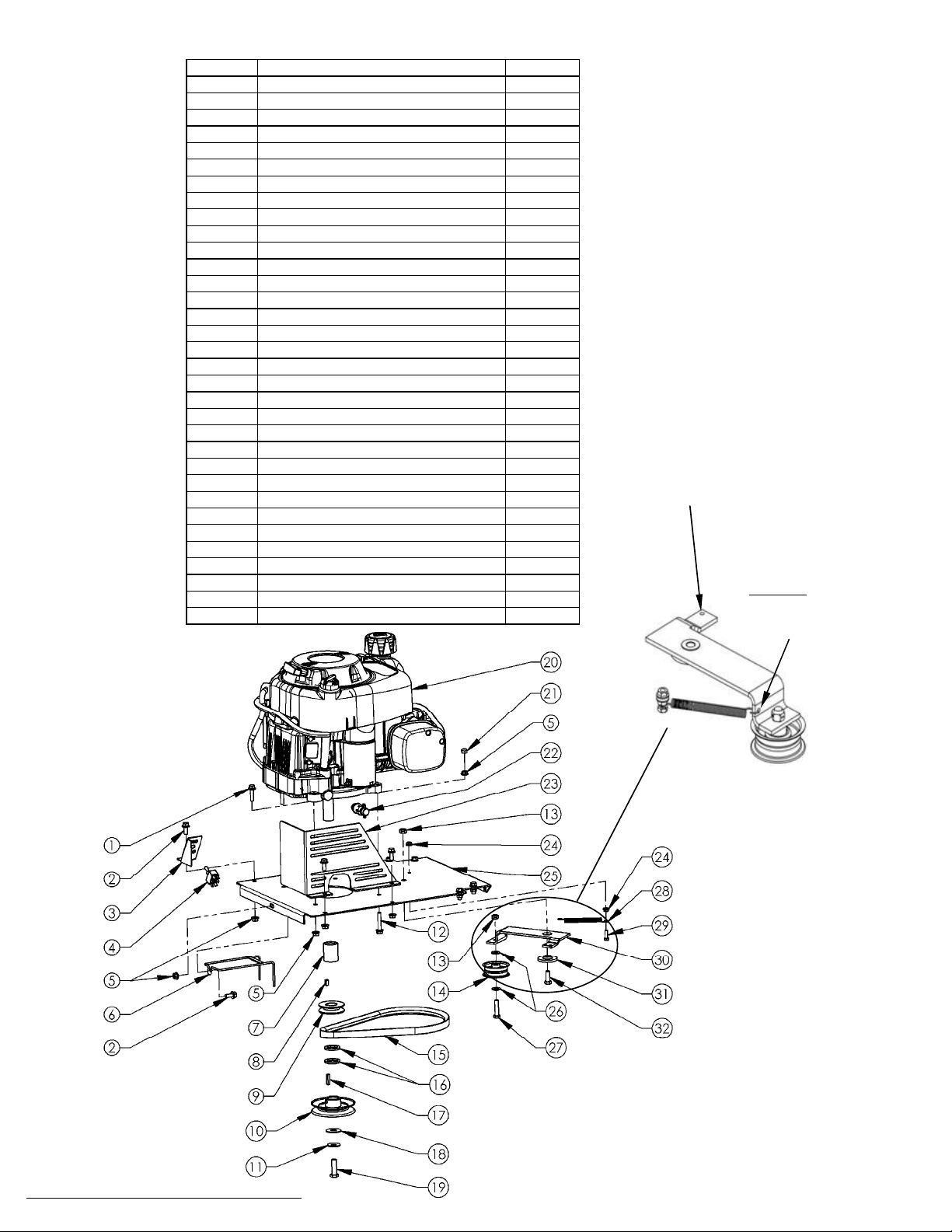

ENGINE & PULLEY ASSEMBLY
Item # Description Part #
1 5/16-18 X 1 1/4 Serr. Flange Bolt NB253
2 5/16-18 X 3/4 Serr. Flange Bolt NB596
3 Bracket - ON/OFF Switch, Txt Blk 19201*
4 Switch - Toggle 19192
5 5/16-18 Serr. Flange Nut NB170
6 Belt Retention Weldment 10767
7 Engine Pulley Spacer 1.75" Long BB105S
8 1/4 X 1/2 Key Stock 4258
9 Engine Pulley- 2.5" 2411
10 Engine Pulley- 4.25"OD,1 1/4 ID BB105
11 Washer Belleville 699
12 Bolt - Serr Flange, 5/16-18 X 1 3/4 Gr5 NB515
13 3/8-16 2 Way Locking Nut NB280
14 Idler Pulley OD-2.16", ID-3/8" B27
15 Transmission Belt-35" 690
16 1 X 1 1/2 10GA Washer NB614HT
17 1/4 X 1 Key Stock 9031
18 Washer, Front Wheel TR150W
19 7/16-20 X 1 1/2 HCF GR5 ZP Nyloc NB637
20 Engine B&S Recoil St W/Gas Tank N/A
21 Nut - Nyloc 5/16-18 ZY NB181
22 Valve - Oil Drain 16000
23 Guard - Wire 19478*
24 1/4-20 Serr. Flange Nut NB524
25 Motor Plate 19213*
26 3/8 SAE Washer NB272
27 3/8-16 X 1 1/2 HCCG NB107
28 Spring T2SM
29 1/4-20 X 3/4 GR5 ZP Bolt NB250
30 Idler Arm 10671*
31 Idler Bushing 6037
32 3/8-16 X 1 GR5 ZP Bolt NB604
Not Shown Transmission Cable 19209
10
Important: Spring
must be hooked in
Idler Arm as shown.
Install Transmission Cable
(Not Shown) in Idler Arm
before installing Idler Arm
to Motor Plate.
When ordering replacement parts
*USE PAINT CODE: TK=BLACK

11

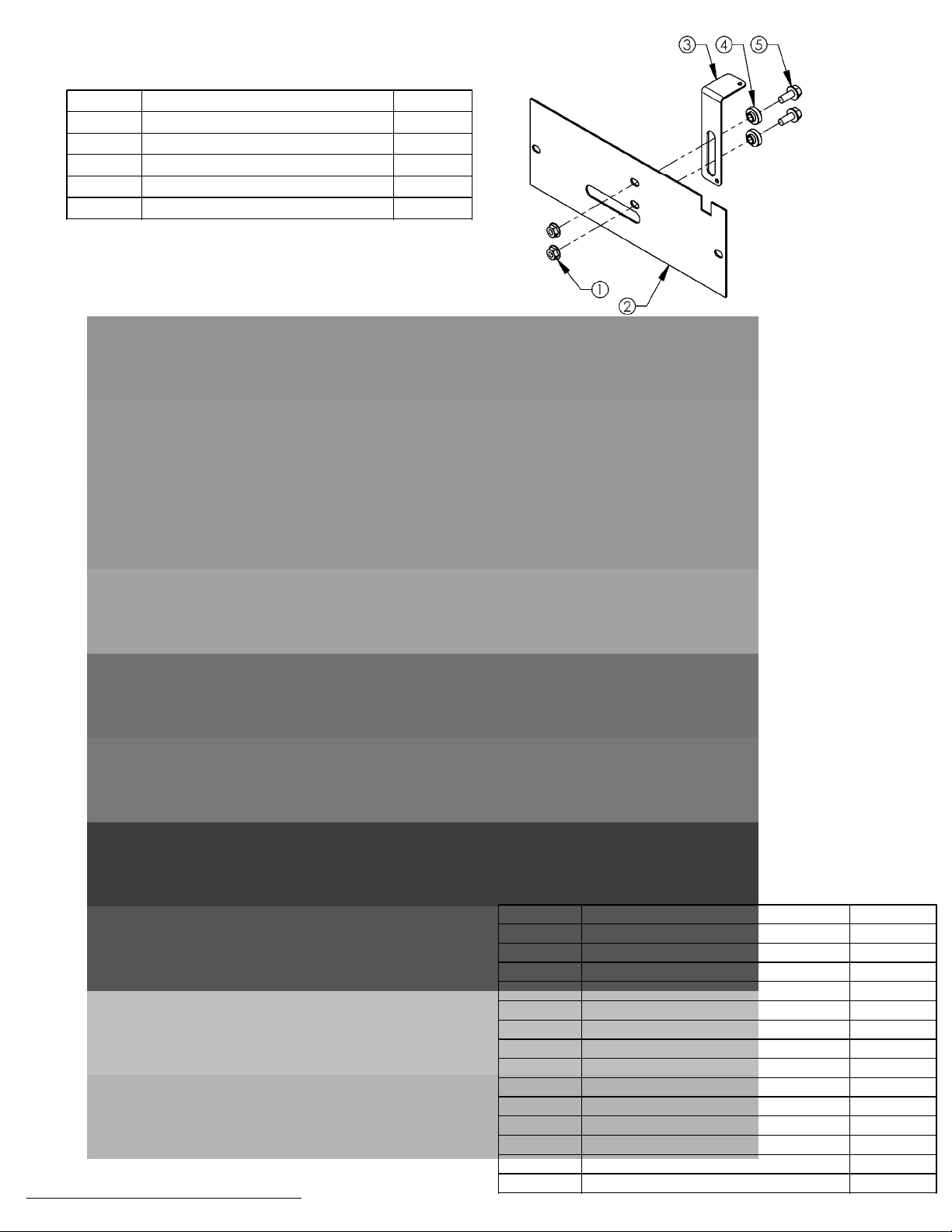

Item # Description Part #
1 5/16-18 Serr. Flange Nut NB170
2 Rear Cover 10679*
3 Anti Reverse Arm 10680*
4 Spacer B99S
5 5/16-18 X 3/4 Serr. Flange Bolt NB596
Item # Description Part #
1 Lever - Blade Engagement Weldment 19444*
2 Weldment - Handle 19220*
3 Nut - Nyloc 1/4-20 NB180
4 Grip - Handle 7826
5 Control - Latching Drive 19208
6 Nut - Nyloc 5/16-18 NB181
7 Washer - SAE Flat 1/4 NB274
8 Lever - Engagement 10685*
9 Plate - Blade Lever Cable 10713*
10 Bolt - Serrated Flange 5/16-18 X 3/4 NB596
11 Bolt - 1/4-20 X 2 3/4 19455
12 Bolt - 1/4-20 X 1 3/4 NB278
13 Cable - Transmission 19209
14 Bolt - MSC 1/4-20 X 1/2 NB113
REAR COVER ASSEMBLY
HANDLE BAR & LEVER ASSEMBLY
When ordering replacement parts
*USE PAINT CODE: TK=BLACK

Item # Description Part #
1 3/4-16 Jam Nut NB175
2 1.5x.761x.098x.134 Belleville Washer AS155
3 Blade Pulley-5.5" 6114
4 Spacer - 3/4 ID x1 Powder Metal 12823
5 3/4 ID X 1 1/4 OD 18 GA Washer NB179
6 Blade Bearing B98
7 Blade Shaft 6"- Long Shoulder 9078
8 5/16-18 Serr. Flange Nut NB170
9 Blade Bearing Housing 9091*
10 5/16-18 X 3/4 Serr. Flange Bolt NB596
11 3/4 ID X 1 3/4 OD FlatWasher B98W
12 3/8-24 Two WayLocknut NB216
13 Blade Mount Plate 9008
14 Blade 24" 9016
15 3/8-24 X 1 Bolt NB238
16 SP Washer Bellvl. PLN .413 X .945 X .118 NB607
17 3/8-24 X 1 Engine Bolt Locktite NB238N
18 Blade Driver Assembly 10712
Item # Description Part #
1 Nut - Jam, Nyloc 3/8-16 NB207
2 3/8 SAE Washer NB272
3 Finger for Belt Release T30F
4 3/8-16 Jam Nut NB174
5 Pulley, Idler Clutch, 2 3/4 OD T30V
6 3/8-16 2-Way Lock Nut NB280
7 Blade Idler Weldment 10668*
8 Bolt - HTC, 3/8-16 X 2 NB231
9 Idler Pulley OD-3.25", ID-3/8" B527
10 1/2-13 X 3 HCC GR5 Bolt ZP NB131
11 1/2-13 2-Way Jam Lock Nut NB121
12 1/2-13 Nut GR2 ZP NB213Z
13 Sgl Jk Chn, Zps, Sz12, 16# AS080
14 Bolt - 3/8-16 X 1 1/2 NB107
15 3/8-16 X 2 1/2 HTC GR5 ZP NB619
16 3/8 Hardened Washer NB196
17 Spacer .625 OD X 1.25 X 11 GA 8072*
18 Torsion Brake Spring BT297
19 Brake Pad-Cylindrical 9114
20 Brake Pad Retainer Spring BP370S
12
BLADE DRIVER ASSEMBLY
BRAKE ASSEMBLY
When ordering replacement parts
*USE PAINT CODE: TK=BLACK

PAGE 12
Item # Description Part #
1 Deck Weldment 10695*
2 1/4-20 X 3/4 GR5 ZP Bolt NB250
3 Blade Engagement Cable Clip 10673*
4 1/4-20 Nyloc Nut NB180
5 Nut - Serrated Flange 5/16-18 NB170
6 Deck Side Skid 18512*
7 Bolt - Serrated Flange, 5/16-18 X 3/4 NB596
8 Washer - 5/8 ID X 1 OD 14 GA NB149
9 Tire/Wheel - 8 X 3 19641
10 Nut - Lock Jam, 5/8-11 2 Way NB595
11 Bolt - 5/8-11 X 5 19642
12 Weldment - Caster, Txt Blk 19638*
13 Washer - 13/16 X 1 1/4 X 1/8 NB195
14 Bearing B98
15 Weldment - Brush Guard Housing 19631*
16 Washer - Flat 17X195
17 Nut - Jam, Nyloc 3/4-16 NB122
18 Cap 094618
13
DECK & CASTER ASSEMBLY
TRANSAXLE ASSEMBLY
When ordering replacement parts
*USE PAINT CODE: TK=BLACK
Item # Description Part #
1 Wheel - Asy Right; WB24 4.8x8 2401RK
2 Screw - Set 5/16-18 X 1/2 NB312
3 Pulley- Transmission, 8" 2410
4 Bolt - Loctite Cap 1/4-28 X 3/4 06X105
5 Bolt - Serr Flange, 5/16-18 X 3/4 NB596
6 Weldment - Shift Handle 13897*
7 Grip - Transmission Lever 2427
8 Lever - Transmission 20652*
9 Nut - Serr Flange 5/16-18 NB170
10 Transaxle - 4 Speed 19563
11 Washer - 3/4ID X 1 1/4OD NB184
12 KeyStock - 3/16 X 1 1/2 2434
13 Wheel - Asy Left; WB24 4.8x8 2401LK
14 Ring - E-Style Retaining 3/4 NB621

14

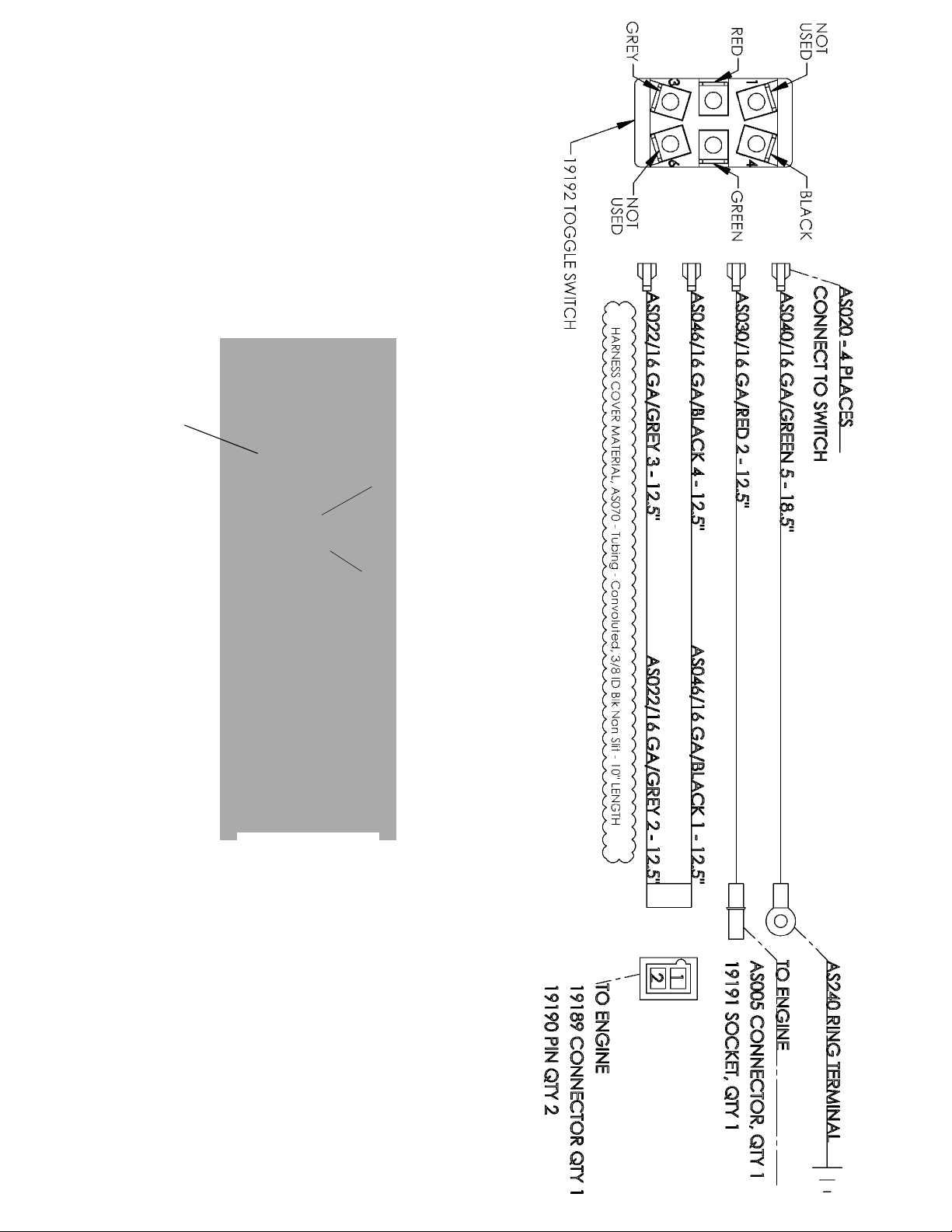

WIRING CONFIGURATION
Wiring Harness PN 19202
BELT
CONFIGURATION
6114 – BLADE PULLEY
2410
TRANSAXLE PULLEY
690 – TRANSAXLE BELT
TOP ENGINE PULLEY
CONFIGURATION
B27 – TRANSAXLE IDLER PULLEY 2411 – TOP ENGINE PULLEY
BB105 – LOWER ENGINE PULLEY
T30V – V-BELT PULLEY
B527 – BLADE IDLER PULLEY
20655 – BLADE ENGAGEMENT BELT
BOTTOM ENGINE PULLEY CONFIGURATION

15
MAINTENANCE LOG
NotesService PerformedDate of Service

OWNER’S
MANUAL
MODEL NO.
Each cutter has its own model number. Each engine has its
own model number. The model number for the cutter will be
found on the right hand side of the drive belt housing. The
model number for the engine will be found on the top of the
valve cover.
All cutter parts listed herein may be ordered directly from
Swisher or your nearest Swisher dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your cutter.
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT – WALK BEHIND ROUGH CUT
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER
* PART DESCRIPTION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER ACQUISITION INC.
1602 CORPORATE DRIVE
WARRENSBURG, MO 64093
swisherinc.com
CHANGING YOUR LANDSCAPE SINCE 1945
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
WBRC11524C
WBRC11524CXP
PREDATOR TALON
24” WALK BEHIND
ROUGH CUT
