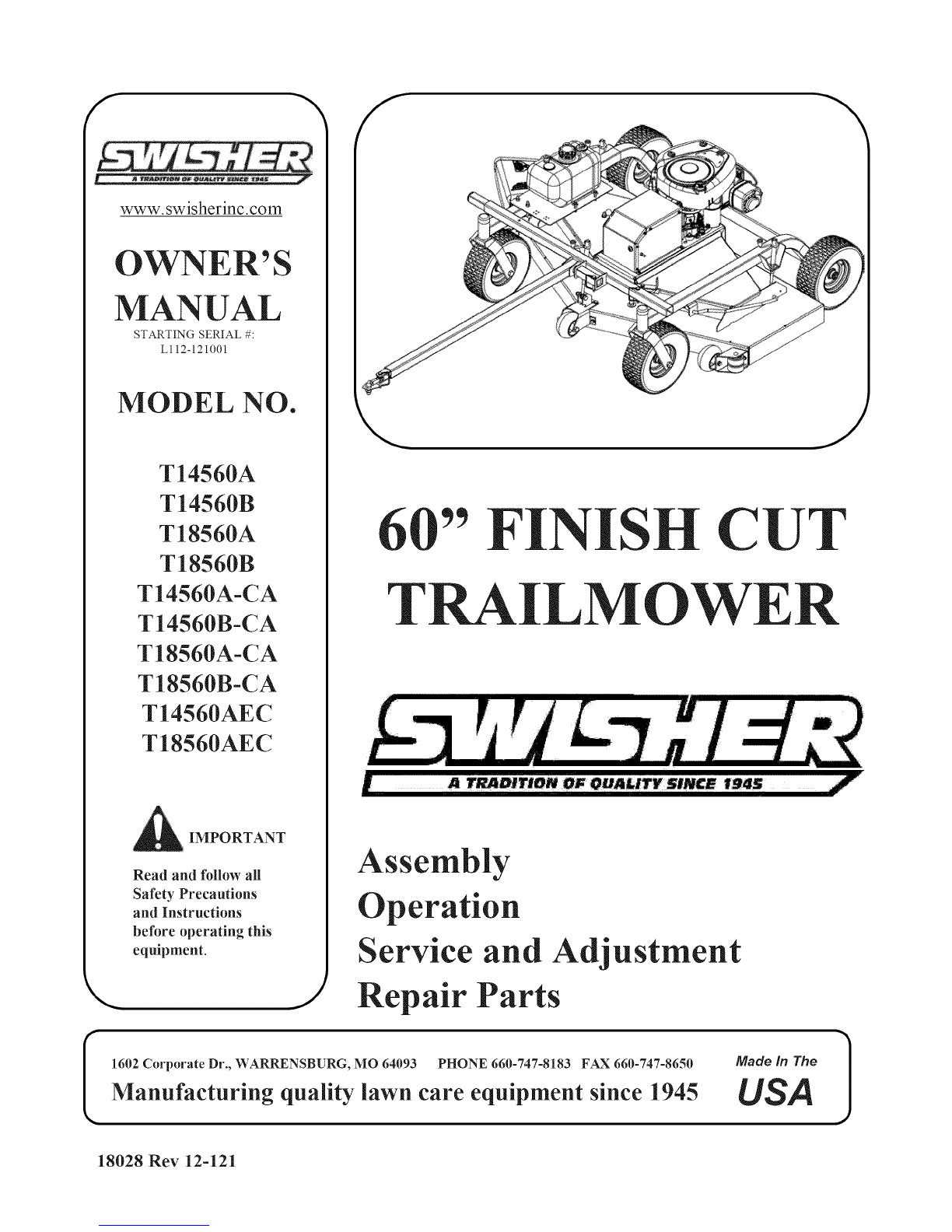

Swisher T14560A User manual

www.swisherinc.com
OWNER'S
MANUAL
STARTING SERIAL #:
LI I2-121001
MODEL NO.
T14560A
T14560B
T18560A
T18560B
T14560A-CA
T14560B-CA
T18560A-CA
T18560B-CA
T14560AEC
T18560AEC
_IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
J
60" FINISH CUT
TRAILMOWER
A T_OITION OF OUALIT¥ SINCE 194S ,f
Assembly
Operation
Service and Adjustment
Repair Parts
1602 Corporate Dr., WARRENSBURG, MO 64093 PHONE [phone] FAX [phone]
Manufacturing quality lawn care equipment since 1945
Made In The
USA
18028 Rev 12-121

LIMITED WARRANTY
The manufacturer's warranty to the original consumer purchaser is: This product is free
from defects in materials and workmanship for a period of one (1) year from the date of
purchase by the original consumer purchaser. As required by § 1060.120, the fuel system
related components, which have been certified to this equipment by SAI are to be free of
defects in material and workmanship for a period of two (2) years from the date of purchase
by the original consumer purchaser. We will repair or replace, at our discretion, parts found
to be defective due to materials or workananship. This warranty is subject to the following
limitations and exclusions:
1) Engine Warranty All engines utilized on our products have a separate
warranty extended to them by the individual engine
manufacturer. Any engine service difficulty is the
responsibility of the engine manufacturer and in no way is
Swisher or its agents responsible for the engine warranty.
The Briggs & Stratton Engine Service Hot-Line is 1-800-
233-3723.
2) Commercial Use The warranty period for this product used for commercial or
rental is limited to ninety (90) days from the date of original
purchase.
3) Limitations This warranty applies only to products which have been
properly assembled, adjusted, and operated in accordance
with the instructions contained within this manual. This
warranty does not apply to any product of Swisher that has
been subject to alteration, misuse, abuse, improper assembly
or installation, shipping damage, or to normal wear of the
product.
4) Exclusions Excluded from this warranty are normal wear, normal
adjustments, and normal maintenance.
In the event you have a claim under this warranty, you must return the product to an
authorized service dealer. All transportation charges, damage, or loss incurred during
transportation of parts submitted for replacement or repair under this warranty shall be borne
by the purchaser. Should you have any questions concerning this warranty, please contact us
toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the
name of the authorized Swisher dealer from whom you purchased the mower will be needed
before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied
warranty may last, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights and you may have other rights, which vary from
state-to-state. This is a limited warranty as defined by the Magnuson-Moss Act of 1975.

ISAFETY PRECAUTIONS
-%,
This Safety Alert Symbol indicates important messages in this /
manual. When you see this symbol, carefully read the message tha j
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands, feet, and throw
objects. Failure to observe the following safety instructions could result in serious
injury or death.
• Read the manual. Learn to operate this machine safely.
• Always disconnect the spark plug wire and place the wire where it cannot contact the spark plug, to prevent
accidental starting the engine when setting up, transporting, adjusting or making repairs.
• Keep all shields and guards in place.
• Understand the speed, steering and stability of this machine. Know the positions and operations of all
controls before you operate this machine. Check all of the controls in a safe area before starting to work
with this machine.
• Allow only responsible adults who are familiar with these instructions to operate this machine. Never allow
children to operate this machine.
• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and thrown by the blade.
• Be sure the area is clear of other people before mowing. Be aware of the mower discharge direction and do
not point at anyone. Stop the machine if anyone enters the mowing area. Children are often attracted to the
machine and the mowing activity. Never assume that children will remain where you last saw them. Keep
children under the watchful care of another responsible adult.
•No riders!
• Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
• Do not mow in reverse. Always look down and behind before and while backing.
• Turn off the blades when not mowing. Before leaving the machine, turn off the blades and stop the engine.
• Watch for traffic when operating near or crossing roadways.
• Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates
excessively. Excessive vibration is an indication of damage. Repair mower as necessary.
• Dress properly. Do not operate the mower when barefoot or wearing open sandals. Wear only solid shoes
with good traction when mowing.
• Do not operate the machine while under the influence of alcohol or drugs.
• Operate self-propelled machines up and down slopes. There is significant risk of overturns when operating
across slopes. Operate walk-behind machines across slopes. There is a significant risk of slipping under a
walk-behind machine when operating up and down slopes. Do not operate on slopes greater than 15 degrees.
• Never tamper with safety devices. Check their proper operation regularly.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine running.

WARRANTY RIGHTS AND OBLIGATIONS
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The California Air Resources Board and Swisher are pleased to explain the evaporative
emission control system (EECS) on your model year 2006 and later Swisher Product. hi California, new Outdoor Power Equipment, nmst be
designed, built and equipped to meet the State's stringent anti-smog standards. Swisher nmst warrant the EECS on your Power Equipment, for
the period of time listed below provided there has been no abuse, neglect, or improper maintenance. For model year 2006 the EECS on your
mower includes the liquid fuel lines, fuel line connectors, and fuel line clamps. Where a warrantable condition exists, Swisher will repair at no
cost to you. Expenses covered under warranty include diagnosis, parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE: For a period of two years, any evaporative emission-related part included in the
list of EECS parts for your mower is defective, the part wilt be repaired or replaced by Swisher.
OWNER'S WARRANTY RESPONSIBILITIES: As the owner of this Power Equipment, you are responsible for performance of the
required maintenance listed in your owner's manual. Swisher recommends that you retain all receipts covering maintenance on
your Power Equipment, but Swisher cannot deny warranty solely for the tack dreceipts. As the Power Equipment owner, you
should be aware that Swisher, may deny you warranty coverage if your Power Equipment, or a covered part has failed due to
abuse, neglect, or improper maintenance, unapproved modifications, or the use of parts not made or approved by the equipment
manufacturer. You are responsible for presenting your Power Equipment to an authorized Swisher Service center as soon as the
problem exists. Warranty repairs should be completed in a reasonable amount dtime, not to exceed 30 days. If you have a
question regarding your warranty rights and responsibilities, you should contact the Swisher Service representative at
1-800-222-8183.
WARRANTY COMMENCEMENT DATE: The warranty period begins on the date the Power Equipment Is purchased.
LENGTH OF COVERAGE: This warranty shall be for a period of one (1) years from the initial date of purchase.
WHAT IS COVERED: Warranted parts include the Liquid fuel line, fuel line connectors, and fuel line clamps.
REPAIR OR REPLACEMENT OF PARTS: Repair or replacement dany evaporative warranted part will be performed at no charge
to the owner at an authorized Swisher Service Center. If you have a question regarding your warranty rights and responsibilities,
you should contact your nearest authorized service center or call the Swisher Service representative at 1-800-222-8183.
WARRANTY PERIOD: Any warranted part is not scheduled for replacement as required maintenance, or which is scheduled only
for regular inspection to the effect d"repair or replace as necessary" shall be warranted for two (2) years. Any warranted part that
is scheduled for replacement as required maintenance shall be warranted for the period of time up to the first scheduled
replacement point for that part.
DIAGNOSIS: The owner shall not be charged for diagnostic labor that leads to the determination that a warranted part is defective if
the diagnostic work is performed at an authorized Swisher Service Center.
CONSEQUENTIAL DAMAGE: Swisher may be liable for damages to other engine or equipment components caused by the failure
of awarranted part still under warranty.
WHAT IS NOT COVERED: All failures caused by abuse, neglect, or improper maintenance is not covered.
ADD-ON OR MODIFIED PARTS: The use dadd-on or modified parts may be grounds for disallowing a warranty claim. Swisher is
not liable to cover failures of warranted parts caused by the use of an add-on or modified part.
HOW TO FILE A CLAIM: If you have a question regarding your warranty rights and responsibilities, you should contact your nearest
authorized service center or call Swisher Service representative at 1-800-222-8183.

SAFETY DECALS
Replace decals inmlediately if damaged. Order by part number from Swisher.
OD45- Warning Decal
OD 11- No step Decal
OD55- Triangle Danger Decal
OD43- Flying Debris Decal
OD33- Speed Decal
OD29- Danger Decal

REQUIRED ASSEMBLY
FRONT WHEEL CASTER ASSEMBLY
1. Remove single nut and washers from caster shaft.
2. Place one washer on the shaft of the caster/wheel sub-assembly.
3. Slide same shaft through the bearing/flame with wheel towards the ground.
4. Place the other washer on the shaft; it should be resting on the top bearing.
5. Add thin washer (17x195).
6. Thread nylocjam nut onto shaft.
7. Tighten nut snuggly, making sure shaft threads enter the nyloc of the nut. Over-
tightening of this nut will bind caster.
8. Repeat process for other front side.
9. Push on plastic dust covers over nut and thin washer until it snaps into place.
REAR WHEEL ASSEMBLY
1. Remove cotter pin from axle.
2. Slide washer (NB178) if necessary and wheel (valve stem out) onto axle and replace
cotter pin.
3. Slide on washer (NB149) and replace cotter pin.
4. Bend cotter pin so it will not fall out.
5. Repeat process for other wheel.
OFFSET & CENTER TOW HITCH BAR ASSEMBLY
1. Lay out parts according to the diagram.
2. Insert part 661A into part 662 and pin with the hitch pin (HI 1).
3. Insert part 661 into part 661A. Choose from the 3 holes to set the desired hitch length.
Pin with a hitch pin.
4. Part 662 slides into the front tube of the frame. Again, choose from the 3 holes to anange
desired oft;et. Pin with a hitch pin (HI 1).
5. Eliminate step 3 for hitching from the center bracket. Only one method can be used at a
time. ATV or Utility
Vehicle Attachment
Instructions
Existing Rear Hitch. Bent Pin, Hair Pin
and Receiver
supplied by others.
POSITION
Position battery hold
down bracket as shown.
Tighten nuts so battery
will not shift position.
*Battery cover not shown
Battery Mounting Detail

f

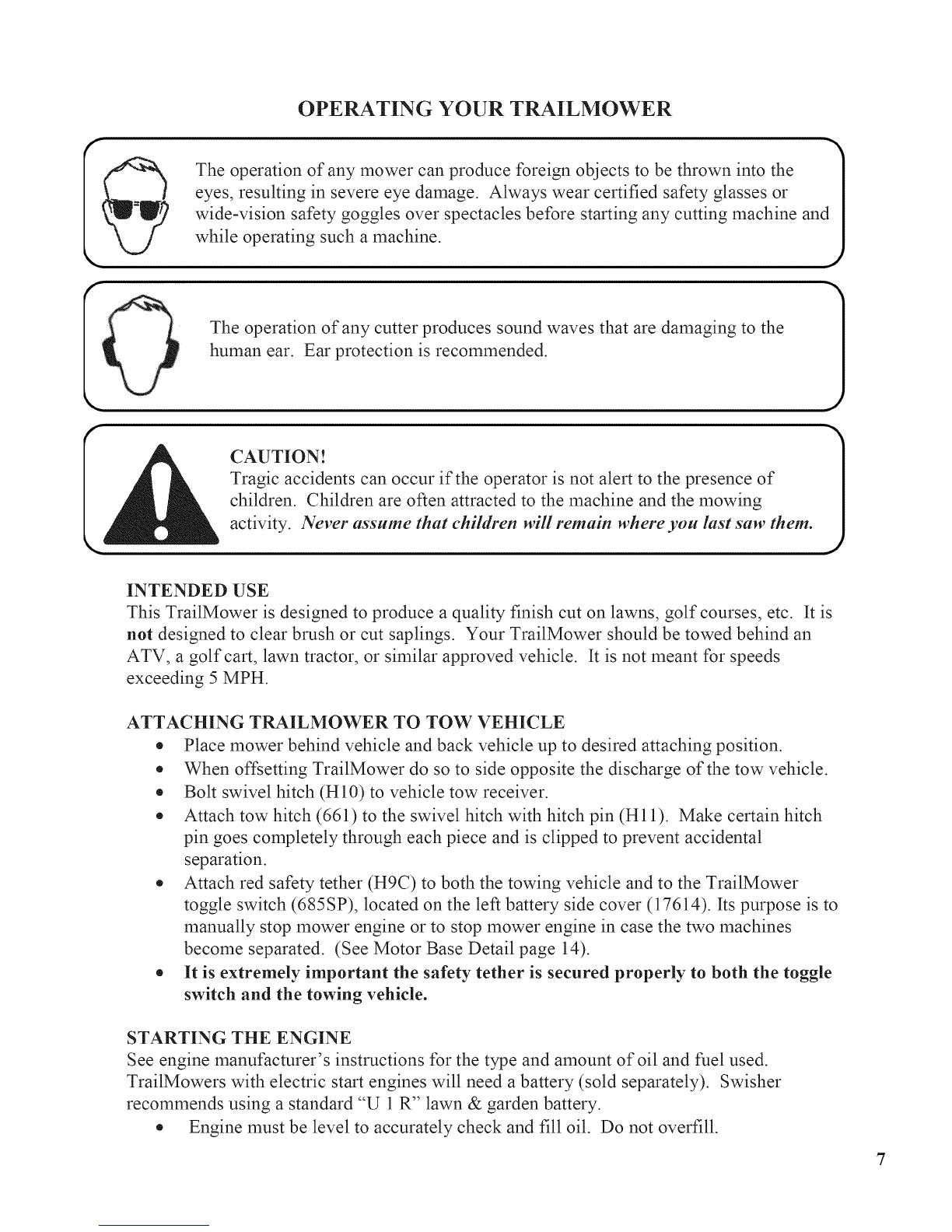

OPERATING YOUR TRAILMOWER
The operation of any mower can produce foreign objects to be thrown into the
eyes, resulting in severe eye damage. Always wear certified safety glasses or
wide-vision safety goggles over spectacles before starting any cutting machine and
while operating such a machine.
The operation of any cutter produces sound waves that are damaging to the
human ear. Ear protection is recommended.
J
f
CAUTION_
Tragic accidents can occur if the operator is not alert to the presence of
children. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
J
INTENDED USE
This TrailMower is designed to produce a quality finish cut on lawns, golf courses, etc. It is
not designed to clear brush or cut saplings. Your TrailMower should be towed behind an
ATV, a golf cart, lawn tractor, or similar approved vehicle. It is not meant for speeds
exceeding 5 MPH.
ATTACHING TRAILMOWER TO TOW VEHICLE
•Place mower behind vehicle and back vehicle up to desired attaching position.
• When offsetting TrailMower do so to side opposite the discharge of the tow vehicle.
• Bolt swivel hitch (H 10) to vehicle tow receiver.
• Attach tow hitch (661) to the swivel hitch with hitch pin (H11). Make certain hitch
pin goes completely through each piece and is clipped to prevent accidental
separation.
• Attach red safety tether (H9C) to both the towing vehicle and to the TrailMower
toggle switch (685SP), located on the left battery side cover (17614). Its purpose is to
manually stop mower engine or to stop mower engine in case the two machines
become separated. (See Motor Base Detail page 14).
• It is extremely important the safety tether is secured properly to both the toggle
switch and the towing vehicle.
STARTING THE ENGINE
See engine manufacturer's instructions for the type and amount of oil and fuel used.
TrailMowers with electric start engines will need a battery (sold separately). Swisher
recommends using a standard "U 1R" lawn & garden battery.
• Engine must be level to accurately check and fill oil. Do not overfill.

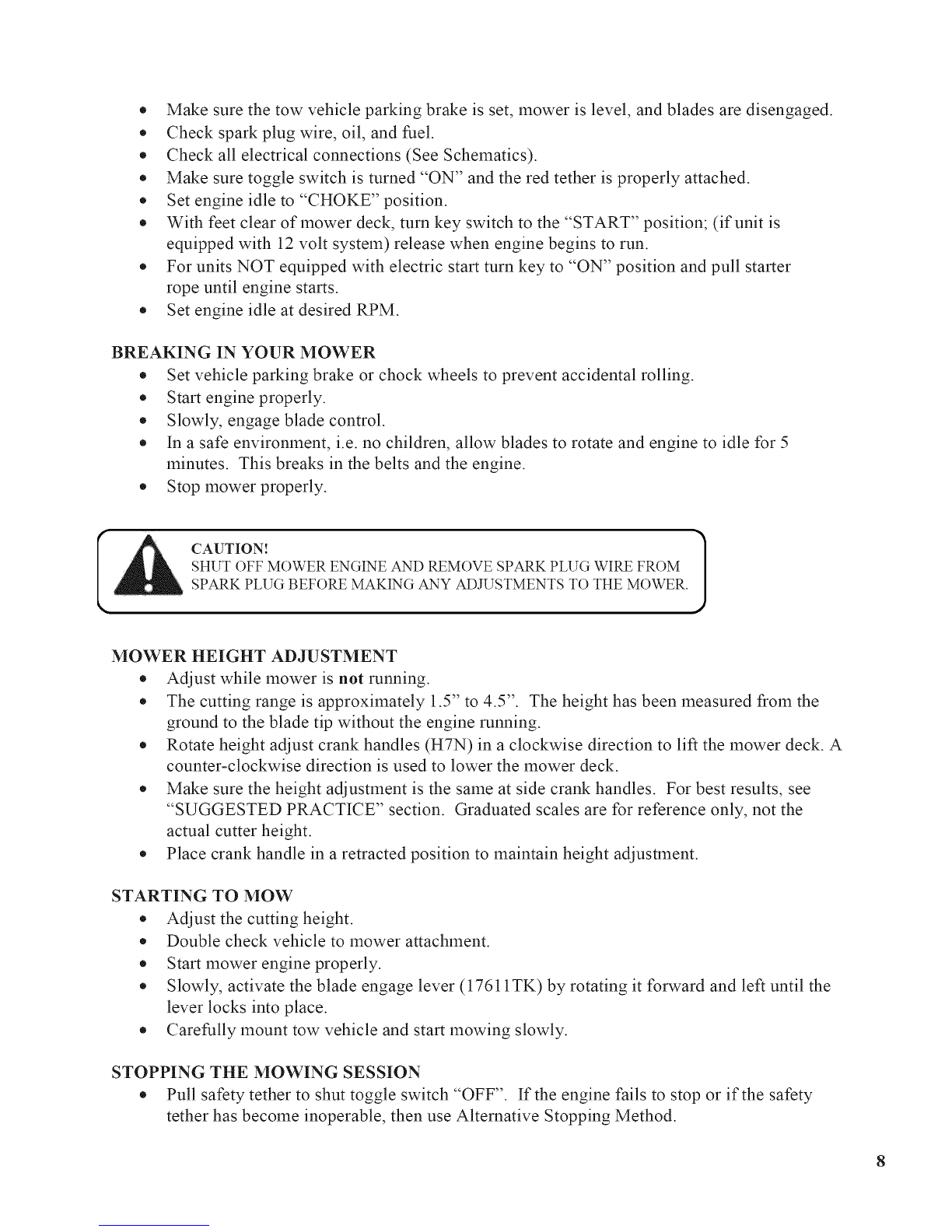

. Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged.
. Check spark plug wire, oil, and fuel.
. Check all electrical connections (See Schematics).
. Make sure toggle switch is turned "ON" and the red tether is properly attached.
. Set engine idle to "CHOKE" position.
. With feet clear of mower deck, turn key switch to the "START" position; (if unit is
equipped with 12 volt system) release when engine begins to run.
. For units NOT equipped with electric start turn key to "ON" position and pull starter
rope until engine starts.
. Set engine idle at desired RPM.
BREAKING IN YOUR MOWER
. Set vehicle parking brake or chock wheels to prevent accidental rolling.
. Start engine properly.
. Slowly, engage blade control.
. In a safe environment, i.e. no children, allow blades to rotate and engine to idle for 5
minutes. This breaks in the belts and the engine.
o Stop mower properly.
I_ CAUTION_ 1
SHUT OFF MOWER ENGINE AND REMOVE SPARK PLUG WIRE FROM
SPARK PLUG BEFORE MAKING ANY ADJUSTMENTS TO THE MOWER.
MOWER HEIGHT ADJUSTMENT
* Adjust while mower is not running.
* The cutting range is approximately 1.5" to 4.5". The height has been measured from the
ground to the blade tip without the engine running.
* Rotate height adjust crank handles (HTN) in a clockwise direction to lift the mower deck. A
counter-clockwise direction is used to lower the mower deck.
* Make sure the height adjustment is the same at side cra_lk handles. For best results, see
"SUGGESTED PRACTICE" section. Graduated scales are for reference only, not the
actual cutter height.
* Place crank handle in a retracted position to maintain height adjustment.
STARTING TO MOW
* Adjust the cutting height.
* Double check vehicle to mower attachment.
* Start mower engine properly.
* Slowly, activate the blade engage lever (17611TK) by rotating it forward and left until the
lever locks into place.
* Carefully mount tow vehicle and start mowing slowly.
STOPPING THE MOWING SESSION
* Pull safety tether to shut toggle switch "OFF". If the engine fails to stop or if the safety
tether has become inoperable, then use Alternative Stopping Method.

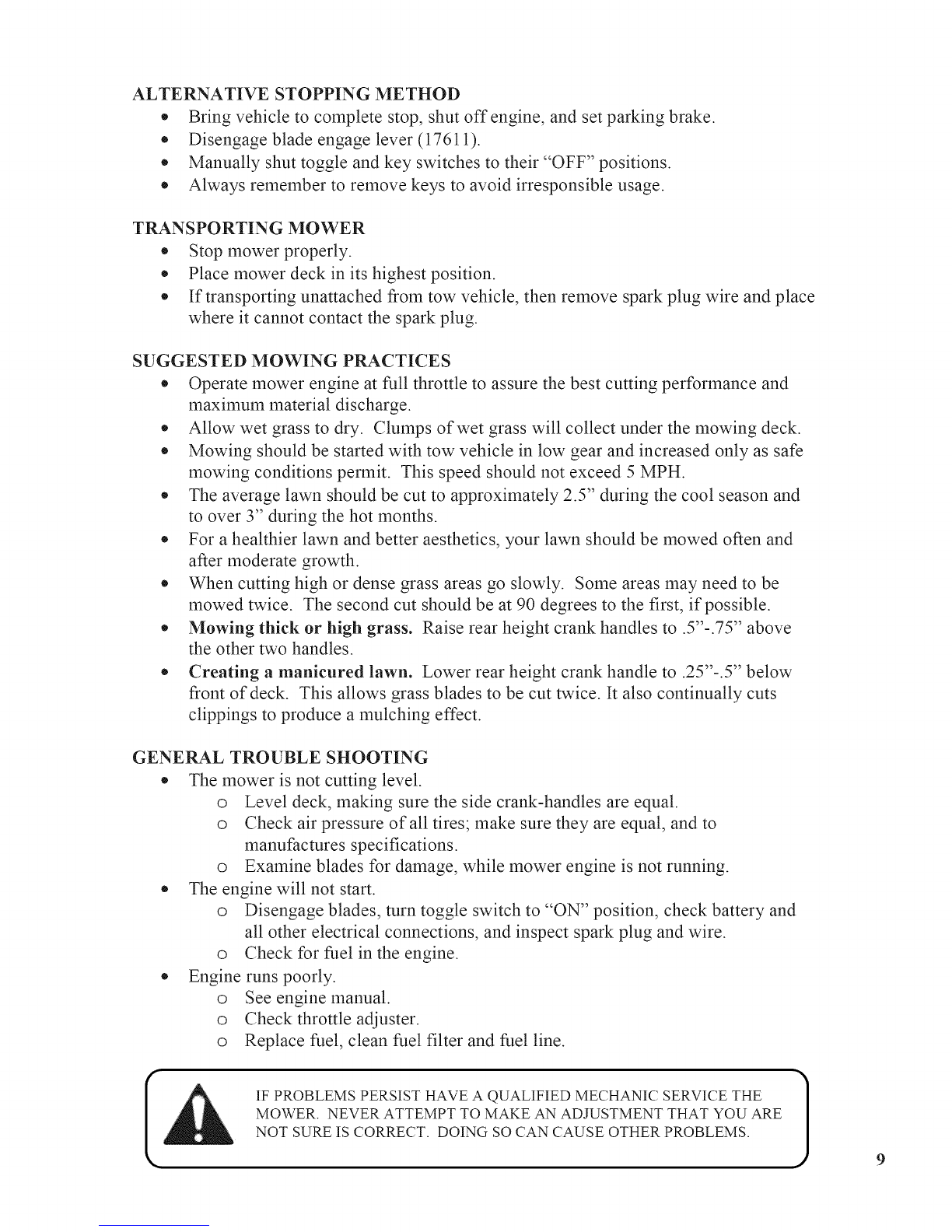

ALTERNATIVE STOPPINGMETHOD
,, Bringvehicleto completestop,shutoff engine,andsetparkingbrake.
,, Disengagebladeengagelever(17611).
,, Manuallyshuttoggleandkeyswitchesto their"OFF"positions.
,, Alwaysrememberto removekeystoavoidirresponsibleusage.
TRANSPORTING MOWER
. Stop mower properly.
. Place mower deck in its highest position.
. If transporting unattached from tow vehicle, then remove spark plug wire and place
where it cannot contact the spark plug.
SUGGESTED MOWING PRACTICES
. Operate mower engine at full throttle to assure the best cutting performance and
maximum material discharge.
. Allow wet grass to dry. Clumps of wet grass will collect under the mowing deck.
. Mowing should be started with tow vehicle in low gear and increased only as safe
mowing conditions permit. This speed should not exceed 5 MPH.
. The average lawn should be cut to approximately 2.5" during the cool season and
to over 3" during the hot months.
. For a healthier lawn and better aesthetics, your lawn should be mowed often and
after moderate growth.
. When cutting high or dense grass areas go slowly. Some areas may need to be
mowed twice. The second cut should be at 90 degrees to the first, if possible.
. Mowing thick or high grass. Raise rear height crank handles to .5"-.75" above
the other two handles.
. Creating amanicured lawn. Lower rear height crank handle to .25"-.5" below
front of deck. This allows grass blades to be cut twice. It also continually cuts
clippings to produce a mulching effect.
GENERAL TROUBLE SHOOTING
* The mower is not cutting level.
o Level deck, making sure the side crank-handles are equal.
o Check air pressure of all tires; make sure they are equal, and to
manufactures specifications.
o Examine blades for damage, while mower engine is not running.
. The engine will not start.
o Disengage blades, turn toggle switch to "ON" position, check battery and
all other electrical connections, and inspect spark plug and wire.
o Check for fuel in the engine.
. Engine runs poorly.
o See engine manual.
o Check throttle adjuster.
o Replace fuel, clean fuel filter and fuel line.
IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE THE
MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT YOU ARE
NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER PROBLEMS. 1

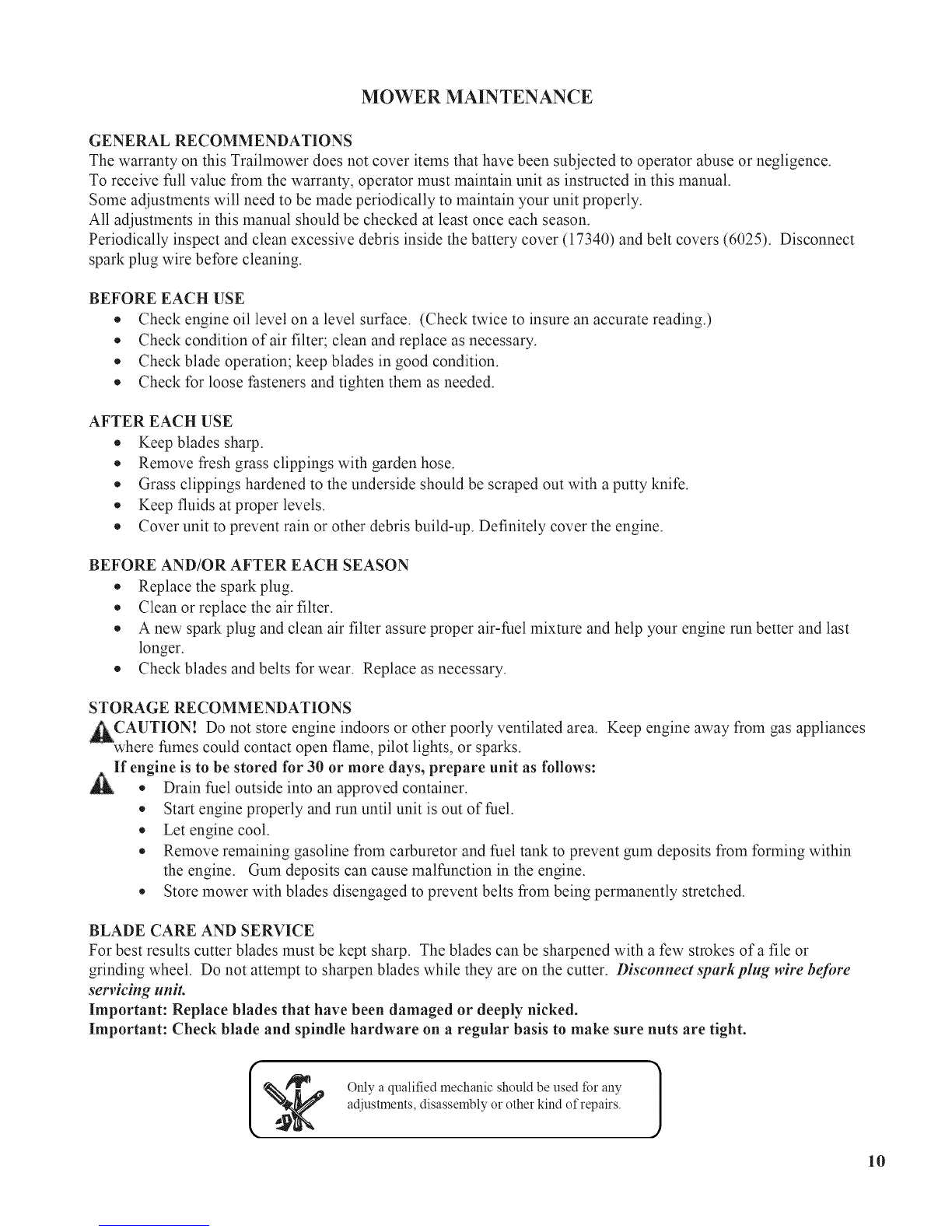

MOWER MAINTENANCE
GENERAL RECOMMENDATIONS
The warranty on this Trailmower does not cover items that have been subjected to operator abuse or negligence.
To receive full value from the warranty, operator must maintain unit as instructed in this manual.
Some adjustments will need to be made periodically to maintain your unit properly.
All adjustments in this manual should be checked at least once each season.
Periodically inspect and clean excessive debris inside the battery cover (17340) and belt covers (6025). Disconnect
spark plug wire before cleaning.
BEFORE EACH USE
*Check engine oil level on a level surface. (Check twice to insure an accurate reading.)
*Check condition of air filter; clean and replace as necessary.
*Check blade operation; keep blades in good condition.
*Check for loose fasteners and tighten them as needed.
AFTER EACH USE
*Keep blades sharp.
*Remove fresh grass clippings with garden hose.
*Grass clippings hardened to the underside should be scraped out with a putty knife.
*Keep fluids at proper levels.
.Cover unit to prevent rain or other debris build-up. Definitely cover the engine.
BEFORE AND/OR AFTER EACH SEASON
* Replace the sparkplug.
o Clean or replace the air filter.
* A new spark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last
longer.
* Check blades and belts for wear. Replace as necessary.
STORAGE RECOMMENDATIONS
CAUTION! Do not store engine indoors or other poorly ventilated area. Keep engine away from gas appliances
where fumes could contact open flame, pilot lights, or sparks.
If engine is to be stored for 30 or more days, prepare unit as follows:
•Drain fuel outside into an approved container
•Start engine properly and run until unit is out of fuel
•Let engine cool.
•Remove remaining gasoline from carburetor and fuel tank to prevent gum deposits from forming within
the engine. Gum deposits can cause malfunction in the engine.
•Store mower with blades disengaged to prevent belts from being permanently stretched.
BLADE CARE AND SERVICE
For best results cutter blades must be kept sharp. The blades can be sharpened with a few strokes of a file or
grinding wheel. Do not attempt to sharpen blades while they are on the cutter. Disconnect sparkplug wire before
servicing unit.
Important: Replace blades that have been damaged or deeply nicked.
Important: Check blade and spindle hardware on a regular basis to make sure nuts are tight.
I_ Only a qualifiedmechanic should beused for any ]
adjustments,disassembly orother kind ofrepairs. )
10

i ITEM# QTY. PART NO
1 1 3664
2 1 3665
3 1 17600TC
4 2 F4157WK
5 1 662TC
6 1 661ATC
7 1 661TC
8 2 --
FRAME ASSEMBLY
DESCRIPTION ITEM # QTY. PART NO.
Bar - Right Sway 9 6 NB126
Bar - Left Sway 10 4 T2PB
Weldment -T60 Frame 11 4 NB178
Wheel/Tire 5/8" Bearing 13/5/6 NHS; BIk 12 2 NB149
Weldment - Tongue Offset Ext ension 13 4 H11
Weldment - Solid Stock Hitch 14 3 10579
Weldment - Tongue Hitch Extension 15 3 HTN
See Cast er/Wheel Assembly Detail 16 3 10038
DESCRIPTION
Pin - 1/8" X 1" Cotter
Bushing - Plastic
Washer - 5/8 ID X ] OD ] 0 GA
Washer-5/8 IDX 10D 14 GA
Pin - Safety Hitch
Bushing -Stepped Height Adjust
Assembly- Height Adjustment
Bolt - Eye
HEIGHT ADJSUT
HANDLE DETAIL
SEECASTER/WHEEL
ASSEMBLY DETAIL
GAS TANK
ASSEMBLY DETAIL
PartsNot Shown
Part # Description
11782 Line- Fuel, Bulk, 1/4"LowPerm
18232 Line- Fuel, Bulk, 3/16"LowPerm
18223 Clamp- FuelLine 13/32OD_3/16IDTubc
AS021 Tie,Black5 1/2"
1
2
3
4
5
6
7
8
Description
2 Ubolt - SQ , 3/8-16X2.437 X 3 Lg GR 5 ZY
2 Nut - Nylock 1/4-20
4 Nut - Nyloc 3/8-16 ZY
1 IVbunt - For EPA/CARB Gas Tank
1 Fuel Tank - 2.5 Gallon, Carb
1 Cap, Fuel - 2.50 Gallon_ Carb Sealed
1 Bracket - Fuel Tank
2 Bolt - Serf Flange 1/4-20 X 1 3/4 GR5 ZY
Use Paint Code: TC=Red, TK=Black
Part #
12447 ONLY INCLUDED ON "CA" MODELS U LP
(FOR CALIFORNIA ONLY)
Item# Qty Description Part #
1 1 Carbon Canister- 2.50 Gallon_3/16 Line 18224
2 2 Cable Tie - Carbon Canister 18219
3 4 Nut- 10-24 Nylon Lock 024900
4 2 Bracket - Carbon Canister, ZT 17127
5 4 Screw- 10-24 X 3/4 Phil Truss Head ZP 024203
NB180
NB182
18331TC
18214
18221
18225
18236
Ex: 6025TK 11

@
CENTER BLADE DRIVER DETAIL
ITEM# QTY. PART NO. DESCRIPTION
1 1 9057TK Housing-Bearing
2 4 NB690 Bolt - Serrtd Flange 1/4-20 X 3/4 Gr 5
3 2 B98 Bearing
4 1 9054 Shaft - Center 5.75"
5 3 NB179 Washer-3/41DX1 1/4OD18Ga
6 1 B98W Washer - Flat 3/4 ID X 1 3/40D
7 2 6114 Pulley- 5.50"
8 1 6065PM Spacer-3/41DXl-1/2
9 1 AS155 Washer - Belleville1.5 X .761 X.098
10 1 NB175 Nut - Jam 3/4-16 Grade 2
11 4 NB524 Nut-Flange1/4-20
12 1 9008 Plate - Blade Mount
13 1 9004 Blade - 20 1/2"
14 1 NB607 Washer - SP Bellvl. Pin..413 X.945 X.118
15 1 NB238N Bolt-HHC3/8-24X1Grade5Locktite
16 2 NB238 Bolt - 3/8-24 X 1 Grade 5 Zinc Yellow
17 2 NB216 Nut-Lock, TwoWay3/8-24ZYGrA
@
@
@
OUTER BLADE DRIVER DETAIL
Recom mended Torque Specifications
Part No. Torque (ft-tbs)
NB175 90
NB238N 35
NB524 20
NB216 35
Blade Driver Assy.
9058= 5.75" (Center Shaft)
18393- 4.25" (Outer Shafts)
ITEM NO. QTY. PART NO.
1 2 B98
2 1 9057TK
3 3 NB179
4 4 NB690
5 1 9076
6 1 B98W
7 1 6114
8 1 AS155
9 1 NB175
10 4 NB524
11 1 9008
12 1 9004
13 1 NB607
14 1 NB238N
15 2 NB238
16 2 NB216
DESCRIPTION
Bearing
Housing - Bearing
Washer - 3/4 ID X 1 1/40D 18 Ga
Bolt - Serr Flange 1/4-20 X 3/4 Grade 5
Shaft - L& R4.25"
Washer- Flat 3/4 ID X 1 3/40D
Pulley- 5.50"
Washer - Bellville 1.5 X .761 X.098
Nut - Jam 3/4-16
Nut - Flange 1/4-20
Plate- Blade Mount
Blade - 20 1/2"
Washer - SP BellvI. PLN .413 X.945 X.118
Bolt - HHC 3/8-24 X 1 Gr 5 Locktite
Bolt - 3/8-24 X 1 Grade 5 Zinc Yellow
Nut - Lock, Two Way 3/8-24 ZY Gr A
12

MOWER DECK DETAIL
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Or7 PART NO
1 --
1 --
2 --
1 --
1 --
1 --
1 --
2 T2PB
2 AS001
1 NB707
1 NB207
11 NB596
13 NB170
4 26X249
1 NB132
3 NB688
1 NB281
2 NB121
2 3511
1 18383TC
1 18384TC
2 18391
2 NB132
1 092104TC
1 15780TC
1 15779TC
1 18382TC
1 NBS09
2 NB106
2 NB181
8 18531
8 NB703
8 18532
DESCRIPTION
See Motor Base Detail
See Safetv Switch Bracket Detail
See Outer Blade Driver Detail
See Center Blade Driver Detail
See Grass Chute & Sprinq Detail
See Enplaple Lever Detail
See Idler Detail
Bushinq - Plastic
Roller - Anti-Scalp 3/8 ID
Bolt - Carriaple 3/8-16X4
Nut - Nyloc 3/8-16
Bolt - Serr Flanqe 5/16-18 X 3/4
Nut - Serf Flan_e 5/16-18 Z
Screw - ,312-18X,75
Bolt -1/2-13 X4 HCC
Nut - Nyloc Jam, 1/2-13 ZY
Nut - Nyloc 1/2-13 ZY
Nut - Jam Lock 1/2-13 2-Way
Wheel - Gaupe
Bracket - Middle Roller
Bracket - Deck Hanqer
Cover - Belt, Black Composite
Bolt -1/2-13 X4 HCC
Bracket- Deflector
Bracket - Wheel Riplht
Bracket - Left Wheel
Deck - Weldment T60 Roundbacl_
Bolt- 1/2-13 X 2 HCC
Bolt - 5/16-18 X 2 3/4 HCC
Nut - Nyloc 5/16-18
Washer - Bent ,25" ID X 18GA
Screw - MSC 10-24 X 1 1/4
Nut - Clip, 10-24
ITEM# QTY, PART NO, DESCRIPTION
1 1 166X34 Spring - Torsion
2 1 NB182 Nut-Nyloc3/8-16zy
3 1 NB784 Bolt - HCC 3/8-16 x 7
4 1 092100 Chute- Discharge
GRASS CHUTE &
SPRING DETAIL
CASTER /WHEEL
ASSEMBLY DETAIL
ITEM# QTY, PARTNO,
1 2 B98
2 1 17X195
3 1 094618
4 2 NB195
5 1 663 L
6 1 NB595
7 2 NB178
8 1 665TC
9 1 F4157WK
10 1 NB122
11 1 NB624
DESCRIPTION
Bearinq
Washer - Flat
Cap
Washer- 13/161DX 1 1/4ODX1/8
Spacer
Nut - Lockinq Jam, 2 Way 5/8-11
Washer - 5/8 ID X 10D 10 GA
Weldment- Caster
Tire/Wheel- 5/8 Bearinp! 13x5x6 NHS, BIk
Nut- Nyloc Jam 3/4-10
Bolt - 5/8"-16 X 7" HCC ZY Grade 5
fUse paint code
when ordering
parts
TK = Textured
Black
TC = Texture Red
For example:
_. 9902TK. ,j
13

Slide plastic tube snug
Against toggle switch. MOTOR BASE DETAIL
Item # 24 I
I
I Item # 26 I
Battery shown is for
representation only
PARTS NOT SHOWN
Harness - Wiring, Briggs (13-20 hp)
Battery (BCI Group # : U 1R)
Cable - Battery (10" Red)
Cable - Battery (19 1/2"0r 20" Black)
Keys - For Key Switch (set of two)
Boot - Rubber, Small, Battery Cable
18057
BCSR
BC LB
KSK
BCBT
i ITEM# QTY. PART NO. DESCRIPTION
1 1 NB220 Bolt -Shlder, 1/2 X 1-9/16 W3/4 Gr2 ZY
2 1 18387TC Motor Base- Weldment
3 2 17760 Bolt-L
4 1 17794TK Bracket - Battery Hold Down
5 8 26x229 Screw - Hex Tek 1/4 X 1/2
6 10 I' 024206 Screw-12X1/2HexSelfTap
i
7 1 N/A Engine (Reference Model Shown)
8 1 17840TK Cover- BatteryTop
9 1 6000 Guide - Belt
10 1 14869 Guide - Belt; T60
11 2 NB250 Bolt - 1/4-20 X 3/4 GR5
12 2 NB524 Nut -Serf Flange, 1/4-20 Grade 5
13 3 NB515 Bolt -Serf Flange,5/16-18 X1 3/4 Gr5
14 1 NB253 Bolt -Serf Flange, 5/16-18 X1 1/4 Gr5
15 5 NB170 Nut -Serf Flange 5/16-18 Case Hrd
16 4 NB275 Washer - SAE Flat 5/16
17 1 689L Spacer - Long, Engine Pulley, 1.5"
18 1 688 Pulley - Engine, 5.5"
19 1 9031 KeyStock-1/4X1 Undr Size
20 1 689S Spacer - Short, Engine Pulley, .687
21 1 TR150W Washer-.5311DX1 1/2ODX.062(Ht Trtd)
22 2 699 Washer - Belleville 7/16 X 1 1/4
23 1 NB452N Bolt - 7/16-20 X 1 HCF GR5 Nylock
24 1 685SP Switch -Toggle, Single Pole
ITEM# QTY, PART NO, DESCRIPTION
25 1 3623 Switch - Key
26 1 H9C Tet her - Safety, Coiled
27 1 17898 Cable -Throttle; T60
28 1 T2SM Spring
29 1 1002004 Solenoid - 3 Pole
30 2 NB197 Screw - Phillips Truss 8-32 X 1/2
31 2 NB201 Nut - Kep 8-32
32 2 NB180 Nut - Nylock 1/4-20
33 1 NB203 Nut - Kep 1/4-20
34 3 NB181 Nut - Nyloc 5/16-18
35 1 4422 Spring - Idler Tension, Bent Leg
36 1 10636YZ Bolt - Spade, 5/16-18 X12
37 2 NB280 Nut - 2 Way Lock 3/8-16 Wax Gr A
38 1 NB272 Washer - SAE Flat 3/8
39 1 NB107 Bolt - 3/8-16 X 1 1/2 HCC GR5
40 1 NB501 Bolt-5/16-18 X 1 HCC GR5
41 1 B527 Pulley - Idler, OD-3,25', ID-3/8'
42 1 6009TK Idler- Engage Weldment
43 1 17614TK Cover- BatteryTop Front
44 1 17615TK Cover - Battery Left
45 1 17616TK Cover - Battery Right
46 1 9087 Nut - Key Switch
47 1 9088 Washer - Lock, Key Switch
48 1 11158 Nut - Jam, Two-Way Lock, 5/16-18
49 1 -- See Safley Switch Detail 14

Engage Lever Detail
IITEM# QTY, PART# DESCRIPTION
1 1 NB199 Bolt- 3/8-16X5HCCGR5ZP
2 2 NB280 Nut -2 Way Lock 3/8-16 ZY
3 1 18389TK Engage - Weldment
4 1 NB170 Nut -Serr Flng 5/16-18
5 1 NB253 Bolt-SerrFIng,5/16-18X1 1/4
6 1 NB181 Nut - Nyloc 5/16-18
7 1 4578TK Pivot - Engage
8 2 10177 Washer-Fender3/8X1 1/2
9 1 11158 Nut -Jam, 2-Wy Lck, 5/16-18
Height Adjust Handle Detail
ITEM# QTY, PART# DESCRIPTION
1 1 -17N1TK*Tube- Height Adjust
2 1 ES214" Rod - Crank, For H7N
3 1 H7K* Knob- Height Adjustment
4 2 NBl17" Nut - Push, 5/16
5 1 OD41 * Decal - Ruler
•Parts included in Service Part # H7N
Safety Switch & Bracket Detail
ITEM# QTY, PART# DESCRIPTION
1 1 18390TK Mount - Switch Safety
2 1 3695 Switch - NormallyCIosed
3 2 NB197 Screw - Phillips Truss 8-32 X 1/2
4 2 NB201 Nut - Kep 8-32
6055 Idler Detail
ITEM# QTY, PART# DESCRIPTION
1 1 6054TK Idler - Bottom
2 1 B527 Pulley- Idler, OD-3,25", ID-3/8"
3 1 NB107 Bolt- 3/8-16X1 1/2GR5
4 2 NB181 Nut - Nyloc 5/16-18
5 1 NB170 Nut - Serf Flange 5/16-18
6 1 NB272 Washer - SAE Flat 3/8
7 1 NB280 Nut - 2 Way Lock 3/8-16 Gr A
8 1 NB501 BoIt-5/16-18X1GR5
9 1 6037 Bushing -Idler
10 1 NB182 Nut - Nyloc 3/8-16
11 1 6040Z Washer - Idler
12 1 NB618 Bolt-3/8-16X1 1/4GR5
13 1 TZ2S Spring
14 1 NB315 Eyebolt - 5/16-18 X 3 w/Gap
15 1 NB173 Nut - Jam 5/16-18
Schematic
14.5 HP Bnggs,, __.,,..°, .........o-.,,._
18.5 aP Bri_l_ls_JL_,_
FUELII_A6 ,
I,
i i
ENGINE I_/_
RED
G_EH
_'PJPE GREEN
S_'r_ _rrcH
Harness Part # t8057
uration
15

f
www.swisherinc.com
OWNER'S
MANUAL
MODEL NO.
T14560A
T14560B
T18560A
T1856(}B
T14560A-CA
T14560B-CA
T18560A-CA
T18560B-CA
T14560AEC
J
60" FINISH CUI
TRAILMOWER
HOW TO ORDER
REPAIR PARTS:
Each mower has its own model number. Each engine has its
own model number. The model number for the mower will be
found at the left rear of the unit on the belt cover skirt.
The model number for the engine will be found on the top of
the blower fan housing.
All mower parts listed herein may be ordered directly from
Swisher or your nearest Swisher dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower.
Color cannot be guaranteed on service parts.
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT - T-60 TRAILMOWER
* SERIAL NUMBER -
* MODEL NUMBER -
* ENGINE MODEL NUMBER -
TYPE -
* PART NUMBER
* PART DESCRIPTION
TELEPHONE - 1-800-222-8 ] 83
FAX- 1-660-747-8650
SWISHER
!602 CORPORATE DRIVE
WARRENSBURG, MO 64093
SWISHER
