44” COUNTRY CUT
TRAIL CUTTER
OWNER’S
MANUAL
SWISHER ACQUISITION INC.
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 640 3
PHONE [phone] FAX [phone]
Assembly
Operation
Service and Adjustment
Repair Parts
www.swisherinc.com
MODEL NO.
STARTING SERIAL #:
L118-236001
RC11544BS
2100 REV 18-236
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
ade I The
USA
of US and Global Parts

퉀ǧ
LIMITED WARRANTY
The manufacturer s warranty to the original consumer purchaser is: This product is free from
defects in materials and workmanship for a period of one (1) year from the date of purchase
by the original consumer purchaser.
We will repair or replace, at our discretion, parts found to be defective due to materials or
workmanship. This warranty is subject to the following limitations and exclusions:
1) Engine Warranty All engines utilized on our products has a separate warranty
extended to them by the individual engine manufacturer. Any
engine service difficulty is the responsibility of the engine
manufacturer and in no way is Swisher or its agents responsible
for the engine warranty. The Briggs & Stratton Engine Service
Hot Line is 1-800-233-3723.
2) Commercial Use This product is not intended for commercial use and carries no
commercial warranty.
3) Limitations This warranty applies only to products, which have been
properly assembled, adjusted, and operated in accordance with
the instructions contained within this manual. This warranty
does not apply to any product of Swisher that has been subject
to alteration, misuse, abuse, improper assembly or installation,
shipping damage, or to normal wear of the product.
4) Exclusions Excluded from this warranty are normal wear, normal
adjustments, and normal maintenance.
In the event you have a claim under this warranty, you must return the product to an
authorized service dealer. All transportation charges, damage, or loss incurred during
transportation of parts submitted for replacement or repair under this warranty shall be borne
by the purchaser. Should you have any questions concerning this warranty, please contact us
toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the
name of the authorized Swisher dealer from whom you purchased the mower will be needed
before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty
may last, so the above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights and you may have other rights, which vary from state-to-state. This is
a limited warranty as defined by the Magnuson-Moss Act of 1975.
2

딐Ӈ
SAFETY PRECAUTIONS
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands and feet, and
throw objects. Failure to observe the following safety instructions could result in
serious injury or death.
Thank you for choosing Swisher s 44” Trail Cutter. Before operating
your cutter, please read, understand and follow all of the safety precautions
and other instructions explained in this manual. As with all power
equipment, lawn mowers and cutters can be potentially dangerous if
improperly used.
3
• Read the manual. Learn to operate this machine safely.
• Always disconnect the spark plug wire and place the wire where it cannot contact the
spark plug, to prevent accidental starting the engine when setting up, transporting,
adjusting or making repairs.
• Keep all shields and guards in place.
• Understand the speed, steering and stability of this machine. Know the positions and
operations of all controls before you operate this machine. Check all of the controls in
a safe area before starting to work with this machine.
• Allow only responsible adults who are familiar with these instructions to operate this
machine. Never allow children to operate this machine.
• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and
thrown by the blade.
• Be sure the area is clear of other people before mowing. Be aware of the cutters
discharge direction and do not point at anyone. Stop the machine if anyone enters the
cutting area. Children are often attracted to the machine and the mowing activity.
Never assume that children will remain where you last saw them. Keep children
under the watchful care of another responsible adult.
•No riders!
• Do not put hands or feet near or under rotating parts.
• Do not mow in reverse. Always look down and behind before and during backing.

딐Ӈ
• Turn off the blades when not cutting. Before leaving the machine, turn off the blades
and stop the engine.
• Watch for traffic when operating near or crossing roadways.
• Do not operate the cutter if it has been dropped or damaged in any manner or if the
mower vibrates excessively. Excessive vibration is an indication of damage.
Repair cutter as necessary.
• Dress properly. Do not operate the cutter when barefoot or wearing open sandals.
Wear only solid shoes with good traction when cutting.
• Never allow operation by untrained persons.
• Do not operate the machine while under the influence of alcohol or drugs.
• Do not operate on slopes greater than 15 degrees.
• Never tamper with safety devices. Check their proper operation regularly.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before
restarting. Never make adjustments or repairs with the engine running.
• Cutter blades are sharp and can cut. Wrap the blades or wear gloves, and use extra
caution when servicing them. Do not operate at too fast a rate.
• Return lever to its vertical position to disengage blades.
• The braking system is applied when the blades become disengaged. It is designed to
bring the blades to a quick stop (approximately 7 seconds). Each Trail Cutter brake
system has been set at the factory. For safety, the consumer should not alter the
braking system.
4
ASSEMBLY
• Insert 5/8-11 X 2½ bolt through the top of the Pivot Assembly and Top Link and secure with
5/8-11 nut. Insert 5/8-11 x 2½ bolt through the tabs on the top of the Hitch bar and Top Link and
secure with 5/8-11 nut.
• Place 2” Hitch Coupler on the end of the Hitch Bar. Align Holes with Hitch Bar and Coupler.
Fasten using (2) 3/8-11 x 3 Bolts, (4) 3/8 Washers, and (2) 3/8-11 Locknuts. Tighten nuts securely.
• The hitch can be adjusted up or down to level the deck from front to back. (See figure 2 page 11)
• Check engine oil. All engines are filled with oil at the factory. Verify oil level and
add if necessary before starting engine. (See Engine Owner s Manual)
• Verify fuel level and add if necessary before starting engine.
• Reconnect spark plug wire.
• Refer to Owner s Manual pg 5 for proper operating procedures.
Wrench/Socket
Qty. Size
(1) 1-1/8”
(1) 1-1/16”
(2) 15/16”
(2) 9/16”
Tools Required:
• Disengage spark plug wire and place where it cannot make a
connection.
•Refer to Fig. 1 pg. 11. Attach hitch assembly parts to front of
mower using 3/8-16 X 1¼ bolts and secure with 3/8-16 locknuts.
Insert 3/4-10 x 4 ½” bolt through the bottom hole of the pivot
assembly, (2) 3/4 washers, and hitch tube and secure with 3/4-10
nut. Tighten nut tight until tube is clamped tight, then back off 1/4
turn to allow tube to pivot.

딐Ӈ
5
OPERATING YOUR TRAIL CUTTER
The operation of any mower can produce foreign objects to be thrown into the eyes, resulting in severe eye
damage. Always wear certified safety glasses or wide-vision safety goggles over spectacles before starting
any cutting machine and while operating such a machine.
The operation of any mower produces sound waves that are damaging to the human ear. Ear protection is
recommended.
CAUTION! Tragic accidents can occur if the operator is not alert to the presence of children.
Children are often attracted to the machine and the mowing activity. Never assume that children will
remain where you last saw them.
STOPPING THE ENGINE
• Make sure the tow vehicle parking brake is set.
•Disengage cutting blades.
• Reduce engine to idle speed and allow engine to run momentarily for cooling.
• Turn the key to the off position.
INTENDED USE
The 44” Trail Cutter is designed to clear dense areas of grass and cut saplings up to 3” thick
on meadows and small estates. It is not intended to create a finish cut on lawns. Your
Trail Cutter should be towed behind an ATV, golf cart, lawn tractor or other approved
vehicle. It is not recommended for speeds exceeding 5 MPH.
ATTACHING TRAIL CUTTER TO TOW VEHICLE
• Back vehicle up to desired towing position.
•Offset the Trail Cutter to the side opposite the tow vehicle discharge (if any).
This prevents the tow vehicle from throwing grass into Trail Cutter engine.
• Using the 7365 2” ball coupler, connect the hitch to the vehicle your machine
will be towed with. Once attached, adjust the cutting height and level the
mower by rotating the adjustment rod (See figure 2 page 11).
TRANSPORTING CUTTER
• Stop Trail Cutter.
•Place Trail Cutter deck in its highest position.
• When transporting without the use of a tow vehicle, remove spark plug wire
and place it where it cannot contact the spark plug.

딐Ӈ
6
ENGAGING BLADES
Note: Do not attempt to start the unit with the T-handle console in the “ENGAGED” position.
• Engage blades by pulling down the T-handle lever into the horizontal position.
• Return lever to the vertical position to disengage blades. See Fig 10 pg 17.
• The braking system is applied when the blades become disengaged. It is designed to bring
the blades to a quick stop (approximately 7 seconds). Each Trail Cutter brake system has
been set at the factory the consumer should not alter any part of the brake system.
BREAKING IN YOUR CUTTER
• Set the vehicle parking brake and chock the wheels to prevent accidental rolling.
•While engine is running, engage the blade control.
• In a safe environment, (i.e. no children or pets) allow the blades to rotate and the engine to
run at full throttle for 5 minutes, breaking in the belt for longer life.
• Disengage the blades and shut off the engine.
CAUTION: SHUT OFF THE CUTTER ENGINE AND REMOVE SPARK
PLUG WIRE FROM SPARK PLUG BEFORE MAKING ANY
ADJUSTMENTS TO THE CUTTER.
STARTING THE ENGINE
See engine manufacturer’s recommendations for the type and amount of oil and fuel used.
•Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged.
Engine must be level to accurately check and fill oil. Do not overfill.
• Check spark plug wire, oil, and fuel.
• Check all electrical connections for buildup of debris.
• Set engine idle to “CHOKE” position.
• Turn key to the “RUN” position.
• Pull rope with a single fluid motion.
• Set engine idle at maximum RPM for best performance.
• Allow engine to run a few moments before engaging blades.
IMPORTANT: This engine is not equipped with a spark arrester muffler. It is a violation of California
Public Resource Code ection 4442 to use or operate the engine on any forest-covered, brush-
covered, or grass-covered land. Other states or federal areas may have similar laws.

딐Ӈ
7
CUTTER HEIGHT ADJUSTMENT
• There is approximately 4” of height adjustment.
•Rotate height adjust crank handle in a clockwise direction to lower the mower deck.
Rotate counterclockwise to lift the mower deck.
• Dense areas should be cut twice.
• Push handle down to lock height position.
• Adjust the top link located on the front of the hitch to level the mower after
adjusting the cutting height (See figure 2 page 11).
TOW HITCH OFFSET
• If towing with a lawn tractor, offset the rough cut mower to the opposite side of the
lawn tractor grass discharge.
• Swisher recommends if the tow vehicle is equipped with a mid-mount mower to
overlap the cut approximately 6”. This may vary depending on mowing terrain,
obstacles, and/or tow vehicle. Always keep safety the first priority.
• Always keep the tow vehicle cutter raised higher than the Trail Cutter.
STARTING TO CUT
• Adjust the cutting height.
•Double check tow vehicle to rough cut mower attachment.
• Start mower engine and set throttle to “FAST” for best cutting performance.
• Slowly engage T-handle lever. See Fig 8 pg 16.
• Carefully mount tow vehicle and start mowing at a slow travel speed.
STOPPING THE CUTTING SESSION
• Bring tow vehicle to a complete stop, set the parking brake and disengage blades.
•Turn key switch to the “OFF” position.
• Always remember to remove keys to avoid irresponsible usage.
SUGGESTED CUTTING PRACTICES
• Operate cutter engine at full throttle to assure the best cutting performance and
maximum material discharge.
• Allow wet grass to dry. Wet grass will clump and collect under the mowing deck.
• Cutter should be started with tow vehicle in low gear and increased only as safe
mowing conditions permit. Cutting speed should not exceed 5 MPH.
• Cutting conditions and the types of grass will vary from place to place. You may
find when cutting dense areas that the pressure of the wheel tracks may cause the
grass to be pushed down and not effectively mowed. If this happens you may want
to mow the area twice. Once with the cutter raised and the second cutting at the
desired height. The second cutting should be at a right angle from the previous for
best results.

Ҽ
CAUTION: DO NOT HANDLE CUTTER BLADES WITH BARE HANDS.
CARELESS OR IMPROPER HANDLING MAY RESULT IN SERIOUS
INJURY.
8
GENERAL RECOMMENDATIONS
The warranty on this cutter does not cover items that have been subjected to operator
abuse or negligence. To receive full value from the warranty, operator must maintain
unit as instructed in this manual.
Some adjustments will need to be made periodically to maintain your unit properly.
Refer to your engine manual for recommended fuel, oil, and service parts.
BEFORE EACH SEASON
A new spark plug and clean air filter assure proper air fuel mixture and help your engine
run better and last longer.
• Replace the spark plug.
• Clean or replace the air filter.
• Check blades and belts for wear.
BEFORE EACH USE
• Check engine oil level. Do this twice to ensure an accurate reading.
•Check condition of air filter and clean or replace if necessary.
• Check blade operation.
• Check for loose fasteners.
• Lubricate threads of adjustment rod P/N 4006. See Fig 5 pg 13.
DAILY MAINTENANCE
Make sure all nuts and bolts are tight and cotter pins and retainer springs are secure.
Keep blades sharp. Observe all safety precautions.
BLADE CARE AND SERVICE
For best results cutter blades must be kept sharp. The blades can be sharpened with a
few strokes of a file or grinding wheel. Do Not attempt to sharpen while on the cutter.
Important: Replace blades that have been damaged or deeply nicked.
Important: Check blade and spindle hardware on a regular basis to make sure
nuts are tight.
CUTTER MAINTENANCE
•Reducing the travel speed will help cut dense growth. This allows the blades the
time necessary to make its initial cut, and regain momentum to continue cutting.
The engine may stall if you are mowing too fast!
• Do not attempt to cut areas that the tow vehicle cannot maneuver through and/or
slopes that you do not feel comfortable riding.

뙠һ
The unit is not cutting level.
•Level deck. Check air pressure of all tires; make sure they are equal. See
tires for maximum inflation.
• Without the engine running, make certain blades are installed identically.
The engine will not start.
• Disengage blades, turn key switch to the “OFF” position, check all
electrical connections and inspect spark plug and wire.
• Contact engine manufacturer or qualified mechanic.
Engine runs poorly.
• See engine manual.
• Check the throttle adjuster.
• Replace fuel, check fuel filter and fuel line.
• Check spark plug and gap.
Cutter bounces excessively while towing.
• Decrease tire pressure.
• Tow at a lower speed.
IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE
THE CUTTER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT
YOU ARE NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER
PROBLEMS.
GENERAL TROUBLESHOOTING

퉀ǧ
SAFETY AND OPERATIONAL DECALS
Replace decal immediately if damaged.
OD29-DANGER DECAL
OD33-5MPH DECAL
OD36-DEFLECTOR DECAL
OD55-DANGER DECAL
OD45-WARNING DECAL
OD10-ENGAGE DECAL
OD99-OFF/RUN DECAL
10
OD99112 LARGE SWISHER LOGO
19976-SWISHER FLAG DECAL

퉀ǧ
11
UNCRATING & SET-UP DIAGRAM
DECK LEVELING DIAGRAM
FIGURE 1
FIGURE 2
FRONT TO BACK ADJUSTMENT
For best cutting results, the cutter deck should be parallel to the ground. To check parallel
adjustment, measure the distance from the bottom edge of the deck in both the front and rear of the
deck. This adjustment is best done while the tow vehicle and Trail Cutter are connected.
Item #
Description
Part #
9
Nut - 3/4-10 Lock
21132
10
Nut - 5/8-11 Lock
21138
11
Washer - 3/4" AE Flat
NB146
12
Nut - 3/8-16 Lock
NB182
13
Bolt - Hex, 3/8-16 X 1 1/4
NB618
14
Washer - 3/8" AE Flat
NB272
15
Bolt -Hex, 3/8-16 x 3
NB150
Item #
Description
Part #
1
Bolt - Hex, 5/8-11 X 2 1/2"
NB667
2
Bolt - Hex, 3/4-10 X 4 1/2"
21130
3 Weldment - Hitch Mount; RC44 21114*
4
Top Link - Cat 0 W/ Adjusting Rod
21103
5
Weldment - Hitch Bar Lower Arm
21108*
6
Pin - Clevis 3/8 X 3 ZP
21131
7
Pin - #39 Hair Pin (A155H)
NB127
8
Washer - 3/4 ID 18 GA
NB179
9
Nut - 3/4-10 Lock
21132
10
Nut - 5/8-11 Lock
21138

퉀ǧ
When ordering replacement parts
* = USE PAINT CODE: TK=BLACK
Item # Description Part #
1 Nut - Serr Flange, 1 4-20 Grade 5 ZY NB524
2 Rubber Flapper 10384
3 Washer - Fender, 1 4X1 1 4OD Gr 2 ZY 11520
4 Bolt - Serr Flange, 1 4-20 X 3 4 GR5 ZY NB690
FRONT SKIRT ASSEMBLY
FIGURE 3
12
HITCH ASSEMBLY
FIGURE 4
Item #
Description
Part #
1
Weldment - Pivot Bracket Assembly
21102*
2
Weldment - Hitch Mount; RC44
21114*
3
pring - Compression
12364
4
Pin - 1/8" X 1" Cotter
NB126
5
Washer - Flat, 1/2"-12Ga
18823
6
Pin - Pivot Latch
21118
7
Nut - Hex Lock 1"-8
21163
8
2" Ball Coupler
7365
9
Bolt - Hex, 3/8-16 X 3"
NB150
10
Washer - 3/8 AE
NB272
11
Nut - 3/8-16 Lock
NB182
12
Bolt - 3/4-10 X 3 3/4"
21129
13
Nut - 3/4-10 Lock
21132
14
Washer - 3/4" AE
NB146
15
Nut - 5/8-11 Lock
21138
16
Weldment - Hitch Bar Lower Arm
21108*
Item # Description Part #
17 Weldment - Upper Hitch Arm Assembly 21117*
18
Pin - Clevis 3/8 X 3 ZP
21131
19
Bushing - Machine; 1" ID
21121
20
Washer - Uss Flat, Ø1" X Ø2.5"
NB569
21
Plug - 1 1/2" X 2", End Cap
21127
22
Botl - 5/8-11 X 2 1/2"
NB667
23
Top Link - Cat 0 W/ Adjusting Rod
21103
24
Washer - 1" Belleville
NB738
25
Bolt - 3/4-10 X 4 1/2"
21130
26
Pin - #39 Hair Pin (A155H)
NB127
27
Bolt - 3/8-16 X 1 1/4
NB618
28
Washer - 3/4 ID X 1 1/4 OD 18 GA
NB179

퉀ǧ
Item # Description Part #
1 Nut - 5/16-18 errated Flange NB170
2 Nut, Push - 5/16 NB117
3 Knob Height Adjustment H7K
4 Height Adjust Rod 4006
5 Bolt - 1/2-13 X 1 1/2 10046
6 1/2-13 Jam Nut NB118
7 Washer - Bellville, .512x1.26x .138 10291
8 1/2 NR Mach Bushing 14 GA NB177
9 crew - .312-18 x .75 26X249
10 Front Cover 10367*
11 Bolt - 5/16" X 18 UNC X .75" Flange Head NB596
12 ingle Point Pivot Block 4007*
13 Crank Rod E 214
14 1/2-13 2-Way Jam Lock Nut NB121
15 Weldment - Axle Bar, Right 10356*

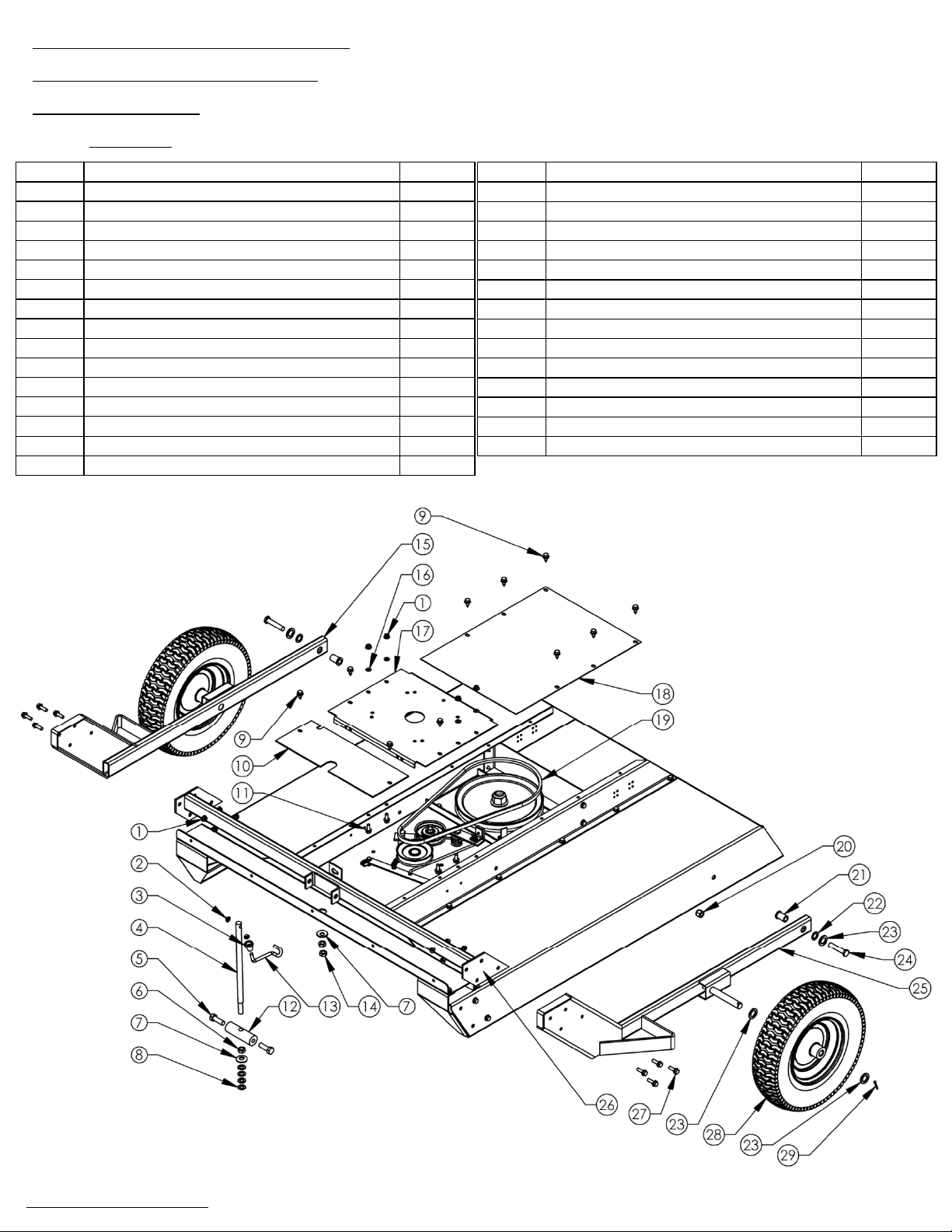

FIGURE 5
MOTOR BASE, WHEEL &
HEIGHT ADJUSTMENT
ASSEMBLIES
13
When ordering replacement parts
* = USE PAINT CODE: TK=BLACK
Item # Description Part #
16 Washer - Nylon 1/4 NB194
17 Motor Base 10343*
18 Cover - Rear 19073*
19 Belt - Blade, 50" 20655
20 1/2-13 Nyloc Nut NB281
21 pacer 10290
22 5/8 ID X 1 OD 14 GA Washer NB149
23 Washer - 13/16 ID X 1 1/4 OD X 1/8 NB195
24 Bolt - 1/2-13 X 2 1/2 Hex Tap NB588
25 Weldment - Axle Bar, Left 10355*
26 Tube - Front Weldment 10342*
27 5/16-18 X 1 errated Flange Bolt 10548
28 Wheel/Tire - 4.8 X4-8 17383K
29 1/8" X 1" Cotter Pin NB126

퉀ǧ
14
Item # Description Part #
1 Deck - Weldment 15727*
2 crew - .312-18 x .75 26X249
3 ide Gusset - Left 15056*
4 Nut - 5/16-18 errated Flange NB170
5 ide Gusset - Right 15057*
6 Z Bracket, Jack upport 15055*
7 Front Rail/Deck upport 15054*
8 Remote Cable Mount - Bolt On 15059*
9 Bracket - Remote Cable Detent 15606*
10 Rail - RT44, Right 17358*
11 Weldment - Blade Mount 15005*
12 Rear Z Rail Brace - RT44 16371*
13 Rail - RT44, Left 17357*

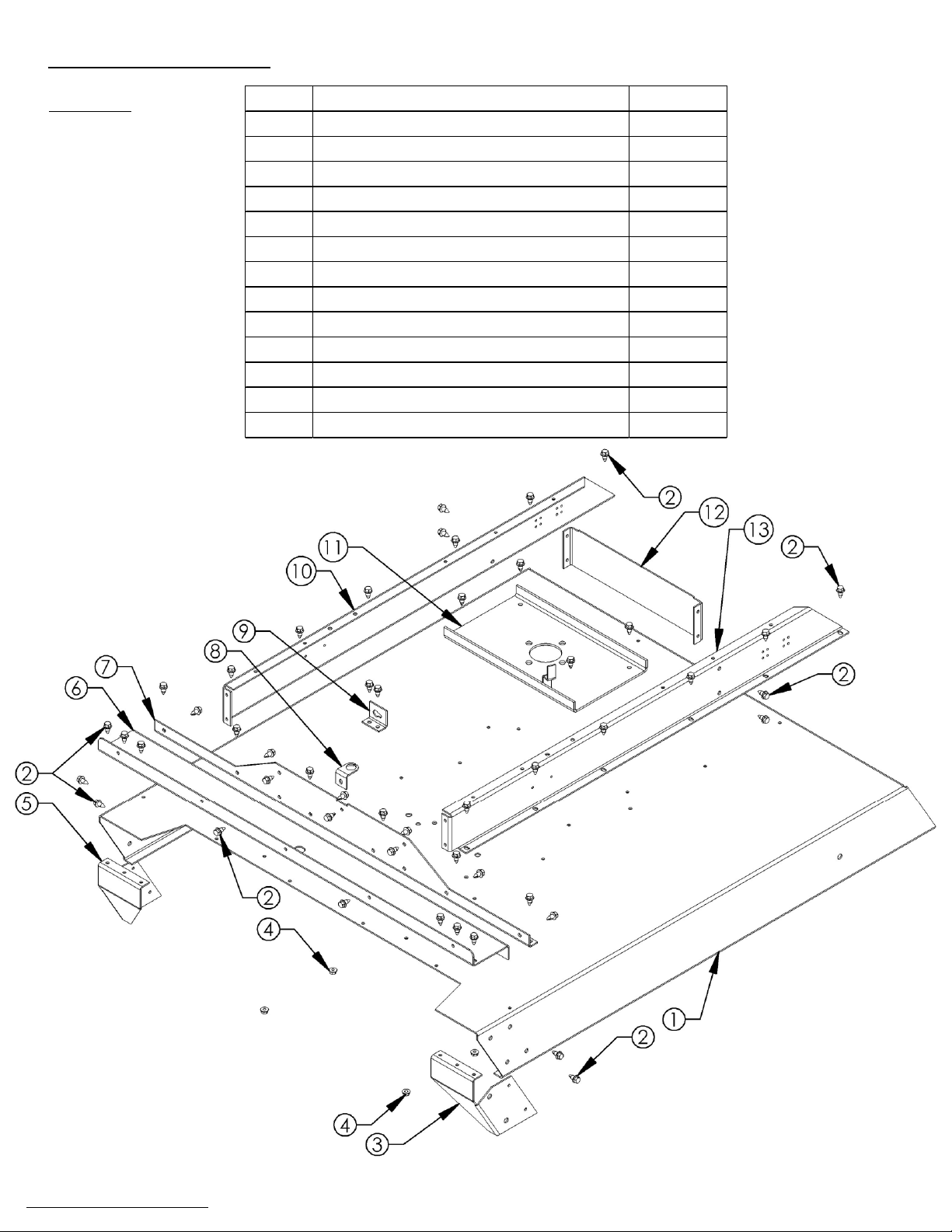

DECK ASSEMBLY
FIGURE 6
When ordering replacement parts
* = USE PAINT CODE: TK=BLACK

퉀ǧ
15

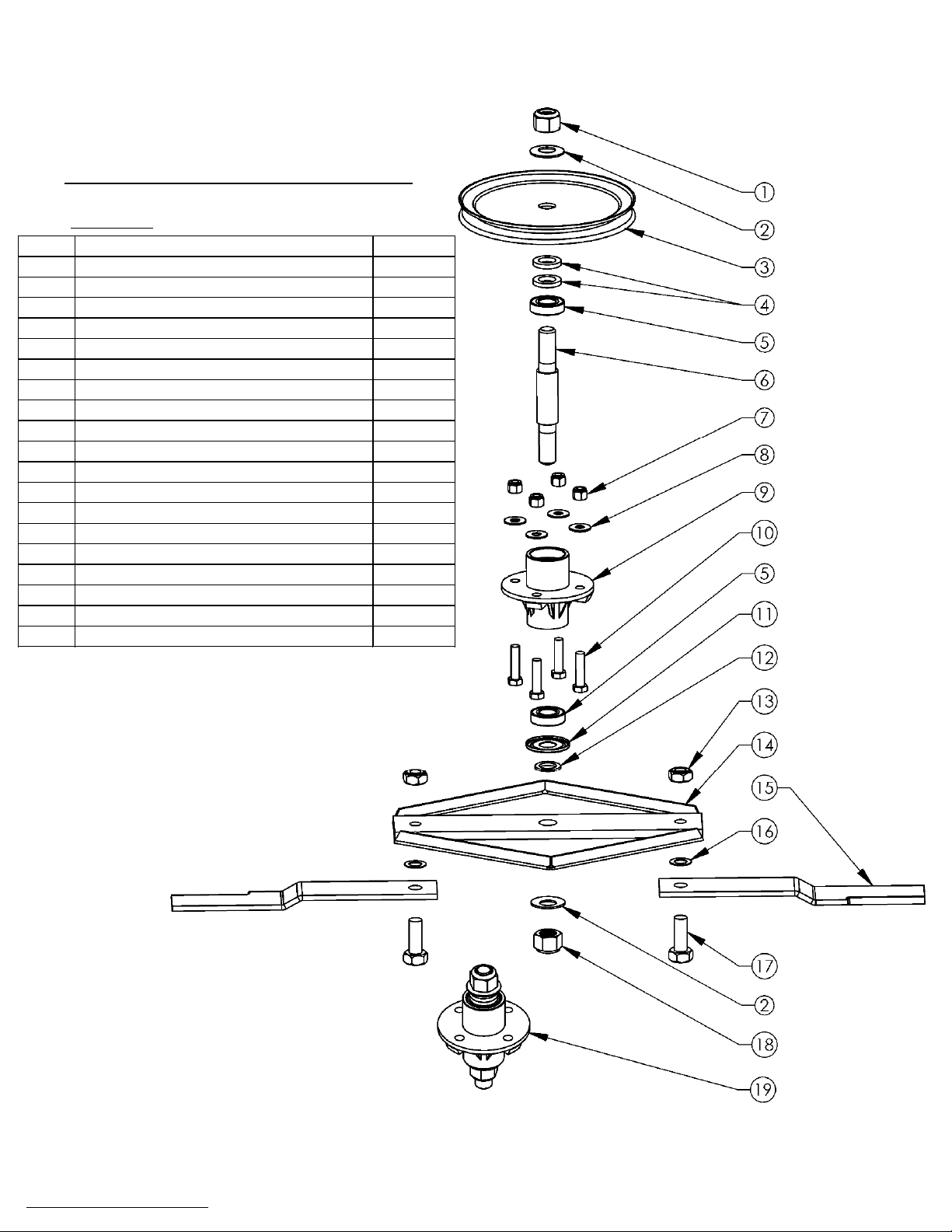

BLADE DRIVER ASSEMBLY
FIGURE 7
When ordering replacement parts
* = USE PAINT CODE: TK=BLACK
Note: The pulley, stump jumper, blades, blade hardware
and housing hardware are not included with the 18905
replacement blade driver kit.
Item # Description Part #
1 Nut - Nyloc 1"-8 NB612
2 Washer - 1" X 2" X 14GA NB738
3 Pulley - Blade, 10.3125" 4846
4 pacer - Pulley 21344
5 Bearing - Blade 4845
6 haft - Blade 18844
7
Nut - Nyloc 1/2"-13
NB281
8 Washer - U Flat, 1/2" NB555
9 Blade Driver Housing 4858*
10 Bolt - 1/2"-13 X 2" NB509
11 Cover - Dust (If Equipped) 21372
12 Washer - 1" X 1 1/2" X 10GA NB614HT
13 Nut - Nyloc 3/4"-10 NB609
14 Weldment - tump Jumper 4859*
15 Blade 10358
16 Washer - 3/4" X 1 1/4" X 18GA NB179
17 Bolt - 3/4"-10 X 2" 11431
18 Nut - Nyloc 1"-14 18850
19 Kit - Replacement, Blade Driver 18905

퉀ǧ
Item # Description Part #
1 1/2''-13 X 2 1/2'' HCC GR5 ZP NB510
2 Idler Arm 21285*
3 1/2''-13 2-Way Jam Lock Nut NB121
4 1/4''-20 Nylok Nut NB180
5 1/4''-20 X 3/4'' GR5 ZP NB250
6 Clutch Cable Clevis 9023MOD
7 1/4''-20 X 1'' HCC GR5 ZP NB102
8 Belt Engage Arm 4898*
9 1/4'' AE Washer NB274
10 5/64'' X 3/4''Cotter Pin NB519
11 3/8''-16 Nyloc Nut NB182
12 3/8'' AE Washer NB272
13 1/2'' X 1-9/16'' houlder Bolt NB220
14 Idler Pulley OD-3.25", ID-3/8" B527
15 Brake Arm Assembly 4893
16 Torsion Brake pring 9040
17 3/8''-16 HNC GR2 ZP NB212
18 Clutch Rod pring 682
19 3/8'' Hardened Washer NB196
20 3/8''-16 X 2 1/2'' HTC GR5 ZP NB619
21 Washer Belleville 699
22 3/8-16 Nyloc Nut NB182
23 1/4''-20 HX Nut ZP NB139
24 Brake Rod 4891*
25 5/16''-18 X 1'' HCC GR5 ZP NB501
26 pacer B99
27 5/16''-18 Nyloc Nut NB181
16

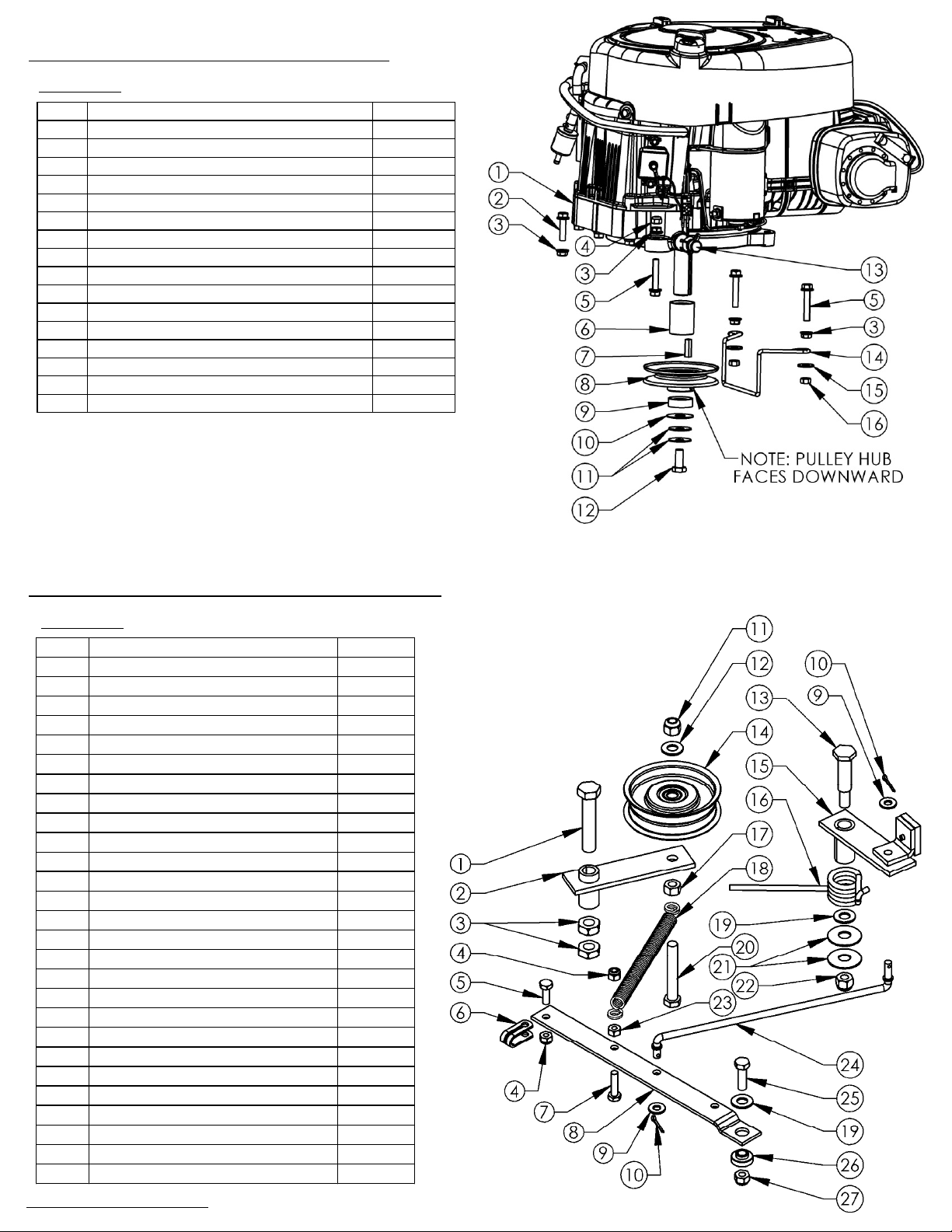

FIGURE 8
ENGINE PULLEY ASSEMBLY
FIGURE 9
BELT ENGAGE CONFIGURATION
Item # Description Part #
1 Engine B& N/A
25/16''-18 X 1 1/4'' errated Flange Bolt NB253
3 5/16-18 errated Flange Nut NB170
4 5/16''-18 Nyloc Nut NB181
5 Bolt - err Flange, 5/16-18 X1 3/4 ZY Gr5 NB515
6 pacer For Engine Pulley BB105
7 1/4'' X 1'' Key tock 9031
8 Engine Pulley- 4.25"OD,1 1/4'' ID BB105
9 pacer Lower For Engine Pulley BB105 L
10 Washer TR150W
11 Washer Belleville Engine Pulley 699
12 7/16''-20 X 1 HCF GR5 ZP NB452N
13 Oil Drain Valve 16000
14 RT44 Belt Guide 4867
15 5/16'' U Flat Washer ZP NB556
16 Nut - Lock, 5/16-18 NB558
When ordering replacement parts
* = USE PAINT CODE: TK=BLACK

퉀ǧ
17
CONSOLE ASSEMBLY
FIGURE 10
Item # Description Part #
1 T Handle for Console 4463*
2 1/4-20 Nyloc Nut NB180
3 5/16-18 Nyloc Nut NB181
4 5/16-18 X 1 1/2 Bolt NB505
5 Console Weldment 4575*
6 Key witch Lock Washer 9088
7 Key witch Nut 9087
8 Keys K K
9 Key witch 3623
10 Console Mount Plate 4852*
When mounting the console assembly it may be necessary to mount it directly to the hitch tube
depending on the vehicle you are towing it with. Some vehicle configurations will allow the
console to be mounted to the vehicle (i.e. ATV rack). Place the console weldment (4575*) on
top of the hitch tube and assemble the console mount plate (4852*) from underneath the hitch
tube using the hardware provided. Make sure the wiring harness is secure and will not drag the
ground. Periodically check to make sure all hardware is tight and the wiring harness is secure.
NEVER operate this machine without the wiring harness being secure.
Item # Description Part #
11 1/4 AE Washer NB274
12 1/4-20 X 2 1/2 HCC GR2 ZP NB163
13 1/4-20 X 1 1/4 HCC GR5 ZP NB560
14 Link for Console 4461*
15 5/64 X 3/4 Cotter Pin NB519
16 Clutch Cable Clevis 9023MOD
17 1/4 X 1 1/2 Clevis Pin NB518
18 Engage Cable 18817
19 Wiring Harness, 11.5HP Engine 19193
20 1/4-20 Wing Nut ZP NB608
When ordering replacement parts
* = USE PAINT CODE: TK=BLACK

Ҽ
18
FIGURE 11
ENGINE TO BLADE PULLEY
CONFIGURATION
P/N B527
P/N 4846
P/N BB105
P/N 20655
WIRING DIAGRAM, 11.5HP ENGINE
PN 1 1 3
FIGURE 12
WIRING DIAGRAM

襰ҷ
RECOMMENDED HITCH
CONFIGURATIONS
FIGURE 16
Unlocked
FIGURE 17
Locked
FIGURE 13
FIGURE 14
FIGURE 15
1

퉀ǧ
20
