Swisher ST60022Q User manual

OWNER’S
MANUAL
1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093
PHONE [phone] FAX [phone]
MODEL NO.
ST50022STDQ
ST60022Q
ST60022DXQ12RK
ST65022Q
ST65022DXQ
ST6002212V
Manufacturing quality lawn care equipment since 1945
Assembly
Operation
Service and Adjustment

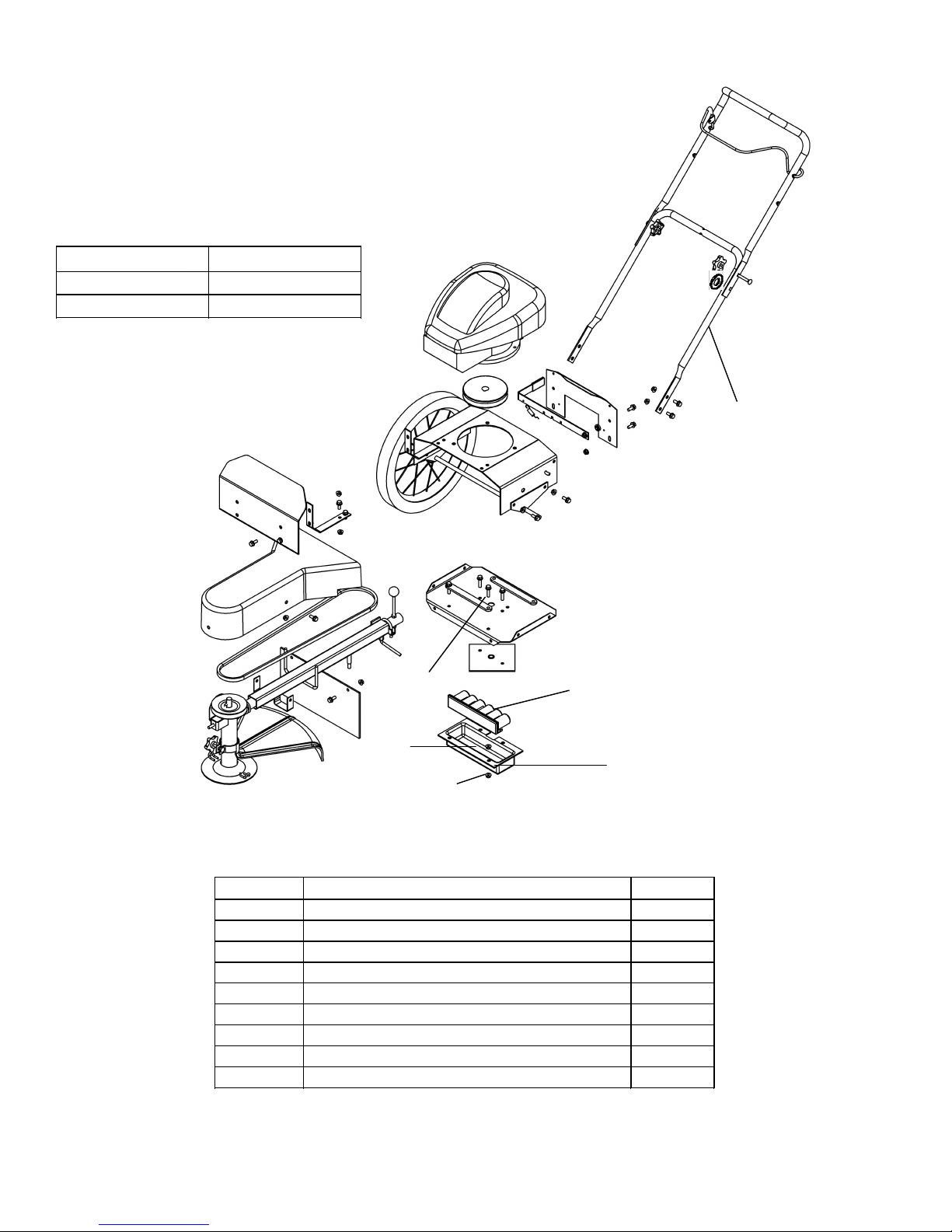

Repair Parts
Made In The
USA
Rev 04-114
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
OTRIMSTD03
Trim-N-Mow
Trim-Max
Visit us at : www.swisherinc.com

!
1) Engine Warranty All engines utilized on our products have a separate warranty extended
to them by the individual engine manufacturer. Any engine service
difficulty is the responsibility of the engine manufacturer and in no way
is Swisher Mower Co., Inc. or its agents responsible for the engine
warranty. The Briggs & Stratton Engine Service Hot-Line is 1-800-233-
3723. The Tecumseh Engine Service Hot-Line is 1-800-558-5402.
2) Commercial Use This product is not intended for commercial use and carries no
commercial warranty.
3) Limitation This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the instructions
contained within this manual. This warranty does not apply to any
product of Swisher Mower Co., Inc., that has been subject to alteration,
misuse, abuse, improper assembly or installation, shipping damage, or to
normal wear of the product.
4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and
normal maintenance.
In the event you have a claimunder thiswarranty, you must return the product to an authorized service
dealer. Alltransportation charges, damage, or loss incurred during transportation of parts submitted for
replacement or repair under this warranty shall be borne by the purchaser. Should you haveanyquestions
concerning this warranty, please contact us toll-free at 1-800-222-8183. Themodel number, serial number,
dateof purchase,and the nameof the authorized Swisher dealer fromwhom you purchased the mowerwill
be needed before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED
HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not allow the limitationof
consequential damages or limitations on how long an implied warranty may last, so the above limitations or
exclusions may notapply to you. Thiswarrantygives you specificlegal rightsand you may have other
rights, which vary fromstate-to-state. This is alimited warranty as defined by the Magnuson-Moss Act of
1975.
LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects in
materials and workmanship for a period of two (2) years from the date of purchase by the original consumer
purchaser. We will repair or replace, at our discretion, parts found to be defective due to materials or
workmanship. This warranty is subject to the following limitations and exclusions:
2

• Read, understand and follow all instructions in the manual and on the trimmer
before starting
• Read this manual carefully. Become familiar with the controls and how to
operate the unit properly.
• Only allow responsible adults, who are familiar with the instructions, to
operate the unit.
• Clear the area of objects such as rocks, toys, etc. that could be thrown by the
unit.
• Be sure the area is clear of other people before trimming. Stop the unit if
anyone enters the area.
• Be aware of the direction of the trimmer discharge and do not direct it at
anyone. Do not direct trimmer discharge at breakable objects, such as
windows, etc.
• Do not operate trimmer without all guards and shields in place.
• Never leave the machine running unattended.
• Trim only in daylight or good artificial light.
• Do not operate the trimmer while under the influence of alcohol or drugs.
• Watch for traffic when operating near roadways.
• Use the trimmer as the manufacturer intended and as described in the
manual.
• Do not operate trimmer if it has been dropped or damaged in any manner.
Always have the damage repaired before operating.
• Always wear safety glasses or eye shields when using the trimmer.
• Dress properly. Do not operate the trimmer when barefoot or wearing open
sandals. Wear only solid shoes for good traction when trimming. Wear long
sleeved shirts or jackets, also long pants. Do not trim in shorts.
• Keep your eyes and mind on your trimmer and the area being trimmed.
• Do not let other interests distract you.
• Do not put hands and feet near or under rotating parts.
• Before cleaning, inspecting or repairing your trimmer, stop the engine and
disconnect the spark plug wire and keep it away from the spark plug to
prevent accidental starting.
• Do not operate the trimmer if it vibrates abnormally. Excessive vibration is a
sign of damage. Stop the engine and safely check for damage and repair as
required.
• Do not operate the trimmer in wet grass, where good footing may not be
possible. Walk; never run
• Stop the trimmer when crossing gravel drives, etc.
3
Safety Instructions
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.

4
Slopes are a major factor related to loss of control and slip accidents,
which can result in severe injury. All slopes require extra caution. If you
feel uneasy on it do not trim it.
Slope Operation
• DO: Trim across the face of a slope and not up and down.
• DO: Remove objects such as rocks, tree limbs, etc.
• DO: Watch for holes, ruts or bumps. Tall grass can hide obstacles.
• DO NOT: Mow near drop-offs, ditches or embankments. The operator could
loose footing or balance.
• DO NOT: Trim excessively steep slopes
• DO NOT: Trim on wet grass. Reduced footing could cause slipping.
Children
• Keep children out of the area and under the watchful care of another
responsible adult.
• Be alert and turn the machine off if children enter the area.
• Before and when backing, look behind and down for small children.
• Never allow children to operate this machine.
• Use extra care when approaching blind corners, shrubs, trees or other objects
that may obstruct vision.
• Use extra care handling gasoline and other fuels. They are flammable and
vapors are explosive.
• Use only an approved container.
• Never remove gas cap or add fuel with the engine running.
• Allow engine to cool before refueling. Do not smoke
• Never refuel the machine indoors.
• Never store the machine or fuel container where there is an open flame, such
as a water heater.
• Never run a machine inside a closed area.
• Keep nuts and bolts tight and equipment in good condition.
• Never tamper with safety devices.
• Keep machine free of grass, leaves or other debris build up. Clean oil or fuel
spillage. Allow machine to cool before storing.
• Stop and inspect the equipment if you strike an object. Repair if necessary
before restarting.
• Never make repairs or adjustments with the engine running.
Service

5
The operation of any cutter can encounter foreign objects to be thrown into the eyes, resulting in
severe eye damage. Always wear certified safety glasses or wide-vision safety goggles for over
spectacles before staring any cutting machine and while operating such a machine.
The operation of any cutter produces sound waves that are damaging to the human ear. Ear
protection is recommended.
CAUTION!
Tragic accidents can occur if the operator is not alert to the presence of children. Children
are often attracted to the machine and the mowing activity. Never assume that children
will remain where you last saw them.
Do not operate the trimmer if it vibrates abnormally. Excessive vibration is a sign of
Damage. Stop the engine and safely check for damage and repair as required

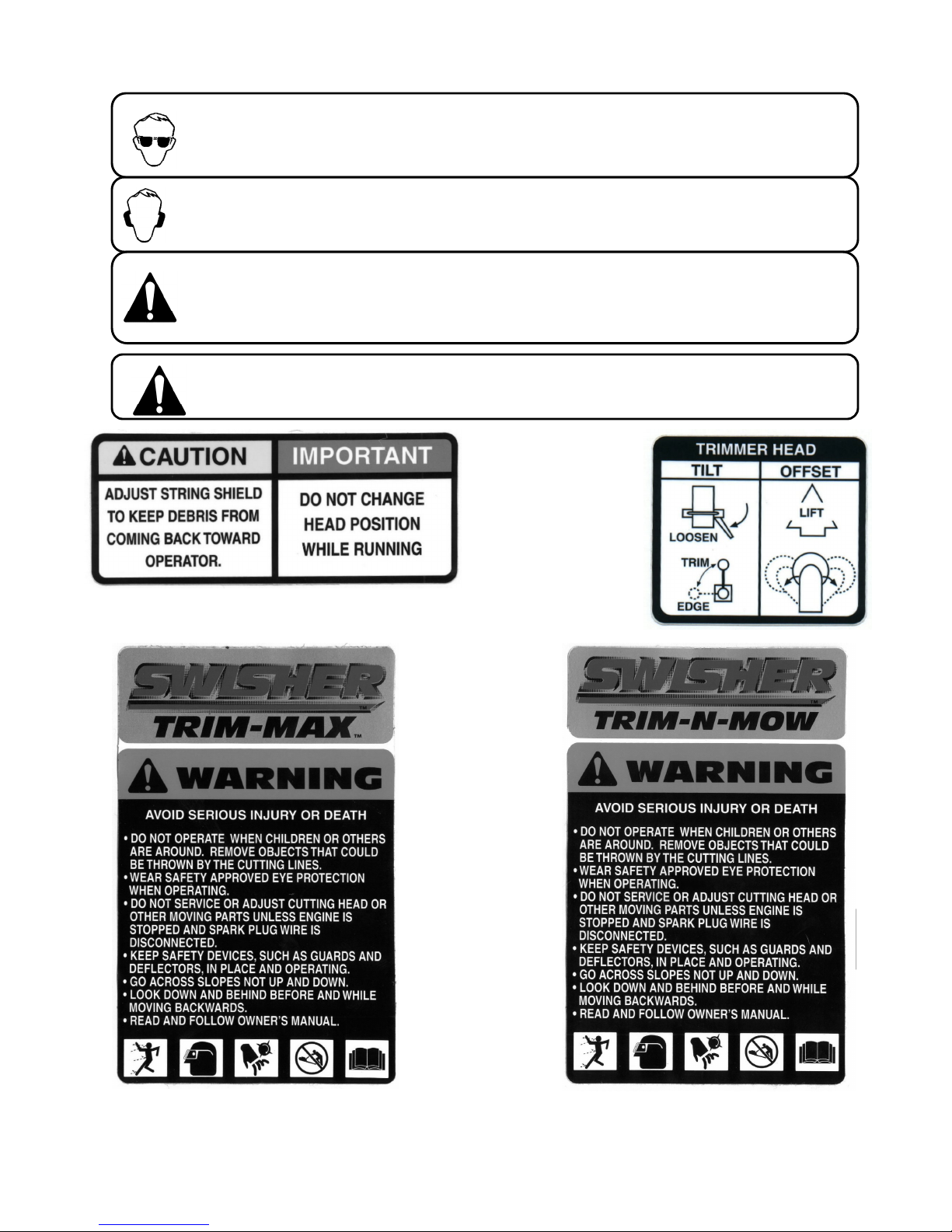

Trim-Max Decal
OD64
Trim-N-Mow Decal
OD65
Caution Notice Decal
OD67
Trimmer Head
Instruction Decal
OD68

6
Assembly
Contents of Box:
• Trimmer
• Parts bag containing:
• Manual
• Engine manual
• Safety goggles
• Bottle of engine oil
• 4 sets of .155 trimmer line
Tools Required:
• ?” wrench
Installation of handles
• Remove loose fasteners from lower handles.
• Pivot handles up and align lower hole in handles with hole on trimmer frame.
Install hardware removed in previous step. Snug, but do not tighten bolts.
• Pivot upper handles to fit the lower handles. Tighten knobs.
• Adjust handles for comfortable operation.
• Tighten all bolts.
• Hold the control bail against the handle and slowly pull the engine recoil
handle rope out. Thread the rope through the holder in the center of the
lower handle.

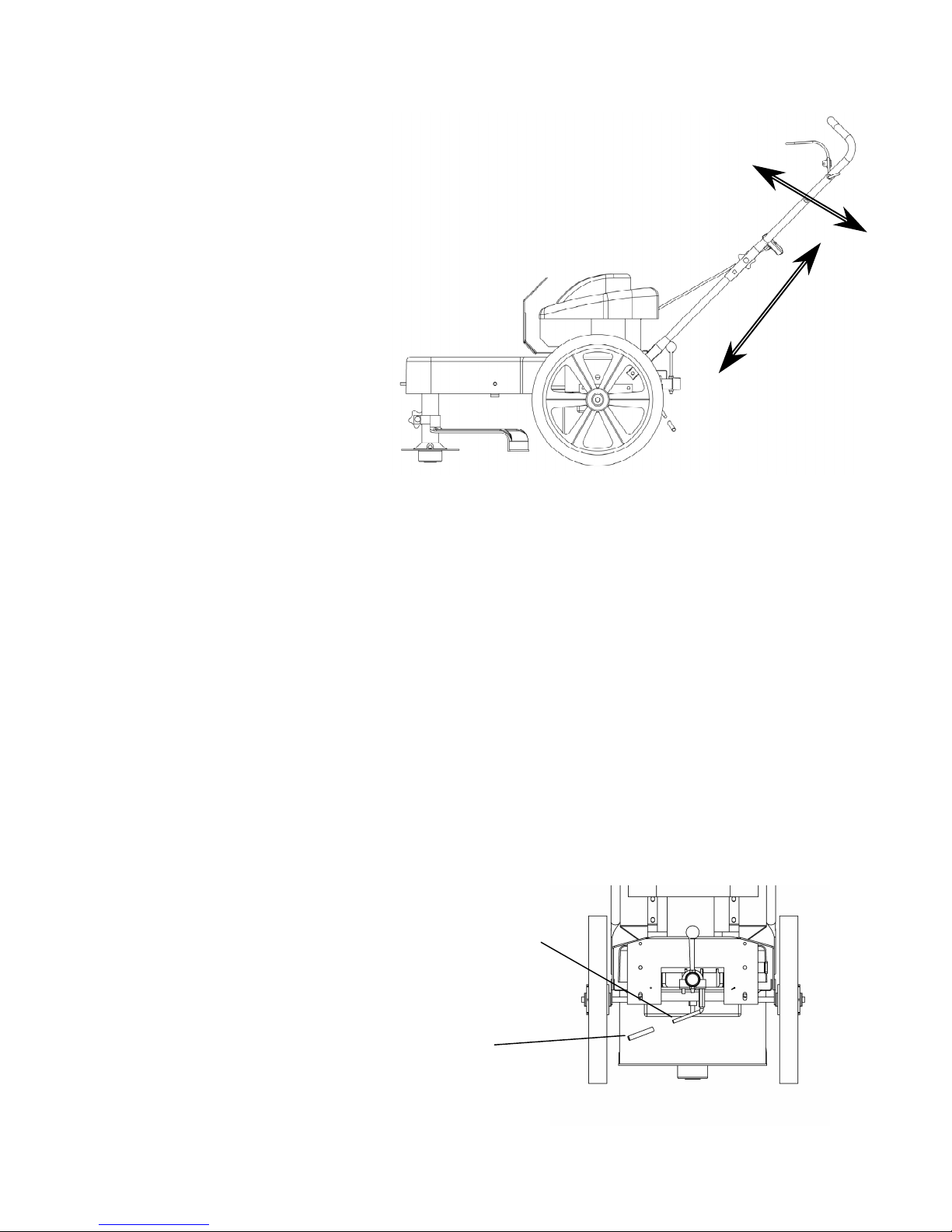

Handles may be adjusted up and down and in and out for comfortable operation.
Handle Adjustment
Install Yellow Plastic Sleeve On Tilt Handle
Applying soap to handle may ease installation
Slip yellow sleeve over handle

7
Preparing Unit For First Use
• Fill engine crankcase with oil. A bottle has been provided with this unit. DO
NOT OVERFILL.
• Fill the engine fuel tank with gasoline. GASOLINE SHOULD BE ADDED
OUTSIDE IN A WELL-VENTILATED AREA.
• Check to ensure string has been installed properly. A diagram is provided
just above the wheel for proper installation.
Operation
To start the trimmer:
•Remove any built up debris from engine.
•Pull control bail against the handle and hold.
•Push primer button on engine as directed.
•Pull back sharply on recoil starter handle.
•Begin trimming.
Important! For safest operation, make sure debris is directed away from you and others.
Important! 12 Volt Units. For optimum battery performance, you should run engine for at least 15
minutes after each start to keep battery charged
To stop the trimmer:
•Release the control bail. Engine will stop immediately.
• Do not lift the trimmer head when trimming. Let the head rest lightly touching
the ground.
• Keep an eye on the length of the trimmer strings. As the strings get shorter
they become less effective at cutting and will take longer to trim properly.
Replace the string as necessary. (See installing string)
• Do not trim wet grass.
• Use caution when trimming slopes.
• Use the proper length of string. Using a string too long for the unit will cause
stalling and unacceptable operation.
Trimming Hints
Important! To ensure proper operation, clean the engine and trimmer
regularly. See page for details.

8
Important! Use the proper length of string. Using a string too long for the unit will
cause stalling and unacceptable operation.
3 –5 HP use 16” String
5+ HP use 18” String
• Loosely fold string in half.
• Place loop of string against outside of loop on the trimmer head.
• Bring ends around and through the loop and over the string loop.
• Pull ends to tighten loop.
Installing String
Trim-Max Operation
The Trim-Max trimmer is designed to also be used as an edge trimmer and to
offset left to right for easier close trimming.
Edge trimming/ Bevel Cutting
The trimmer disk may be tilted from horizontal to vertical so that it may be used
as an edge trimmer. The head may also be tilted slightly to trim closer. This may
be handy for trimming foundations without damaging the siding.
To Tilt:
• Stop unit.
• Make sure head is in the straight forward position. (see offset operation)
• Loosen the trimmer tilt clamp lever. (Clockwise)
• Tilt head to desired position.
• Tighten trimmer tilt clamp lever. (Counter Clockwise)
• Adjust Lower trimmer shield to keep debris from coming back at operator.
Offset trimming.
The trimmer head may be offset to the left or right to allow trimming under
bushes, etc.
To Offset:
• Stop unit.
• Raise offset lever.
• Push or pull handles to achieve desired offset.
• Release offset lever. Make sure head has locked into position.
• Adjust lower trimmer shield to keep debris from coming back at operator.
Important! Note direction of debris when offsetting head.
Offsetting trimmer to the left is recommended.
Trim-Max Pivot Adjustment
Trim-Max Tilt Adjustment
OD63
Direction Of Debris

Engine
• Refer to the engine service manual provided with this unit.
Belt
• Occasionally check the belt for wear. A worn belt should be replaced .
Belt Adjustment
•The TRIM-N-MOW has an automatic belt tightener and needs no further adjustment
• The TRIM-MAX has an automatic belt tightener that automatically adjusts when the head is
tilted. If you do not regularly tilt the head on your trimmer, it is recommended that you loosen
the head twice a year. (See edge trimming)
Belt Replacement
•Remove front belt cover.
•Push trimmer head toward back of unit, compressing tensioner spring.
•Remove old belt.
•Install new belt by first routing belt under the engine and around the engine pulley.
•Push trimmer head toward back of unit, compressing tensioner spring.
•Install belt over front pulley.
•Release trimmer head. Ensure that belt is correctly installed in the groove of the engine and
front pulleys.
Re install front belt shield.
9
Make sure your trimmer is in safe working condition by keeping the following
guidelines in mind every time you use your trimmer.
• Keep trimmer in good operating condition and keep all guards and shields in
place. DO NOT operate this trimmer if any of the shields and guards are
missing.
• Check all fasteners for secure fit to keep equipment in safe working order.
Make adjustments as necessary.
• To reduce fire hazards, keep engine free of grass leaves or excessive grease.
• DO NOT operate trimmer with a damaged or missing muffler. DO NOT
tamper with exhaust system; this may cause a fire hazard.
• DO NOT operate engine if air cleaner or the cover over the carburetor air
intake is missing. Removal of these parts could create a fire hazard.
• Before cleaning, making adjustments or repairing the trimmer, STOP engine,
disconnect spark plug wire and allow engine to cool.
• Handle Gasoline with care. DO NOT smoke or use open flame near gasoline.
Use only approved gasoline containers. Never fuel or run trimmer in poorly
ventilated areas, such as a garage or utility building.
• Always replace fuel tank cap. Be sure to clean up any spilled gasoline.
• Do not change the engine governor settings or over-speed the engine; severe
injury or damage may result.
• Never store mower, with gasoline in the tank, inside a building where fumes
may reach an open flame or spark. Always allow engine to cool before
storing
NEVER ADD GASOLINE TO A HOT ENGINE –ALLOW ENGINE TO COOL
BEFORE ADDING GASOLINE
Trimmer Maintenance
WARNING –ALWAYS STOP ENGINE AND DISCONNECT SPARK PLUG
WIRE BEFORE PERFORMING ANY ADJUSTMENTS OR SERVICE

10
Trim-N-Mow
See Detail Page 11
1Briggs & Stratton Engine N/A 15 Upper Handle 2016
2Trimmer Pulley & Washer 2065 16 Operator Presence Bail 2020
35/16-18 X 3/4 Serr Flg Bolt NB596 17 Rope Guide 2046
4Metal Debris Shield 2092 18 5/16-18 Nut NB10
5Rear Cover 2026 19 5/16-18 Nyloc Nut NB181
6Belt Guard 2019 20 Washer NB275
7Blade Belt 2113 21 5/16-18 X 1/2 Bolt NB252
8Rubber Shield 2027 22 5/16-18 Square Nut NB449
9Lower Motor Base 2006
10 5/16-18 X 1 1/4 Serrated Flange Bolt NB253 Not Shown 5/16-18 X 2 Carriage Bolt NB590
11 5/16-18 Serrated Flange Nut NB170 Not Shown 3/8-24 X 1 Engine Bolt Locktite NB238N
12 Upper Motor Base 2005 Not Shown SP Washer Bellvl. PLN .413 X .945 X .118 NB607
13 Lower Handle 2089 Not Shown 5/16-18 X 1 1/4 Serrated Flange Bolt NB253
14 Black Plastic Knob 2030 Not Shown Operator Presence Cable 2034B
1
2
3
11
19
18
17
16
15
14
13
3
5
10
11
9
8
7
6
3
4
11
3
3
11
21 21
11
12
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart
14” Wheel
Part # 2002
22
20

17
11
2
3
4
8
5
9
10
6
1
2
312
5
13
16
1817
19
19
20
15
9
10
Trimmer Head
Assembly for Deluxe
and 12V Deluxe
Trimmer Head
Assembly for Standard
Item # Description Part #
15/8-11 2 Way Lock Jam Nut NB595
2Blade Pulley- 4.5" 2049
35/8 ID X 1 OD 14 GA Washer NB149
4Blade Bearing B985/8
5Compression Spring 2033
6Head Weldment 2010
7Std Trimmer Stabilizer Weldment 2032
8Spinner Shaft 2024
9Trimmer Spinner Disc Weldment 2021
10 Threaded Roller 2035
11 Trimmer Slide Weldment 2007
Item # Description Part #
12 Blade Bearing B985/8
13 Head Weldment 2110
15 Spinner Shaft 2124
16 Trimmer Slide Weldment 2107
17 Knob - Yellow 2079
18 Tilt Clamp U Bolt 2075
19 5/16-18 Nyloc Nut NB181
20 Handle Assembly 2080
11
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart

12

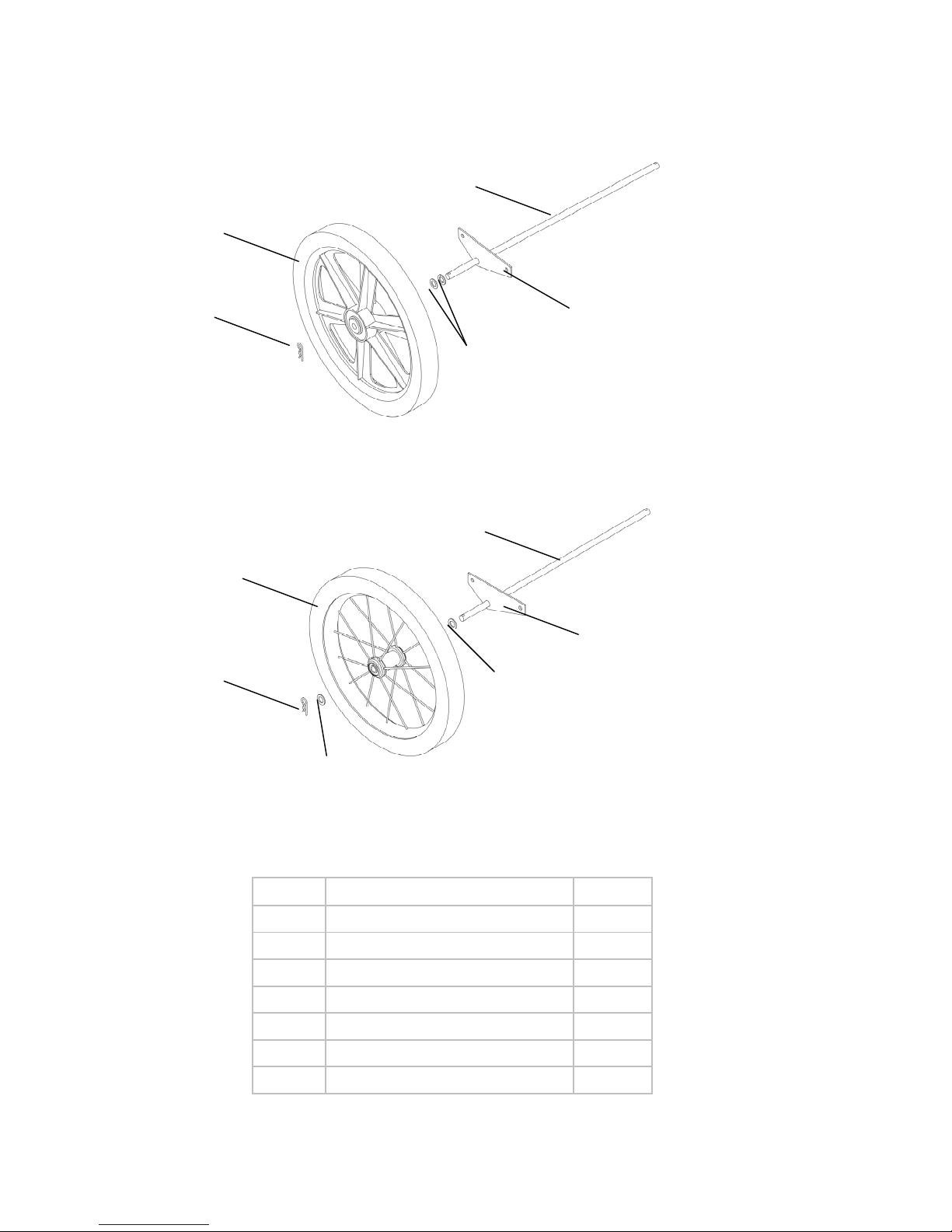

Trim-Max Axle Setup
Item # Description Part #
116" Wheel 2003
216" Steel Spoke Wheel 2094
3#3 Hair Pin NB127
41/2 USS Flat Washer ZP NB555
5Axle 2025
6Axle (Zinc Plated) 2093Z
7Axle Plate 2106
Deluxe Axle
12 Volt Deluxe Axle
1
3
5
7
4
6
7
4
4
3
2

Deluxe
13
See Detail Page 11
1
17
16
14
15
18
24
25
22
2
25
3
4
24
5
6
24 8
25
10
11
9
13
19 20
21
7
12
23
Item # Description Part # Item # Description Part #
1Briggs & Stratton Engine N/A 16 Upper Handle 2016
2Engine Pulley- 6" 2065 17 Operator Presence Bail 2020
3Sheild Strap 2018 18 5/16-18 X 1 1/2 Carriage Bolt NB587
4Shield 2092 19 Spring 2069
5Belt Guard 2119 20 Pivot Stop 2040
6Blade Belt 2113 21 Rear Cover 2126
7Lower Shield Sub Assy. 2076 22 Handle Grip, Pivot 2077
8Rubber Shield 2127 23 Spacer B99S
9Wear Strip 2116 24 5/16-18 X 3/4 Serr Flg Bolt NB596
10 Pivot Plate Weldment 2073 25 5/16-18 Serrated Flange Nut NB170
11 Lower Motor Base 2006 26 Washer NB275
12 5/16-18 X 1 1/4 Serrated Flange Bolt NB253 Not Shown 3/8-24 X 1 Engine Bolt Locktite NB238N
13 Upper Motor Base 2005 Not Shown SP Washer Bellvl. PLN .413 X .945 X .118 NB607
14 Lower Handle 2015 Not Shown 5/16-18 X 1 1/4 Serrated Flange Bolt NB253
15 Black Plastic Knob 2030 Not Shown Operator Presence Cable 2034B
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart
26

14
12 Volt Deluxe
For Additional Parts
See Page 13
Item # Description Part #
112 Volt Handle Sub-Assy- Lower 2089-12V
2Battery for Weedtrimmer 2101
3Battery Cover 2105
4Bolt NB253
5Nut NB170
6Nut Nylock NB181
Not Shown Wiring Harness 2120B
Not Shown Key Switch 2102
Not Shown Keys For Key Switch (set of two) KSK
2
3
1
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart
4
5
6

15
Notes
2102
2101

OWNER’S
MANUAL
Each trimmer has its own model number. Each engine has its
own model number. The model number for the trimmer will be
found on the right hand side of the drive belt housing. The
model number for the engine will be found on the top of the
blower fan housing.
All trimmer parts listed herein may be ordered directly from
Swisher Mower & Machine Co. Inc. or your nearest Swisher
dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower.
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT –TRIMMER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER WITH PAINT CODE
* PART DESCRIPTION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE
P.O. BOX 67
WARRENSBURG, MO 64093
SWISHER MOWER & MACHINE CO. INC.
PRINTED IN U.S.A.
Visit us at: www.swisherinc.com
MODEL NO.
ST40022STDQ
ST60022Q
ST65022Q
ST65022DXQ
ST6002212V
