Swisher PST67522A User manual

OWNER’S
MANUAL
Starting serial number:
L111-306001
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093
PHONE [phone] FAX [phone]
Manufacturing quality lawn care equipment since 1945
Assembly
Operation
Service and Adjustment
Repair Parts
Made In The
USA
swisherinc.com
MODEL NO.
PST67522
PST67522-CA
PST67522A
PST67522A-CA
POSTMASTER
TOW MOWER & FENCE
POST TRIMMER
ONPM03
REV 11-306

2
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer. All transportation charges, damage, or loss incurred during transportation of parts
submitted for replacement or repair under this warranty shall be borne by the purchaser. Should you
have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The
model number, serial number, date of purchase, and the name of the authorized Swisher dealer from
whom you purchased the mower will be needed before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty may
last, so the above limitations or exclusions may not apply to you. This warranty gives you specific
legal rights and you may have other rights, which vary from state-to-state. This is a limited warranty
as defined by the Magnuson-Moss Act of 1975.
LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects
in materials and workmanship for a period of one year from the date of purchase by the original
consumer purchaser. We will repair or replace, at our discretion, parts found to be defective due to
materials or workmanship. This warranty is subject to the following limitations and exclusions:
TABLE OF CONTENTS
WARRANTY………………....….2
SAFETY.…………………………3
ASSEMBLY………………..…….4
OPERATION…….……………………4-7
TRIMMER MAINTENANCE...….……8
PARTS BREAKDOWN………………9-11
1) Engine Warranty All engines utilized on our products have a separate warranty extended
to them by the individual engine manufacturer. Any engine service
difficulty is the responsibility of the engine manufacturer and in no
way is Swisher or its agents responsible for the engine
warranty. The Briggs & Stratton Engine Service Hot-Line is 1-800-
233-3723. The Tecumseh Engine Service Hot-Line is 1-800-558-5402.
The Honda Engine Service Hot-Line is 1-800-426-7701.
2) Commercial Use This product is not intended for commercial use and carries no
commercial warranty.
3) Limitation This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the instructions
contained within this manual. This warranty does not apply to any
product of Swisher that has been subject to alteration,
misuse, abuse, improper assembly or installation, shipping damage, or
to normal wear of product.
4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and
normal maintenance.

3
SAFETY PRECAUTIONS & DECALS
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands and feet, and
throw objects. Failure to observe the following safety instructions could result in
serious injury or death.
3
• Read the manual. Learn to operate this machine safely.
• Always disconnect the spark plug wire and place the wire where it cannot contact the
spark plug, to prevent accidental starting the engine when setting up, transporting,
adjusting or making repairs.
• Keep all shields and guards in place.
• Understand the speed, steering and stability of this machine. Know the positions and
operations of all controls before you operate this machine. Check all of the controls in
a safe area before starting to work with this machine.
• Allow only responsible adults who are familiar with these instructions to operate this
machine. Never allow children to operate this machine.
• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and
thrown by the blade.
• Be sure the area is clear of other people before mowing. Be aware of the mower
discharge direction and do not point at anyone. Stop the machine if anyone enters the
mowing area. Children are often attracted to the machine and the mowing activity.
Never assume that children will remain where you last saw them. Keep children
under the watchful care of another responsible adult.
•No riders!
• Do not put hands or feet near or under rotating parts.
• Do not mow in reverse. Always look down and behind before and during backing.
• Turn off the unit when not mowing. Before leaving the machine, turn off the unit
and stop the engine.
• Watch for traffic when operating near or crossing roadways.
• Do not operate the mower if it has been dropped or damaged in any manner or if the
mower vibrates excessively. Excessive vibration is an indication of damage.
Repair mower as necessary.
• Dress properly. Do not operate the mower when barefoot or wearing open sandals.
Wear only solid shoes with good traction when mowing.
• Never allow operation by untrained persons.
• Do not operate the machine while under the influence of alcohol or drugs.
• Do not operate on slopes greater than 15 degrees.
• Never tamper with safety devices. Check their proper operation regularly.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before
restarting. Never make adjustments or repairs with the engine running.
• Do not operate at too fast a rate.

ASSEMBLY
4
OPERATING YOUR NEW CUTTER
The operation of any mower can produce foreign objects to be thrown into the
eyes, resulting in severe eye damage. Always wear certified safety glasses or
wide-vision safety goggles over spectacles before staring any cutting machine and
while operating such a machine.
The operation of any cutter produces sound waves that are damaging to the
human ear. Ear protection is recommended.
OD45- Warning Serious Injury Decal
OD55- Danger- Triangle Decal

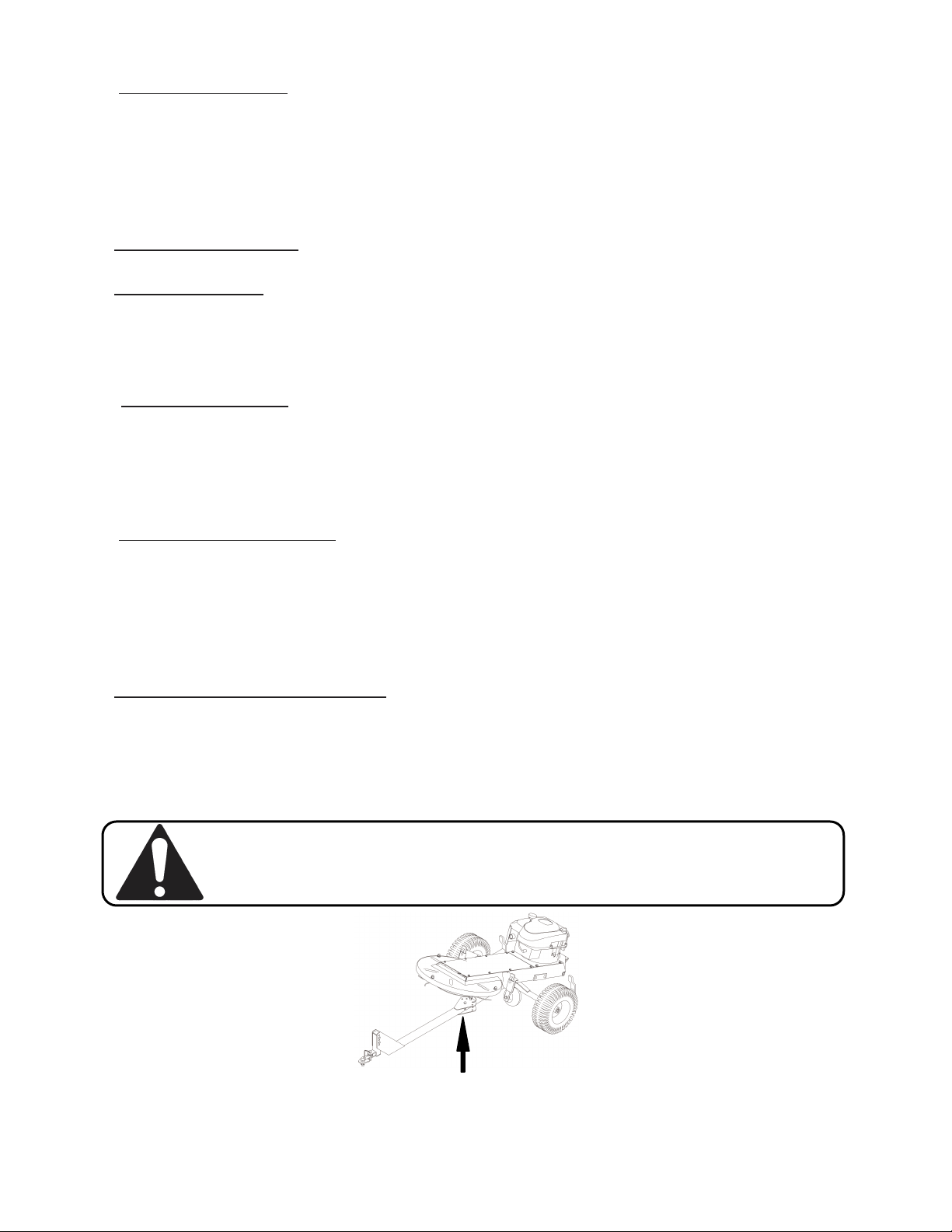

CAUTION!
Tragic accidents can occur if the operator is not alert to the presence of
children. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
• Disconnect spark plug wire from spark plug and place where it cannot make a connection.
• All engines are filled with oil at the factory. Verify oil level and add if necessary before starting
engine. (See Engine Owner’s Manual)
• Verify fuel level and add if necessary before starting engine.
• Attach swivel hitch(H10TK) to L-Hitch(P/N H1), (See p.10). Then connect trimmer to tow
vehicle.
• Install trimmer string to spinner weldment (P/N 2021TC). See p.5 for installation instructions.
• Reconnect spark plug wire.
• For proper operating procedures, Read pp. 4-7.

5
INTENDED USE
This is not a lawn mower. The Postmaster is designed to trim along fence rows, tree rows, etc.
The Postmaster has been designed to run offset to either side and also offset from the center of
the tow vehicle to provide additional cutting width.
STOPPING THE ENGINE
• Slide the throttle into the “STOP” position.
• Return unit to travel position.
INSTALLING STRING (Refer to OD63- String Diagram Decal)
• Use proper length string. Using a string too long for the unit will cause stalling and
unacceptable operation.
• Remove any built-up debris gathered in string holder.
• Fold string in half, creating a balanced loop.
• Place loop of string against outside of loop on trimmer head.
• Bring ends around and through the loop and over the string loop.
• Pull ends to tighten loop
• Cut string off evenly with outside diameter of the cover to protect fence posts and other
items being trimmed.
STARTING THE ENGINE
• Remove any built-up debris from engine.
• Remove trimmer from travel rest and assemble into desired position.
• Check oil & fuel.
• Prime engine as directed. Note: A warm engine may not need to be primed.
• Slide throttle into “FAST” position.
• Pull engine coil rope. Do not pull recklessly.
• Adjust throttle to desired engine RPM. For maximum results, operate in the full throttle
position.
PREPARING FOR FIRST USE
• Check engine crankcase for oil. Check with engine dipstick. Do not overfill. See engine
manual for proper oil level.
• Fill fuel tank with fresh gasoline. Never fill tank in an enclosed area!
• Check to ensure string has been installed correctly.
• Start trimmer as directed above.
• Under supervision, allow strings to rotate and engine to idle for 5 minutes. This breaks-in
the engine and the belt.
• Stop engine.

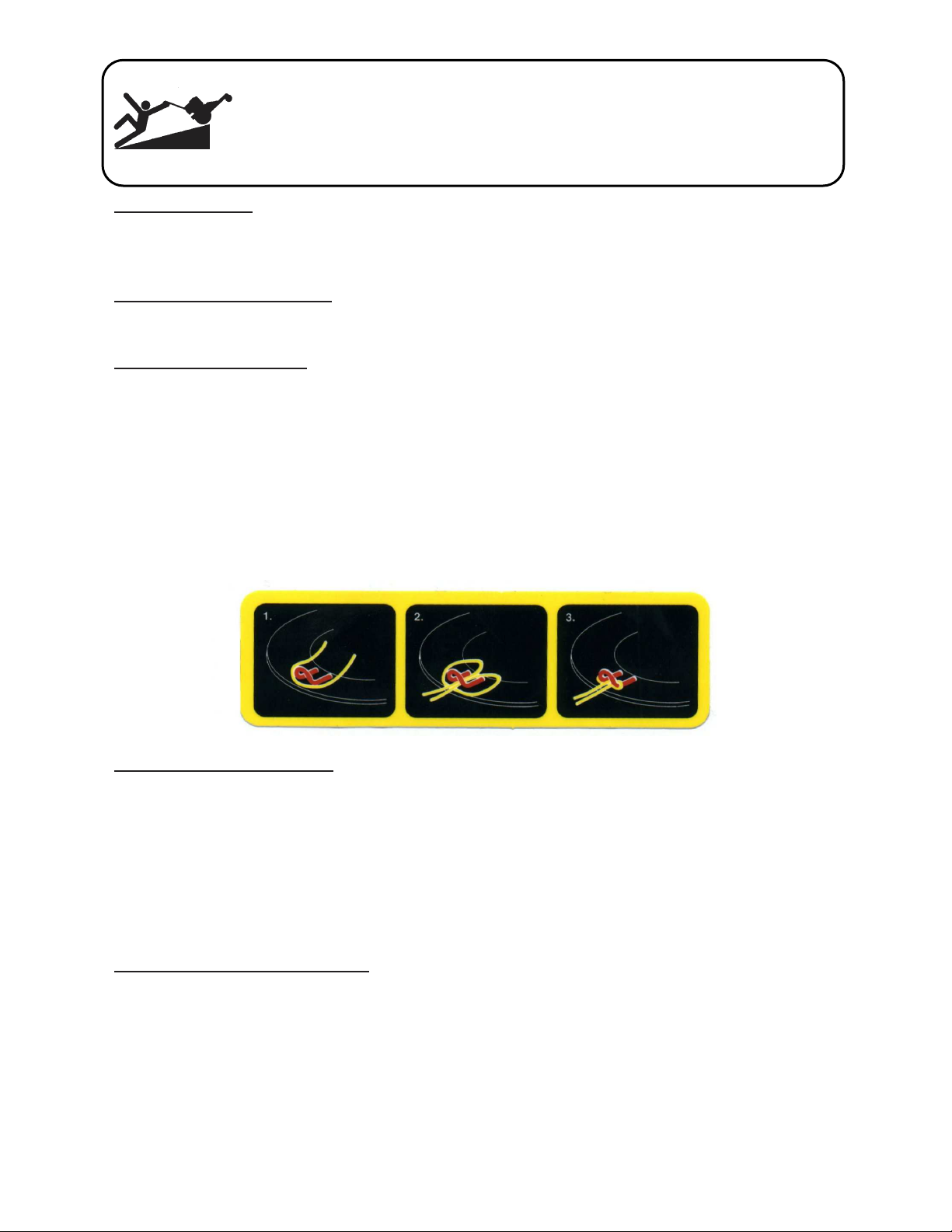

OD63- String Diagram Decal
SLOPE OPERATION!
Use extra caution when mowing on slopes. Operate self-propelled units up
and down slopes. There is a significant risk of overturns when operating
across slopes. If you feel uneasy on a slope then do not mow it.

BEGIN TRIMMING
• Make sure area is clear of all bystanders.
• Make sure that all guards, belt guides, and the spark plug wire are properly attached.
• Start engine, setting desired engine speed. Note: This machine is designed to operate at
maximum engine speed.
• Start trimming in a low gear. Some bounce may occur when trimmer is returning into
position. Use caution.
BACKING THE UNIT
• See Transporting.
TRANSPORTING
• Stop engine and remove wire from spark plug.
• Wait for all moving parts to come to a complete stop.
• Place unit into travel position.
• This position is recommended while backing the unit.
•CUTTING HEIGHT
• There are five height settings.
• Stop engine.
• Place unit into travel mode to make adjustments.
• Pull the hairpins and clevis pins out and set both rollers at equal settings.
• Replace hardware.
TENSION ADJUSTMENT
• Spring return-tension should be increased before trimming dense-grass areas.
•Always stop engine while making adjustments.
• Place unit into travel position to make adjustments.
• Move snap hook on chain closer to spring to increase tension.
• Move snap hook to the end furthest from spring to lessen tension.
•Always have chain and spring attached at both ends.
HITCH OFFSET ADJUSTMENT
• Take unit out of travel position.
• Pull ball-lock-pin out of hitch, pivot hitch left or right into the desired offset.
• Replace pin securely, assuring that it locks into position.
• Offset to the opposite side by un-hooking chain connector on the roller bracket. Pivot deck
around to other side and re-attach to opposite roller bracket.
CAUTION!
SHUT OFF ENGINE AND REMOVE WIRE FROM SPARK PLUG BEFORE
MAKING ANY ADJUSTMENTS TO THE UNIT.
6
TRAVEL POSITION
Ball-Lock-Pin

MAX INSERTION UNDER FENCE
DIRECTION OF DEBRIS
RIGHT
FRONT
LEFT
REAR
OPERATING POSITION
(RIGHTSIDE OFFSET)
OPERATOR/
TOW VEHICLE
SNAP HOOK
7
SUGGESTED PRACTICES
• Always operate engine at full throttle when cutting to assure the best cutting performance
and proper discharge of material.
• Offset unit to the right-hand side whenever possible (as shown). Debris is thrown away from
the operator.
• If grass is wet, allow it to dry. Wet grass will clump and collect, clean unit regularly.
• When cutting dense areas go slow. Some dense areas may need to be gone over twice.
• Do not operate trimmer if it vibrates abnormally. Excessive vibration is a sign of damage.
Stop the engine and safely check for damage. Repair as necessary.
• For best results, Do not insert cutting head more than halfway through the fence line.
TRIMMER MAINTENANCE & SERVICE
CAUTION!
SHUT OFF ENGINE AND REMOVE WIRE FROM SPARK PLUG BEFORE
MAKING ANY ADJUSTMENTS TO THE UNIT.
USE PROPER TOOLS FOR ANY ADJUSTMENTS,
DISASSEMBLY, OR REPAIRS.

STORAGE
• Do not store engine indoors or other poorly ventilated areas.
• If unit is to be stored for longer than 30 days, prepare as directed below:
Drain fuel outside into an approved container.
Start engine and run until unit is completely out of fuel. Removing fuel prevents
gum deposits from forming inside carburetor. Gum deposits can malfunction the engine.
Let engine cool.
SEASONAL MAINTENANCE
• Replace the spark plug.
• Clean or replace the air filter and fuel filter.
• Change oil.
• Check belts, tires, hardware, etc. for wear and damage. Repair as necessary.
• New spark plug, clean air filter, and clean fuel filter assure proper air-fuel mixture and help
engine perform better and last longer.
BEFORE EACH USE
• Check and fill engine oil on a level surface. If oil appears black or soiled, change
immediately.
• Check condition of filters, spark plug, tires, etc. Clean or replace if necessary.
• Replace/repair strings as necessary.
• Check for loose hardware and tighten as needed.
BELT REPLACEMENT
• Stop engine and remove wire from spark plug.
• Remove belt cover.
• Move idler pulley to free belt and hold.
• Remove old belt.
• Install new belt. Start at the engine pulley and work the belt around the drive pulley and
onto the backside of the idler pulley.
• Release idler pulley.
• Replace belt cover.
8
BELT CONFIGURATION

9
3
16
25
16
15
6
11
9
8
7
6
24
17
14
13
12
10
521
20
18
17
4
23 22
13
19
1
2
14
MAIN BODY ASSEMBLY
FIGURE 1
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SLIVER,TK=TEX.BLACK
26
6
SEE DETAIL
Page 11
SEE DETAIL
Page 11
SEE DETAIL
Page 11
Item # Description Part #
1 Plastic Cover 3526
2 3/8-16 Nyloc Nut NB182
3 3/8 SAE Washer NB272
4 Guard Weldment 3532TK
5 5/16-18 X 3/4 SerrFlng Bolt NB596
6 5/16-18 Serrated Flng Nut NB170
7 Motor Base 3548TC
8 Belt 74" 4220
9 Belt Cover 3501TC
10 #14 X 3/4 HX Tek Screw ZP NB161
11 5/16-18 X 1 Carriage Bolt NB516
12 Wear Strip 3519
13 1/8 X 1 Cotter Pin NB126
Item # Description Part #
14 1/2 NR MachBushing 14 GA NB177
15 3/4-16 Jam Nylok Nut NB122
16 13/16 X 1 1/4 X 1/8 Washer NB195
17 Blade Bearing B98
18 Pivot Weldment 3530TK
19 Pivot Bar (Zinc Plated) 3504Z
20 Clevis PinStd Zp 3/8 X 1 1/8 NB300
21 1/2-13 X 4 HCCGR5ZP NB132
22 Gauge Wheel 3511
23 1/2-13 2-WayJam Lock Nut NB121
24 Height Adjust Bar 3515TK
25 #3 Hair Pin(A155H) NB127
26 5/16-18 X 2 3/4 HCCGR2ZP NB106

10
HITCH FRAME ASSEMBLY
FIGURE 2
3
14
10
9
7
3
2
1
5
11
8
1
5
15
13
7
6
4
12
2
Item # Description Part #
1 Safety Hitch Pin H11
2 5/16-18 Nyloc Nut NB181
3 Plug for H1 10063
4 Hitch 3549TC
5 5/16-18 X 2 1/2 HCC GR5 ZP NB138
6 Chain - Tension Adjustment 3568
7 3/16 Chain Connector ES077
8 3/16 Spring Snap Hook ES078
9 Spring 3508
10 Frame Weldment 3551TC
11 1/8 X 1 Cotter Pin NB126
12 5/8 ID X 1 OD 14 GA Washer NB149
13 Tire/Wheel- 5/8 Bearing 13x5x6 NHS F4157WK
14 1" Square Plug 671P
15 L Hitch H1TK
16 Axle 3536
16

4
11
NOT ACTUAL
ENGINE USED
(REF. ONLY)
BLADE DRIVER ASSEMBLY IDLER ASSEMBLY
ENGINE ASSEMBLY
FIGURE 4 FIGURE 5
FIGURE 3
6
3
2
5
1
567
6
5
8
5
1
3
24
5
6
8
4
2
1
9
1
10
11
7
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SLIVER,TK=TEX.BLACK
Item # Description Part #
1 3/8-24 X 1 Engine BoltLocktite NB238N
2 Engine Pulley- 6" 2065
3 3/16 X 1 KeyStock 9030
4 5/16-18 X 1 1/4 Serr.Flng Bolt NB253
5 5/16-18 Serr. Flng Nut NB170
6 5/16-18 X 3/4 Serr. Flng Bolt NB596
7 Motor Base 3506TC
8 5/16-18 X 2 1/4 Flng Serr.GR5 ZP NB622
6.75 HP B&S Engine N/A
Item # Description Part #
1 5/8-11 Serr.Flng Nut NB598
2 5/8 ID X 1 OD 10 GA Washer NB178
3 Blade Pulley- 4.5" 2049
4 Trimmer Bearing B985/8
5 Blade Shaft- Postmaster 7/8 X 5.875 3547
6 1/4-20 X 3/4 GR5 ZP NB250
7 Short Bearing Housing B99ECTK
8 1/4-20 Nylok Nut NB180
9 Spinner Weldment Trimmer 2021TC
10 Spinner Bumper 3556TK
11 Spindle Sub-Assembly 3555
12 3/8-16 Nyloc Nut NB182
13 3/8 Hardened Washer NB196
14 Torsion Brake Spring 9040
15 Idler Arm PST 3533TK
16 1/2 X 1-9/16 Shoulder Bolt NB220
17 3/8-16 X 1 3/4 Bolt NB302
18 Idler Pulley OD-3.25", ID-3/8" B527
19 3/8 SAE Washer NB272
20 3/8-16 2-Way Lock Nut NB280
Not Shown 36 Pack 18'' Trimmer Line P3618

OWNER’S
MANUAL
POSTMASTER
Each mower has its own model number. Each engine has its
own model number. The model number for the mower will be
found on the right hand side of the drive belt housing. The
model number for the engine will be found on the top of the
blower fan housing.
All mower parts listed herein may be ordered directly from
Swisher or your nearest Swisher dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower .
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT - POSTMASTER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER
* PART DESCRIPTION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER
1602 CORPORATE DRIVE
WARRENSBURG, MO 64093
www.swisherinc.com
SWISHER
PRINTED IN U.S.A.
swisherinc.com
MODEL NO.
PST67522
PST67522-CA
PST67522A
PST67522A-CA
