Contents
1. Introduction ................................................................................... 2
1.1 Purpose of the document
1.2 Copyright notice
1.3 Disclaimer
2. Delivery .......................................................................................... 3
3. Installation
3.2 Installation instruction installation box SD1200 .............................. 4-5
3.3 Installation instruction installation box SD1200 in dry systems ...... 6-8
3.4 Installation instruction cover SD1300 ............................................. 9-10
3.5 Installation instruction lid SD1000B ................................................ 11
3.6 Installation instruction locking SD1000S ........................................ 12
3.7 Installation instruction bottle holder SD1301 .................................. 13
3.8 Installation instruction pump unit SD1320 ...................................... 14
4. Installation and Removal SD1000
4.1 Installation ...................................................................................... 15
4.2 Removal ......................................................................................... 16
5. Care and Cleaning ........................................................................ 17

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
1 Introduction
1.1 Purpose of this document
In this document the single installation steps are described.
1.2 Copyright notice
This document is intellectual property of the manufacturer and may not be copied,
duplicated or used for execution without their consent. Unauthorized use is punishab-
le as per Art. 23 in accordance with Art. 5 UWG. This work is also protected by copy-
right. The rights, in particular the translation, the reprint, the extraction of illustrations,
the disclosure on photomechanical or similar means and storage in data processing
systems, even with only partial use, are reserved.
The functions, data and illustrations described in this document apply on condition,
that a change is possible at any time. They serve to better understanding of the mat-
ter, without claiming for completeness and accuracy in detail.
1.3 Disclaimer
The manufacturer endeavors to offer the contents of this manual accurate and com-
plete. However, errors cannot be ruled out. The manufacturer assumes no liability for
the topicality, accuracy or completeness of the information contained herein.
-2-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
• 1pcs.installationbox
• 1pcs.cover
• 1pcs.lid(onlywiththelidversion)
• 1pcs.lidholder(onlywiththelidversion)
• 1pcs.spacerings(onlywiththelidversion)
• 1pcs.bottleholder
• 1pcs.pumpunit
• 1pcs.bottle0.5litres
• 1pcs.bottlecap
• 1pcs.bottleclap
• 1pcs.sealing(bottlecap)
• 1pcs.sealing(bottleclaps)
• 1pcs.hosenozzle
• 1pcs.hose(125mm)
• 1pcs.springNF31150.01
• 4pcs.impellers
• 4pcs.capnutsM4(withthelidversion,6pcs.capnutsM4)
2 Delivery
-3-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich

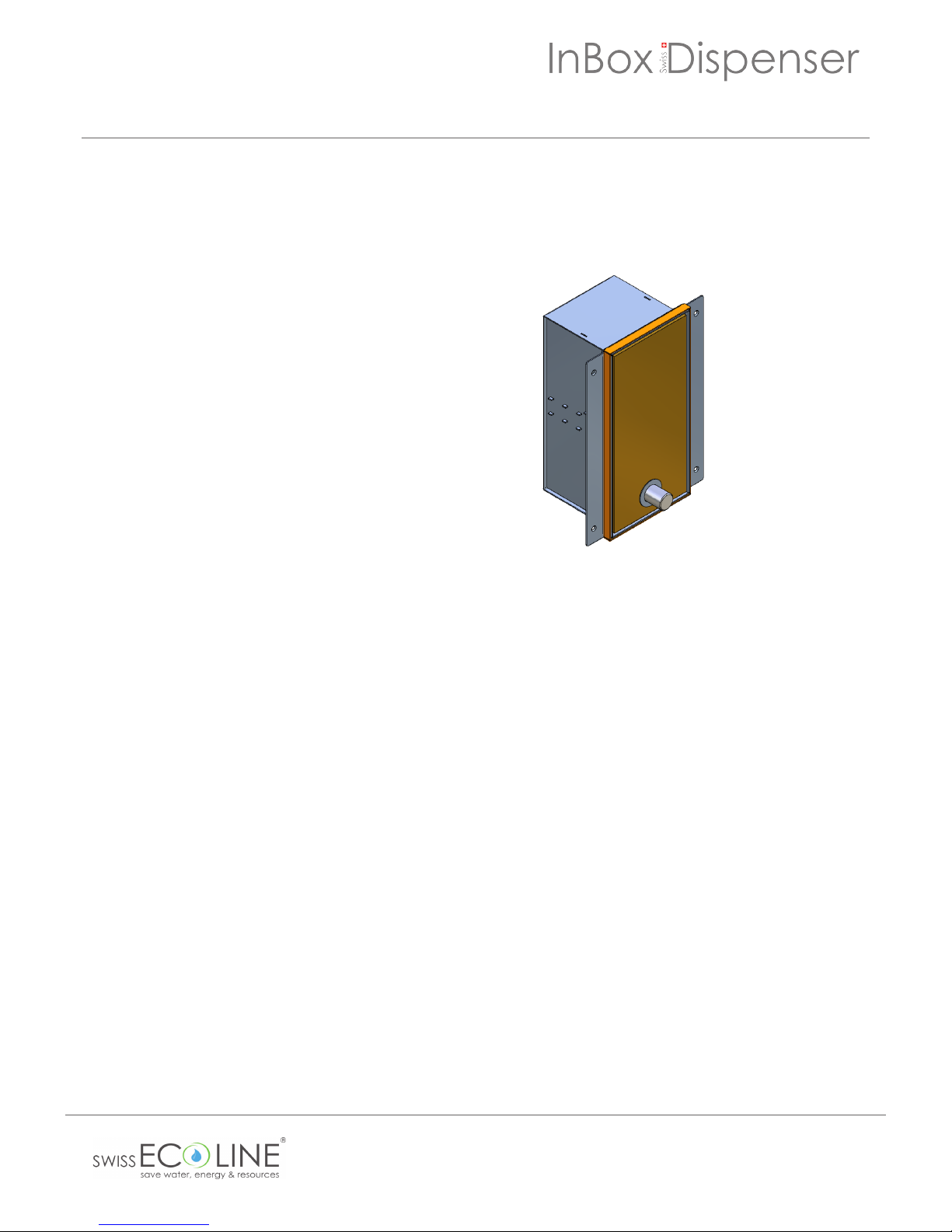

3.2 Installation instruction installation box SD1200
1. Installation by the plumber
2. As soon as the rendering mortar is applied, the installation box
can be mounted
3. Installation height according information and plans of the plumber
4. Installationheightasfromnishedoor–middleofbox
5. The installation box is screwed directly on the rendering mortar with the
included 6-size dowels and the with the 4 countersunk bolts each 25 mm
6. The box must be aligned in the vertical and horizontal in the middle of the
 structuralbox.Thechamfered(polished)sidedown.
7. Please note that the installation box anywhere rests properly on the
rendering mortar.
-4-
3 Installation

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
-5-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
-6-

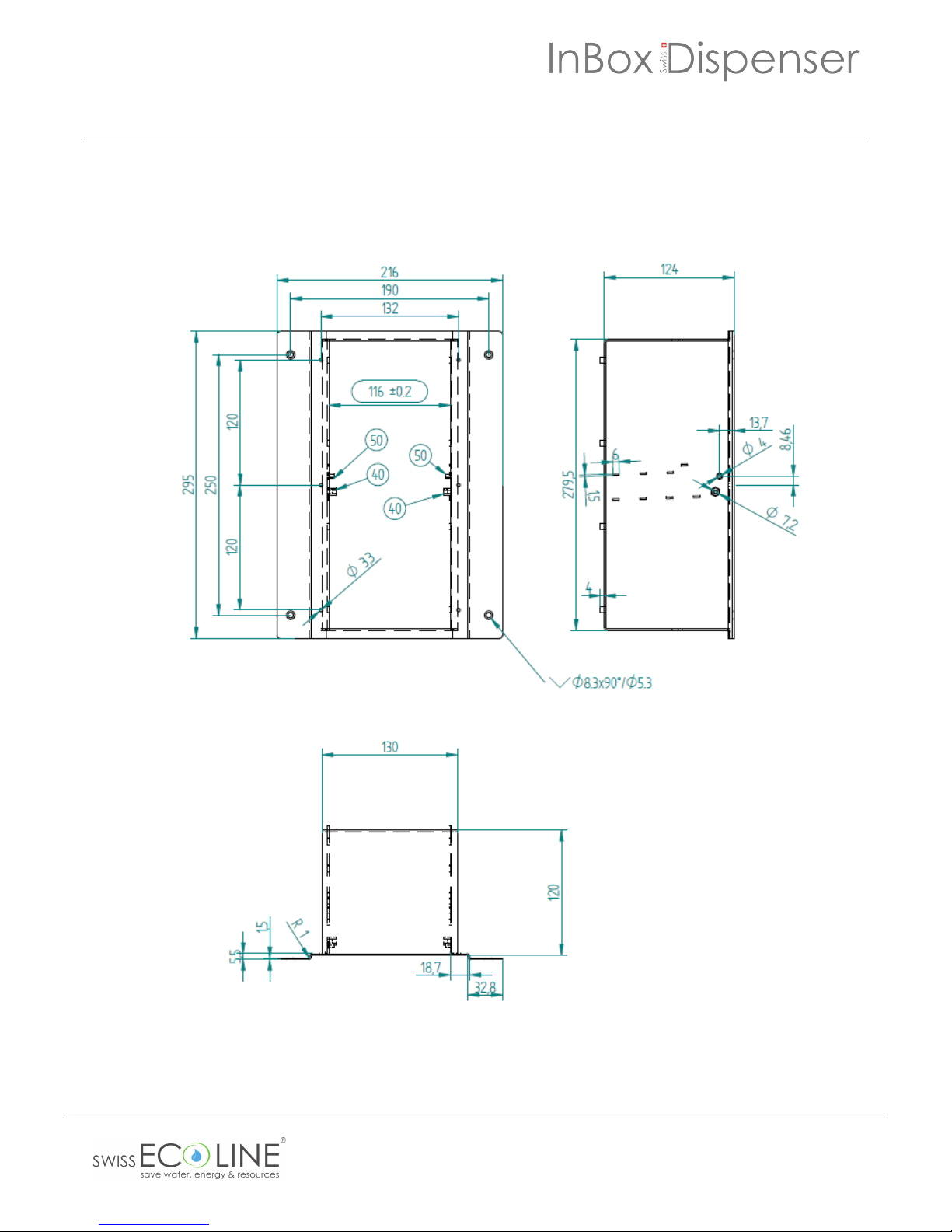

3.3 Installation instruction installation box SD1200 in dry systems
1. Installation by the plumber
2. For the SD1000 the structural box is not used
3. For the installation box the gypsum plasterboard is cutted, measurements
 asperdrawing(useinternaldimensions)

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
-7-
4. Insertinstallationboxandscrewitatthestiffeningprole
 (steelprole,systemholder)
5. Installation height according to construction plans
6. The box must be aligned in the middle of the cut-out of the wall in the vertical
and horizontal
7. Please note that the installation box anywhere rests properly
8. Sealing of installation box according to detailed plan.
 Thecountry-specicstandardsandregulationsmustbe
respected and have priority over our installation recommendations.

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
-8-
installation frame dispenser
silicone joint
stiffeningprole(steel)
silicone
sealing tape
sealing
priming
tile adhesive
tile
lightweightwall(columne,doubleplanked)

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
3.4 Installation instruction cover SD1300
1. Delivery by the plumber to the tile layer
2. Tiles as per information of the customer
3. The tiles must be drilled by using the enclosed template.
The drill-hole is used for the installation of the pump units.
4. Before the adhesive mortar - tile adhesive can be attached, the cover
 mustbetreatedwithaprimer(adhesivebase).Theprimerisdetermined
 accordingtoinformation(datasheet)oftheadhesivemortarwhichisused
for the installation of tile.
5. After the cover is tiled and cured, please put him back into the package
and give it to the plumber
In order to protect the screwed bolts, please let the Styrofoam plate together with
the cover as long as possible. The Styrofoam plate can be used as underlay.
Please note:
In case of improper assembly (if primer -adhesive base- is not used)
no liability is accepted by the manufacturer!
-9-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
-10-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich

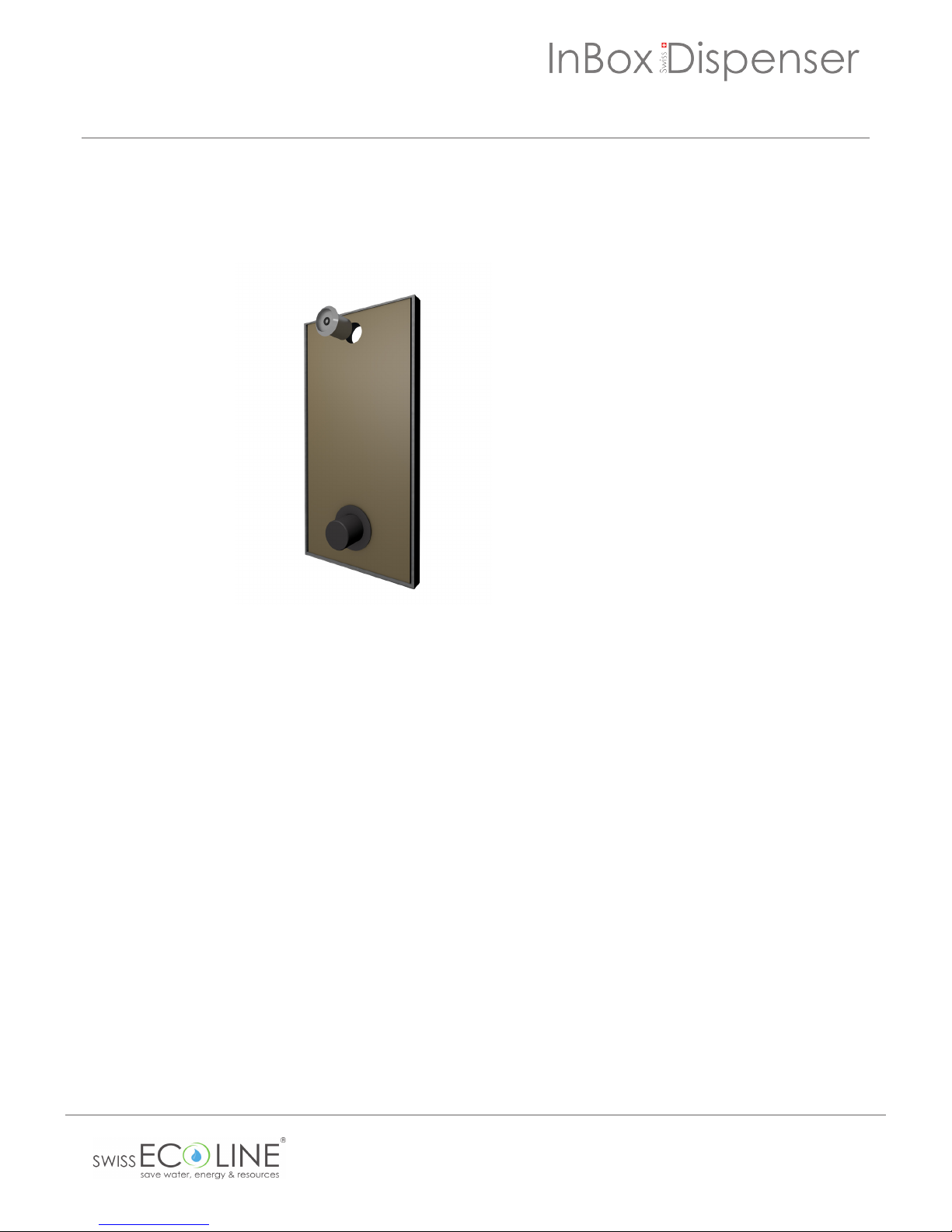

3.5 Installation instruction lid SD1000B
1. The lid holder has to be plugged to the front of the cover
2. ScrewthelidfromtherearofthecoverwiththecapnutsM4
3. Nowthecovercanbetiledbythetilelayer
4. Beforetheadhesivemortar–tileadhesivecanbeattached,thecover
 mustbetreatedwithaprimer(adhesivebase).Theprimerisdetermined 
 accordingtoinformation(datasheet)oftheadhesivemortarwhichisused
for the installation of the tile.
5. After the cover has been tiled, the lid can be installed
6. The space rings are placed between the cover and the lid and afterwards
 thedispenser(pumpunit)canbeslippedandscrewedwiththenutfrom
the rear of the cover
Please note:
In case of improper assembly (if primer – adhesive base – is not used)
no liability is accepted by the manufacturer!
-11-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
-12-
3.6 Installation instruction locking SD1000S
1. Delivery of cover to the tile layer for tiling
2. Before the adhesive mortar - tile adhesive can be attached, the cover must
 betreatedwithaprimer(adhesivebase).Theprimerisdeterminedaccording
 toinformation(datasheet)oftheadhesivemortarwhichisusedforthe
installation of tile.
3. After the cover has been tiled the locking can be installed. Insert the locking
through the top opening and screw it from the back to the cover.
Please note:
In case of improper assembly (if primer -adhesive base- is not used) no liability
is accepted by the manufacturer!

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich

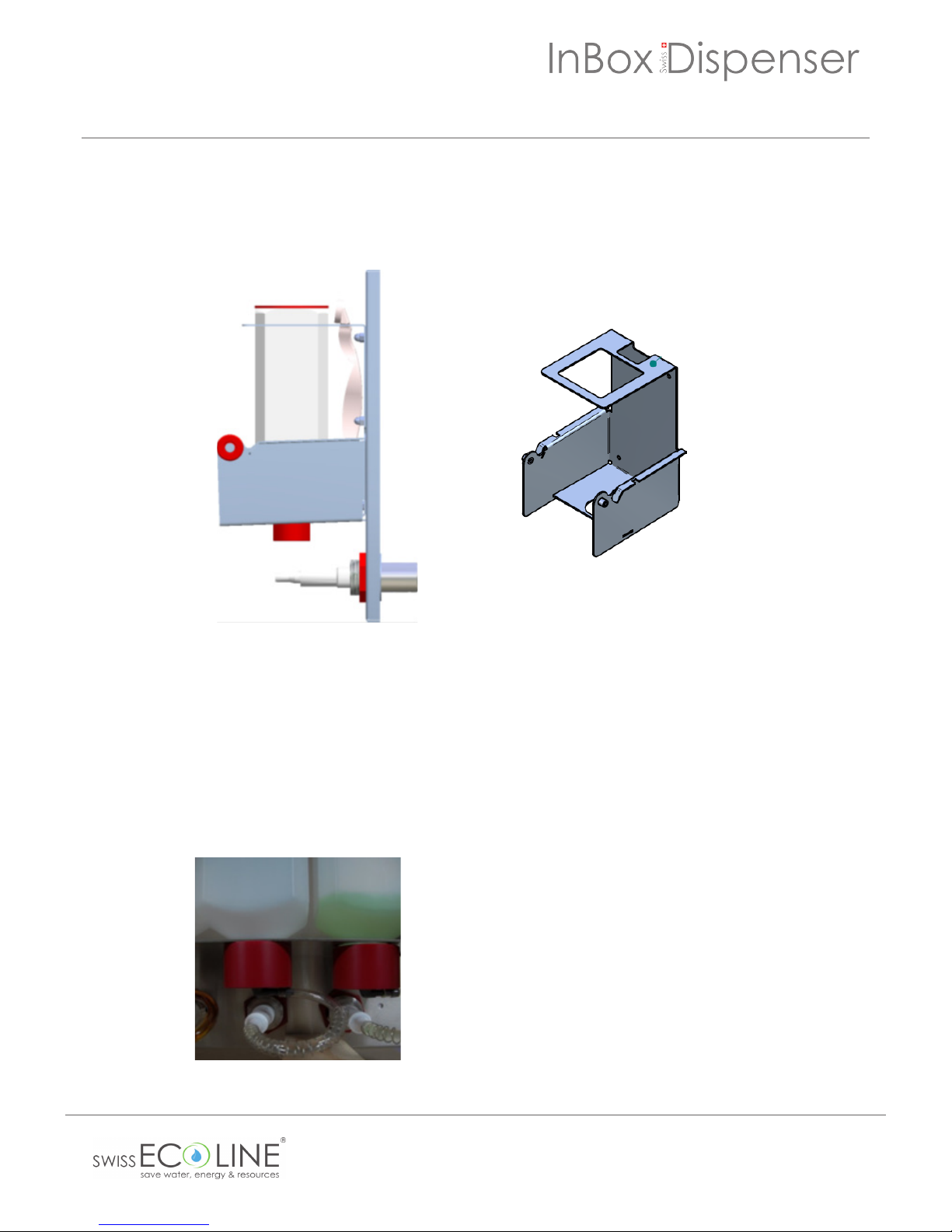

3.7 Installation instruction bottle holder SD1301
1. The bottle holder has to be screwed to the cover by using the
 enclosedM4capnuts
2. Insertthe0.5litrebottleandxitwiththescrewtop
3. Align the hose nozzle to the right and tighten the bottle cap
Please take care that the hose
nozzle is tightened properly!
-13-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
3.8 Installation instruction pump unit SD1320
1. Thepumpunit(5pcs.)isxedtothetiledcoverbyusingtheM30x1.5screws
2. The hole on the pump button is aligned downwards
 ThentheM30x1.5screwcanbetightened
3. ThespringNF31150.01isdrawnoverthehoseandapartofit
over the pump unit
4. Nowthehosecanbeputintothepumpunitandtothehosenozzle
pump unit
-14-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich

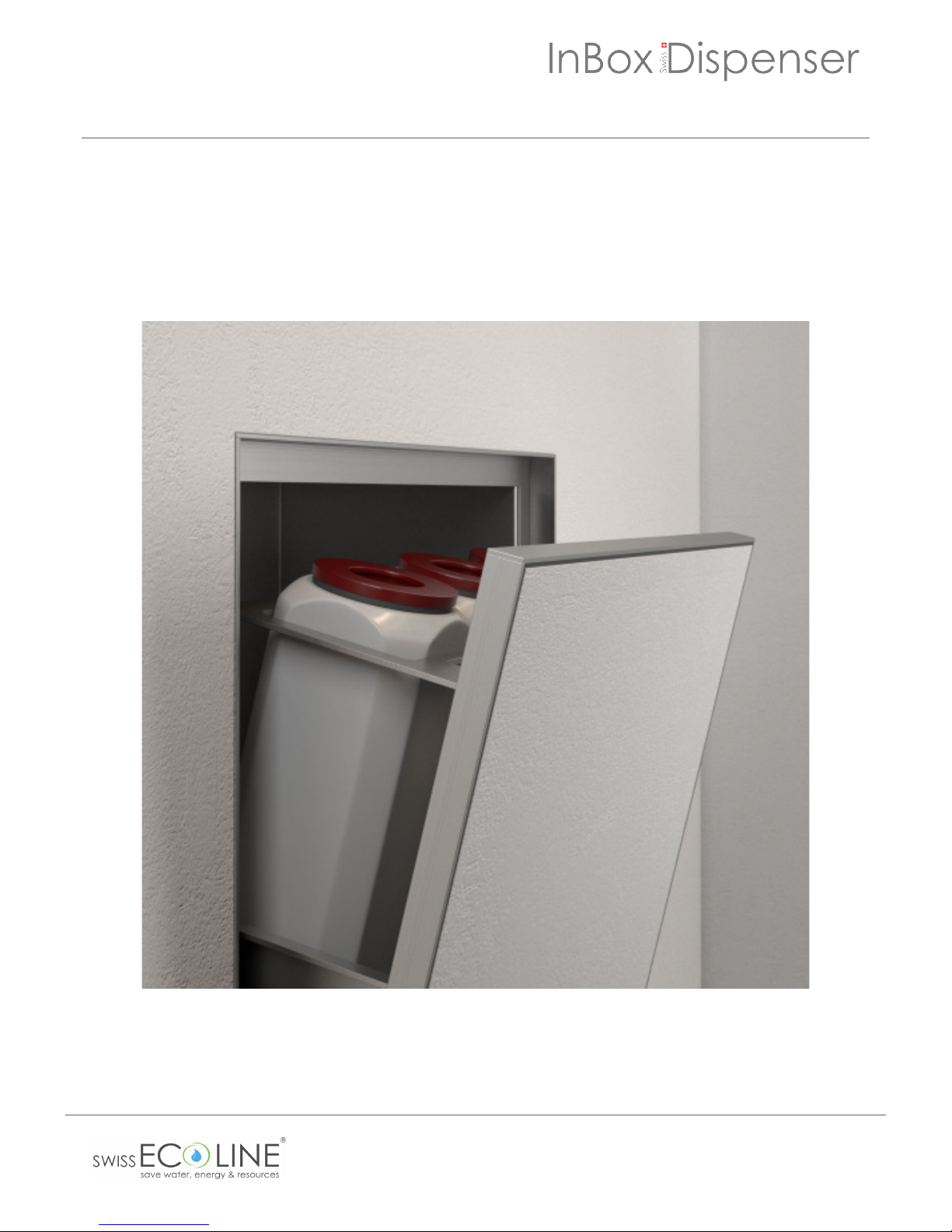

4 Installation and removal SD1000
When installing or removing the complete dispenser unit the following points have
to be observed. They are described in the following chapters.
4.1 Installation
1. Before the dispenser unit can be installed, the bottle cap has to be removed
2. Tilt the dispenser at an angle and lay it with the joint piece on the bolt of the
 installationbox(seepicturePos.1).
3. Nowliftthedispenserunitslightlyuntilthewheelsslipinthehinges
4. Nowthedispenserunitcanbepushforwardtothecutout(Pos.2)andthe
bolt now slips under the guide
5. Afterwards the dispenser unit can be closed
bottle cap
-15-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
Joint piece lies on the bolt Pos.1
cutout Pos. 2
4.2 Removal
1. Thedispenserunitispulledoutuptothecutout(seepicturePos.2)
2. Lift it slightly until the hinge can be pushed through the cutout
3. Withdraw the dispenser unit until the joint piece stands on the bolt
 (seepicturePos.1)
4. Nowtillitslightlydownwardsandremovethedispenserunit
Please note:
When installing or removing the dispenser unit, please take care that this
happens without effort. Please avoid jam and leverage. No liability is accepted by
the manufacturer due to improper assembly!
-16-

INSTALLATION INSTRUCTION
www.swissecoline.com
Chur • Zürich
5 Care and cleaning
Lasting pleasure with your InBox Swiss Dispenser
With this dispenser unit you have purchased a high-quality product: We want you to
enjoy the design and high functionality permanently ! For this purpose, we support
you with our care and cleaning recommendations.
Please note:
• Robustcleaningmethodsandaggressivecleanerscannotonlydamagethe
surfaces, but also attack the interior of the products.
• Avoidmistakesintheghtagainstdirtandlime:Whenitcomestodamage
caused by improper handling, these are excluded from the warranty.
• Neversprayaerosolcleanerdirectlyonvalvesorshowers.Spraycleanerona
soft cloth instead and wipe the surface.
• Aftercleaningrinsethedispenserthoroughlywithcleanwater.
• Donotuseanycleanerscontaininghydrochloricacid,formicacid,chlorine
bleach or acetic acid, as these can cause considerable damage.
