Swissmex-Rapid 189325 Assembly instructions

Operating hints
Agricultural Knapsack Sprayer Model 189325
Dear Customer:
You have purchased one of the best knapsack sprayers on the market today. The Safety Hints from the label
on your sprayer are repeated here for your protection. We urge you to read and observe them.
FOR YOUR SAFETY AND COMFORT:
Before using, filling or cleaning any sprayer, read all parts of the operating hints.
Make sure to set up the sprayer exactly as described in printed operating hints, on reminder tags and/or
stickers.
Wear protective clothing, respirator, gloves, eye protection, etc., whenever using, filling or cleaning the
sprayer.
Periodically re-grease the lid gasket, lid vent and piston sleeve where applicable.
To ensure good performance keep lid vent free of obstruction. Keep connections well thightened.
Service and replace worn parts as required. Make sure the hose loops freely without kinking.
Read and follow all instructions of chemical suppliers.
Do not mix chemical formula inside the sprayer. Use separate container and fill the sprayer from there.
Else -as when applying liquid fertilizers- add these after the water.
Always sift formula through a strainer. If there is none under the lid, use a screened funnel.
Never fill the sprayer with hot liquids. Max. 30°C = 85°F.
This sprayer is made for agrichemicals in their recommended water or oil solutions. Do not use caustic,
corrosive or flammable solutions.
Before cleaning or servicing the sprayer allow all pressure to scape. Do not store or transport the sprayer
under pressure.
Unless spraying is to be resumed within hours, drain chemical formula (dispose of it in proper fashion) after
use and wash the sprayer -including hose, lance and shut-off valve-with plenty of fresh water.
Never store formula in a sprayer for more than a few hours.
Use the sprayer only for jobs for which it was designed. If in doubt, ask your dealer.
Do not leave any sprayer in reach of children or persons not qualified to use it in correct fashion.
When not in use -and especially for prolonged storage- keep your sprayer in a protected place away from
direct solar heat.
A S S E M B L Y
1. On opening the shipping box locate the following parts:
1 Plastic bag containing 3 "C"-shaped locking pins, 4 metal washers and 1 “R” lock pin
1 Nozzle assembly
1 Pump handle
1 Spray lance
1 Agitator
1 Pump connecting rod
2. Place the sprayer upright on a table or other raised surface.
3. Insert the top end of the pump con rod (larger side) into the eye on the pump while placing one washer on
each side of the eye. Then secure the C-shaped locking pin making sure it fits on the space exactly (they
groove).
4. Tilt the tank back, logo facing up.
5. With the handle pointing downward, insert the pump shaft into the opening in the tank base.
As the shaft is pushed forward insert the free end of the con rod through the hole of the handle. When the
shaft has gone as far as it can go through the second opening add the larger washer and secure with
locking pin. Do the same on the con rod end.
6. Attach nozzle assembly. Tighten securely by hand.
7. Attach spray lance to the shut-off valve.Tighten securely by hand, making sure all seals and gaskets are
snugly in place.
8. Attach agitator as required.
O P E R A T I O N
(see section For Your Comfort and Safety)
Bear in mind that rubber parts on modern sprayer-e.g. piston sleeves, O rings -resist virtually any
agrichemical. Yet improper use (formulas in greater-than-normal concentration, strong industrial solvents not
commonly known and/or used at the time of manufacture) may cause even the best materials to deform or
wear out prematurely. If this ever happens, call your supplier for support.
BN189325-1116E/EX Rev.02
Litho´d in Mexico
PADDED CARRYING
STRAP
FACTORY-INSTALLED UPGRADE OPTIONS
Part Part
Code Code
Description Description

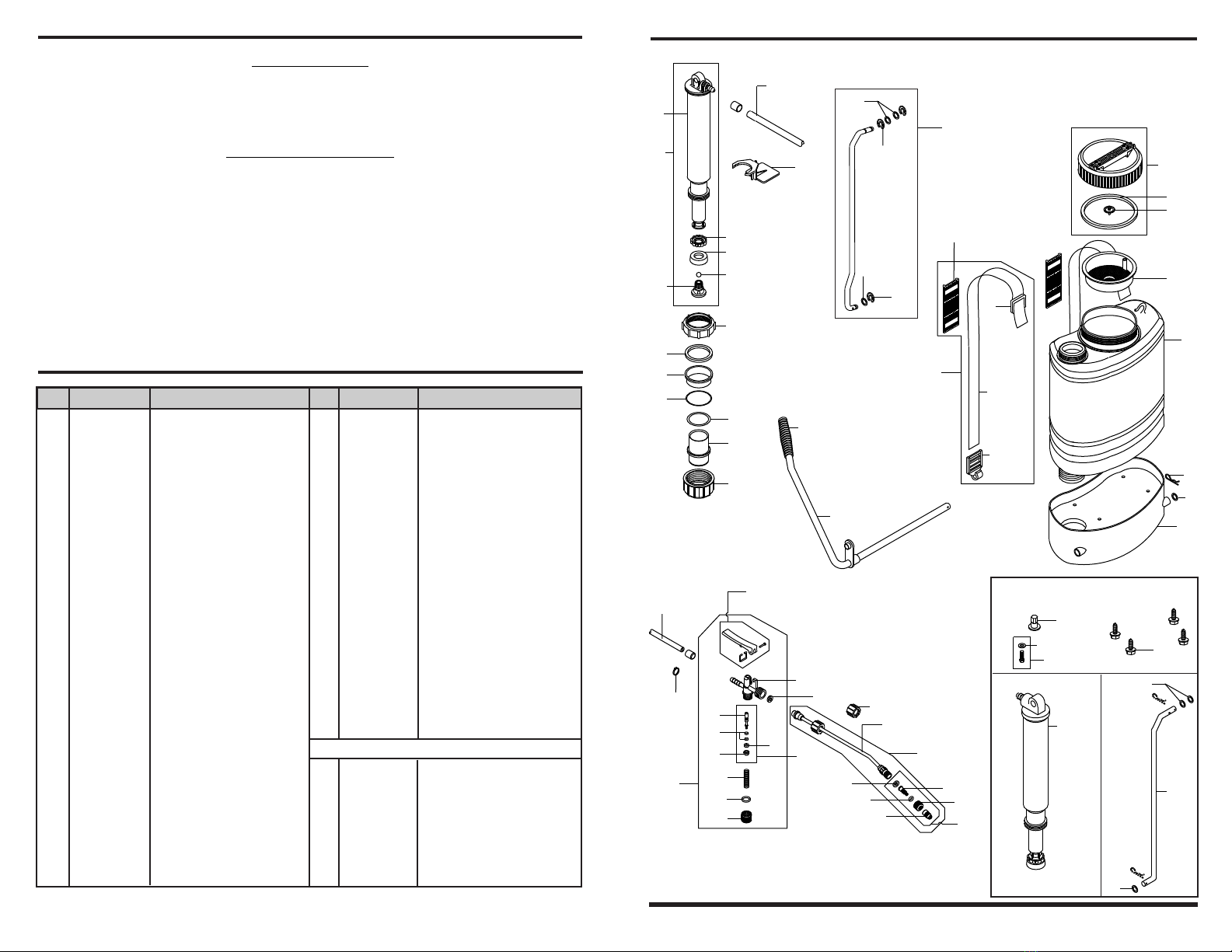

SPARE PARTS LISTS
SHUT-OFF VALVE
WITH BARB HOSE
HI-VOLUME
NOZZLE
ADJUSTABLE BRASS
NOZZLE
TELESCOPIC SPRAY LANCE
Please note that marked "=" have standard ORANGE color. Unless
a parts order states otherwise they will be supplied in this standard
color.
For practical time-saving accessories, special nozzle tips etc.
please refer to spec sheet “OPTIONAL SWISSMEX-RAPID
ACCESSORIES”.
In the interest of continued technologic progress specifications are
subject to change without notice.
NOTE:
TANK
57
57a
57b
57c
57d
57G
58a
58b
58G
E803-092
E803-114
E803-083
E803-090
E803-087
E803-092-C
E219-134
E219-133
E219-610-C
56G E219-236-C Telescopic spray lance ass´y
59G
60
61
E501-230-C
E189-505
E189-105
Padded carrying strap ass´y
Yellow tank
Blue tank
Nozzle body
Gasket - N
O´ring
Nozzle nut (2pcs)
Nozzle cap
Nozzle body ass´y
Hi-volume nozzle gasket
Hi-volume nozzle cap
Hi-volume nozzle 11/16” thread
aluminum
62
62a
62b
62c
62d
62e
62f
62g
62h
62i
62G
62G1
62G2
E807-173
E807-075
E803-060
E807-074
E803-114
E803-068
E803-063
E803-065
E803-067
E803-164
E807-075-C
E803-072-C
E803-067-C
Valve body
Filter housing
O´ring
Filter insert
Gasket - N
Oring - V (2pcs)
Pin gasket - N
Metal suport
Plunger spring
Cap
Shut -off valve
ass´y
Valve lever ass´y
Plunger ass´y
59G
62G1
62
62d
62f
62a
62b
62b
62c
62e
62g
62h
62i
62G2
62G
58G
58a
58b
57a
57
57c 57d
57b
57G
56G
60
61
Calle Swissmex No. 500
Col. Las Ceibas,
47440 Lagos de Moreno
Jalisco, México
Fax [phone]
“ (474) 7424185
 (474) 7412200
“ (474) 7412201
www.swissmex.com
[email protected]
