SWorkz S35-4 User manual

2
INSTRUCTION
The SWORKz S35-4 1/8 Nitro is designed for pure racing. The geometry of the car provides optimized
corner speed compared with easy handling and maximum traction.
The S35-4 features a T7075 hard anodized and lightened aluminum chassis with a wide layout that was
tested for a long time by our factory pilots to guarantee the best performance.
The totally new developed HET differentials are included too and provide a traction, that is not possible
with old systems.
The new S35-4 comes with a lower shock layout in front and rear and the construction of the shocks is
adapted to that new optimized layout. The xed shock spring plates will make it almost impossible to lose
them anymore.
The steering geometry, with new Ackerman and steering plates, gives the driver the feeling of total control
over the S35-4.
With the toe in plates, which now contain square inserts, you can adjust the geometry of your SWORKz
S35-4 to t to every track layout and track condition. Lower arms in front and rear are made of a newly
developed composite material and t exactely to the new chassis geometry. Side guards were redesigned
in the same way.
With the new lightened wing support you can adjust position and angle of the wing to give your SWORKz
S35-4 the perfect balance on the track. Together with the optimized new body shell, the aerodynamic
system is working perfectly together.
Another new development in our SWORKz S35-4 is the totally new rear hub. Composite material combined
with Carbon plates gives you the possibility for various setups. The newly developed Composite material
is working perfectly together with the HET differentials to provide maximum traction.
There many more small changes and smart ideas in your new SWORKz S35-4, that make the car being a
real winner.
The secret of a modern racing car is the possibility to adapt the setup to every track for top pilots but also
have a standard setup that works on most tracks for hobby pilots.
And your SWORKz S35-4 is having these two characteristics in perfection.
The SWORKz development team focused on using materials, corresponding to the highest quality
standards, when designing the car. You will nd only 100% SWORKz quality in the S35-4 kit.
Congratulations on your purchase of the new SWORKz S35-4 1/8 scale off-road racing buggy pro kit and
thanks for trusting in SWORKz.
Please read this manual carefully, before you start to build and drive your SWORKz S35-4. This manual
contains step-by-step instructions to helping you completing, preparing and ne tuning your buggy for
racing. Updates, setups, and product news will be posted on all SWORKz digital media.
As always, if you should ever have any questions or need help with your SWORKz products, please feel
free to contact our ofcial SWORKz dealers and distributors.
• New T7075 Hard Anodized, Lightend Aluminium Chassis
• New Wide Chassis Design
• New Lower Shock Towers
• New Shorter Shock Bodies
• New Shorter Shock Shafts
• New Shock Caps
• New Shorter Front Shock Springs
• New Fixed Shock Spring Holder
• New 3mm Updated Rear Shock Studs
• New Ackerman Plate
• New Steering System
• New Servo Saver Aluminium Part
• New Servo Saver Fixable Nut
• New Servo Saver Plate
• New Servo Saver Post Locking Design
• New Steering Balls
• New Steering Knuckle Plates
• New Updated Toe In Plates with Square Inserts
S35-4 Kit Features :
• New Lightweight Wing Mount
• New Side Guards
• New Lower Front and Rear Arms
• New Body Posts Front and Rear
• New Composite Rear Hubs with Carbon Plates
• New Multi Adjustable Ball System for Rear Upper Arms
• New Anticlock Screws for Shocks
• New Aerodinamically Optimized Body Shell
• 3 HET Differentials Included
• 2 Front Chassis Braces Included
• Black Competition Shock Springs Included
• Adjustable Wing Position
• Adjustable Wing Angle
• More Balance Weight Positions
• Stronger Downstop Area
• Optimized Composite Material
• Aluminium Parts in T7075

3
WARRANTY
Your SWORKz S35-4 kit warranty covers workmanship and manufacturing
defects of the original and unmodified parts. Warranty claims resulting from
crashes, abuse, improper operation, improper mounting, improper adjustment or
lack of maintenance will not be honored.
Contact your local hobby shop or SWORKz distributor for all claims and
questions. Claims must be well documented. All Claims are subject to expert
examination approval by SWORKz.
Specification
Length: 510mm
Width: 308mm
Height: 220mm
Ground Clearance: 65mm
Wheelbase: 325-330mm
Track: F:304mm / R:306mm
Gear Ratio: C:46/13T, F/R:43/13T
Weight: 3400g(Race condition)

4
INDEX
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
INSTRUCTION 2
Warranty 3
INDEX 4
Required Equipment for Operation 5
Operation Guide 6
Assembly Steps 7-37
Set-up Sheet 38-39
S35-4 Key No. List 40
S35-4 Spare Part No. List 41-42
S35-4 Option Part No. List 43
End cover 44

5
Starter box
Engine Starting Equipment
Glow Plug
Double-sided tape
Paint
Long nose pliers
Modeling knife
Instant cement Thread lock
Included items
Hex wrench
1.5mm
2mm
2.5mm
1.5mm
2mm
2.5mm
Fuel bottle
Glow plug wrench
Screwdriver
Screwdriver
Radio Gear Nitro fuel
Stick Type
Throttle servo
Receiver batteries
Wheel & Trigger Type
Receiver
On/Off Switch
We recommend that you use fuel
containg 20~25% nitro.
Steering servo
Exhaust header
SP-80101
EFRA2042
Tools Recommended
Engine Recommended
Side cutter
Curved scissors
Grease
ST-3 Turbo Plug
ST-4 Turbo Plug
Required Equipment for Operation
SW-950001A
SWORKz BB80 1/8 Off Road Starter
Box (Buggy Type)

6
Operation Guide
Safety Precautions
The SWORKz S35-4 is a high performance radio control model which needs to be operated
with caution and common sense.
The S35-4 Kit is not intended for children under the age of 14 without adult supervision.
SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of
nature, arising from the abuse or misuse of this product or any other product required while
operating this model.
- The nitro fuel can be dangerous is improperly handled.
- Always keep your nitro fuel in a cool area and never use near flame, sparks, or while
smoking.
- Keep your nitro fuel, and all other ammables, out of the reach of children.
- Always run your model in a well ventilated area outdoors. Never run your model indoors.
- After running your car, all parts of the engine and exhaust can become extremely hot. Be
careful not to touch these parts especially when refueling, or making repairs.
- This model is controlled by your radio controller and is sometimes vulnerable to interference
from many outside sources. This interference can cause a loss of control so it is necessary to
operate this model in an open area to avoid personal, or property damage. Always ensure
turning on your radio rst.
- Keep all the parts included in the package out of reach of children.
- This model contains many fast rotating parts. Never touch them during operation.
- Follow the instructions included with your radio gear.
- Never operate your model near people or property. The speed of this model has the
potential to injure and or damage people and or property.
- Always use original SWORKz spare parts and option parts.
- Always ensure that the buggy is in proper working condition before use.
overturn
Assemble for
4 sets
Assemble for
2 sets
Assemble both left
and right sides
Assemble in the
specied order
Assemble front
and rear
Thread Locking
Compound
Grease Pure Silicone Oil Air lter oil

7
1
BAG B
2
338027
116006
330015
328001 400002
101039
210091
116006
338024
101039
330015
328001
400002
330015
Pin M2.2x9.9mm x4
400002
O-ring S5 4.8X1.5 x4
116006
Ball Bearing 8x16x5mm x4
101004
Washer 3.5X10X0.2mm x8
Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Diff. Oil 7000cps
for the front Diff.
and 3000cps for the
rear Diff.
Remember to apply a light coat of
grease to the o-ring, then slide it over
the shaft of the out drive and seat it in
the diff case.
Insert the pin through the hole in the
diff case and through the hole in the
shaft of the out drive.
OK! NG!
338027
101039
Washer 5x12x0.3 x2
101004
101004
101004
101004
610023
328001
328001
338025
328001
108003
108003
338025
S35-3W Bevel Gear Shaft x4
108003
M3x10mm FH/ST HEX Screw x8

8
4
BAG C3
116006
338028
338028
330015
328001
108001
328001 338025
610020
338040
210079A
116006
330015
328001
400002
101039
400002
101039
108001
101004
101004
101004
101004
116006
Ball Bearing 8x16x5mm x2
330015
Pin M2.2x9.9mm x2
400002
O-ring S5 4.8X1.5 x2
101004
Washer 3.5X10X0.2mm x4
Fill the
differentials
with oil up to
80%
above the
satellite gears.
Put the
SWORKz
Diff. Oil
7000cps for
the center Diff.
Remember to apply a very light
coat of grease to the o-ring, then
slide it over the shaft of the out
drive and seat it in the diff case.
Insert the pin through the hole
in the diff case and through the
hole in the shaft of the out drive.
328001
OK! NG!
108001
M3x12mm FH/ST HEX Screw x4
101039
Washer 5x12x0.3 x2
338025
S35-3W Bevel Gear Shaft x4

9
5
BAG D
104010
101018
106019
106019
228001(#8 #9 #10)
338011
108001
M3x12mm FH/ST HEX Screw x4
338023
2503261A
228001(#8 #9 #10)
338059
2503261A
104010
M5x4mm Set Screw (Flat Bottom) x1
Pro Tip:
Before installing the M5x4 set screw (104010),
remember to clean the set screw and center driver joint (330661A) rst.
Then apply TLC on the set screw.
Note:
The aluminum front lower arm holder (338059) can offer 0° or 1°
kick-up for your front lower suspension.
You may use the inserts 228001(#10)
kick-up or 228001(#9) to get 1° for your front lower suspension.
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the play between the crown gear and pinion gear.
Standard suggestion is 1pc shim on the diff crown gear side and 3 pcs on the other side.
116019
Ball Bearing 5x13x4mm x2
338011
S35 series Pinion Gear Stopper (5x7x5.1mm) x1
108001
108001
101018
SHIM 13x16x0.2mm x4
330661A
101018

10
6
7
BAG E1
104010
108001
M3x12mm FH/ST HEX Screw x4
104010
M5x4mm Set Screw (Flat Bottom) x1
116019
Ball Bearing 5x13x4mm x2
Pro Tip:
Before installing the M5x4 set screw
(104010), remember to clean the set screw
and center driver joint (330661A) rst.
Then apply TLC on the set screw.
338011
S35 series Pinion Gear Stopper (5x7x5.1mm) x1
101018
SHIM 13x16x0.2mm x4
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the play between the crown gear and pinion gear.
Standard suggestion is 1pc shim on the diff crown gear side and 3 pcs on the other side.
101018
2503261A
108001
106019
106019 330661A
338011
338023
2503261A
228001(#2 #3 #4)
228001(#2 #3 #4)
338049
108001
330134
330136
2501121C
106005
Left
Right
228005S-F
106021A
228005S-F
101018
106005
M3x15mm Hex Socket OH/TP Screw x2
106021A
M4x10mm Hex Socket OH/TP Screw X2

11

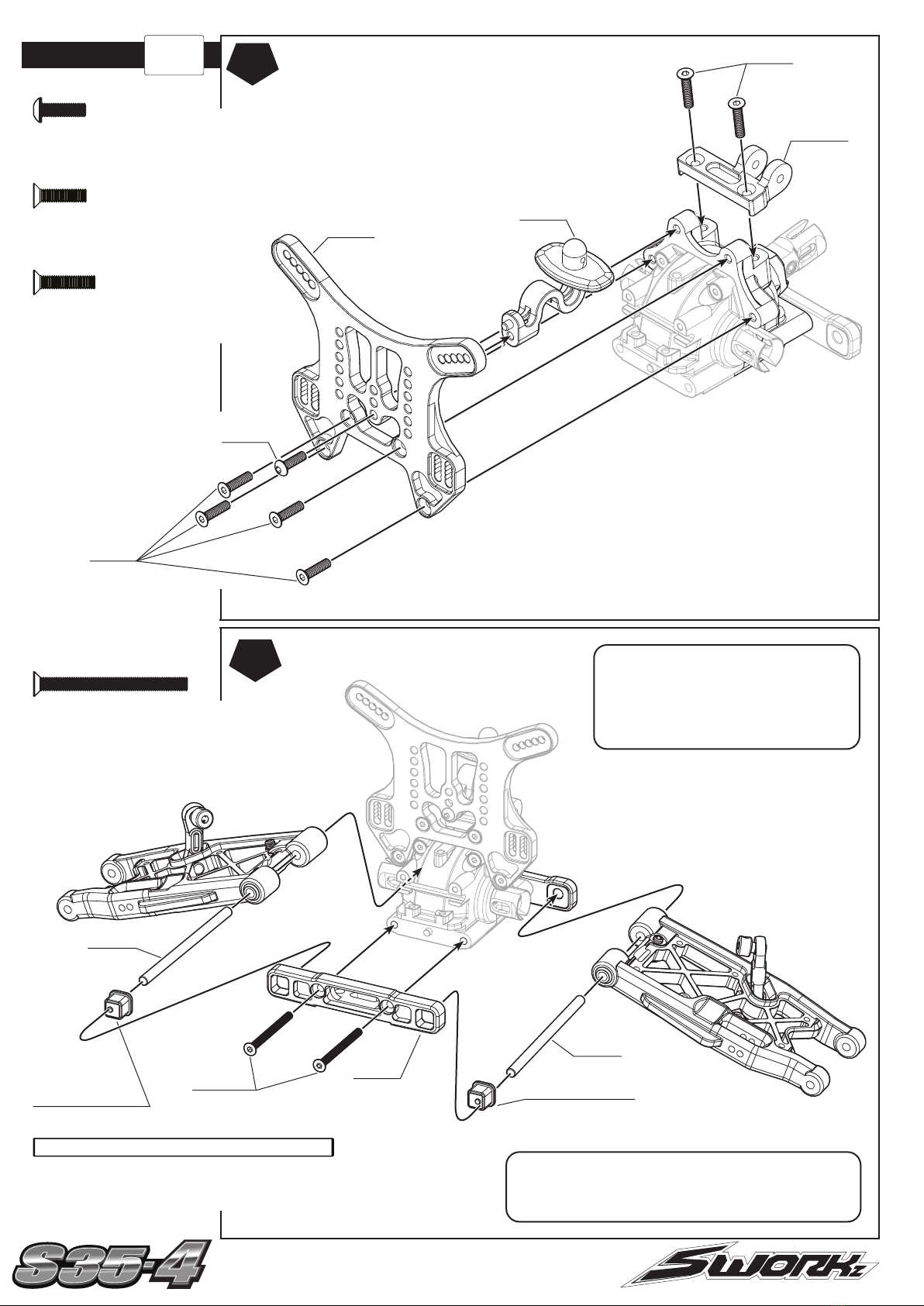

BAG E1 8
9
101020A
104004
104004
338058
228001(#5 #6 #7)
338056
104004
M3x3mm Set Screw x2
2503261A
Pop in the Stabilizer Guide.
118008
108008
M3x35mm FH/ST HEX Screw x2
101020A
3mm Countersunk Washers (GM) x2
228001(#5 #6 #7)
115008A (2.3mm)
or
115035A (2.2mm)
338056
S35-4 Series Lower Arm Hinge Pin (68.5mm) x2

12
11
10
BAG E1
104005
M3x4mm Set Screw x2
108003
M3x10mm FH/ST HEX Screw x
228006
108006
338057
340017
108006
106002
108003
Note:
The aluminum front upper arm holder (338057) can offer either
0° or + -1° kick-up for your front upper arm suspension.
You may use the inserts 228001(#13) to get 0° kick-up
or 228001(#12) to get +-1° for your front upper suspension.
106002
M3x10mm Hex Socket OH/TP Screw
x1
108006
M3x8mm FH/ST HEX Screw x2
2
106013
M2.5x8mmH ex Socket OH/TPScrew
x
2
106013
104005
228001(#11 #12 #13)

13
12
13
BAG E1
228001(#14 #15 #16)
106015
330119
108001
M3x12mm FH/ST HEX Screw x4
330119
Front Upper Arm HingPin x2
338054
106015
330119
228001(#14 #15 #16)
2503260(#1 #2 #3 #4)
106021A
Note:
2503260-1
S35-3 Front Upper Arm Adjust Insert (0.9mm)
2503260-2
S35-3 Front Upper Arm Adjust Insert (1.0mm)
2503260-3
S35-3 Front Upper Arm Adjust Insert (1.1mm)
2503260-4
S35-3 Front Upper Arm Adjust Insert (2.0mm)
2503260(#1 #2 #3 #4)
106015
M3x5mm Hex Socket OH/TP Screw x2
106021A
M4x10mm Hex Socket OH/TP Screw X2
228005S-(R)
106005
108001
106020
M2.5x5mm Hex Socket OH/TP Screw x10
106020
106020
340003
2503270-01
330134
330136
2501121C
PRO TIP:
The S35-4 Front Upper Arm Adjust Inserts
can give different steering adjustments (Ackerman).
Put all inserts behind the front upper arms, you will get faster steering response.
Otherwise put all inserts in front of the upper arms,
you will get more stable steering response.
Try to use 2503260-1 or 2503260-3 to adjust the front upper arm position.
106005
M3x15mm Hex Socket OH/TP Screw x2

14
15
14
BAG E1
228001(#2 #3 #4)
330399B
108005
228001(#2 #3 #4)
108008
M3x35mm FH/ST HEX Screw x2
338050
228006
106002
338056
338014
338056
108008
108005
M3x14mm FH/ST HEX Screw x2
108001
M3x12mm FH/ST HEX Screw x4
108001
106002
M3x10mm Hex Socket OH/TP Screw x1
338056
S35-4 Series Lower Arm Hinge Pin (68.5mm) x2
PRO TIP:
The S35-4 Aluminum Rear Lower Fully
Adjustable Toe-In Block (338014) can use 3
types of square inserts to get 1.0/2.0/3.0 3
different toe in angles. Also plus 3 different
rear lower arm kick up degrees.
OPTION:
228001-2 S35-4 Series Rear Lower Arm Holder Square Insert (+1/+1)
228001-3 S35-4 Series Rear Lower Arm Holder Square Insert (0/+1)
228001-4 S35-4 Series Rear Lower Arm Holder Square Insert (0)

15
16
17
BAG E1
104004
104004
115005 (2.8mm)
or
115006 (2.6mm)
104005
104005
106013
104004
M3x3mm Set Screw x2
2503261A
Pop in the Stabilizer Guide.
106013
M2.5x8mmH ex Socket OH/TPScrew
x
2
104005
M3x4mm Set Screw x2

16
18
19
BAG E3
2503260-04
2503264A
2503260-04
330118A
338051
330118A
330252
330252
Screw and adjust 330118A Knuckle
Pivot Ball Nut so as the pivot ball can
be moved smoothly.
106002
Left
Right
330124
Pin M3.0x16.8mm x2
104010
M5x4mm Set Screw (Flat Bottom) x2
104010
106002
M3x10mm Hex Socket OH/TP Screw x4
116006
Ball Bearing 8x16x5mm x4
Left
116006
116006
101018
330124
210046
330121B
Right
101018
SHIM 13x16x0.2mm x2
Note:
101018SHIM 13x16x0.2mm
Please use 13x16x0.2mm shims to adjust the
gap between the wheel hub and wheel knuckles.
Standard suggestion is 1pc shim on the outside
between 8x16x5mm ball bearing and knuckle.
If the wheel hub still has big play with knuckle,
please try to put another shim in another side
between ball bearing and knuckle.

17
21
20
BAG E2
BAG E3
117003
117003
117003
101021
117003
101021
103001
2501122B
103001
106007
338043
330114A
610019
115004A
116004
106014
2501122B
338052
338053
103001
M3 Nut Lock x2
117003
Flange Ball Bearing 3x6x2.5mm x4
106007
M3x12mm Hex Socket x2
OH/TP Screw(HT)
116004
Ball Bearing 6x10x3mm x1
101021
M3x8xT1mm x2
330117A
330117A
106014
M2x6mm Hex Soket OH/TP Screw x1

18
23
22
BAG E2
BAG E3
330121B
116006
228001
(#17 #18)
340016
210046
340016
228001(#17 #18)
330124
104010
Left
Right
330124
Pin M3.0x16.8mm x2
116006
Ball Bearing 8x16x5mm x2
104010
M5x4mm Set Screw (Flat Bottom) x2
116004
Ball Bearing 6x10x3mm x2
101019
SHIM 6.0x10.0x0.2mm x1
108003
M3x10mm FH/ST HEX Screw x2
108003
116004
116004
101019
338048
338048
106009
103001
106009
M3x25mm Hex Socket OH/TP Screw x4
103001
M3 Nut Lock x4
116006
228002-1
PRO TIP:
The new multi adjustable rear hub can be set
to a wider or a narrow conguration using the
inserts 228001 (#17 #18)

19
24
25
BAG E3
103001
103001
330782
330782
330123A
Rear Upper Sus. Arm Turnbuckles x2
330782
Rear Hub Carriers Hing Pin with Nut x2
103001
M3 Nut Lock x2
2503260
(#5 #6 #7)
2503260
(#5 #6 #7)
9.85 mm9.85 mm
22.85 mm22.85 mm
2503260 (#5 #6 #7)
PRO TIP:
The base set up is always by using 2-3mm inserts on
the rear of Hub Carriers Hinge Pins.
The wheel base length should be around 327-328mm.
Longer Upper Arm Linkage Set-up
Shorty Upper Arm Linkage Set-up
330125
338070
330123A
2501121C
2501121C
228006-5

20
27
26
BAG E3
BAG E3
106003
228003S
228003
228003
106009
106009
106002
106002
228001
228001
103001
103001
103001
M3 Nut Lock x2
103001
M3 Nut Lock x4
106002
M3x10mm Hex Socket OH/TP Screw x2
106009
M3x25mm Hex Soket OH/TP Screw x2
106003
M3x16mm Hex Soket OH/TP Screw x4
108019
M2.6x6mm Flat Head Screw - Hex Socket x2
103001 108019
228003S(#3) 228003S(#3)
OPTION:
228003S(#3) S35 Series Integrated Wing Mount Spacer (0 Degree)
228003S(#4) S35 Series Integrated Wing Mount Spacer (1 Degree)
228003S(#5) S35 Series Integrated Wing Mount Spacer (2 Degree)
Longer Upper Arm Linkage Set-up
Shorty Upper Arm Linkage Set-up
