Sym Joyride S 125i User manual

LF12W4 / LF18W3
Owner's Manual

1
1.Content
1. Contents .............................................................................................................................. 1
2. ControlLocation................................................................................................................... 3
3. Before Riding ...................................................................................................................... 4
4. Safe Riding .......................................................................................................................... 4
5. Driving .................................................................................................................................. 5
6. Use Genuine Spare Parts .................................................................................................. 5
7. Use of Each Component .................................................................................................... 6
Multi-Function Display Meter...................................................................................................... 6
Operation of Ignition Switch ..................................................................................................... 8
Use of Buttons ........................................................................................................................ 8
Helmet Hook ........................................................................................................................ 10
Seat Lock...............................................................................................................................10
Luggage Box...........................................................................................................................10
Fuel Tank Cap ..................................................................................................................... 11
Brake .................................................................................................................................. 11
8. Important Points and Cautions for Starting Engine ........................................................ 13
9. The Best Way to Drive off ............................................................................................... 14
The Control of Throttle Handle Grip ....................................................................................... 14
Parking Method ................................................................................................................... 14
10.Inspection and Maintenance before Riding .................................................................... 15
Routine Inspection ............................................................................................................... 15
Engine Oil Inspection and Change ......................................................................................... 15
Fuel Inspection .................................................................................................................... 16
Transmission Oil Inspection and Change ................................................................................ 16
Inspection and Adjustment of Brake Free Play ....................................................................... 16
Disc Brake Inspection (Depending on Models) ....................................................................... 17
Throttle Valve Handle Clearance Adjustment............................................................................ 18
Inspection and Maintenance of Battery .................................................................................. 19
Tire Inspection ..................................................................................................................... 20
Steering Handle Front Shock Absorbers Inspection................................................................ 20
Checking and Changing Fuses .............................................................................................. 21
Checking the Turn Signal Lights and Horn .............................................................................. 21
Checking the Front and Rear Lights ....................................................................................... 22

2
1.Content
Checking the Brake Light ...................................................................................................... 22
Checking for Fuel Leakage ................................................................................................... 22
Checking the Lubrication of Body’s Various Mechanisms ......................................................... 22
Checking the Spark Plug ....................................................................................................... 22
Cooling system inspection........................................................................................................22
Replenishment of coolant .........................................................................................................23
A reference table for anti-freeze concentration percentages under different temperatures.............23
Checking the Air Cleaner ...................................................................................................... 24
11.When there is an Abnormal Condition or a Trouble ....................................................... 25
Diagnosis when Engine does not Start ................................................................................... 25
12.E.C.U. Circuit Interface System ...................................................................................... 26
13.Suggestions on Engine Fuel ............................................................................................ 26
14.Transmission Oil .............................................................................................................. 26
15.Cautions for Riding Scooter ............................................................................................ 26
16.PeriodicalMaintenance Schedule ......................................................................................27
17.Specification ..................................................................................................................... 28
18. Postscript…………………………………………………………………………………….. 29

3
2.Control Location
2. Control Location
Seat open / High & Low beam / Turn signal /
Horn switch/Passing Light Button
Front brake lever
Rear brake
lever
Side stand
Main stand
Engine stop switch / Hazard warning switch
/Electrical starter button
Storage box
Muffler
Fuel tank cap
Coolant filler cap/
Diagnostic tool
Ignition
Fuses box
Helmet hook
Turn signal light
Head light
Tail light/
Turn signal light
Engine number
Frame number
Seat lock
switch

4
3.Before Riding
4.Safe Riding
3.Before Riding
This manual describes the correct usage of this scooter including safety riding, simple inspection methods and
so on.
For a more comfortable and safety riding, please read this manual carefully.
For your benefit, please ask your SYM dealer the operating manual and carefully read the following:
•Correct use of the scooter.
•Pre-delivery inspection and maintenance.
Thank you very much for your patronage
In order to maximize your scooter’s performance, a periodical inspection and maintenance should be
completely carried out.
We recommend that after riding your new scooter for the first 300 kilometers, you should take your
scooter to the original dealer for an initial inspection, and to have your scooter inspected periodically
every 1,000 kilometers thereafter.
•In case the scooter’s specifications and construction are modified and different from the photos and
diagrams on the owner’s manual / catalogues, the specifications and construction of the actual scooter
shall prevail.
4. SAFE RIDING
It is very important to be relax and clothe properly when driving, observe traffic regulations, do not rush,
always drive carefully and relaxed.
Usually, most people would ride their newly bought scooter very carefully, but after they became familiar with
their scooters, they tended to become reckless which may result in an accident.
To remind you:
•Please wear a safety helmet, and properly tighten the chin belt when riding a scooter.
•Clothes with open or loose cuffs may be blown by wind and cause the cuffs to get caught on the
steering handle and thus affects riding safety.
•So, put on clothes with tight sleeves.
•Hold the steering handle by both hands when riding. Never ride with only one hand.
•Observe the speed limit.
•Wear suitable low-heel shoes.
•Perform periodical maintenance and inspection in accordance with the schedule.
WARNING!!
•To avoid getting burned by exhaust pipe when taking a passenger. Make sure your passenger has
put his/her feet on the pedals.
•After running, the exhaust pipe is very hot, be careful not to get burned when conducting an
inspection or maintenance.
•After running, the exhaust pipe is very hot, select a suitable location to park your scooter to avoid
others getting burned by the exhaust pipe.
CAUTION:
Modified scooter will affect its structure or performance, and cause poor engine operation or exhaust
noise, which will result in shortening the scooter’s service life.
Besides, modification is illegal and does not conform to the original design and specifications.
A modified scooter will not be covered by warranty, therefore, do not modify your scooter at will.

5
5.Driving
6. Use Genuine Spare Parts
5. Driving
Keep the related parts of your body such as arms, palms, lumbar, and toes relax and ride with the most
comfortable posture in order to be able to react quickly whenever it is necessary.
•Rider’s posture will greatly affect riding safety. Always keep your body’s gravity in the center of the
saddle, if your body’s gravity is on the rear part of saddle, the front wheel load will be reduced, and this
will cause the steering handle shaking. It is dangerous to ride a scooter with an unstable handle.
•It will be much easier to make a turn if rider inclines his body inward when turning. On the other hand,
the rider will feel unstable if his body and the scooter do not incline.
•The scooter is hard to control on a bumpy, unleveled, unpaved road, try to know the road conditions in
advance, slow down and use your shoulder’s force to control the handle.
•Suggestion: Do not load objects on the front pedals unnecessarily, to avoid affecting the riding safety and
the operation of steering handle.
CAUTION:
The rider’s feeling on the handle is slightly different with a load or without a load.
Overload may cause the handle to swing and affects the riding safety.
Therefore, do not overload your scooter.
CAUTION:
•Do not place flammable materials such as rags between the body side cover and engine to avoid
components damaging by fire.
•Do not load objects on areas not specified for loading to avoid damage.
SUGGESTION
To maximize the scooter’s performance and prolong its service life:
The first month or first 1000km is the wear- in period for the engine and components.
Avoid rapid acceleration, and keep the speed below 60km/hr.
6. USE GENUINE SPARE PARTS
In order to maintain the scooter’s best performance, each part’s quality, material, and machined precision
must conform with the design requirements. “ Genuine Spare Parts” were made from the same high
quality materials used for the original scooter. No parts would be sold to the market until they could meet
the designed specifications through sophisticated engineering and stringent quality control. Therefore, it is
necessary to purchase “SYM Genuine Spare Parts” from “SYM Authorized Dealers or Franchised
Dealers” when replacing spare parts. If you buy cheap, or fake substitute parts from the market, no
guarantee can be provided either for the quality or durability. Also, it may result in unexpected troubles and
lower the scooter’s performance.
•Always use SYM Genuine Spare Parts to keep your scooters pure blood and to ensure its long service
life.

6
7.Use of Each Component
7. Use of Each Component
(The following is SYM 4 stroke liquid cooling scooter’s basic operation, and they could vary from different
individual models. Please consult the end of this manual.)
Multi- Function Display Meter
CAUTION :
•Not to have trouble on electrical meter working, or damage the electrical meter.
•Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as
gasoline…etc. to avoid damaging these components.
•Speedometer:
This shows your speed in kilometers and miles per hour (Outer ring for Km/h, inner ring for MPH).
•Odometer：
This odometer shows the total kilometers this scooter has been driven.
•High Beam Indicator( blue)：
This indicator comes on with high beam headlight is turned on.
•Turn Signal Indicator(green)：
The left or right Indicator will be flashing according to the operated directions of turn signal light switch
when it is turned on.
•Fuel Display：
The fuel gauge doesn’t come on when the main switch is at “OFF” position.
The fuel display frame is a seven-segment from D1 to D7 LCD bars to indicate the amount of fuel in the
tank. The fuel tank indication displays correctly when key switch is turned to〝ON〞,and indication change
by steps in sequence. The LCD bars will disappear as the fuel level decreases. When the D1&E& is
lit, refuel as soon as possible. D1 is on the fuel reserve position, remind you of avoiding becoming
stranded without fuel.
Voltage display：
When key switch is turned to “ON”, LCD show voltage function for 10 seconds first, and then change to
“TIME” mode.
Water temperature gauge
High Beam
Indicator
Left Turn Signal Indicator Right Turn Signal
Indicator
Odometer
Speedometer
Oil check
Indicator
ABS Indicator
(for ABS model only)
“S” Button
“M” Button
r
EFi trouble warning
Indicator
Tachomete
Fuel Gauge
Clock/ Voltage

7
•ABS indicator light:(for ABS Model only)
Normally the ABS (Anti-lock Brake System) indicator light goes on when the ignition switch is turned on
and goes off shortly after the scooter starts moving. If the ABS is normal, it stays off. If something is
wrong with the ABS, the indicator goes on and stays on. When the indicator light is on, the ABS does
not function but if the ABS fails, the conventional brake system will still work normally.
•Water temperature gauge
To indicate engine coolant temperature.
When the main switch turns to “ON”, the pointer indicator should be below the (H) position when the scooter
is running.
If the pointer indicator stays above (H) position. Please check the coolant level of spare coolant tank and
check cooling radiator fan equipped for proper operation. Do not continueto run the engine if it is
overheating.
CAUTION:
The indicator will stay above (H) position when engine is run under high temperature for a long period
of time. In this case, the only way to cool the engine is to stop the engine.
•Function setting
There are two buttons on the speedometer, explanation as below :
1.“S” button :
a. In normal mode, press “S” button shortly to change between “TOTAL” & “TRIP” displays.
b. In “TRIP” display mode, press “S” for 2 seconds to reset the trip readings.
c. Under “TOTAL” mode and the vehicle is standing still, press “S” for above 2 seconds to enter CLOCK
mode. Press “S” button shortly to increase the hour readings, once per one time. Then press “S” for 2
seconds to enter tenth minute setting. Increase the tenth minute readings by pressing “S” button once
per one time. Again press “S” for 2 seconds to enter unit minute setting. Increase the unit minute
readings by pressing “S” button once per one time. Press “S” button for above 2 seconds to exit
“CLOCK” mode.
2.“M” button :
a. The oil check indicator will light in every 1,000 km, to warn the user to check (change) engine oil.
When the oil check indicator lit, press “M” button for above 2 seconds oil check light off.
b. Key on and press the “M” button shortly to switch from clock and voltage gauge.
•EFi trouble warning Indicator
When turn the main switch key to “ ”, this warning indicator will come on and then go off after the
engine is running. It displays the condition of the EFi system is working correctly. If there is any problem
on the EFi system, the warning indicator will remain on all the time or does not come on. Please contact
with a SYM dealer to check the self-diagnosis system or electrical connections.
•Oil Check indicator
Oil Check indicator is for showing engine oil inspection / replacement time. When the vehicle is ridden for
approximately 5,000 kilometer, engine oil indicator illuminates which means engine oil inspection or
replacement is needed. Press “M” (Oil Reset) button to reset engine oil used mileage. Engine oil indicator
goes off when the“M” button is pressed and the engine oil used mileage will be recalculated from the
current riding mileage. Engine oil level should be checked every 1,000 kilometer and replaced every 5,000
kilometer.
7.Use of Each Component

8
7.Use of Each Component

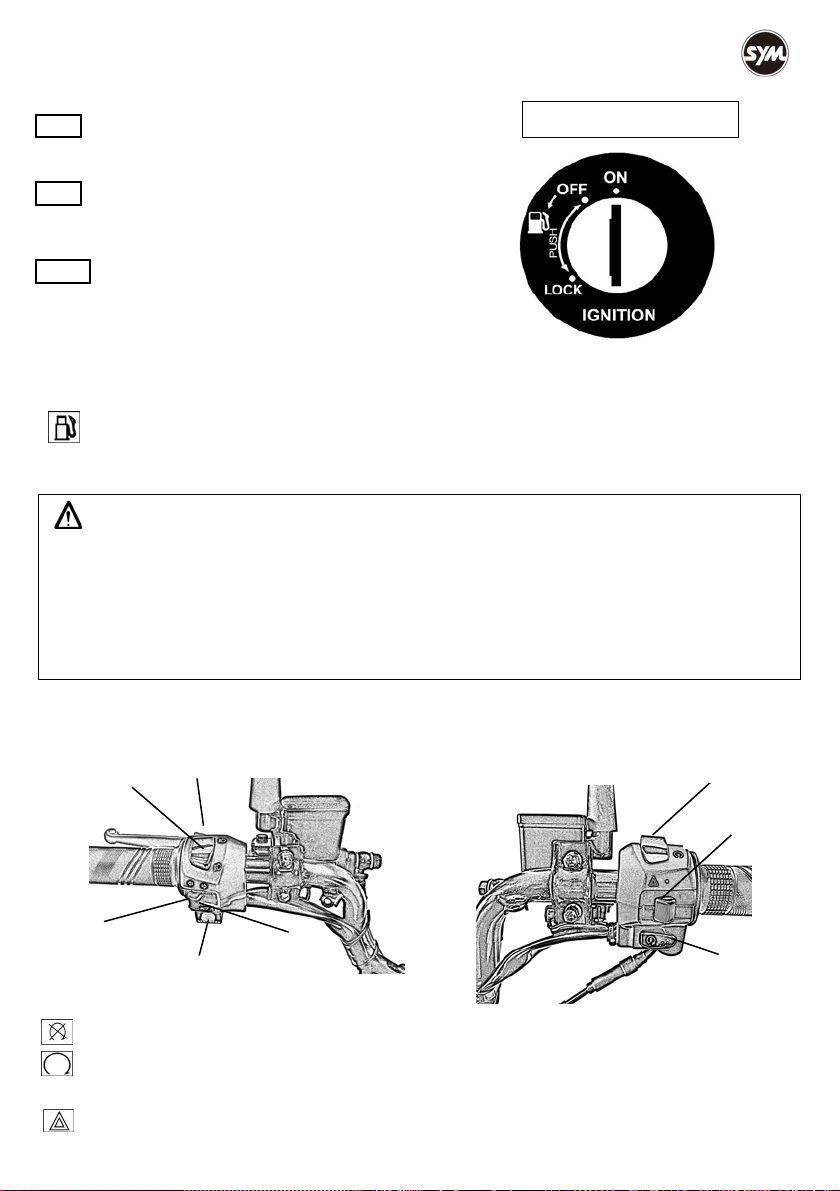

OPERATION OF IGNITION SWITCH
"Start" position
•Engine can be started in this position.
•Ignition switch key can not be removed.
"Stop" position
•Engine is shut off and can not be started in this position .
•Ignition switch key can be removed.
"Steering handle lock" position
•Turn the steering handle to left and press ignition switch
key down and then lightly turn it to left to the “LOCK”
position.
•The steering handle is locked in this position.
•Ignition switch key can be removed.
•When unlocking, simply turn the key from “LOCK” to “OFF.”
"fuel tank cap open " position
•How to open：Insert your key into the ignition switch, and turn it to the left.
•How to lock：Push the fuel tank cap and it locks automatically.
CAUTION:
•Never operate the ignition switch key when the scooter is running. To turn the ignition switch to
“OFF” and “LOCK,” will shut off the electrical system and that may result in a dangerous accident.
Therefore, the ignition switch can only be turned off after the scooter has been completely stopped.
•Always remove the key and be sure to take the key away with you after locking the steering handle
before leaving your scooter.
•If ignition switch remains in the “ON” position for a prolonged period after the engine has been
stopped, the battery’s capacity will be reduced and this may affect the engine’s start ability.
USE OF BUTTONS
•Engine Stop Switch
Switch to this position to turn off the engine when a state of emergency.
Switch to this position and the engine can be started.
•Hazard Warning Switch
With the main switch in the〝ON〞position, this hazard switch with triangular symbol can be operated.
IGNITION SWITCH
Electrical
High/Low
Beam Switch
Turn Signal Switch
Horn Switch
Hazard Warning
Switch
ON
OFF
LOCK
Seat Open switch
Engine Stop Switch
Passing Light
Button
Starter Button

9
7.Use of Each Component
When this button is shifted, all four indicators (front and rear-right and left) begin to blink
simultaneously, and direction indicators on the instrument panel also flash at the same time. But when
winker switch is operated in this condition, it will return to signal flash function in order of precedence..
When you are experiencing a sudden vehicle problem in the middle of traffic or the vehicle has broken
down, switch on the lights and slowly pull over, keep the lights flashing till the problem is solved.
Shifting the hazard switch again cancels this feature. The hazard lights only can be switched off when
the main switch is in the〝ON〞position.
•Electrical Starter Button
This is a starting motor button (switch) for engine starting.
With the main switch "ON", press this button while holding the front or rear brake lever will start the
engine.
CAUTION:
•Release this button immediately after engine has been started, and never press the button again to
avoid damaging the engine.
•This mechanism is a safety design. The engine can only be started after the front or rear brake lever
(pedal) has been applied.
•Do not use light system. Turn headlight and turn signal lights to the “OFF” position when the engine is
being started.
•Automatic Lighting Connections
Turn the main switch on “” , at the same time, the electrical connections of lights will be connected
automatically, including LED daytime running lamps、low beam headlights、rear position lamp and
rear-registration plate illuminating cannot be switched ON or OFF otherwise than simultaneously.
•Passing Light Button
When pushing the passing light button , the high beam indicator light goes on to signal the driver of the
vehicle ahead that you are about to pass. The passing light is shut off as soon as the button is released.
•High/Low Beam Switch
This is the high and low beam of headlight switching switch. Press this switch to switch between high and
low beams.
This is for high beam.
This is for low beam. (Please turn to low beam when riding in city)
CAUTION:
•Automatic Lighting Connections are powered by battery, and therefore be aware of keeping main
switch on “ ” will run out of the battery without running the engine.
•Seat open Button
Turn ignition switch “ON” and press this button down. Then, the seat will unlock immediately.
This button will return to original position after releasing.
•Horn Switch
Press this button down when ignition switch is in the “ON” position, the horn will sound.
CAUTION:
Do not press this button when you are in the area where there’s no honking.

10
•Turn Signal Switch
Turn signal lights are used when turning left/right or changing lane.
Turn ignition switch to “ON”, and slide the turn signal switch to left or right. Then, the turn signal lights will
flash.
To release, simply return the turn signal light button to the original position.
Right-side turn signal light flashing means you intend to make a right turn.
Left-side turn signal light flashing means you intend to make a left turn.
SAFETY HELMET HOOK
•Hang helmet from chin strap or from D-Rings buckle onto the hook securely.
CAUTION:
•Do not hang the helmet onto this hook when you are riding to avoid damaging scooter body cover and
loosing helmet’s function.
SEAT LOCK
•Unlock:
Insert the ignition switch key and turn to left to unlock.
•Unlock:
Push “Seat open” button down when ignition switch is in the “ON” position, the seat can be unlock.
•Lock:
Push the seat down and it will be locked automatically.
After the seat has been locked, check it again to make sure it has been locked securely by lightly
lifting the seat.
CAUTION:
•Do not put the key inside the luggage box after unlocking to avoid the key being locked inside the
luggage box when the seat is pressed down automatically.
•Be sure to remove the key after the seat has been locked.
LUGGAGE BOX
•This box is located under the seat.
•Maximum load capacity: 10kg.
•Do not store valuables in the luggage box.
•Make sure that the seat has been locked completely after it was pressed down.
•Take out valuables before washing it to avoid wetting these objects.
•Do not put any fresh products in the luggage box because of engine’s heat and high temperature.
CAUTION:
•Make sure to take the key away with you before you lock your seat.
7.Use of Each Component

11

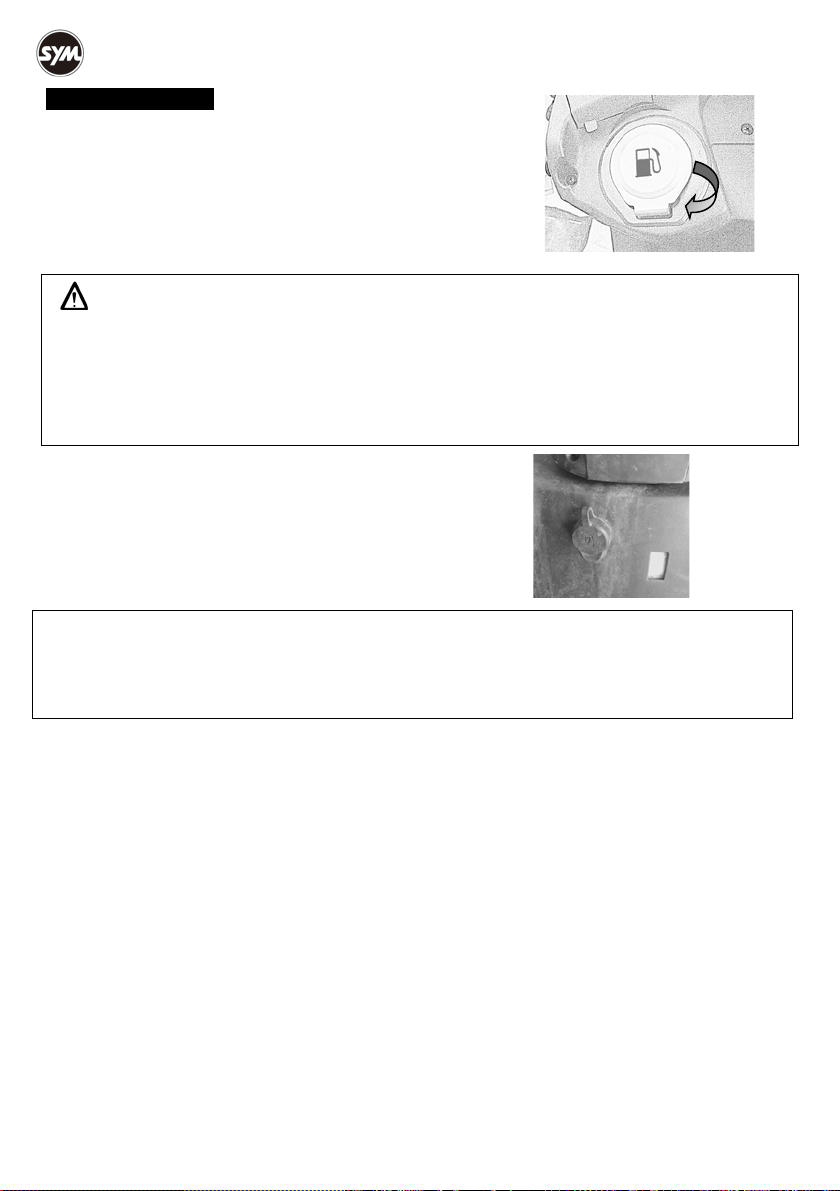

FUEL TANK CAP
1. Insert ignition switch key into the ignition switch,
and turn the key to the left, then the cap can be
opened automatically.
2. Do not fill above the fuel upper limit when refueling.
3. Push the fuel tank cap and it locks automatically.
CAUTION:
•Main stand should be put down on the ground, engine should be shut off and flames should be strictly
prohibited to ensure safety when refueling.
•Do not fill above fuel upper limit when refueling. Otherwise, fuel will flow out through a hole on
the cap that may damage the body’s painting, in serious cases, it may cause a fire to burn down
the scooter.
•Make sure the cap has been tighten properly.
USB POWER OUTLET
The USB power outlet is located on the front panel.
This power outlet can charge low power consumption
devices when the engine is running.
BRAKE
Pull the right brake lever to operate the front brake.
Pull the left brake lever to operate the front and rear brake simultaneously (CBS model).
Pull the left brake lever to operate the rear brake (ABS model).
•Avoid unnecessary sudden braking.
•Use front and rear wheel brakes simultaneously when braking.
•Avoid brake continuously for a long period of time because that may overheat the brakes and reduce its
braking efficiency.
•Slow down and brake early when riding in rainy days on slippery roads. Never apply the brakes suddenly
to prevent skidding and falling.
•Using only the front brake increases the risk of falling because the scooter is tend to pulled to one side.
•Even in motorcycles equipped with ABS, braking during cornering may cause wheel slip. When turning a
corner, it is better to limit braking to the light application of both brakes or not to brake at all. Reduce your
speed before you get into the corner.
NOTE :
•Do not use the USB power outlet when the engine is not running.
•To prevent the fuse to melt down, do not charge devices exceed 10 W.
•Disconnect devices when leaving the scooter or after riding, and close the USB power outlet cap
securely to avoid water infiltration.
7.Use of Each Component

7.Use of Each Component
8.Important Points and Cautions for Starting ENgine
12
《Engine Brake》
Return the throttle grip back to its original position, and apply engine brake.
It is necessary to apply both brake and engine brake intermittently when riding on a long or stiff slope.
CAUTION:
•Please check the engine oil and fuel volume are adequate or not before starting engine.
•To start engine the main parking stand must be firmly on the ground and the brake is applied on the rear
wheel to prevent the scooter from moving forward suddenly.
8. Important Points and Cautions for Starting Engine
Turn ignition switch key to the “ON” position and make sure that the engine stop switch is set to “ ”.
1. Apply the front or rear wheel brake.
2. Do not accelerate, press starter button when the brake is applied.
3. In order for the ignition circuit cut-off system to enable starting, the sides-stand must be up.
[We care for you! Before drive off, keep the hand brake applied on the rear wheel.]
For Front Wheel And
Rear Wheel
For Front Wheel
For Rear Wheel
For Front Wheel
ABS model
CBS model

13
8.Important Points and Cautions for Starting ENgine
CAUTION:
•If engine can not be started after starter motor running for 3~5 seconds, wait a few seconds, and
try again.
•In order to avoid damaging the starter motor, please do not press the starter button continuously
over 15 seconds.
•If engine still can not be started after pressing starter button over 15 seconds, stop and wait for 10
seconds before start it again.
•It is harder to get the engine started after the scooter has been left idle for a long time or after
refueling only after the fuel has been depleted. Then, it is necessary to press starting lever or
starter button several times, and keep the throttle valve handle at the close position to start the
engine.
•It may need several minutes to warm up engine if it is a cold start.
•Exhaust contains harmful gases (CO), therefore please start the engine at a well ventilated place.
•Turn on the turn signal light before moving let other drivers well aware of that, and make sure no vehicle is
coming from behind. Then, drive off and switch the turn signals off, too.

14
9.The Best Way to drive off
9.The Best Way to Drive off

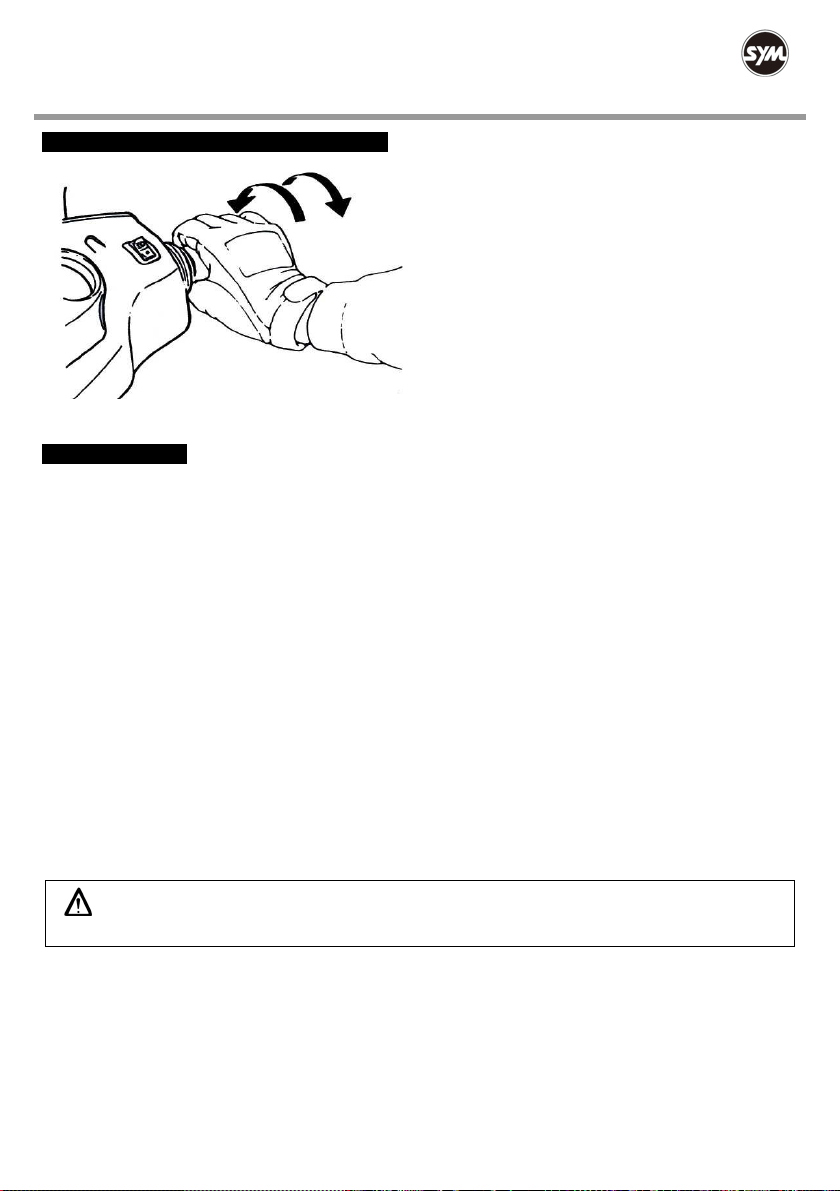

THE CONTROL OF THROTTLE HANDLE GRIP
Acceleration : To increase speed. When riding on
an inclined road, turn the throttle
handle grip slowly to allow the
engine to output its power.
Deceleration : To decrease speed.
PARKING METHOD
•When approaching the parking lot:
1. Turn on the turn signal light early, and pay attention to the vehicles in front, from rear, left and right, then
take the inner lane and approach slowly.
2. Return the throttle valve handle back to its original position, and apply brakes in advance. (Brake light
comes on when braking to warn drivers of vehicles behind.)
•When stop completely:
3. Press the turn signal switch back to its original position, and turn the ignition switch key to “OFF” position
to shut off the engine.
4. Get off the scooter from left side after the engine has been stopped, and select a parking place where
the scooter will not interfere with traffic and the ground is level, then put down scooter’s main parking
stand.
5. Hold the steering handle with your left hand, and hold down the front end of saddle or hold the parking
handle on the lower-left side of saddle with your right hand.
6. Press the main parking stand with your right foot, put down the main parking stand firmly on the ground.
To remind you: Lock the steering handle and remove the key after parking to prevent the scooter from
being stolen.
CAUTION:
•Park your scooter at a safe place where it will not interfere with traffic.
Deceleration
Acceleration

15
10.Inspection and Maintenance Before Riding
10.Inspection and Maintenance Before Riding
(Please refer to the components location diagram for the following components.)
ROUTINE INSPECTION
Check Items
Check Key Points
Engine Oil
Is there enough engine oil?
Fuel
Is it enough? Is it Octane 90 or above
Brake
Front
Braking condition?
(Brake lever free play: 20~30mm)
Rear
Braking condition?
(Brake lever free play: 20~30mm)
tires
Front
Is tire pressure normal?
(Standard: 1.8kgf/cm
2
)
Rear
Is tire pressure normal?
(Standard: 2.5kgf/cm
2
)
Steering Handle
Does the steering handle vibrate abnormally or is difficult to turn?
Speedometer, lights,
and back view mirror
Is it operated properly?
Do lights come on? Can it be seen clearly from behind?
Tightness of Main Components
Are screws, nuts loosen?
Abnormal Points
Do the previous troubles still exist?
CAUTION:
•If any problem founded during routine inspection, correct the problem before using the scooter again,
have your scooter checked and repaired by the “SANYANG dealer or authorized service personnel” if
necessary.
ENGINE OIL INSPECTION AND CHANGE
INSPECTION:
1. Use the main parking stand to support the scooter on a level ground, remove the dipstick after engine
stopped for 3~5 minutes. Wipe oil off the dipstick and then insert it into the guide tube again (Do not
rotate it.)
2. Remove the dipstick and check whether oil level is in between the upper and lower marks.
Add oil to upper limit if oil is under the lower limit. (Check cylinder, crankcase…etc for leakage.)
OIL CHANGE:
•Change engine oil after the first 1,000km, and change
the engine oil every 5,000km thereafter. Clean oil
filter after the first 1,000km, and clean oil filter every
10,000km.
•In order to maintain the engine’s maximum
performance, check whether the engine oil is enough
every1,000km. Add oil to upper limit if the engine oil
has been found to be inadequate.
•Engine Oil : Use API SH, SAE 10w-30/40 or better
engine oil. Otherwise, damage will not be covered by
warranty.
※Recommended Oil: SYM Genuine “SYMOIL”
Engine Oils .
•Oil Capacity : 1.0 Liter (0.8 liters for routine change),
oil filter change: 0.8 liters.
Upper
Lower

16
10.Inspection and Maintenance before Riding
【Oil Filter Cleaning】
Open the filter nut assembly of the element, and
remove the element. Remove the foreign materials
from the element by using gasoline and air compressor
dust removing gun.
WARNING:
•Oil level will not be correct when checking the oil level with the scooter parked on an unleveled ground
or immediately after the engine stopped.
•Engine and exhaust pipe are hot right after engine stopped. Pay special attention not to get burned
when checking or replacing engine oil.
FUEL INSPECTION
•Turn main switch key to "ON" position, and check fuel gauge's needle range to make sure there is enough
amount of fuel in the fuel tank.
•This scooter’s engine is designed for using the unleaded fuel of Octane 90 or above.
•Firmly secure the main stand on the ground, shut off the engine and keep flames away from the scooter
when refueling.
•Do not fill above fuel upper limit level when refueling.
•Make sure the fuel tank cap had been tighten properly.
•Ethanol in gasoline can not be more than 10%.
TRANSMISSION OIL INSPECTION AND CHANGE
INSPECTION:
•Use the main stand to support the scooter on a level ground, after the engine stops, wait for 3~5 minutes.
Remove the transmission oil infusion bolt, put a measuring glass under the drain bolt, and remove the drain
bolt. Let the oil flows into measuring glass and check for decreased or not. (at disassembly: 110 cc. / at
change: 90~100 cc.).
OIL REPLACEMENT:
•Stop the engine and use the main stand to support your scooter on a level ground. Remove the infusion
bolt and drain bolt, drain out the oil.
•Install the drain bolt and tighten it. Fill new transmission oil (90~100 cc.), and install the infusion bolt and
tighten it. (make sure that bolts are tightened and check that there’s no leakage.)
※Recommend Gear Oil: SYM Genuine “SYMOIL” series Gear Oil (SAE10W-30/SAE85W-90).
INSPECTION AND ADJUSTMENT OF BRAKE FREE PLAY
INSPECTION: (Brake lever free play must be checked with the engine shut off.)
•Brake lever free play for front and rear wheels
When checking the hand-braking lever for front and rear wheels, its freeplay (the stroke of hand-braking
lever from no braking to initial braking) should be 20~30mm. It is abnormal if the feel is spongy when
holding the hand-braking lever forcefully.
20~30 mm

17

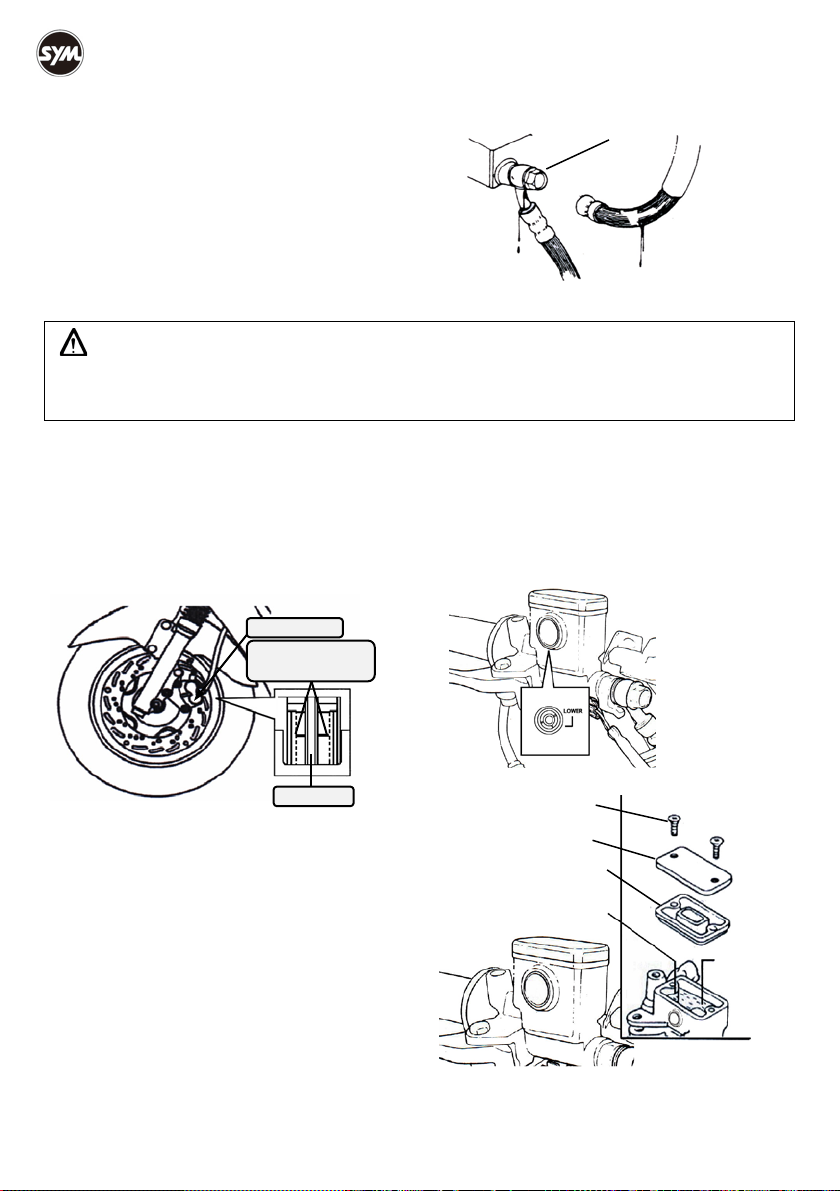

DISK BRAKE INSPECTION (Applicable for model equipped with disk brake.)
(Leak, damaged, looseness of brake line)
•Visual check brake lines for leakage, or damage, check
brake lines connections for looseness using a wrench or
similar tool, and check whether steering handle vibration
in driving, or any parts' interference may have damage
the brake lines. If so, bring your scooter to your
SANYANG dealer for repairing or service.
CAUTION:
•Please drive your scooter on a dry road surface slowly and operate front and rear brakes in order to
find out if there is any malfunction so as to ensure the scooter is at its optimum condition and safe to
ride.
﹙Checking front brake lining﹚
﹙Checking oil quantity in brake oil reservoir﹚
•Check the brake from behind the brake caliper.
The brake pad must be replaced with new
lining when the brake pad wear limit reaches
the brake disk.
•Park the scooter on a level ground, and check
if fluid level is under the “LOWER” mark.
Recommended Brake Fluid: BRAKE OIL (DOT
3 or DOT 4).
﹙Replenishment of front wheel brake fluid﹚
1. Loosen the screws and remove the master cylinder
cover.
2. Wipe clean foreign materials , dirt around the
reservoir, being careful not to let foreign materials
fall into the reservoir.
3. Remove the diaphragm plate and the diaphragm.
4. Add brake fluid to upper level.
5. Install the diaphragm plate and the diaphragm, and
install the master cylinder cover.
6. Please note the diaphragm direction, and do not let
foreign materials fall into the reservoir. And tighten
the master cylinder cover securely.
Hose connection
Brake pad wear
limit grooves
Brake disk
Brake caliper
Upper
Brake fluid
Diaphragm
Master
cylinder cover
Screw
10.Inspection and Maintenance Before Riding

18
CAUTION:
•To prevent chemical reaction, please do not use brake fluids other than those recommended.
•Do not fill above the upper limit when adding brake fluid and avoid dropping on painting or plastic
components to prevent damage.
THROTTLE VALVE HANDLE CLEARANCE ADJUSTMENT
Correct clearance allows throttle vale handle to rotate 5~10°.
•Loosen the lock nut first, then turn the adjust nut to adjust.
Tighten the lock nut securely when finished.
Check Items:
1. Check throttle valve cable to see if it can be moved smoothly
from a closed position to a wide open position.
2. Rotate steering handle from side to side to check if the throttle
valve cable is interfered.
3. Check to see if the throttle valve cable is obstructed by other
cables preventing it from being operated smoothly.
Adjust nut
Lock nut
5~10°
10.Inspection and Maintenance before Riding

19
INSPECTION AND MAINTENANCE OF BATTERY
•This scooter is equipped with a maintenance-free type battery, so it is unnecessary to check and add
electrolyte. Have your scooter checked by SANYANG Authorized Dealer or Franchised Dealer should any
abnormality is found.
﹙Cleaning of battery terminals﹚
Remove the battery terminals and clean if there are dirt
and corrosion on them.
Battery removal procedures are as follows:
Turn ignition switch “OFF”, then open the battery cabinet door,
and remove negative cable screw firstly and disconnect the
negative cable. Then, remove positive cable screw and positive
cable.
CAUTION:
•Clean the battery posts with warm water if the posts are eroded and have some white powders on
them.
•If there is an obvious erosion on the terminals, disconnect the cables, then clean the erosion off with
a steel brush or a piece of sandpaper.
•Install battery cable after cleaning and apply a thin coat of grease on the terminals.
•Install battery in reverse order of removal.
•This scooter is equipped with a maintenance-free type battery, so it is unnecessary to check and add
electrolyte. Have your scooter checked by SANYANG Authorized Dealer or Franchised Dealer should any
abnormality is found.
CAUTION:
•This is a closed type battery. Never remove the caps.
•In order to prevent electric leakage and self-discharge when the battery sits idle for long periods.
Remove battery from scooter, store it in a well- ventilated and dimly lighted place after the battery
has been fully charged. Disconnect battery’s negative cable if the battery is still kept on the scooter.
•If the battery needs to be replaced, replace with a same closed-type battery (Maintenance-Free).
Negative
Positive
10.Inspection and Maintenance Before Riding
