Synapse SAV38 User manual

____________________________________________
SAV38
3 Channel SDI to composite encoder

Lange Wagenstraat 55
NL-5126 BB Gilze
The Netherlands
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
Web: www.axon.tv
TECHNICAL MANUAL
SAV38
3 Channel SDI to composite enocder

1
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
●ALWAYS disconnect your entire system from the AC mains before cleaning any component. The product
frame (SFR18 or SFR04) must be terminated with three-conductor AC mains power cord that includes an
earth ground connection. To prevent shock hazard, all three connections must always be used.
●NEVER use flammable or combustible chemicals for cleaning components.
●NEVER operate this product if any cover is removed.
●NEVER wet the inside of this product with any liquid.
●NEVER pour or spill liquids directly onto this unit.
●NEVER block airflow through ventilation slots.
●NEVER bypass any fuse.
●NEVER replace any fuse with a value or type other than those specified.
●NEVER attempt to repair this product. If a problem occurs, contact your local Axon distributor.
●NEVER expose this product to extremely high or low temperatures.
●NEVER operate this product in an explosive atmosphere.
Warranty: Axon warrants their products according to the warranty policy as described in the general terms.
That means that Axon Digital Design BV can only warrant the products as long as the serial numbers are not
removed.
Copyright © 2001 – 2006 AXON Digital Design B.V.
Date created: 16-06-03
Date last revised: 11-11-06
Axon, the Axon logo and Synapse are trademarks of Axon Digital Design B.V.
This product complies with the requirements of the product family standards for audio, video, audio-visual
entertainment lighting control apparatus for professional use as mentioned below.
EN60950
EN55103-1: 1996
EN55103-2: 1996
Safety
Emission
Immunity
Axon Digital Design SAV38
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device may cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

2
Table of Contents
Chapter 1 Introduction to Synapse 3
An introduction to Synapse 3
Local Control Panel 3
Remote Control Capabilities 3
Chapter 2 Unpacking and Placement 4
Unpacking 4
Locating the card 4
Chapter 3 A Quick Start 5
When powering-up 5
Default settings 5
Changing parameters and settings 5
Front Panel Control 5
Example of changing parameter using
Front Panel control
6
Synapse Setup Software 7
Menu Structure Example 7
Chapter 4 The SAV38 card 8
Introduction 8
Key Features 8
Chapter 5 Settings Menu 9
Chapter 6 Status Menu 11
Chapter 7 Events Menu 13
Chapter 8 LED Indication 15
Chapter 9 Block Schematic 16
Chapter 10 Connector panel 17
Chapter 11 Specifications 18

3
1 Introduction to Synapse
An Introduction to
Synapse Synapse is a modular system designed for the broadcast industry.
High density, intuitive operation and high quality processing are
key features of this system. Synapse offers a full range of
converters and processing modules. Please visit the AXON Digital
Design Website at www.axon.tv to obtain the latest information on
our new products and updates.
Local Control Panel The local control panel gives access to all adjustable parameters
and provides status information for any of the cards in the Synapse
frame, including the Synapse rack controller. The local control
panel is also used to back-up and restore card settings. Please refer
to the RRC18, RRC10 and RRC04 manuals for a detailed
description of the local control panel, the way to set-up remote
control over IP and for frame related settings and status
information.
Remote Control
Capabilities The remote control options are explained in the rack controller
(RRC18/RRC10/RRC04) manual. The method of connection to a
computer using Ethernet is described in the RRC manual.
! CHECK-OUT: “SYNAPSE SET-UP” SOFTWARE
WILL INCREASE SYSTEM FLEXIBILITY OF ONE OR
MORE SYNAPSE FRAMES
Although not required to Setup a Synapse frame, you are strongly
advised to use a remote personal computer or laptop PC with the
Synapse Setup software as this increases the ease of use and
understanding of the modules.

4
2Unpacking and Placement
Unpacking The Axon Synapse card must be unpacked in an anti-static
environment. Care must be taken NOT to touch components on the
card – always handle the card carefully by the edges. The card
must be stored and shipped in anti-static packaging. Ensuring that
these precautions are followed will prevent premature failure from
components mounted on the board.
Locating the card The Synapse card can be placed vertically in an SFR18 frame or
horizontally in an SFR04 frame. Locate the two guide slots to be
used, slide in the mounted circuit board, and push it firmly to
locate the connectors.
Correct insertion of card is essential as a card that is not located
properly may show valid indicators, but does not function
correctly.
REMARK: On power up all LEDs will light for a few seconds, this
is the time it takes to initialise the card.

5
3A Quick Start
When Powering-up On powering up the Synapse frame, the card set will use basic data
and default initialisation settings. All LEDs will light during this
process. After initialisation, several LEDs will remain lit – the
exact number and configuration is dependant upon the number of
inputs connected and the status of the inputs.
Default settings In its default condition, the SAV38 will act as an triple SDI to
triple composite encoder.
Changing settings
and parameters The front panel controls or the Synapse Set-Up Software can be
used to change settings. An overview of the settings can be found
in chapter 5, 6 and 7 of this manual.
Front Panel Control Front Panel Display and Cursor
Settings are displayed and changed as follows;
Use the cursor ‘arrows’ on the front panel to select the menu and
parameter to be displayed and/or changed.
Press ►To go forward through the menu structure.
Press ◄To go back through the menu structure.
Press ▲To move up within a menu or increase the value of
a parameter.
Press ▼To move down through a menu or decrease the
value of a parameter.
REMARK: Whilst editing a setting, pressing ►twice will reset
the value to its default.
[
No Alarms]

6
Example of
changing
parameters using
front panel control
With the display as shown below
Pressing the ►selects the SFS10 in frame slot 01.
The display changes to indicate that the SFS10 has been selected.
In this example the Settings menu item is indicated.
Pressing the ►selects the menu item shown, in this example
Settings.
(Pressing ▲or ▼will change to a different menu eg Status,
Events).
The display changes to indicate that the SFS10 Settings menu
item SDI-Format has been selected and shows that it current
setting is Auto.
Pressing the ►selects the settings item shown, in this example
SDI-Format.
(Pressing ▲or ▼will change to a different setting, eg Mode,
H-Delay).
The display changes to indicate that the SFS10 Edit Setting
menu item SDI-Format has been selected.
To edit the setting of the menu item press ▲or ▼.
All menu items can be monitored and/or changed in this way.
Changing a setting has an immediate effect.
RRC18 [Select Card]
>S01=SFS10
SFS10 [Select Menu]
>
Settings
SFS10 [Settings]
>SDI
-
F
ormat=Auto
SFS10 [Edit
Setting]

7
Synapse Setup
Software
Synapse Setup Software can be used to change the settings of
Synapse modules from a PC, either locally or remotely. The
software enables communication based on TCP/IP between the
Setup PC and Synapse frames/modules.
Each Synapse frame is addressed through its rack controller’s
unique IP address, giving access to each module, its menus and
adjustment items. The Synapse Setup software has access to data
contained within the Synapse module and displays it on a GUI.
The software has an intuitive structure following that of the
module that it is controlling.
Having selected the desired Frame and Module from the GUI
Synapse Network View, select the menu item that you wish to
open. Opening the menu item gives a complete list of available
properties with their associated Value.
For example to change a setting e.g. SDI-Format, select SDI-
Format form the list of settings by ‘double clicking’ to open a
dialogue box. The dialogue box allows parameters to be changed
or set to default value. On completion close the dialogue box.
Menu Structure
Example
Slot Module Item Parameter Setting
▲
▲
S02 Identity
▲▲
S01 SFS10 ►Settings ►SDI-
Format
►Auto
▼▼▼▼
S00 RRC18 Status Mode 625
▼▼▼
Events Ref-Input 525
▼
H-Delay
▼
▼
REMARK: Further information about Front Panel Control and
Synapse Setup Software can be obtained from the RRC18 and
RRC04 operational manuals.

8
4 The SAV38 Card
Introduction The AXON SAV38 is an triple SDI to triple Composite or Y/C.
Key Features The Key features of the SAV38 are as follows.
Analog Composite,
Component and YC
outputs
The SAV08 has 3 SDI inputs that each have 2 Composite or 1 Y/C
outputs which can be selected (so 2 Composite outputs or 1 Y and
1 C output).
Automatic Cable
Equalization The SAV38 employs automatic cable equalization to compensate
for cable losses up to a maximum length of 300m, applicable for
each SDI input.
Standard Selection Manual selection of 525 TV line and 652 TV line systems is
provided by the SAV38 allowing use in multi-standard systems.
Blanking Modes The SAV38 has sophisticated vertical blanking, allowing pass-
through or blanking that enables the input blanking to be
maintained or modified. The set mode applies to all SDI inputs .
Internal Test Signal
Generator The SAV38 card has an internal test signal generator that has a
selectable 75% Color Bars test pattern. This only works if correct
SDI signal is applied
Back planes The SAV38 can only be used with the BPL01.
Miscellaneous The SAV38 cards fit into the Axon SFR04 & SFR18 rack.
The SAV38 can be controlled by Axon Synapse set-up software,
the SCP08 or the frontpanel.

9
5Settings Menu
Introduction The settings menu displays the current state of each setting within
the SAV38 and enables the item to be changed or adjusted.
Settings can be changed using the front panel of the Synapse
frame (SFR18 or SFR04), Synapse Setup software or SCP08.
Please refer to chapter 3 for information on the Synapse front
panel control and Synapse Setup software.
Standard 1 This item determines the input video standard and the setting of
the internal colorbar generator. Standard can be set to, NTSC,
NTSC-J, PAL-BDGHI, iCB75_525, iCB75_625. The
settings iCB75_525 & iCB75_625 select the internal
colorbar generator. Auto format detection is not available.
The default setting is PAL-BDGHI.
Standard 2 This item determines the input video standard and the setting of
the internal colorbar generator. Standard can be set to, NTSC,
NTSC-J, PAL-BDGHI, iCB75_525, iCB75_625. The
settings iCB75_525 & iCB75_625 select the internal
colorbar generator. Auto format detection is not available.
The default setting is PAL-BDGHI.
Standard 3 This item determines the input video standard and the setting of
the internal colorbar generator. Standard can be set to, NTSC,
NTSC-J, PAL-BDGHI, iCB75_525, iCB75_625. The
settings iCB75_525 & iCB75_625 select the internal
colorbar generator. Auto format detection is not available.
The default setting is PAL-BDGHI.
Output 1 The setting menu item Output selects the format of the video
signal at the outputs of the SAV38. Output can be set to the
following settings:
CVBS: selects a composite video signal on both outputs.
Y/C: selects a Y signal on upper output and a separate C signal
on the lower output.
The default setting is CVBS.

10
Output 2 The setting menu item Output selects the format of the video
signal at the outputs of the SAV38. Output can be set to the
following settings:
CVBS: selects a composite video signal on both outputs.
Y/C: selects a Y signal on upper output and a separate C signal
on the lower output.
The default setting is CVBS.
Output 3 The setting menu item Output selects the format of the video
signal at the outputs of the SAV38. Output can be set to the
following settings:
CVBS: selects a composite video signal on both outputs.
Y/C: selects a Y signal on upper output and a separate C signal
on the lower output.
The default setting is CVBS.
Y-Filter Y-Filter allows the selection of filters with different
characteristics that can be used to enhance Luminance
performance. Y-Filter can be set to Normal, Low-Pass and
Notch. Selection applies for all 3 inputs
The default setting is Normal.
C-Filter The C-Filter setting adjusts the bandwidth of the chroma
channel. Selection is made between LP1.3, LP.65, LP1.0, and
LP2.0 all of which represent the bandwidth in MHz. Selection
applies to all 3 inputs
The default setting is LP1.3.
Y_Level The setting item Y_Level sets the amplitude of the output to
either Betacam or SMPTE levels in Y/C mode.
The default setting is SMPTE.
VBI The VBI menu sets the handling of the Vertical Blanking
Interval. It can either be set to Blanked or Pass-Through.
The default setting is Blanked.

11
6Status Menu
Introduction The status menu indicates the current status of each item listed
below.
SDI-Input 1 This status item indicates the presence of a valid serial digital
video signal at the input. SDI-Input indicates if an input
signal is NA (not available) or Present.
SDI-Input 2 This status item indicates the presence of a valid serial digital
video signal at the input. SDI-Input indicates if an input
signal is NA (not available) or Present.
SDI-Input 3 This status item indicates the presence of a valid serial digital
video signal at the input. SDI-Input indicates if an input
signal is NA (not available) or Present.
EDH-Stat 1 EDH-Stat indicates the status of the EDH within the incoming
SDI signal. OK is indicated if the status of the detected EDH does
not indicate errors.
UES is shown if an EDH data block is not present.
EDA is displayed if an EDH error has previously been detected
by another card in the SDI stream.
EDH is displayed if an error is detected by this device.
EDH-Stat 2 EDH-Stat indicates the status of the EDH within the incoming
SDI signal. OK is indicated if the status of the detected EDH does
not indicate errors.
UES is shown if an EDH data block is not present.
EDA is displayed if an EDH error has previously been detected
by another card in the SDI stream.
EDH is displayed if an error is detected by this device.

12
EDH-Stat 3 EDH-Stat indicates the status of the EDH within the incoming
SDI signal. OK is indicated if the status of the detected EDH does
not indicate errors.
UES is shown if an EDH data block is not present.
EDA is displayed if an EDH error has previously been detected
by another card in the SDI stream.
EDH is displayed if an error is detected by this device..

13
7Events Menu
Introduction An event is a special message that is generated on the card
asynchronously. This means that it is not the response to a request
to the card, but a spontaneous message.
What is the Goal of
an event? The goal of events is to inform the environment about a changing
condition on the card. A message may be broadcast to mark the
change in status. The message is volatile and cannot be retrieved
from the system after it has been broadcast. There are several
means by which the message can be filtered.
SAV38 Events The events reported by the SAV38 are as follows;
Announcements Announcements is not an event. This item is only used for
switching the announcement of status changes on/off. 0=off,
other =on
Input 1 Input can be selected between 0 .. 255. 0= no event, 1..255 is the
priority setting.
Input 2 Input can be selected between 0 .. 255. 0= no event, 1..255 is the
priority setting.
Input 3 Input can be selected between 0 .. 255. 0= no event, 1..255 is the
priority setting.
What information is
available in an
event?
The message consists of the following items;
1) A message string to show what has happened in text, for
example: “INP_LOSS”, “REF_LOSS”, “INP_RETURN”.
2) A tag that also shows what happens, but with a predefined
number: e.g. 1 (= loss of input), 2 (= loss of reference), 129(=
1+128 = return of input). For a list of these predefined tags
see the table on the next page.
3) A priority that marks the importance of an event. This value is
defined by the user and can have any value between 1 and
255, or 0 when disabled.
4) A slot number of the source of this event.

14
The Message String The message string is defined in the card and is therefore fixed. It
may be used in controlling software like Synapse Set-up to show
the event.
The Tag The tag is also defined in the card. The tag has a fixed meaning.
When controlling or monitoring software should make decisions
based on events, it is easier to use the tag instead of interpreting a
string. The first implementation is the tag controlled switch in the
GPI16.
In cases where the event marks a change to fault status (e.g. 1 for
Loss of Input) the complement is marked by the tag increased by
128 (80hex) (e.g. 129 (81hex) for Return of Input).
Defining Tags The tags defined for the SAV38 are:
Event Menu Item Tag Description
Announcements 0 or NA 0 or NA Announcing of report
and control values
Input 01hex=INP_LOSS 81hex=INP_RETURN primary input lost or
returned
The Priority The priority is a user-defined value. The higher the priority of the
alarm, the higher this value. Setting the priority to Zero disables
the announcement of this alarm. Alarms with priorities equal or
higher than the Error Threshold setting of the RRC will cause the
error LED on the Synapse rack front panel to light.
The Address Together with the message string or the tag, the slot number or
address of the card is relevant to be able to assign the event to a
certain card.

15
8LED Indication
Error LED The error LED indicates an error if the internal logic of the
SAV38 card is not configured correctly or has a hardware failure.
Input LED 1 This LED indicated the presence of a valid SDI video signal on
the input.
Input LED 2 This LED indicated the presence of a valid SDI video signal on
the input.
Input LED 3 This LED indicated the presence of a valid SDI video signal on
the input.
Data Error LED This LED indicates one type of error:
-EDH error
Connection LED This LED illuminates after the card has initialised. The LED
lights for 0.5 seconds every time a connection is made to the card.

16

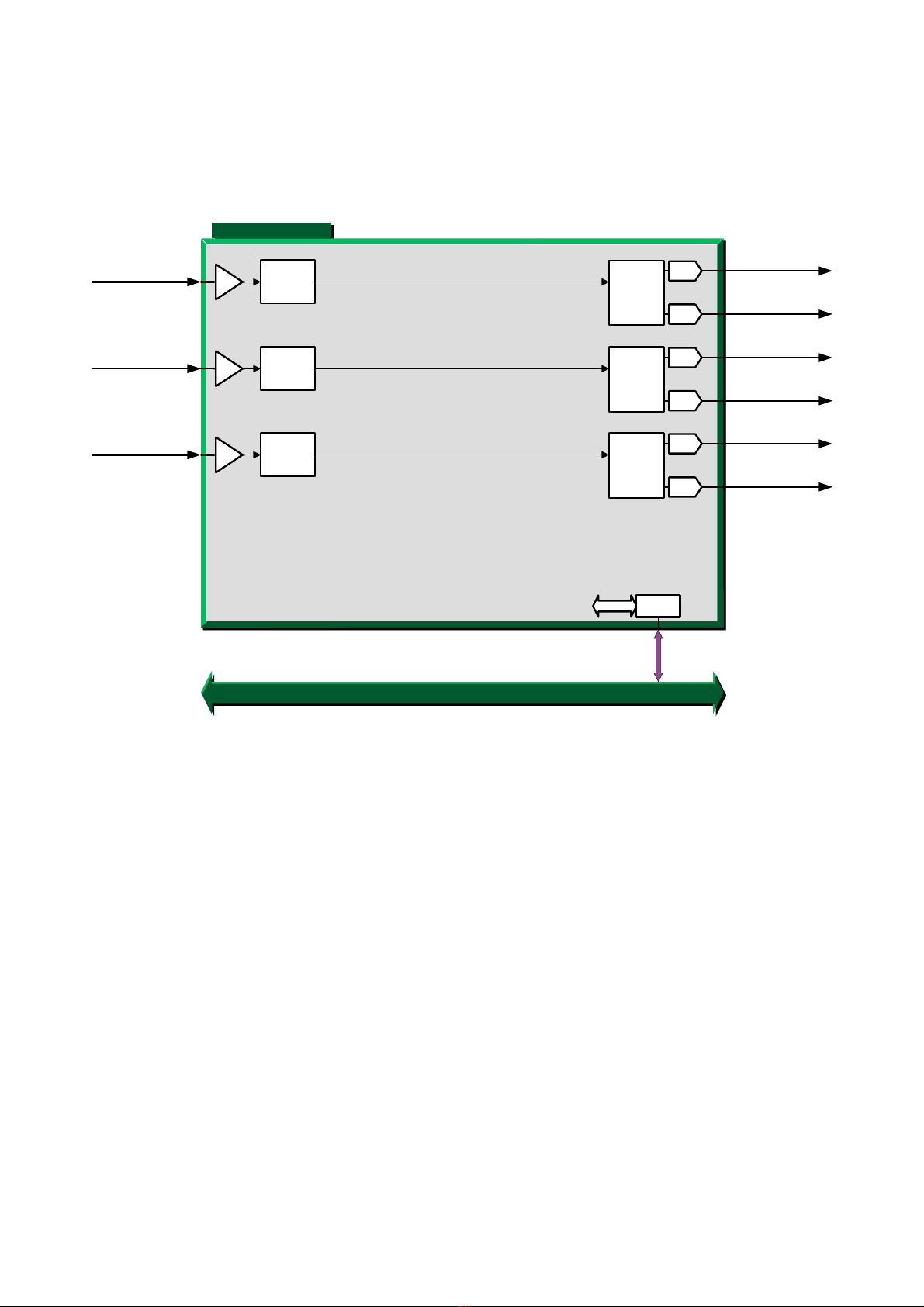

9 Block Schematic
SAV38
INTERNAL SYNAPSE BUS
Rack
controller
SDI IN 1 Eq
μP
RECLOCKER
Y/CVBS OUTPUT 1
C/CVBS OUTPUT 1
Digital
Encoder
D/A
D/A
SDI IN 2 Eq RECLOCKER
Y/CVBS OUTPUT 2
C/CVBS OUTPUT 2
Digital
Encoder
D/A
D/A
SDI IN 3 Eq RECLOCKER
Y/CVBS OUTPUT 3
C/CVBS OUTPUT 3
Digital
Encoder
D/A
D/A

17
10 Connector Panel
The SAV38 can be used with the following backplane: BPL01,
Fiber backplanes: BPL01R3_FC/PC, BPL01R3_SC
!Unused inputs and outputs must be terminated
with the correct impedance!
C/R/Pr
VIDEO
SAV38
Y/B/Pb Y/G/Y
RECL. SDI. OUT
VIDEOVIDEO VIDEO
4
3
2
1
SDI. IN
.
