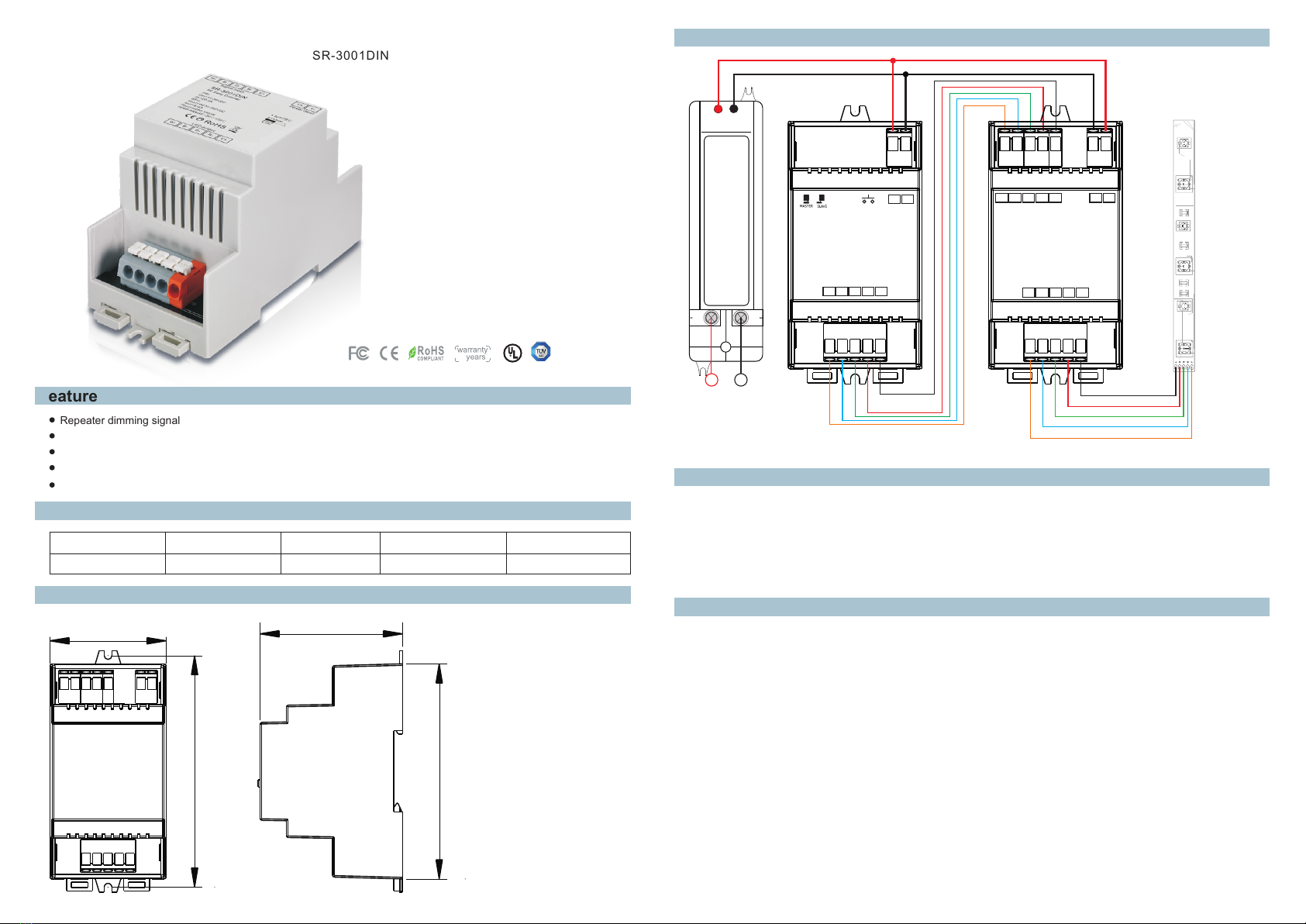

Synergy 21 SR-3001DIN User manual

Power Repeater / Amplier
Parameter
Product Size
Repeater dimming signal
One channel/three channel/four channel optional
Constant voltage
To receive PWM signal control
Power repeater in series to expand output unlimitedly
Feature
SR-3001DIN
Part No. INPUT DIMENSIONS
ø/h (mm)
OUTPUT
SR-3001DIN 12-36VDC 105.5x53x65
3/4x5A 3/4x(60-180)W
CURRENT
Wiring diagram
RGB/W or CDW LED strip
Operation Manual
LED power repeater is suitable for all of our single color & RGB controllers to expand power output, it supports
PWM control and can connect one to three times more LEDs by adding one more power repeater, and unlimited
power repeaters can be connected together theoretically.
The constant voltage power repeater and constant current power repeaters can be connected together, which
is convenient for controlling LEDs with different voltage and power.
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6)
7) For update information please consult your supplier.
Please ensure that the cable is secured tightly in the connector
98.0
65.0
105.5
53.0
Power Supply 12-36VDC
L
N
110V-230VAC
RF Receiver
V-V+
+
R-/1G-/2B -/3W-/4
Power input
Learning key
SR-3001
V-V+
V+R-G-B-W-
Power in pu t
V+R-G-B-W-
Signal i np ut
LED outp ut
ISO 900 1：20 08
5

Warranty Agreement
1) We provide lifelong technical assistance with this product:
5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The
warranty is for free repair or replacement and covers manufacturing faults only.
For faults beyond the 3-year warranty we reserve the right to charge for time and parts.
2) Limited Warrenty
Any defects caused by wrong operation.
Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and
replacement of chips.
Any damages due to transportation, vibration etc. after purchase.
Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.
Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near
harmful chemicals.
Product has been updated
3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
