Synido LiveMix User manual

www.synido.com
Don't know how to use this product?
Scan the QR code
or email us through [email protected]
USER MANUAL

目录
P1 / 产品介绍
P3 / LiveMix Solo: 接线图与功能说明
P5 / LiveMix Duet: 接线图与功能说明
P7 / 软件下载与安装（Mac)
P8 / 软件下载与安装（Windows)
P9 / PC控制面板功能说明
P9 / 常见故障
P11 / 规格参数
P11 / 包装清单
P12 / 常见故障
P13 / 注意事项
P1 / PRODUCT INTRODUCTION
P3 / LIVEMIX SOLO: FUNCTION DESCRIPTION
P5 / LIVEMIX DUET: FUNCTION DESCRIPTION
P7 / DOWNLOAD AND INSTALLATION OF MAC DRIVER
P8 / DOWNLOAD AND INSTALLATION OF WINDOWS DRIVER
P9 / PANEL IDENTIFICATION AND FUNCTION DESCRIPTION
P11 / SPECIFICATIONS
P11 / PACKAGE CONTENTS
P12 / FAQ
P13 / PRECAUTIONST
目录

PRODUCTION INTRODUCTION
Features
High definition sound quality .
Supporting 24Bit/44.1kHz, 48kHZ sampling parameters
High-definition words put, delicate pure
Small and delicate, light and portable
The interface is complete, simple and easy to use
Listen in and say goodbye to delays
SEAMLESS COMPATIBILITY mobile phone computer
2
EN
Synido LiveMix Audiophile 2*2 audio interface, Synido LIVEMIX professional audio
interfaces series, is specially designed for computers and mobile phones.
It uses high-quality components to achieve the best performance, stably transmitting
quality audio signals from microphones, instruments, and line-in to WINDOWS, MAC
OS, Android, and IOS ports.Supporting 24BIT/44.1KHz, 48KHZ sampling parameters, it is
an audio interface born to obtain high-quality sound.
PRODUCTION INTRODUCTION
1
EN

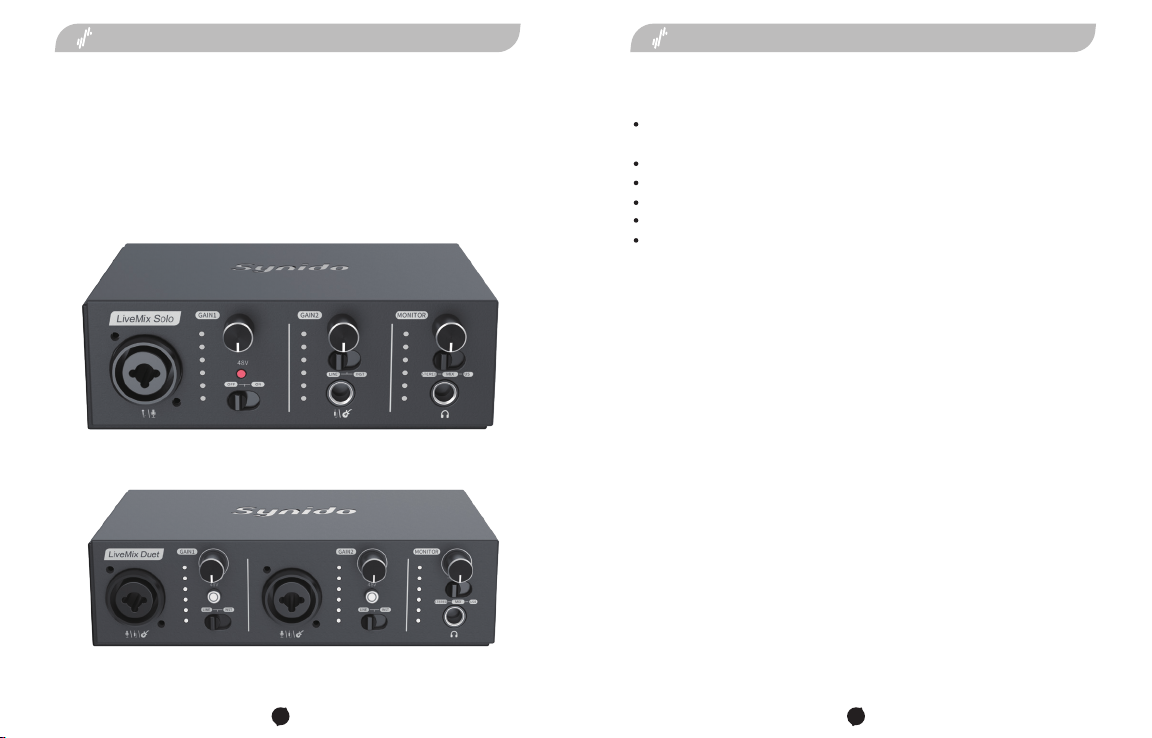

Synido LiveMix Solo
Synido LiveMix Duet

LIVEMIX SOLO: FUNCTION DESCRIPTION
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
Wiring Diagram Function Description
XLR/6.35mm
LINE IN/INST
HEADPHONE
48V
USB-C
LINE OUT
MIC VOL
LINE IN/INST VOL
MONITOR VOL
INST/LINE IN
MONITOR
XLR/6.35mm microphone interface, supporting
connection with 48V large-diaphragm condenser
microphone and dynamic microphone.
STEREO/MIX/USB
Local Monitor volume adjustment.
Inst/line in ON/OFF
6.35mm interface, supporting musical instrument
input, external accompaniment sound source, and
mobile accompaniment input.
6.35mm headphone jack, supporting connection with
monitor
The orange indicator lighting up indicates the 48V
phantom power
USB Type-C cable interface, supporting connection with
computer/ phone.
6.35mm speaker interface, supporting connection with
external
Local microphone volume adjustment.
Line input, instrument input volume adjustment.
4
EN

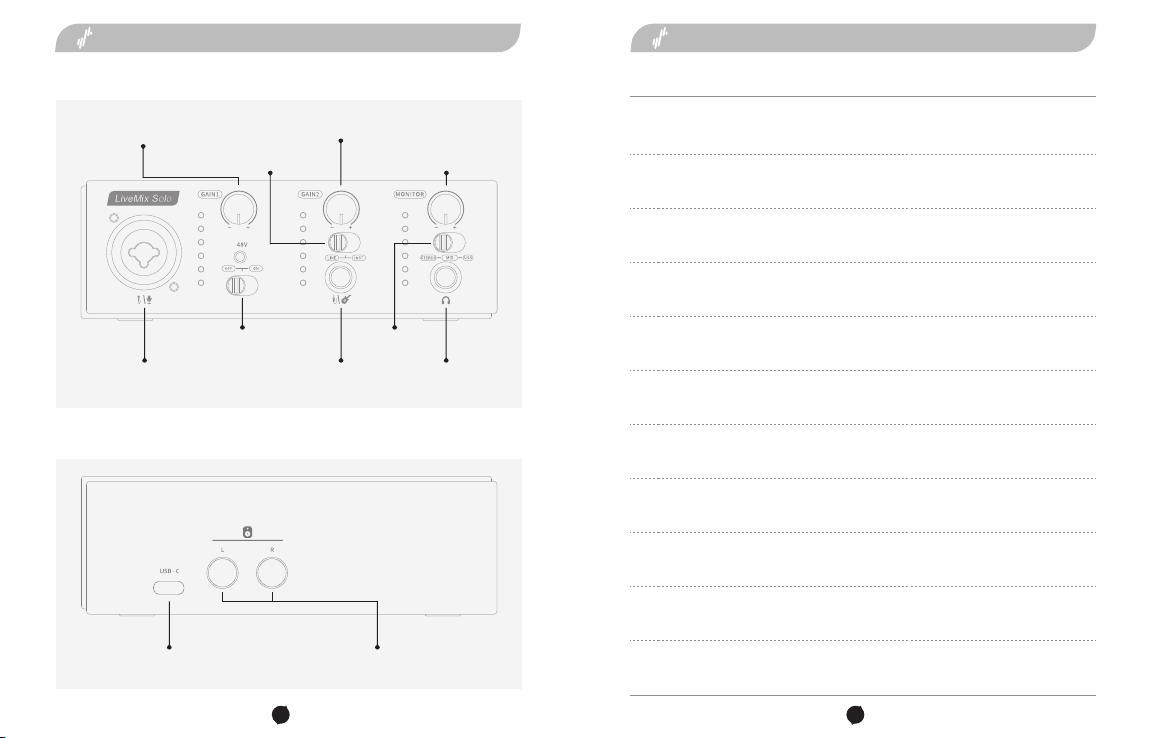

LIVEMIX SOLO: FUNCTION DESCRIPTION
⑤USB-C
⑩INST/LINE IN
Back Interface
②LINE IN/INST
① XLR/6.35mm ③HEADPHONE
⑨MONITOR VOL
⑪MONITOR④48V
⑦MIC VOL ⑧LINE IN/INST VOL
Front Interface
3
EN
⑥LINE OUT

DOWNLOAD AND INSTALLATION OF MAC SOFTWARE
7
EN

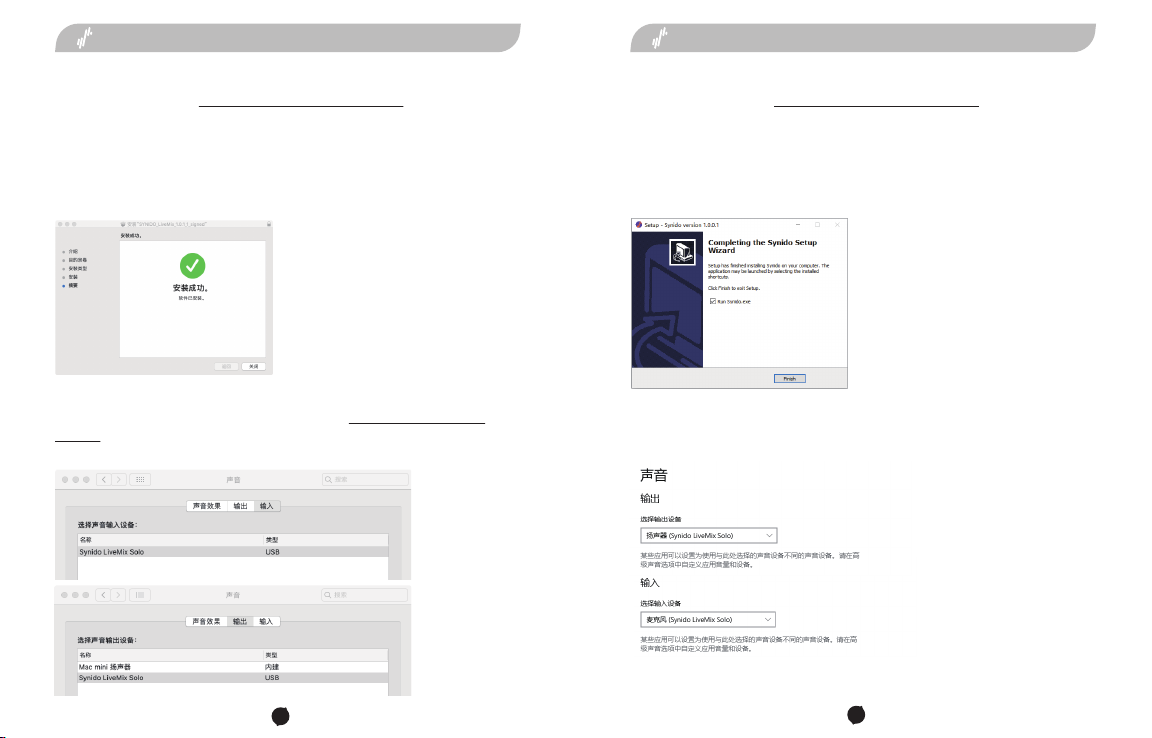

Step 1: Software Download
Please download the software from the official website:
www.synido.com/support/downloads
Step 2: Connect the Sound Card
Use the USB data cable included in the package to connect Synido LiveMix
to the computer.
Step 3: Software Installation
Double-click the downloaded driver and follow the instructions to install it.
Step 4: System Settings
After confirming that the computer has recognized Synido LiveMix, users shall
enter System Preferences→Sound→Output, find the list of the audio device in
the above position, and then select Synido LiveMix as your input and output device.
DOWNLOAD AND INSTALLATION OF WINDOWS SOFTWARE
8
EN
Step 1: Software Download
Please download the installation driver from the official website:
www.synido.com/support/downloads
Step 2: Connect the Sound Card
Use the USB data cable included in the package to connect Synido LiveMix
to the computer.
Step 3: Software Installation
Double-click the downloaded driver and follow the instructions to install it.
Step 4: System Settings
After confirming that the computer has recognized Synido LiveMix, the user needs
to right-click the loudspeaker icon in the notification area, open the sound settings
and find the audio device list, and then select Synido LiveMix as your input and
output device.

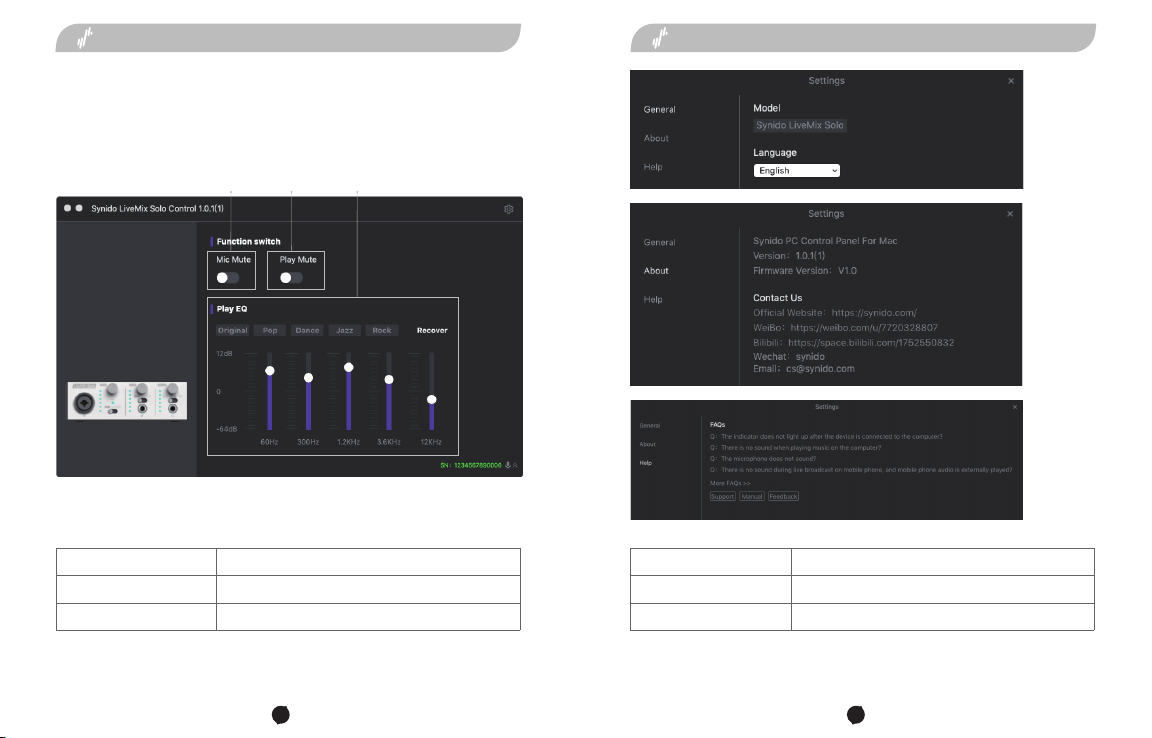

PANEL IDENTIFICATION AND FUNCTION DESCRIPTION
MicMute
PlayMute
PlayEQ
①
②
③
Mute the Mic input
USB music play mute
USB music equalization adjustment
9
EN
②① ③
This application will let you manage all the special functions that are not directly
accessible on the Synido LiveMix device.
The software is compatible with Windows 7+ and Mac OSX 10.8+.
In order to use the software, you must connect the Synido LiveMix.
PANEL IDENTIFICATION AND FUNCTION DESCRIPTION
10
EN
General
About
Help
Model、Language
Version、Contact information
Setup trick

FAQ
Q: Why the indicator does not light up after the device connects to the computer?
Q: Why is there no sound when playing music on the computer?
Q: Why is there no sound from the microphone?
A: Please check if the USB port of the device is properly plugged in.
A:
A:
Q: Why is there no sound in the live broadcast on the mobile phone, but the mobile audio
is played out?
A: ①Check if the connecting cable corresponds to the sound card function interface;
②Check if the mobile phone recognizes the audio device;
③Re-plug the cable corresponding to the mobile phone live broadcast.
①Check the working mode of the sound card, the microphone is silent in the
music mode;
②Check if the microphone volume knob adjusts to the minimum;
③Check if the monitor volume knob adjust to the minimum;
④Check if the 48V power supply switch of the large-diaphragm
microphoneis turned on.
①Check if the computer audio input and output device equipped with this device;
②Check if the headphone connection to the corresponding jack of the sound card;
③Check if the headphone fully insert into the jack;
④Check if the headphone volume adjusts to the minimum sound.
12
EN

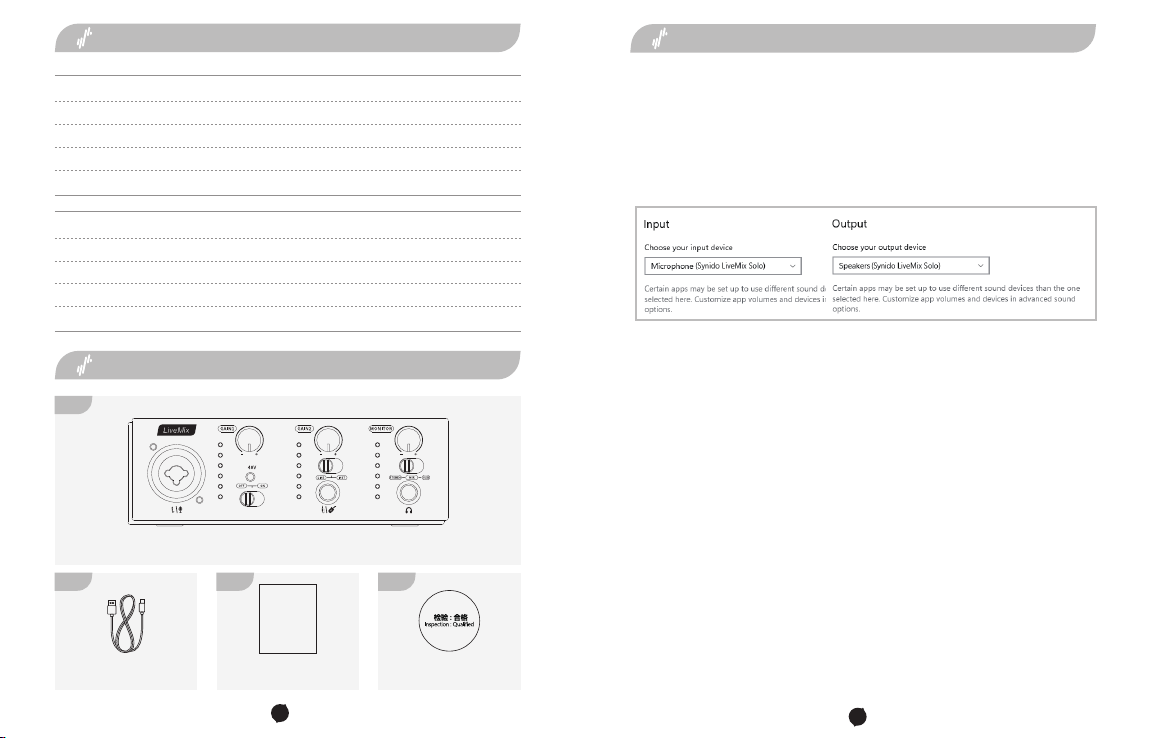

SPECIFICATIONS
PACKAGE CONTENTS
Product Model: LiveMix Solo
Channel: 2In/2Out
Frequency response: 2RHz~20kHz(0/0.5dB)
Input Impedance: 48V MIC IN: 10kΩ/DYNAMIC 20kΩ/INSTRUMENT: 1mΩ/LINE IN 30kΩ
Product Weight: 300g
Product Size: 140*115*45mm
Sample Rate: 24bit/48kHz
SNR: ≥105dB(Music) , ≥96dB(Recording)
Product Model: LiveMix Duet
Channel: 2In/2Out
Frequency response: 2RHz~20kHz(0/0.5dB)
Input Impedance: 48V MIC IN: 10kΩ/DYNAMIC 20kΩ/INSTRUMENT: 1mΩ/LINE IN 30kΩ
Product Weight: 320g
Product Size: 165*115*45mm
Sample Rate: 24bit/48kHz
SNR: ≥105dB(Music) , ≥96dB(Recording)
x1
Synido LiveMix
USB-C Data Cable
x1
USER MANUAL
User Manual
x1
Certificate of Conformity
x1
11
EN

PRECAUTIONS
5.Please use the original audio cable and data cable of the product.
2.The device will be corroded by liquids causing malfunctions, short circuits, or
incorrect operation. Please use a soft dry cloth to wipe the liquid spilled on the
device.
1.Avoid strong collisions and do not drop the device.
3.Do not expose the device to the sun, or place it in extreme environments such as
high temperature and bad ventilation. Overheating may cause the device to
malfunction.
4.When the product is not in use, please turn off the power and store it in a dry and
ventilated place.
6.When connecting or removing various cables, please take the connectors and do
not pull the cables to avoid short circuits or damage to the device.
7.Do not disassemble or modify without authorization, and any product function and
safety issues arising therefrom shall be borne by the customer.
8.Under normal conditions of use, the body will generate slight heat, which is normal.
Attention: Please do not connect a 5V power microphone to the 48V power
microphone port. There is a risk of damaging the microphone.
13
EN

2
CN
产品介绍
功能特点
高清音质，24bit/48kHz
高清话放，细腻纯净
小巧精致，轻巧便携
接口齐全，简单易用
直接监听，告别延迟
无缝兼容，手机电脑
Synido LiveMix 高保真2*2音频接口是Synido专业电脑手机音频
接口LiveMix系列产品， 采用高品质组件设计， 以确保最佳性能。 提供用
于连接麦克风、 乐器、 线路输入将信号运送到Windows、 MacOS、 安卓
及iOS，支持24bit/44.1kHz、48kHZ采样参数，获取高品质声音的音频接
口。
产品介绍
Synido LiveMix Solo
Synido LiveMix Duet
1
CN

LiveMix Solo: 接线图与功能说明
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
接口名称 接驳说明
话筒
线路输入
耳机
48V电源开关
数据接口
线路输出
麦克风音量
乐器/线路输入音量
监听音量
输入开关
监听切换
XLR/6.35mm话筒接口，大振膜麦克风，
动圈麦克风
单声道/混合/USB
监听音量控制
切换乐器和线路输入功能开关
6.35mm乐器接口，线路输入伴奏
6.35mm耳机接口，可连接监听耳机
大振膜麦克风48V供电开关
USB Type-C数据线接口，连接电脑/手机
6.35mm L/R音箱接口
麦克风音量控制
乐器及线路输入音量控制
4
CN
LiveMix Solo: 接线图与功能说明
⑤ 数据接口
⑩ 输入开关
背面接口
② 线路输入
① 话筒 ③ 耳机
⑨ 监听音量
⑪ 监听切换 ④ 48V电源开关
⑦ 麦克风音量
⑧ 乐器/线路输入音量
正面接口
3
CN
⑥ 线路输出

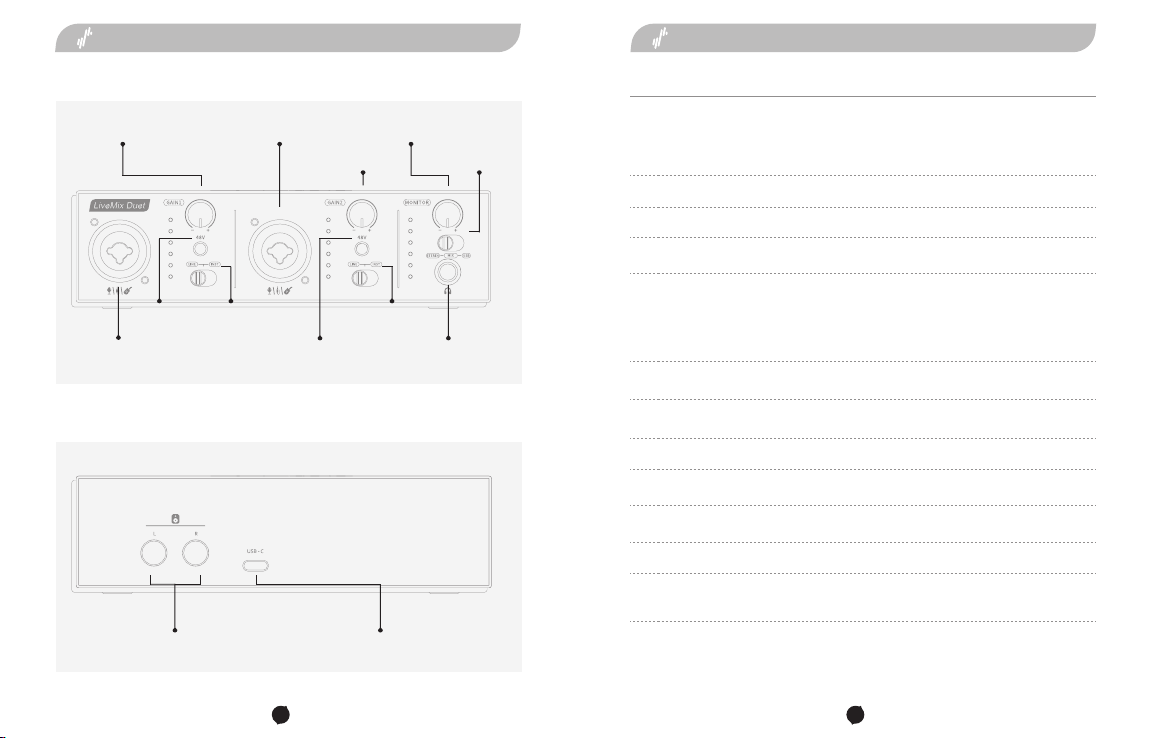

LiveMix Duet: 接线图与功能说明
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
接口名称 接驳说明
话筒/线路输入/乐器
GAIN1
48V电源开关
输入开关
话筒/线路输入/乐器
GAIN2
48V电源开关
输入开关
监听音量
监听切换
耳机
线路输出
数据接口
XLR/6.35mm接口，大振膜麦克风，
6.35mm乐器接口，线路输入伴奏
6.35mm耳机接口，可连接监听耳机
USB Type-C数据线接口，连接电脑/手机
6.35mm L/R音箱接口
监听音量控制
单声道/混合/USB
接口音量调节
大振膜麦克风48V供电开关
大振膜麦克风48V供电开关
切换乐器与线路输入功能开关
XLR/6.35mm接口，大振膜麦克风，
6.35mm乐器接口，线路输入伴奏
接口音量调节
切换乐器与线路输入功能开关
6
CN
LiveMix Duet: 接线图与功能说明
⑬数据接口
背面接口
正面接口
5
CN
⑫线路输出
④输入开关
⑤话筒/线路输入/乐器
① 话筒/线路输入/乐器
⑪耳机
⑨监听音量
⑩监听切换
③48V
⑦48V
⑧输入开关
②GAIN1
⑥GAIN2

软件下载与安装（Mac）
第一步：软件下载
请前往官网下载软件：www.synido.com/downloads
第二步：连接声卡
使用包装内随附的USB-C数据线连接主机到电脑
第三步：软件安装
双击下载好的软件，按照指示进行安装
第四步：系统设置
确认Synido LiveMix已被电脑识别到后，前往系统偏好设定→声音
→输出，在以上位置找到音频设备列表，选择Synido LiveMix为你的
输入输出设备
7
CN
软件下载与安装(Windows)
第一步：软件下载
请前往官网下载软件：www.synido.com/downloads
第二步：连接声卡
使用包装内随附的USB-C数据线连接主机到电脑
第三步：软件安装
双击下载好的驱动程序，按照指示进行安装
第四步：系统设置
确认设备已被电脑识别到后，右键系统托盘中的扬声器，打开声音设置，
找到音频设备列表，选择Synido LiveMix为你的输入输出设备
8
CN

PC控制面板功能说明
10
CN
通用设置
关于我们
帮助中心
型号栏、语言栏
软件版本、联系方式
应用设置技巧
PC控制面板功能说明
话筒静音
音乐静音
播放均衡
①
②
③
麦克风输入静音
USB音乐播放静音
USB音乐均衡调节
9
CN
②① ③
LiveMix控制面板可在www.synido.cn/support/downloads上下载。
安装该软件后可以使用和调节一些无法在硬件设备上使用
的特殊功能，
该软件兼容Windows 7及以上版本和Mac OSX 10.8及以上版本。
要使用软件，必须连接LiveMix设备。

常见故障
Q: 设备连接电脑后指示灯不亮？
Q： 电脑播放音乐无声？
Q： 麦克风无声？
A: 请检查设备USB接口是否有插好。
A: ① 检查电脑音频输入输出设备是否设置本装置；
② 检查耳机是否连接上声卡对应插孔；
③ 检查耳机是否完全插入插孔；
④ 检查耳机音量是否调节到最小无声音。
A: ① 检查麦克风音量旋钮是否控制到最小；
② 检查监听音量旋钮是否控制到最小；
③ 检查大振膜话筒检查48V供电开关是否打开。
Q： 手机端直播无声、手机音频外放？
A: ① 检查连接线材是否对应声卡功能接口；
② 请检查手机是否识别到音频设备；
③ 重新插拔手机直播对应线材。
12
CN

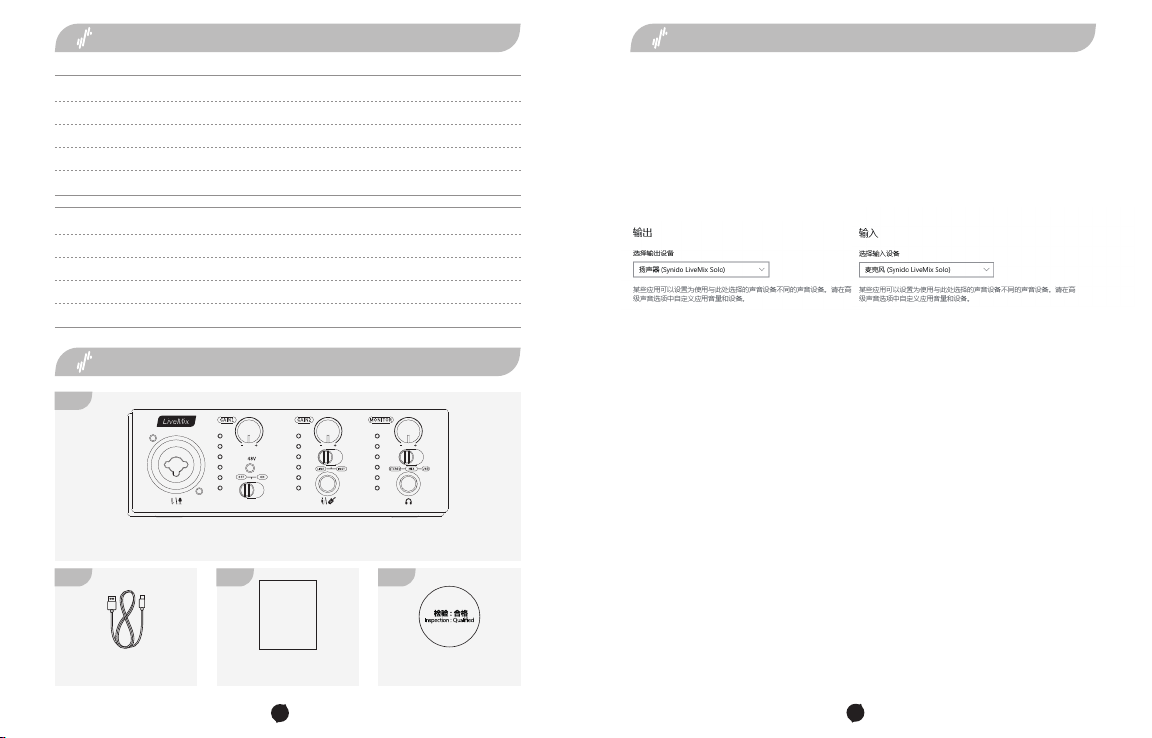

规格参数
包装清单
产品型号:
通 道:
频率响应:
输入阻抗:
产品净重:
产 品 尺 寸:
采 样 率:
信 噪 比:
LiveMix Solo
2In/2Out
20Hz~20kHz(0/0.5dB)
48V MIC IN: 10kΩ / DYNAMIC 20kΩ / INSTRUMENT: 1mΩ / LINE IN 30kΩ
300g
140*115*45mm
24bit/48kHz
≥105dB(音乐) , ≥96dB(录音)
产品型号:
通 道:
频率响应:
输入阻抗:
产品净重:
产 品 尺 寸:
采 样 率:
信 噪 比:
LiveMix Duet
2In/2Out
20Hz~20kHz(0/0.5dB)
48V MIC IN: 10kΩ / DYNAMIC 20kΩ / INSTRUMENT: 1mΩ / LINE IN 30kΩ
320g
165*115*45mm
24bit/48kHz
≥105dB(音乐) , ≥96dB(录音)
x1
Synido LiveMix 主机
USB-C数据线
x1
USER MANUAL
用户指南
x1
质检合格认证
x1
11
CN

注意事项
7. 不得擅自拆卸和改装，由此产生的任何产品功能和安全问题由客户自
身承担。
4. 产品在不使用时，请关闭电源存放在干燥通风处。
5. 请使用产品原装音频线和数据线。
2.液体侵蚀设备会造成故障、短路或错误操作。请使用柔软的干布擦拭
溅到设备上的液体。
1.避免强烈碰撞，禁止摔落装置。
3.请勿将本机曝晒，或放置于高热、通风不良等极端环境下。过热可能会
导致本机故障。
6.当连接或是移除各种连接线时，请拿取连接头，切勿拉扯连接导线，以
避免造成短路或伤害装置本身。
8.正常使用状况下，机体会产生轻微热度，此为正常情况。
敬告：请勿将5V供电麦克风连接到48V供电麦克风接口上，存在损坏麦
克风风险。
13
CN

LIVEMIX DUET: FUNCTION DESCRIPTION
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
Wiring Diagram Function Description
MIC/LINE IN/INST
GAIN1
48V
INST/LINE IN
MIC/LINE IN/INST
GAIN2
48V
INST/LINE IN
MONITOR VOL
MONITOR
HEADPHONE
LINE OUT
USB-C
XLR/6.35mm line in interface, supporting connection with 48V
large-diaphragmcondenser microphone and line in. 6.35mm
interface, supporting musical instrument input, external
accompaniment sound source, and mobile accompaniment input.
6.35mm headphone jack, supporting connection with monitor
USB Type-C cable interface, supporting connection with
computer/ phone
6.35mm speaker interface, supporting connection with
external
Local Monitor volume adjustment
STEREO/MIX/USB
Input volume adjustment
The orange indicator lighting up indicates the 48V phantom power
The orange indicator lighting up indicates the 48V phantom power
Inst/Line in ON/OFF
XLR/6.35mm line in interface, supporting connection with 48V
large-diaphragmcondenser microphone and line in. 6.35mm
interface, supporting musical instrument input, external
accompaniment sound source, and mobile accompaniment input.
Input volume adjustment
Inst/Line in ON/OF
6
EN
LIVEMIX DUET: FUNCTION DESCRIPTION
⑬USB-C
Back Interface
Front Interface
5
EN
⑫LINE OUT
④INST/LINE IN
⑤ MIC/LINE IN/INST
① MIC/LINE IN/INST
⑪HEADPHONE
⑨MONITOR VOL
⑩MONITOR
③48V
⑦48V
⑧INST/LINE IN
②GAIN1
⑥GAIN2
