1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
D110SP, D112SP, D115SP 5
active speaker

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
6D110SP, D112SP, D115SP
active speaker

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
Letterings
Instructions
General information
D110SP, D112SP, D115SP 7
active speaker

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
8D110SP, D112SP, D115SP
active speaker

Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
D110SP, D112SP, D115SP 9
active speaker

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
10 D110SP, D112SP, D115SP
active speaker

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
NOTICE!
Radio interference
This device emits electromagnetic signals. This can cause interference due to overlapping radio waves. Do not use the device in
locations where the use of wireless devices is prohibited.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
D110SP, D112SP, D115SP 11
active speaker

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
12 D110SP, D112SP, D115SP
active speaker

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt-pad oor protectors or similar.
Safety instructions
D110SP, D112SP, D115SP 13
active speaker

3 Features

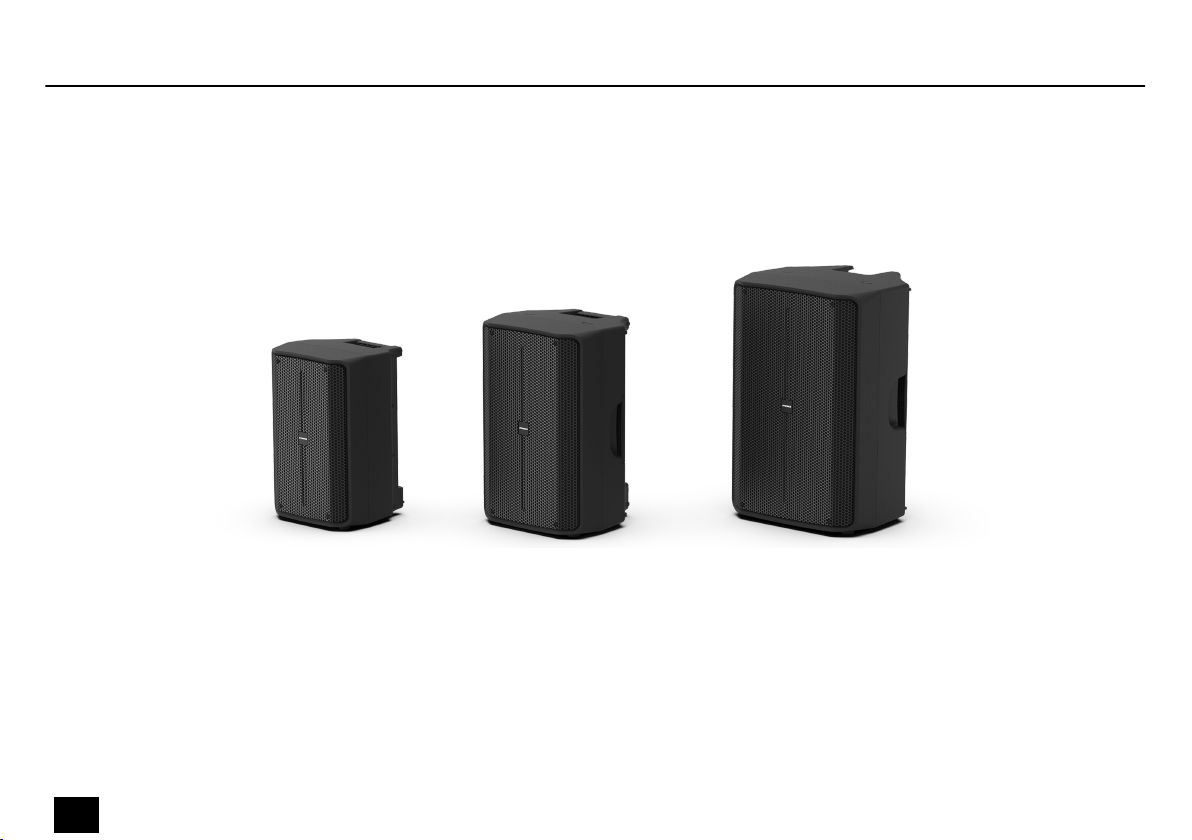

The active speaker is characterized by the following features:
nactive full-range speaker box for PA and DJ application
nmaximum output power 800 W or 1400 W (depending on the model)
n10", 12" or 15" woofer (depending on the model)
n1" or 1.35" compression driver (depending on the model)
n4 DSP sound programmes: Music, Vocal/LowCut, Live, Stage Monitor
nFIR lter
nBluetooth® 5.0 with TWS (TrueWirelessStereo)
n2 × adjustable MIC / Line input, XLR / 1/4" combo socket
n1 × Line out, XLR
n1 × Aux in, (3.5 mm jack socket)
nhigh-quality plastic housing with 35 mm tripod ange and carrying handles
Features
14 D110SP, D112SP, D115SP
active speaker

4 Starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
nThis equipment uses a frequency range that is free of charge and registration within the
European Union.
For more information, please visit: http://www.thomann.de.
nMake sure that no metal objects are located between transmitter and receiver.
nAvoid interference by other radio and in-ear systems.
Notes on radio transmission
Starting up
D110SP, D112SP, D115SP 15
active speaker

NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
The unit can be mounted on a tripod or set up on the oor or a suciently sized and stable
surface.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Starting up
16 D110SP, D112SP, D115SP
active speaker

5 Connections and controls
230V
'& *
,
0
1
-
#
$
%
( . /) +
Connections and controls
D110SP, D112SP, D115SP 17
active speaker

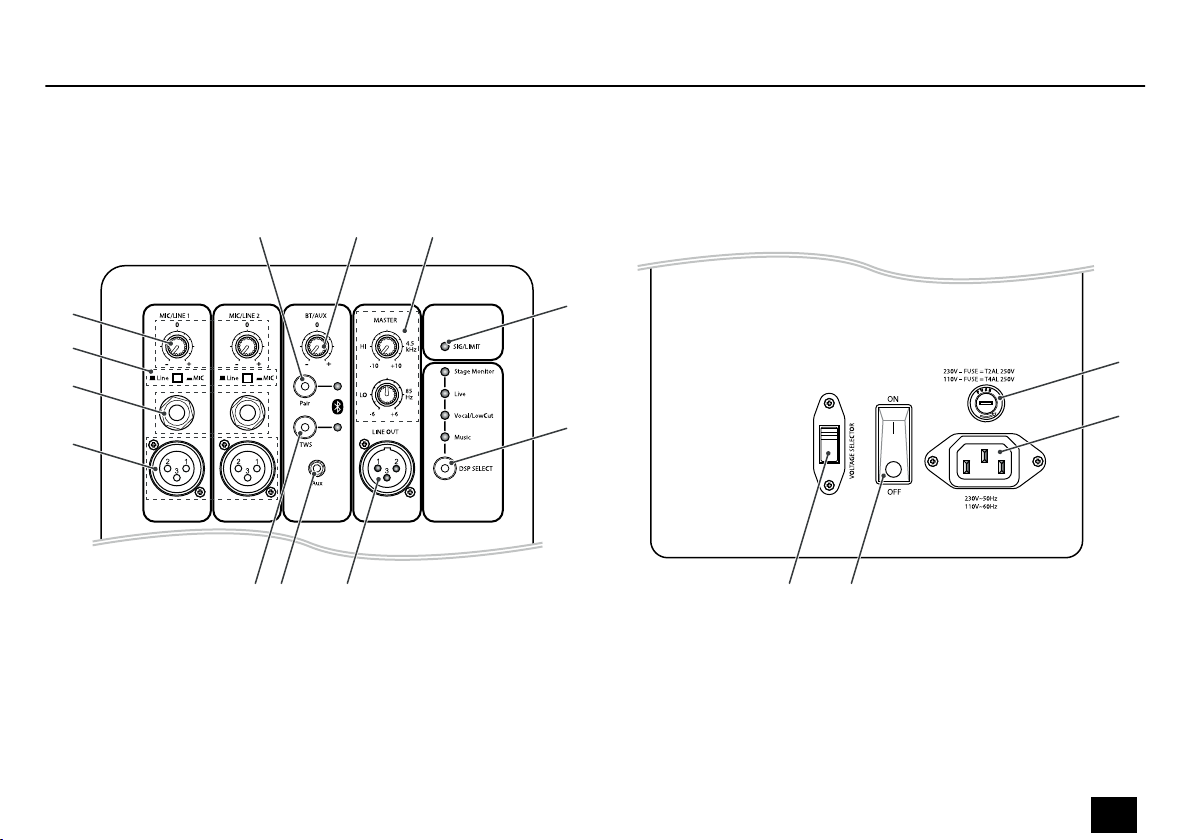

1[MIC/LINE 1] / [MIC/LINE 2]
Rotary control for setting the input level of mic / line inputs 1 and 2
2[LINE | MIC]
Button for selecting the input sensitivity of the mic / line inputs 1 and 2
3 Mic / line inputs 1 and 2, designed as ¼" jack socket, balanced
4 Mic / line inputs 1 and 2, designed as XLR panel socket, balanced
5[PAIR]
To establish a Bluetooth® connection, press and hold the button for three seconds to search for Bluetooth-enabled
devices ready for pairing. The LED ashes. The Bluetooth® list of the device to be paired displays "Bluetooth". Accept
the connection. After a successful connection, the LED lights up continuously.
6[BT/AUX]
Rotary control for setting the input level of the Bluetooth® and AUX signals
Connections and controls
18 D110SP, D112SP, D115SP
active speaker

7[TWS]
With the TWS function (TrueWirelessStereo) you can connect 2 loudspeakers to each other in order to transmit the
Bluetooth® signal in stereo.
To pair two speakers, press and hold the button on the rst speaker that is already connected to a pairing device for
three seconds. The LED ashes. Repeat the process on the second speaker. After successful pairing, the LEDs of both
loudspeakers light up continuously.
8[AUX]
AUX input, designed as a 3.5 mm jack socket (stereo), for connecting line level devices such as MP3 or CD players
9[MASTER]
Rotary control for adjusting the treble and bass in a range of +/- 10 dB for treble and +/- 6 dB for bass
10 [LINE OUT]
Line output, designed as XLR chassis plug. This is where the combined signal from both inputs, the AUX and Blue‐
tooth® inputs, is available aected by DSP and the tone control.
Connections and controls
D110SP, D112SP, D115SP 19
active speaker

11 [SIG/LIMIT]
The LED lights up yellow when a signal is detected at one of the two mic / line inputs. The LED lights up red as soon
as the input level is too high on one of the channels.
Make sure that the LED does not light up red for a long period of time in order to ensure optimal sound quality.
12 [DSP SELECT]
Button to select the DSP function. Repeatedly press the button to choose between the sound programmes [Music],
[Vocal/LowCut], [Live] and [Stage Monitor]. The corresponding LED lights.
13 [VOLTAGE SELECTOR]
Voltage selector
14 [ON] / [OFF]
Mains switch. Turns the device on and o.
15 Fuse holder
16 IEC chassis plug for the power supply
Connections and controls
20 D110SP, D112SP, D115SP
