SZICS NIS-H892 User manual

NIS-H896 User Manual
1
User Manual Ver0.2
NIS-H892
Fanless Embedded Box PC
Intel®Haswell™4th Gen. U-series Processor
SODIMM DDR3 Socket
Intel® HD Graphics Integrated Graphic Card
DVI-I/VGA Display
4 x Intel®I210 GbE LAN
2 x RS232/ IsolationRS485,4X RS232
4 x USB2.0, 2 x USB3.0
+9V~+30V Extended Voltage Input

NIS-H892 User Manual
ii
Copyright
The documentation and the software included with this product are copyrighted 2013 By
SZICS Co., Ltd. All rights are reserved. SZICS Co., Ltd. reserves the right to make
improvements in the products described in this manual at any time without notice.
No part of this manual may be reproduced/ copied/ translated or transmitted in any form or
by any means without the prior written permission of SZICS Co.,Ltd. Information provided
in this manual is intended to be accurate and reliable. However, SZICS Co., Ltd. assumes
no responsibility for its use, nor for any infringements of the rights of third parties which may
result from its use.
Acknowledgements
Award is a trademark of Award Software International, Inc..
VIA is a trademark of VIA Technologies, Inc..
IBM、PC/AT、PS/2 & VGA is a trademark of International Business Machines Corporation.
Intel®, Pentium® is a trademark of Intel Corporation.
Microsoft Windows® is a trademark of Microsoft Corp..
RTL is a trademark of Realtek Semi-Conductor Co., Ltd..
ESS is a trademark of ESS Technology, Inc..
UM is a trademark of United Microelectronics Corporation.
SMI is a trademark of Silicon Motion, Inc..
Creative is trademark of Creative Technology Ltd..
CHRONTEL is a trademark of Chrontel Inc..
All other product names or trademarks are properties of their respective owners.
For more information about this and other SZICS products, please visit our web site at:
http://www.SZICS.com

NIS-H892 User Manual
iii
Product Warranty (1 years)
SZICS warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for one years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by SZICS, or which have been subject to
misuse, abuse, accident or improper installation. SZICS assumes no liability under the
terms of this warranty as a consequence of such events.
Because of SZICS’s high quality-control standards and rigorous testing, most of our
customers never need to use our repair service. If an SZICS product is defective, it will be
repaired or replaced at no charge during the warranty period. For out of warranty repairs,
you will be billed according to the cost of replacement materials, service time and freight.
Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, SZICS products used, other hardware and software used, etc.) Note anything
abnormal and list any onscreen messages you get when the problemoccurs.
2. Call your dealer and describe the problem. Please have your manual, product,and
any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise
authorization) number from your dealer. This allows us to process your return more
quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt) in a
shippable container. A product returned without proof of the purchase dateis not
eligible for warranty service.
Declaration of Conformity
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC part15,CE E50252E,GB9254
Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.

NIS-H892 User Manual
iv
Technical Support and Assistance
1. Visit the SZICS web site at www.SZICS.com/support where you can find the latest
information about the product.
2. Contact your distributor, sales representative, or SZICS's customer service center for
technical support if you need additional assistance. Please have the following information
ready before you call:
– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software,etc.)
– A complete description of the problem
– The exact wording of any error messages
Warnings, Cautions and Notes
Warning! Warnings indicate conditions, which if not observed, can cause
personal injury!
Caution! Cautions are included to help you avoid damaging hardware or
losing data.
Note! Notes provide optional additional information.

NIS-H892 User Manual
v
Safety Instructions
1. Read these safety instructions carefully, Keep this User Manual for later reference.
2. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not
use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall
may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. Do not cover the openings.
8. Make sure the voltage of the power source is correct before connecting the equipment to
the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to
avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only
by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's
manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
15. Do not leave this equipment in an environment where the storage temperature may go
below -20° c (-4° f) or above 60° c (140° f). This could damage the equipment. The
equipment should be in a controlled environment.
16. Caution: danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer, discard used batteries
according to the manufacturer's instructions.
17. Caution: Any unverified component could cause unexpected damage. To ensure the
correct installation, please always use the components (ex. Screws)provided with the
accessory box.
18. Caution: The computer is provided with a battery-powered real-time clock cir-cuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with same or
equivalent type recommended by the manufacture. Discard used batteries according to the
manufacturers’ instructions.

NIS-H892 User Manual
vi
19. Caution: Always completely disconnect the power cord from your chassis whenever
you work with the hardware. Do not make connections while the power is on. Sensitive
electronic components can be damaged by sudden power surges The sound pressure
level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).
Disclaimer: This set of instructions is given according to IEC 704-1. SZICS disclaims
all responsibility for the accuracy of any statements contained herein.
Packing list
Before installation, please ensure the following items have been shipped:
1 x NIS-H892 BOX PC
AC-DC Adaptor，DC 19V@4.7A 90W, with 5.08mm JACK，0~45℃，a perfect solution for
home and office application. 6PIN 3.5mm Phoenix terminal.
Ordering Information
Model Number Description
NIS-H892-I3 Intel®Haswell™ Core®ProcessorI3-4030U1.9GHz，DVI-I/VGA
Display，4 pcs POE Gigabit Network，4 pcs RS232，2 pcs RS232/
Isolation 485 Optional，4USB，Direct 9-30V Input
NIS-H892-I5 Intel®Haswell™ Core®ProcessorI5-4278U3.1GHz，DVI-I/VGA
Display，4 pcs POE Gigabit Network，4 pcs RS232，2 pcs RS232/
Isolation 485 Optional，4USB，Direct 9-30V Input
NIS-H892-I5 Intel®Haswell™ Core®ProcessorII7-4578U 3.5GHz，DVI-I/VGA
Display，4 pcs POE Gigabit Network，4 pcs RS232，2 pcs RS232/
Isolation 485 Optional，4USB，Direct 9-30V Input

NIS-H892 User Manual
vii
Contents
Chapter 1 Product introduction......................................1
1.1!PRODUCT INTRODUCTION .........................................................................................................2!
1.2!FEATURES ....................................................................................................................................2!
1.3!SPECIFICATIONS..........................................................................................................................3!
1.3.1!GENERAL .....................................................................................................................................3!
1.3.2!DISPLAY .......................................................................................................................................4!
1.3.3!ETHERNET.................................................................................................................................... 4!
1.3.4!POWER SUPPLY &CONSUMPTIONS................................................................................................5!
1.4!ENVIRONMENT .............................................................................................................................6!
1.5!OS...................................................................................................................................................1!
1.6!OTHER FUNCTIONS .....................................................................................................................1!
1.7!MECHANICAL DIMENSIONS........................................................................................................2
Chapter 2 Hardware
installation ......................................8
2.1 JUMPER AND INSTALLATION.....................................................................................................4
2.1.1!JUMPER DESCRIPTION...................................................................................................................4!
2.1.2!INSTALLATION EXPLAIN..................................................................................................................5!
2.1.3!JUMPER SETTING.......................................................................................................................... 6!
2.1.4!NIS-H892I/O INDICATION.............................................................................................................7!
2.2!I/O & PIN DEFINITION ...................................................................................................................8
Chapter 3 BIOS settings ................................................15
3.1 BIOS OVERVIEW.........................................................................................................................15
3.2!MAIN MENU.................................................................................................................................16!
3.3!ADVANCED MENU......................................................................................................................17!
3.3.1!ACPI SETTINGS..........................................................................................................................18!
3.3.2!CPU CONFIGURATION.................................................................................................................19!
3.3.3!SATA CONFIGURATION ...............................................................................................................20!

NIS-H892 User Manual
viii
3.3.4!USB CONFIGURATION .................................................................................................................21!
3.3.5!SUPER IO CONFIGURATION .........................................................................................................22!
3.3.6!H/W MONITOR............................................................................................................................23!
3.4!CHIPSET ......................................................................................................................................24!
3.4.1!PCH-IO CONFIGURATION............................................................................................................25!
3.4.2!SYSTEM AGENT (SA) CONFIGURATION.........................................................................................28!
3.5!BOOT MENU................................................................................................................................30!
3.5.1!BOOT CONFIGURATION................................................................................................................30!
3.5.2!BOOT OPTION PRIORITIES ...........................................................................................................31!
3.6!SECURITY MENU ........................................................................................................................31!
3.7!SAVE & EXIT ...............................................................................................................................32
Chapter 4 Software installation ...................................39
4.1 SOFTWARE SERVICE INTRODUCTION....................................................................................33
4.2!ICS PROVIDES SOFTWARE SERVICES AS BELLOW:............................................................33!
4.3!WATCHDOG PROGRAM EXAMPLE.......................................................................................... 33!
4.2.1!WDT PROGRAMMING MODEL ......................................................................................................33!
4.4!GPIO PROGRAM EXAMPLE.......................................................................................................33
Chapter 5 Indexes: A ....................................................42
A.1 SYSTEM I/O ADDRESS...............................................................................................................36
A.2!1ST MB MEMORY MAP ..............................................................................................................36!
A.3!DMA CHANNEL...........................................................................................................................37!
A.4!INTERRUPT .................................................................................................................................37!

NIS-H896 User Manual
1
Chapter 1
Chapter 1
General Introduction

NIS-H892 User Manual
2
1.1 Product Introduction
The fanless embedded computer NIS-H892 is an ideal solution for ready-to-use system
applications. All electronics are protected in a compact, sealed aluminum case. It offers
anti-vibration and dustproof as well as passive cooling solution making it a convenient & flexible
solution for customers embedding in their own cabinet, or to use it as a stand-alone system,
thereby meeting the requirements of limited space and harsh environment.
NIS-H892 is designed as a palm-size fanless embedded system and occupies only 260 x 176 x
49 mm 260*176, The rugged, cast aluminum case not only provides great protection from EMI,
shock/vibration, cold and heat, but also provides passive cooling for quiet, fanless operation.
NIS-H892 supports DVI/VGA three synch. Or asynch. display, 4*GbE LAN，2*USB 2.0,
2*USB 3.0 and 4*RS-232,2*RS-485,2.5” SATA HDD,m-SATA SSD, DC +9V~30V extended
power supply.
1.2 Features
Key Features
Extremely compact, sealed architecture, fanless design and low power
consumption system.
Support Intel®Haswell™ U/Y series low power CPU
Ultra-slim handheld system, support 2.5” SATA HDD/M-SATA SSD
DVI-I /VGA dual synch. & asynch. display, support 4K resolution
4*GbE LAN, 2* USB 2.0, 2*USB3.0,and and 4 x RS232,
2 x RS232/lsolation485
Support VESA/ Desktop installation

NIS-H892 User Manual
3
1.3 Specifications
1.3.1 General
1.3.2 CPU：Intel®Haswell™Celeron® /Core I3/I5/I7 U-series low power Duo Core
CPU
CPU Model
i7-4578U
i5-4278U
i3-4030U
System
Bus
5 GT/s
5 GT/s
5 GT/s
Cache
4 MB Smart Cache
3 MB Smart Cache
3 MB Smart Cache
CPU
Instruction
set
64-bit,SSE 4.1/4.2, AVX
2.0
64-bit,SSE 4.1/4.2, AVX
2.0
64-bit,SSE 4.1/4.2, AVX
2.0
CPU
Process
22 nm
22 nm
22 nm
CPU Core
2 core 4-thread
2 core 4-thread
2 core 4-thread
Frequency
3 GHz
2.6 GHz
1.9 GHz
Max.Turbo
Boost
3.5 GHz
3.1 GHz
TDP
28 W
28 W
15 W
Memory
Type
Low voltage DDR3-1600
Low voltage DDR3-1600
Low voltage DDR3-1600
Integrated
Graphics
Intel® Iris™ Graphics
5100
Intel® Iris™ Graphics
5100
Intel® HD Graphics
4400
Graphics
Frequency
200MHz-1.2GHz
200MHz-1.1GHz
200MHz-1GHz
Graphics
Resolution
4K
4K
4K
System Chipset: Intel®Haswell™ SOC chipset, integrated Graphic card
BIOS：AMI 16 Mbit Flash BIOS
System Memory: SODIMM socket, DDR3L-1600, Support Max. 16GB
Watchdog Timer: 255-level interval timer, setup by software
Serial Port:
-2 x RS232/RS485 jumper setting, RS485 supports 3000V magnetic isolation,
automatic flow control;
-4 x RS232，Support 4000V Surge protection;
USB：

NIS-H892 User Manual
4
-2 * USB 2.0
-2 * USB 3.0
Auto: High definition auto encoding
-Realtek ALC6622 audio card, with MIC/áudio output
Expansion Bus: Support 2* full-size Mini-PCIe, 3G UIM card,
Storage
-Support Msata SSD and 1* 2.5”SATAIII HDD（9.5 mm）
1.3.3 Display
Chipset: Intel®HD4000、HD5000 Graphics,200MHz-1.2GHz frequency
DVI/VGA dual synch. & asynch. display,
Resolution: support Max. 4K resolution
GPUprovides hardwareacceleratorfor video/pictures, such as
decoding stream medias like AVC, JPEG, MotionJPEG, MVC
（Multi-viewVideoCoding）&SVC（ScalableVideoCodec） etc..
FrameRateConversionfunctionmakingdisplaymoresmooth.
Supportvideoanti-shake,highframerateJEPGetc..
1.3.4 Ethernet
Chipset: Intel® I210 GbE LAN, support 4000V lightning surge protection
Speed: 10/100/1000 Mbps, suppot Wake-on-Lan & Link/Speed LED indicator
Connector: 4* RJ45, support 48V@500mA POE 1500Vrms isolated power
supply
Standard: In compliance with IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE
8023y、IEEE 802.ab

NIS-H892 User Manual
5
1.3.5 Power Supply & Consumptions
Power Input: DC +9V ~ +30 V
Adaptor: AC ~ DC 19V/4.7A，90W
Power On Type: AT / ATX Jumper selection
APM : ACPI 3.0, APM

NIS-H892 User Manual
6
Power Consumption:
Power Test Conditions:
–Test Condition: Windows 7 professional Professional, Burntest ver5.3, 32G SSD
–Idel Mode: The power consumption without running any application software after
entering to Windows system.
–Boot Mode: The max. Power consumption between power-on and entering to
system process.
–Full-load Mode: The power consumption under 100% full-load operation of CPU
and graphic card when running Burntest.
RTC Battery: Lithium 3 .3V/55mAH CR2302 battery, rechargeable and
supports -40° C-80° C extended working temp..
1.4 Environment
Operating Temp.:
-20 ~ 60° C（extended temp. SSD/mSATA device,I5/I7 28W CPU）
-20 ~ 70° C（extended temp. SSD/mSATA device,I3 CPU）
0 ~ 50° C（HDD）
Relative Humidity: 95% @ 40°C（Non-condensing）
Storage Temp.: -40 ~ 85°C (-40 ~ 185°F) n
Operating Anti-vibration:
–With SSD/mSATA：3Grms, IEC60068-2-64, random, 5 ~ 500Hz, 1 hr/axis
Voltage
I3-4030U 1.9GHz
CPU(Fanless)
I5-4258U 3.1GHz
CPU(Fanless)
I7-4578U 3.5GHz
CPU(Fanless)
Current
Power
Current
Current
Power
Current
Idel Mode
+12V
0.5
6
1.2
14.4
1.2
14.4
Boot Mode
+12V
1.1
13.2
2.5
30
2.5
30
Full-load Mode
+12V
2.2
26.4
3.4
44.2
3.4
44.2

NIS-H892 User Manual
7
Operating Anti-Shock:
–With SSD/mSATA：30G, IEC60068-2-64, half-sine,11ms duration time.
Safety: In compliance with UL,CCC
EMC/ROSH：CE, FCC A, ROSH certificate

NIS-H896 User Manual
1
1.5 OS
Support Win7, Win8,WES7, Win CE 7.0, and Linux
1.6 Other Functions
!Power switch, power indicator
!1-255 sec. watchdog
!12 bits, support routine, self-define I/O, 3.3V@24mA

NIS-H892 User Manual
2
1.7 Mechanical Dimensions

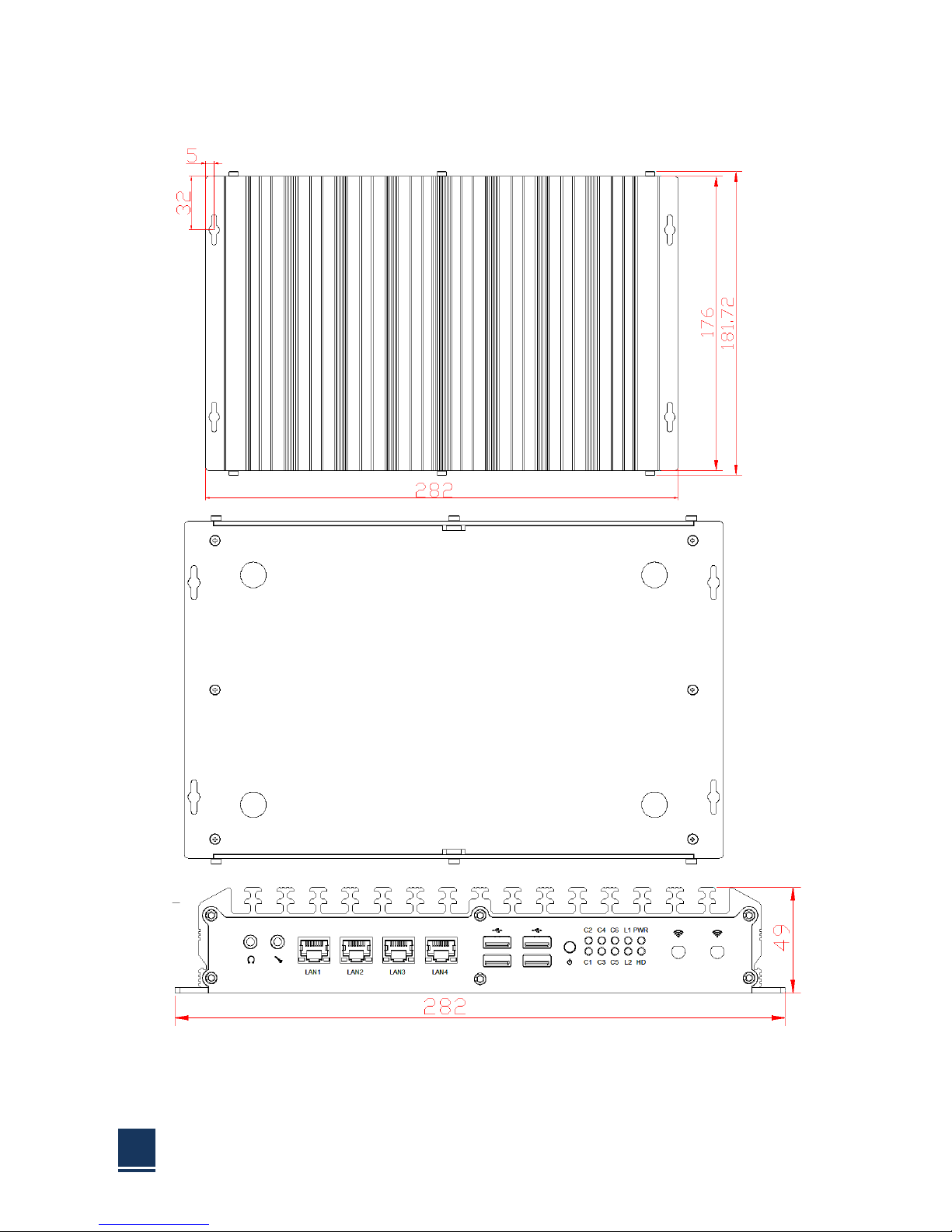

Figure 1.7 NIS-H892 mechanical dimension drawing

NIS-H892 User Manual
3
Chapter 2
Chapter 2
Hardware Installation

NIS-H892 User Manual
4
2.1 Jumper and installation
2.1.1 Jumper Description

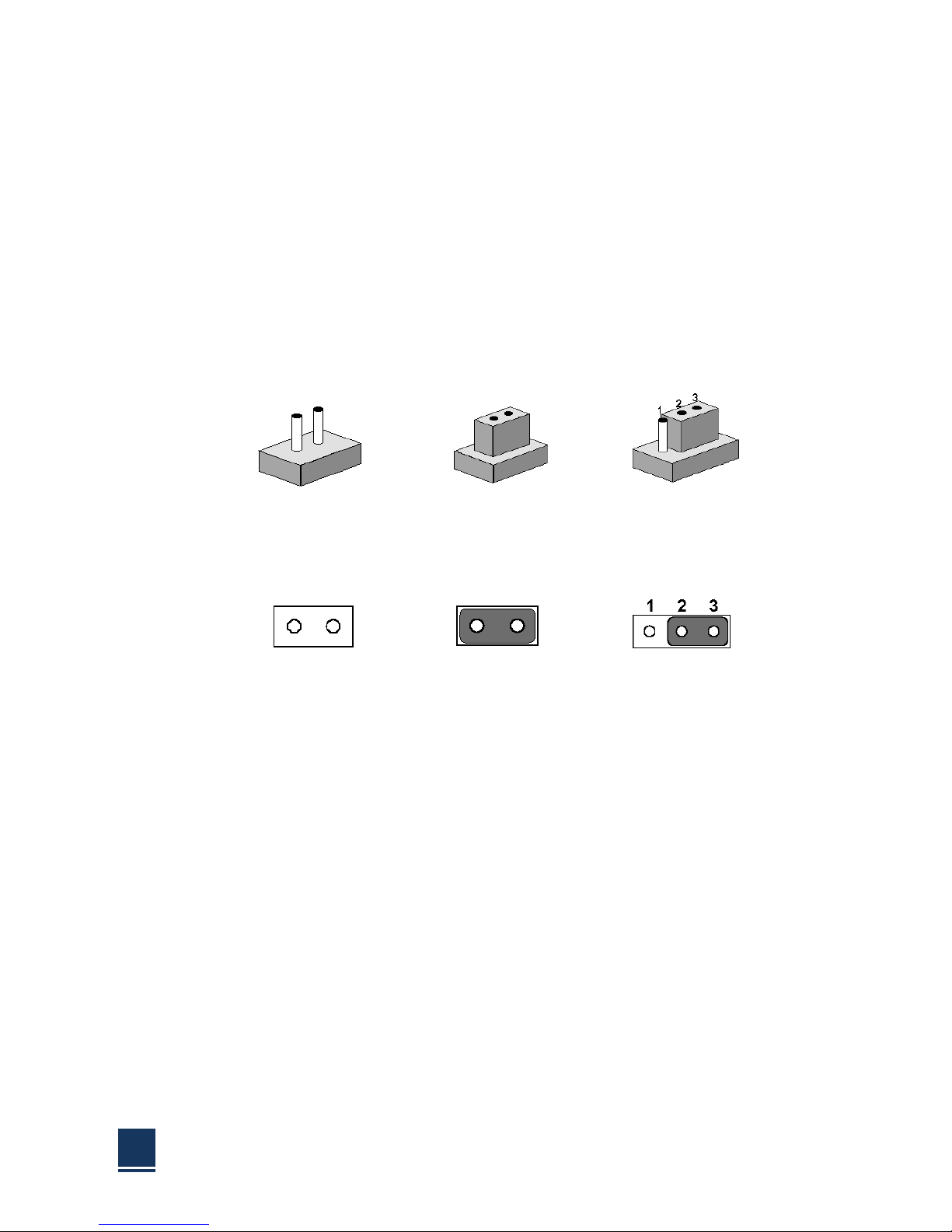

Board can be configured via jumper setting. The jumper is a metal bridge used to
form a closed electric circuit. It consists of two metal pins and a jumper cap (inside is metal
clip, outside is plastic cover for protection purpose). Putting on the jumper cap to form a
closed electric circuit, while removing the jumper cap to disconnect the circuit. Sometimes a
jumper will have three pins, labeled as pin1, pin2 and pin3. In this case the user can
connect either pins 1 and pin2, or pin2 and pin3.
Please refer to bellow:

NIS-H892 User Manual
5
2.1.2 Installation Explain
Unscrew pan head fixed chassis around 8 M2.5, remove the lower cover of the computer
case can be carried out from the bottom, hard disk, M-SATA, memory, Mini-PCIe equipment
installation. And can be set up to the corresponding functional jumper.
