Tab LiFePO4 User manual

www.tab.si
TAB LI-ION BATTERIES
Lithium Iron Phosphate Batteries
6.4V • 12.8V • 25.6V
USER MANUAL

User Manual
Dear customer,
this manual contains all relevant information necessary to install, use and maintain
the TAB Lithium Iron Phosphate Batteries, either 6.4V, 12.8V and 25.6V batteries.
Read this manual carefully before installing and using the product. In this manual,
our Lithium batteries as described above, will be referred to as: Sealed Lead Acid
Replacement Batteries.
This manual is meant for the installer and the user of the LiFePO4 batteries. Only
qualied, certied personnel may install and perform maintenance on the Sealed
Lead Acid Replacement Batteries.
Please consult the index at the start of this manual to read information relevant
to you.
This is the original manual, keep it at a safe location!

Contents
1. Introduction 5
1.1. Product Description 5
1.2. Glossary of Terminology 5
2. Product Specication 5
2.1. Product Features & Benets 5
2.2. Product List 7
2.3. Environmental Conditions 9
2.4. Product Lay-out and Connections 9
2.5. Operation Modes 10
3. Safety Guidelines and Measures 10
3.1. General 10
3.2. Disposal 11
4. Installation 11
4.1. General Information 11
4.2. Unpacking 11
4.3. Preparing the Battery for Use 11
4.3.1. Location of the LiFePO4 battery 11
4.4. Connection Cables (+ and -) 11
4.5. Connecting a Charger to the LiFePO4 Battery 12
4.6. Connecting Batteries in Parallel to a Charger Device 12
4.7. DC Load Connected - Discharge Protection 13
4.8. Parallel Battery Use 13
5. Battery Use 14
5.1. General Information 14
5.2. Charging 14
5.3. Charging Rate 14
5.3.1. Charging Method 15
5.3.2. Battery Balancing 16
6. Inspection, Cleaning and Maintenance 17
6.1. General information 17
6.2. Inspection 17
6.3. Cleaning 17
7. Storage 18
7.1. General information 18
8. Disposal and Recycling 18
8.1. General Information 18
9. Warranty and Liability 19

1. Introduction
1.1. Product Description
TAB’s Sealed Lead Acid Replacement Batteries are Lithium Iron Phosphate
rechargeable batteries. Lithium Iron Phosphate (LiFePO4) technology is considered
as the latest and safest lithium technology available in the market.
Potential applications of this TAB LiFePO4 battery include: recreational
vehicles/Caravans, boats, mobile homes, industrial energy storage solutions.
1.2. Glossary of Terminology
BMS: Battery Management System
Charge cycle: A period of use from fully charged, to fully discharged, and fully
recharged again
Endurance Life-cycle: The products maximum lifespan, achieved by following the
guidelines presented in this manual
LiFePO4: Lithium Iron Phosphate
SoC: State of Charge
CC-CV: Constant Current - Constant Voltage
2. Product Specication
2.1. Product Features & Benets
• Replacement for sealed lead acid batteries
• Traction battery behavior
• Lithium Iron Phosphate (LiFePO4): Safe lithium technology
• High performance, even under extreme conditions
• Integrated BMS (Battery Management System)
• Fast charging and discharging
• Very ecient, no charge factor
• Maintenance free
• Adaptive cell balancing
• Low self-discharge
5

Optional
• Smart Battery Monitoring System
• DC Disconnect by Latch Relay (external discharge protection)
• Smart battery charging by Handi/ Supreme/ Supreme Pro chargers
• Smart battery charging by DC alternator with smart regulator (ACR)
• Solar charging by WP solar + smart MPPT regulator
• LED/LCD Display
Article Nr. 6.4V 12.8 V 25.6 V

Nominal Voltage (V) 6.4 V 12.8 V 25.6 V
Charge Cut-off Voltage 7.8V 15.6 V 31.2 V
End Charge Voltage 7.3 VDC +- 0.2 V 14.6 VDC +- 0.2 V 29.2 VDC +- 0.2 V
Cycle Life @ 1C 100% DOD >2000 cycles (Clever)
>4000 cycles (Premium)
>2000 cycles (Clever)
>4000 cycles (Premium)
>2000 cycles (Clever)
>4000 cycles (Premium)
Monthly Self Discharge <3% <3% <3%
Temperature Range (Charging) 0°C to 45°C 0°C to 45°C 0°C to 45°C
Temperature Range (Discharging) -20°C to +60°C -20°C to +60°C -20°C to +60°C
Temperature Range (Storage) 0°C to +40°C 0°C to +40°C 0°C to +40°C
Water Dust Resistance IP56 IP56 IP56
Cell Conguration 2S 4S 8S
Cell Size 18650/26650 18650/26650 18650/26650
Cell Chemistry LiFePO4, Lithium Iron Phosphate Battery
Battery Housing ABS Plastic, UL V0-94
6

2.2. Product List
7


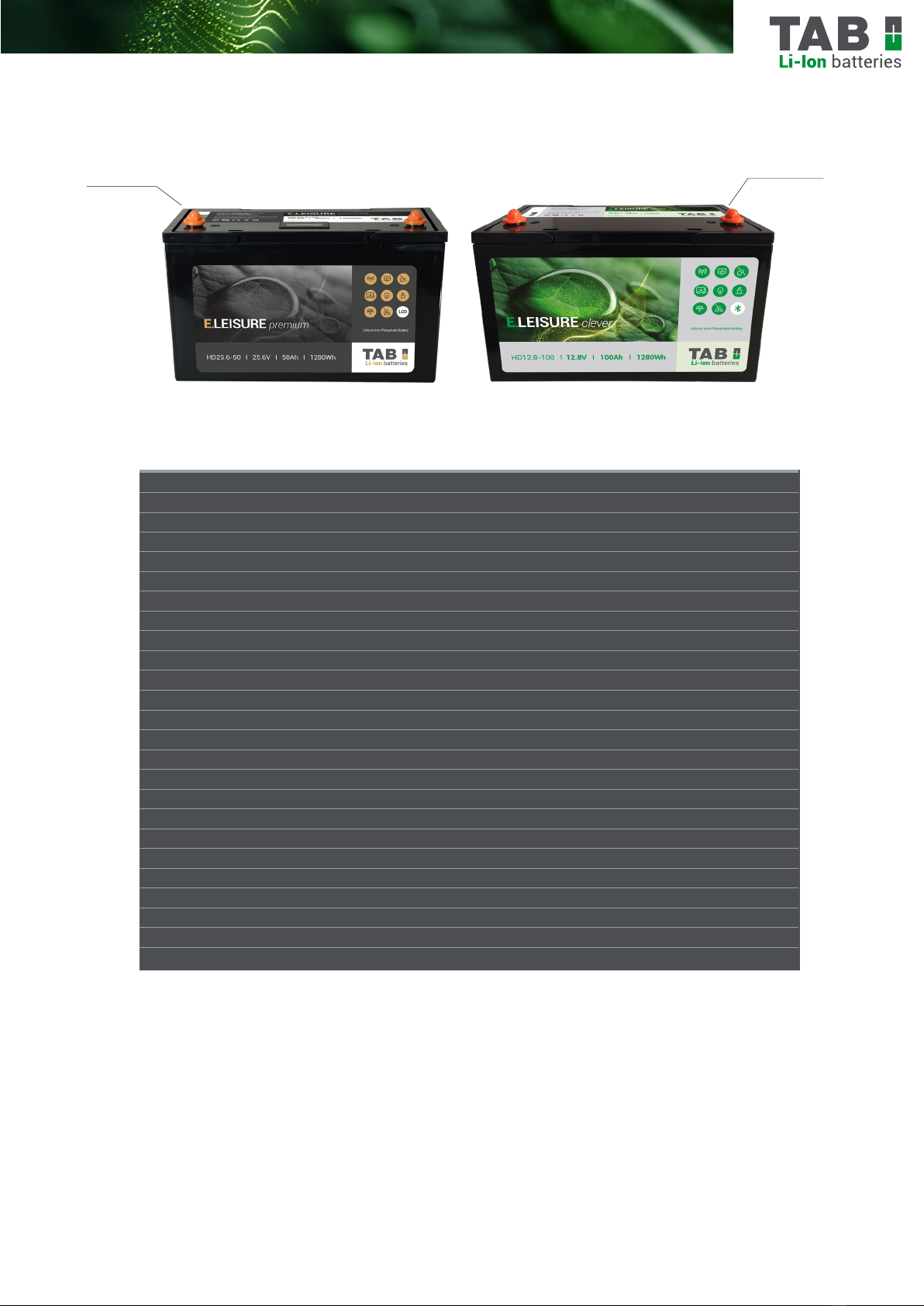

Dimensions (mm) Weight
Code V Ah Wh L W H Kg Terminal
HD 12-7,5 C 12,8 7,5 96 152 65 95 1,1 F1
HD 12-10 C 12,8 10 128 152 100 95 1,2 F1
HD 12-12 C 12,8 12 153,6 152 100 95 1,3 F2
HD 12-20 C 12,8 20 256 181 77 168 2,4 M5
HD 12-33 C 12,8 33 422,4 195 130 180 4,8 M6
HD 12-40 C 12,8 40 512 197 165 170 5,3 M6
HD 12-50 C 12,8 50 640 228 140 215 6,8 M6
HD 12-65 C 12,8 65 832 260 168 210 8,1 M6
HD 12-75 C 12,8 75 960 260 168 210 8,8 M6
HD 12-80 C 12,8 80 1024 260 168 210 9,2 M6
HD 12-100 C 12,8 100 1280 330 173 212 11,6 M8
HD 12-100L C 12,8 100 1280 335 175 195 11,6 M8
HD 12-120 C 12,8 120 1536 410 175 225 13,6 M8
HD 12-150 C 12,8 150 1920 483 170 238 17,6 M8
HD 12-200 C 12,8 200 2560 522 240 224 23,5 M8
HD 12-250 C 12,8 250 3200 522 240 224 27,8 M8
HD 12-300 C 12,8 300 3840 522 240 224 32,5 M8
HD 24-50 C 25,6 50 1280 330 173 212 12,5 M8
HD 24-75 C 25,6 75 1920 483 170 238 17,6 M8
HD 24-100 C 25,6 100 2560 522 240 224 22,7 M8
HD 24-150 C 25,6 150 3840 522 240 224 32,5 M8
E.Leisure premium E.Leisure clever

8

Dimensions (mm) Weight
Code V Ah Wh L W H Kg Terminal
HD 6.4-4.5 P 6,4 4,5 28,8 90 70 101 0,6 F1
HD 6.4-7.5 P 6,4 7,5 48 152 34 101 0,9 F1
HD 6.4-10 P 6,4 10 64 152 51 101 1,2 F1
HD 12-4,5 P 12,8 4,5 57,6 90 70 106 0,8 F1
HD 12-6.0 P 12,8 6 76,8 90 70 106 0,8 F1
HD 12-7,5 P 12,8 7,5 96 152 65 95 1,1 F1
HD 12-10 P 12,8 10 128 152 100 95 1,2 F1
HD 12-12 P 12,8 12 153,6 152 100 95 1,3 F2
HD 12-18 P 12,8 18 230,4 181 77 168 2,2 M5
HD 12-20 P 12,8 20 256 181 77 168 2,4 M5
HD 12-26 P 12,8 26 332,8 166 175 125 3,2 M5
HD 12-33 P 12,8 33 422,4 197 130 180 4,8 M6
HD 12-40 P 12,8 40 512 197 165 170 5,3 M6
HD 12-45 P 12,8 45 576 197 165 170 5,7 M6
HD 12-50 P 12,8 50 640 228 140 215 6,8 M6
HD 12-55 P 12,8 55 704 228 138 228 7,5 M6
HD 12-60 P 12,8 60 768 228 138 228 7,9 M6
HD 12-65 P 12,8 65 832 260 168 210 8,1 M6
HD 12-75 P 12,8 75 960 260 168 210 8,8 M6
HD 12-80 P 12,8 80 1024 260 168 210 9,2 M6
HD 12-100 P 12,8 100 1280 330 173 212 11,6 M8
HD 12-100S P 12,8 100 1280 305 168 210 11,6 M8
HD 12-100L P 12,8 100 1280 335 175 195 11,6 M8
HD 12-120S P 12,8 120 1536 330 173 212 13,6 M8
HD 12-120 P 12,8 120 1536 410 175 225 13,6 M8
HD 12-150 P 12,8 150 1920 483 170 238 17,6 M8
HD 12-200 P 12,8 200 2560 522 240 224 23,5 M8
HD 12-250 P 12,8 250 3200 522 240 224 27,8 M8
HD 12-300 P 12,8 300 3840 522 240 224 32,5 M8
HD 12-16 P 12,8 16 204,8 168 128 75 2,2 T bar
HD 12-18 P 12,8 18 230,4 181 77 167 3,0 T bar
HD 12-22 P 12,8 22 281,6 168 128 126 3,0 T bar
HD 24-6 P 25,6 6 153,6 152 99 96 1,7 F2
HD 24-10 P 25,6 10 256 181 77 167 2,8 M5
HD 24-20 P 25,6 20 512 195 130 180 4,8 M5
HD 24-50 P 25,6 50 1280 330 173 212 12,5 M8
HD 24-75 P 25,6 75 1920 483 170 238 17,6 M8
HD 24-100 P 25,6 100 2560 522 240 224 22,7 M8
HD 24-125 P 25,6 125 3200 522 240 224 29,6 M8
HD 24-150 P 25,6 150 3840 522 240 224 32,5 M8

2.3. Environmental Conditions
Caution! TAB’s LiFePO4 batteries may only be used in conditions specied in this
manual. Exposing the LifePO4 battery to conditions beyond the specied bound
varies may lead to serious damage to the product and/or the user. Use the LiFePO4
battery in a dry, clean, dust free, well ventilated space. Do not expose the LiFePO4
battery to re or water or solvents.
When the batteries are placed in an enclosed environment without air circulation, it
is advised to provide 2 ventilation holes of 100 mm x 100 mm each, to prevent heat
built-up.
2.4. Product Lay-out and Connections
Recommended charge temperature range 0°C to +45°C
Discharging operating temperature range -20°C to +60°C
Short term (<1 month) storage temperature range -10°C to +35°C
Long term (>1 month) storage temperature range 23 ± 5°C
Relative humidity 10-90%
1. (–) Terminal to connect charger/consumer
2. (+) Terminal to connect charger/consumer
3. Handle for lifting
4. Bottom (we advise to install the bottom in position as shown on the image)
1
3
2
4
9

2.5. Operation Modes
Discharge mode
When the LiFePO4 battery voltage is below 2.5 V/Cell.
Deep discharge mode
For example, with 12V battery, when the LiFePO4 voltage is below 6 V. The LiFePO4
battery is not usable anymore, and cannot be repaired, only recycled. Make sure the
batteries are not deeper discharged than 10 VDC.
3. Safety Guidelines and Measures
3.1. General
• Do not short-circuit TAB LiFePO4 battery.
• Treat TAB LiFePO4 battery as described in this manual.
• Do not dismantle, crush, puncture, open or shred TAB LiFePO4 battery.
• Do not expose TAB LiFePO4 battery to heat or re. Avoid exposure to direct sunlight.
• Do not remove TAB LiFePO4 battery from its original packaging until required for
use.
• In the event of TAB LiFePO4 battery leaking, do not allow the liquid to come in
contact with the skin or eyes. If contact has been made, wash the affected area with
copious amounts of water and seek medical advice.
• Use battery charger devices that are capable to charge TAB LiFePO4 battery.
• Observe the plus (+) and minus (–) marks on TAB LiFePO4 battery and equipment
and ensure correct use.
• Do not use any battery which is not designed for use with TAB LiFePO4 battery.
• Do not mix batteries of different manufacture, capacity, size or type within a device.
• Keep TAB LiFePO4 battery clean and dry.
• Secondary batteries need to be charged before use. Always use the correct charger
and refer this manual for proper charging instructions.
• Do not leave TAB LiFePO4 battery on continuous charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge TAB
LiFePO4 battery several times to obtain maximum performance.
• Retain the original product documentation for future reference.
Warning! Keep the battery away from water, dust and contamination.
Warning! Do not crush or puncture the battery.
Warning! Never touch the battery contacts or allow (conductive) objects to touch
the contacts.
10
