Tad Da1000 User manual

TAD-DA1000

D/A CONVERTER

CONVER TISSEUR N/ A

D/ A-WANDLER

CONVERTITORE D/A

CONVER TIDOR D / A

ÞĄþăȅȄàȀȃȀ ĀȄùȄȁĉÿÞāȅȂȄøȅ ȀýȄȁȀ ȇȂĀĊ

數位類比轉換器

OWNER ’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

MANUALE D’ISTRUZIONI

MANUAL DE INSTRUCCIONES

ȅĂȖȄȁȄúȆȇȁȄÞāȄĀĊýȄȁȀȇȂĀč

用戶手冊

WARNING

This equipment is not waterproof. To prevent a fire or

shock hazard, do not place any container filled with

liquid near this equipment (such as a vase or flower

pot) or expose it to dripping, splashing, rain or

moisture.

D3-4-2-1-3_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space

around the unit for ventilation to improve heat radiation

(at least 10 cm at top, 10 cm at rear, and 10 cm at each

side).

WARNING

Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the product,

and to protect it from overheating. To prevent fire

hazard, the openings should never be blocked or

covered with items (such as newspapers, table-cloths,

curtains) or by operating the equipment on thick carpet

or a bed.

D3-4-2-1-7b*_A1_En

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL. D3-4-2-1-1_B1_En

WARNING

To prevent a fire hazard, do not place any naked flame

sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity:

+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH

(cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in

locations exposed to high humidity or direct sunlight (or

strong artificial light)

D3-4-2-1-7c*_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the

plug by tugging the cord and never touch the power

cord when your hands are wet as this could cause a

short circuit or electric shock. Do not place the unit, a

piece of furniture, etc., on the power cord, or pinch the

cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed such that they

are not likely to be stepped on. A damaged power cord

can cause a fire or give you an electrical shock. Check

the power cord once in a while. When you find it

damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement.

S002*_A1_En

This product is for general household purposes. Any

failure due to use for other than household purposes

(such as long-term use for business purposes in a

restaurant or use in a car or ship) and which requires

repair will be charged for even during the warranty

period.

K041_A1_En

CAUTION

The switch on this unit will not completely shut off

all power from the AC outlet. Since the power cord

serves as the main disconnect device for the unit,

you will need to unplug it from the AC outlet to shut

down all power. Therefore, make sure the unit has

been installed so that the power cord can be easily

unplugged from the AC outlet in case of an accident.

To avoid fire hazard, the power cord should also be

unplugged from the AC outlet when left unused for a

long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

English

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong. The wide blade or the third

prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

10)

Only use attachments/accessories specified by

the manufacturer.

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

Unplug this apparatus during lightning storms

or when unused for long periods of time.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

D3-7-13-69_En

11)

12)

13)

14)

U.S. model only

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1b_A1_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the

product may expose you to chemicals listed on

proposition 65 known to the State of California and

other governmental entities to cause cancer and

birth defect or other reproductive harm.

Wash hands after handling.

D36-P5_B1_En

TAD-DA1000

U.S. model only

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Product Name: D/A Converter

Model Number: TAD-DA1000

Responsible Party Name: PIONEER ELECTRONICS (USA) INC.

SERVICE SUPPORT DIVISION

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810-1003, U.S.A.

Phone: 1-800-421-1404

URL: http://www.pioneerelectronics.com

D8-10-4*_C1_En

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

CAUTION

This product satisfies FCC regulations when shielded

cables and connectors are used to connect the unit

to other equipment. To prevent electromagnetic

interference with electric appliances such as radios

and televisions, use shielded cables and connectors

for connections.

D8-10-3a_A1_En

Information to User

Alterations or modifications carried out without

appropriate authorization may invalidate the user’s

right to operate the equipment.

D8-10-2_A1_En

English

European model only

U.S., Canada model only

PRECAUTIONS IN USE

Installation Location

For installation, select astable location near the television or

stereo system with which the unit will be used.

To ensure long product life, avoid installing this

unit in the following locations:

• Locations exposed to direct sunlight

• Humid or poorly ventilated areas

• Areas of extreme temperatures

• Areas with vibration

• Dusty or smoky areas

• Areas exposed to grease fumes, steam or heat

(such as akitchen)

Do not place objects on top of the unit

Do not place objects on top of the TAD-DA1000.

To prevent adverse affects of heat

Do not install the TAD-DA1000 on top of amplifiers or other

components that generate heat. When installing in arack,

try by all means to install the TAD-DA1000 in aposition

below amplifiers or other components that generate heat.

Turn off power when not in use

Depending on the signal condition of television broadcasts,

if the television is turned on when the TAD-DA1000 is already

on, anoise may appear on the television screen. Audible

noise may likewise occur when listening to the radio when

TAD-DA1000 is already turned on. This phenomenon does

not indicate amalfunction of either the television, radio

tuner, or the TAD-DA1000. In this event, turn off the power to

the TAD-DA1000.

Maintenance

To clean the TAD-DA1000, use apolishing cloth to gently

wipe the unit’ssurface to remove dust. If the surface is

extremely dirty, wipe with asoft cloth dipped in neutral

cleanser diluted five to six times with water and wrung out

well. Do not use volatile chemicals such as paint thinner or

benzenes, as these may corrode the surface of the panels.

Do not use sprays such as insecticides around the TAD-

DA1000. If you plan on using achemical cleaning cloth, read

the precautionary statements of the chemical cleaning cloth

before using.

English

CONTENTS

PRECAUTIONS IN USE .........................................................................................................................................6

Installation Location .........................................................................................................................................................................6

Maintenance .....................................................................................................................................................................................6

INTRODUCTION ...................................................................................................................................................8

Features.............................................................................................................................................................................8

BEFORE YOU START............................................................................................................................................9

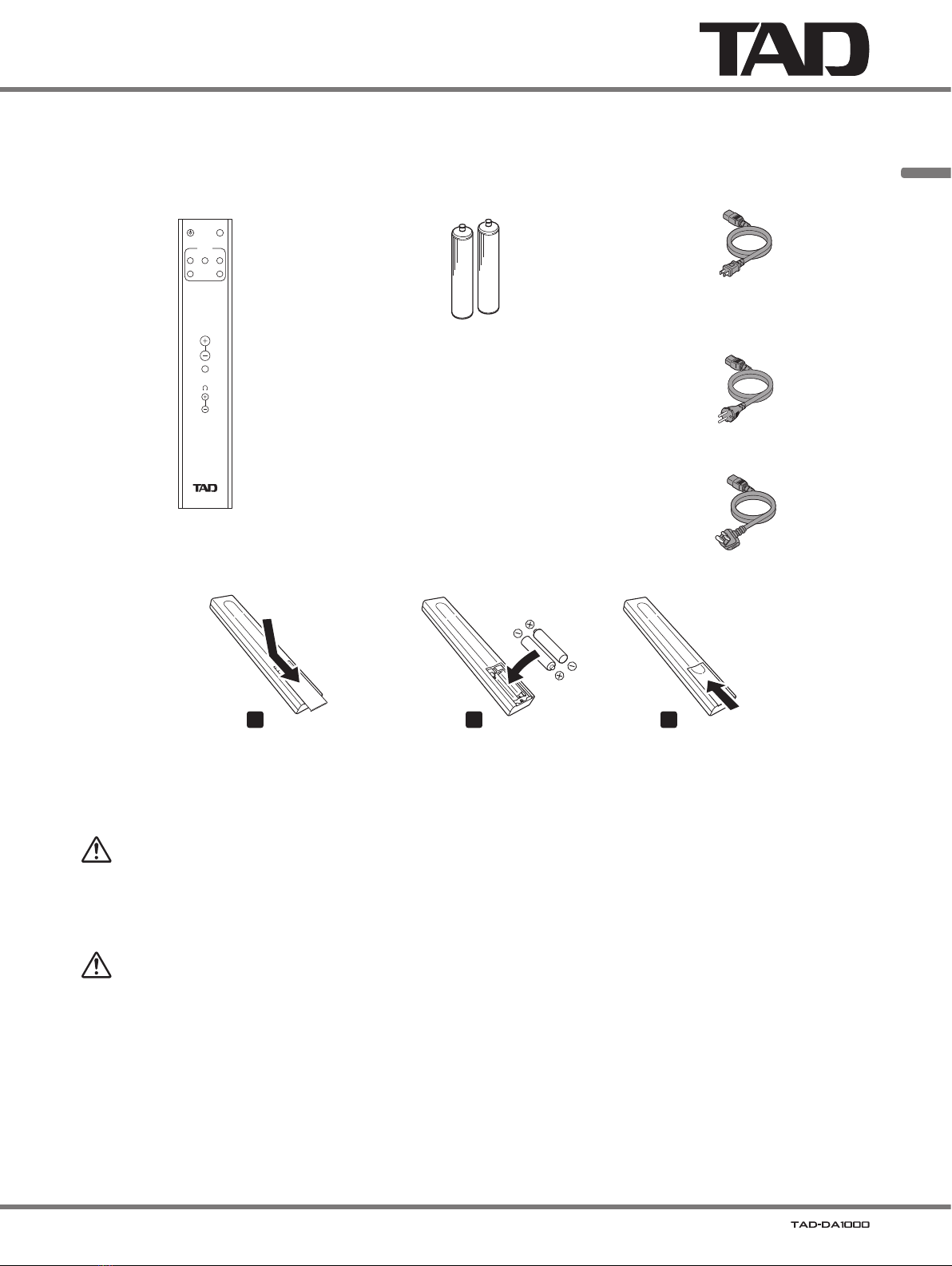

Checking what’sin the box..............................................................................................................................................9

Inserting the battery .........................................................................................................................................................9

NAMES OF PARTS AND THEIR FUNCTIONS .....................................................................................................10

Main unit front panel......................................................................................................................................................10

Main unit rear panel.......................................................................................................................................................11

Remote Control Unit ......................................................................................................................................................12

INSTALLATION AND CONNECTIONS ................................................................................................................13

Installation.......................................................................................................................................................................13

Connecting up ................................................................................................................................................................14

SPECIAL SETTINGS.............................................................................................................................................15

Changing the TAD-DA1000 input mode .......................................................................................................................15

Adjusting the sound volume..........................................................................................................................................15

To fix the line output levels at their maximum.............................................................................................................15

Changing the display mode...........................................................................................................................................15

USB connections (default settings)..............................................................................................................................16

USB 2 (AudioClass 2.0) ..................................................................................................................................................................16

Listening with suppressed DSD signal output ............................................................................................................17

ECO (power saving) mode .............................................................................................................................................17

ALL RESET.......................................................................................................................................................................17

TROUBLESHOOTING..........................................................................................................................................18

SPECIFICATIONS ................................................................................................................................................20

Thank you for buying this TAD product. Please read through these operating instructions so you will know how to operate your

model properly. After you have finished reading the instructions, put them away in asafe place for future reference.

INTRODUCTION

Inspiring the joy of listening

Technical Audio Devices Laboratories, Inc. (TADL) grew from the spirit to discover technologies to perfectly recreate the pure

sound of live performances with uncompromising craftsmanship. We have inherited our philosophy from Bart Locanthi—

recognized across the globe as the ultimate sound technologist—who believed that genuine technology is true to the basics

and that genuine technology places greater importance on sound quality than on technology for its own sake.

At TADL, we are honing our technology to create equipment that reproduces musical sounds that evoke both the energy and

impact of live music.

Features

Ultra-high C/N* ratio Master Clock featuring UPCG**

Reduction of the total amount of master clock jitter has been previously suggested as ameans of attaining even higher levels

of sound quality, TAD Labs has taken this astep further, focusing on reduction of jitter in the low-frequency sideband ranges

relative to the center frequencies, and to that end, anew Ultra-high-Precision Crystal Generator (UPCG) has been developed.

Based on technologies developed for high-speed digital base-station relay facilities, the master clock with its dedicated

oscillators and high-purity conductivity deliver the ultimate performance demanded by aCD player, allowing it to reproduce to

perfection the signals engraved on the disc.

*C/N: Carrier-to-Noise ratio

**UPCG: Ultra-high-Precision Crystal Generator

Twin Differential D/A Converters

Twin Burr-Brown digital-audio converters are connected in parallel for improved audio performance in all metrics, including S/

Nratio, linearity, dynamic range, and distortion. These features allow even delicate audio signals to be played back faithfully,

creating agreater degree of breadth in musical reproduction.

Power unit

The TAD-DA1000 features large independent proprietary toroidal transformers in the analog and digital sections, allowing

each and every signal to be followed with high response, thus realizing both powerful performance and low noise.

High-Rigidity Construction with Low Center of Gravity

Highly rigid aluminum chassis suppresses effects from external vibrations. Placement of the massive heavy base has been

designed to lower the center of gravity, thus further reducing vibrations. These design elements have made it possible to

reproduce music signals with great stability while avoiding the vibration caused by speaker pressure and other sources.

High-precision D/A converter

Signal conversion is performed through ahigh-precision D/Aconverter and sampling rate converter, with reclocking

performed by an ultra-high-purity master clock.

USB

With the USB input, PCM signals are supported up to amaximum sampling rate of 384 kHz, and maximum 32 bits, while also

supporting DSD signals’ DoP format transmission (maximum sampling rate depends on combination with Mac OS).

Line output volume

The unit is equipped with aline-output volume, allowing the user to compose asimple system merely by connecting to a

power amplifier. The unit is also furnished with an independent headphones volume controller.

English

BEFORE YOU START

Checking what’s in the box

Please check that you have received the following supplied accessories in the accessory box.

Remote control unit x1

DAC DISP

VOLUME

MUTE

D/A CONVERTER

USB

INPUT

AAA/IEC R03 dry cell batteries×2

Operating Instructions

(this document)

Power cord (U.S., Canada model)

Power cord (Europe, Asia model)

2 pins plug type (For use in Europe

except in the UK)

3 pins plug type (For use in the UK,

Singapore, Malaysia, Hong Kong)

Inserting the battery

1 2 3

The accessory batteries have been included for confirming unit operation only; as aresult, they may quickly deteriorate and

lose their ability to power the remote control.

Replace the batteries when you notice areduction in the operating range of the remote control unit.

WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside acar or near aheater. This can

cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Do not place batteries in locations accessible to infants or small children. If accidentally swallowed, consult medical

attention immediately.

CAUTION

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

Never use new and old batteries together.

When loading batteries into the battery case, do not bend the battery case’sminus (−)terminal with the end of the battery,

since it could cause ashort circuit, leakage of battery fluid, and/or unnatural heating.

Insert the plus and minus sides of the batteries properly according to the marks in the battery case.

Use type AAA (SUM-4)Manganese (R03)or Alkaline (LR03)dry cell batteries.

When not using the remote control for along period of time (1 month or more), remove the batteries from the remote

control, to prevent damage from inadvertent leakage. If battery leakage occurs, wipe up any battery exudate from inside the

case and replace with new fresh batteries.

When disposing of used batteries, please comply with governmental regulations or environmental public institution’srules

that apply in your country or area.

Main unit front panel

1 2 3

510

7 83

NAMES OF PARTS AND THEIR FUNCTIONS

1 

Power button

Use to set power to ON/standby mode.

2 Power indicator

Lights to indicate the unit’spower status.

Lighted yellow: ON (unit can be operated).

Off: Standby (indicates power cord is connected and unit

is in standby mode).

3 INPUT button

Use to select the input source.

4 VOL (

−

/+) buttons

Use to adjust sound volume at the unit’sline

output connectors (ANALOG OUTPUT: BALANCED/

UNBALANCED).

Note

These buttons are deactivated in their default factory-

shipped status, and output is fixed at its maximum

value. To activate these buttons, hold the VOL (−)

button depressed for several seconds.

5 Display

The display provides graphic information about the TAD-

DA1000’smany operations and functions.

6 Remote control sensor

Point remote control unit at this sensor to operate.

Effective distance is within about 7 meters (23 ft.).

7 DISP button

Use to change or hide information items shown in the

display.

8 MUTE button

Press to temporarily turn off playback sound.

9 Headphones volume (

−

/+) buttons

Use to adjust the headphone sound volume.

10 Headphones jack

Insert headphones jack here.

CAUTION

When using the volume function and connecting directly to apower amplifier (without using apre-amplifier), be sure

to make the connection only after setting the volume to “0” (zero).If the connection is made with the volume set to its

default value (maximum), the speakers could be damaged.

When going on vacation, or otherwise leaving the unit unused for an extended period of time, the power plug should

be disconnected from its power outlet.

English

Main unit rear panel

USB XLR COAXIAL OPT

DIGITAL INPUT

XLR COAXIAL

12 V

TRIGGER

D4D1 D2 D3

BALANCED UNBALANCED

LLRR

AC IN

1 52 43 6

1 ANALOG OUTPUT connectors

Connect to Pre-Amplifier.

• BALANCED XLR type

• UNBALANCED RCA type

2 USB port

Use to connect aUSB cable to computer.

3 DIGITAL INPUT connectors

Connect to acomponent equipped with adigital output

connector.

• XLR (balanced) type (D1)

• COAXIAL type (D2,D3)

• OPT (optical) type (D4)

4 12 V TRIGGER IN connector

When this connector is connected to another component

equipped with 12 Vtrigger, the connected component can

be used to switch this unit’spower ON/standby.

Connector: Ø 3.5 mm monaural mini-jack

Operating conditions:

• During standby mode, when input signal’svoltage goes

from Lto H(power ON mode).

• During power ON mode, when input signal’svoltage

goes from Hto L(standby mode).

When an Hsignal value is input to the 12 Vtrigger

connector, the unit’spower switch cannot be used to

switch the unit to the standby mode.

5 DIGITAL OUTPUT connectors

Connect to acomponent equipped with adigital input

connector.

• XLR (balanced) type

• COAXIAL type

6 AC IN connector

Connect the supplied power cord here.

Remote control unit

DAC DISP

VOLUME

MUTE

D/A CONVERTER

USB

INPUT

1 6

30°

7 m (23 ft.)

Remote sensor

Remote

control unit

Remote control operating range

When using the remote control unit to operate the TAD-DA1000, point the remote

control at the main unit’sremote sensor within the ranges shown in the accompanying

illustration.

The remote control may not operate properly if obstructions exist between the

remote control unit and the remote sensor, or if the angle between the remote

control and the remote sensor is poor.

Malfunctions may occur if the TAD-DA1000 is used nearby other appliances that

emit infrared light, or if remote control units for other devices utilizing infrared light are used nearby. Alternately, using

this remote control unit near other appliances that also utilize infrared light may cause those appliances to malfunction.

Replace the batteries when you notice areduction in the operating range of the remote control unit.

The remote control may not operate correctly if strong sunlight or light from fluorescent lamps is allowed to strike the

remote sensor directly. In such cases, change the installation location, or remove the fluorescent lamps to amore

distant location.

1 

DAC button

Use to set power to ON/standby mode.

2 INPUT buttons

Use to select the input source.

3 VOLUME (+/

−

) buttons

Use to adjust sound volume at the unit’sline

output connectors (ANALOG OUTPUT: BALANCED/

UNBALANCED).

These buttons are deactivated in their default factory-

shipped status, and output is fixed at its maximum value.

To activate these buttons, hold the main unit’sVOL (−)

button depressed for several seconds.

4 MUTE button

Press to temporarily turn off playback sound.

When the MUTE mode is active, the volume display will

show [ - - ].

5 Headphones volume (

−

/+) buttons

Use to adjust the headphone sound volume.

6 DISP button

Use to change or hide information items shown in the

display.

English

Installation

WARNING

Install the

unit

in aflat, level and stable location that provides fully sufficient strength to support the

unit

’sweight, since

damage or personal injury may occur if the

unit

falls from its installation. When installing on abookshelf or similar

structure, be sure to confirm first that the shelf structure has sufficient strength.

Never set other items on top of the

unit

,or cover the

unit

with cloths or sheets, since heat dispersion may be impaired,

leading to unnatural heat buildup and potential damage.

INSTALLATION AND CONNECTIONS

CAUTION

When installing the

unit

,allow aminimum 10 cm clearance from adjacent walls or barriers. In order to facilitate heat

dispersion, the

unit

should be installed at some distance from other electric components. When installing the

unit

on arack, aminimum of 10 cm clearance should be provided above, behind, and to the sides of the

unit

.Leaving

insufficient ventilation space around the

unit

may lead to excessive heat buildup and the potential for fire.

Never install the

unit

on arug, cushion or other soft surface, or in anarrow location that may interfere with natural air

flow around the

unit

Connecting up

CAUTION

Do not turn on the power switch to the TAD-DA1000 or the other components until all connections have been completed.

When connecting components or changing connections, always set the power switch to OFF and disconnect the power

cord from its AC outlet. When making connections, connect the power cord last.

• Although the power cord to the TAD-DA1000 is removable, do not attempt to use a power cord

other than the supplied cord.

1. Connect other components.

2. Connect the supplied power cord to the TAD-DA1000’s AC IN connector.

3. Connect the power cord to a standard electrical outlet.

USB XLR COAXIAL OPT

DIGITAL INPUT

XLR COAXIAL

12 V

TRIGGER

D4D1 D2 D3

BALANCED UNBALANCED

LLRR

AC IN

1: Ground

2: Hot

3: Cold

BALANCED

output connector

(XLR-3-31 equivalent)

1. Turn on power to both the unit

and computer.

2. Switch the unit’s input to U1.

3. Using a USB cable, connect

the computer and unit; when

this is done the proper driver

will be automatically installed

(page 16).

Component with digital output connector

Component with digital input connector

Computer with USB port Component

with 12 V trigger output connector

Pre-Amplifier with balanced input connectors Pre-Amplifier with unbalanced input connectors

Power cord

(supplied)

To AC

Power outlet

English

SPECIAL SETTINGS

Changing the TAD-DA1000 input mode

Press the INPUT button on the main unit’s front-panel (or one of the INPUT buttons on the remote control unit).

Each time the front-panel INPUT button is pressed, the input mode will change in the following order:

D1 (XLR)U1 or U2 (USB input) D2 (coaxial)

D3 (coaxial)D4 (optical)

In the factory default condition, when an input signal is detected, the signal’ssampling rate will be displayed. When no

input signal is detected, the display will show [ - - - ].

The sampling rate display is in units of kHz; fractional decimal points are omitted.

In the case of DSD signals, [ dSd ] is displayed for 2.8 MHz modulation, and [ dSd2 ] is displayed for 5.6 MHz modulation.

When the display mode is changed, if an input signal is detected, the display will show [ U1 ]; if no input signal is

detected, the display will show [ U1- - ].

Adjusting the sound volume

Adjusting the balanced/unbalanced line output level

In the factory default condition, the line output VOL (−/+) buttons and the remote control’scenter VOLUME (+/−) buttons are

disabled. The volume output is factory preset at 78 (maximumvalue).

Press and hold the main unit’s VOL (

−

) button.

The main unit’sVOL (−/+) buttons and the remote control’scenter VOLUME (+/−) buttons will be enabled. In addition,

the display will switch from showing the sampling rate to the line output volume.

When the main unit’sVOL (−/+) buttons and the remote control’scenter VOLUME (+/−) buttons are enabled, the

initial default output value will be 30.

Note

When using the volume function and connecting directly to apower amplifier (without using apre-amplifier), be sure to

make the connection only after setting the volume to “0” (zero).If the connection is made with the volume set to its default

value (maximum), the speakers could be damaged.

Adjusting the headphones volume

Press the volume (−/+) buttons located beside the headphones jack, or the volume (+/−) buttons under the headphones

symbol on the remote control unit.

The default value is preset at 50.This value can be adjusted independently of the balanced/unbalanced line output

values.

To fix the line output levels at their maximum

1. Press the main unit’s VOL (+) button (at the left of the display) until the display indicates the maximumvalue of 78.

2. With the value set to its maximum, press and hold the VOL (+) button.

The line output level will be fixed at the maximum value, and the main unit’sVOL (−/+) buttons and the remote

control’scenter VOLUME (+/−) buttons will be disabled. When this is done, the display will change from showing the

line output volume to showing the sampling rate.

Changing the display mode

Press the DISP button on either the main unit or the remote control unit.

Each time the button is pressed, the display mode will change in the following order:

When line output value is fixed

When line output value is adjustable

Line output volume (example: [ U1 L 50 ]) Headphones output volume (example: [ U1 H 50 ])

Sampling rate (example: [ U1 44 ])Display OFF

Sampling rate (default value: sound volume fixed) (example: [ U1 44 ])

Headphones output volume (example: [ U1 H 50 ])

Display OFF

USB connections (default settings)

By using aUSB cable to connect this unit to acomputer, the unit can be used to play music files stored on the computer

(depending on the type of media stored on the computer).

1. Use the main unit’s INPUT button to set the unit to U1 input.

2. Turn on power to the computer.

3. Use a USB cable to connect the unit to the computer; the proper driver will automatically be installed.

Note

U1 supports USB AudioClass 1.0.

Supported sampling rates include 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.

Supports USB 2.0 High-speed.

Functionality has been confirmed with Windows 8 (64 bit), Widows 7,Windows Vista (32 bit), Mac OS 10.8,Mac OS 10.7,

Mac OS 10.6.Functionality has not been confirmed for other operating systems and versions.

To play music with high sampling rates (96 kHz/24 bit, 88.2 kHz/24 bit, etc.), it may be necessary to adjust software settings

on your computer. For details, consult the specifications for the playback software used on your computer.

USB 2 (AudioClass 2.0)

In addition to the USB default mode, the USB 2 (AudioClass 2.0 DoP) mode, supporting DoP format with 176.4 kHz, 192

kHz, 352.8 kHz, 384 kHz, and DSD signal transmission may be used.

When using aWindows terminal device, PCM data is transmitted up to 192 kHz sampling, and DSD data up to 2.8 MHz

sampling (as of October, 2013).

Note

Functionality has been confirmed with Windows 8 (64 bit), Widows 7,Windows Vista (32 bit), Mac OS 10.8,Mac OS 10.7,

Mac OS 10.6.

When using aMac computer, set the unit’sinput to U2,then use aUSB cable to connect the unit to acomputer; the

proper driver will then be automatically installed.

1. When using a Windows terminal device, consult the TAD website (http://tad-labs.com) and download the proper driver.

Consult the TAD website for driver installation instructions.

• Manual driver installation is unnecessary for Mac users. The driver will be installed automatically when the unit is

connected to acomputer via USB cable.

• To make use of internet connections, users must conclude acontract with an internet service provider and pay

whatever fees are required.

2. With the unit in standby mode, simultaneously press the main unit’s INPUT button and power button.

The USB input display will change from [ U1 ] to [ U2 ].

3. Turn on power to the computer.

4. With the unit connected to the computer via USB cable, change the unit’s input to U2.

5. To cancel the current mode, switch the unit to standby mode, then press the power button while holding the main

unit’s INPUT button depressed.

The current mode can also be canceled by using ALL RESET.

CAUTION

If aWindows terminal device is used without the unit driver installed, or if aMac OS version (10.5,etc.) is used without

support for the USB 2 mode, do not set the unit for USB 2 mode and connect the unit to the computer, since the computer

may lock up.

Note

Digital output with USB input

When the input is aDSD signal, the signal will be converted to PCM 88.2 kHz and output.

When the input signal has asampling rate of 384 kHz or 354.8 kHz, the signal will be output after being converted to 192

kHz and 176.4 kHz respectively.

Signals with other sampling rates will be output at the same rates as input.

English

Listening with suppressed DSD signal output

If the DSD signal output from the USB is excessively loud and sound is distorted, you can suppress the output level to make it

easier to listen. At the time of purchase, the DSD modulation rate is factory preset to 50 % (high output level).

While holding the main unit’s front-panel MUTE button depressed, press the headphones volume (−) button.

Each time the button is pressed, the DSD modulation rate alternates between 50 % (high output level) and 100 % (low

output level).

ECO (power saving) mode

When this function is enabled, if no input signal is detected for 30minutes, the unit automatically enters the standby mode.

U.S. model : ECO OFF (factory default setting)

European model: ECO ON (factory default setting)

1. With the unit in standby mode, hold the main unit’s headphones volume (+) button depressed, then simultaneously press

the power button. The ECO (power-saving) mode will be enabled (unit will automatically enter standby mode after 30

minutes of no signal activity).

The display will then show the [ ECO ON ] message.

2. During standby mode, hold the main unit’s headphones volume (−) button depressed, then simultaneously press the power

button. The ECO (power-saving) mode will be disabled (unit will not automatically enter standby mode).

The display will then show the [ ECO OFF ] message.

ALL RESET

To return all settings to their factory defaults.

The default USB mode is AudioClass 1.0.

European model only: this setting sets the ECO (power saving) mode to ECO OFF.

With the unit in standby mode, hold the MUTE button depressed, then simultaneously press the power button.

TROUBLESHOOTING

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this

component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components

and electrical appliances being used. For information regarding computer settings, consult the TAD website (http://tad-labs.

com). If the trouble cannot be rectified even after exercising the checks listed below, ask your dealer.

SymptomPossible cause Remedy

No sound is produced

even when input is

correctly set.

Input connector is not connected correctly. Check the connection.

The mute mode has been set (the “0” indicator

is flashing).

Press the MUTE button on the main unit or

remote control to cancel the mute mode.

Sound is too low. Adjust the volume.

Noise is audible even

when no input is

selected.

Noise is present in the power source itself. Check your computer’spower wiring; are too

many plugs connected to the same power outlet?

No sound is produced

for digital input.

Digital connection is not correct. Check the digital connection.

On aCD player equipped with digital output

level adjustment, the output level is set too low.

Adjust the player’sdigital output level to an

appropriate level.

The file format is not supported by the

computer’sdigital playback software.

If the output device is set to anon-PCM audio

signal format (Dolby Digital, DTS, etc.), set it to

PCM.

No sound is produced

for USB input.

The computer is set to adifferent input

component.

The computer’smute function is ON.

Check the computer’ssound settings.

Connections are wrong.

The unit is not detected by the computer.

After the unit is connected to the computer,

if the unit’sinput is switched to USB, the

computer’ssound setting may switch to a

different input component. In this case, reselect

TAD-USB1 or TAD-USB2Das the input.

Check the connections again.

The file format, OS, or playback software is not

supported.

Confirm that the OS, software, and file sampling

rate are supported (page 16).

The USB input’s

sampling rate is always

the same.

Depending on the computer’ssetting, the

sampling rate may remain the same even

when playback files have different sampling

rates.

Check the computer settings.

Computer sounds

(other than music

sounds) are audible

from the USB input.

Depending on computer settings, the

computer’sboot-up beeps or error sounds may

be audible from the unit.

Check the computer settings.

When input is set to

something other than

USB, the unit can’t

play music files on the

computer’splayback

software.

When not set to USB input, the computer

doesn’trecognize the unit.

Switch to USB input, and reset the computer’s

sound setting to TAD-USB1 or TAD-USB2D.

Power can’tbe turned

off.

The 12 Vtrigger input connector’ssignal is at

“H” value.

Turn off the power to the device generating the

12 Vtrigger output.

The power turns off by

itself.

If the ECO (power-saving) mode is turned ON,

the unit will automatically enter standby mode

if no operation is performed on the unit for 30

minutes.

Set the ECO (power-saving) mode to OFF (page

17).

English

SymptomPossible cause Remedy

Display is not visible. The display viewing angle is within 45° to right/

left from the front of the unit.

View the display from immediately in front of the

unit.

The unit is set to display off. Press the DISP button to disable the display off

mode.

The remote control

doesn’twork.

The remote control’sbatteries are expended.

The remote control is being used too far

away from the main unit.

Angle is bad.

Line of sight to the main unit is blocked.

Strong light from afluorescent lamp or

other light source is directly striking the

signal receiver.

Replace the batteries with new ones.

Use the remote control from within adistance

of 7 meters (23 ft.), and within an 30° arc to

right/left of the unit’sfront panel.

Remove obstacles between the main unit

and remote control, or change to adifferent

location when operating the remote control.

Readjust the position of lamps or other light

sources so that strong light does not strike the

signal receiver.

Static electricity or other external influences may cause malfunctioning of this unit. In this case, unplug the power cord and

then plug back in. This will usually reset the unit for proper operation. If this does not correct the problem, please consult your

dealer.

This unit is designed as aconsumer audio product (audio/video component). It is not designed for long continuous

use as acommercial BGM source, nor for use in automobiles, ships, or outdoors.

SPECIFICATIONS

Body

Model type............................................................................................................................................................................D/Aconverter

Input connectors:

Digital .................................................................................................. XLR x1; Coaxial x2; Optical x1; USB (Standard Btype) x1

Supported sampling frequency (XLR/Coaxial) .................................... 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Supported sampling frequency (Optical) ..............................................................................44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Supported sampling frequency (USB)..........................................................................44.1 kHz*1,48 kHz*1,88.2 kHz*1,96 kHz*1

176.4 kHz*1,192 kHz*1,352.8 kHz*2,384 kHz*2

*1Windows 8,Windows 7,Windows Vista, Mac OS 10.6 or later

*2 Mac OS 10.6 or later

USB operating environment:

USB port...............................................................................................................................................................USB 2.0 High-speed

Output connectors:

Digital .....................................................................................................................................................................XLR x1; Coaxial x1

Analog ..................................................................................................................................................Balanced x1, Unbalanced x1

Rated output voltage ............................................................................................... Balanced 4 V; Unbalanced 2 V(1 kHz 0dB)

S/Nratio..................................................................................................................................................................................115 dB

Frequency response (Sampling rate 88.2 kHz or more)......................................................................... 10 Hz to 40kHz, −1dB

Frequency response (Sampling rate 44.1 kHz) ....................................................................................... 10 Hz to 20kHz, −1dB

Headphones output jack..................................................................................................................................................................... 1

Recommended impedance ........................................................................................................................................ 8 Ωto 600 Ω

Output voltage................................................................................................................................................................1.7 V(32 Ω)

Power requirements:

U.S., Canada model.....................................................................................................................................................AC 120V, 60Hz

Europe, Asia model ........................................................................................................................... AC 220Vto 240V, 50Hz/60Hz

Power consumption .........................................................................................49 W(Power consumption on Standby: 0.5 Wor less)

External dimensions....................................................440mm (W) × 150mm (H) × 406 mm (D) (maximum external dimensions)

17 11/32 in. (W) × 5 29/32 in. (H) × 16 in. (D)

Weight ...............................................................................................................................................................................16.5 kg (36.4 lb)

Accessories

Remote control unit.................................................................................................................................................................................. 1

AAA/IEC R03 dry cell batteries................................................................................................................................................................ 2

Power cord

Operating Instructions (This document)

Note
