Taico TK10200 User manual

1

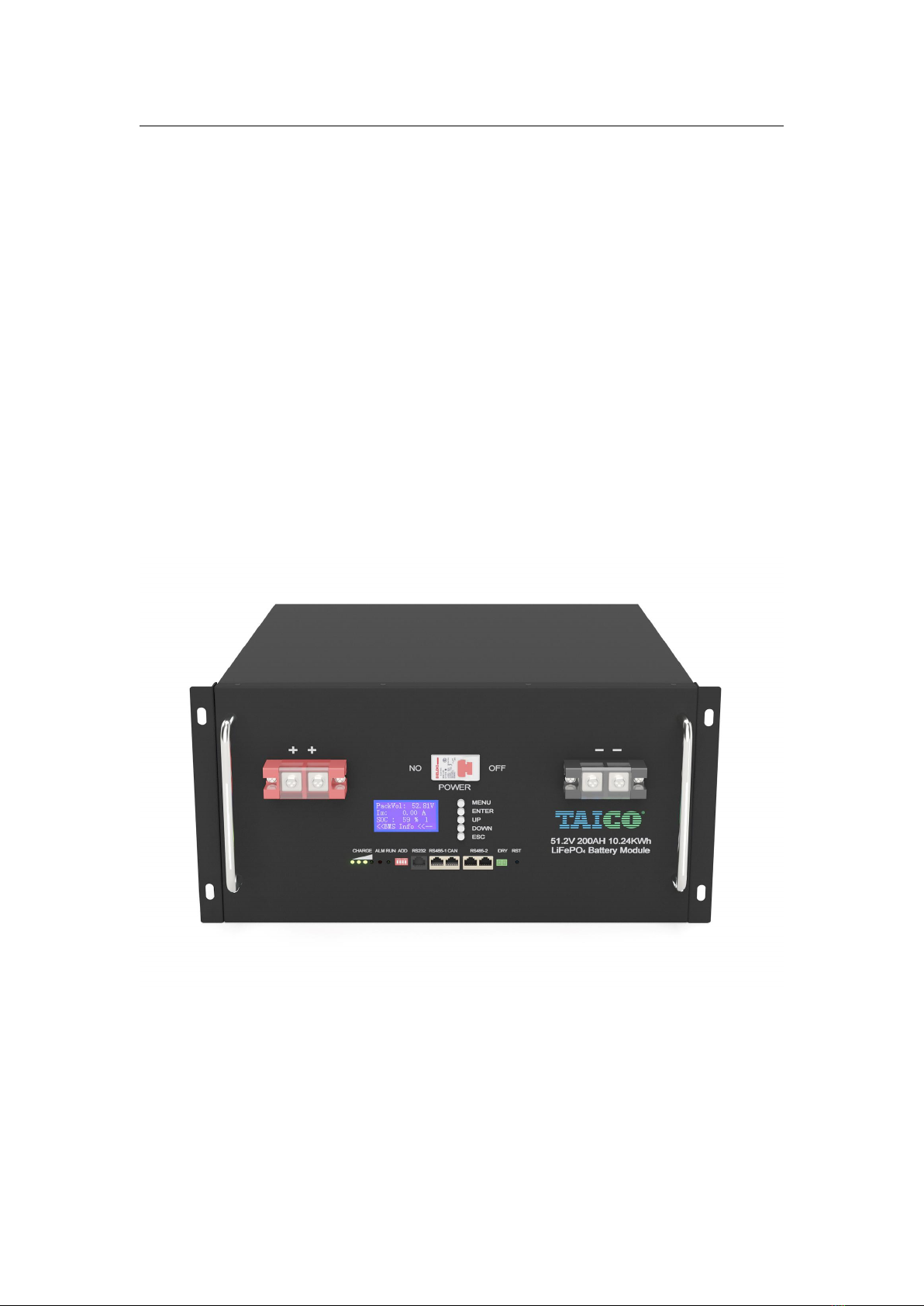

TK10200 (51.2V 200Ah)
Lithium Iron Phosphate Battery
User Manual

2
Directory
Directory..................................................................................................... 2
1. Notes.......................................................................................................3
2. Introduction............................................................................................4
3. Characteristics...................................................................................... 4
4. Parameter Specifications.................................................................... 5
4.1 Dimensions...................................................................................... 5
4.2 Battery Parameters.........................................................................5

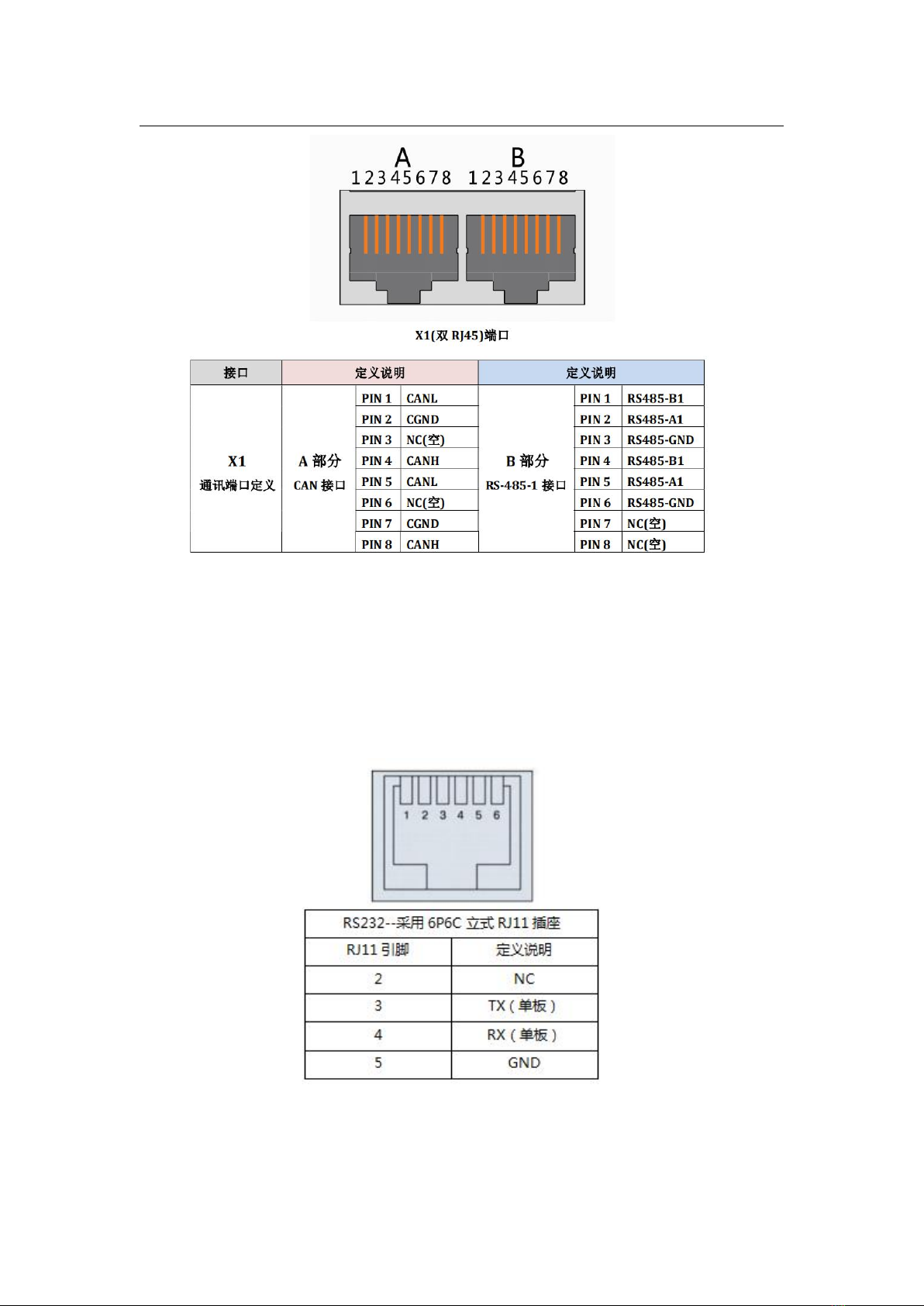

4.3 Interface Definitions........................................................................6
5. LiFePO4 Battery Safety Operating Guidelines............................... 9

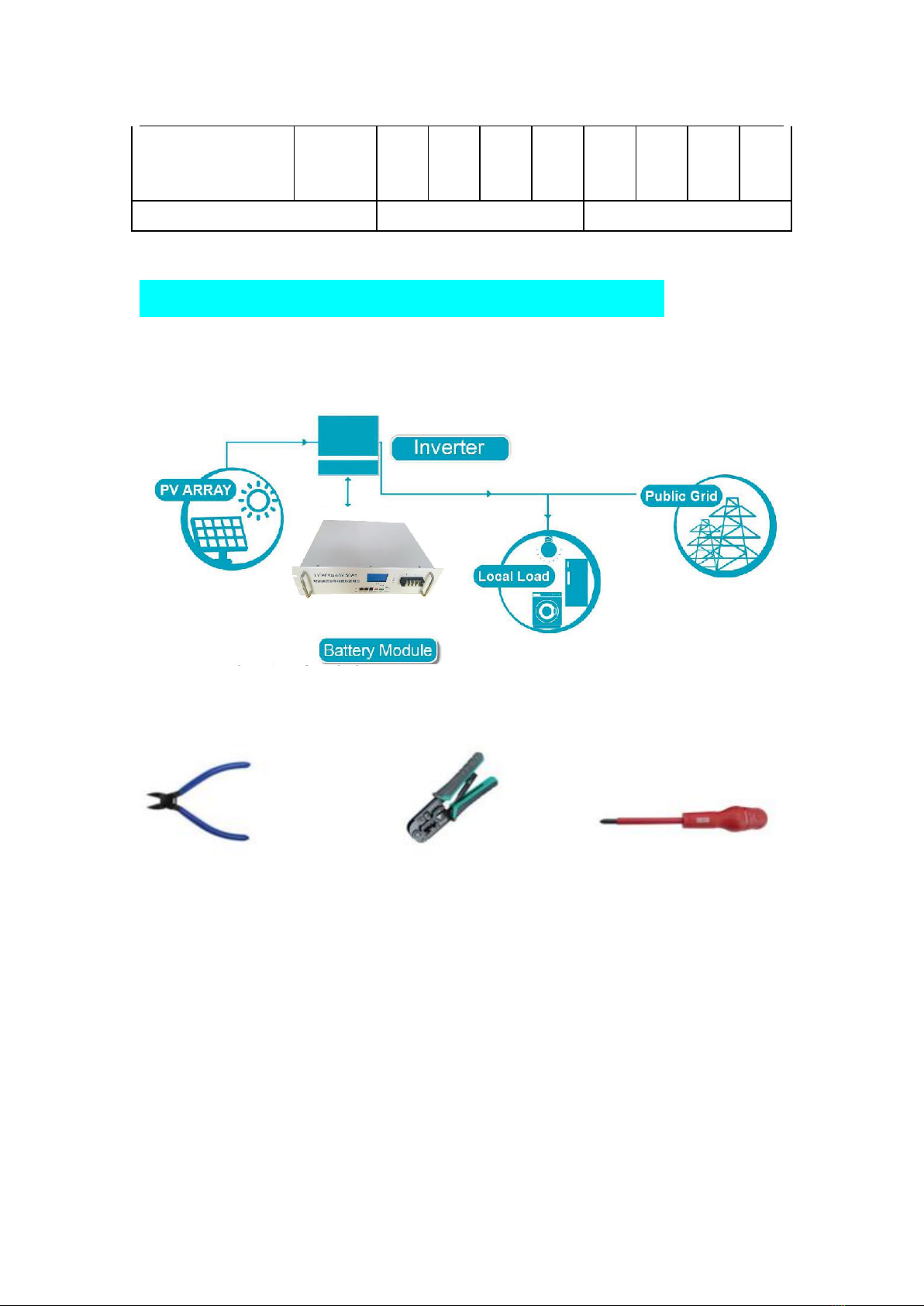

5.1 Application Schematic....................................................................9
5.2 Tools..................................................................................................9
5.3 Security equipment.........................................................................9
6 Installation.............................................................................................10
6.1 Installation location.......................................................................10

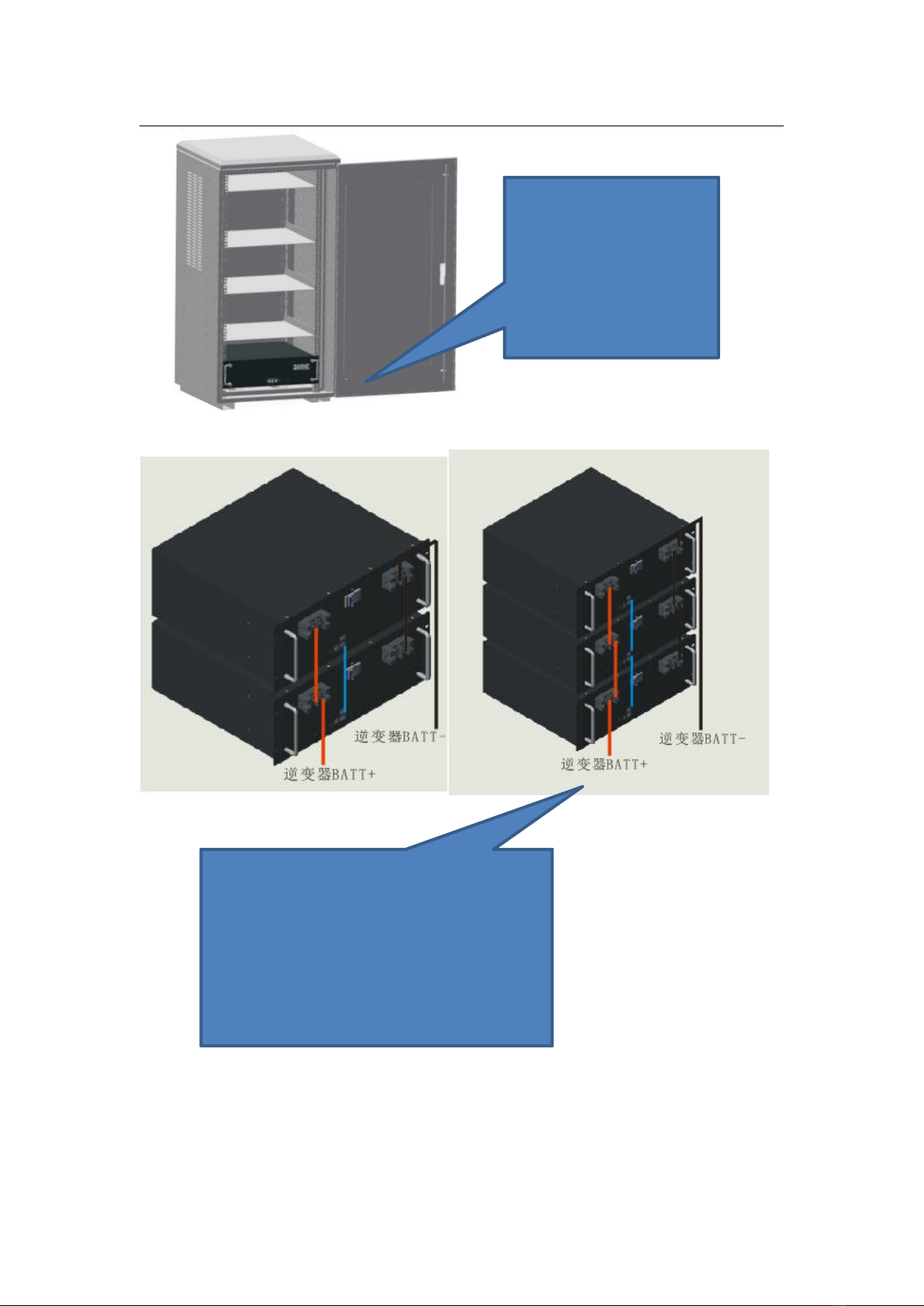

6.2 Installation...................................................................................... 10
7. Maintenance Precautions ............................................................. 11
8. FAQ Analysis and Solutions .........................................................11

3
1. NOTES
Attention!
（1）It is important and necessary to read the user manual carefully before
installing or using the battery. The safety precautions mentioned in this manual
do not represent all safety matters to be observed and only complement all
safety precautions;
（2）When installing, operating and maintaining equipment, local safety
regulations shall be observed and followed;
（3）Do not wear any conductive objects such as watches, bracelets, and
rings when installing, operating and maintaining equipment;
（4）If the battery is stored for long before installation, it needs to be charged
and discharged every six months, and the battery charge percentage shall not
be less than 70%;
（5）If the battery is fully discharged, it should be charged within 12 hours;
（6）Before maintenance, batteries and equipment must be cut off firstly;
（7）Do not use cleaning solvents to clean batteries;
（8）Do not expose batteries to flammable or irritating chemicals or vapors;
（9）Do not connect batteries directly to photovoltaic solar wires;
（10）Our company is not responsible for any loss caused by violation of
general safety operation requirements or violation of design, production and
use of equipment safety standards.
Warning!
1.1 Before Installation
1.1.1 After unpacking, please check the product and packing list first, if the
product is damaged or missing any parts, please contact the seller;
1.1.2 Before installation, cut off the power supply and ensure the battery is
off;

4
1.1.3 Wiring must be correct, do not mistake positive(+) and negative(-)
cables, and ensure the external devices are not short-circuited;
1.1.4 Direct connection of batteries and AC power is prohibited;
1.1.5 Battery protection system is designed for 48V DC, no series
connections allowed;
1.1.6 Please ensure that the electrical parameters of the battery system
are compatible with the relevant equipment;
1.1.7 Keep the battery away from water and fire.
1.2 Usage
1.2.1 If the battery system needs to be moved or repaired, the power must
be cut off and the battery completely stops working;
1.2.2 It’s prohibited for connecting this battery to other different type of
batteries;
1.2.3 It’s prohibit for connecting this battery with any faulty or incompatible
devices;
1.2.4 When fire occurs, only dry powder fire extinguishers can be used,
liquid fire extinguishers are prohibited;
1.2.5 Do not disassemble batteries privately;
2. Introduction
This battery is a new type of energy storage product, which can be used to
provide reliable power supply for various equipment and systems. It is
especially suitable for applications with large power, limited installation space,
limited bearing capacity and long life. Battery built-in BMS -battery
management system, battery voltage, current, temperature and other
information management and monitoring. In addition, the battery pack can
balance the charge and discharge of the battery to prolong the cycle life.
Multiple battery packs can be parallel to expand capacity and power, parallel to
expand capacity and longer power support time requirements.

5
3. Characteristics
Environmental protection and pollution-free: the whole battery module
using materials are non-toxic, pollution-free;
long safety life: the core cathode material of battery module is made of
LiFeOP4, good safety performance and long service life;
Protection function: battery management system can protect battery
module over discharge, over charge, over current and high / low temperature;
Equilibrium function: the battery management system has its own passive
equalization, can balance the battery module each single string core;
Expansion: flexible configuration, multiple battery modules can be parallel
expansion capacity, applicable to different standby time requirements;
Low power consumption: the battery has the function of automatic
dormancy, when no live equipment is connected, it can enter the low power
state by itself and reduce the self-loss;
No memory: no memory effect, shallow charge and discharge
performance is excellent;
Wide temperature range: working temperature range-20~70, charge 0~60,
discharge-20~70, good discharge performance and cycle life,
Portable: Small, lightweight, standard 19-inch embedded module easy to
install and maintain
