TAIMEN PVM400 User manual

USER MANUAL
PNEUMATIC SPEARGUN
Chelyabinsk
2016
PROFESSIONAL FISHING GEAR

USER MANUAL
TAIMEN company develops and manufactures underwater hunting
gear for sports and amateur spearfishing.
The prototype of the speargun series is an underwater competition
target shooting gun.
Solutions employed to create TAIMEN fishing gear are unique
nowadays.
TAIMEN company holds patents and certificates on the useful
model for gear manufacturing.
TAIMEN fishing gear provides comfortable and effective
underwater hunting.
New engineering solutions are proved effective by continuous tests
in swimming pools and natural conditions.
It is at the development and testing stage when the gear was highly
appreciated and received approval of experienced spearos.
PNEUMATIC SPEARGUN
SPEARGUN DESIGN
Picture 1.
1
Please, read the instructions of this user manual carefully. Improper
operation with the speargun may cause serious personal injury or death.
DANGER!
ATTENTION!

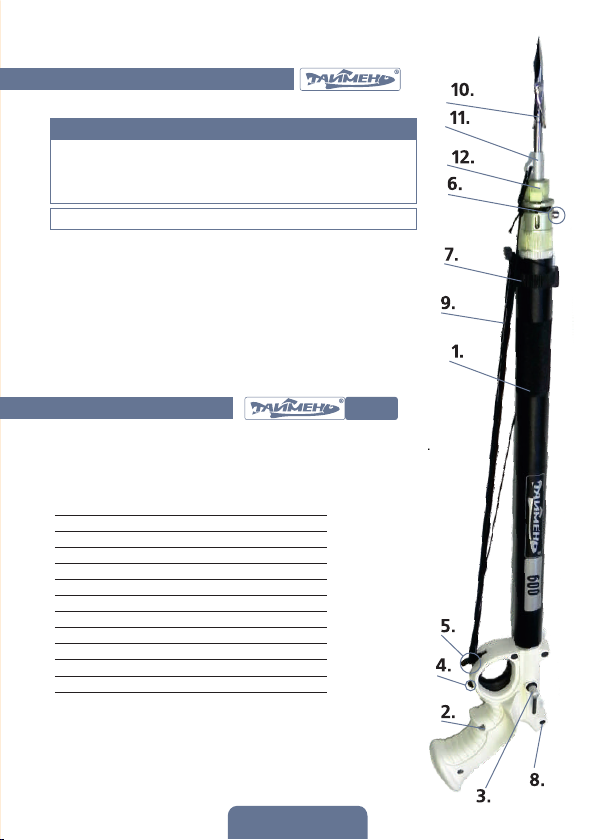

TAIMEN PVMR speargun overall view is presented at Picture 1.
The speargun consists of the following main parts and units:
Receiver assembly 1
2
3
4
5
6
7
8
9
10
11
12
PNEUMATIC SPEARGUNS ARE DESIGNED FOR
UNDERWATER HUNTING AND MUST ONLY BE USED WHEN
FULLY SUBMERGED UNDER WATER. FIRING IN THE AIR
CAUSES DAMAGE TO THE SPEARGUN.
PVMR
Handgrip with trigger mechanism
Power reducer
Safety catch
Line releaser
Snap hook
Revolving ring
Charging valve cap
Line
Spear
Line slide
Line slide holder
On the one end the line is attached to the speargun
with a snap hook (6), on the other end the line is attached
to the line slide (11).

USER MANUAL
TAIMEN company develops and manufactures underwater hunting
gear for sports and amateur spearfishing.
The prototype of the speargun series is an underwater competition
target shooting gun.
Solutions employed to create TAIMEN fishing gear are unique
nowadays.
TAIMEN company holds patents and certificates on the useful
model for gear manufacturing.
TAIMEN fishing gear provides comfortable and effective
underwater hunting.
New engineering solutions are proved effective by continuous tests
in swimming pools and natural conditions.
It is at the development and testing stage when the gear was highly
appreciated and received approval of experienced spearos.
PNEUMATIC SPEARGUN
SPEARGUN DESIGN
Picture 1.
1
Please, read the instructions of this user manual carefully. Improper
operation with the speargun may cause serious personal injury or death.
DANGER!
ATTENTION!
TAIMEN PVMR speargun overall view is presented at Picture 1.
The speargun consists of the following main parts and units:
Receiver assembly 1
2
3
4
5
6
7
8
9
10
11
12
PNEUMATIC SPEARGUNS ARE DESIGNED FOR
UNDERWATER HUNTING AND MUST ONLY BE USED WHEN
FULLY SUBMERGED UNDER WATER. FIRING IN THE AIR
CAUSES DAMAGE TO THE SPEARGUN.
PVMR
Handgrip with trigger mechanism
Power reducer
Safety catch
Line releaser
Snap hook
Revolving ring
Charging valve cap
Line
Spear
Line slide
Line slide holder
On the one end the line is attached to the speargun
with a snap hook (6), on the other end the line is attached
to the line slide (11).

2

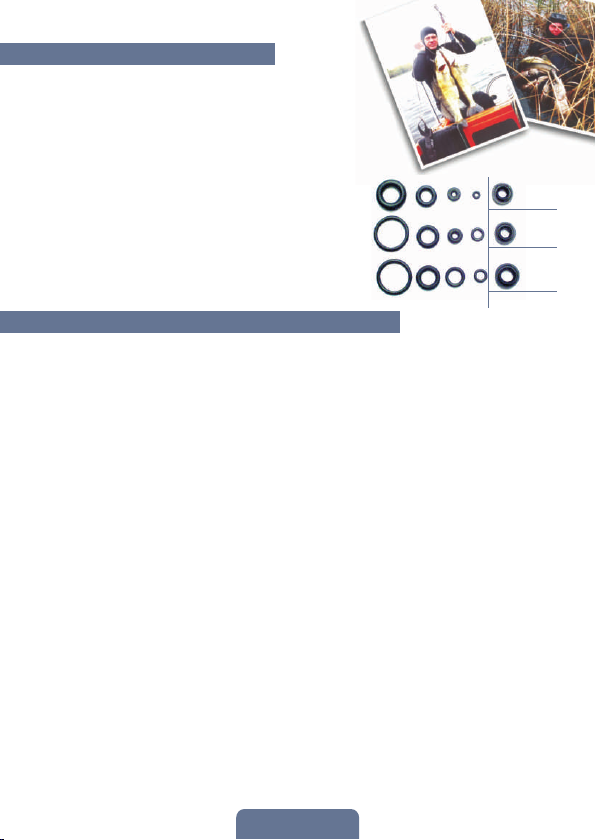

COMPLETE SET
MODIFICATIONS
TAIMEN spearguns are
available in the following modifications:
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
2 pc.
1 pc.
1 pc.
1 pc.
Regular spear
Line
Hand loader
Hand pump
Protective spear cap
Rings kit
Carrying case
User manual
Speargun

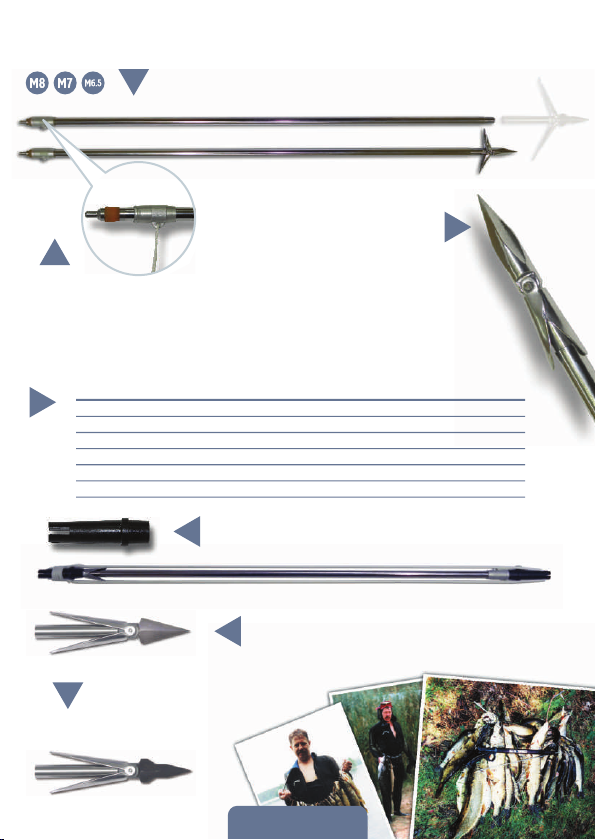

Spear Ж8mm, Ж7mm
3
TAIMEN spearguns come with new technical solutions offering extra advantages:
- rubber ring creates vacuum in the barrel. As there is no water in the barrel when the
spear and the piston are moving, firing has significantly greater power and you do not
have to make much effort to load the gun with the efficiency of hunting still guaranteed;
- piston design and front sleeve provide buffering and silencing effect on firing;
- stainless steel barrel;
- sharp spear tip allows piercing the scales of big fish at large distances;
- spearguns come with dia 7 and 8 mm spears;
- polyurethane seal at the spear tang being fixed at the back excludes jamming of the line
slide and allows reduction of the sound volume as compared to the alternative design
solutions;
- the snap hook fastening the line to the speargun allows quick removal of fish or
replacement of a spear (Picture 3);
- self-restoring line releaser triggers immediately and releases the required number of line
coils when the spear hits a target thereby improving the shot accuracy;

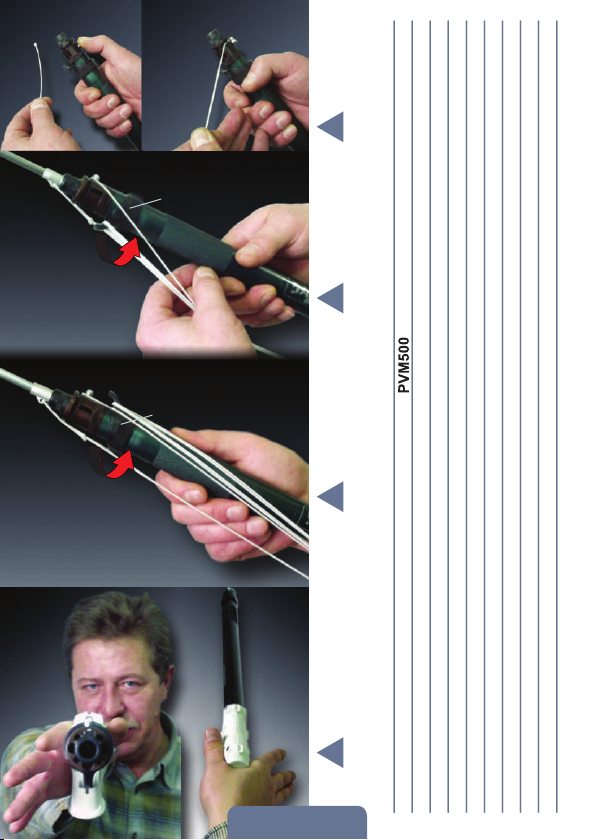

- revolving winding ring allows restoring of tension to the slack line quickly (pos. 1, pic.4);
- shock-absorber line buffers the jerking of the shot fish;
- speargun without spear is positively buoyant;
- owing to the absence of thread and hinged connections (which need special
adjustments) the trigger mechanism is highly reliable;
- anatomic grip with 45º angle to the barrel provides that the required recoil vector is
achieved which prevents the gun from throwing up on firing and, consequently,
improves the shot accuracy. The position of the speargun remains the same even with
the hand open (Picture 5);
- the PVMR series power reducer allows gradual adjustment of firing power;
TAIMEN speargun characteristics as listed above summarize into high quality offered to
the Customers.
SPECIFICATIONS

2
COMPLETE SET
MODIFICATIONS
TAIMEN spearguns are
available in the following modifications:
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
2 pc.
1 pc.
1 pc.
1 pc.
Regular spear
Line
Hand loader
Hand pump
Protective spear cap
Rings kit
Carrying case
User manual
Speargun
Spear Ж8mm, Ж7mm
3
TAIMEN spearguns come with new technical solutions offering extra advantages:
- rubber ring creates vacuum in the barrel. As there is no water in the barrel when the
spear and the piston are moving, firing has significantly greater power and you do not
have to make much effort to load the gun with the efficiency of hunting still guaranteed;
- piston design and front sleeve provide buffering and silencing effect on firing;
- stainless steel barrel;
- sharp spear tip allows piercing the scales of big fish at large distances;
- spearguns come with dia 7 and 8 mm spears;
- polyurethane seal at the spear tang being fixed at the back excludes jamming of the line
slide and allows reduction of the sound volume as compared to the alternative design
solutions;
- the snap hook fastening the line to the speargun allows quick removal of fish or
replacement of a spear (Picture 3);
- self-restoring line releaser triggers immediately and releases the required number of line
coils when the spear hits a target thereby improving the shot accuracy;
- revolving winding ring allows restoring of tension to the slack line quickly (pos. 1, pic.4);
- shock-absorber line buffers the jerking of the shot fish;
- speargun without spear is positively buoyant;
- owing to the absence of thread and hinged connections (which need special
adjustments) the trigger mechanism is highly reliable;
- anatomic grip with 45º angle to the barrel provides that the required recoil vector is
achieved which prevents the gun from throwing up on firing and, consequently,
improves the shot accuracy. The position of the speargun remains the same even with
the hand open (Picture 5);
- the PVMR series power reducer allows gradual adjustment of firing power;
TAIMEN speargun characteristics as listed above summarize into high quality offered to
the Customers.
SPECIFICATIONS

Picture 5 Picture 4a Picture 3Picture 4B
1.
1.
Model Striking range, m Length without spear, mm Piston stroke, mm Weight without spear, gr (max) Weight with spear, gr (max) Loading force, kg Piston diameter*, mm Spear diameter, mm
PVM400
3
400 175 350 450
20-25
10/11
7/8
4
500 275 395 525
20-25
10/11
7/8
PVM600
5
600 375 440 600
20-25
10/11
7/8
PVM700
6
700 475 485 675
20-25
10/11
7/8
PVM850
7
850 625 555 790
20-25
10/11
7/ 8
PVM1000
8
1050
825 635 925
20-25
10/11
7/8
SPECIFICATIONS
* Spear diameter 8mm suggests piston diameter 11mm
45
At the factory the speargun is pumped up with air pressure to 20-25 kg/cm² depending on the
length and the diameter of the spear. At standard conditions and in normal usage mode the speargun
will remain always charged to the proper pressure value regardless the number of shots performed.

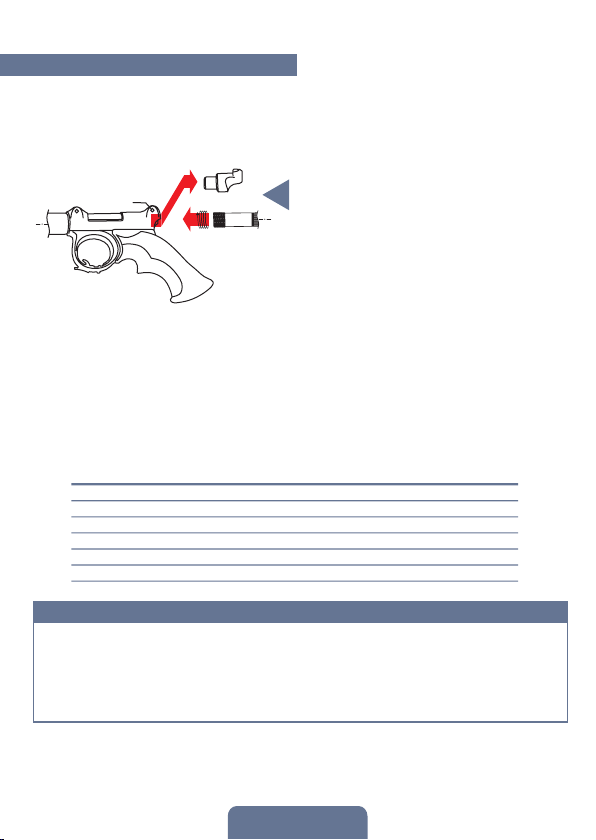

The hand pump should only be used in the following way: release the screw (1), remove the cap (2),
fill the hand pump with 2-3 cm³ of oil and screw the pump in until it contacts the O-ring (3). Consult the
BEFORE FIRING
3.
2.
1.
table to find your gun model and the number of
strokes needed to charge the gun to the pressure
of 25-27 kgs with the standard pump. Number of
strokes in table assumes pumping starts with zero
pressure in gun.
When completed perform the operations listed
above in reverse order.
If it is obvious that the pressure in the gun is
constantly low and requires recurrent pumping, we recommend you to contact the service
center or the manufacturer as it may be caused by a defect in the speargun.
Если Ваше ружье требует постоянного подкачивания давления, то это может быть
результатом неисправности и рекомендуется обратиться в центр технического
обслуживания или к производителю.
DANGER OF EXPLOSION! Do not exceed the maximum of 30 kg/cm². The excess
pressure may cause explosion and heavy personal injury or death. The adjusting
rod of the power reducer must be at maximum position when the pressure is
pumped up.
DANGER!
Number of standard pump strokes
Ø 7mm
110
120
150
180
210
230
Ø 8mm
90
100
130
160
190
210
Model of speargun
PVM400
PVM500
PVM600
PVM700
PVM850
PVM1000
HAND PUMP TABLE

Picture 5 Picture 4a Picture 3Picture 4B
1.
1.
Model Striking range, m Length without spear, mm Piston stroke, mm Weight without spear, gr (max) Weight with spear, gr (max) Loading force, kg Piston diameter*, mm Spear diameter, mm
PVM400
3
400 175 350 450
20-25
10/11
7/8
4
500 275 395 525
20-25
10/11
7/8
PVM600
5
600 375 440 600
20-25
10/11
7/8
PVM700
6
700 475 485 675
20-25
10/11
7/8
PVM850
7
850 625 555 790
20-25
10/11
7/ 8
PVM1000
8
1050
825 635 925
20-25
10/11
7/8
SPECIFICATIONS
* Spear diameter 8mm suggests piston diameter 11mm
45
At the factory the speargun is pumped up with air pressure to 20-25 kg/cm² depending on the
length and the diameter of the spear. At standard conditions and in normal usage mode the speargun
will remain always charged to the proper pressure value regardless the number of shots performed.
The hand pump should only be used in the following way: release the screw (1), remove the cap (2),
fill the hand pump with 2-3 cm³ of oil and screw the pump in until it contacts the O-ring (3). Consult the
BEFORE FIRING
3.
2.
1.
table to find your gun model and the number of
strokes needed to charge the gun to the pressure
of 25-27 kgs with the standard pump. Number of
strokes in table assumes pumping starts with zero
pressure in gun.
When completed perform the operations listed
above in reverse order.
If it is obvious that the pressure in the gun is
constantly low and requires recurrent pumping, we recommend you to contact the service
center or the manufacturer as it may be caused by a defect in the speargun.
Если Ваше ружье требует постоянного подкачивания давления, то это может быть
результатом неисправности и рекомендуется обратиться в центр технического
обслуживания или к производителю.
DANGER OF EXPLOSION! Do not exceed the maximum of 30 kg/cm². The excess
pressure may cause explosion and heavy personal injury or death. The adjusting
rod of the power reducer must be at maximum position when the pressure is
pumped up.
DANGER!
Number of standard pump strokes
Ø 7mm
110
120
150
180
210
230
Ø 8mm
90
100
130
160
190
210
Model of speargun
PVM400
PVM500
PVM600
PVM700
PVM850
PVM1000
HAND PUMP TABLE

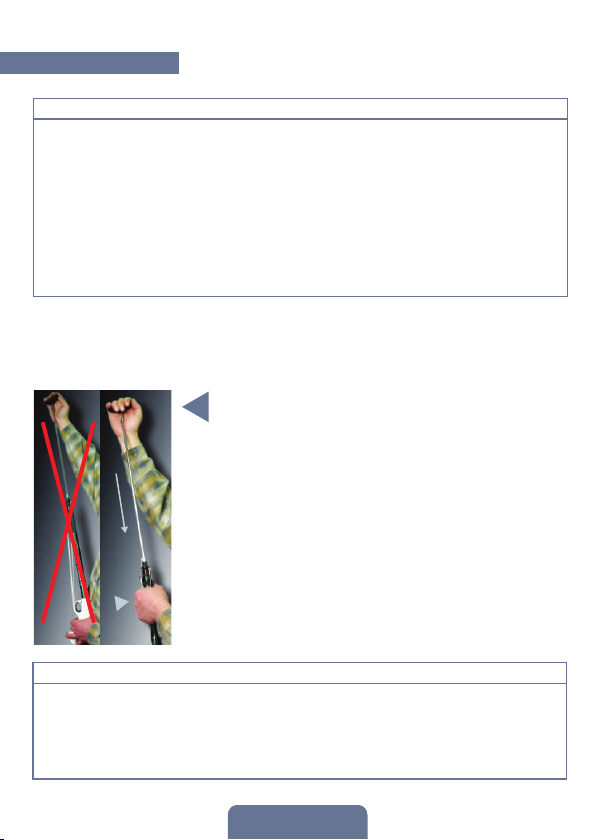

1. Before loading check that the spear and the line releaser perform correctly.
2. Be sure that the removable tip of your spear is securely fixed.
3. Hold the grip of your speargun against your thigh or foot
depending on the speargun length. Hold the gun on the front
part of the receiver (Picture 6) and insert the spear, verifying
the spear is in the center of the barrel. Never insert the spear
with inclination as it may cause damage to the gun.
4. Insert the spear, and fix the line slide with the
holder. Spool the line onto the line releaser and the revolving
ring. If necessary turn the ring until the slack is eliminated.
Place the hand loader onto the spear tip and push the spear
down the barrel until it is hooked.
WARNING!
ALWAYS CHECK YOUR HAND LOADER BEFORE COMMENCING SPEARFISHING.
If any crack is detected the hand loader must be replaced. The use of a defective hand loader
may cause puncturing with the spear and serious personal injury. Frequent use increases the
natural wear of your hand loader.
Picture 6
LOADING
WARNING!
When loading be sure that the gun is directed safely, never point the gun at yourself. Absolutely
avoid drawing the spear out if the speargun is loaded. Do not fire the gun without spear; it may
cause damage to the gun. Never load, unload or fire your speargun if it is not submersed in
water. Always be aware of the distance the spear may cover underwater. Never point and fire
the gun at another person or object. Never load the gun on a boat with other boats or divers
nearby. Breaking of these rules may cause serious injury or death of people.
6
Picture 7APicture 7B
5. Once the gun is loaded lock it with the safety catch. Release the safety catch only when you are
ready to fire. Check the safety’s operation at regular intervals to be sure that it works correctly. Do
not load and do not use the speargun in case any sign of a malfunction is detected.
6. If your spear is bent replace it with a new one. Do not try to insert a bent spear by force as it may
cause internal damage to the gun.
POWER REDUCER
The speargun has a rear sight notch. For
accurate shooting aim at the bottom of the
fish and pull the trigger smoothly
(Picture 8).
Picture 8
AIMING AND FIRING
The adjusting rod located on the left side of the grip
may be moved from min to max position any time
during spearfishing (Picture 7).
When you place the adjusting rod vertically, firing
power is at minimum.
When you place the adjusting rod horizontally, firing
power is at maximum.
Any in-between position of the adjusting rod provides
smooth adjustment. The option of power depends on
the distance, the size of the fish and characteristics
of underwater environment (rocky bottom, grotto,
swamps etc)
max
min
PVMR speargun has a power reducer; hence it is possible to choose firing at maximum and
minimum power modes.
7

1. Before loading check that the spear and the line releaser perform correctly.
2. Be sure that the removable tip of your spear is securely fixed.
3. Hold the grip of your speargun against your thigh or foot
depending on the speargun length. Hold the gun on the front
part of the receiver (Picture 6) and insert the spear, verifying
the spear is in the center of the barrel. Never insert the spear
with inclination as it may cause damage to the gun.
4. Insert the spear, and fix the line slide with the
holder. Spool the line onto the line releaser and the revolving
ring. If necessary turn the ring until the slack is eliminated.
Place the hand loader onto the spear tip and push the spear
down the barrel until it is hooked.
WARNING!
ALWAYS CHECK YOUR HAND LOADER BEFORE COMMENCING SPEARFISHING.
If any crack is detected the hand loader must be replaced. The use of a defective hand loader
may cause puncturing with the spear and serious personal injury. Frequent use increases the
natural wear of your hand loader.
Picture 6
LOADING
WARNING!
When loading be sure that the gun is directed safely, never point the gun at yourself. Absolutely
avoid drawing the spear out if the speargun is loaded. Do not fire the gun without spear; it may
cause damage to the gun. Never load, unload or fire your speargun if it is not submersed in
water. Always be aware of the distance the spear may cover underwater. Never point and fire
the gun at another person or object. Never load the gun on a boat with other boats or divers
nearby. Breaking of these rules may cause serious injury or death of people.
6
Picture 7APicture 7B
5. Once the gun is loaded lock it with the safety catch. Release the safety catch only when you are
ready to fire. Check the safety’s operation at regular intervals to be sure that it works correctly. Do
not load and do not use the speargun in case any sign of a malfunction is detected.
6. If your spear is bent replace it with a new one. Do not try to insert a bent spear by force as it may
cause internal damage to the gun.
POWER REDUCER
The speargun has a rear sight notch. For
accurate shooting aim at the bottom of the
fish and pull the trigger smoothly
(Picture 8).
Picture 8
AIMING AND FIRING
The adjusting rod located on the left side of the grip
may be moved from min to max position any time
during spearfishing (Picture 7).
When you place the adjusting rod vertically, firing
power is at minimum.
When you place the adjusting rod horizontally, firing
power is at maximum.
Any in-between position of the adjusting rod provides
smooth adjustment. The option of power depends on
the distance, the size of the fish and characteristics
of underwater environment (rocky bottom, grotto,
swamps etc)
max
min
PVMR speargun has a power reducer; hence it is possible to choose firing at maximum and
minimum power modes.
7

8
CARE AND MAINTENANCE
If the speargun is used correctly minimum care is needed.
1. After each use rinse speargun and spear with large amount of fresh water, focusing on the
barrel and power adjusting rod. Wipe spear dry, preferably with oiled rags. Make absolutely
sure that there is no sand left on the spear and barrel, as with the presence of sand it is
possible to damage barrel and vacuum rubber ring.
2. Always check your hand loader for damage; replace it with a new one if necessary.
3.If your spear is bent then straighten it or replace it with a new one.
4.We recommend to store and carry the spear with caps on (Pos. 1 Picture 9)
5. Store your gun in dark, cool place.
6. Take care that adjusting rod is set at maximum power while storing.
7. For long storage half of the air should be released.
8. Annual maintenance, including replacement of lubricating oil is a must.
9. Before using after long-term storage we recommend:
- Fill the barrel with 1 cm³ of oil;
- Insert the spear into the barrel; fix the line slide with the holder.
- Lean the tip against firm surface and imitate the process of loading without
hooking the piston.
10. When your speargun needs repair or maintenance contact the manufacture or service
centers.
Picture 9
1.
9
Spears supplied in Ж8mm, Ж7mm and Ж6,5mm
in two mods: threaded and with spear tips.
Polyurethane seal at the spear tang being fixed at the back excludes jamming of
line ethe slid and allows reduction of the sound volume as compared
.to the alternative design solutions
Sharp spear tip allows
spiercing the scale of big fish
at large distances
Spear caps make transportation and storage of spear and
line more convenient
Cap
Spears
TAIMEN tip
MARLIN tip
Increased piercing power,
special grinding helps put
the spear into rotation
pierces the scales and bones of big fish easily
SPEAR SIZE TABLE Spear with tip,
mm
340
440
540
640
800
940
300
400
500
600
760
900
Gun model
PVM400
PVM500
PVM600
PVM700
PVM850
PVM1000
Threaded spear,
mm

8
CARE AND MAINTENANCE
If the speargun is used correctly minimum care is needed.
1. After each use rinse speargun and spear with large amount of fresh water, focusing on the
barrel and power adjusting rod. Wipe spear dry, preferably with oiled rags. Make absolutely
sure that there is no sand left on the spear and barrel, as with the presence of sand it is
possible to damage barrel and vacuum rubber ring.
2. Always check your hand loader for damage; replace it with a new one if necessary.
3.If your spear is bent then straighten it or replace it with a new one.
4.We recommend to store and carry the spear with caps on (Pos. 1 Picture 9)
5. Store your gun in dark, cool place.
6. Take care that adjusting rod is set at maximum power while storing.
7. For long storage half of the air should be released.
8. Annual maintenance, including replacement of lubricating oil is a must.
9. Before using after long-term storage we recommend:
- Fill the barrel with 1 cm³ of oil;
- Insert the spear into the barrel; fix the line slide with the holder.
- Lean the tip against firm surface and imitate the process of loading without
hooking the piston.
10. When your speargun needs repair or maintenance contact the manufacture or service
centers.
Picture 9
1.
9
Spears supplied in Ж8mm, Ж7mm and Ж6,5mm
in two mods: threaded and with spear tips.
Polyurethane seal at the spear tang being fixed at the back excludes jamming of
line ethe slid and allows reduction of the sound volume as compared
.to the alternative design solutions
Sharp spear tip allows
spiercing the scale of big fish
at large distances
Spear caps make transportation and storage of spear and
line more convenient
Cap
Spears
TAIMEN tip
MARLIN tip
Increased piercing power,
special grinding helps put
the spear into rotation
pierces the scales and bones of big fish easily
SPEAR SIZE TABLE Spear with tip,
mm
340
440
540
640
800
940
300
400
500
600
760
900
Gun model
PVM400
PVM500
PVM600
PVM700
PVM850
PVM1000
Threaded spear,
mm

Shock-absorber line
buffers the jerking of the shot fish, designed for any type of speargun.
Original know how product.
Increased linear expansion coefficient.
Fixed length 3.1 m.
helps carry shot fish
when spearfishing.
The main advantage of this fish string is that a spearo can fix both ends at his waist
thereby preventing from getting entangled in rushes and snags.
Fish string
Belt
Iroquois
supplementary coil releaser
Speargun assembly/disassembly wrench
Diameter,
mm
Breaking load,
kg
Linear expansion
coefficient, %
1,4
1,6
2,0
2,5
1,5
1,6
30
40
50
70
35
40
30
35
40
45
10
10
capron
capron
capron
capron
capron
capron
Material
Hand Loader
to facilitate
loading the gun
10
Hook
to attach to
fish string
6,5 mm
7 mm
8 mm
1 2 3 4
13
5 6 7 8
9 10 11 12
11
1.This warranty covers defects that arise as a result of normal use of the Product during the
applicable warranty period specified in Warranty statements.
2.Troubleshooting and warranty repairs are carried out at the technical department of Seller.
Troubleshooting is to be held within 10 working days. The decision on malfunction and its causes
is rendered by the technical department of Seller or by Service center of Manufacturer. If
necessary the Product will be repaired within 45 working days from the date of being available for
the services. Owner must deliver Product to Service center as a COMPLETE set. In case of
disagreement with the decision on malfunction of Product and (or) the causes for such
malfunction, Owner of Product may set an independent inspection of the Product, at Owner's own
expense.
3.This warranty is subject to the following limitations and exclusions:
a) the Product is not covered by this warranty if it was used for commercial purposes.
b) the Product is not covered by this warranty if it has any mechanical and (or) chemical damages,
or damages resulted from failure to operate as set forth in the operating instructions, improper
transportation, repair by anyone other than a facility authorized by the Manufacturer to service this
Product, upgrading, change of design, actions of third parties, acts of terrorism, or damages due to
acts of God, i.e. lightning strokes, acts of terrorism, natural disasters, man-made disasters etc.
4. At the end of the two-week period after Owner of Product was informed of the service works
being completed, the penalty of 0.5% of Product price per every day of the storage is applicable.
At the end of the six-month period of storage Product is liable for disposal.
WARRANTY
1. Barrel O-ring (21x11)
2. Running roller holder O-ring (Ж7 15,5х9,5; Ж8 16,5х10,5)
3. Sear O-ring (9.5x3)
4. Charging valve shaft O-ring (5x2)
5. Back sleeve receiver O-ring (25,5х20)
6. Charging valve housing O-ring (15,5х9,5)
7. Adjuster O-ring (9,5х4)
8. Shooting power adjuster outer dirt sealing O-ring
9. Front sleeve receiver O-ring (23,5х18,5)
10.Pump sealing O-ring (17х9,5)
11. Shock absorber (14х9,8)
12. Piston sealing O-ring (9,5х4,5)
13. Vacuum O-ring
SPARE PARTS KIT

Shock-absorber line
buffers the jerking of the shot fish, designed for any type of speargun.
Original know how product.
Increased linear expansion coefficient.
Fixed length 3.1 m.
helps carry shot fish
when spearfishing.
The main advantage of this fish string is that a spearo can fix both ends at his waist
thereby preventing from getting entangled in rushes and snags.
Fish string
Belt
Iroquois
supplementary coil releaser
Speargun assembly/disassembly wrench
Diameter,
mm
Breaking load,
kg
Linear expansion
coefficient, %
1,4
1,6
2,0
2,5
1,5
1,6
30
40
50
70
35
40
30
35
40
45
10
10
capron
capron
capron
capron
capron
capron
Material
Hand Loader
to facilitate
loading the gun
10
Hook
to attach to
fish string
6,5 mm
7 mm
8 mm
1 2 3 4
13
5 6 7 8
9 10 11 12
11
1.This warranty covers defects that arise as a result of normal use of the Product during the
applicable warranty period specified in Warranty statements.
2.Troubleshooting and warranty repairs are carried out at the technical department of Seller.
Troubleshooting is to be held within 10 working days. The decision on malfunction and its causes
is rendered by the technical department of Seller or by Service center of Manufacturer. If
necessary the Product will be repaired within 45 working days from the date of being available for
the services. Owner must deliver Product to Service center as a COMPLETE set. In case of
disagreement with the decision on malfunction of Product and (or) the causes for such
malfunction, Owner of Product may set an independent inspection of the Product, at Owner's own
expense.
3.This warranty is subject to the following limitations and exclusions:
a) the Product is not covered by this warranty if it was used for commercial purposes.
b) the Product is not covered by this warranty if it has any mechanical and (or) chemical damages,
or damages resulted from failure to operate as set forth in the operating instructions, improper
transportation, repair by anyone other than a facility authorized by the Manufacturer to service this
Product, upgrading, change of design, actions of third parties, acts of terrorism, or damages due to
acts of God, i.e. lightning strokes, acts of terrorism, natural disasters, man-made disasters etc.
4. At the end of the two-week period after Owner of Product was informed of the service works
being completed, the penalty of 0.5% of Product price per every day of the storage is applicable.
At the end of the six-month period of storage Product is liable for disposal.
WARRANTY
1. Barrel O-ring (21x11)
2. Running roller holder O-ring (Ж7 15,5х9,5; Ж8 16,5х10,5)
3. Sear O-ring (9.5x3)
4. Charging valve shaft O-ring (5x2)
5. Back sleeve receiver O-ring (25,5х20)
6. Charging valve housing O-ring (15,5х9,5)
7. Adjuster O-ring (9,5х4)
8. Shooting power adjuster outer dirt sealing O-ring
9. Front sleeve receiver O-ring (23,5х18,5)
10.Pump sealing O-ring (17х9,5)
11. Shock absorber (14х9,8)
12. Piston sealing O-ring (9,5х4,5)
13. Vacuum O-ring
SPARE PARTS KIT

12
MAINTENANCE RECORD
Date
of service Operations completed
Date
Executor’s signature
Service center stamp
XXXX/XX/XX-XXXX/X
Speargun serial number
ACCEPTANCE CERTIFICATE
QC stamp Date of manufacture
Distributor’s stamp Date of purchase
WARRANTY STATEMENT
Taimen spearguns conform to GOST R 51281 standards, technical specifications TU 7184-
003-16133192 or TU 7180-004-16133192-01 and are qualified as ready for operation.
TAIMEN firm, individual entrepreneur Kuznetsova Elena Nikolayevna.
th
Сertificate of registration #16133 of 19 February, 2001, issued by Leninsky municipal district
administration, Chelyabinsk. Unified State Register of Enterprises and Organizations
#304744914000075. Taxpayer Identification Number 744910915770.
Call: tel./fax [phone], tel. [phone]
Mail: 454135, Chelyabinsk, P.O. Box 0244
Online: www.apox.ru/taimen; e-mail: [email protected]; Skype: vitchel174
MANUFACTURER
This Product is warranted to the original Purchaser to be free from defects
in materials and workmanship under normal use and storage as set forth in
the operating instructions.
Guarantee period is 12 months following the date of purchase, but not
greater than 24 months from the date of manufacturing. Service life of a
speargun is 7 years.
If Manufacturer receives, during the applicable warranty period, notice of a
defect in Product which is covered by warranty, Manufacturer shall repair
Product. This warranty does not apply to products that experience problems
resulting from misuse, improper storage, or operation outside of the
published specifications.
Manufacturer declines a claim in case of absence of the Distributor's stamp.
Please, find our service centers in the Internet: http://apox.ru/taimen
Serial number

12
MAINTENANCE RECORD
Date
of service Operations completed
Date
Executor’s signature
Service center stamp
XXXX/XX/XX-XXXX/X
Speargun serial number
ACCEPTANCE CERTIFICATE
QC stamp Date of manufacture
Distributor’s stamp Date of purchase
WARRANTY STATEMENT
Taimen spearguns conform to GOST R 51281 standards, technical specifications TU 7184-
003-16133192 or TU 7180-004-16133192-01 and are qualified as ready for operation.
TAIMEN firm, individual entrepreneur Kuznetsova Elena Nikolayevna.
th
Сertificate of registration #16133 of 19 February, 2001, issued by Leninsky municipal district
administration, Chelyabinsk. Unified State Register of Enterprises and Organizations
#304744914000075. Taxpayer Identification Number 744910915770.
Call: tel./fax [phone], tel. [phone]
Mail: 454135, Chelyabinsk, P.O. Box 0244
Online: www.apox.ru/taimen; e-mail: [email protected]; Skype: vitchel174
MANUFACTURER
This Product is warranted to the original Purchaser to be free from defects
in materials and workmanship under normal use and storage as set forth in
the operating instructions.
Guarantee period is 12 months following the date of purchase, but not
greater than 24 months from the date of manufacturing. Service life of a
speargun is 7 years.
If Manufacturer receives, during the applicable warranty period, notice of a
defect in Product which is covered by warranty, Manufacturer shall repair
Product. This warranty does not apply to products that experience problems
resulting from misuse, improper storage, or operation outside of the
published specifications.
Manufacturer declines a claim in case of absence of the Distributor's stamp.
Please, find our service centers in the Internet: http://apox.ru/taimen
Serial number

454135, Chelyabinsk,
Individual entrepreneur Kuznetsova E.N.
Tel./fax [phone],
Tel. [phone]
http://taimengun.ru
E-mail: [email protected]
Skype: vitchel174
®
