Talkpool OY1210 User manual
OY1210
LoRaWAN CO2 meter
User manual
Version 0.4
October 2019
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
2
Table of Contents
1Disclaimer............................................................................................................................3
1.1 Technical support....................................................................................................................... 3
1.2 EU Declaration of conformity..................................................................................................... 3
2Warnings............................................................................................................................. 4
3Environmental..................................................................................................................... 5
4Product Description.............................................................................................................6
5Installation and activation ...................................................................................................7
5.1 LoRaWAN Configuration ............................................................................................................ 8
5.2 Sensor states and state check .................................................................................................... 9
5.2.1 Re-join functionality ............................................................................................................. 10
6Specification......................................................................................................................11
7Battery life.........................................................................................................................13
8Security .............................................................................................................................13
9Protocol.............................................................................................................................13
9.1 LoRaWAN standard commands................................................................................................ 13
9.2 Unsolicited uplink status commands ....................................................................................... 13
9.3 Periodic measurement reports ................................................................................................ 14
9.3.1 Periodic measurement report .............................................................................................. 14
9.3.2 Measurement value ............................................................................................................. 14
9.3.3 Example: Single measurement report.................................................................................. 15
9.4 Downlink commands and queries............................................................................................ 16
9.4.1 Measurement and reporting interval................................................................................... 19
9.4.2 Reset device.......................................................................................................................... 19
9.5 Uplink query response.............................................................................................................. 19
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
3
1Disclaimer
This document represents information on products at the time of publication and is subject to
change without prior notice due to product improvements or other reasons. Talkpool makes
no warranties based on the accuracy or completeness of the contents of this document and
reserves the right to make changes to specifications and product descriptions at any time
without notice. Talkpool reserves all rights to this document and the information contained
herein.
1.1 Technical support
1.2 EU Declaration of conformity
EC DECLARATION OF CONFORMITY
certify that the design and manufacturing of this product
WIRELESS CO2 SENSOR /
FUNK-CO2 SENSOR /
TRÅDLÖS CO2 SENSOR /
TRÅDØS CO2 SENSOR /
DRAADLOZE CO2 SENSOR
OY1210 EU868
conforms to the following directives and standards
The Radio Equipment Directive (2014/53/EU),
EN 300 220-1 V2.4.1, EN 300220-2 V2.4.1,
EN 301 489-1 V1.9.2, EN 301 489-3 V2.1.1,
EN 60950-1:2006+A11+A1+A12+A2
EN 62479:2010
RoHS 2.0 Directive 2011/65/EU
European Delegated Directive (EU) 2015/863
REACH regulation 1907/2006 EU
This product was CE marked in year -19
2019-09-10 ___________________
Managing Director Stefan Lindgren
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
4
2Warnings
The following safety precautions must be observed during all phases of the operation, usage,
service or repair of this Talkpool product.
•Read the product manual.
•Do not modify the product.
•The product should not be exposed to extreme heat or open flame.
•The device must not be exposed to harsh chemical agents or solvents.
•The labelling of the product may not be changed, removed or made unrecognizable.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
5
3Environmental
This symbol on the product or on its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to dispose of
your waste by taking it to a collection point designated for the recycling of electrical and
electronic appliances. Separate collection and recycling of your waste at the time of disposal
will contribute to conserving natural resources and guarantee recycling that respects the
environment and human health. For further information concerning your nearest recycling
center, please contact your nearest local authority/town hall offices, your household waste
collection company or the shop where you bought the product.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
6
4Product Description
The OY1210 LoRaWAN CO2 meter is designed to measure carbon dioxide, temperature and
humidity in indoor environments. The sensor is intended for indoor climate control, air
quality monitoring and energy optimizations. It is optimized for reliable and secure
measurements with more than 5 years life length on batteries.
The standard measurement interval is every minute and standard reporting interval is every 20
measurements (resulting in a measurement report transmitted every 20 minutes). The fast
measurement interval makes it possible to insert additional transmissions when large changes
in the CO2 level are detected, resulting in low reporting latency. By default, CO2 level
changes larger than +/-100ppm from the last transmitted measurement report causes an
additional measurement report over the LoRa uplink channel. If the absolute CO2 level is
below a certain threshold, by default 750ppm, these additional reporting events are however
omitted. All these parameters can be adjusted using LoRa downlink commands if needed.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
7
5Installation and activation
The sensor consists of a bottom piece, the electronic board and the top cover. Remove the top
cover by pressing it upwards and outwards. The electronics are removed by releasing the
plastic latch on the top.

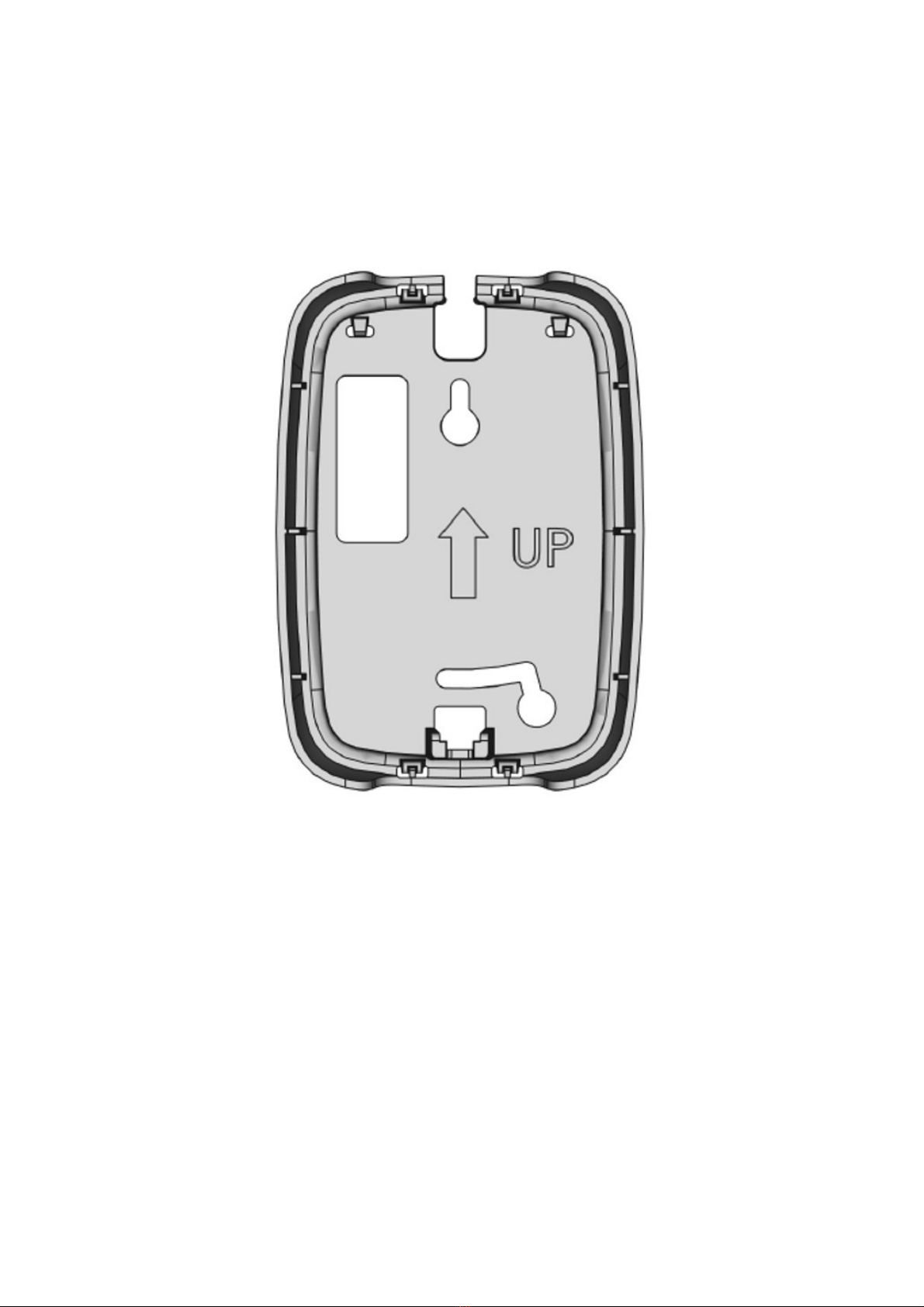

The bottom piece is mounted on the wall with the “UP” arrow upwards. It can be mounted
either with screws or adhesive tape, both included in the package. The hole pattern matches a
standard junction box.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
8

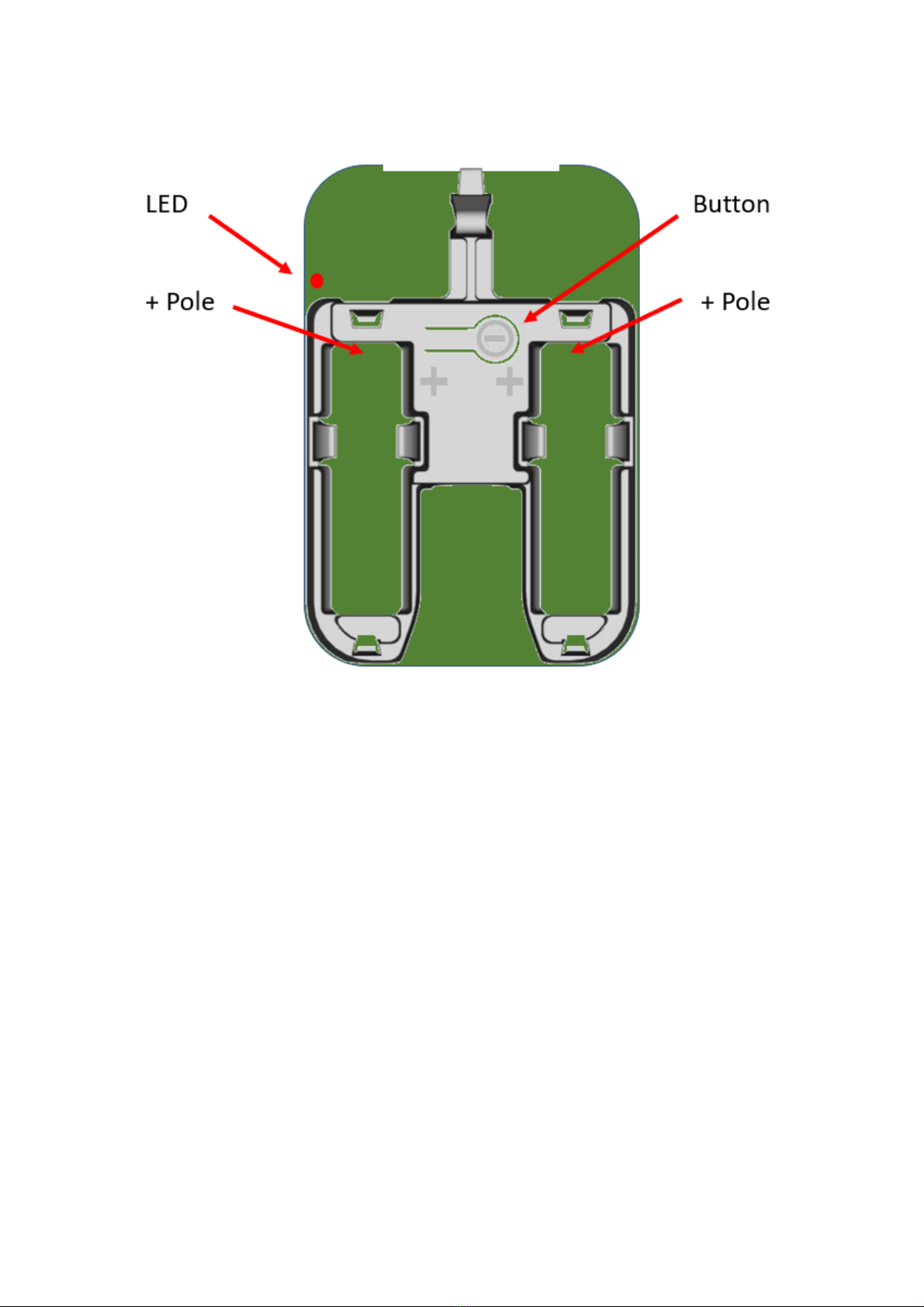

Configure the device in the LoRaWAN server, according to chapter 5.1, and insert the
batteries. The sensor starts and flashes 2 + 6 times during the boot-up sequence. The sensor is
activated by pressing the push button for 3 seconds until the red LED makes two short
flashes.
When the device has successfully joined the LoRaWAN network there will be a 2-second-
long flash.
Attach the electronic board to the bottom piece and attach the plastic cover.
5.1 LoRaWAN Configuration
Configuration on the network server is done with
AppEUI: 70-B3-D5-D7-2F-F8-18-00 (a.k.a. JoinEUI)
It is possible to order a batch of devices configured with a customer unique AppEUI from the
Talkpool OUI range.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
9
The device is configured with device unique DevEUI and AppKey. The DevEUI is printed on
device box and the AppKey is distributed by the sales team. The device is default configured
for OTA provisioning. Contact the Talkpool team for ABP configuration. The device follows
the LoRaWAN standard related Join configuration parameters, such as RX1 and RX2
windows, RX2 downlink frequency etc.
The default setting is ADR enabled.
5.2 Sensor states and state check
The sensor has five states: Booting, Initial, Joining, Configure and Operational state.
Figure 1 Device states
When the unit is initially powered, it flashes 2 times with the LED, after a few seconds the
unit enters initial state automatically. This is indicated by flashing 4 times.
To check the device state, press the button and hold it pressed until the red LED starts
flashing after 0.5s.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
10
State
Description
LED response
Initial
Low power state during transport. Radio not active.
1 short flash (0.5 sec)
Joining
Trying to join a LoRaWAN network. The device
will remain in this state until successfully joined a
LoRaWAN network
2 short flash (0.5 sec)
Configure
Enables quick over-the-air configuration, by polling
server after configuration commands during 2
minutes. This is done by sending uplink status
command (0x20).
1 long flash (2 sec)
Operational
Joined to a LoRaWAN network, measures
temperature and humidity periodically, and sends
measurement reports toward a LoRAWAN network.
1 long flash (2 sec)
5.2.1 Re-join functionality
The device supervises its connectivity to the network, by monitoring that periodic downlink
messages are received.
The device tries to re-join the network if it has not heard anything from the network for 288
uplinks (4 days @ 20-minute message interval). The device requests and normally gets a
downlink ever 64th uplink due to the ADRAckReq functionality.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
11
6Specification
Operating principle
Non-dispersive infrared (NDIR) Yes
Sample method Diffusion
Accuracy and range
Temperature accuracy ± 0,2 °C (conditions 0 °C to +50 °C)
Temperature range -20 °C to +60 °C
Humidity accuracy ± 2% (conditions 10-90% RH)
Humidity range 0% to 100% non-condensing
Measurement range CO2400 –5000 ppm
Accuracy CO2±50ppm ±3% of reading
RMS noise CO20.7ppm @ 400ppm
1.4ppm @2000ppm (filtered)
Connectivity
Network LoRaWAN
Frequency bands 868 MHz
Provisioning Over the air & personalization
Size
Size 111 x 77 x 26 mm
Weight 136g
Security
Algorithms AES-128
Hardware Cryptographic co-processor
Features Secure boot
Secure firmware upgrade
Hardware based ultra-secure key storage
Battery life
Battery life length >5 years (at 20-minute intervals, SF12) + 1 year storage
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
12
Battery type 2x Lithium-thionyl 3.6V (replaceable)
Total capacity 7.2Ah
Configuration
Measurement intervals 20 minutes, configurable over the air
Transmission intervals 20 minutes, configurable over the air
Threshold for adaptive reporting >750 ppm
Step threshold for adaptive report 100 ppm
Unique App EUI available upon request
Enclosure
IP30
Certifications
RoHS compliant
CE
LoRaWAN
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
13
7Battery life
Storage
More than one year without limiting the product life length
Operational
Battery life length >5 years (at 20-minute intervals, SF12) + 1 year storage
8Security
The device has the following security features:
•Cryptographical coprocessor for ultra-secure hardware based key storage
•Secure boot
•Encrypted FW
•Message encryption (AES-128 bit)
•Message integrity (MIC AES-128 bit)
•No port access to device.
9Protocol
The protocol consists of different types of data
-LoRaWAN v.1.0.2 standard commands
-Unsolicited uplink status commands during configure state
-Periodic measurement reports
-Downlink commands and queries
-Uplink query response
Note 0x denotation means hexadecimal encoded.
9.1 LoRaWAN standard commands
All standard LoRaWAN v 1.0.2 Rev B are supported. Please refer to the LoRaWAN standard
for the protocol definition.
9.2 Unsolicited uplink status commands
The sensor polls the server for configuration parameters the during the Configure state. This
is done by sending unsolicited uplink status report (0x20). This gives quick feedback to the
installer that the installation has been successful and enables downlink configuration
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
14
commands to be sent. After approximately 2 minutes the device changes to Operational
state. See chapter 6.5 for details of the Status report.
Port: Port 1
Payload 0x01 20 00
0x01: Data type
0x20: Status command
0x00: Normal startup
The expected behavior is 0x01 20 00. If not contact support.
9.3 Periodic measurement reports
The sensors transmit periodic unsolicited measurement reports or adaptive reports due to
changes in CO2 level..
9.3.1 Periodic measurement report
The default configuration is that temperature, humidity and CO2 level are transmitted every
20th minute. The data is packed into minimal number of bytes to conserve energy and to
minimize interference.
Port: Port 2
Payload: Measurement value (see chap 9.3.2)
Size: 5 Bytes
9.3.2 Measurement value
The measurement value for each measurement
Byte 0: Temperature, bit 11 –bit 4
Byte 1: Relative humidity, bit 11 –bit4
Byte 2:
bit 7-4: Temperature, bit 3 –bit 0
bit 3-0: Relative humidity, bit 3 –bit 0
Byte 3-4: CO2 sent as an unsigned 16-bit integer
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
15
9.3.2.1 Temperature conversion
The temperature measurement is transmitted using an unsigned 12-bit value. The scaling is
1/10 °C and the offset is 80 °C, which means the received value should be subtracted by 800
and then divided with 10 to get it in °C.
9.3.2.2 Relative humidity conversion
The relative humidity (RH) measurement is transmitted using an unsigned 12-bit value. The
scaling is 1/10 % RH and the offset is 25 % RH, which means the received value should be
subtracted by 250 and then divided with 10 to get it in % RH.
9.3.2.3 Carbon dioxide (CO2) conversion
The carbon dioxide (CO2) measurement in parts-per-million (ppm –1 x 10-6). The CO2 data
is averaged over a measurement period. The data is transmitted using an un-signed 16-bit
integer. The value 0xFFFF indicates an error in the CO2 reading, and should be displayed as
an alarm or error code in the application, not as a measurement value.
9.3.3 Example: Single measurement report
Data sent on LoRaWAN port 2 : 3e 44 1d 02 1b
(3e1) HEX: (993) DEC => 993/10 -80°C => 19.3 gradC
(44d)HEX: (1101) DEC => 1101/10 –25% => 85.1 % RH
(021b)HEX: (539) DEC => 539 ppm CO2
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
16
9.4 Downlink commands and queries
To control the sensor application, in-band commands and queries can be sent from the server
application. Contact your LoRaWAN network provider for in-band application API.
All downlink application communication is done on LoRaWAN port 1.
Downlink command network => device
Field
Bytes
Value
Description
Note
Type
1
xx
0x01: Set
0x02: Query
0x03: Action
Index
1
xx
Command Index
Data
As defined for Command Index only applicable for set-commands
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
17
Port
Index
Description
Uplink
Datatype
response
Encoding
Valid range
Access
Unsolicited
Description
Note
1
0x03
FW build hash
6 x Uint8
Query
No
Unique number that identifies the
firmware version
1
0x05
Device reset
Action
No
Reset of device
1
0x06
CPU voltage
Uint8
25mV/
LSB
0-3.6V
Query
No
Read CPU voltage. Max/min ranges
depend on battery chemistry.
1
0x0A
CPU temperature
Uint16
Big endian
50C - 0.01C /
LSB
-50- +125 C
Query
No
Temperature from CPU sensor with 50
°C offset. Approximately 5 °C
accuracy.
1
0x20
Status
Uint8
Bitfield
Query
Yes
Should be 0, otherwise contact
support with error code information.
Cleared through
reset
1
0x30
Measurement
interval
Uint16
Big endian
Seconds
15-7200
Query
Set
No
Measurement interval in seconds
controlling how often sensors data is
acquired. Default 60 seconds
Setting
measurement
interval resets the
measurement
timer.
1
0x31
Measurement
cycles per
reporting event
Uint16
Big endian
Number of
measurement
cycles
1-2000
Query
Set
No
Maximum number of measurement
cycles before transmitting sensor data
over LoRa uplink. Default 20 cycles
1
0x32
CO2
concentration
variation
threshold
Uint16
Big endian
PPM
0-65535
Query
Set
No
Maximum CO2 concentration change
from last LoRa uplink reporting event
before inserting an additional reporting
event. Default 100ppm
Set to 0 ppm to
disable all
additional
reporting events
based on CO2
level.
1
0x33
CO2
concentration
absolute threshold
Uint16
Big endian
PPM
0-65535
Query
Set
No
Minimum absolute CO2 concentration
level under which all additional
reporting event are omitted. Default
750ppm
1
0x34
Internal CO2
sensor status bits
Uint32
Big endian
CO2 sensor
status
1-2000
Query
No
Query only, for internal use
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
18
2
-
Data
[ Uint12,
Uint12,
Uint16 ]
(°C + 80)*10
(% RH
+25)*10
(ppm CO2)
0 –3800
0 –1500
0 - 65535
-
Yes
Current temperature, humidity and CO2
level.
See Ch 9.3
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
19
9.4.1 Measurement and reporting interval
Both the measurement interval and reporting interval can be set with downlink commands.
The default setting is a measurement interval of 60 sec. The default reporting interval is every
20th measurement interval.
The device sends extra reports when above a configurable CO2 level, default setting 750 ppm
and larger difference than 100 ppm from last report.
The reporting interval counting is reset after an extra measurement report
9.4.2 Reset device
The device can be reset by three methods, long press on button, removal of battery (note the
internal SuperCap will power the device for approximately 24 hours without battery), or
forced into Joining state by OTA commands.
Example: Remote device reset: Port 1: 0305
9.5 Uplink query response
Uplink messages are sent on port 1 with the following heading:
Uplink command device => network
Field
Bytes
Value
Description
Note
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
20
Type
1
xx
0x01: Data
0x02: Command NACK
Index
1
xx
Command Index
Data
As defined for Command Index (only for Type: Data)
Example:
Port 1: Payload 0x01 20 00
0x01: Data type
0x20: Status command
0x00: Normal startup
The expected behavior is 0x01 20 00. If not contact support.
Table of contents
Other Talkpool Measuring Instrument manuals
