tams elektronik S88-A User manual

S88-A | s88-N Adapter
For the connection of 6-pole connectors
of s88-devices with Ethernet patch cables (RJ-4 )
Manual
Version S88-A-BL
Item no. 44-09100-01
Version S88-A-BR
Item no. 44-09110-01
Version S88-A-SL
Item no. 44-09200-01
Version S88-A-SR
Item no. 44-09210-01
tams elektronik
n n n

S88-A | s88-N Adapter
Contents
1. Getting started.............................................................................................................3
1.1. Contents of the package.......................................................................................3
1.2. Intended use.......................................................................................................3
1.3. Safety instructions................................................................................................3
2. Operation overview.......................................................................................................4
2.1. Adapters S88-A....................................................................................................4
2.2. Versions of the adapters S88-A.............................................................................4
2.3. Application examples............................................................................................
3. Mounting the adapter...................................................................................................6
4. Checklist for troubleshooting and error correction...........................................................6
4.1. Technical Hotline..................................................................................................6
4.2. Repairs................................................................................................................6
. Technical data..............................................................................................................7
6. Warranty, EU conformity & WEEE..................................................................................8
6.1. Guarantee bond...................................................................................................8
6.2. EU Declaration of Conformity................................................................................9
6.3. Declarations on the WEEE Directive.......................................................................9
Version: 2.0 | Status: 11/2022
© Tams Elektronik GmbH
All rights reserved, in particular the right of reproduction, distribution and translation. Copies,
reproductions and alterations in any form require the written permission of Tams Elektronik
GmbH. We reserve the right to make technical changes.
Printing the manual
The formatting is optimised for double-sided printing. The standard page size is DIN A . If
you prefer a larger display, printing on DIN A4 is recommended.
Contents | 2

tams elektronik S88-A | s88-N Adapter
1. Getting started
The instructions will help you step by step with the safe and proper installation and use of
your adapter. Before you put the adapter into operation, read this manual completely,
especially the safety instructions and the section on possible errors and their elimination. You
will then know what you have to pay attention to and thus avoid errors that sometimes can
only be rectified with a lot of effort.
Keep the instructions in a safe place so that you can restore functionality later in the event of
any malfunctions. If you pass the adapter on to another person, also give the instructions with
it.
1.1. Contents of the package
1 adapter
Patch cables and/or 6-core (flat ribbon) cables for connection to s88 feedback modules or
digital devices (interface, memory or central unit) are not included in the scope of delivery.
1.2. Intended use
The adapter is intended for use in model railway layouts as specified in the instructions. Any
other use is not in accordance with the intended use and will result in the loss of the warranty
claim. Intended use also includes reading, understanding and following all parts of the
instructions. The adapter is not intended to be used by children under the age of 14.
1.3. Safety instructions
Improper use and non-observance of the instructions can lead to incalculable hazards. Prevent
these dangers by carrying out the following measures:
Only use the adapter in closed, clean and dry rooms. Avoid moisture and splash water in
the environment. After condensation has formed, wait two hours for acclimatisation before
use.
Disconnect devices that are connected to the adapter from the power supply before
carrying out wiring work.
Only supply devices that you connect to the adapter with extra-low voltage as specified in
the technical data. Only use tested and approved transformers for this purpose.
Only plug the mains plugs of transformers into properly installed and fused earthed sockets.
Do not expose the adapter to high ambient temperatures or direct sunlight. Observe the
information on the maximum operating temperature in the technical data.
Regularly check the operational safety of the adapter and the connected devices, e.g. for
damage to the connection cables.
If you notice damage or if malfunctions occur, disconnect the connection to the power
supply immediately. Send the adapter in for inspection.
| 3

S88-A | s88-N Adapter tams elektronik
2. Operation overview
nfo: Standard s88-N
The standard s88-N regulates the assignment of commercial Ethernet patch-
cables for use in s88 feedback systems. Unlike the 6-conductor connecting cables frequently
used, the patch-cables used in computer networks are screened against outside electric
signals. Thus using patch-cables reduces the liability to interference considerably.
2.1. Adapters S88-A
The adapters S88-A have connections for both an Ethernet patch-cable (RJ-4 ) according to
the standard s88-N and a 6-conductor s88-connecting cable. They allow
to connect devices for the s88 bus with customary 6-pin connections via patch cables
(RJ-4 ) to each other;
to connect an device for the s88 bus with customary 6-pin connections to a s88-device with
RJ-4 connections according to s88-N.
2.2. Versions of the adapters S88-A
S88 adapters with socket
can be plugged directly onto the 6-pin connector of an S88 back module. If space allows and
the adapter can be plugged into the 6-pin connector of an s88 device in such a way that it has
a secure hold, it makes sense to use adapters with a socket.
Recommended use: Modules with connectors coming out from the side
S88-A-BL
Item no. 44-09100
S88-A-BR
Item no. 44-09110
S88-adapter with plug
are connected via a 6-core cable that is as short as possible (e.g. S88-1 , item no. 44-092 0-
01). They are intended for connection to s88 devices where an adapter with socket cannot be
plugged on in such a way that it sits firmly and securely. They should always be used for the
connection to the digital central unit in order to avoid mechanical damage to the S88 interface
of the central unit.
Recommended use: digital devices, modules with connectors leading out upwards
S88-A-SL
Item no. 44-09200
S88-A-SR
Item no. 44-09210
4 | Operation overview

tams elektronik S88-A | s88-N Adapter
Mounting directions of the adapters S88-A
Depending on the installation direction, the "R" or "L" versions of the adapter are used.
Versions Direction of the 6-pole connection*
S88-A-SL and S88-A-BLCentral unit * Explanation: The specification refers to
the direction in which the 6-pin connector
of the adapter points.
S88-A-SR and S88-A-BRFeedback module

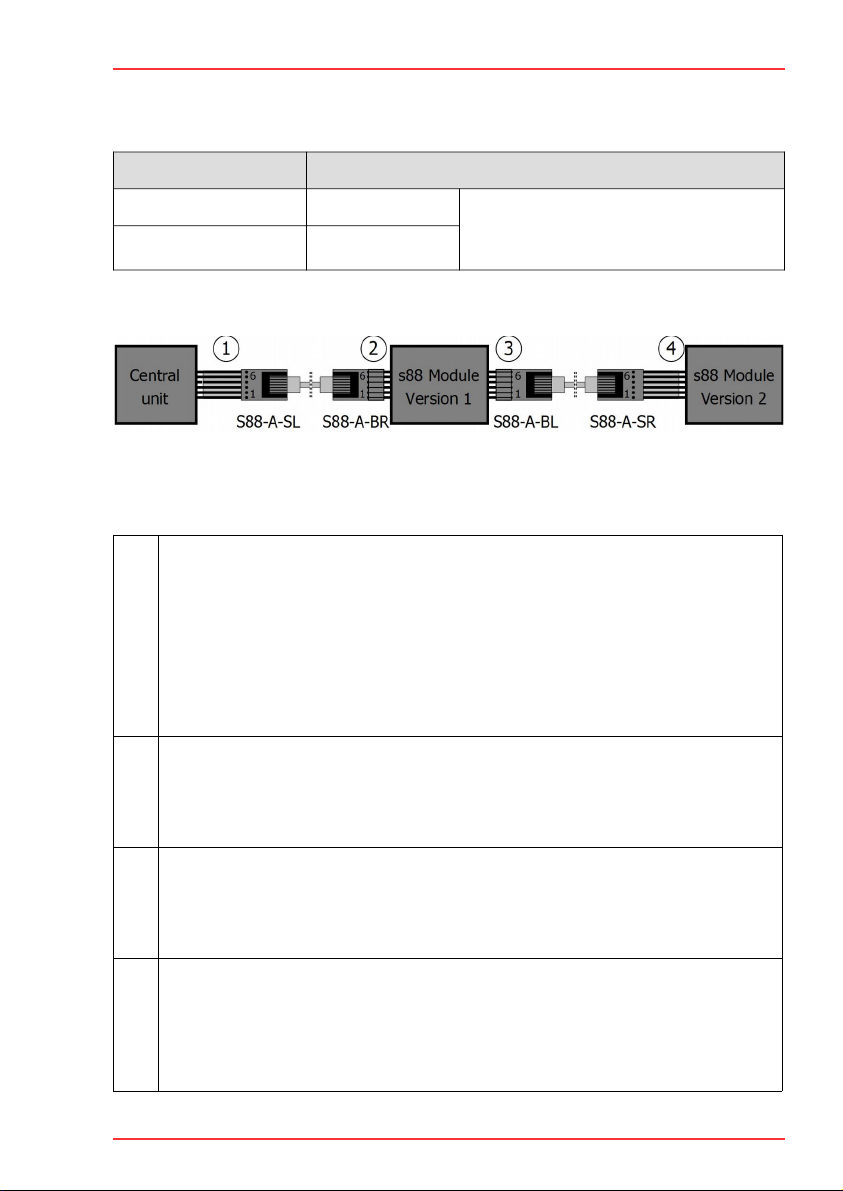

2.3. Application examples
s88 module version 1: with connectors coming out from the side
s88 module version 2: with plugs protruding upwards
Explanation of the examples:
1At the central unit, the connection of an adapter with socket is generally not
recommended. With this version of the adapter, the pins of the s88 interface of the
command station could be bent accidentally. Therefore, the connection is made using
a short 6-core ribbon cable and an adapter with a plug.
The 6-pin connector of the adapter points in the direction of the "control centre",
therefore a version "L" is required.
Der 6-polige Anschluss des Adapters weist in Richtung "Zentrale", daher ist eine
Version "L" erforderlich.
2With this version of an s88 module with plugs leading out from the side, adapters with
socket can be plugged on directly.
The 6-pole connection of the adapter points in the direction of the "feedback unit",
therefore a version "R" is required.
3With this version of an s88 module with connectors leading out from the side,
adapters with a socket can be plugged on directly.
The 6-pole connection of the adapter points in the direction of "central", therefore a
version "L" is required.
4With this version of an s88 module with connectors leading out upwards, an adapter
with socket cannot be fixed securely. Therefore, the connection is made via a short 6-
core ribbon cable and an adapter with plug.
The 6-pole connection of the adapter points in the direction of the "feedback unit",
therefore a version "R" is required.
Operation overview |

!
S88-A | s88-N Adapter tams elektronik
3. Mounting the adapter
Connect the adapter to the patch cable and the s88 feedback module or device. For this
purpose use an adapter with socket or an adapter with plug and a short 6-connector
connecting cable.
Caution:
Avoid constructions which allow the adapter to be moved after having been connected. Due
to (involuntary) movements of the adapter the connections of the s88 module or the digital
device and their mounting can be damaged.
4. Checklist for troubleshooting and error correction
The central unit, the memory or the interface do not show the proper status.
Possible causes:
The connection(s) between the adapter and the connected device and / or the patch cable
have been interrupted. Check the connection(s).
You have mounted an adapter not corresponding to the set mounting direction.  Check if
mounting direction and the chosen adapter correspond to each other and, if necessary,
exchange the adapter.
4.1. Technical Hotline
If you have any questions about the use of your adapter, our technical hotline will help you
(telephone number and e-mail address on the last page).
4.2. Repairs
You can send us a defective adapter for repair (address on the last page). In the event of a
warranty or guarantee claim, the repair is free of charge for you. As proof of any warranty or
guarantee claim, please enclose the proof of purchase with your return.
If there is no warranty or guarantee claim, we are entitled to charge you the costs of the
repair and the costs of the return shipment. We charge a maximum of 0% of the new price
for the repair according to our valid price list. We reserve the right to refuse the repair if it is
technically impossible or uneconomical.
If you want to clarify whether a repair is possible or economical before sending it in, please
contact our Technical Hotline (telephone number and email address on the last page).
Please do not send us repair shipments freight collect. In the event of a warranty or
guarantee claim, we will reimburse you for the regular shipping costs.
6 | Checklist for troubleshooting and error correction

tams elektronik S88-A | s88-N Adapter
. Technical data
Data protocols and interfaces
Data protocols s88
Interfaces for s88 bus 1 x RJ-4 socket according to S88-N
1 x 6-pole connector
Protection
Protection class IP 00
Meaning: No protection against foreign bodies, contact and water.
Environment
For use in closed rooms
Ambient temperature during
operation
0 ~ + 30 °C
Permissible relative humidity
during operation
10 ~ 8 % (non-condensing)
Ambient temperature during
storage
- 10 ~ + 40 °C
Permissible relative humidity
during storage
10 ~ 8 % (non-condensing)
Other features
Dimensions (approx.) S88-A-BL: 37 x 17, x 1 mm
S88-A-BR: 34 x 17, x 1 mm
S88-A-SL: 29 x 27, x 1 mm
S88-A-SR: 29 x 27, x 1 mm
Weight (approx.) S88-A-BL and S88-A-BR: 4,8 g
S88-A-SL and S88-A-SR: 4, g
Technical data | 7

S88-A | s88-N Adapter tams elektronik
6. Warranty, EU conformity & WEEE
6.1. Guarantee bond
For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the
first customer, but in maximum 3 years after the end of series production. The first customer
is the consumer first purchasing the product from us, a dealer or another natural or juristic
person reselling or mounting the product on the basis of self-employment. The guarantee
exists supplementary to the legal warranty of merchantability due to the consumer by the
seller.
The warranty includes the free correction of faults which can be proved to be due to material
failure or factory flaw. With kits we guarantee the completeness and quality of the
components as well as the function of the parts according to the parameters in not mounted
state. We guarantee the adherence to the technical specifications when the kit has been
assembled and the ready-built circuit connected according to the manual and when start and
mode of operation follow the instructions.
We retain the right to repair, make improvements, to deliver spares or to return the purchase
price. Other claims are excluded. Claims for secondary damages or product liability consist
only according to legal requirements.
Condition for this guarantee to be valid, is the adherence to the manual. In addition, the
guarantee claim is excluded in the following cases:
if arbitrary changes in the circuit are made,
if repair attempts have failed with a ready-made module or device,
if damaged by other persons,
if damaged by faulty operation or by careless use or abuse.
8 | Warranty, EU conformity & WEEE

tams elektronik S88-A | s88-N Adapter
6.2. EU Declaration of Conformity
This product fulfils the requirements of the following EU directives and therefore
bears the CE marking.
2001/9 /EU Product Safety Directive
201 /863/EU on the restriction of the use of certain hazardous substances in electrical and
electronic equipment (RoHS)
6.3. Declarations on the WEEE Directive
This product is subject to the requirements of the EU Directive 2012/19/EC on Waste Electrical
and Electronic Equipment (WEEE), i.e. the manufacturer, distributor or seller of the product
must contribute to the proper disposal and treatment of waste equipment in accordance with
EU and national law. This obligation includes
registration with the registering authorities ("registers") in the country where WEEE is
distributed or sold
the regular reporting of the amount of EEE sold
the organisation or financing of collection, treatment, recycling and recovery of the
products
for distributors, the establishment of a take-back service where customers can return WEEE
free of charge
for producers, compliance with the Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS) Directive.
The "crossed-out wheeled bin" symbol means that you are legally obliged to
recycle the marked equipment at the end of its life. The appliances must not be
disposed of with (unsorted) household waste or packaging waste. Dispose of the
appliances at special collection and return points, e.g. at recycling centres or at
dealers who offer a corresponding take-back service.
Warranty, EU conformity & WEEE | 9

S88-A | s88-N Adapter tams elektronik
10

tams elektronik S88-A | s88-N Adapter
11

n
n
n
n
Further Information and Tips:
n
n
http://www.tams-online.de n
n
n
n
Warranty and Service:
n
n
Tams Elektronik GmbH n
Fuhrberger Straße 4
DE-3062 Hannover
n
fon: +49 (0) 11 / 60 60
fax: +49 (0) 11 / 61 61
n
e-mail: [email protected] n
n
