Tanaka TCS 27EPAP(S) User manual

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!
This manual contains important information about product safety. Please read and understand
this manual BEFORE operating the power tool. Please keep this manual available for other
users and owners before they use the power tool. This manual should be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D’EMPLOI
AVERTISSEMENT
Une utilisation INCORRECTE OU DANGEREUSE de cet outil motorisé peut entraîner la mort
ou de sérieuses blessures corporelles !
Ce mode d’emploi contient d’importantes informations à propos de la sécurité de ce produit.
Prière de lire et de comprendre ce mode d’emploi AVANT d’utiliser l’outil motorisé. Garder
ce mode d’emploi à la disponibilité des autres utilisateurs et propriétaires avant qu’ils utilisent
l’outil motorisé. Ce mode d’emploi doit être conservé dans un endroit sûr.
INSTRUCCIONES DE SEGURIDAD Y MANUAL DE INSTRUCCIONES
ADVERTENCIA
¡La utilización INAPROPIADA O PELIGROSA de esta herramienta eléctrica puede provocar
lesiones graves o la muerte!
Este manual contiene información importante sobre la seguridad del producto. Lea y
comprenda este manual ANTES de utilizar la herramienta eléctrica. Guarde este manual para
que puedan leerlo otras personas antes de utilizar la herramienta eléctrica. Este manual debe
ser guardado en un lugar seguro.
Model
Modèle
Modelo TCS 27EPAP (S)Pole Saw
Elagueuse sur perche
Podadora de altura
000BookTCS27EPAP(S)Eng.indb1000BookTCS27EPAP(S)Eng.indb1 2014/06/0415:30:002014/06/0415:30:00

2
English

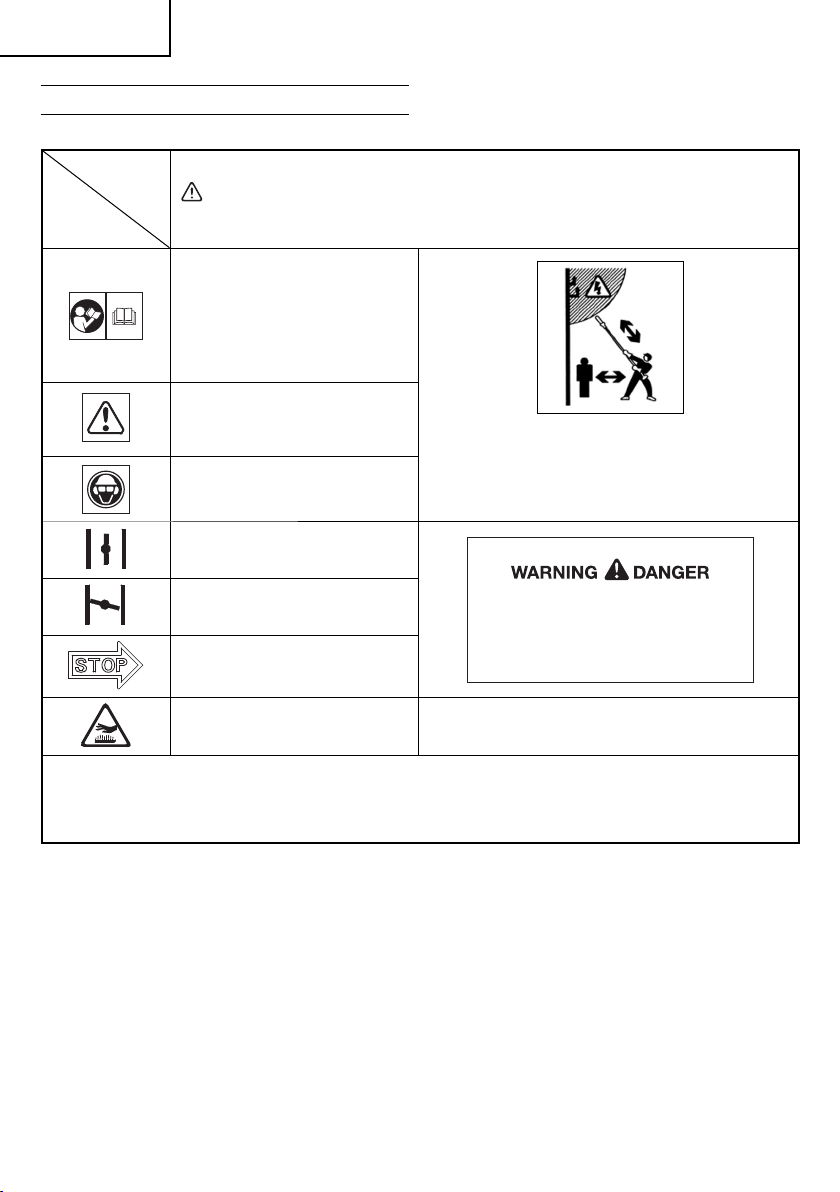

MEANINGS OF SYMBOLS
NOTE: Some units do not carry them.
Symbols
WARNING
The following show symbols used for the machine. Be sure that you understand their meaning
before use.
It is important that you read, fully
understand and observe the
following safety precautions and
warnings. Careless or improper
use of the unit may cause serious
or fatal injury.
Read, understand and follow all
warnings and instructions in this
manual and on the unit.
Always wear eye, head and ear
protectors when using this unit.
Choke – Run position (Open)
Choke – Start position (Closed)
Emergency stop
Hot surface
Before using your machine
• Read the manual carefully.
• Check that the cutting equipment is correctly assembled and adjusted.
• Start the unit and check the carburetor adjustment. See “MAINTENANCE”.
Index
WHAT IS WHAT..........................................................3
WARNINGS AND SAFETY INSTRUCTIONS ............4
SPECIFICATIONS ......................................................6
ASSEMBLY PROCEDURES ......................................6
OPERATING PROCEDURES.....................................8
MAINTENANCE .......................................................11
15 m
50 FT
All overhead electrical conductors and
communications wires can have electricity flow
with high voltages. Never touch wires directly or
indirectly when pruning, otherwise serious
injury or death may result
Keep all children, bystanders and helpers
50 ft (15 m) away from the unit. If anyone
approaches you, stop the engine and cutting
attachment immediately.
000BookTCS27EPAP(S)Eng.indb2000BookTCS27EPAP(S)Eng.indb2 2014/06/0415:30:012014/06/0415:30:01

3
English

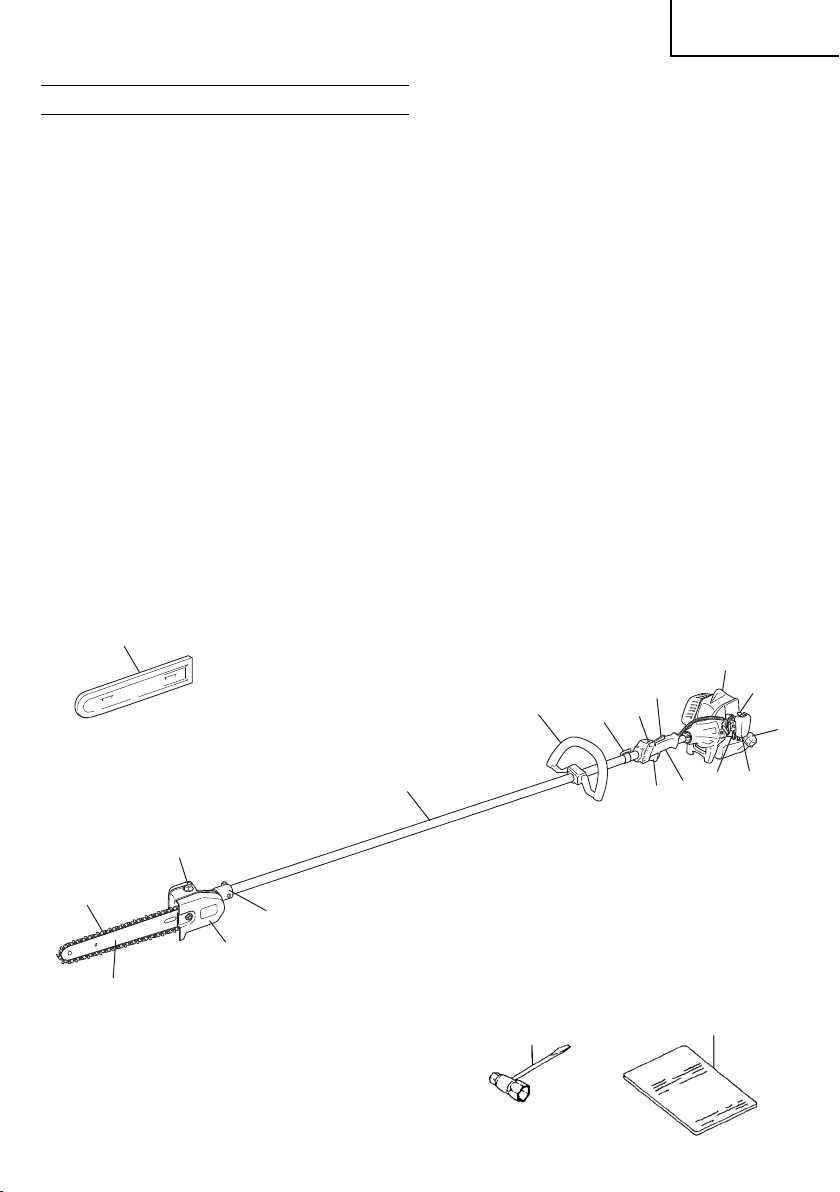

WHAT IS WHAT
Since this manual covers several models, there may be
some difference between pictures and your unit. Use the
instructions that apply to your unit.
1. Fuel cap
2. Throttle trigger
3. Starter handle
4. Cutting attachment
5. Drive shaft tube
6. Handle bar
7. Priming pump
8. Ignition switch
9. Guide bar
10. Throttle trigger lockout
11. Choke lever
12. Engine
13. Angle transmission
14. Handle grip
15. Saw chain
16. Guide bar cover
17. Suspension eyelet
18. Oil tank cap
19. Combi box spanner
20. Handling instructions
16
12
1
3
8
18
9
10
5
13
11
2
15
7
6
4
17
14
19 20
000BookTCS27EPAP(S)Eng.indb3000BookTCS27EPAP(S)Eng.indb3 2014/06/0415:30:012014/06/0415:30:01

4
English
WARNINGS AND SAFETY
INSTRUCTIONS
Operator safety
○
Always wear head protection with full face shield to
help protect against falling branches and debris.
○ Avoid all power lines. This unit is not insulated
against electrical current.
○ Gloves should be used when sharpening chain.
○ Always wear heavy, long pants, boots and gloves.
Do not wear loose clothing, jewelry, short pants,
sandals or go barefoot. Secure hair so it is above
shoulder length.
○ Do not operate this tool when you are tired, ill or
under the influence of alcohol, drugs or medication.
○ Never let a child or inexperienced person operate
the machine.
○ Wear hearing protection. Pay attention to your
surroundings. Be aware of any bystanders who may
be signaling a problem. Remove safety equipment
immediately upon shutting offengine.
○ Wear head protection.
○ Never start or run the engine inside a closed room
or building. Breathing exhaust fumes can kill.
○ Keep handles free of oil and fuel.
○ Keep hands away from cutting equipment.
○ Do not grab or hold the unit by the cutting equipment.
○ When the unit is turned off, make sure the cutting
attachment has stopped before the unit is set down.
○ When operation is prolonged, take a break from time
to time so that you may avoid possible Hand-Arm
Vibration Syndrome (HAVS) which is caused by
vibration.
○ The operator must obey the local regulations of
cutting area.
WARNING
○ Antivibration systems do not guarantee that you will
not sustain Hand-Arm Vibration Syndrome or carpal
tunnel syndrome. Therefore, continual and regular
users should monitor closely the condition of their
hands and fingers. If any symptoms of the above
appear, seek medical advice immediately.
○ If you are using any medical electric / electronic
devices such as a pacemaker, consult your
physician as well as the device manufacturer prior
to operating any power equipment.
Unit / machine safety
○ Inspect the entire unit / machine before each use.
Replace damaged parts. Check for fuel leaks and
make sure all fasteners are in place and securely
tightened.
○ Replace parts that are cracked, chipped or damaged
in any way before using the unit / machine.
○ Keep others away when making carburetor
adjustments.
○ Use only accessories as recommended for this unit
/ machine by the manufacturer.
○ Never let the chain strike any obstacle.
If the chain makes contact, the machine should be
stopped and checked carefully.
○ Make sure the automatic oiler is working. Keep the
oil tank filled with clean oil. Never let chain run dry
on the bar
○ All unit service, other than the items listed in the
operator's / owner's manual, should be performed
by Tanaka dealer. (For example, if improper tools are
used to remove the flywheel or if an improper tool is
used to hold the flywheel in order to remove the clutch,
structural damage to the flywheel could occur and
could subsequently cause the flywheel to burst.)
WARNING
Never modify the unit/machine in any way. Do not
use your unit / machine for any job except that for
which it is intended.
Fuel safety
○ Mix and pour fuel outdoors and where there are no
sparks or flames.
○ Use a container approved for fuel.
○ Do not smoke or allow smoking near fuel or the unit/
machine or while using the unit / machine.
○ Wipe up all fuel spills before starting engine.
○ Move at least 10 feet (3 m) away from fueling site
before starting engine.
○ Stop engine before removing fuel cap.
○ Empty the fuel tank before storing the unit/machine.
It is recommended that the fuel be emptied after
each use. If fuel is left in the tank, store so fuel will
not leak.
○ Store unit / machine and fuel in area where fuel
vapors cannot reach sparks or open flames from
water heaters, electric motors or switches, furnaces.
etc.
WARNING
Fuel is easy to ignite or get explosion or inhale
fumes, so that pay special attention when handling
or filling fuel.
Cutting safety
○ Do not cut any material other than wood or wooden
objects.
○ For respiratory protection, wear an aerosol protection
mask when cutting the wood after insecticide has
been applied.
000BookTCS27EPAP(S)Eng.indb4000BookTCS27EPAP(S)Eng.indb4 2014/06/0415:30:012014/06/0415:30:01

5
English
○ Keep others including children, animals, bystanders
and helpers outside the 50 feet (15 m) hazard zone.
Stop the engine immediately if you are approached.
○ Hold the unit / machine firmly with both hands.
○ Keep firm footing and balance. Do not over-reach.
○ Keep all parts of your body away from the muffler
and cutting attachment when the engine is running.
○ Before pruning branches, the operator must be
accustomed to the pruning techniques of the
machine.
○ Be sure to pre-plan a safe exit from falling objects.
○ While cutting, hold the machine firmly with both
hands with thumb firmly locked around front handle,
and stand with feet well balanced and your body
balanced.
○ Be alert against kickback (when saw kicks up and
back at operator). Never cut with the nose of the bar.
○ When relocating to a new work area, be sure to
shut off the machine and ensure that all cutting
attachments are stopped.
○ Never place the machine on the ground when
running.
○ Always ensure that the engine is shut offand any
cutting attachments have completely stopped before
clearing debris or removing grass from the cutting
attachment.
○ Always carry a first-aid kit when operating any power
equipment.
○ Never start or run the engine inside a closed room or
building and/or near inflammable liquids. Breathing
exhaust fumes can kill.
Maintenance safety
○ Maintain the unit/machine according to
recommended procedures.
○ Disconnect the spark plug before performing
maintenance except for carburetor adjustments.
○ Keep others away when making carburetor
adjustments.
○ Use only genuine Tanaka replacement parts as
recommended by the manufacturer.
CAUTION
Do not disassemble the recoil starter. You may get
a possibility of personal injury with recoil spring.
Transport and storage
○ Carry the unit / machine by hand with the engine
stopped and the muffler away from your body.
○ Allow the engine to cool, empty the fuel tank,
and secure the unit / machine before storing or
transporting in a vehicle.
○ Empty the fuel tank before storing the unit / machine.
It is recommended that the fuel be emptied after
each use. If fuel is left in the tank, store so fuel will
not leak.
○ Store unit / machine out of the reach of children.
○ Clean and maintain the unit carefully and store it in
a dry place.
○ Make sure engine switch is offwhen transporting or
storing.
○ When transporting in a vehicle, cover chain with
chain cover.
If situations occur which are not covered in this manual,
take care and use common sense. Contact your Tanaka
dealer if you need assistance. Pay special attention to
statements preceded by the following words:
WARNING
Indicates a strong possibility of severe personal
injury or loss of life, if instructions are not followed.
CAUTION
Indicates a possibility of personal injury or equipment
damage, if instructions are not followed.
NOTE
Helpful information for correct function and use.
000BookTCS27EPAP(S)Eng.indb5000BookTCS27EPAP(S)Eng.indb5 2014/06/0415:30:012014/06/0415:30:01

6
English
SPECIFICATIONS
Model TCS27EPAP (S)
Engine displacement (cu. in) 1.62 (26.9 ml)
Spark plug CHAMPION CJ6
Fuel tank capacity (fl. oz) 17.6 (0.52 l)
Chain Oil Tank Capacity (fl. oz) 5.4 (0.16 l)
Dry Weight (lbs)
(Without guide bar and chain) 12.8 (5.8 kg)
Guide bar length (in.) 10 (250 mm)
Chain pitch (in.) 3/8 (9.52 mm)
Chain gauge (in.) 0.043 (1.09 mm)
Sound pressure level LpA (dB (A)) by ISO 11680
Equivalent
Uncertainty 89 3
Sound power level LwA (dB (A)) by ISO 11680
Measured
Uncertainty
Sound power level LwA (dB (A)) by 2000/14/EC
Measured
Guaranteed
105
3
108
111
Vibration level (m/s
2
) by ISO 11680
Front handle
Rear handle 4.9 9.2
Max. engine power by ISO 8893 (kW) 0.9
Max. engine speed (min
-1
) 11,000
Idle engine speed (min
-1
) 3,000
NOTE: Equivalent noise level / vibration levels by ISO 11680 are calculated as the time-weighted energy total
for noise / vibration levels under various working conditions with the following time distribution: 1/2 idle,
1/2 racing speed.
* All data subject to change without notice.
ASSEMBLY PROCEDURES
Drive shaft to engine (Fig. 1)
Loosen tube locking bolt (1) about ten turns so that the
bolt point will not obstruct drive shaft tube to be inserted.
When inserting drive shaft tube, hold the tube locking
bolt outward preventing inside fitting from obstructing
as well.
Insert the drive shaft into the clutch case of the engine
properly until the marked position (2) on the drive shaft
tube meets the clutch case.
1
2
Fig. 1
NOTE
When it is hard to insert drive shaft up to the marked
position on the drive shaft tube, turn drive shaft
by the cutter mounting end clockwise or counter-
clockwise. Tighten tube locking bolt lining up the
hole in the shaft tube. Then tighten clamp bolt
securely.
000BookTCS27EPAP(S)Eng.indb6000BookTCS27EPAP(S)Eng.indb6 2014/06/0415:30:012014/06/0415:30:01

7
English
Cutting attachment to drive shaft
(Fig. 2)
Loosen tube locking bolt (3).
Insert the drive shaft into the gear case of the attachment
properly until the marked position (4) on the drive shaft
tube meets the gear case.
3
4
5
Fig. 2
Installation of handle (Fig. 3)
Attach the handle to the drive shaft tube with the angle
towards the engine.
Adjust the location to the most comfortable position
before operation.
Fig. 3
Throttle wire / stop cord
Press the upper tab (6) and open the air cleaner cover.
(Fig. 4)
Connect stop cords. (Fig. 5)
6
Fig. 4
Fig. 5
If the throttle outer end (7) is threaded on your unit,
screw it and the earth terminal (8) (if so equipped) into
the cable adjuster stay (9) all the way, and then tighten
this cable end using the adjuster nut (10) against the
cable adjuster stay (9).
Connect throttle wire end (11) to carburetor (12) and
install swivel cap (13) (if so equipped) where is included
in tool bag, onto swivel (12) (Fig. 6).
Some models may come with the parts installed.
12
10
13
9
8
7
11
Fig. 6
WARNING
Never try to start engine without side case securely
fastened.
NOTE
When assembling brand new unit, take off and
discard a piece of cardboard (14) between gear case
and side case. (Fig. 7)
14
Fig. 7
Installation of bar and chain
1. Remove chain bar clamp nuts (15).
2. Remove the side case (16). (Fig. 8)
15
16
Fig. 8
000BookTCS27EPAP(S)Eng.indb7000BookTCS27EPAP(S)Eng.indb7 2014/06/0415:30:012014/06/0415:30:01

8
English
3. Install the chain bar (17) onto the bolts (18), then
push it toward the sprocket (19) as far as it will go.
Make sure that the boss of chain tension adjust bolt
(20) fits into the hole (21) of the bar. (Fig. 9)
20
19
18
17 21
Fig. 9
NOTE
Slightly move the bar back and forth and make sure
the chain tension boss (20) fits into the hole (21) in
the bar properly.
4. Confirm the direction of saw chain (22) is correct as
in the figure, and align the chain on the sprocket.
(Fig. 10)
15 16
22
Fig. 10
5. Guide the chain drive links into the bar groove all
around the bar.
6. Install the side case (16) onto the guide bar clamp
bolt. Then fix the clamp nut (15) temporarily. (Fig. 10)
7. Raise the bar end, and tighten the chain (22) by
turning the tension adjustment bolt (23) clockwise.
To check proper tension, lightly lift up the center
of chain and there should be about 0.02 –0.04"
(0.5 – 1.0 mm) clearance (24) between bar and edge
of drive link. (Fig. 11, 12)
Fig. 11
0.02 – 0.04"
(0.5 – 1 mm)
23 22
Fig. 12
CAUTION
PROPER TENSION IS EXTREMELY
IMPORTANT(Fig. 11, 12)
8. Raise the bar end and securely tighten the chain bar
clamp nuts with the box wrench. (Fig. 11)
9. A new chain will stretch so adjust the chain after a
few cuts and watch chain tension carefully for the
first half hour of cutting.
NOTE
Check the chain tension frequently for optimum
performance and durability.
CAUTION
○
When the chain is excessively tightened, the bar and
chain will be damaged rapidly. Conversely, when the
chain is excessively loosened, it may get out of the
groove in the bar.
○ Always wear gloves when touching the chain.
WARNING
During operation, hold chain saw firmly with both
hands. A single hand operation may cause serious
injury.
OPERATING PROCEDURES
Fuel (Fig. 13)
A
B
Fig. 13
000BookTCS27EPAP(S)Eng.indb8000BookTCS27EPAP(S)Eng.indb8 2014/06/0415:30:022014/06/0415:30:02

9
English
WARNING
○ This unit is equipped with a two-stroke engine.
Always run the engine on fuel, which is mixed with
oil.
Provide good ventilation, when fueling or handling
fuel.
○ Fuel contains highly flammable and it is possible
to get the serious personal injury when inhaling or
spilling on your body. Always pay attention when
handling fuel. Always have good ventilation when
handling fuel inside building.
Fuel
○ Always use branded 89 octane unleaded gasoline.
○ Use genuine two-cycle oil or use a mix between 25:1
to 50:1, please consult the oil bottle for the ratio or
Tanaka dealer.
○ If genuine oil is not available, use an anti-oxidant
added quality oil expressly labeled for air-cooled
2-cycle engine use (JASO FC GRADE OIL or ISO
EGC GRADE). Do not use BIA or TCW (2-stroke
water-cooling type) mixed oil.
○ Never use multi-grade oil (10 W/30) or waste oil.
○ Always mix fuel and oil in a separate clean container.
Always start by filing half the amount of fuel, which is to
be used. Then add the whole amount of oil. Mix (shake)
the fuel mixture. Add the remaining amount of fuel.
Mix (shake) the fuel-mix thoroughly before filling the
fuel tank.
Fueling
WARNING
○ Always shut offthe engine before refueling.
○ Slowly open the fuel tank, when filling up with fuel,
so that possible over-pressure disappears.
○ Tighten the fuel cap carefully, after fueling.
○ Always move the unit at least 10 feet (3 m) from the
fueling area before starting.
○ Always wash any spilled fuel from clothing
immediately with soap.
○ Be sure to check for any fuel leakage after refueling.
Before fueling, clean the tank cap area carefully, to
ensure that no dirt falls into the tank. Make sure that
the fuel is well mixed by shaking the container, before
fueling.
Chain oil (Fig. 14)
Fill up with chain oil (25). Always use good quality
chain oil. When the engine is running, the chain oil is
automatically discharged.
25
0.4" (1 cm)
Fig. 14
NOTE
Add chain oil when its level lowers to one centimeter
from bottom, (Fig. 14)
ADJUSTMENT OF CHAIN OIL
SUPPLY
The chain oil quantity discharged through the lubrication
system is factory-adjusted to the standard. Adjust the
quantity in accordance with the operating condition.
The numbered label (26) describes order of chain oil
adjustment. (Fig. 15)
○ Loosen the fixing screw (27) one turn. (Fig. 15)
○ Turn the adjusting screw (28) clockwise to decrease
the quantity and turn it counter-clockwise to increase
the quantity. (Fig. 16)
○ Do not try to turn the screw (28) clockwise beyond 1
turn from its most counter-clockwise position or the
maximum quantity discharged position.
○ After adjustment has been made, tighten fixing
screw (27). (Fig. 15)
26
27
Fig. 15
28
Fig. 16
NOTE
When you have lost the proper position of the screw
(28), start with the most counterclockwise position.
000BookTCS27EPAP(S)Eng.indb9000BookTCS27EPAP(S)Eng.indb9 2014/06/0415:30:022014/06/0415:30:02

10
English
Starting
CAUTION
Before starting, make sure the cutting attachment
does not touch anything.
1. Set ignition switch (29) to ON position. (Fig. 17)
29
30
Fig. 17
* Push priming bulb (31) several times so that fuel
flows through return pipe. (Fig. 18)
31
Fig. 18
2. Set choke lever (51) to CLOSED position (A).
(Fig. 19)
51
Fig. 19
3. Pull recoil starter briskly, taking care to keep the
handle in your grasp and not allowing it to snap back.
(Fig. 20)
Fig. 20
4. When you hear the engine want to start, return choke
lever to RUN position (open) (B). Then pull recoil
starter briskly again.
NOTE
If engine does not start, repeat procedures from 2
to 5.
5. Then allow the engine about 2 – 3 minutes to warm
up before subjecting it to any load.
Stopping (Fig. 21)
Decrease engine speed and run at an idle for a few
minutes, then turn offignition switch (29).
For models with an engine ignition switch, keep the
ignition switch pressed until the engine comes to a
complete stop.
29
30
Fig. 21
WARNING
A cutting attachment can injure while it continues
to spin after the engine is stopped or power control
is released. When the unit is turned off, make sure
the cutting attachment has stopped before the unit
is set down.
SAFE OPERATION
CAUTION
○
Always wear gloves during operation or maintenance.
○ Review the area to be trimmed. Look for hazards
that could contribute to unsafe conditions. DO NOT
operate unit if any wires (power, telephone, cable,
etc.) are closer than 50 feet (15 m) to any part of the
operator or unit. (Fig. 22)
000BookTCS27EPAP(S)Eng.indb10000BookTCS27EPAP(S)Eng.indb10 2014/06/0415:30:022014/06/0415:30:02

11
English

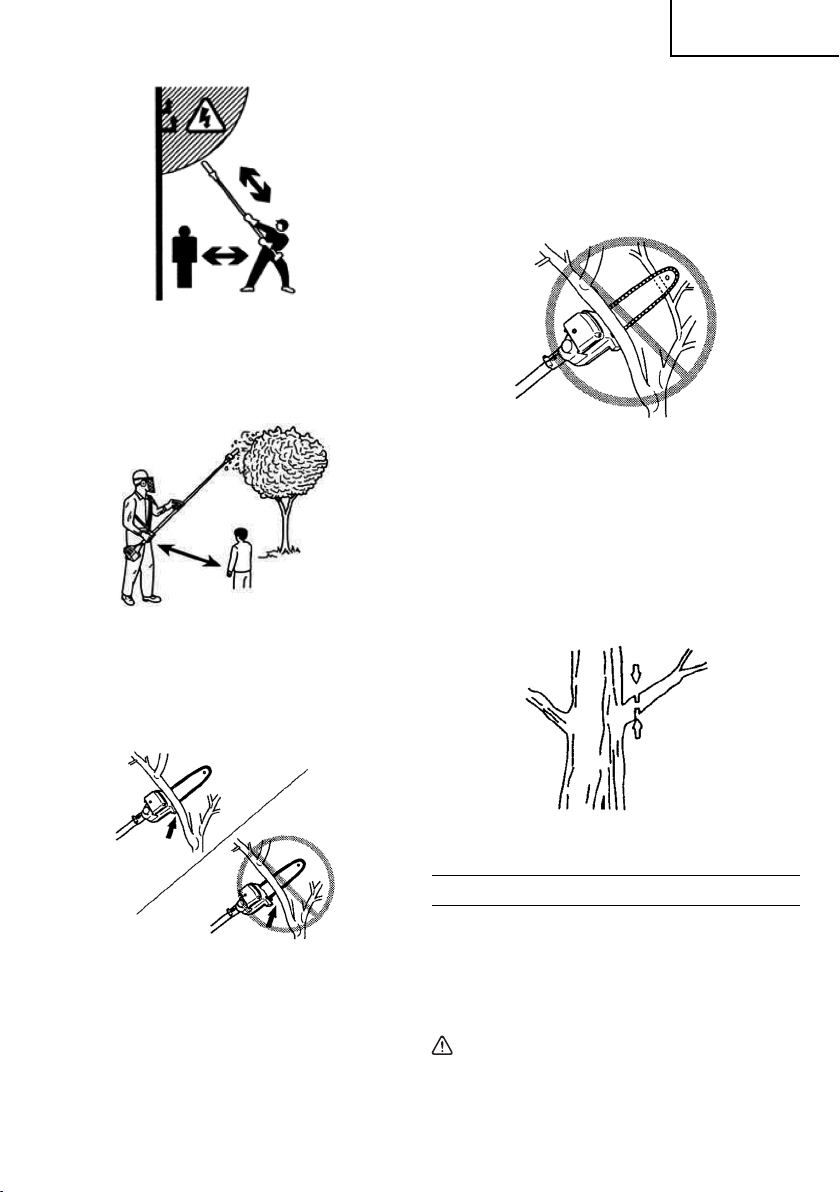

50 ft
15 m
Fig. 22
○ Spectator and fellow workers must be warned, and
children and animals prevented from coming nearer
than 50 feet (15 m) while the pole saw is in use.
(Fig. 23)
50 ft
15 m
Fig. 23
○ Avoid all power lines. This unit is not insulated
against electrical current.
○ Always wear head protection with full face shield
to help protect against falling branches and debris.
(Fig. 24)
Fig. 24
Pruning techniques
This attachment is designed for pruning small limbs and
branches up to 8" (200 mm) in diameter.
Follow these tips for successful operation.
○ Plan cut carefully. Check direction branch will fall.
○ Long branches should be removed in several pieces.
○ Do not stand directly beneath branch being cut.
○ When ready to cut: Hold "front cutting guide" against
branch. This will prevent whipping of the branch. DO
NOT use back and forth sawing action. (Fig. 24)
○ Look out for branch immediately behind the branch
being cut, If blade hits rear branch damage to blade
may occur. (Fig. 25)
Fig. 25
○ Accelerate to full throttle.
○ Apply a light cutting pressure.
○ Ease cutting pressure when nearing end of cut to
maintain control.
○ When pruning a limb 4" (100 mm) diameter or larger,
cut as follows: (Fig. 26)
1. Undercut 1/4 limb diameter near tree trunk.
2. Finish top cut slightly farther out on limb.
3. Flush cut stub at trunk.
1
2
Fig. 26
○ DO NOT use for felling or bucking.
MAINTENANCE
MAINTENANCE, REPLACEMENT OR REPAIR OF
THE EMISSION CONTROL DEVICES AND SYSTEMS
MAY BE PERFORMED BY ANY NON-ROAD ENGINE
REPAIR ESTABLISHMENT OR INDIVIDUAL.

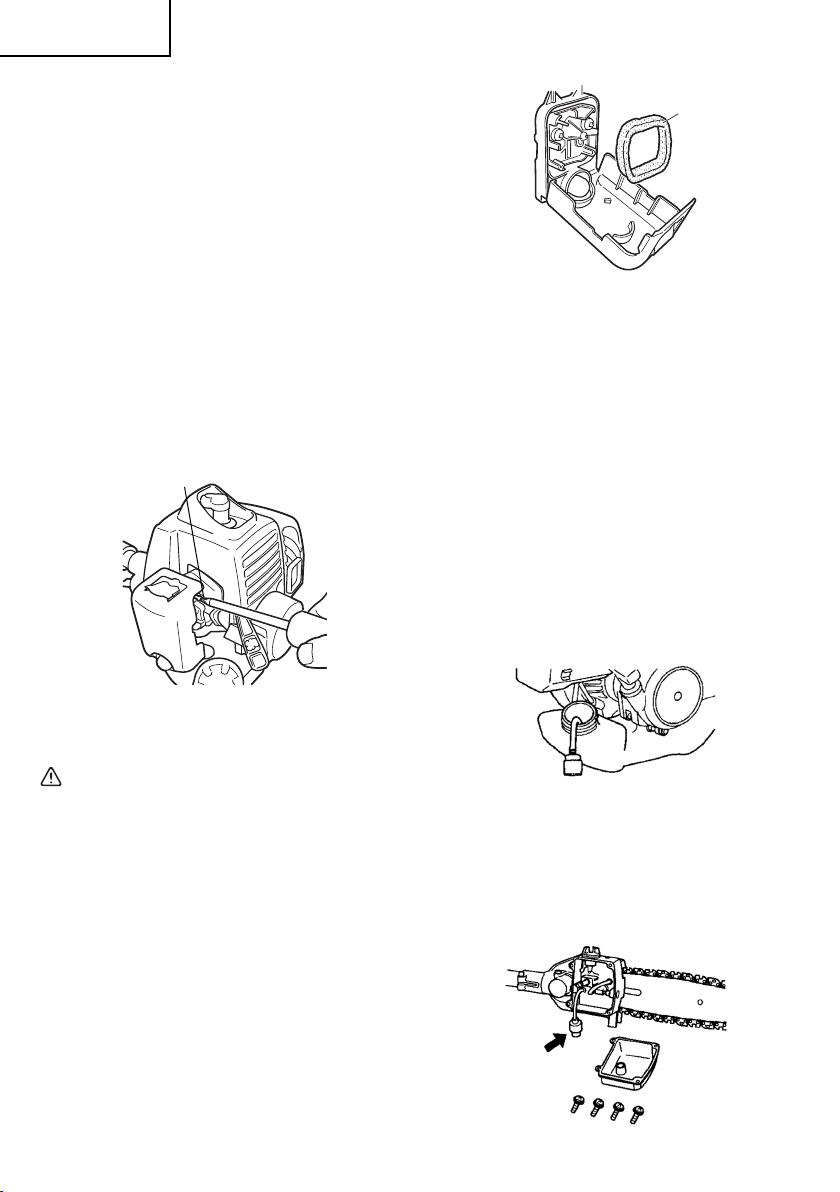

Carburetor adjustment (Fig. 27)
WARNING
○ The cutting attachment may be spinning during
carburetor adjustments.
○ Never start the engine without the complete clutch
cover and tube assembled! Otherwise the clutch
can come loose and cause personal injuries.
000BookTCS27EPAP(S)Eng.indb11000BookTCS27EPAP(S)Eng.indb11 2014/06/0415:30:022014/06/0415:30:02

12
English
In the carburetor, fuel is mixed with air. When the engine
is test run at the factory, the carburetor is basically
adjusted. A further adjustment may be required,
according to climate and altitude. The carburetor has
one adjustment possibility:
T = Idle speed adjustment screw.
Idle speed adjustment (T)
Check that the air filter is clean. When the idle speed
is correct, the cutting attachment will not rotate. If
adjustment is required, close (clockwise) the T-screw,
with the engine running, until the cutting attachment
starts to rotate. Open (counter-clockwise) the screw
until the cutting attachment stops. You have reached
the correct idle speed when the engine runs smoothly
in all positions well below the rpm when the cutting
attachment starts to rotate.
If the cutting attachment still rotates after idle speed
adjustment, contact your Tanaka dealer.
T
Fig. 27
NOTE
Standard Idle rpm is 2,500 – 3,000 min
-1
.
WARNING
When the engine is idling the cutting attachment
must under no circumstances rotate.
Air filter (Fig. 28)
The air filter must be cleaned from dust and dirt in order
to avoid:
○ Carburetor malfunctions
○ Starting problems
○ Engine power reduction
○ Unnecessary wear on the engine parts
○ Abnormal fuel consumption
32
Fig. 28
Clean the air filter daily or more often if working in
exceptionally dusty areas.
Cleaning the air filter
Remove the air filter cover and the filter (32). Rinse it
in warm soap suds. Check that the filter is dry before
reassembly. An air filter that has been used for some
time cannot be cleaned completely. Therefore, it must
regularly be replaced with a new one. A damaged filter
must always be replaced.
Fuel filter (Fig. 29)
Drain all fuel from fuel tank and pull fuel filter line from
tank. Pull filter element out of holder assembly and rinse
element in warm water with detergent.
Rinse thoroughly until all traces of detergent are
eliminated. Squeeze, do not wring, away excess water
and allow element to air dry.
Fig. 29
NOTE
If element is hard due to excessive dirt build-up,
replace it.
Chain oil filter (Fig. 30)
Remove the oil filter and thoroughly wash it in solvent.
Fig. 30
000BookTCS27EPAP(S)Eng.indb12000BookTCS27EPAP(S)Eng.indb12 2014/06/0415:30:022014/06/0415:30:02

13
English
Spark plug (Fig. 31)
The spark plug condition is influenced by:
○ An incorrect carburetor setting
○ Wrong fuel mixture (too much oil in the gasoline)
○ A dirty air filter
○ Hard running conditions (such as cold weather)
These factors cause deposits on the spark plug
electrodes, which may result in malfunction and starting
difficulties. If the engine is low on power, difficult to start
or runs poorly at idling speed, always check the spark
plug first. If the spark plug is dirty, clean it and check the
electrode gap. Re-adjust if necessary. The correct gap is
0.024" (0.6 mm). The spark plug should be replaced after
about 100 operation hours or earlier if the electrodes
are badly eroded.
0.024"(0.6 mm)
Fig. 31
NOTE
In some areas, local law requires using a resistor
spark plug to suppress ignition signals. If this
machine was originally equipped with resistor spark
plug, use same type of spark plug for replacement.
Muffler (Fig. 32)
Remove the muffler and clean out any excess carbon
from the exhaust port or muffler inlet every 100 hours
of operation.
Fig. 32
Cylinder (Engine cooling) (Fig. 33)
The engine is air cooled and air must circulate freely
around engine and over cooling fins on cylinder head
to prevent overheating.
Every 100 operating hours, or once a year (more often
if conditions require) clean fins and external surfaces of
engine of dust, dirt and oil deposits which can contribute
to improper cooling.
Fig. 33
NOTE
Do not operate engine with engine shroud or muffler
guard removed as this will cause overheating and
engine damage.
Oiler port (Fig. 34)
Clean the chain oiler port (33) whenever possible.
33
Fig. 34
Guide bar (Fig. 35)
Before using the machine, clean the groove and oiler
port (34) in the bar with the special gauge offered as an
optional accessory.
34
Fig. 35
000BookTCS27EPAP(S)Eng.indb13000BookTCS27EPAP(S)Eng.indb13 2014/06/0415:30:022014/06/0415:30:02

14
English
Side case (Fig. 36)
Always keep the side case and drive area clean of saw
dust and debris.
Fig. 36
Angle transmission (Fig. 37)
Check angle transmission or angle gear for grease
level about every 50 hours of operation by removing
the grease filler plug on the side of angle transmission.
If no grease can be seen on the flanks of the gears, fill
the transmission with quality lithium based multipurpose
grease up to 3/4.
Do not completely fill the transmission.
Fig. 37
Maintenance schedule
Below you will find some general maintenance
instructions. For further information please contact
your Tanaka dealer.
Daily maintenance
○ Clean the exterior of the unit.
○ Clean the chain oil filter port.
○ Clean the groove and oil filter port in the guide bar.
○ Clean the side case of saw dust.
○ Check that the saw chain is sharp.
○ Check that the bar nuts are sufficiently tightened.
○ Make sure that the chain transport guard is
undamaged and that it can be securely fitted.
○ Check that nuts and screws are sufficiently
tightened.
Weekly maintenance
○ Check the starter, especially cord and return spring.
○ Clean the exterior of the spark plug.
○ Remove the spark plug and check the electrode gap.
Adjust it to 0.024" (0.6 mm) or change the spark plug.
○ Clean the cooling fins on the cylinder and check that
the air intake at the starter is not clogged.
○ Clean the air filter.
Monthly maintenance
○ Rinse the fuel tank with gasoline, and clean fuel filter.
○ Clean chain oil filter.
○ Clean the exterior of the carburetor and the space
around it.
○ Clean the fan and the space around it.
○ Clean the muffler of carbon.
CHAIN SHARPENING
Parts of a cutter (Fig. 38, 39)
WARNING
Gloves should be used when sharpening chain.
37
35
38
41
40 43
39
36
42
Fig. 38
45
46
44
47
Fig. 39
35. Top plate
36. Working corner
37. Side plate
38. Gullet
39. Heel
40. Chassis
000BookTCS27EPAP(S)Eng.indb14000BookTCS27EPAP(S)Eng.indb14 2014/06/0415:30:022014/06/0415:30:02

15
English
41. Rivet hole
42. Toe
43. Depth gauge
44. Correct angle on top plate (degree of angle depends
on chain type)
45. Slightly protruding “hook” or point (curve on non-
chisel chain)
46. Top of depth gauge at correct height below top plate
47. Front of depth gauge rounded off.
LOWERING DEPTH GAUGES WITH
A FILE
1) If you sharpen your cutters with a file holder, check
and lower the depth.
2) Check depth gauges every third sharpening.
3) Place depth gauge tool on cutter. If depth gauge
projects, file it level with the top of the tool. Always
file from the inside of the chain toward an outside
cutter. (Fig. 40)
Fig. 40
4) Round offfront corner to maintain original shape of
depth gauge after using depth gauge tool. Always
follow the recommended depth gauge setting found
in the maintenance or operator manual for your saw.
(Fig. 41)
Fig. 41
GENERAL INSTRUCTIONS FOR
FILING CUTTERS
File (48) cutter on one side of the chain from the inside
out. File on forward stroke only. (Fig. 42)
5) Keep all cutters the same length. (Fig. 43)
6) File enough to remove any damage to cutting edges
(side plate (49) and top plate (50)) of cutter. (Fig. 44)
48
48 48
Fig. 42
Fig. 43
49 50
Fig. 44
SHARPENING ANGLES FOR
SHARPENING SAW CHAIN
1. Part Number 90SG-40 / 90PX-40
2. Pitch 3/8”
3. Depth Gauge Setting 0.025"
4. Side Plate Filing Angle 80°
5. Top Plate Angle 30°
6. File Guide Angle 90°
000BookTCS27EPAP(S)Eng.indb15000BookTCS27EPAP(S)Eng.indb15 2014/06/0415:30:032014/06/0415:30:03

SIGNIFICATION DES SYMBOLES
REMARQUE: Certains appareils n’en sont pas
pourvus.
Symboles
ATTENTION
Les symboles suivants sont utilisés pour l’outil. Bien se familiariser avec leur signification
avant d’utiliser l’outil.
l est essentiel de lire et de comprendre
parfaitement les consignes de sécurité
et autres avertissements suivants.
Vous devez les observer strictement.
L’utilisation inattentive ou inadéquate de
cette machine risque de provoquer des
blessures graves ou fatales.
Lisez attentivement et respectez
toutes les instructions et tous les
avertissements donnés dans ce
manuel et sur le produit.
Utilisez toujours des lunettes de
protection ainsi qu’un casque et
des protections d’oreilles lorsque
vous utilisez ce produit.
Étranglement – Position marche
(ouverte)
Étranglement – Position de
démarrage (fermé)
Arrêt d'urgence
Surface chaude
Avant l’utilisation de votre nouvelle machine
• Lisez attentivement le manuel d’utilisation.
• Vérifiez que l’équipement de coupe est monté et réglé correctement.
• Démarrez la machine et vérifiez le réglage du carburateur. Voir la section “ENTRETIEN”.
Sommaire
DESCRIPTION .........................................................17
PRÉCAUTIONS ET CONSIGNES DE SÉCURITÉ ...18
CARACTÉRISTIQUES .............................................20
MONTAGE................................................................21
UTILISATION............................................................23
ENTRETIEN .............................................................26
Il se peut que tous les conducteurs électriques
et tous les fils de télécommunications aériens
transportent du courant électrique à haute
tension. Ne jamais toucher directement ou
indirectement de flls lors de l'émondage. Dans
le cas contraire, des blessures graves ou la
mort pourraient s'ensuivre.
15 m
50 FT
Maintenir les enfants, les badauds et les aides
a plus de 50 pieds (15 mètres) de l'ensemble.
Si quelqu'un s'approche de vous, couper
immédiatement le moteur et arrêter l'outil
de coupe.
Français
16
000BookTCS27EPAP(S)Eng.indb16000BookTCS27EPAP(S)Eng.indb16 2014/06/0415:30:032014/06/0415:30:03

DESCRIPTION
Ce manuel étant commun à plusieurs modèles, vous
constaterez peut-être certaines différences entre les
images et votre appareil. Suivez les instructions relatives
à votre modèle.
1. Bouchon du réservoir de carburant
2. Commande des gaz
3. Poignée du lanceur
4. Outil de coupe
5. Tube de transmission
6. Poignée arceau / Guidon double
7. Pompe d’amorçage
8. Interrupteur marche-arrêt
9. Guide-chaîne
10. Levier accélérateur bloqué
11. Levier d’étranglement
12. Moteur
13. Boîtier de renvoi d’angle
14. Poignée
15. Chaîne découpe
16. Cache de guide-chaîne
17. Œillet d’accrochage
18. Bouchon du réservoir d’huile
19. Clé à douille multiple
20. Mode d’emploi
16
12
1
3
8
18
9
10
5
13
11
2
15
7
6
4
17
14
19 20
Français
17
000BookTCS27EPAP(S)Eng.indb17000BookTCS27EPAP(S)Eng.indb17 2014/06/0415:30:032014/06/0415:30:03

PRÉCAUTIONS ET CONSIGNES
DE SÉCURITÉ
Sécurité de l’utilisateur
○ II faut porter toujours un casque de protection muni
d'une visière de sécurité au complet pour pouvoir
assurer la protection contre la chute de branches
et de débris.
○ Éviter toutes les lignes d'énergie. Cette machine
n'est pas isolée contre le courant électrique.
○ Vous devez toujours porter des gants de protection
lorsque vous affûtez la chaîne.
○ Portez toujours un pantalon, des chaussures et des
gants de sécurité. Évitez les vêtements amples, les
shorts, les sandales et les pieds nus. Veillez à ce
que vos cheveux ne descendent pas au-dessous
des épaules.
○ Utilisez cette machine uniquement si vous êtes en
pleine possession de vos moyens physiques. Évitez
strictement la consommation d’alcool, de drogue ou
de médicaments.
○ Ne laissez jamais un enfant ou une personne
inexpérimentée se servir de ces machines.
○ Portez un dispositif de protection auditive contre
le bruit. Restez vigilant à tout ce qui vous entoure.
Restez attentif dans l’éventualité où une personne
située à proximité vous signalerait un problème.
Retirez les équipements de sécurité immédiatement
après avoir coupé le moteur de l’appareil.
○ Protégez-vous la tête.
○ Ne mettez jamais le moteur en marche dans un local
clos, les gaz d’échappement étant toxiques.
○ Nettoyez les poignées de toute trace d’huile ou de
carburant.
○ N’approchez jamais les mains du guide-chaîne et
de la chaîne.
○ N’attrapez jamais et ne tenez jamais la machine par
l’extrémité du guide-chaîne.
○ Après l’arrêt de la machine, attendez l’arrêt complet
de l’outil de coupe avant de poser la machine.
○ Lors d’une utilisation prolongée, veillez à pratiquer
des pauses régulières afin d’éviter des troubles
éventuels provoqués par les vibrations.
○ L’utilisateur de la machine doit se conformer aux
réglementations locales de la région dans laquelle
il effectue la coupe.
ATTENTION
○ Les systèmes anti-vibrations ne préviennent pas
de la maladie des doigts blancs, ni du syndrome du
canal carpien. Par conséquent, en cas d’utilisation
régulière et continue de votre machine, surveillez
soigneusement l’état de vos mains et de vos doigts.
Si l’un des symptômes ci-dessus venait à apparaître,
il serait indispensable de vous faire examiner
immédiatement par votre médecin.
○ Si vous êtes équipé d’un appareillage médical
électrique / électronique tel qu’un stimulateur
cardiaque, consultez votre médecin et le fabricant
de cet appareillage avant d’utiliser tout appareil
électrique.
Règles de sécurité concernant
l’utilisation de la machine.
○ Contrôlez entièrement votre machine avant chaque
utilisation. Remplacez les pièces endommagées.
Vérifiez l’absence de fuites de carburant et assurez-
vous que tous les dispositifs de fixation sont en place
et solidement fixés.
○ Remplacez les éléments Hitachi de la machine qui
présentent des fissures, des ébréchures ou toute
autre avarie.
○ Ne laissez personne s’approcher lorsque vous
réglez le carburateur.
○ Utilisez uniquement les accessoires recommandés
par le constructeur pour cette machine.
○ Ne laissez jamais la chaîne frapper contre un
obstacle quelconque.
Si la chaîne rencontre un obstacle, il est nécessaire
d’arrêter le fonctionnement de la machine et de
l’inspecter soigneusement pour voir si elle n’est pas
endommagée.
○ Assurez-vous que le système de graissage
automatique fonctionne normalement. Le réservoir
d’huile doit toujours être suffisamment rempli d’huile
propre. Ne jamais laisser la chaîne tourner à sec sur
le guide-chaîne.
○ Tous les travaux employant ce dispositif, outre que
les rubriques indiquées dans ce manuel, doivent
être effectués par un concessionnaire Tanaka. (Par
exemple, si on emploie des outils incorrects pour
extraire le volant du moteur ou si on utilise un outil
incorrect pour maintenir le volant du moteur, afin
de retirer l'embrayage, il se peut qu'un tel procédé
entraîne une avarie structurale du volant du moteur
et provoque ensuite l'éclatement de celui-ci.)
ATTENTION
Ne modifiez en aucun cas la machine. N’utilisez
jamais la débroussailleuse pour un autre usage que
celui pour lequel elle est prévue.
Sécurité au niveau du carburant
○ Faites le mélange et le plein à l’air libre, à distance
de toute étincelle ou flamme.
○ Utilisez un récipient agréé pour l’essence.
Français
18
000BookTCS27EPAP(S)Eng.indb18000BookTCS27EPAP(S)Eng.indb18 2014/06/0415:30:032014/06/0415:30:03

○ Faites attention aux phénomènes de rebond
(lorsque la scie à chaîne portative avance et recule
par rapport à l’opérateur), et ne coupez jamais avec
l’extrémité du guide-chaîne.
○ Quand vous déplacez l’appareil d’un lieu à un autre,
vérifiez qu’il est complètement arrêté et que tous les
accessoires de coupe sont à l’arrêt.
○ Ne posez jamais l’appareil sur le sol lorsque le
moteur tourne.
○ Assurez-vous toujours que le moteur est arrêté et que
tous les accessoires de coupe sont complètement
à l’arrêt avant de nettoyer l’accessoire principal de
coupe de tout débris ou amas d’herbe.
○ Lors de l’utilisation de n’importe quel appareil
électrique/thermique, emportez toujours avec vous
une trousse de premiers soins.
○ Ne démarrez jamais le moteur de l’appareil, et ne
l’utilisez jamais dans un local clos et / ou à proximité
de produits inflammables, les gaz d’échappement
étant toxiques.
Sécurité au niveau de l’entretien
○ Entretenez votre machine selon les
recommandations du constructeur.
○ Débranchez la bougie avant toute intervention
d’entretien, à l’exception des opérations de réglages
du carburateur.
○ Ne laissez personne s’approcher lorsque vous
réglez le carburateur.
○ Utilisez uniquement les pièces de rechange d’origine
Tanaka.
IMPORTANT
Ne démontez pas le lanceur à retour automatique.
Vous pourriez vous blesser à cause du ressort de
recul.
Transport et rangement
○ Portez la machine avec moteur arrêté et silencieux
orienté vers l’extérieur.
○ Laissez le moteur refroidir, videz le réservoir de
carburant et veillez à la stabilité de la machine
lors du rangement ou du chargement à bord d’un
véhicule.
○ Vidangez le réservoir de carburant avant de ranger
la machine. Cette opération est recommandée
après chaque utilisation. Si le réservoir n’est pas
vide, rangez alors la machine dans une position
empêchant toute fuite de carburant.
○ Rangez la machine hors de portée des enfants.
○ Nettoyez soigneusement la machine avant de
l’entreposer dans un endroit sec.
○ Assurez-vous que le commutateur d’arrêt du moteur
est bien sur la position « stop » lors du transport ou
du rangement de la machine.
○ Ne fumez pas et ne laissez personne fumer à
proximité du carburant ou de la machine, ni lorsque
vous utilisez la machine.
○ Essuyez soigneusement toutes les traces de
carburant avant de mettre le moteur en marche.
○ Pour démarrer la débroussailleuse, écartez-vous
d’au moins 10 pieds (3 mètres) de l’endroit où vous
avez fait le plein.
○ Arrêtez le moteur avant de dévisser les bouchons
des réservoirs de carburant ou d’huile.
○ Vidangez le réservoir de carburant avant de ranger
la machine. Cette opération est recommandée
après chaque utilisation. Si le réservoir n’est pas
vide, rangez alors la machine dans une position
empêchant toute fuite de carburant.
○ Rangez la machine et le carburant dans un endroit
où les vapeurs d’essence ne risquent pas d’entrer
en contact avec des étincelles ou une flamme
en provenance d’un chauffe-eau, d’un moteur
électrique, d’un commutateur, d’une chaudière, etc.
ATTENTION
Le carburant peut s’enflammer facilement ou
exploser et l’inhalation de ses vapeurs est
dangereuse. Faites particulièrement attention
lorsque vous manipulez le carburant ou faites
l’appoint du réservoir.
Sécurité au niveau de la coupe
○ N’essayez pas de couper des matériaux autres que
du bois ou des objets en bois.
○ Pour assurer la protection de vos voies respiratoires,
porter un masque de protection contre les aérosols
lorsque vous coupez du bois qui a été traité avec
des insecticides.
○ Veillez à ce que personne (enfants, animaux,
spectateurs ou aides) ne se tienne à l’intérieur
d’un périmètre de sécurité de 50 pieds (15 mètres).
Arrêtez immédiatement le moteur si quelqu’un
s’approche de vous.
○ Maintenez fermement la machine des deux mains.
○ Tenez-vous bien en équilibre sur les deux jambes.
Ne travaillez jamais en porte-à-faux.
○ Resteztoujours éloignédu silencieuxd’échappement
et de l’ensemble de coupe lorsque le moteur est en
marche.
○ Avant de tailler une haie, l'utilisateur devra se
familiariser avec les techniques de taille à l'aide
d'une telle machine.
○ Avant de tailler, s'assurez de l'existence d'un abri
sûr à proximité.
○ Au cours d'une opération de taille, maintenir la
machine fermement des deux mains avec le pouce
bien bloqué autour de la poignée avant et les pieds
bien stables au sol.
Français
19
000BookTCS27EPAP(S)Eng.indb19000BookTCS27EPAP(S)Eng.indb19 2014/06/0415:30:032014/06/0415:30:03

○ Lors des transports en véhicule ou des rangements,
recouvrez la chaîne de son fourreau de protection.
Dans l’éventualité de situations qui ne seraient pas prises
en compte par le présent manuel, redoublez d’attention
et usez de bon sens. Contactez un concessionnaire
Tanaka pour toute assistance. Faites particulièrement
attention aux stipulations introduites par les mots ci-
dessous.
ATTENTION
Information de première importance pour éviter des
dommages corporels graves ou mortels.
IMPORTANT
Information importante afin d’éviter des dommages
corporels ou matériels.
REMARQUE
Information utile pour une utilisation et un
fonctionnement corrects de la machine.
CARACTÉRISTIQUES
Modèle TCS27EPAP (S)
Cylindrée du moteur (cu. in.) 1.62 (26.9 ml)
Bougie d’allumage CHAMPION CJ6
Contenance du réservoir de carburant (fl. oz) 17.6 (0.52 l)
Contenance du réservoir d’huile de chaîne (fl. oz) 5.4 (0.16 l)
Poids à sec (livre)
(Sans le guide-chaîne et la chaîne) 12.8 (5.8 kg)
Longueur du guide-chaîne (in.) 10 (250 mm)
Pas de chaîne (in.) 3/8 (9.52 mm)
Calibre de chaîne (in.) 0.043 (1.09 mm)
Niveau de pression acoustique LpA (dB (A)) par
ISO 11680 Équivalent
Incertitude 89 3
Niveau de puissance sonore LwA (dB (A)) par
ISO 11680 Mesuré
Incertitude
Niveau de puissance sonore LwA (dB (A)) par
2000/14/EC Mesuré
Garanti
105
3
108
111
Niveau de vibrations (m/s
2
) par ISO 11680
Poignée avant
Poignée arrière 4.9 9.2
Puissance max. du moteur selon ISO 8893 (kW) 0.9
Régime max. du moteur (min
-1
) 11,000
Régime de ralenti (min
-1
) 3,000
REMARQUE: Les niveaux de bruit/vibrations équivalents à ISO 11680 sont calculés comme total d’énergie
pondérée en fonction du temps pour les niveaux de bruit/vibrations dans diverses conditions de
travail avec la répartition temporelle suivante : 1/2 ralenti, 1/2 vitesse de course.
* Toutes les données sont sujettes à modification sans préavis.
Français
20
000BookTCS27EPAP(S)Eng.indb20000BookTCS27EPAP(S)Eng.indb20 2014/06/0415:30:032014/06/0415:30:03
