iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08

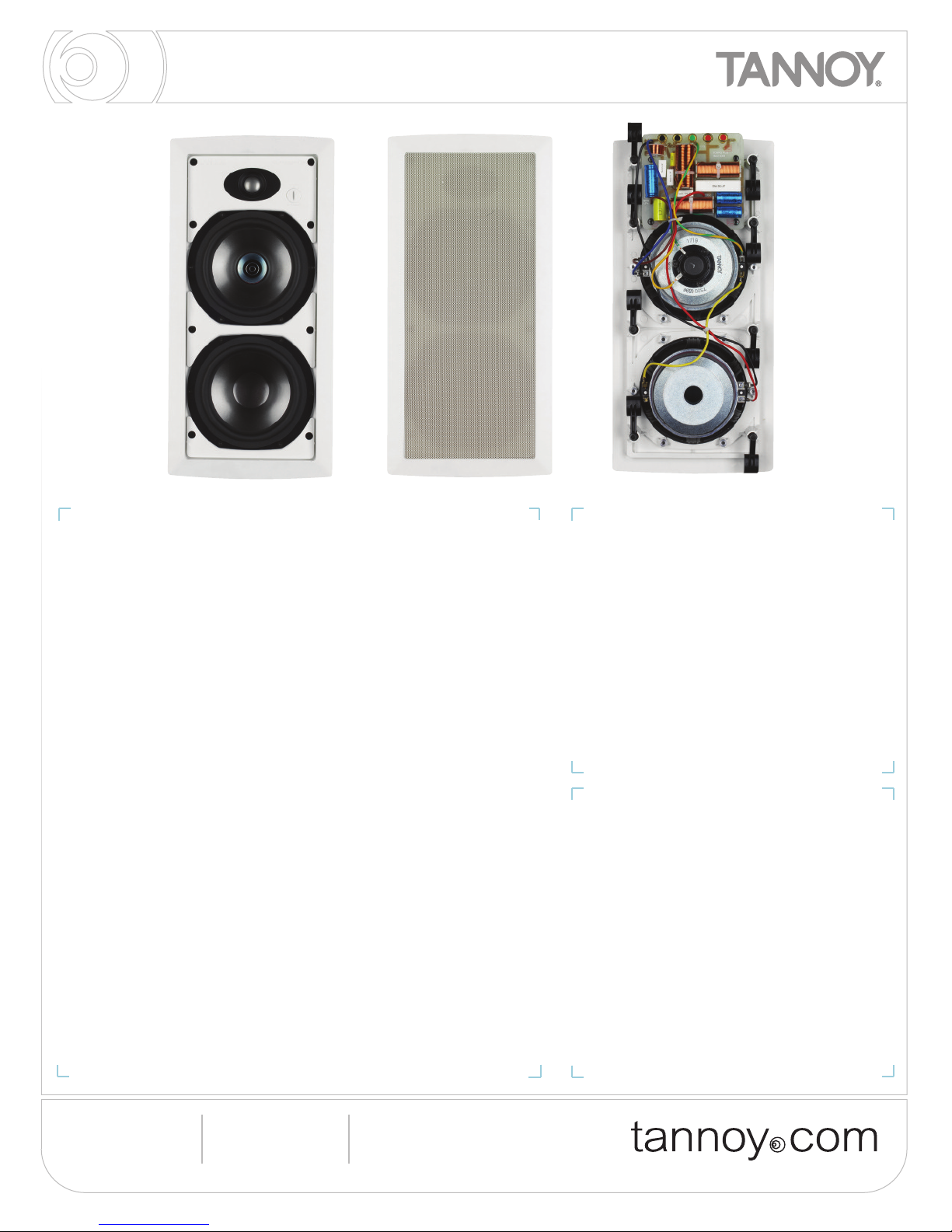

The iw62 TDC is a full bandwidth in wall speaker system, using a 165mm (6.50") Tannoy
Dual Concentric™ point source, constant directivity drive unit with an additional 165mm
(6.50") bass driver and 25mm (1.00") Tannoy SuperTweeter™. Designed primarily for
installation into standard stud partition wall systems, it may also be used in cavity wall
installations constructed with standard thickness drywall as well as a wide range of other
wall construction types with a surface thickness of up to 25mm (1.00”).
The 165mm (6.50") Tannoy Dual Concentric™ drive unit comprises a multi fibre paper pulp
mid bass cone and a 25mm (1.00") ferrofluid cooled, titanium dome F unit with
neodymium magnet system. The mid-bass and tweeter sections of this constant directivity
driver are coincidentally aligned to a true point source; ensuring a wide and controlled
dispersion for optimum coverage; this while avoiding the massive loss of energy, in the
vertical plane at the crossover frequency, inherent in two-way discrete designs.
An additional acoustically matched 165mm (6.50") bass driver delivers low frequency
reinforcement for the Dual, while a 25mm (1.00") titanium dome SuperTweeter™ extends
the frequency bandwidth out to over 50k z. Not only does this further enhance the already
class leading, low distortion performance with an exceptionally natural and open
soundstage, it also ensures that this is a high output, high impact performer. The iw6 TDC
is equipped with dynamic high frequency protection.
The drivers and passive frequency dividing network are mounted in an injection moulded,
paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The class leading performance is further enhanced by the inclusion of eight self aligning,
spring loaded clamps; allowing for quick install but also for simple removal or reorientation
of the loudspeaker. The rigidity of the clamps and baffle combination crucially provides the
acoustically optimum bond to the wall surface without risk of distortion to the baffle itself.
Gold plated spring loaded terminals are provided for ease of installation and a steel back
can is available as an optional installation accessory.
Complementing any style of decor, the perforated metal grille and discreet moulded baffle
can be painted to blend seamlessly with any environment. Ideally suited to applications
requiring the combination of intelligibility, premium sonic quality for music and speech
reinforcement and exceptional reliability, the high power handling iw62 TDC is particularly
suited to custom AV installations and business music systems.
Product Description
• Extended frequency response and very low distortion
• Wide, controlled constant directivity dispersion for
optimum coverage
• Does not suffer from massive loss of energy in the
vertical plane at crossover caused by two way
discrete designs
• UV/weather resistant UL94V-0 ABS construction for
structural integrity
• Dynamic high frequency protection
• Eight way self-aligning clamp mounting system
• Ferrofluid cooled neodymium high frequency driver
• Five year warranty
• Foreground music & paging systems
• Multi-room audio systems
• ome theatre
• Business music systems
• Boardrooms and offices
• Retail environments
• Retail outlets and shopping malls
• Lounges and bars
• Cruise ships
• Courtrooms
Features
Applications

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08
TECHNICAL SPECIFICATIONS
Frequency esponse (-3dB) (1) 70 z - 51k z
Frequency ange (-10dB) (1) 34 z - 54k z
System Sensitivity (1W @1m) (2) 92dB (1W - 2.83V for 8 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1kHz to 6kHz) 120 degrees conical
Directivity Factor (Q) 4.6 averaged 1k z to 6k z
Directivity Index (DI) 6.0 averaged 1k z to 6k z
ated Maximum SPL (3)
Average 112dB
Average 110dB (with optional T P60 transformer)
Peak 118dB
Power Handling
Average 105W
Programmed 210W
Peak 420W
ecommended Amplifier Power 210W @ 8 Ohms
Nominal Impedance 8 Ohms
Distortion
10% Full Power (5.5V) 2nd armonic 3rd armonic
250 z 0.64% 0.06%
1k z 0.6% 0.52%
10k z 0.69% 0.06%
1% Full Power (1.73V) 2nd armonic 3rd armonic
250 z 0.18% 0.11%
1k z 0.08% 0.23%
10k z 0.27% 0.17%
Crossover Passive, 750 z, 1.8 z, 16 z
Notes:
(1) Average over stated bandwidth. Measured at 1 metre on axis.
(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verification of published specifications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specifications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specifications when dealing with critical applications.
Dual Concentric™ Point source constant directivity drive unit
Low Frequency 1 x 165mm (6.50”) with multi fibre paper pulp cone
igh Frequency 19mm (0.75”) titanium dome with neodymium
magnet system
Supertweeter™ 19mm (0.75”) titanium dome with neodymium
magnet system
Low Frequency 1 x 165mm (6.50”) additional bass driver
Physical
Enclosure Baffle UL 94V-0 rated ABS
Grille Steel, with weather resistant coating
Optional accessory: Back can Zinc plated steel
Clamping Design Eight way self aligning security toggle clamp system
Connectors Gold plated connectors with spring terminals
Hole Cutout Size 426.10 x 187.6 (16.76 x 7.39”)
Maximum wall thickness - 25mm (1.00”)
Dimensions
Front Baffle 473.5mm x 227mm (18.64” x 8.94”) ( x W)
Front of wall to rear99mm (3.90”)
of magnet assembly
Net Weight 5kg (11lbs)
Included Accessories Painted mask, cutout template, grille
Optional Accessories Steel back can
Steel back can with T P60 transformer
Plaster (mud) ring
Transformer Taps (optional)
70V 60W / 30W / 15W / 7.5W / OFF & Low Impedence operation
100V 60W / 30W / 15W / OFF & Low Impedence operation
System iw62 TDC Transducers
8000 3770 iw62 TDC White 1
PA T NUMBE PACKED QUANTITYCOLOUMODEL NAME
Ordering Information

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08
PE FO MANCE MEASU EMENTS
50
60
70
80
90
100
10 100 1000 10000 100000
0
5
10
15
20
25
30
35
40
1 10 100 1000 10000 100000
50
60
70
80
90
100
10 100 1000 10000 100000
0 deg
10 deg
20deg
30deg
40deg
ANECHOIC
F EQUENCY
ESPONSE
IMPEDANCE
OFF AXIS
ESPONSE
1m on-axis frequency response
frequency ( z)
SPL, 1W/1m (dB)
frequency ( z)
Impedance vs frequency
frequency ( z)
Impedance (ohms)
Level (dB)
Horizontal off-axis response

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08
PE FO MANCE MEASU EMENTS
0
30
60
90
120
150
180
210
240
270
300
330
360
100 1000 10000
g
1
10
100
100 1000 10000
F ( H )
Q
BEAMWIDTH
DI ECTIVITY INDEX
Beamwidth vs Frequency
frequency ( z)
frequency ( z)
DI vs Frequency
Q
Degrees

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08

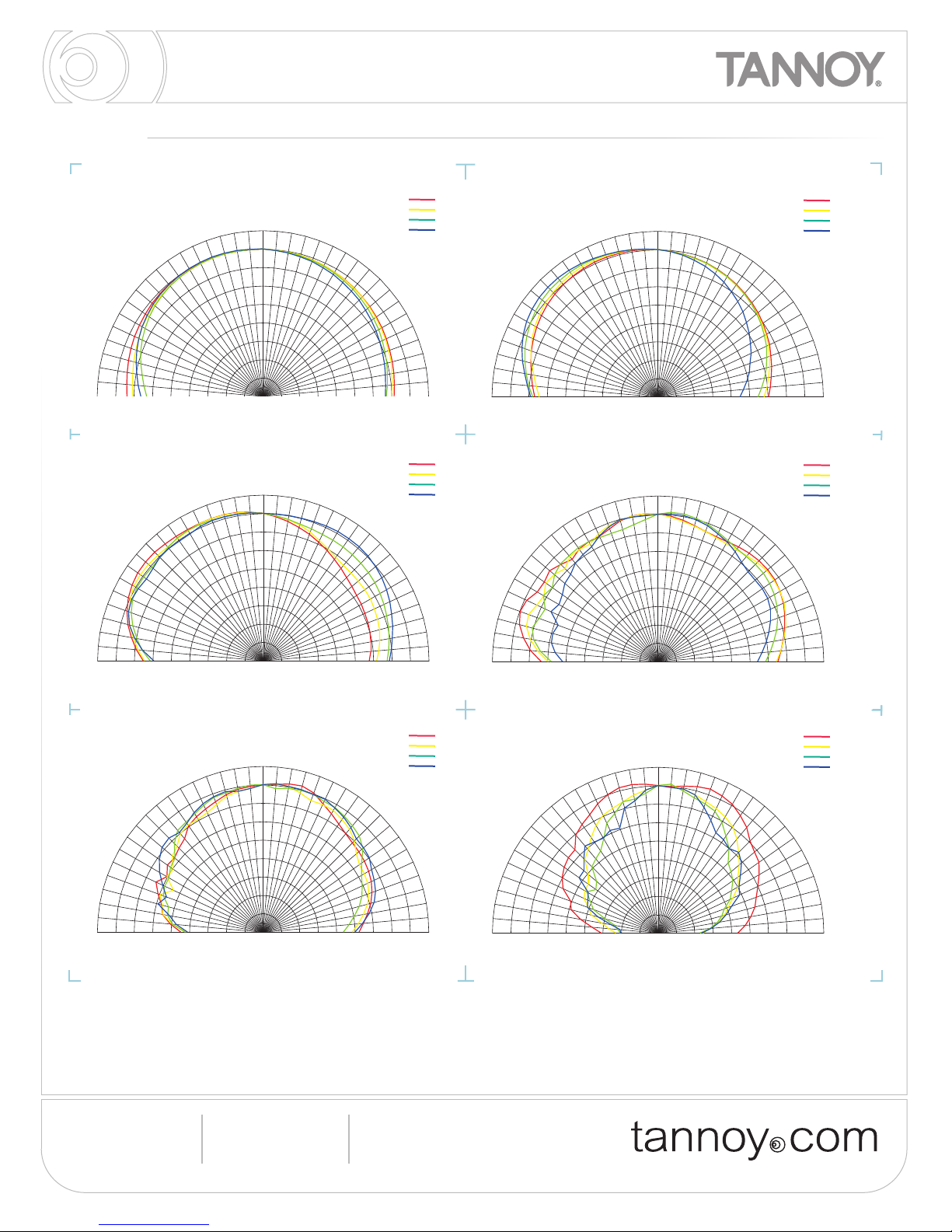

PE FO MANCE MEASU EMENTS POLAR PLOTS (1/3 OCTAVE)
-48
-36
-24
-12
0
0
30
60
90270
300
330
100 z
125 z
160 z
200 z
-48
-36
-24
-12
0
0
30
60
90270
300
330
250 z
315 z
400 z
500 z
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
630 z
800 z
1 k z
1.25 k z
1.6 k z
2 k z
2.5 k z
3.15 k z
4 k z
5 k z
6.3 k z
8 k z
10 k z
12.5 k z
16 k z
20 k z
1.6 k z
2 k z
2.5 k z
3.15 k z
630 z
800 z
1 k z
1.25 k z

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
-48
-36
-24
-12
0
0
30
60
90270
300
330
4 k z
5 k z
6.3 k z
8 k z
10 k z
12.5 k z
16 k z
20 k z
1.6 k z
2 k z
2.5 k z
3.15 k z
630 z
800 z
1 k z
1.25 k z
100 z
125 z
160 z
200 z
250 z
315 z
400 z
500 z
PE FO MANCE MEASU EMENTS POLAR PLOTS (1/3 OCTAVE)
1.6 k z
2 k z
2.5 k z
3.15 k z
630 z
800 z
1 k z
1.25 k z

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08

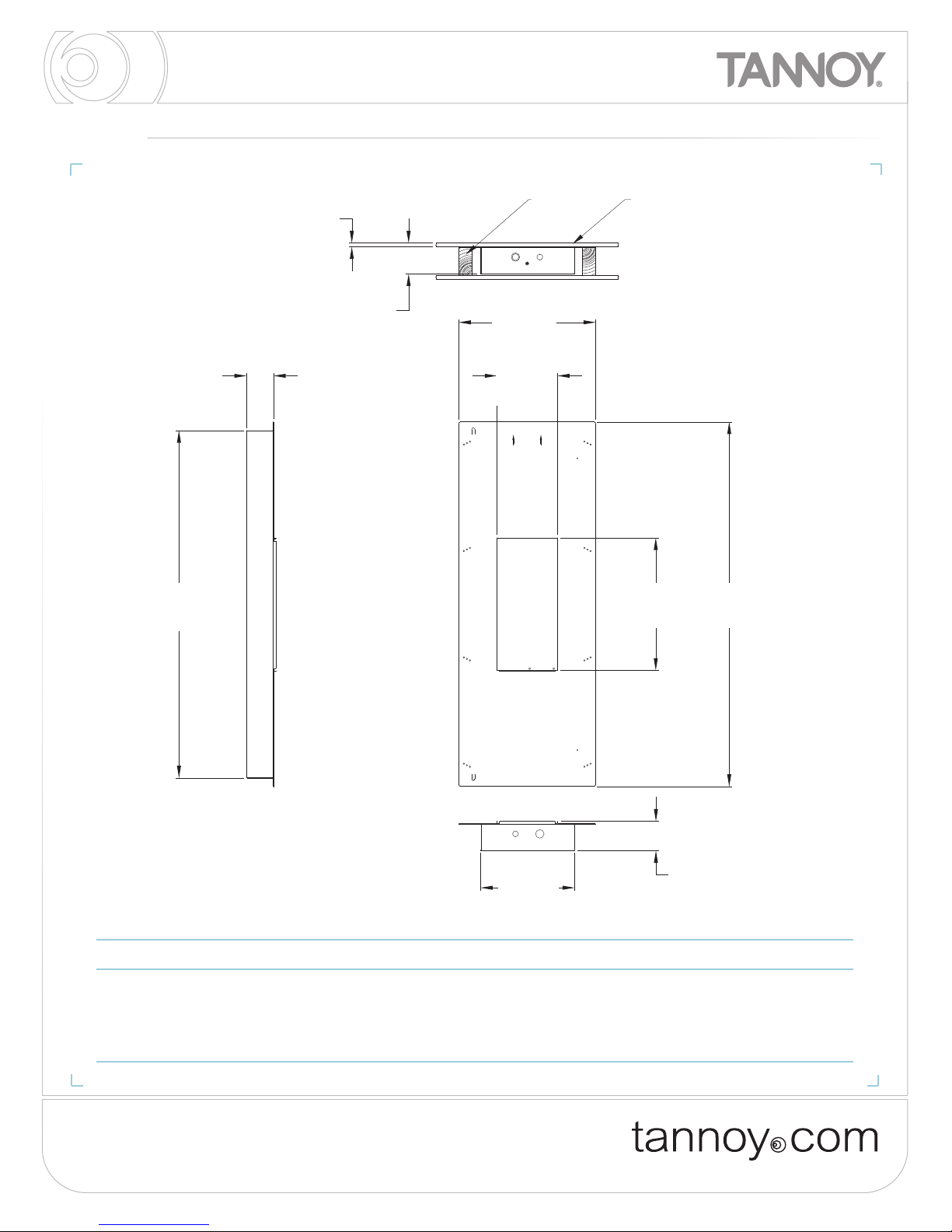

DIMENSIONAL SKETCHES
TEMPLATE HOLE CUTOUT SIZE - 430mm x 193mm [16.93" x 7.60"]
227.0
[8.94"]
473.5
[18.64"]
425.0
[16.73"]
186.5
[7.34"]
5.0
[0.20"]
98.9
[3.89"]
98.9mm
(3.89”)
5.0mm
(0.20”)
186.5mm
(7.34”)
425.0mm
(16.73”)
473.5mm
(18.64”)
227.0mm
(8.94”)
TEMPLATE OLE CUTOUT SIZE - 430mm X 193mm {16.93” x 7.30”]
186.5mm
(7.34”)

iw62 TDC
IN WALL BACK CAN ACCESSO Y
1200.0
[47.24"]
451.0
[17.76"]
89.1
[3.51"]
1143.0
[45.00"]
310.0
[12.20"]
436.0
[17.17"]
199.0
[7.83"]
12.5 min
[0.49" min]
101.6 min
[4.00" min]
STUD WALL COVERING MATERIAL
FITTED AFTER BACK CAN HAS
BEEN INSTALLED IN POSITION.
96.7
[3.81"]
TOP
8000 4220 iw62 TDC/TS Back Can Unpainted Steel 1 9.50Kgs (20.90lbs)
8000 4240 iw62 TDC/TS Transformer Back Can Unpainted Steel 1 10.50Kgs (23.1lbs)
8000 4260 Pre-install mounting ring for iw62 TDC/TS -- -
PACKED
WEIGHT
PACKED
QUANTITY
BAFFLE / G ILLE
COLOU
MODEL NAMEPA T NUMBE
Ordering Information
WALL COVERING MATERIAL
FITTED AFTER BACK CAN AS
BEEN INSTALLED IN POSITION.
STUD
12.5 min
0.49” min
101.6 min
4.00” min
1200.0mm
47.24”
89.1mm
3.51”
451.0mm
17.76”
199.0mm
7.83”
436.0mm
17.17”
1143.0mm
45.00”
310.0mm
12.20”
96.7mm
3.81”
Tannoy adopts a policy of continuous improvement and product specification is subject to change

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08
The in wall speaker shall consist of one 165mm (6.50") Dual Concentric™ full range transducer, one 25mm (1.00”) SuperTweeter™ and one 165mm (6.50")
bass driver, mounted in an injection moulded front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The three-way system shall
incorporate an optimised low loss crossover network. The wiring terminals shall be gold plated spring loaded connectors.
Performance of the in-wall speaker shall meet or exceed the following criteria: The system shall have a coverage angle of 120 degrees (1k z to 6k z).
Frequency response measured on axis shall be 34 z - 54k z (-10dB from rated sensitivity, measured in an IEC baffle in an anechoic chamber) with no
equalization. Sensitivity shall be 92dB (1W @ 1m). Long term power handling capacity as defined in EIA-426B test shall be 105W, recommended amplifier
power 220W @ 8 Ohms. The nominal system impedance shall be 8 Ohms.
In 70V or 100V distributed audio systems the iw62 TDC can be used with the optional the T P60 high performance, low insertion loss transformer with 60,
30, 15 and 7.5W taps* available. A weather resistant perforated steel grille covers the transducer. Both the grille and baffle shall be paintable.
The system shall not exceed the following dimensions: 473.50 x 227 or 18.64 x 8.94 ( x W).
ole cut out size shall be 426.10 x 187.6mm or 16.76 x 7.39"
The in wall speaker system shall be the.....iw62 TDC.
*70.7 Volt only
Architectural specifications

Tannoy Un ted K ngdom
Tannoy North Amer ca
Tannoy Deutschland
Tannoy France
T: 00 44 (0) 1236 420199
T: 00 1 [phone]
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473
E: enqu r [email protected]
E: nqu r [email protected]
E: [email protected]
E: [email protected]
iw62 TDC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW62TDC data file issue:1.06 // 15.01.08
NOTES
