Product Description
The VQ 100 is a full range, three-way loudspeaker system designed for applications
which require high output capability with class leading pattern control. The VQ 100
features a wide and exceptionally well dened dispersion characteristic.
For a variety of uses, a single VQ 100 can produce more power and clarity over its
100 degree beamwidth area than many arrayed solutions using multiple cabinets, a
great advantage when considering your building aesthetics.
With low frequency extension to 90Hz, the VQ 100 can be combined with various
subwoofers for extended bandwidth.
The VQ 100 can be congured for use in Bi-Amp or Tri-Amp mode, in conjunction with a
suitable digital signal processor (DSP).
Horn design involves balancing compromise…..until now.
Key performance parameters that can be controlled by the designer include:
frequency response (both on and off-axis), horizontal and vertical beamwidth, directivity
index, electrical impedance, harmonic distortion, and low frequency cut-off. Our unique
approach in keeping what is effectively a Dual Concentric™ behind a single horn gives
us many performance advantages. Performance of the VQ 100 in terms of accuracy &
sound quality is second to none.
The VQ 100 incorporates a unique driver technology to radiate a coherent single
point source for superior dispersion control when coupled to a PSW™ (Point Source
Waveguide). This advanced design aligns the acoustical centres of the transducers
providing a single coherent wavefront emanating from the throat. The PSW™
waveguide achieves an optimum balance of extremely well controlled coverage,
smooth frequency response, and natural sound character.
The low frequency section, two (12”) low frequency transducers, offers high power
handling and low power compression for high continuous SPL capability. A newly
designed LF loading design provides the highest possible sensitivity for low/mid
frequency output.
The VQ 100 is part of an expanding line up of VQ products, addressing the requirement
for compact dimensions without compromising performance in any way.
Features
Applications
• “PSW™ Waveguide” - Point source design
(Patent applied for).
• Excellent Phase Coherence
• Perfect time alignment without the associated problems
of multi source interference
• Compact Dimensions
• Class leading directivity characteristics
• Extremely high sensitivity, therefore high SPL’s can be
achieved with a very modest amount of amplier power
• Exceptional transient response
• Large Houses of Worship
• Large Corporate AV applications
• Stadiums & other Sports facilities
• Dance Clubs
• Live sound – concert halls, theatres, open-air venues

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
TECHNICAL SPECIFICATIONS
Construction
System VQ 100
System Type 3-Way Full Range - Point Source
Frequency Response (-3dB) (1) 115Hz - 23kHz
Frequency Range (-10dB) (1) 90Hz - 27kHz
Operating Modes Bi-Amp (LF,MF/HF)
User Congurable
Tri-Amp (LF, MF,HF)
User Congurable
System Sensitivity & Operating
Freq. (1W @1m) (2)
Bi-Amp
LF (80Hz - 450Hz) 105dB (2.0V @ 4 Ohms)
Passive MF/HF (450Hz - 23kHz) 110dB (2.83V @ 8 Ohms)
Tri-Amp
LF (80Hz - 450Hz) 105dB (2.0V @ 4 Ohms)
MF (450Hz - 7kHz) 111dB (2.83V @ 8 Ohms)
HF (7kHz - 23kHz) 111dB (2.83V @ 8 Ohms)
Dispersion (-6dB) 100 degrees conical
Driver Complement
LF 2 x 300mm (12.00”) Low
Frequency Transducers,
Semi Horn Loaded
MF/HF Dual Concentric™
Compression driver loaded into
a single PSW™ Waveguide
Directivity Factor (Q) 8.5 averaged 1kHz to 10kHz
Directivity Index (DI) 9.3 averaged 1kHz to 10kHz
Rated Maximum SPL (2) Average Peak
LF 135dB 141dB
MF 134dB 140dB
HF 133dB 139dB
Passive MF/HF 134dB 140dB
Power Handling (3) Average Programme
LF @ 4 Ohms 1000W (63.3V) 2000W
MF @ 8 Ohms 200W (40V) 400W
HF @ 8 Ohms 90W (27V) 180W
Passive MF/HF @ 8 Ohms 200W (40V) 400W
Recommended Amplier Power
LF 2000W into 4 Ohms
MF 400W into 8 Ohms
HF 200W into 8 Ohms
Passive MF/HF 400W into 8 Ohms
Ordering Information
PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 4820 VQ 100 BLACK 1
8001 4821 VQ 100 WHITE 1
Nominal Impedance
LF 4 Ohms (4.1 Ohms Minimum)
MF 8 Ohms (6.0 Ohms Minimum)
HF 8 Ohms (8.6 Ohms Minimum)
Distortion 2nd Harmonic 3rd Harmonic
110dBSPL
250Hz 2.188 0.737
2kHz 2.131 0.133
5kHz 1.103 0.171
115dBSPL
250Hz 2.226 0.742
2kHz 3.643 0.203
5kHz 1.977 0.431
120dBSPL
250Hz 2.339 0.752
2kHz 6.273 0.441
5kHz 3.463 1.125
125dBSPL
250Hz 2.550 0.747
2kHz 10.556 1.157
5kHz 6.053 3.602
Enclosure 18mm (0.71”) birch plywood.
Internally braced.
Grille Powder coated perforated
steel grille
Finish Textured black or white paint
(custom colours on request)
Connectors Barrier Strip and Speakon
connector
Fittings 8 x Recessed carrying handles
12 x M10 ying inserts
Dimensions 925mm x 694mm x 515mm
(36.42” x 27.32” x 20.28”)
Net Weight 65kg (143 lbs)
Notes:
(1) Average over stated bandwidth. Measured at 3 metres on axis, then referred to 1 metre
(2) Unweighted pink noise input, measured at 3 metres in an anechoic chamber, then
referred to 1 metre
(3) Accelerated Life Test (EIA RS426-B)
A full range of measurements, performance data, CLF and Ease™ Data can be
downloaded from www.tannoy.com
Full independent verication of published specications carried out by NWAA Labs,
California can also be obtained from the downloads section of www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction
of new materials or manufacturing methods will always equal or exceed the
published specications, which Tannoy reserves the right to alter without prior
notice. Please verify the latest specications when dealing with critical applications.

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]

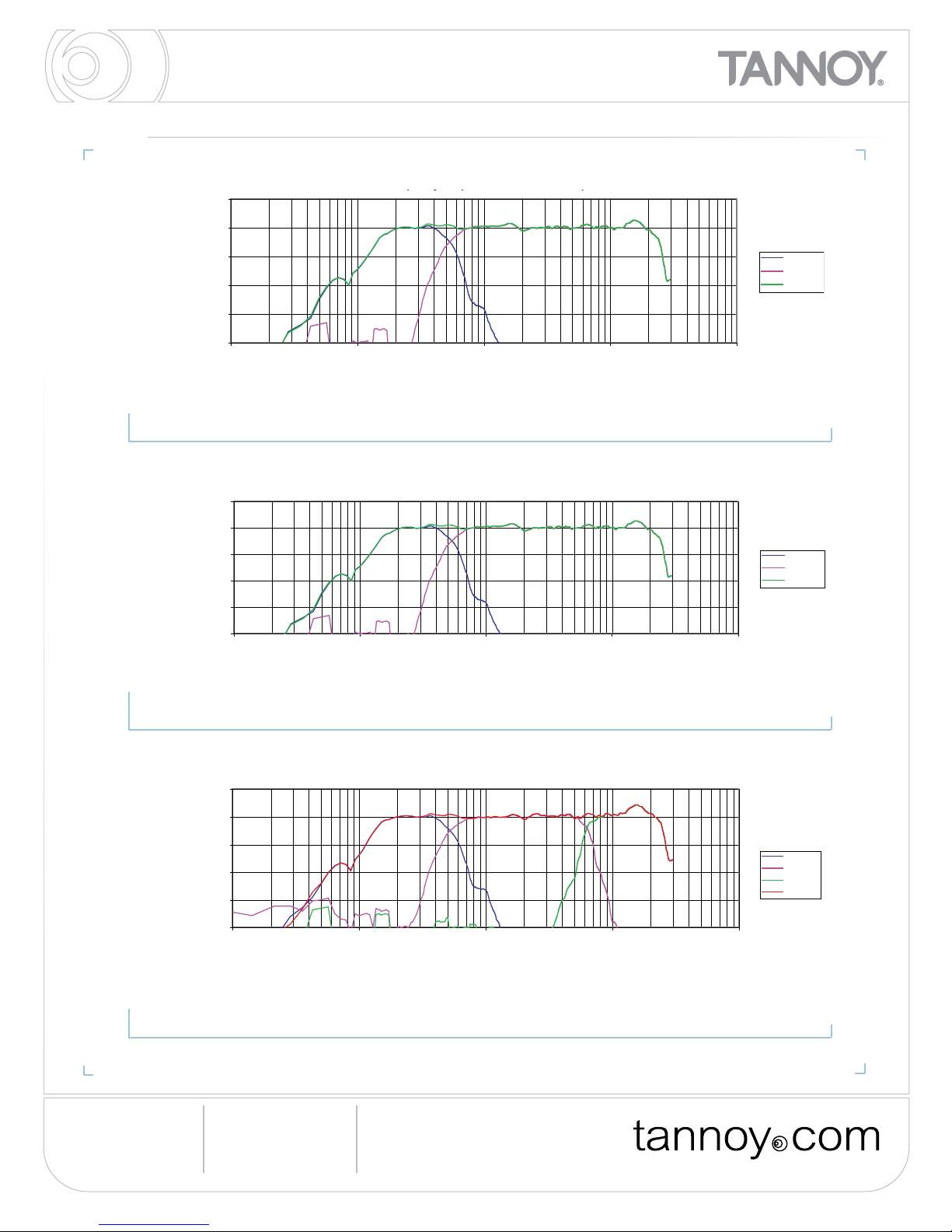

PERFORMANCE MEASUREMENTS
ANECHOIC FREQUENCY
RESPONSE (BI-AMP MODE)
ELECTRICAL TRANSFER FUNCTION
FOR OPTIMAL OPERATION
(BI-AMP MODE)
ANECHOIC FREQUENCY
RESPONSE (TRI-AMP MODE)
Frequency (Hz)
Frequency (Hz)
Frequency (Hz)
Level, (dB)Level, (dB)Level, (dB)
Frequency Response: Processed Bi-amplified
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
LF
MF/HF
Complete
Frequency Response: Processed Bi-amplied
Frequency Response: Processed Bi-amplified
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
Level, (dB)
LF
MF/HF
Complete
Frequency Response: Digital Signal Processor
Frequency Response: Processed Tri-amplified
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
LF
MF
HF
Complete
Frequency Response: Processed Tri-amplied

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
ELECTRICAL TRANSFER FUNCTION
FOR OPTIMAL OPERATION
(TRI-AMP MODE)
IMPEDANCE
(BI-AMP MODE)
IMPEDANCE (TRI-AMP MODE)
Frequency (Hz)
Frequency (Hz)
Level, (dB)
Impedance (Ohms)
Impedance (Ohms)
Frequency Response: Digital Signal Processor
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
Level, (dB) LF
MF
HF
Frequency Response: Digital Signal Processor
Impedance vs frequency
0
5
10
15
20
25
30
35
40
45
50
110 100 1000 10000 100000
Frequency (Hz)
Impedance (ohms)
LF
MF/HF
Impedance vs frequency
0
5
10
15
20
25
30
35
40
45
50
110 100 1000 10000 100000
Frequency (Hz)
Impedance (ohms)
LF
MF
HF
Impedance vs frequency
PERFORMANCE MEASUREMENTS
Frequency (Hz)

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]

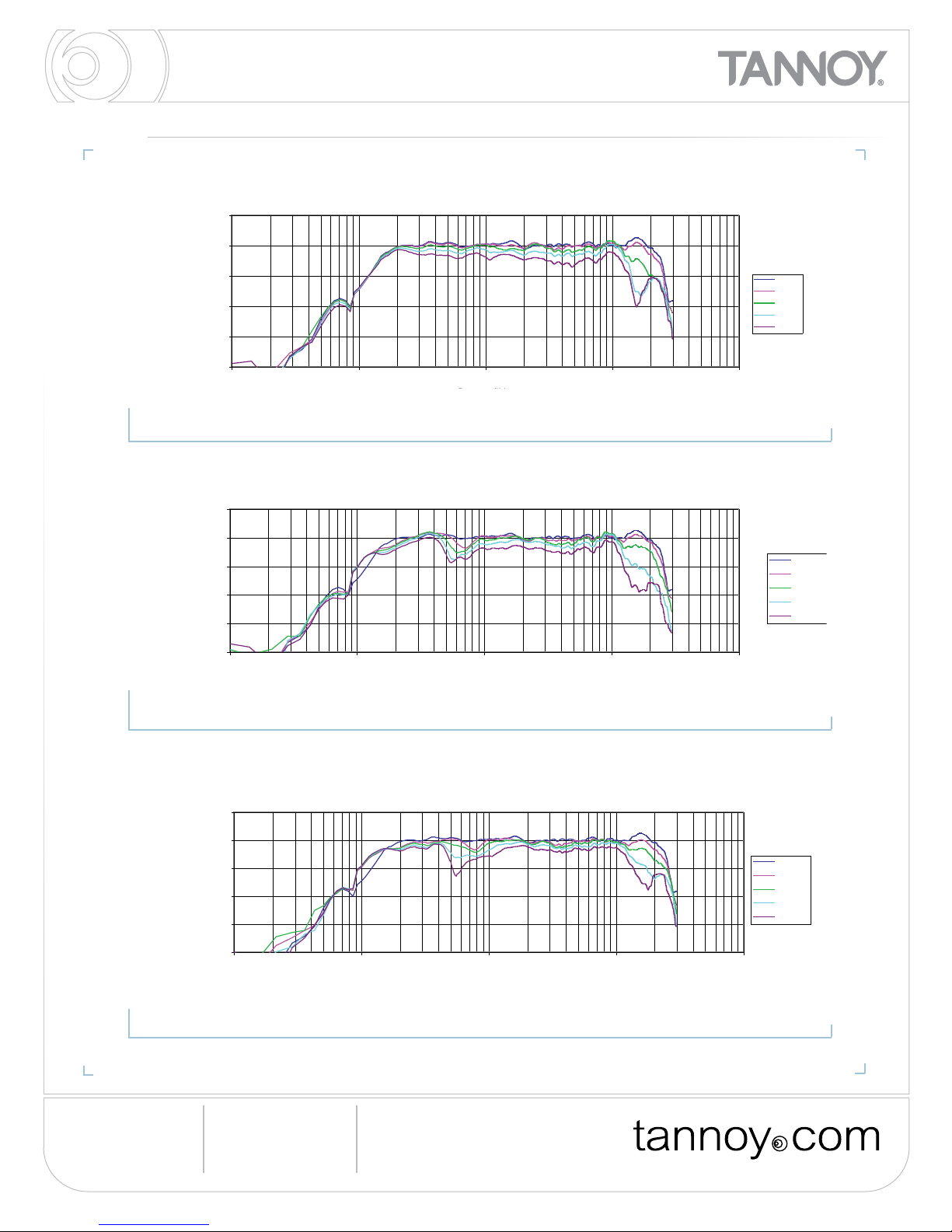

HORIZONTAL OFF AXIS
RESPONSE (BI-AMP MODE)
VERTICAL UPPER
OFF AXIS RESPONSE
(BI-AMP MODE)
VERTICAL LOWER OFF AXIS
RESPONSE (BI-AMP MODE)
Frequency (Hz)
Frequency (Hz)
Level, (dB)Level, (dB)Level, (dB)
Frequency Response: Processed Bi-
amplified
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
Level, (dB)
0 deg
10 deg
20 deg
30 deg
40 deg
Frequency Response: Processed Bi-amplied
Horizontal Off-axis
Frequency Response: Processed Bi-amplified
Upper Vertical Off-axis
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
Level, (dB)
0 deg
10 deg
20 deg
30 deg
40 deg
Frequency Response: Processed Bi-amplied
Upper Vertical Off-axis
Frequency Response: Processed Bi-amplified
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
0 deg
10 deg
20 deg
30 deg
40 deg
Frequency Response: Processed
Bi-amplied Lower Vertical Off-axis
PERFORMANCE MEASUREMENTS
Frequency (Hz)

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
HORIZONTAL OFF AXIS
RESPONSE (TRI-AMP MODE)
VERTICAL UPPER
OFF AXIS RESPONSE
(TRI-AMP MODE)
VERTICAL LOWER
OFF AXIS RESPONSE
(TRI-AMP MODE)
Frequency (Hz)
Frequency (Hz)
Level, (dB)Level, (dB)Level, (dB)
Frequency Response: Processed Tri-amplified
Horizontal Off-axis
-40
-30
-20
-10
0
10
10 100 1000 10000100000
Frequency (Hz)
Level, (dB)
0 deg
10 deg
20 deg
30 deg
40 deg
Frequency Response: Processed Tri-amplied
Horizontal Off-axis
Frequency Response: Processed Tri-amplified
Upper Vertical Off-axis
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
Level, (dB)
0 deg
10 deg
20 deg
30 deg
40 deg
Frequency Response: Processed Tri-amplied
Upper Vertical Off-axis
Frequency Response: Processed Tri-amplified
Lower Vertical Off-axis
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Frequency (Hz)
Level, (dB)
0 deg
10 deg
20 deg
30 deg
40 deg
Frequency Response: Processed Tri-amplied
Lower Vertical Off-axis
PERFORMANCE MEASUREMENTS
Frequency (Hz)

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
BEAMWIDTH
(BI-AMP MODE)
BEAMWIDTH
(TRI-AMP MODE)
Q VS FREQUENCY
(BI-AMP MODE)
Frequency (Hz)
Frequency (Hz)
Q
Beamwidth vs Frequency
0
30
60
90
120
150
180
210
240
270
300
330
360
100 1000 10000
Frequency (Hz)
Degrees
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
Beamwidth vs Frequency
Beamwidth vs Frequency
0
30
60
90
120
150
180
210
240
270
300
330
360
100 1000 10000
Frequency (Hz)
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
Beamwidth vs Frequency
Q vs Frequency
1
10
100
100 1000 10000
Frequency (Hz)
Q
Q vs Frequency
PERFORMANCE MEASUREMENTS
Frequency (Hz)
DegreesDegrees

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
DIRECTIVITY INDEX
(BI-AMP MODE)
Frequency (Hz)
DI
DI vs Frequency
0
5
10
15
20
100 1000 10000
Frequency (Hz)
dB
DI vs Frequency
PERFORMANCE MEASUREMENTS
Q VS FREQUENCY
(TRI-AMP MODE)
DIRECTIVITY INDEX
(TRI-AMP MODE)
Frequency (Hz)
Q
DI
Q vs Frequency
1
10
100
100 1000 10000
Frequency (Hz)
Q
Q vs Frequency
DI vs Frequency
0
5
10
15
20
100 1000 10000
Frequency (Hz)
dB
DI vs Frequency
Frequency (Hz)

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]

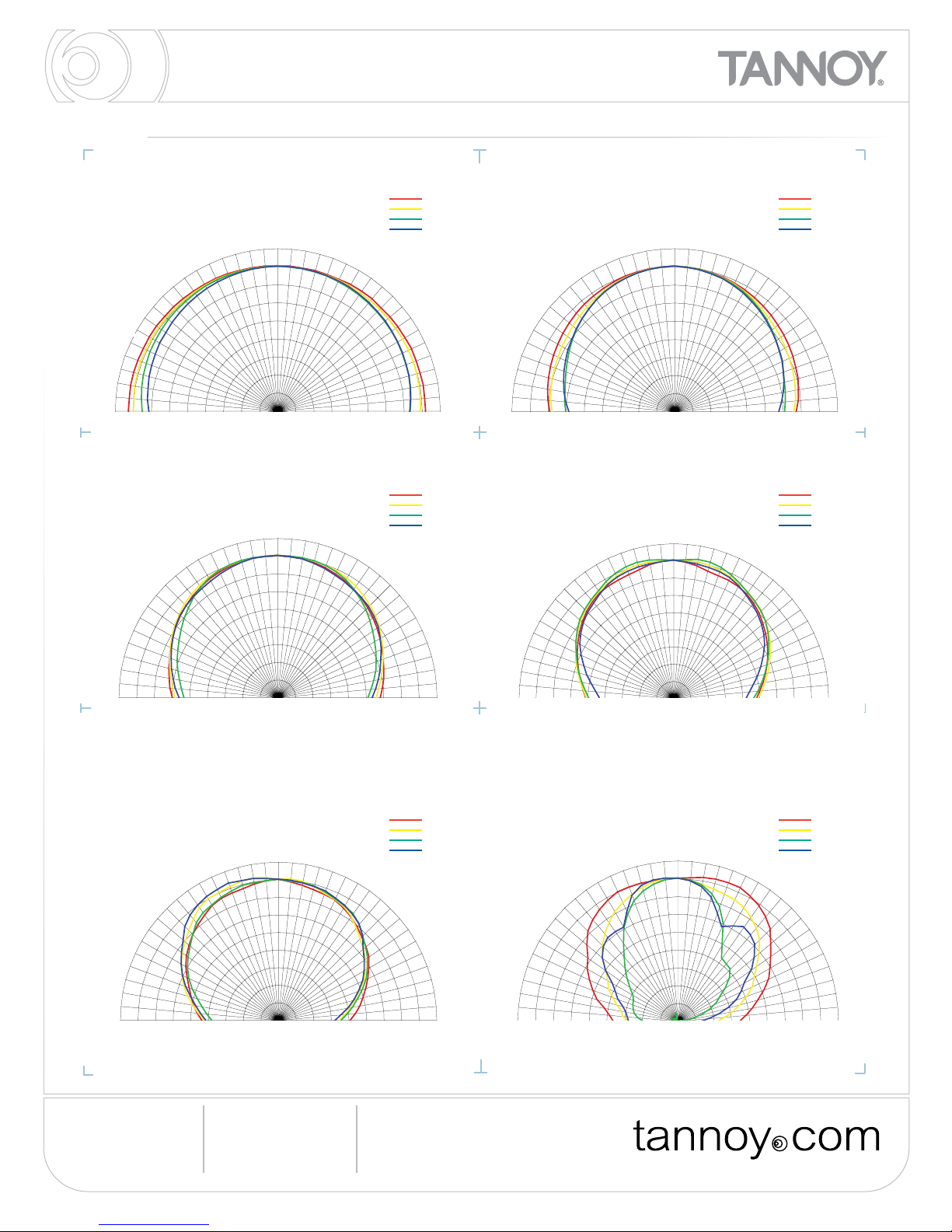

PERFORMANCE MEASUREMENTS POLAR PLOTS (1/3 OCTAVE) HORIZONTAL
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
100 Hz
125 Hz
160 Hz
200 Hz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
250 Hz
315 Hz
400 Hz
500 Hz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
630 Hz
800 Hz
1kHz
1.25 kHz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
1.6 kHz
2 kHz
2.5 kHz
3.15 kHz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
4 kHz
5 kHz
6.3 kHz
8 kHz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
10 kHz
12.5 kHz
16 kHz
20 kHz
100 Hz
125 Hz
160 Hz
200 Hz
250 Hz
315 Hz
400 Hz
500 Hz
630 Hz
800 Hz
1 kHz
1.25 kHz
1.6 kHz
2 kHz
2.5 kHz
3.15 kHz
4 kHz
5 kHz
6.3 kHz
8 kHz
10 kHz
12.5 kHz
16 kHz
20 kHz
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]

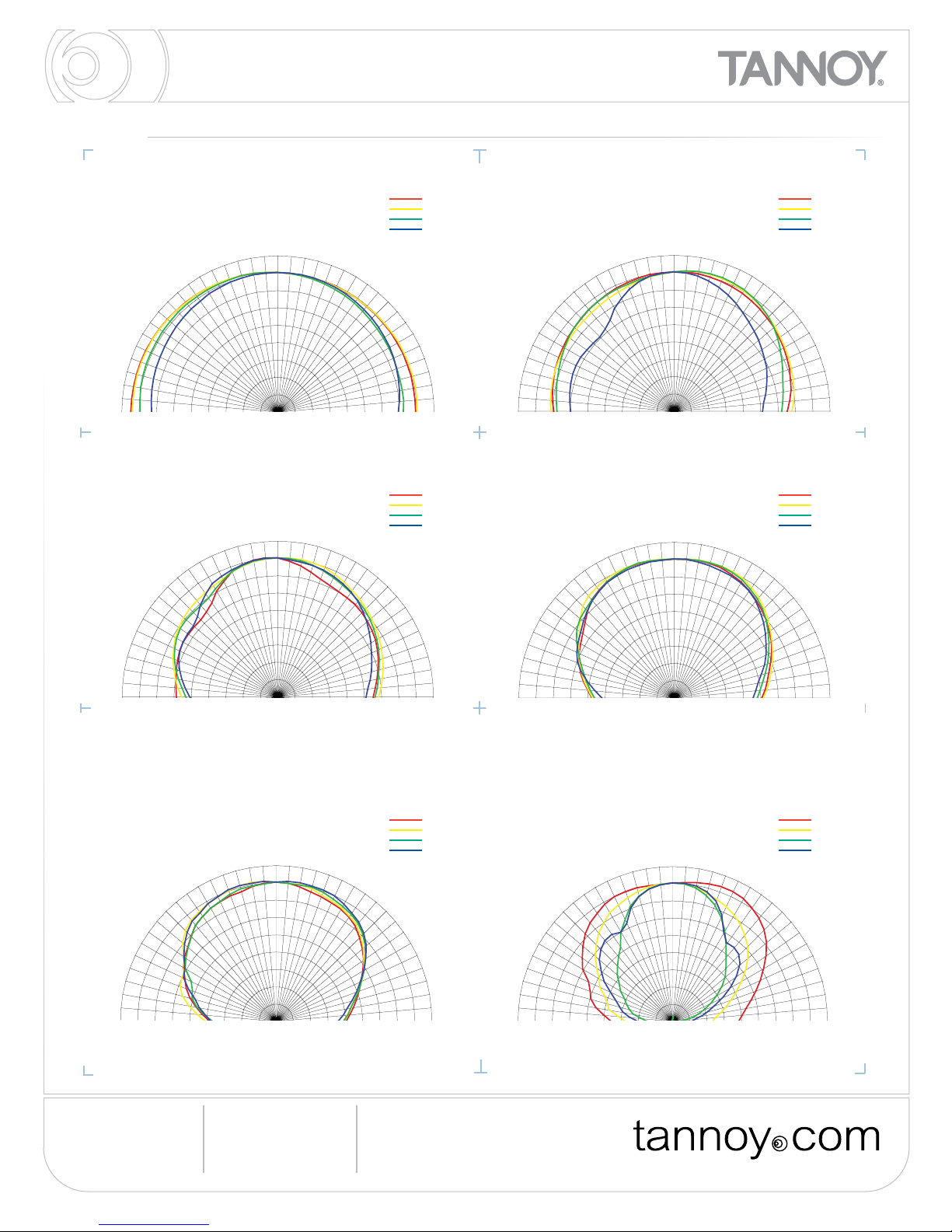

PERFORMANCE MEASUREMENTS POLAR PLOTS (1/3 OCTAVE) VERTICAL
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
100 Hz
125 Hz
160 Hz
200 Hz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
250 Hz
315 Hz
400 Hz
500 Hz
-48
-36
-24
-12
0
0
30
60
90
120
150210
240
270
300
330
630 Hz
800 Hz
1kHz
1.25 kHz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
1.6 kHz
2 kHz
2.5 kHz
3.15 kHz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
4 kHz
5 kHz
6.3 kHz
8 kHz
-48
-36
-24
-12
0
0
30
60
90
120
150
180
210
240
270
300
330
10 kHz
12.5 kHz
16 kHz
20 kHz
100 Hz
125 Hz
160 Hz
200 Hz
250 Hz
315 Hz
400 Hz
500 Hz
630 Hz
800 Hz
1 kHz
1.25 kHz
1.6 kHz
2 kHz
2.5 kHz
3.15 kHz
4 kHz
5 kHz
6.3 kHz
8 kHz
10 kHz
12.5 kHz
16 kHz
20 kHz
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0
270 90
300 60
330 30
0

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
DIMENSIONAL SKETCHES
VQ-100
694.0
[27.32"]
528.5
[20.81"]
90.0
[3.54"]
43.0
[1.69"]
882.0
[34.72"]
925.0
[36.42"]
515.0
[20.28"]
472.0
[18.58"]
694.0mm
(27.32”)
925.0mm
(36.42”)
528.5mm
(20.81”)
90.0mm
(3.54”)
515.0mm
(20.28”)
882.0mm
(34.72”)
43.0mm
(1.69”)
472.0mm
(18.58”)
INPUT PANEL

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]

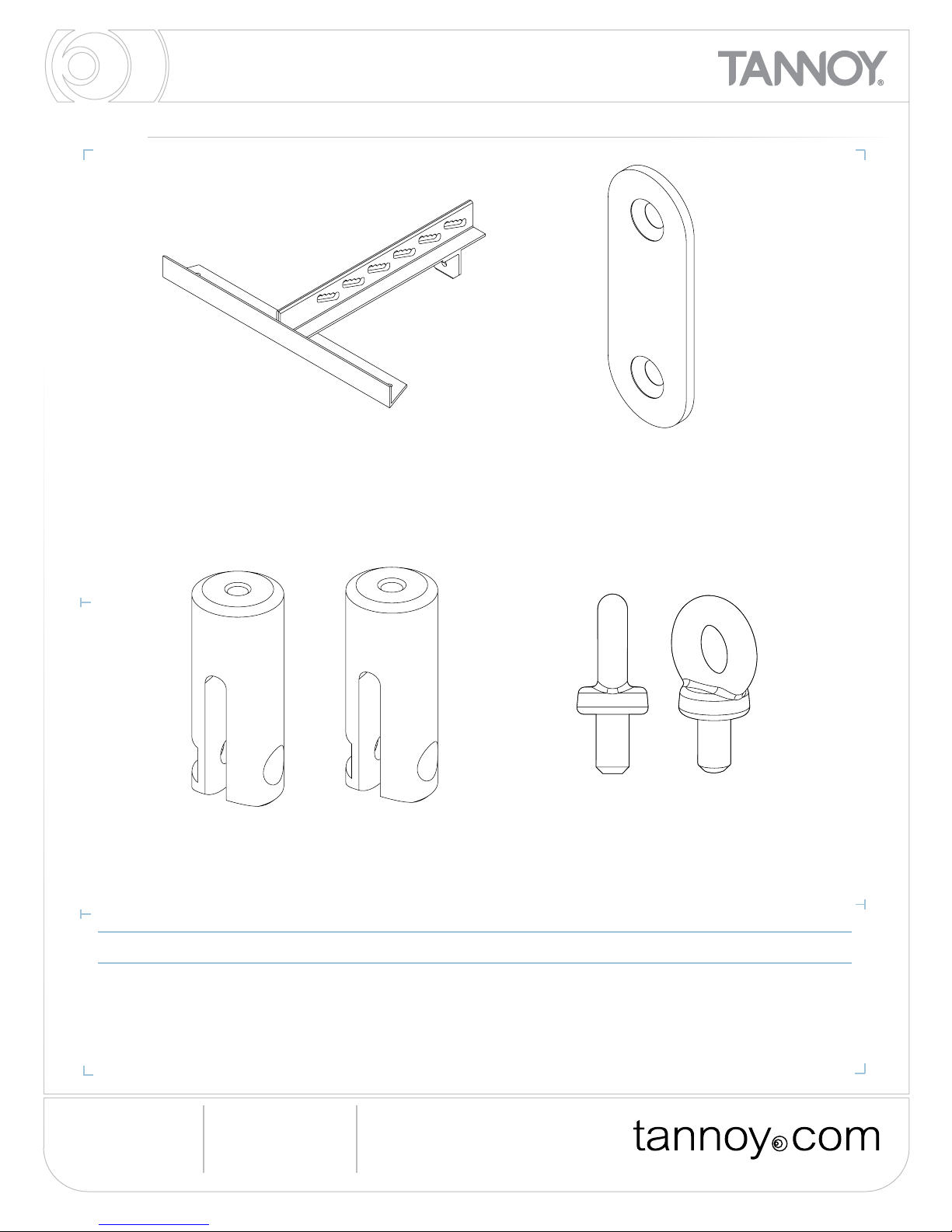

OPTIONAL ACCESSORIES
ITEM NO. PART No. DESCRIPTION QTY.
1 54700223 ROD END - VQ FLYING 12mm 1
2 45041245 SCREW M12x45 CAP HD SKT ZN PL 1
3 46060012 NUT M12 NYLOC ZINC PLATE1
ITEM NO. PART No. DESCRIPTION QTY.
154700226 ROD END - VQ 1/2" UNC 1
2 45041245 SCREW M12x45 CAP HD SKT ZN PL 1
3 46060012 NUT M12 NYLOC ZINC PLATE1
VQ FLYING BRACKET
(SINGLE POINT HANGING BRACKET)
VQ LINK (LINK PLATE)
VQ ROD END 12mm
VEB FORGED EYEBOLT
VQ ROD END 1/2in UNC
PART NUMBER MODEL NAME COLOUR PACKED QUANTITY
8001 5250 VQ Flying Bracket (Single Point Hanging Bracket) BLACK 1
7900 1055 VQ Link (Link Plate) BLACK 3
8001 5260 VQ Rod End 12 BLACK 1
8001 5261 VQ Rod End 1/2in UNC BLACK 1
8001 2820 VEB Forged Eyebolt - 3
Ordering Information

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
Architectural specications
The loudspeaker shall consist of a Dual Concentric™ Compression driver with a 3.5” Midrange voice coil and a 2” High Frequency voice coil, both
mounted in a common subsystem with a common 2” exit. This Dual Concentric™ compression driver shall be coupled to a PSW™ (Point Source
Waveguide) constant directivity horn operating over the frequency range of 450Hz to 23kHz. The low frequency section consists of two 300mm (12”)
woofers, and shall be mounted in a semi-horn loaded enclosure to provide signicant off axis attenuation below 450Hz. The loudspeaker shall be
user congurable for either Bi-Amp of Tri-Amp operation via the rear input panel. The loudspeaker shall be trapezoidal in shape.
Performance of the loudspeaker, using the recommended electronic control shall meet or exceed the following criteria:
The Low Frequency section shall produce a sound pressure level of 105dB SPL on axis at 1 meter with a power input of 1 Watt, and shall be capable
of producing a peak output of 141dB SPL on axis at 1 meter. In Bi-amp mode the Mid/High section shall produce a sound pressure level of 110dB
SPL on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing a peak output of 140dB SPL on axis at 1 meter. In Tri-amp
mode the Mid frequency section shall produce a sound pressure level of 111dB SPL on axis at 1 meter with a power input of 1 Watt, and shall be
capable of producing a peak output of 140dB SPL on axis at 1 meter. The High Frequency section shall produce a sound pressure level of 110dB
SPL on axis at 1 meter with a power input of 1 Watt, and shall be capable of producing a peak output of 139dB SPL on axis at 1 meter. The Low
Frequency section shall handle 1000 Watts of amplier power and shall have a nominal impedance of 4 Ohms. In Bi-amp mode the Mid/High section
shall handle 400 Watts of amplier power and shall have a nominal impedance of 8 Ohms. In Tri-amp mode the Mid frequency section shall handle
400 Watts of amplier power and shall have a nominal impedance of 8 Ohms. The High Frequency section shall handle 180 Watts of amplier power
and shall have a nominal impedance of 8 Ohms. The dispersion of the loudspeaker shall be 100 degrees conical (-6dB). The enclosure shall be of
birch plywood construction and internally braced. The enclosure shall be tted with eight integral carrying handles, and twelve M10 inserts for ying
hardware. The enclosure shall not exceed the following dimensions (H x W x D): 925mm x 694mm x 515mm (36.42” x 27.32” x 20.28”).
The loudspeaker shall be the Tannoy...VQ 100.

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
NOTES

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
NOTES

VQ 100
VQ 100 // issue 1.09 // 22.03.11
Tannoy adopts a policy of continuous improvement and product specication is subject to change
Tannoy (Direct UK) T: 00 44 (0) 1236 420199 E: [email protected]
TCGI (ROW sales) T: 00 45 8742 7000 E: [email protected]
TCGA (Americas sales) T: 00 1 [phone] E: [email protected]
Tannoy Middle East T: 00 971 (04) 4401208 E: [email protected]
NOTES
