Target WAD15038T User manual

>> assembly instructions
Threshold
34 in Round
Outdoor Firebowl
with Slate Tile and
Copper Mantel
dpci # 009-07-0766
stock # WAD15038T
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION. PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
If you are assembling this unit for someone else, give this
manual to him or her to read and save for future reference.

2QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read the installation, operation, and maintenance
instructions thoroughly before installing or
servicing this equipment.
3. Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
4. This instruction manual contains important
information necessary for the proper assembly
and safe use of the appliance.
5. Read and follow all warnings and instructions
before assembling and using the appliance.
6. Follow all warnings and instructions when using
the appliance.
7. Keep this manual for future reference.
DANGER
Do NOT leave this appliance unattended while it is in
operation.
WARNING
FOR YOUR SAFETY:
Do NOT store or use gasoline or other flammable
liquids or vapors in the vicinity of this or any other
appliance.
Congratulations on your latest Target purchase.
Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you.
All you need to do is follow our simple instructions and you’ll be on your way to transforming your backyard in no time.
Good luck—though we’re confident you won’t need it.

3
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
table of contents
important safeguards
important safeguards.......................................3
before you begin ..........................................6
tools included & required....................................6
parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
hardware ................................................8
assembly instructions ......................................9
operating instructions .....................................16
lighting instructions ....................................16
tending the fire .......................................16
extinguishing .........................................17
cleaning and care ........................................17
inspecting ...........................................17
cleaning.............................................18
storage .............................................18
product registration .......................................19
replacement parts ........................................19
limited warranty ..........................................20
WDANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or
death, or in a fire or an explosion causing damage to property.
WWARNINGS:
WThis appliance is for outdoor use only, and shall NOT be used in a building, garage or any other enclosed area.
WDo NOT use this outdoor fireplace for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause
asphyxiation.
WThis outdoor fireplace is NOT for commercial use.
WThis outdoor fireplace is safety certified for use in the United States and Canada only. Do NOT modify for use in any
other location. Modification will result in a safety hazard and will void the warranty.
WThis outdoor fireplace is NOT to be operated by children.
WDo NOT operate, light or use this appliance within ten (10) feet (3.05 m) of walls, structures or buildings.
WDo NOT store or use gasoline or other flammable vapors or liquids within 25 feet (7.62 m) in the vicinity of this or any
other appliance.
WDo NOT use in an explosive atmosphere. Keep outdoor fireplace area clear and free from combustible materials,
gasoline and other flammable liquids.
WApartment Dwellers: Check with management to learn the requirements and fire codes for using an outdoor fireplace in
your apartment complex. If allowed, use outside on the ground floor with a ten (10) foot (3.05 m) clearance from walls or
rails. Do not use on or under balconies.

4QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
important safeguards
WAlways use in accordance with all applicable local, state and national codes. Contact your local fire department for
details on outdoor burning.
WWhen using this outdoor fireplace, exercise the same precautions you would with any open fire.
WThis outdoor fireplace is NOT to be used in or on boats or recreational vehicles.
WDo NOT use this outdoor fireplace under any overhead or near any unprotected combustible constructions. Avoid using
near or under overhanging trees and shrubs.
WDo NOT use this outdoor fireplace without reading the entire “Owner’s Manual.”
WThis outdoor fireplace is for use with dry, seasoned hardwood. It will burn hotter, more completely and create less
smoke.
WDo NOT burn charcoal briquettes, lump charcoal, manufactured logs, driftwood, trash, leaves, paper, cardboard,
plywood, painted, stained or pressure treated wood. Avoid using softwoods such as pine or cedar which can throw
sparks.
WDo NOT use gasoline, kerosene, diesel fuel, lighter fluid or alcohol to light or relight fires.
WDo NOT alter this outdoor fireplace in any manner. Any alteration will void your warranty.
WDo NOT use this outdoor fireplace until it is COMPLETELY assembled and all parts are securely fastened and tightened.
WThe use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble and/
or safely operate this outdoor fireplace.
WDo NOT use this outdoor fireplace near automobiles, trucks, vans or recreational vehicles.
WAlways use this outdoor fireplace on a hard, level, non-combustible surface such a concrete, rock or stone. An asphalt
or blacktop surface may not be acceptable for this purpose. Do NOT use on wooden decks.
WDo NOT wear flammable or loose clothing when operating this outdoor fireplace.
WDo NOT use in windy conditions.
WDo NOT lean over this outdoor fireplace when lighting or while in use.
WDo NOT use this outdoor fireplace unless spark guards are securely
in place.
WKeep all electrical cords away from a hot fireplace.
WAll surfaces of this outdoor fireplace are hot when in operation. To avoid burns, do NOT touch fireplace until it has
completely cooled (about 45 minutes) unless you are wearing protective gear (potholders, gloves, BBQ mittens, hot
pads & etc.). Never touch ashes or coals to see if they are hot.

5
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
important safeguards
WDo NOT leave a lit outdoor fireplace unattended, especially around children and pets.
WAlways empty this outdoor fireplace before each use.
WDo NOT attempt to move or store this outdoor fireplace until all ashes and coals are completely extinguished.
WDo NOT remove ashes or coals until they are completely and fully extinguished and the outdoor fireplace has
completely cooled (about
45 minutes).
WDo NOT place wood directly into bottom of the outdoor fireplace. Place wood only on the wood grate provided.
WDo NOT overload the fireplace. Do not add additional firewood until the fire burns down. NOTICE: If any portion of the
bowl, lid or spark guards of this outdoor fireplace are glowing red it is overloaded.
WDo NOT place a hot spark guard or hot fireplace tools onto combustible surfaces such as grass, wooden deck or
furniture.
WAvoid breathing smoke from the fire and avoid getting it into your eyes.
WThis outdoor fireplace should be thoroughly inspected and cleaned on a regular basis.
WAfter a period of storage and/or non-use, check for signs of damage and creosote build-up. Do NOT operate until
necessary repairs and/or cleanup are executed.
WDo NOT use oven cleaner or abrasive cleaners as they will damage this product.
WDo NOT clean any part of this outdoor fireplace in a self cleaning oven as it may damage the finish.
WUse only Blue Rhino Global Sourcing, Inc. factory-authorized parts. The use of any part that is not factory authorized
can be dangerous and will void your warranty.
WUse heat-resistant gloves or hot pads when contacting handles.
WUse long, sturdy fireplace tools when adding or moving logs.
WAlways use a meat thermometer to ensure food is cooked to a safe temperature.
WNever cover entire cooking area with aluminum foil.
WUse protective gloves when assembling this product.
WDo NOT force parts together as this can result in personal injury or damage to the product.
WDeath, serious injury or damage to property may occur if the above is not followed exactly.

6QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
tools requiredtools included
before you begin
1. Check for damaged or missing parts. Call 800.762.1142 to order missing parts.
2. Use the carton as a working surface to prevent product damage during assembly.
3. Gather all tools prior to assembly.

7
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
Item Description Qty
Re-order
Number
1 Handle 1 58-23-333
2 Spark Guard 1 58-23-334
3 AirFlow™ 1 58-23-335
4 Bowl 1 58-23-336
5 Hearth 1 58-23-337
6 Leg 4 58-23-338
7 Leg Support 1 58-23-339
8Fireplace Tool 1 58-23-176
parts
5
1
2
4
3
8
7
6
6

8QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
hardware
(A) x 3
Screw
M5x10 Nickel Plated
Phillips Truss Head
(B) x 3
Wing Nut
M5 Nickel Plated
(C) x 9
Nut
M6 Nickel Plated
(D) x 4
Nut
M8 Nickel Plated

9
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
DO NOT RETURN TO PLACE OF PURCHASE.
For assistance, call 1.800.762.1142 toll-free. Please have your owner’s manual and DPCI number available for reference.
For Easiest Assembly:
• Select an area where you will assemble this product. To protect components, choose a smooth surface that’s free of cracks or openings.
• Spread out all parts.
• Tighten all hardware connections by hand first. Then, before completing each step, go back and fully tighten all hardware. Be careful not to
overtighten. That could damage surfaces or strip threads.
• For best results, complete each step in the order presented.
Typical assembly is approximately 30 minutes.
step 1

10 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
step 2
(D) x 4
Nut
M8 Nickel Plated

11
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.

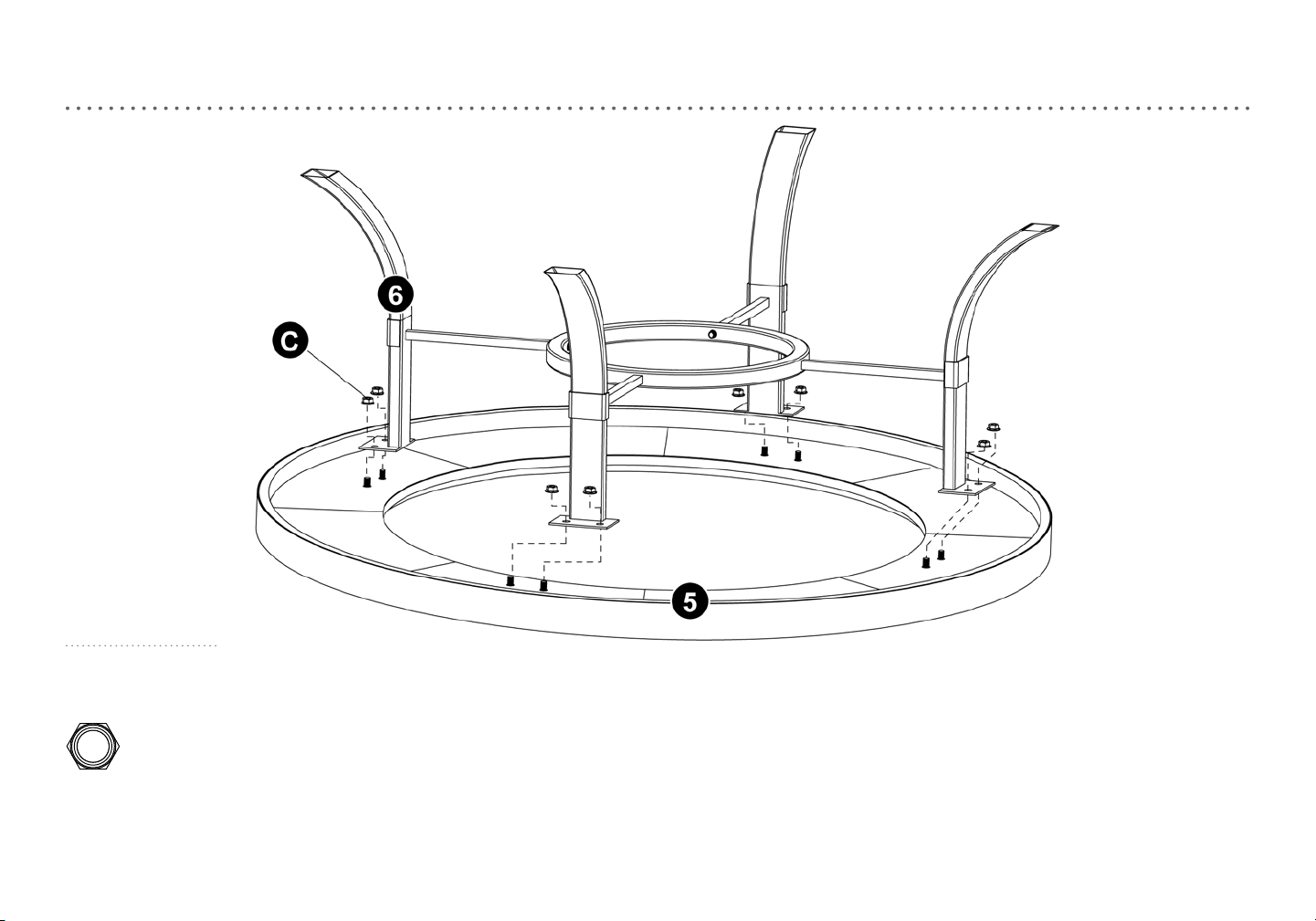

step 3
(C) x 8
Nut
M6 Nickel Plated

12 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.

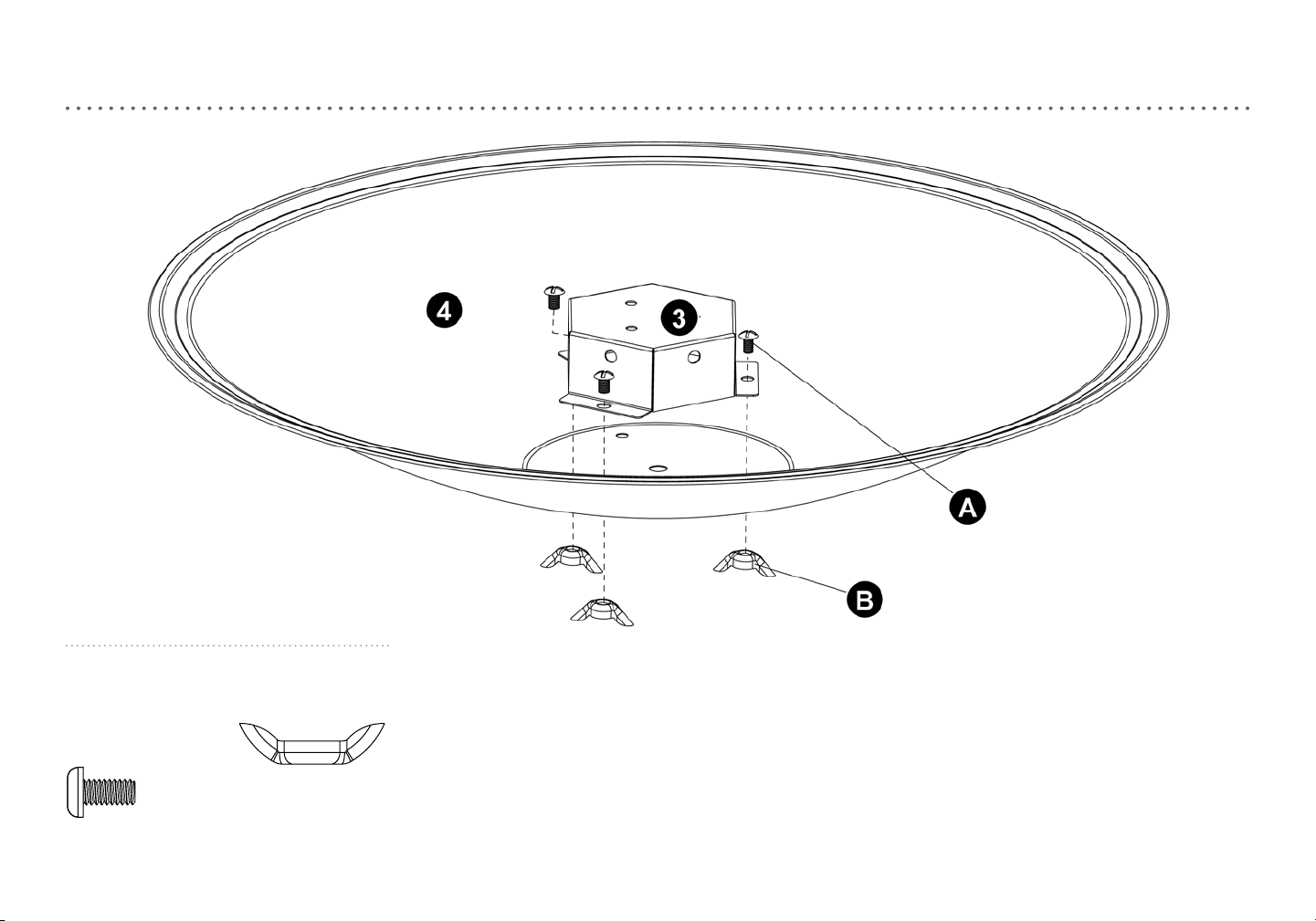

step 4
(A) x 3
Screw
M5x10 Nickel
Plated Phillips
Truss Head
(B) x 3
Wing Nut
M5 Nickel Plated

13
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.

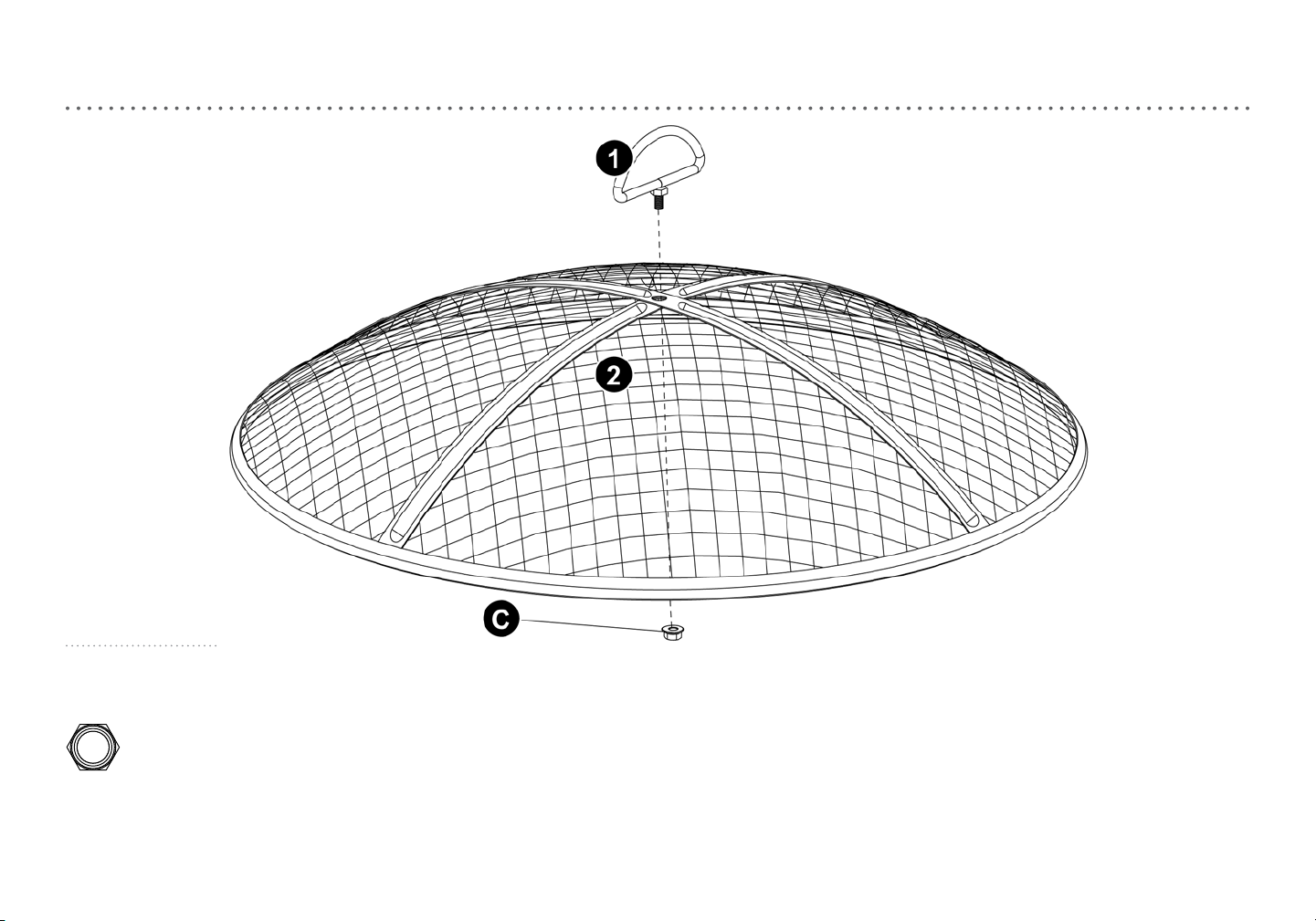

step 5
(C) x 1
Nut
M6 Nickel Plated

14 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
step 6

15
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
step 7

16 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
operating instructions
WWARNING: Before using this outdoor fireplace, make sure you have read, understand and are following all
information provided in the Important Safeguards presented on page 3. Failure to follow those instructions
can cause death, serious injury or property damage.
Lighting Instructions
1. Make sure there is no ash in the bottom of the bowl.
2. Place a layer of dry kindling or a natural firestarter such as Fatwood™ onto the center of the grate.
3. Place above that a layer of dry seasoned hardwood that is cut to lengths no more than 3/4 the diameter of the bowl.
WCAUTION: Do NOT add gasoline, kerosene, diesel fuel, lighter fluid or alcohol to relight or enhance an existing
fire.
4. Use a long match to light kindling or firestarter.
5. Once the kindling or firestarter is lit, using heat resistant gloves and a long handled fireplace tool carefully replace the spark
guard.
Tending the fire
1. You may need to shift and/or add logs for an ideal experience.
WCAUTION: Do NOT place hot fireplace tools onto combustible surfaces such as grass, a wooden deck, or
furniture.
2. Using heat resistant gloves and a long handled fireplace tool, carefully remove the spark guard.
3. While using a long handled fireplace tool, shift coals and logs to allow additional airflow.
WCAUTION: Do NOT add gasoline, kerosene, diesel fuel, lighter fluid or alcohol to relight or enhance an existing
fire.
4. Wait until glowing coals have developed before adding any additional wood. If additional wood is required, place wood on top of
coals. Be careful not to shift ashes.
5. Using heat resistant gloves and a long handled fireplace tool, carefully replace the spark guard.

17
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
Extinguishing
1. Allow fire to burn itself out.
2. Do NOT use water to extinguish as this is dangerous and can cause damage to the outdoor fireplace.
cleaning and care
WCaution:
1. All cleaning and maintenance should be done when outdoor fireplace is cool (about 45 minutes) and with the
fuel supply removed.
2. Do NOT clean any outdoor fireplace part in a self cleaning oven. The extreme heat will damage the finish.
Inspecting
This outdoor fireplace should be inspected on a regular basis to ensure product safety and longer product life.
WCAUTION: Do NOT attempt to inspect this outdoor fireplace until the fire is COMPLETELY out and the fireplace
has cooled completely.
1. Check the handle to make sure it is secure.
2. Check components for any signs of damage or rust.
3. If damage to any component is detected, do NOT operate until repairs are completed.
operating instructions

18 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
cleaning and care
Cleaning
This outdoor fireplace should be cleaned on a regular basis to promote safer experiences and longer product life.
Note: After repeated use, a slight discoloration of the finish may occur.
WCAUTION: Do NOT attempt to clean this outdoor fireplace until the fire is COMPLETELY out and the fireplace
has cooled completely.
WCAUTION: Do NOT use oven cleaner or abrasive cleaners as they will damage this product.
WCAUTION: Do NOT clean any part of this outdoor fireplace in a self-cleaning oven as it may damage the finish.
1. Wipe exterior surfaces with a mild dishwashing detergent or baking soda.
2. For stubborn surfaces, use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
4. Remove built-up creosote from components with a chimney cleaning product.
Tip: Keeping the outdoor fireplace covered when cooled and not in use will help protect it from the elements.
Storage
WCAUTION: Do NOT move or store this outdoor fireplace until the fire is COMPLETELY out and the fireplace has
cooled completely.
1. Once the fire is out, coals are cold and outdoor fireplace is cool to the touch, remove ashes and properly dispose.
2. Store assembled in a cool, dry location away from children and pets.

19
QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
product registration
For faster warranty service, register your product immediately at BlueRhino.com/warranty or call 1.800.762.1142.
replacement parts
Replacement parts can be found at parts.BlueRhino.com or by calling 1.800.762.1142.

20 QUESTIONS? Just call 800.762.1142 for parts and service. For faster service, have the DPCI number ready when when calling.
limited warranty
Blue Rhino Global Sourcing, Inc. (“Blue Rhino”) warrants to the original retail purchaser of this product, and to no other person, that if
this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of
one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship. Blue Rhino
may require reasonable proof of your date of purchase. Therefore, you should retain your sales slip or invoice. This Limited Warranty
shall be limited to the repair or replacement of parts, which prove defective under normal use and service and which Blue Rhino shall
determine in its reasonable discretion upon examination to be defective. Before returning any parts, you should contact Blue Rhino’s
Customer Service Department using the contact information listed below. If Blue Rhino confirms, after examination, a defect covered
by this Limited Warranty in any returned part, and if Blue Rhino approves the claim, Blue Rhino will replace such defective part
without charge. If you return defective parts, transportation charges must be prepaid by you. Blue Rhino will return replacement parts
to the original retail purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication,
improper installation or improper maintenance or service by you or any third party, or failure to perform normal and routine
maintenance on the product as set out in this owner’s manual. In addition, the Limited Warranty does not cover damage to the finish,
such as scratches, dents, discoloration, rust or other weather damage, after purchase.
This Limited Warranty is in lieu of all other express warranties. Blue Rhino disclaims all warranties for products that are purchased
from sellers other than authorized retailers or distributors, including the warranty of merchantability or the warranty of fitness for a
particular purpose. Blue Rhino ALSO DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Blue Rhino SHALL
HAVE NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES. Blue Rhino further disclaims any implied or express warranty of, and assumes no responsibility for,
defects in workmanship caused by third parties.
This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she
lives. Some jurisdictions do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how
long a warranty lasts, so the above exclusion and limitations may not apply to everyone.
Blue Rhino does not authorize any person or company to assume for it any other obligation or liability in connection with the sale,
installation, use, removal, return, or replacement of its equipment, and no such representations are binding on Blue Rhino.
Blue Rhino Global Sourcing, Inc.
Winston-Salem, North Carolina 27105 USA
1.800.762.1142
