KNOW YOUR EV
1
IMPORTANT INFORMATION
In this Owner's Manual, you will find the
text under the following headings, which
highlights important information. Pay
particular attention to these instruc-
tions.
WARNING
Indicates procedures or information
that must be followed accurately in
order to avoid the possibility of se-
vere personal injury and serious dam-
age to the vehicle.
CAUTION
CAUTION indicates a potentially haz-
ardous situation which, if not
avoided, may result in minor or mod-
erate injury and/or property damage.
If you see this symbol, it indi-
cates "no", "do not," "do not do
this," or "never".
SAFE DRIVING
Safety consciousness not only ensures
your safety and the safety of other road
users, but also helps to reduce the wear
and tear of your vehicle.
Safe driving depends on:
How quickly you make decisions to
avoid an accident.
Your ability to concentrate.
How well you can see and judge ob-
jects.
How much familiar you are with your
vehicle controls and its capabilities.
NOTE
Fatigue is a result of physical or men-
tal exertion that impairs judgment.
Driver fatigue may be due to inade-
quate sleep, extended work hours,
strenuous work or non-work activities
or combination of other factors. Take
rest at regular intervals.
NOTE
Indicates additional information that
will assist you in gaining the optimum
benefit and care for your vehicle.
!
!

KNOW YOUR EV
2
ELECTRIC VEHICLE SYSTEM
In Electric car, electrical energy is stored
in rechargeable batteries. Compared
with cars with internal combustion (IC)
engines, electric cars are quieter (no
noise) and have no emissions.
Car batteries must be charged before
driving. As the car is driven, stored en-
ergy in the battery pack gradually de-
creases and if discharged completely to
10% then vehicle cannot be driven until
battery pack is recharged. Charging time
varies depending on state of charge in
car and ambient conditions.
Auxiliary battery supports the VCU only to
start the accessories.
Electric car is an eco-friendly vehicle that
does not release any noxious emissions
like carbon monoxide, carbon dioxide &
nitrogen oxide, etc.
WARNING
The EV (Electric Vehicle) system
uses a high voltage current. Failure
to follow the proper handling in-
structions may cause serious injury
or death.
An EV (Electric Vehicle) cannot be
push started or tow-started. At-
tempting to do so may cause dam-
age to the traction motor.
The EV (Electric Vehicle) system
uses high voltage up to approxi-
mately DC 72 volt. The system can
be hot during and after starting and
when the vehicle is shut off. Be
careful of both the high voltage and
the high temperature. Obey the la-
bels that are attached to the vehi-
cle.
Li-ion Battery (72V)
As this is an electric vehicle, many elec-
tric and electronic parts are used in sys-
tem.
Your vehicle contains a pack sealed Li-
ion high voltage battery.
WARNING
For preventing damage to the Li-ion
battery pack:
Do not expose to very high temper-
atures for longer duration.
Do not use car battery for any other
purpose, Contact the TATA Author-
ised Service Centre.
!
!

KNOW YOUR EV
3
Emergency Situation
The battery electrolyte is colorless
and has a sweet odour. If electrolyte
leaks and accidentally enters into
eyes, rinse your eyes with clear wa-
ter and get medical aid immedi-
ately. Do not rub your eyes as it may
get worse.
During usage and storage process
of the battery, if you find any unu-
sual smell, heat, color change, de-
formation or any other unusual ac-
tivity, please cut off the power im-
mediately.
Explosion will not occur under ex-
treme conditions, but the battery
may smoke, for this situation the
cell should be isolated from air by
any measures except using water,
such as covering with sand, or using
carbon dioxide Fire extinguisher, dry
powder fire extinguisher. The cell
should be treated after smoke dis-
persing.
If your vehicle is drivable, pull your
vehicle off the road, shift to Neutral
(N), apply the parking brake, and
switch off the ignition. Open Bonnet
and press service disconnect switch
for turn the EV (Electric Vehicle) sys-
tem off.
The vehicle’s 72V battery system is
of Li-ion type and has solvents as
electrolyte. In case of fire or any
high impact accident that damages
the battery, the first responder is ad-
vised to check vehicle for the extent
of damage and any damages to 72V
DC system. Do a check for any dam-
age to the battery and its compart-
ment.

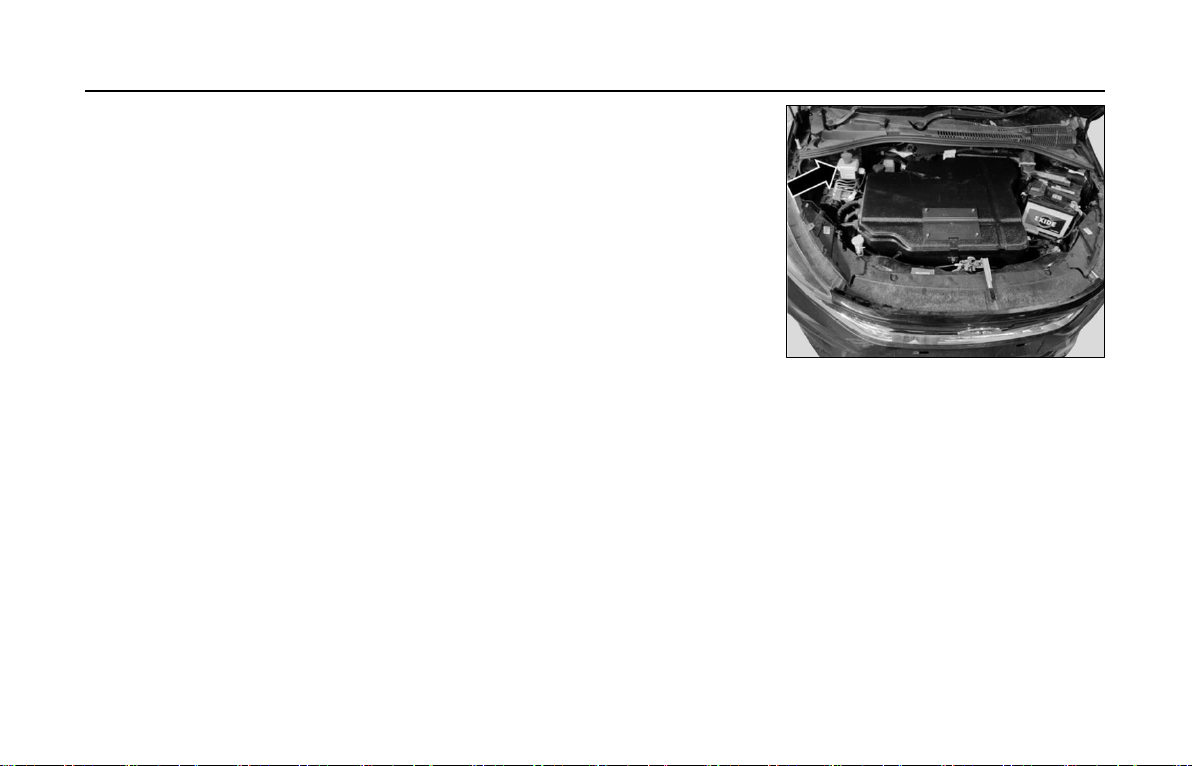

Service disconnect switch

KNOW YOUR EV
4
Repairing Instruction
Before remove any electrical and
electronics component, switch the
ignition OFF and press service dis-
connect switch (HV will disconnect
immediately).
Keep smoking materials, flames
and sparks away from the Aux and
HV batteries.
Do not work with wet tools, clothing
and jewelry.
Do not reverse the polarity of bat-
tery terminals.
Do not apply too much force while
disconnecting the connector.
During operation, please keep the
battery away from heat source, fire
source. Never beat, drop or shock
the battery cell/pack.
Do not turn over battery. Keep it
from strike, throw, tread or bending.
Do not make battery short-circuited,
in order to avoid from danger incur-
ring or battery damage.
Install the safety caps
WARNING
Disassembling, removing or replacing
those parts or cables can cause severe
burns or electric shock that may result
in serious injury or death. The vehicle
high voltage system has no user ser-
viceable parts. Take your vehicle to the
TATA MOTORS authorized dealer for
any necessary maintenance.
Battery Disposal
The Batteries need to be disposed in
a cleaner and responsible manner.
The batteries need to be disposed in
a suitable boxes that does not create
any short circuit or other damages.
As batteries are made of lithium &
iron phosphate with solvents as elec-
trolyte which are harmful and these
make impact on environment, if not
disposed correctly. Batteries are dis-
posed as per local pollution board
regulations.
The batteries should not be thrown
into fire or water for disposal.
Battery is made from steel, Alumi-
num, Lead, copper, other plastics,
glass, rubber & misc. These are reus-
able by recycling & also some are
hazardous to environment and living
beings hence to be disposed as per
local pollution board regulations.
CAUTION
Vehicle uses a 72 volts battery system.
Some of systems could be hot before &
after their usage. Hence pay attention
and follow warning labels located at
places in vehicle. Never try to access,
remove parts / cables / connectors
which can cause shock or severe burns
or result in serious injury. 72 voltage ca-
bles are color coded in Orange & sys-
tems are not user serviceable. For any
maintenance, contact your authorized
service center.
!
!

KNOW YOUR EV
5
SAFETY PRECAUTIONS
Driving
Drive your car in ‘D’ mode to opti-
mize the drive range with moderate
acceleration.
Drive your car in ‘S’ mode only when
you overtake vehicles and drive on
slopes.
Maintain recommended tyre pres-
sure for best drive range & comfort
Make sure that the batteries are
charged before you plan for a drive.
Always charge the car to full (100%
SOC).
Always use seatbelts for your own
safety.
Always use blower speed position 2
for better cooling of cabin or as de-
sired by user to his comfortable
cabin temperature.
Set the switch to off drive system
before leaving vehicle.
Vehicle will not run with completely
discharged battery. At low SOC
avoid repeated acceleration result-
ing in more energy consumption
that can be avoided by gradual ac-
celeration and maintaining steady
speed.
Vehicle driving style has a direct im-
pact on battery capacity.
Operate accelerator and brake pe-
dal smoothly for better battery per-
formance.
Drive motor, brake vacuum pump In
AC cooling, motor and condenser
fan makes sound during braking op-
eration.
Cooling/Heating will be turned off
(including blower) when SOC drops
below 20%.
NOTE
Owners who do not have their own
recycling facility should get it done
through agencies that are certified
by competent national authorities.
After disposal, the certificate of re-
cycling has to be obtained and
maintained by the customer for
records. Hence it is advised to con-
tact TATA MOTORS authorized ser-
vice center the above.
WARNING
If the Li-ion battery is disposed incor-
rectly, there is a risk of severe burns
and electrical shock that may result
in serious injury or death and there is
also a risk of environmental damage.
NOTE
Gradual/smooth braking lets the
‘REGENERATION’ mode and charge
the battery and provide the extra
range (DTE).
!

KNOW YOUR EV
6

EV CHARGING
7
VEHICLE CHARGING
Car requires charging of battery power
pack once energy stored in it gets de-
pleted.
There are two methods of charging bat-
tery.
1. Normal charging
2. Fast Charging
1. Normal charging
Normal charging Port is located on front
bumper grill.
.
CAUTION
In case if the temperature of the
batteries has reached to their
maximum operating temperature,
time to charge may increase and
will be indicated on cluster.
Charge time may vary. Always use
charging cable provided by TATA
motors for charging.
Do not charge the car if water is
found in the charging port and
socket. For normal charging wet
port we can clean with cloth and
make it dry. But if it is a fast charg-
ing socket, please contact the
TATA motors Authorized Service
Centre.
The charging cable is not plugged
in while servicing.
Do not charge the car in high am-
bient temperatures. Night time is
the ideal time to charge the vehi-
cle.
Charging Point Requirements
Charging Point Specification:
Power requirement: 3kW, Single
phase.
Plug socket : 15 A, 230V
Wire thickness: 4sq mm for 25 me-
ters, 6sq mm up to 100 meters
length, from main source to power
socket.
NOTE
Power point socket should be pro-
vided with MCB for protection.
!

EV CHARGING
8
Do’s and Don’t
Inspect charging cable periodically
for any damage like cracks, cuts, ex-
posed wire, etc. Replace if required.
Make sure that children are kept
away from power source, on-board
charge port during charging process.
Make sure that the proper earthing,
over voltage protection, earth line cir-
cuit breaker is provided to power
source.
Allow battery Pack to charge com-
pletely whenever possible.
It is recommend not to stay in vehicle
or access the vehicle during charg-
ing.
Make sure that there are no foreign
particles or water traces in charge
plug or port as any of these can re-
sult in electric short circuit or shock
causing serious injury or death.
Hence do not touch metal contacts
on cable or plug.
When charging process is over, first
switch off power supply. Then re-
move charging cable from socket,
then car charge port, in order. Roll up
and store charging cable in its com-
partment behind rear seat.
Always engage parking brake before
go out of car, and also engage park-
ing brake in long signals too.
Do not get any accessory installed by
unauthorized person.
Do not wash the vehicle while charg-
ing.
Do not carry out charging procedure
with wet hands.
Do not let children or People having
implanted medical electric devices
near car while carrying out charging
process.
Pressure wash is not recommended
near rear LH wheel arch
Do not keep charge cable close to
any heat source.
Make sure that power is switch to off
before you access the charge cable.
Do not handle charger cable or port
with wet hands as it may cause elec-
tric shock and injury.
Do not pull or twist cable, set the
switch to off then hold the charger
port handle to remove it.
Do not modify port or cable as it may
be dangerous and cause fire.
In there is an unusual odor or smoke
coming from vehicle, and disconnect
charging cable immediately and stop
charging process.
Always make sure that the charger
cable is disconnected from on board
charge port before to drive.
Do not charge your car if external
Power Source or on-board charge
port are exposed to rain or water.
Avoid frequent short charges.

EV CHARGING
9
Do not change the battery frequently.
Charge it when SOC is below 20%.
Always use sports mode to avoid
deep (faster) discharge of battery.
Use fast charging only when it is very
urgent or necessary. When possible
usenormal changing for vehicle.
NOTE
Charger port cap must be always
closed. So that dust, water does
not go into the port.
EV usage guidelines
Make sure that the first three charge
cycles after delivery of vehicle are
done via slow charger. During this
‘running-in period’ each charge cycle
should be of minimum 8 Hrs duration
(i.e overnight charge).
After running-in period, it is recom-
mend that to follow charging pattern
of one fast charge cycle followed by
one slow charging cycle.
Between every three consecutive
charging cycle it is recommended to
have at least one complete 100 %
charging operation.(Indicator for
100% charge is charging light in clus-
ter turning into a solid green indica-
tion).
It is recommended to avoid succes-
sive short duration charging opera-
tion. e.g charging only for 30%.
If car keep Idle for long durations,
disconnect negative terminal of Aux-
iliary battery. If you use the car after
idle period requires a complete slow
charge before use.
Drive cautiously and slowly when wa-
ter levels up to 120 mm (Near to half
of wheel).
Make sure that water does not go
into charge ports before insertion of
charge cable.
Charging box details
1. Power ON (Yellow Light) –
AC 230V available.
2. AC UV/AC OV/NO EARTH (Orange
Light) –
Continuously blinking every second will
indicate AC under Voltage fault (AC
below 160V).
Continuously blinking every 2 second
will indicate AC over voltage fault (AC
above 250V).

EV CHARGING
10
Continuously solid light will indicate
Earthling not available.
3. OL, SC / P, N Reverse / E-leak (Red
Light).
Continuously blinking every second will
indicate over load fault or Short circuit
fault (Charger Load side).
Continuously blinking every second will
indicate Phase and Neutral reverse in
line.
Continuously solid light will indicate AC
line Earth leakage (Phase to Earth more
than 5V).
4. Charging/Output OK (Blue Light) –
Blink charging, continuously ON (Output
not connected RCD OK).
Charging Procedure
Always charge your car with charging ca-
ble provided with car. It usually takes
9 Hrs. (XM,XT) & 11.30 Hrs. (XM+,XT+))
to charge completely when the batteries
are discharged. However, charging time
can vary depend on battery and ambient
temperature. This change in time is al-
ways indicated on the cluster in TTC
(Time to Charge). To charge the battery,
refer following instructions
Location of charging bag (below co
driver)
Take out charging bag by removing both
the strips.
Normal charging Port is located on front
bumper grill.
To remove the flap, gently pull the ring
down.
