TATA Motors HARRIER User manual

BSVI
OWNER’S MANUAL

CUSTOMER ASSISTANCE
ii
In our constant endeavor to provide assistance and complete
service backup, TATA MOTORS has established an all India cus-
tomer assistance centre.
In case you have a query regarding any aspect of your vehicle,
our Customer Assistance Centre will be glad to assist you on
our Toll Free no. 1800 209 7979
You can also approach nearest TATA MOTORS dealer. A sepa-
rate Dealer network address booklet is provided with the
Owner’s manual.
TATA MOTORS 24X7 Roadside Assistance Program offers tech-
nical help in the event of a breakdown. Call the toll-free Road-
side Assistance.
For additional information, refer to "24X7 Roadside Assis-
tance" section in the Owner’s manual.

FORWARD
iii
Dear Customer,
Welcome to the TATA MOTORS family.
We congratulate you on the purchase of your new vehicle and are privileged to have you as our valued customer.
We urge you to read this Owner's Manual carefully and familiarize yourself with the equipment descriptions and operating instruc-
tions before driving.
Always carry out prescribed service / maintenance work as well as any required repairs at an authorized TATA MOTORS Dealers
or Authorized Service Centre’s (TASCs). Use only genuine parts for continued reliability, safety and performance of your vehicle.
You are welcome to contact our dealer or Customer Assistance toll free no. (1800 209 7979) in case of any query or support
required.
We wish you a safe and pleasant driving experience.

IMPORTANT INFORMATION
iv
Before driving, read this Owner’s manual carefully and familiarize yourself with your vehicle. For your own safety and a longer
vehicle life, follow the instructions, ‘Warnings’ and ‘Notes’ in this manual. Ignoring them could result in damage to the vehicle
or personal injury to you or others.
The Owner’s manual and other booklets are important documents and should always be kept in the vehicle. If you sell the
vehicle, always pass on the documents to the new owner.
This Owner's Manual describes all variants of the model and all standard/optional equipment of your vehicle available at the
time of printing. Please note that your vehicle may not be equipped with all features described.
TATA MOTORS Limited reserves the right to introduce changes in the design, equipment and technical features without any
obligation to install them on the vehicles previously sold. The equipment in your vehicle may therefore differ from that shown
in the descriptions and illustrations.
Do not carry out any modification including fitment of non-genuine accessories on your vehicle. Safety, handling, performance
and durability, may otherwise be adversely affected and may violate government regulations. TATA MOTORS Limited accepts
no liability for damage resulting from the modifications or use of non-genuine accessories.
All rights reserved. The information in this manual shall not be copied, translated or otherwise reproduced, in whole or in
part, without written permission from TATA MOTORS.
© Copyright 2020 TATA MOTORS

CONTENTS
v
1
Safety
Important Information 01
Safe Driving 01
Seat Belts 04
Child Restraint System (CRS) 08
Air Bags 12
Child Lock 19
Anti-theft Device: Immobilizer 20
12
ABS 21
EBD 22
Additional safety features 22
20
2
Opening & Closing
Keys 25
Doors 33
Windows 34
Bonnet Opening 36
Tailgate Opening 38
Fuel Lid 40
Power Sunroof 41
3
Dashboard & Features
Cockpit 47
Instrument Cluster (for TFT) 48
Driver Information System 52
Display Messages 61
Instrument Cluster (for LCD) 69
Driver Information System 73
Display Messages 78
Tell Tales 81
Audio Reminders 90
Combi Switches 91
Fascia Switches 94

CONTENTS
vi
3
Dashboard & Features
Steering Wheel Switches 95
Mic 97
Infotainment System Display 97
Speakers & Tweeter 98
USB/AUX 98
Smart charger 99
Power Socket 99
Antenna 100
Roof Grab Handles 100
Front Fog Lamp 101
Rear Fog Lamp 101
3
Dashboard & Features
Puddle / Ajar Lamp 102
Roof Lamp 102
Side Reading lamps 103
Boot Lamp 104
Side Indicator Lamp
on ORVM 104
Front Lamp 104
Tail Lamp 105
4
Stowage Areas
Glove Box 107
Goggle Holder 108
Utility Pockets on Front Doors 108
Utility Pockets on Rear Doors 109
Mobile / Wallet Stowage 109
Cup Holder 109
Stowage for Rear Passenger 110
Stowage belowArm Rest 110
Foldable Arm Rest 110
Tailgate Compartment 111

CONTENTS
vii
4
Stowage Areas
Hooks 112
Front seat back pockets 112
5
Climate Control
Air Distribution 113
Air Vents 114
Side vent for rear passenger 114
HVAC Controls 115
Fully Automatic Temperature
Control (FATC) 119
Quick Cooling 124
FATC Sensors 124
6
Starting & Driving
Pre-Driving Checks 125
Driving Tips 126
Seat Adjustments 129
Rear Seat folding 132
Rear View Mirrors 134
Sun Visors 137
Steering Wheel Adjustments 138
Steering Lock Cum
Ignition Switch 139
Starting and Stopping 139
Gear Shifting & Driving 141

CONTENTS
viii
6
Starting & Driving
Reverse Gear 141
Braking 142
Automatic Transmission 142
Shift Lever Manually Unlock 145
Shift Lock System 148
Starting and Stopping (PEPS) 150
145
Starting the Engine 152
145
Gear Shifting and Driving 154
145
Braking 155
Driving 156
Parking Brake 157
6
Starting & Driving
Vehicle Parking 158
Reverse Park Assist 159
Reverse Park Assist with
Sensor 159
Reverse Park Assist with
Camera 162
Drive Mode 169
Terrain Response Mode 169
7
Emergency & Break-
down Assistance
Emergency Equipment 173
Hazard Warning Switch 176
In Case of Flat Tyre 176
Jump Lead Starting 180
Towing 182
Fuses 184
Bulb Specification 194
24x7 Road Side Assistance 196

CONTENTS
ix
8
Maintenance
Maintenance & Service 201
Engine Compartment 202
Oil / Fluid Level 203
Battery 207
Tyres 210
Remote Key Battery
Replacement 212
On Board Diagnostic (OBD) 214
Diesel Particulate Filter
(DPF) Warning Indicator 215
Service Schedule 217
Parking for Long Durations 223
8
Maintenance
Exhaust After
Treatment System 223
9
Technical Information
Fuel Specification 231
Lubricant Specification 232
Technical Specification 233
Vehicle Dimensions 237
Aggregate Identification Nos 238

CONTENTS
x
10
Car Care and Value
Added Services
Car Care 239
Washing 239
Waxing 240
Polishing 240
Interior Fabric Cleaning 240
Paint Care 241
Wiper Care 241
Value Care AMC 242
Extended Warranty 246
Value Added Services 248
11
Warranty –Terms and
Conditions
Warranty –
Terms & Conditions 253
Environment Safety 255
12
Environment Safety

SAFETY
1
Important Information
In this Owner's Manual, you will find the
text under the heading “WARNING” and
“NOTE” which highlights important infor-
mation. Pay particular attention to these
highlighted messages.
WARNING
Indicates procedures or infor-
mation that must be followed pre-
cisely in order to avoid the possibil-
ity of severe personal injury and se-
rious damage to the vehicle.
Safe Driving
Safety consciousness not only ensures
your safety and the safety of other road
users, but it also helps to reduce the
wear and tear on your vehicle.
Safe driving depends on:
How quickly you make decisions to
avoid an accident.
Your ability to concentrate.
How well you can see and judge ob-
jects.
How well familiar you are with your
vehicle controls and its capabilities.
NOTE
Fatigue is a result of physical or
mental exertion that impairs judg-
ment. Driver fatigue may be due to
inadequate sleep, extended work
hours, strenuous work or non-work
activities or combination of other
factors. Take rest at regular inter-
vals.
Safety Tips
Always take into account the road
conditions, weather conditions, vehi-
cle speed in order to prevent acci-
dents.
Turn ‘ON’ the side indicators at least
30 meters before taking a turn or
changing the lane.
Decelerate to a safe speed before
taking turn. Do not apply brakes dur-
ing cornering.
When overtaking other vehicles,
watch out for the oncoming vehicle.
Never drive under the influence of al-
cohol or drugs.
If your vehicle is equipped with info-
tainment/navigation system, set and
make changes to your travel route
only when the vehicle is parked.
Program radio presets with the vehi-
cle parked, and use your pro-
grammed presets to make radio use
quicker and simpler.
NOTE
Indicates additional information
that will assist you in gaining the
optimum benefit and care for your
vehicle.

SAFETY
2
Driving Through Water
Do not drive through flooded areas.
Judge the depth of water before driving
through it. Otherwise, water may enter
the vehicle interior or the engine com-
partment.
If at all the situation demands that you
have to drive through water then;
Keep engine in higher RPM and crawl
the vehicle in low gear.
Flowing or rushing water creates
strong forces. Driving through flow-
ing water could cause the vehicle to
be carried away. Be cautious while
driving through flowing water.
Lightly apply the brake pedal to dry
the liners until the brakes work nor-
mally once you are out of water.
WARNING
Do not attempt to start the engine
if vehicle gets flooded due to water.
Tow the vehicle to a safe place.
Contact a nearest TATA MOTORS
Authorised Service Centre
Driving on a Rainy Day
Check wiper blades, lights and
brakes for proper functioning and
condition.
Check the tyre treads depth, the con-
dition of the tread and tyre.
Avoid harsh braking and sharp turns.
It may cause loss of control and lead
to a skid.
For slowing down, shift to lower gears
and brake gently.
Keep lights ‘ON’ if visibility is poor.
Driving on Wet Roads
On wet road or during light showers, “Aq-
uaplaning” can occur. “Aquaplaning” is
the loss of direct contact between the
road surface and the vehicle’s tires due
to a water film forming between them.
Steering or braking the vehicle can be
very difficult, and loss of control can oc-
cur.
There is no hard and fast rule about aq-
uaplaning. The best advice is to slow
down when the road is wet.
NOTE
If you have driven for a long time in
heavy rain without braking, there
may be a delayed reaction from the
brakes when braking for the first
time. You have to press the brake
pedal more firmly. Maintain a
greater distance from the vehicle in
front.
Driving on Snowy Roads
While driving in snow, it is advisable to
use the snow chain on roads. Follow as-
sembly and safety instruction provided
by the snow chain manufacturers.

SAFETY
3
Night Driving
Ensure that all lights are working and
windshield, window glasses are
clean.
Drive more slowly at night than in the
daytime, as the visual range is re-
stricted at night. Maintain a speed
such that you can stop within illumi-
nated distance of headlamps.
Do not use the high beam unless in-
evitable. It may dazzle the driver of
the oncoming vehicle, thus causing
an accident.
Use headlamp main/dip beam to
alert other road users on turns/
cross roads etc.
Use side indicators for lane change
or turning.
Driving on Gradients
When climbing gradient, the vehicle may
begin to slow down and show a lack of
power. If this happens, shift to a lower
gear and apply power smoothly so that
there is no loss of traction.
When driving down a hill, the engine
braking should be used by shifting into a
lower gear. Do not drive in neutral gear
or switch off the engine.
WARNING
On long and steep gradients you
must reduce the load on the brakes
by shifting early to a lower gear.
This allows you to take advantage
of the engine braking effect and
helps avoid overheating of service
brakes resulting in reduced braking
efficiency.
Driving on Highway
Stopping distance progressively in-
creases with vehicle speed. Maintain a
sufficient distance between your vehicle
and the vehicle ahead.
For long distance driving, perform safety
checks before starting a trip and take
rest at certain intervals to prevent fa-
tigue.

SAFETY
4
Seat Belts
This section of user manual describes
your vehicle seat belt, airbag and Child
restraints system. Please read and fol-
low all these instructions carefully to
minimise risk of severe injury or death.
Seat belts are the primary restraints
system in the vehicle. All occupants,
including the driver, should always
wear their seat belts to minimize the
risk of injury.
Sit back and adjust (if equipped), the
seat. Make sure that your seat is ad-
justed to a good driving position and
the back of the seat is upright.
Buckling the Shoulder Seat Belt
Grasp the tongue and slowly pull out
the seat belt over the shoulder and
across the chest. When the seat belt
is long enough to fit, insert the
tongue into the lock buckle until you
hear a “CLICK” which indicates that
the seat belt is securely locked.
Position the lap portion of seat belt
across your pelvic bone (hips), below
your abdomen. To remove slack, pull
up a bit on the shoulder seat belt. To
loosen the lap portion seat belt if it is
too tight, tilt the tongue and pull on
the lap seat belt. A snug seat belt re-
duces the risk of sliding under the
seat belt in a collision. Ensure that
the seat belt running over the body
(shoulder segment and lap segment)
does not have any twist. Twisted seat
belt may not offer effective protec-
tion when required.
Releasing the Seat Belt
To release the seat belt, push the red
button on the lock buckle. The seat belt
will automatically retract to its stowed
position. If necessary, slide the tongue
down the webbing to allow the seat belt
to retract fully.
NOTE
The above images are for reference
purpose only.

SAFETY
5
Fixed Rear Centre Lap Seat Belt
When buckling, make sure you hear
a click confirming that the tab is
latched into the seat belt lock. To
tighten it, pull the loose end through
the buckle until the seat belt is com-
fortably adjusted around the pelvic
bone (hips).
WARNING
Each seating position and seat
belt assembly must be used by
one occupant. It is not
recommended to put a seat belt
around a child, being carried on
an occupant's lap.
Be careful not to damage or
tamper the seat belt webbing or
hardware. Inspect the seat belt
system periodically, checking for
cuts, frays, or loose parts. A
frayed or torn seat belt could rip
apart in a collision and leave you
with no protection.
If the seat belt webbing or
hardware is damaged, get it
replaced immediately at TATA
Motors Authorized service centre.
Do not insert any items such as
coins, clips, etc. into the seat belt
buckles, and be careful not to
spill liquids into these parts. If
foreign materials get into a seat
belt buckle, the seat belt will not
work properly.
Do not wear seat belts over hard,
sharp or fragile items in clothing,
such as pens, keys, spectacles
etc.
Do not use any accessories on
seat belts or modify in any way
the seat belt system. Devices
claiming to improve occupant
comfort or repositioning the seat
belt, can reduce the protection
provided by the seat belt and
increase the chance of serious
injury in a collision.
Seat Belts with Pre –tensioner
(If equipped)
You can use pre-tensioner seat belts in
the same manner as ordinary seat belts.
The seat belt pre-tensioner system
works in conjunction with the
SUPPLEMENTARY RESTRAINTS SYSTEM
(SRS-Airbags).
In the event of a collision, as may be
necessary, pre-tensioner tightens the
seat belt so that it fits the occupant’s
body more snugly. When pre-tensioner
activates, there could be some noise
and release of smoke. This is normal
and there are no health hazards or fire
risk.

SAFETY
6
WARNING
In a collision, the pre-tensioner
seat belt assembly mechanisms
become hot during activation. Do
not touch the pre-tensioner seat
belt assemblies for several
minutes after they have been
activated.
If the vehicle has been involved in a
collision, get it inspected immediately at
authorised TATA MOTORS SERVICE
Center.
Seat Belt with Load Limiter
(If equipped)
You can use the load limiter seat belts in
the same manner as ordinary seat belts.
The seat belt load limiter system works
in conjunction with the SUPPLEMEN-
TARY RESTRAINTS SYSTEM (SRS-Air-
bags).
In the event of a collision, as may be nec-
essary, load limiter reduces the load on
the rib cage region of the occupant.
If the vehicle has been involved in a col-
lision, get it inspected immediately at Au-
thorised TATA MOTORS SERVICE Center.
Use of seat belts for pregnant
woman
WARNING
Pregnant woman must wear a
correctly positioned seat belt. It
is safer for mother as well as
unborn child.
Pregnant woman should wear
the lap part of the seat belt
across the pelvic bone (hips) and
as snug across the hips as
possible. Keep the seat belt low
so that it does not come across
the abdomen. That way the
strong bones of the hips will take
the force if there is a collision.

SAFETY
7
Seat Belt Warning Lamp
For Driver For Front
Passenger
The seat belt warning lamp reminds you
to fasten the seat belt.
If the driver does not fasten seat belt,
seat belt reminder lamp will blink
and a buzzer will sound for pre-
defined duration until the driver’s
seat belt is buckled.
If front passenger seat is occupied by
adult and does not fasten seat belt,
seat belt reminder lamp will blink
and a buzzer will sound for pre-
defined duration until the front
passenger seat belt is buckled.
If this system is also provided for
other than Front row seats,
applicable above warnings will
appear until seat belts are buckled.
If front passenger seat is occupied by
child, system may detect occupancy
and warn with front passenger seat
belt warning. It is not taken to mean
child can occupy front passenger
seat and use seat belt. Please refer
CRS section for recommended
seating position.
NOTE
Using unauthorized after-market
seat cover may affect function of
occupant sensor. TATA motors
does not recommended any non-
validated seat covers on seats.

SAFETY
8
Child Restraint System (CRS)
TATA MOTORS strongly recommends the
use of Child Restraint Systems (CRS) for
all children up to age of 12 years and to
be placed at recommended positions
only. Children travelling without recom-
mended CRS and seated at other posi-
tions may face serious injuries in case of
a collision.

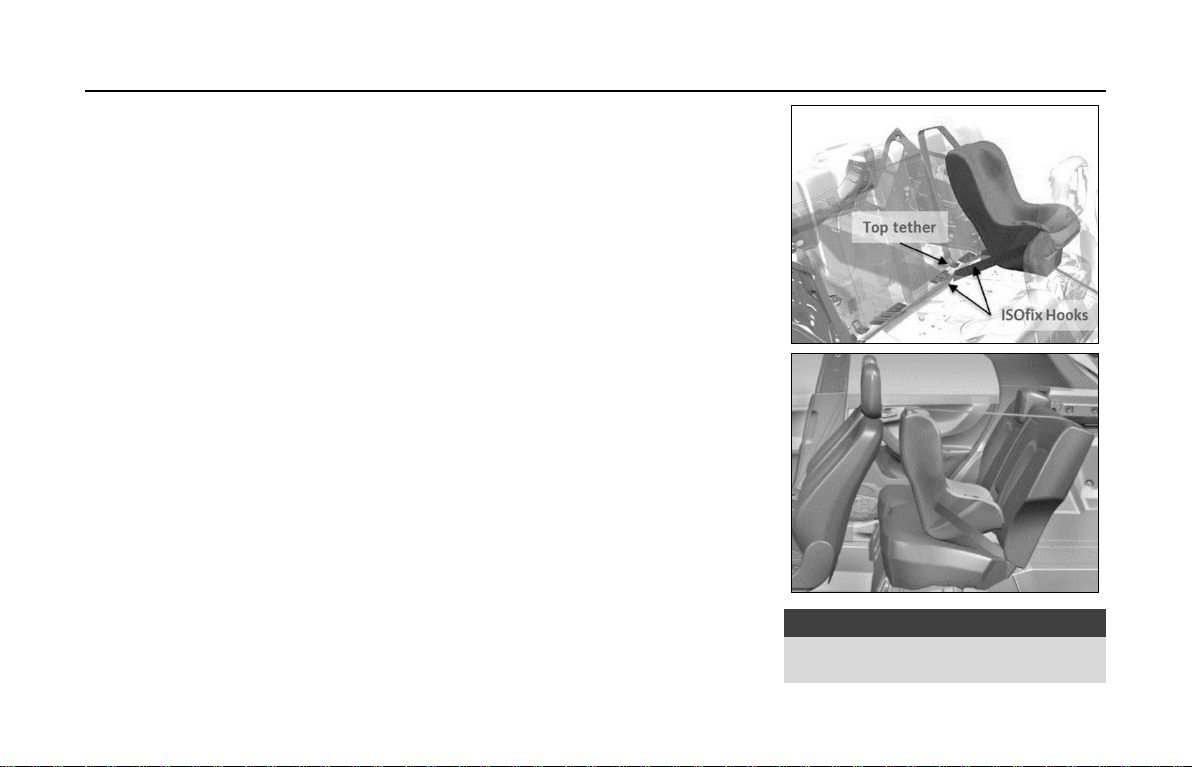

CRS can be installed in the vehicle using
seat belts and/or ISOFIX only (if
equipped) or ISOFIX with Top Tether (if
equipped).
The harness system of CRS holds the
child in place, and in a collision, acts to
keep the child positioned in the seat and
reduce the risk of injuries.
All children below age of one year must
always ride in a rear-facing infant CRS.
Keep children above age of one year, in
a forward-facing CRS with a harness un-
til they reach the size or weight limit al-
lowed by your CRS manufacturer.
Once your child outgrows the forward-
facing CRS, your child is ready for a
booster seat.
Selection and Installation of CRS:
Always select the CRS that complies with
latest safety standards (AIS072 / ECE
R44). The CRS are classified according
to the child's size, height and weight.
Select the appropriate CRS for your
child. Ensure that the CRS is securely
installed in the vehicle and subsequently
child fits properly in it and wears harness
of CRS. For installation, please refer CRS
manufacturer’s instruction manual.
NOTE
The above images are for reference
purpose only.

SAFETY
9
Recommended CRS Position
as per the Vehicle Matrix
The suitability of seat position for
carriage of children and recom-
mended category of CRS is shown
in the table below as per the child
group.
X - Seat Position not suitable for
children in this age group.
U - Suitable for “universal”
category restraints approved
for use in this age group.
Universal is a category in the
AIS072 / ECE R44 norm.
WARNING
If a child is seated in the
front seat it may cause
serious injury or even death
during any collision.
Group
Mass
Group
Age
Group
Front
Passenger
Rear
Outboard
LH
Rear
Outboard
RH
Rear
Center
0
Up to 10
kg
Upto9
months
X
U
U
X
0+
Up to 13
kg
Upto 24
months
X
U
U
X
I
9to18kg
9monthsto
48months
X
U
U
X
II
15to 25kg
Approx. 3 to
7 years
X
U
U
X
III
22to 36kg
Approx. 6 to
12 years
X
U
U
X

SAFETY
10
WARNING
If your vehicle is equipped with a
front passenger airbag (PAB) and
does not have PAB deactivation
switch, do not install a rear-facing
CRS in the front passenger seat. If
the PAB inflates, a child in a rear
facing CRS could be seriously
injured or killed.
If you install a CRS in the rear seat, slide
the front seat far enough forward so that
the child’s feet do not touch the front
seatback. This will help avoid injury to
the child in the event of a collision.
WARNING
Do not use an infant carrier or a
child safety seat that "hooks“ over
a seatback, it will not provide
adequate protection in a collision.
After a collision, we recommend to get
seat belts, seats, ISOFIX and top-tether
anchorages (as may be applicable)
investigated at TATA MOTORS
Authorised service centre.
NOTE
A CRS in a closed vehicle can
become very hot. To prevent burns,
check the seating surface and
buckles before placing your child
in CRS.
WARNING
Do not leave unattended children
in your vehicle.
Do not modify CRS in any way.
NOTE
Do not install a booster seat or a
booster cushion with only the lap
strap of the seat belt.
Do not install a booster seat or a
booster cushion with a seat belt
that is slack or twisted.
Do not put the safety seat belt
under your child’s arm or behind
its back.
Do not use pillows, books or
towels to boost your child’s
height.
Make sure that your children sit
in an upright position.
Do not allow children to stand up
or kneel on either the rear or the
front seats. An unrestrained
child could suffer serious or fatal
injuries during a collision.
Do not leave any toys or other
objects loose in the CRS or on
the seat while the vehicle is in
motion.
NOTE
Children could be endangered in a
collision if their CRS is not properly
secured in the vehicle. Be sure to
secure the child in the restraint
system according to the
manufacturer’s instructions.
