Volvo 780 User manual

1987 Volvo 780
1 9 8 7
VOLVO
780
Contents
A comprehensive index is located at the back of this manual.
Introduction
Instruments and controls
Body and interior
Starting and driving
Wheels and tires
In case of emergency
Car care
Service and routine
maintenance
Specifications
Index
All information, illustrations and specifications contained in this manual are based on the latest product
information available at the time of publication. Volvo reserves the right to make model changes at any
time, or to change specifications or design, without notice and without incurring obligation.
pg. 2 Introduction
file:///K|/ownersdocs/1987/1987_780/87780_00.htm (1 of 3)12/30/2006 7:56:24 AM

1987 Volvo 780
This Owner's manual provides information on driving and maintaining your Volvo
It should be noted that there are certain differences among model versions and market requirements;
thus, you may find features described and/or pictured in this manual that do not appear on your car.
Should you require more detailed information with regard to adjustments or repairs please contact your
Volvo dealer.
Do not export your Volvo to another country before investigating that country's applicable safety
and exhaust emission requirements. In some cases it may be difficult or impossible to comply with
these requirements. Modifications to the emission control system(s) may render your Volvo not
certifiable for legal operation in the U.S., Canada, and other countries.

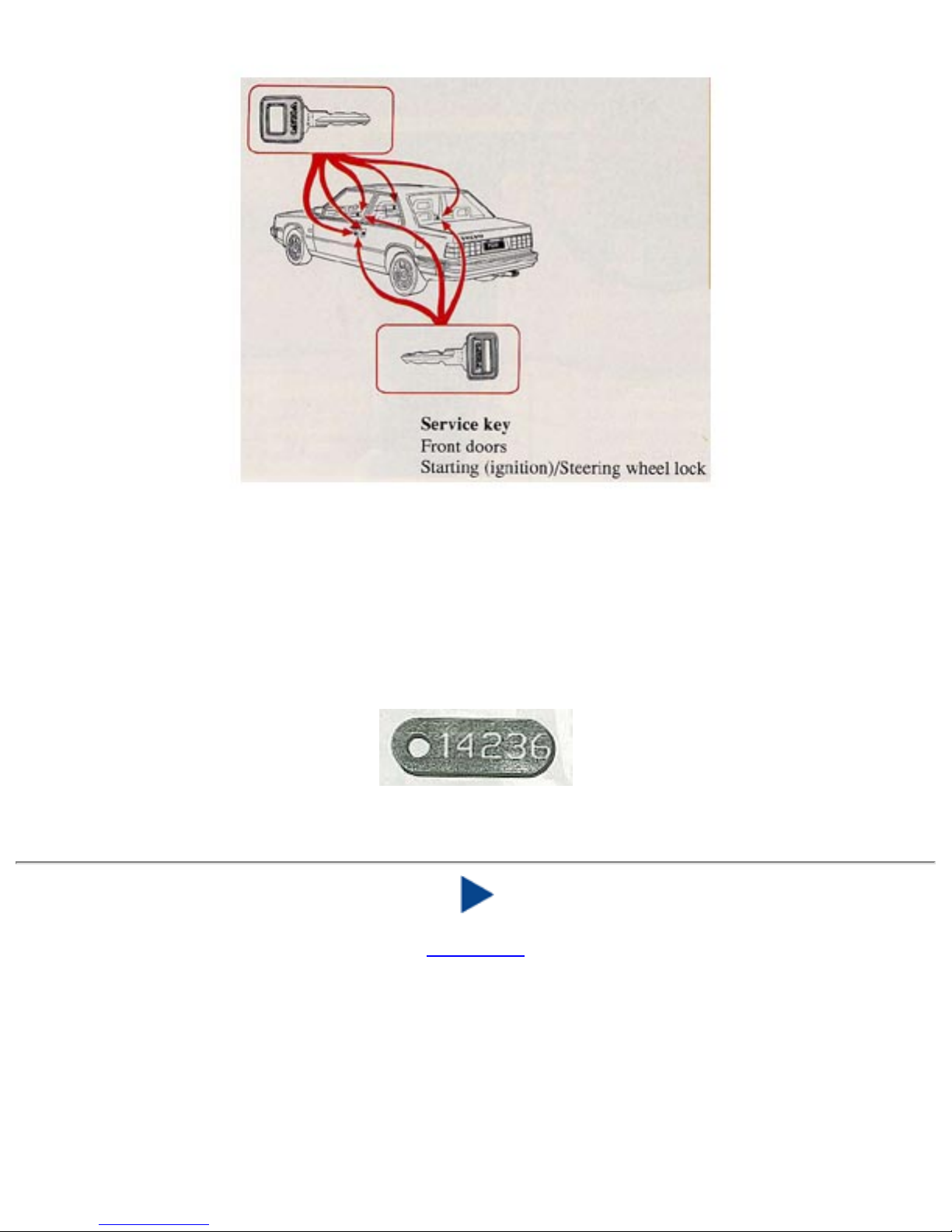

pg. 3 Keys
file:///K|/ownersdocs/1987/1987_780/87780_00.htm (2 of 3)12/30/2006 7:56:24 AM

1987 Volvo 780
The key number codes are stamped on a separate tag supplied with the keys. This tag should be
separated from the key ring and kept in a safe place.
The back of the tag is coated with adhesive tape.
In the event the original keys are lost, duplicates may be ordered from your Volvo dealer.
The central locking system is described in detail in section "Door and locks".
Top of Page
file:///K|/ownersdocs/1987/1987_780/87780_00.htm (3 of 3)12/30/2006 7:56:24 AM

1987 Volvo 780
1 9 8 7
VOLVO
780
Instruments and controls
pg. 4 Instruments, Switches and controls
The pages in this section provide a detailed description of the vehicle's instruments and controls.
Note that vehicles may be equipped differently, depending on special legal requirements, etc.

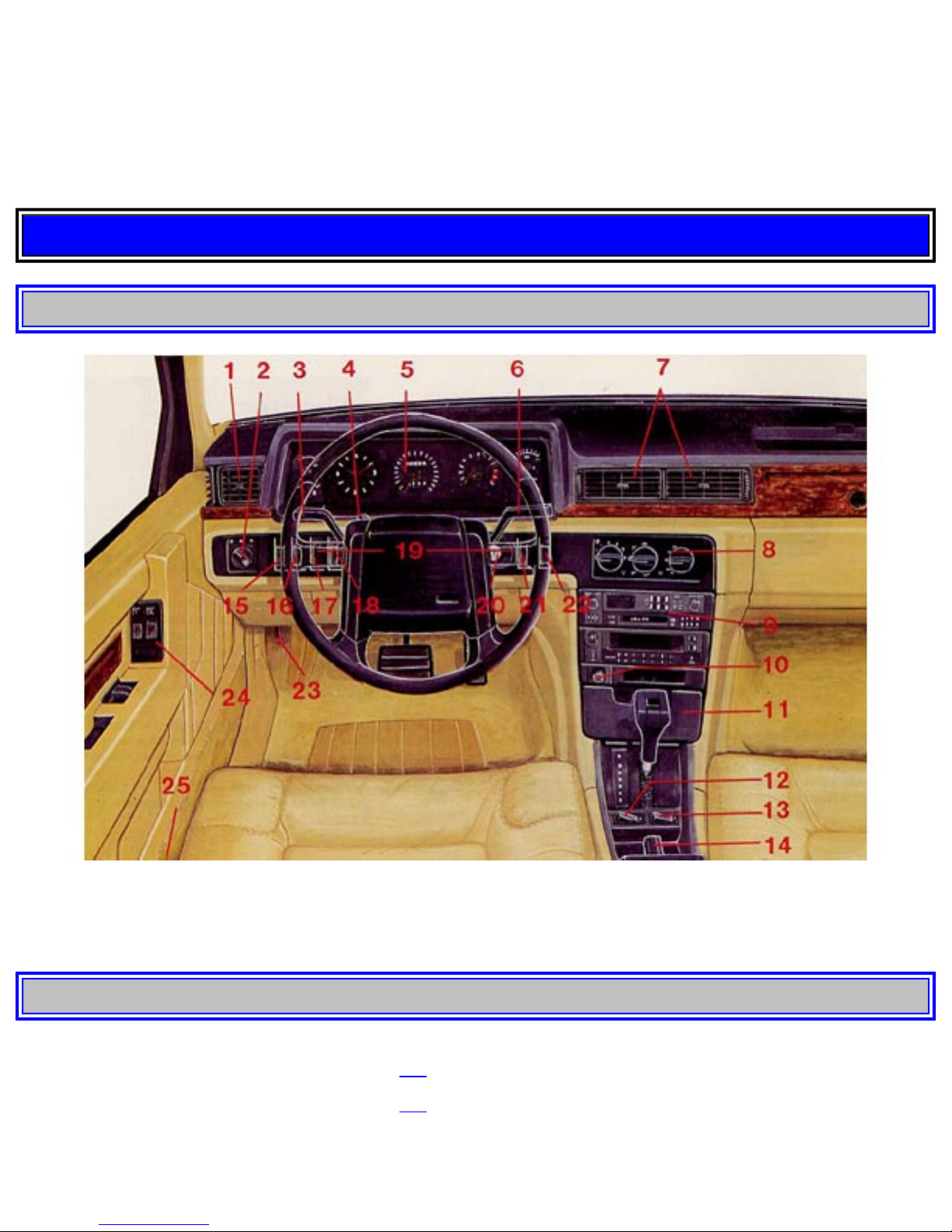

pg. 5 Instruments, Switches and controls
1 Air louver 19
2 Headlights, parking lights 13
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (1 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
3 Turn signals, Cruise Control 12,
14
4 Hazard warning flashers 12
5 Instruments 6
6 Wiper/washer 13
7 Air louvers 19
8 Heating and ventilation 19
9 Audio cassette/tuner 21
10 Cigarette lighter 16
11 Ash tray 16
12 Electrically-heated driver's seat 17
13 Electrically-heated passenger seat 17
14 Parking brake 16
15 Rear fog lamps 15
16 Fog lights 15
17 Space for additional equipment -
18 Fuel cap cover 37
19 Horn -
20 Starting switch/steering wheel lock 11
21 Electrically operated sun roof 25
22 Rear window/rear view mirror
demister 17
23 Hood release handle 35
24 Electrically operated windows 18
24 Electrically operated rear view mirrors 24
25 Electrically operated front seats 26
pg. 6 Instruments
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (2 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
NOTE: Canadian model speedometers/odometers indicate kilometers only.
1 Voltmeter
2 Fuel gauge
3 Clock reset knob
4 Quartz crystal clock
5 Speedometer
6 Trip odometer
7 Trip odometer reset knob
8 Odometer
9 Tachometer
10 Instrument panel lamps rheostat
11 Coolant temperature gauge
12 Oil temperature gauge
pg. 7 Instruments
Quartz crystal clock
To reset the hands, push in the reset knob and turn.
Tachometer
Reads thousands of engine rpm. Engine should not be operated in red range.
Trip odometer
Used for measuring shorter distances. (last figure represents 1/10 mile or km)
Trip odometer reset knob
Push in to reset
Coolant temperature gauge
The pointer should be approximately midway on the gauge face when driving. If the pointer approaches
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (3 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
the red range repeatedly, check coolant level and fan belt tension. See sections "Coolant" and "Drive
belts".
WARNING!
Allow engine to cool before adding
coolant.
If the pointer stays in the red range, do not drive the car. Call Road Assistance.
Fuel gauge
The fuel tank capacity is approx. 15.8 US gals (60 liters).
The red range represents approx. 2.4 US gals. (9 liters). See "Refueling" For further information
Instrument panel lamps rheostat
Clockwise = brighter.
Counterclockwise = dimmer.
Oil temperature gauge
This instrument shows the engine oil temperature which varies with the ambient temperature, rpm, load
and speed.
Normal oil temperature: 140-250°F.
The sender is installed in the oil sump drain plug hole.
Voltmeter
The voltmeter indicates the voltage in the electrical system and thereby also the state of the battery.
While the car is being driven the pointer should be within the black field. Should the pointer point to the
upper or lower red field when driving, this may indicate some fault in the electrical system.
pg. 8 Indicator and warning lights
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (4 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
1 Turn signal, left
2 Turn signal, right
3 (Not connected)
4 (Not connected)
5 ABS malfunction, see pg. 10
6 Service reminder light see pg. 10
7 SRS (Supplemental Restraint System), see pg. 30
8 Low engine oil pressure
9 Alternator not charging
10 (Not connected)
11 High beams
12 Brake failure
13 Parking brake applied
14 Bulb failure
15 Low washer fluid level.
If the lamp glows continuously when the engine is running, there is only about 1/2 - 1 US qts. remaining
in the washer fluid reservoir.
16 4th gear disengaged
17 Fasten seat belts
18 (Not connected)
pg. 9 Warning lights
The warning lights described on this page should never be on when driving
When the ignition key is turned on, and before the engine starts, all of the warning lights should be on to
test the function of the bulbs. Should a light not go off after the engine has started, the system indicated
should be inspected. however, the parking brake reminder light will not go off until the parking brake is
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (5 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
fully released.
Alternator warning light
If the light comes on while the engine is running, check the tension of the alternator drive belt as soon as
possible.
NOTE: This warning light is illuminated if the alternator is not charging. However, parking brake,
brake failure and bulb failure warning lights will be illuminated at the same time due to the design of the
system.
Brake failure warning light
If the light comes on while driving and the brake pedal can be depressed further than normal, it is an
indication that one of the brake circuits is not functioning.
Stop immediately, open hood and check brake fluid level, see section "Brake fluid, power steering".
Fluid level below MIN mark: do NOT drive. Tow car to shop for check/repair of brake system.
Oil pressure warning light
If the light comes on during driving, the oil pressure is too low. Stop the car and then stop the engine
immediately. Do not drive the car.
After hard driving, the light will come on occasionally when the engine is idling. This is normal,
provided it goes off when the engine speed is increased.
Parking brake reminder light
This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated
between the front seats.
Bulb failure warning light
The light will come on if any of the following bulbs are defective:
one of the low beam headlights
one of the tail lights
one of the brake lights when the brake pedal is depressed.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (6 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
Check the fuse and bulb.
See sections titled "Replacing bulbs" and "Fuses".
Should the warning light come on after a defective outside bulb has been replaced, the corresponding
bulb on the other side-of the car should also be replaced.
pg. 10 Warning lights, Car alarm
Anti-lock Brake System (ABS)
The Anti-lock Braking System (ABS) is designed to improve vehicle control (i.e. stopping and steering)
during severe braking conditions by limiting wheel lock-up. When the system "senses" impending wheel
lock-up, braking pressure is automatically modulated in order to help prevent lock-up, which could lead
to a skid.
While the system is modulating braking pressure, the driver may detect a pulsation of the brake pedal.
The on/off switching of ABS modulator may also be audible. This is normal.
Please be aware that ABS does not increase the absolute braking potential of the vehicle. Thus, while
control will be enhanced, ABS will not shorten stopping distances on slippery surfaces.
Service reminder light
This light will come on at 5000 mile (8000 km) intervals. It is a reminder to the driver to have the engine
oil changed. The light will stay on for two min. after start until reset by the servicing dealer.
Car alarm
Activation
The alarm is activated either manually or automatically via a mode selector on the electronic control
unit. In AUTO mode the alarm is activated 30 sec. after the ignition has been turned off and the last door/
lid shut. It is then deactivated by inserting the key in the ignition switch and turning it to the Drive II or
Starting III position. (In the automatic mode, the alarm has a 30 second delay prior to sounding.) In
MANUAL mode the alarm is activated when the code key is placed against the sensor in the window.
An indicator light flashes when the alarm is activated.
Alarm functions
The alarm is set off at once if any door, hood or lid is opened and also by vibration. The indicator light is
lit continuously and shows that the alarm has been set off.
Deactivation
The alarm is turned off by putting the code key against the sensor in the window. The indicator light is
then turned off.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (7 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
If the code key is lost, please call Volvo On Call for information.
pg. 11 Ignition switch
Starting (ignition) switch/steering wheel lock
The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly
to free the ignition key.
A chime will sound if the starting key is left in the ignition lock and the front door on the driver's side is
opened.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (8 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
pg. 12 Turn signals, Hazard warning flasher
Turn signals
1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by
moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral
position when released.
2 Signal lever engaged for normal turns.
NOTE: Defective turn signal bulb will cause turn signal indicator and remaining signal lights to flash
more rapidly than normal.
3 High beam/low beam switch (headlights on).
Move the lever towards the steering wheel past the headlight flasher position and release it.
3 Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will be on until the lever is
released.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (9 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
Hazard warning flasher
The four-way flasher should be used to indicate that the vehicle has become a traffic hazard.
NOTE: Regulations regarding the use of the hazard warning flasher may vary from state to state.

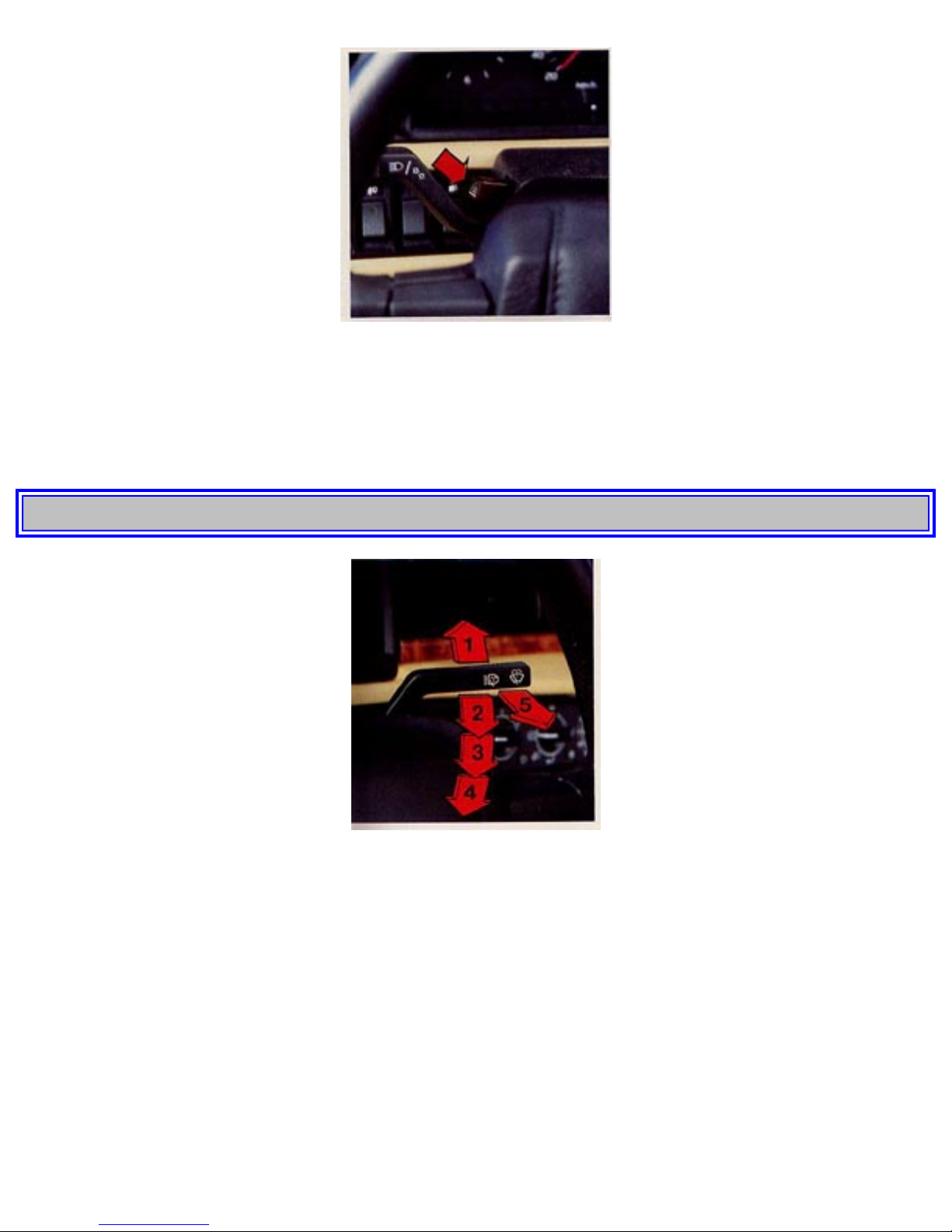

pg. 13 Windshield, wipers/washers, Lighting
Wiper/washer
1 Intermittent wiper.
With switch in this position, the wipers will sweep approximately every seventh second.
2 "Single sweep" position.
Switch returns automatically when released.
3 Wipers, low speed.
4 Wipers, high speed.
5 Windshield wiper/washer.
The wiper will make 2-3 complete sweeps after the lever is released.
Headlights and parking light
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (10 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
All lights off
Parking lights on
Headlights and parking lights are on if starting (ignition) switch is in position I or II.
If the headlight switch is in position all lights will go out when starting switch is switched off.
With the headlight switch in position the parking lights will stay on.
Switch from high to low beams, and vice versa, by moving the turn signal switch lever on the left side of
the steering column towards the steering wheel.

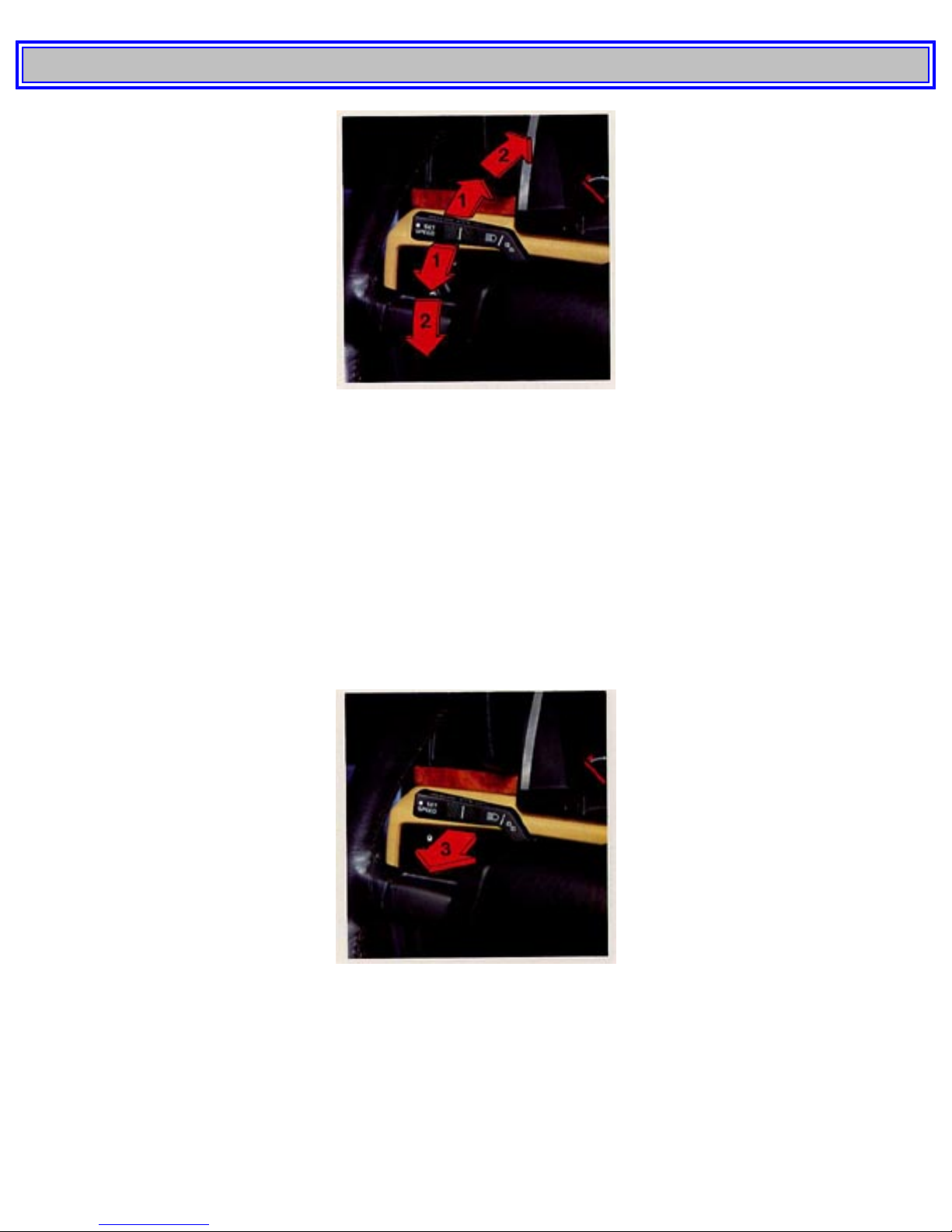

pg. 14 Cruise control
Cruise control
The cruise control switches are located on the turn signal switch lever.
To engage and set desired speed:
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (11 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
1. Set switch (B) to ON.
2. Accelerate to desired cruise speed.
NOTE: The cruise control cannot be engaged at speeds below 22 mph (35 km/h).
3. Depress SET SPEED switch (A).
Operating brake pedal
This will automatically disengage the cruise control. Previously selected cruise speed is retained in the
memory and by momentarily setting the switch to RESUME position that speed will be re-engaged.
NOTE:
The vehicle will accelerate very quickly should there be a substantial speed differential when the switch
is reset to RESUME. It is therefore recommended that the vehicle be accelerated manually and the
switch reset to RESUME once the speed differential has been reduced.
Acceleration
Momentary acceleration, such as for passing, does not interrupt cruise control operation. The previously
selected speed will be maintained without having to set switch to RESUME.
To disengage the cruise control system:
Set switch (B) to position OFF, or depress brake pedal, or depress clutch pedal.
Switching off the starting (ignition) switch is will automatically disengage the cruise control system.
WARNING!
The cruise control should not be used in heavy traffic or when driving on wet or slippery roads.
If the gear shift is moved to Neutral while the cruise control is engaged, then depress the brake pedal
momentarily, or set the cruise control switch (B) to OFF. This will disengage the cruise control and
prevent overreving the engine.
NOTE: When driving on a grade, actual vehicle speed may vary slightly from the set cruise control
speed.
pg. 15 Rear fog lamps, Front fog lamps
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (12 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
Rear fog lamps
The rear fog lights are considerably brighter than the normal tail lights and should be used only when
atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or nighttime visibility
of other vehicle to less than 500 ft. (152 meters). The headlights must be switched on.
Note that local regulations governing the use of these lights may vary.
Auxiliary front fog lamps
Auxiliary front fog lights can be switched on only with the low-beam headlights on.
pg. 16 Parking brake, Cigarette lighter, Ash trays
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (13 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
Parking brake (hand brake)
The lever is situated between the front seats. The brake is applied to the rear wheels. Always use the
parking brake (hand brake) when parking. On hills, also turn the front wheels toward the curb.
In order to obtain the best possible performance of the parking brake, the brake linings should be broken
in. See section titled "Brake system".
Cigarette lighter
To operate, depress the knob fully. When the knob automatically releases, the cigarette lighter is ready
for use.
The starting (ignition) switch must he switched on (to position I or II) for the cigarette lighter to
function.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (14 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
Ash trays
To remove the ash trays depress the center spring and remove.
pg. 17 Rear window demister, Heated front seats
Rear window demister
Heated side-view mirrors
Depress the switch to start heating of rear window and side mirrors. Both orange control lights in the
switch will light.
A timer switches off the side mirror heating after approx. 6 minutes and the rear window demister after
12 minutes or when the ignition key is switched off.
The control lights go out correspondingly.
Depressing the switch while any control light is on will disengage all heating.
Depressing the switch after the control lights Have gone out will restart the heating cycle.
CAUTION: Do not place items that may damage the printed circuit against the inner surface of the rear
window.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (15 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
Heated front seats
The heated front seats can be switched on or off as required. When switched on, the seats are heated
until the optimal temperature is reached, at which time the heating switches off automatically.
The passenger seat is only heated when occupied.
pg. 18 Electrically operated windows
Electrically-operated windows
The electrically operated windows are controlled by switches from the driver's armrest as shown in the
above illustration. The starting (ignition) switch must be ON (position II) for the electrically operated
windows to function. The window is lowered if the rear part of the switch is pressed and raised if the
front part of the switch is pressed.
WARNING!
Remove the ignition key when children are left unattended in the
vehicle.
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (16 of 18)12/30/2006 7:56:25 AM

1987 Volvo 780
pg. 19 Heating and ventilation
Heating and ventilation
Your Volvo is equipped with Automatic climate control.
Depending on which function you select, warm or cool/cold air is distributed to the different
compartment.
An additional driver's air louver is located beneath the steering column and can be adjusted upwards,
downwards, or closed as desired.
Air louvers (dash)
A Open
B Closed
C Directing air flow horizontally
D Directing air flow vertically
A certain amount of air will always enter through the dash air louvers as long as they are open,
regardless of the position of the air distribution control.
Close the dash air louvers to obtain maximum air flow to floor or windshield.
pg. 20 Heating and ventilation
file:///K|/ownersdocs/1987/1987_780/87780_01.htm (17 of 18)12/30/2006 7:56:25 AM
