OWNER’S MANUAL

CUSTOMER ASSISTANCE
ii
In our constant endeavour to provide assistance and complete
service backup, TATA MOTORS has established an all India cus-
tomer assistance centre.
In case you have a query regarding any aspect of your vehicle,
our Customer Assistance Centre will be glad to assist you on
our Toll Free no. 1800 209 7979
You can also approach nearest TATA MOTORS dealer. A sepa-
rate Dealer network address booklet is provided with the
Owner’s manual.
TATA MOTORS 24X7 Roadside Assistance Program offers tech-
nical help in the event of a breakdown. Call to the toll-free
Roadside Assistance.
For additional information, refer to "24X7 Roadside Assis-
tance" section in the Owner’s manual.

iii
Dear Customer,
Welcome to the TATA MOTORS family.
We congratulate you on the purchase of your new vehicle and are privileged to have you as our valued customer.
We urge you to read this Owner's Manual carefully and familiarize yourself with the equipment descriptions and operating instruc-
tions before driving.
Always carry out prescribed service / maintenance work as well as any required repairs at an authorized TATA MOTORS Dealers
or Authorized Service Centre’s (TASCs). Use only genuine parts for continued reliability, safety and performance of your vehicle.
You are welcome to contact our dealer or Customer Assistance toll free no. (1800 209 7979) in case of any query or support
required.
We wish you a safe and pleasant driving experience.
Bombay House, 24, Homi Modi Street,
Hutatma Chowk, Fort, Mumbai –400001

IMPORTANT INFORMATION
iv
Before driving, read this Owner’s manual carefully and familiarize yourself with your vehicle. For your own safety and a longer
vehicle life, follow the instructions, ‘Warnings’ and ‘Notes’ in this manual. Ignoring them could result in damage to the vehicle
or personal injury to you or others.
The Owner’s manual and other booklets are important documents and should always be kept in the vehicle. If you sell the
vehicle, always pass on the documents to the new owner.
This Owner's Manual describes all variants of the model and all standard/optional equipment of your vehicle available at
the time of printing. Please note that your vehicle may not be equipped with all features described.
TATA MOTORS Limited reserves the right to introduce changes in the design, equipment and technical features without any
obligation to install them on the vehicles previously sold. The equipment in your vehicle may therefore differ from that shown
in the descriptions and illustrations.
Do not carry out any modification including fitment of non-genuine accessories on your vehicle. Safety, handling, performance
and durability, may otherwise be adversely affected and may violate government regulations. TATA MOTORS Limited accepts
no liability for damage resulting from the modifications or use of non-genuine accessories.
All rights reserved. The information in this manual shall not be copied, translated or otherwise reproduced, in whole or in
part, without written permission from TATA MOTORS.
© Copyright 2019 TATA MOTORS

CONTENTS
v
1
Safety
Important Information 01
Safe Driving 01
Seat Belts 04
Child Restraint System (CRS) 07
Supplementary Restraint
System 11
Air Bags 17
Child Lock 18
Anti-theft Device: Immobilizer 19
ABS 20
EBD 20
2
Opening & Closing
E-Key 21
Flip Key 21
Doors 24
Windows 24
Bonnet 26
Tailgate and Fuel lid 27
3
Dashboard & Features
Cockpit 29
Instrument Cluster 31
Driver Information Display 35
Driver Information Settings 40
Digital Clock Settings 42
Warning Lamps 44
Audio Reminders 49
Combi Switches 50
Fascia Switches 52
Steering Wheel Switches 53
Mic 53

CONTENTS
vi
3
Dashboard & Features
Infotainment System 54
USB/AUX 54
Power Socket 55
Antenna 55
Roof Lamp 55
Roof Grab Handles 56
Tag Holder 56
4
Stowage Areas
Storage Compartments 57
Glove Box 58
Driver side pocket 58
Utility pockets on doors 58
Center Console 58
Tailgate Compartment 59
Card Holder 60
Hooks 61
5
Climate Control
Air Vents & Distribution 63
HVAC Controls 64
Functions & Settings 67

CONTENTS
vii
6
Starting & Driving
Pre-Driving Checks 77
Driving Tips 78
Seat Adjustments 81
Rear View Mirrors 82
Steering Wheel Adjustments 84
Starting the Engine 85
Gear Shifting & Driving 86
AMT Gearbox 89
Transsdion..............................76
Driving Modes 90
Parking Brake 96
Reverse Park Assist 97
7
Emergency & Break-
down Assistance
Emergency Equipment 101
Hazard Warning / Advance
Warning Triangle 101
Tool Kit 102
In Case of Flat Tyre 103
Jump Lead Starting 108
Towing 110
Fuses 112
Bulb Replacement 119
24x7 Road Side Assistance 124
Vehicle Tracking System (VTS) 127
8
Maintenance
Maintenance & Service 131
Engine Compartment 132
Engine Oil Level 135
Battery 138
Spark Plug 139
Tyres 139
Key Battery Replacement 142
On Board Diagnostic (OBD) 143
Service Instructions 144
Service Schedule 145
Parking for Long Durations 151

CONTENTS
viii
9
Technical Information
Fuel Specification 153
Lubricant Specification 155
Technical Specification 157
Vehicle Dimensions 160
Aggregate Identification Nos 161
10
Car Care and Value
Added Services
Car Care 163
Washing 163
Waxing 164
Polishing 164
Interior Fabric Cleaning 164
Paint Care 165
Extended Warranty 166
Value Added Services 168
Vehicle Exterior Enrichment 170
Vehicle Interior Enrichment 171
11
Warranty –Terms and
Conditions
Warranty 173
12
Environment Safety
Environment Safety 175

SAFETY
1
Important Information
In this Owner's Manual, you will find the
text under the heading “WARNING” and
“NOTE” which highlights important infor-
mation. Pay particular attention to these
highlighted messages.
WARNING
Indicates procedures or infor-
mation that must be followed pre-
cisely in order to avoid the possibil-
ity of severe personal injury and se-
rious damage to the vehicle.
Safe Driving
Safety consciousness not only ensures
your safety and the safety of other road
users, but it also helps to reduce the
wear and tear on your vehicle.
Safe driving depends on:
How quickly you make decisions to
avoid an accident.
Your ability to concentrate.
How well you can see and judge ob-
jects.
How well familiar you are with your
vehicle controls and its capabilities.
NOTE
Fatigue is a result of physical or
mental exertion that impairs judg-
ment. Driver fatigue may be due to
inadequate sleep, extended work
hours, strenuous work or non-work
activities or combination of other
factors. Take rest at regular inter-
vals.
Safety Tips
Always take into account the road
conditions, weather conditions, vehi-
cle speed in order to prevent acci-
dents.
Turn ‘ON’ the side indicators at least
30 meters before taking a turn or
changing the lane.
Decelerate to a safe speed before
taking turn. Do not apply brakes dur-
ing cornering.
When overtaking other vehicles,
watch out for the oncoming vehicle.
Never drive under the influence of al-
cohol or drugs.
If your vehicle is equipped with info-
tainment/navigation system, set and
make changes to your travel route
only when the vehicle is parked.
Program radio presets with the vehi-
cle parked, and use your pro-
grammed presets to make radio use
quicker and simpler.
NOTE
Indicates additional information
that will assist you in gaining the
optimum benefit and care for your
vehicle.

SAFETY
2
Driving through water
Do not drive through flooded areas.
Judge the depth of water before driving
through it. Otherwise, water may enter
the vehicle interior or the engine com-
partment.
If at all the situation demands that you
have to drive through water then;
Keep engine in higher RPM and crawl
the vehicle in low gear.
Flowing or rushing water creates
strong forces. Driving through flow-
ing water could cause the vehicle to
be carried away. Be very cautious
about trying to drive through flowing
water.
Lightly apply the brake pedal to dry
the liners until the brakes work nor-
mally once you are out of water.
WARNING
Do not attempt to start the engine
if vehicle gets flooded due to wa-
ter. Tow the vehicle to a safe place.
Contact a nearest TATA MOTORS
Authorised Service Centre.
Driving on a rainy day
Check wiper blades, lights and
brakes for proper functioning and
condition.
Check the tyre treads depth, the con-
dition of the tread and tyre.
Avoid harsh braking and sharp turns.
It may cause loss of control and lead
to a skid.
For slowing down, shift to lower gears
and brake gently.
Keep lights ‘ON’ if visibility is poor.
Driving through wet roads
On wet road or during light showers, “Aq-
uaplaning” can occur. “Aquaplaning” is
the loss of direct contact between the
road surface and the vehicle’s tires due
to a water film forming between them.
Steering or braking the vehicle can be
very difficult, and loss of control can oc-
cur.
There is no hard and fast rule about aq-
uaplaning. The best advice is to slow
down when the road is wet.
NOTE
If you have driven for a long time
in heavy rain without braking,
there may be a delayed reaction
from the brakes when braking for
the first time. You have to depress
the brake pedal more firmly. Main-
tain a greater distance from the
vehicle in front.

SAFETY
3
Night driving
Ensure that all lights are working and
windshield, window glasses are
clean.
Drive more slowly at night than in the
daytime, as the visual range is re-
stricted at night. Maintain a speed
such that you can stop within illumi-
nated distance of head lamps.
Do not use the high beam unless in-
evitable. It may dazzle the driver of
the oncoming vehicle, thus causing
an accident.
Use head lamp main/dip beam to
alert other road users on turns/
cross roads etc.
Use side indicators for lane change
or turning.
Driving on gradients
When climbing gradient, the vehicle may
begin to slow down and show a lack of
power. If this happens, shift to a lower
gear and apply power smoothly so that
there is no loss of traction.
When driving down a hill, the engine
braking should be used by shifting into a
lower gear. Do not drive in neutral gear
or switch off the engine.
WARNING
On long and steep gradients, you
must reduce the load on the
brakes by shifting early to a lower
gear. This allows you to take ad-
vantage of the engine braking ef-
fect and helps avoid overheating of
service brakes resulting in reduced
braking efficiency.
Driving on highway
Stopping distance progressively in-
creases with vehicle speed. Maintain a
sufficient distance between your vehicle
and the vehicle ahead.
For long distance driving, perform safety
checks before starting a trip and take
rest at certain intervals to prevent fa-
tigue.

SAFETY
4

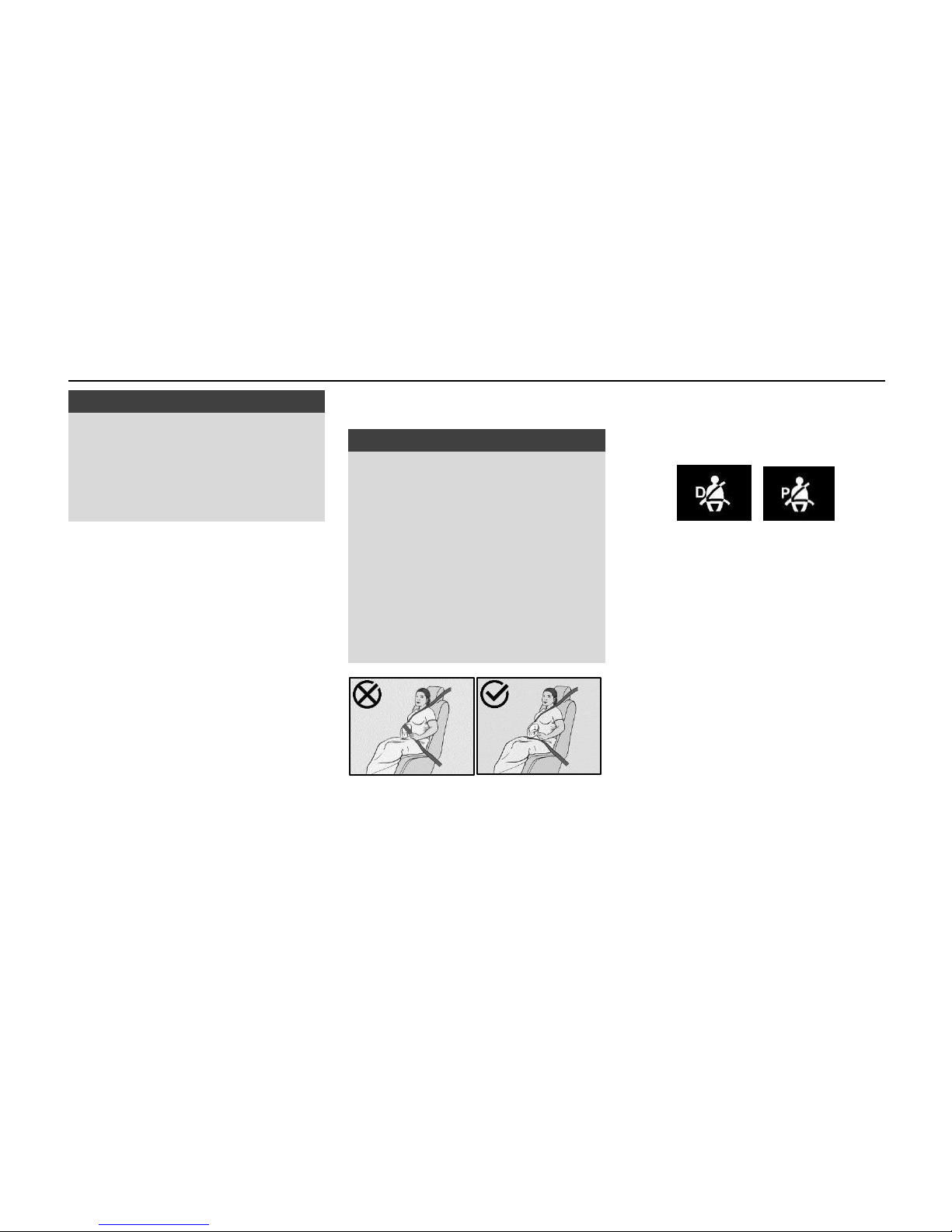

Seat Belts
This section of user manual describes
your vehicle seat belt, airbag and Child
restraints system. Please read and fol-
low all these instructions carefully to
minimise risk of severe injury or death.
Seat belts are the primary re-
straints system in the vehicle. All
occupants, including the driver,
should always wear their seat belts
to minimize the risk of injury.
Sit back and adjust the front seat.
Make sure that your seat is ad-
justed to a good driving position
and the back of the seat is upright.
Buckling the Shoulder Seatbelt
Grasp the tongue and slowly pull out
the seat belt over the shoulder and
across the chest. When the seat belt
is long enough to fit, insert the
tongue into the lock buckle until you
hear a “CLICK” which indicates that
the seat belt is securely locked.
Position the lap portion of seat belt
across your thighs, below your abdo-
men. To remove slack, pull up a bit
on the shoulder seat belt. To loosen
the lap portion seat belt if it is too
tight, tilt the tongue and pull on the
lap seat belt. A snug seat belt re-
duces the risk of sliding under the
seat belt in a collision. Ensure that
the seat belt running over the body
(shoulder segment and lap segment)
does not have any twist. Twisted seat
belt may not offer effective protec-
tion when required.
Releasing the seat belt
To release the seat belt, push the red
button on the lock buckle. The seat belt
will automatically retract to its stowed
position. If necessary, slide the tongue
down the webbing to allow the seat belt
to retract fully.
Fixed rear centre lap seat belt
When buckling, make sure you hear
a click confirming that the tab is
latched into the seat belt lock. To
tighten it, pull the loose end through
the buckle until the seat belt is com-
fortably adjusted around the hips.

SAFETY
5
Seat belt height adjustments
If the height adjustment is provided in
the seat belt, occupant can adjust it to
their comfort, as may be applicable.
WARNING
Each seat belt assembly must only
be used by one occupant. It is not
recommended to put a seat belt
around a child, being carried on
an occupant's lap.
Be careful not to damage or
tamper the seat belt webbing or
hardware. Inspect the seat belt
system periodically, checking for
cuts, frays, or loose parts. A frayed
or torn seat belt could rip apart in
a collision and leave you with no
protection.
If the seat belt webbing or
hardware is damaged, get it
replaced immediately at TATA
Motors Authorized service centre.
Do not insert any items such as
coins, clips, etc. into the seat belt
buckles, and be careful not to spill
liquids into these parts. If foreign
materials get into a seat belt
buckle, the seat belt will not work
properly.
Do not wear seat belts over hard,
sharp or fragile items in clothing,
such as pens, keys, spectacles
etc.
Do not use any accessories on
seat belts or modify in any way the
seat belt system. Devices claiming
to improve occupant comfort or
reposition the seat belt can
reduce the protection provided by
the seat belt and increase the
chance of serious injury in a
collision.
Seat Belts with Pre –tensioner (if
Equipped)
You can use the pre-tensioner seat belts
in the same manner as ordinary seat
belts .
The seat belt pre-tensioner system
works in conjunction with the
SUPPLEMENTARY RESTRAINTS SYSTEM
(SRS-Air Bags).
In the event of a collision, as may be
necessary, pre-tensioner tightens the
seat belt so that it fits the occupant’s
body more snugly. When pre-tensioner
activates, there could be some noise
and release of smoke. This is normal
and there are no health hazards or fire
risk.

SAFETY
6
WARNING
The pre-tensioner seat belt
assembly mechanisms become
hot during activation. Do not touch
the pre-tensioner seat belt
assemblies for several minutes
after they have been activated.
If the vehicle has been involved in a
collision, get it inspected immediately at
authorised TATA MOTORS SERVICE
Center.
Seat Belt with Load Limiter (if
Equipped)
You can use the load limiter seat belts in
the same manner as ordinary seat belts.
The seat belt load limiter system works
in conjunction with the SUPPLEMEN-
TARY RESTRAINTS SYSTEM (SRS-Air
Bags).
In the event of a collision, as may be nec-
essary, load limiter reduces the load on
the rib cage region of the occupant.
If the vehicle has been involved in a col-
lision, get it inspected immediately at Au-
thorised TATA MOTORS SERVICE Center.
Use of seat belts for pregnant
woman
WARNING
Pregnant woman must wear a
correctly positioned seat belt. It is
safer for mother as well as unborn
child.
Pregnant woman should wear the
lap part of the seat belt across the
thighs and as snug across the hips
as possible. Keep the seat belt low
so that it does not come across
the abdomen. That way the strong
bones of the hips will take the
force if there is a collision.
Seat belt Warning Lamp (If
equipped)
The seat belt warning lamp reminds to
fasten the seat belt.
For Driver For Front
Passenger
If the driver does not fasten seat belt,
seat belt reminder lamp will blink
and a buzzer will sound for pre-
defined duration until the driver’s
seat belt is buckled.
If front passenger seat is occupied by
adult and does not fasten seat belt,
seat belt reminder lamp will blink
and a buzzer will sound for pre-
defined duration until the front
passenger seat belt is buckled.
If this system is also provided for
other than Front row seats, apllicable
above warning will appear until seat
belts are buckled.
If front passenger seat is occupied by
child, system may detect occupancy

SAFETY
7
and warn with front passenger seat
belt warning. It is not taken to mean
child can occupy front passenger
seat and use seat belt. Please refer
CRS section for recommended
seating position.
NOTE
Using unauthorized aftermarket
seat cover may affect function of
occupant sensor. TATA motors
does not recommended any non-
validated seat covers on seats.
Child Restraint System (CRS)
TATA MOTORS strongly recommends the
use of Child Restraint Systems (CRS) for
all children up to age of 12 years and to
be placed at recommended positions
only. Children travelling without recom-
mended CRS and seated at other posi-
tions may face serious injuries in case of
a collision.
CRS can be installed in the vehicle using
seat belts and/or ISOFIX only (if
equipped) or ISOFIX with Top Tether (if
equipped).
The harness system of CRS holds the
child in place, and in a collision, acts to
keep the child positioned in the seat and
reduce the risk if injuries.
All children below age of one year must
always ride in a rear-facing infant CRS.
Keep children in a forward-facing CRS
with a harness until they reach the size
or weight limit allowed by your CRS man-
ufacturer.
Once your child outgrows the forward-
facing CRS, your child is ready for a
booster seat.
Selection and installation of CRS:
Always select the CRS that complies with
latest safety standards (AIS072 / ECE
R44). The CRS are classified according
to the child's size, height and weight.
Select the appropriate CRS for your
child. Ensure that the child fits properly
in the CRS and it is securely installed in
the vehicle. For installation, please refer
CRS manufacturer’s instruction manual.

SAFETY
8
Recommended CRS position as
per the vehicle matrix
The suitability of seat position for car-
riage of children and recommended
category of CRS is shown in the table
below as per the child group.
X - Seat Position not suitable for
children in this age group.
U - Suitable for “universal” category
restraints approved for use in this age
group.
Universal is a category in the AIS072 /
ECE R44 norm.
WARNING
If a child is seated in the front
seat it may cause serious injury
or even death during any
collision.
Group
Mass
Group
Age Group
Front
Passen-
ger
Rear
Out-
board
LH
Rear
Out-
board
RH
Rear
Center
0
Up to10 kg
Up to9 months
X
U
U
X
0+
Up to13 kg
Upto24months
X
U
U
X
I
9 to18 kg
9 months to 48months
X
U
U
X
II
15to25kg
Approx. 3 to 7 years
X
U
U
X
III
22to36kg
Approx. 6 to 12 years
X
U
U
X

SAFETY
9
WARNING
If your vehicle is equipped with a
front passenger air bag (PAB) and
do not have PAB deactivation
switch, do not install a rear-facing
CRS in the front passenger seat. If
the PAB inflates, a child in a rear
facing CRS could be seriously
injured or killed.
If you install a CRS in the rear seat, slide
the front seat far enough forward so that
the child’s feet do not touch the front
seatback. This will help avoid injury to
the child in the event of a collision.
WARNING
Do not use an infant carrier or a child
safety seat that "hooks“ over a
seatback, it will not provide adequate
protection in a collision.
After a collision, we recommend to get
seat belts, seats, ISOFIX and top-tether
anchorages (as may be applicable)
investigated at TATA MOTORS
Authorised service centre.
NOTE
A CRS in a closed vehicle can become
very hot. To prevent burns, check the
seating surface and buckles before
placing your child in CRS.
WARNING
Do not leave unattended children
in your vehicle.
Do not modify CRS in any way.
NOTE
Do not install a booster seat or a
booster cushion with only the lap
strap of the seat belt.
Do not install a booster seat or a
booster cushion with a seat belt
that is slack or twisted.
Do not put the safety seat belt
under your child’s arm or behind
its back.
Do not use pillows, books or
towels to boost your child’s height.
Make sure that your children sit
in an upright position.
Do not allow children to stand up
or kneel on either the rear or the
front seats. An unrestrained child
could suffer serious or fatal
injuries during a collision.
Do not leave any toys or other
objects loose in the CRS or on the
seat while the vehicle is in motion.
NOTE
Children could be endangered in a
collision if their CRS are not properly
secured in the vehicle. Be sure to
secure the child in the restraint
system according to the
manufacturer’s instructions.

SAFETY
10
Each CRS should be used for one child
only.
When PAB deactivation switch (if
provided) is turned ‘OFF’, make sure
‘PAB’ operational status lamp
illuminates with ignition ‘ON’, indicating
that the passenger airbag is NOT
operational. If the airbag SRS warning
indicator in the instrument cluster
illuminates continuously, it means that
there is malfunction in the system.
Remove the CRS from front passenger
seat and contact your TATA MOTORS
authorised service center.

SAFETY
11
Supplementary Restraint System
(SRS) (air bags) (if equipped)
The airbag ‘SRS’ system comprises of
the following components depending
upon the provided safety features in
vehicle.
Seat belt Pre-tensioners
Seat belt with load limiters
Driver Airbag
Front Passenger Airbag
Knee Air Bag
Side Airbags
Curtain Air Bag
Airbag ‘SRS’ ECU (Electronic
Control Unit)
Collision Sensors
SRS wiring harness
SRS Warning lamp
Front Passenger airbag (PAB)
Deactivation switch
The System is active when ignition
switch is in the “ON” position or the
ignition mode is “ON”. Air bags are
designed to inflate in collisions when
required. In the event of a collision, the
collision sensors will detect signals, and
if the Airbag ECU judges that the signals
represent a severe collision, will trigger
the airbags. The inflated air bags provide
a cushion to the occupants. The air bag
inflates and deflates so quickly that you
may not even realize that it has
activated. The air bag will neither hinder
your view nor make it harder to exit the
vehicle.
Airbag inflation is virtually instantaneous
and occurs with considerable force,
accompanied by loud noise and smoke,
which is normal. The inflated airbag,
together with seat belts, limit the
movement of an occupant, thereby
reducing the risk of injury.
When an airbag inflates, you may see
some smoke-like particles. The particles
are a normal by-product of the process
that generates the non-toxic gas used for
airbag inflation. These airborne particles
may irritate the skin, eyes, nose, or
throat. If you have skin or eye irritation,
rinse the area with water. For nose or
throat irritation, move to fresh air. Also
sometimes the smoke can cause
breathing problems , in such cases get
fresh air promptly.
After inflation, airbag provides a gradual
cushioning effect for the occupant
thereafter deflates. It is not advisable to
drive your vehicle after the airbags have
been deployed. If you are involved in
another collision, the airbags will not be
in place to protect you.

SAFETY
12
The driver airbag is mounted in the
centre of the steering wheel. The front
passenger airbag is located inside the
dashboard in front of the passenger
seat. The vehicle fitted with the airbags
have suitable indications on steering
wheel and on dash board. The word
‘SRS’ is embossed on the airbag covers.
Side airbags are mounted in front row
seats for outboard occupants only.
Curtain airbags are mounted above the
doors along the roof on both sides.
Knee airbags are mounted in the
dashboard around the knee region of
the front row occupants.
Passenger airbag (PAB)
deactivation switch and PAB
operational status indicator (If
equipped)
If it becomes necessary to fit a CRS on
the front passenger seat, the passenger
airbag must be de-activated. This switch
can be accessed once front passenger
side door is opened. On the contrary,
when an adult is seated in the front
passenger seat, ensure that PAB
deactivation switch is turned to ‘ON’
position. This will ensure that the
passenger airbag is operational in the
event of a collision. This switch is
operated using the ignition / remote key.
NOTE
Open your windows and doors as
soon as possible after collision to
reduce prolonged exposure to the
smoke and powder released by
the inflating air bag.
Do not touch the air bag storage
area’s internal components
immediately after an air bag has
inflated. The parts that come into
contact with an inflating air bag
may be very hot.
Always wash exposed skin areas
thoroughly with lukewarm water
and mild soap.
