CAR IDENTIFICATION RECORD
OWNER’S NAME: ____________________________________________________
ADDRESS: __________________________________________________________
SELLING DEALER CODE: _______________________________________________
DATE OF DELIVERY: ___________________________________________________
DATE OF REGISTRATION: _______________________________________________
REGISTRATION NO.: ___________________________________________________
CHASSIS NO.: ________________________________________________________
ENGINE NO.: _________________________________________________________
TRANSAXLE NO.: ______________________________________________________
BATTERY MAKE: ______________________________________________________
BATTERY SR. NO._____________________________________________________
BATTERY CODE: ______________________________________________________
KEY NO.: ____________________________________________________________
THE WARRANTY ON THIS VEHICLE IS VALID ONLY IF THE DETAILS ARE
FILLED, SIGNED AND STAMPED BY THE SELLING DEALER
DEALER’S SIGNATURE AND STAMP
Following items are provided
with your vehicle:
1. Owner’s Manual
2. Battery Warranty Card
(if applicable)
3. First Aid Kit
4. Advance Warning Triangle
5. Jack
6. Spare Fuses (Provided in fuse
box)
7. Tool Kit
8. Infotainment Manual
(if applicable)
9. Service network book
REV 00, FEB-2017

OWNER’S MANUAL

CUSTOMER ASSISTANCE
2
In our constant endeavor to provide assistance and complete
service backup, TATA MOTORS has established an all India cus-
tomer assistance centre.
In case you have a query regarding any aspect of your vehicle,
our Customer Assistance Centre will be glad to assist you on
our Toll Free no. 1800 209 7979
You can also approach nearest TATA MOTORS dealer. A sepa-
rate Dealer network address booklet is provided with the
Owner’s manual.
TATA MOTORS 24X7 Roadside Assistance Program offers tech-
nical help in the event of a breakdown. Call to the toll-free
Roadside Assistance.
For additional information, refer to "24X7 Roadside Assis-
tance" section in the Owner’s manual.

3
Dear Customer,
Welcome to the TATA MOTORS family.
We congratulate you on the purchase of your new vehicle and are privileged to have you as our valued customer.
We urge you to read this Owner's Manual carefully and familiarize yourself with the equipment descriptions and operating instruc-
tions before driving.
Always carry out prescribed service / maintenance work as well as any required repairs at an authorized TATA MOTORS Dealers
or Authorized Service Centre’s (TASCs). Use only genuine parts for continued reliability, safety and performance of your vehicle.
You are welcome to contact our dealer or Customer Assistance toll free no. (1800 209 7979) in case of any query or support
required.
We wish you a safe and pleasant driving experience.
Bombay House, 24, Homi Modi Street,
Hutatma Chowk, Fort, Mumbai – 400001

IMPORTANT INFORMATION
4
 Before driving, read this Owner’s manual carefully and familiarize yourself with your vehicle. For your own safety and a longer
vehicle life, follow the instructions, ‘Warnings’ and ‘Notes’ in this manual. Ignoring them could result in damage to the vehicle
or personal injury to you or others.
 The Owner’s manual and other booklets are important documents and should always be kept in the vehicle. If you sell the
vehicle, always pass on the documents to the new owner.
 This Owner's Manual describes all variants of the model and all standard/optional equipment of your vehicle available at
the time of printing. Please note that your vehicle may not be equipped with all features described.
 TATA MOTORS Limited reserves the right to introduce changes in the design, equipment and technical features without any
obligation to install them on the vehicles previously sold. The equipment in your vehicle may therefore differ from that shown
in the descriptions and illustrations.
 Do not carry out any modification including fitment of non-genuine accessories on your vehicle. Safety, handling, performance
and durability, may otherwise be adversely affected and may violate government regulations. TATA MOTORS Limited accepts
no liability for damage resulting from the modifications or use of non-genuine accessories.
 All rights reserved. The information in this manual shall not be copied, translated or otherwise reproduced, in whole or in
part, without written permission from TATA MOTORS.
© Copyright 2017 TATA MOTORS

CONTENTS
5
1
Safety
Important Information 9
Safe Driving 9
Seat Belts 12
Child Restraint System (CRS) 15
Anti-theft Device: Immobilizer 17
Child Lock 18
Air Bags 19
ABS 20
EBD 20
2
Opening & Closing
Flip Key 21
Doors 23
Windows 24
Bonnet 26
Trunk lid 27
Fuel lid 28
3
Dashboard & Features
Cockpit 29
Instrument Cluster 30
Driver Information Display 34
Driver Information Settings 38
Warning Lamps 41
Audio Reminders 46
Combi Switches 47
Fascia Switches 48
Steering Wheel Switches 49
Mic 50
Infotainment System 50

CONTENTS
6
3
Dashboard & Features
USB/AUX 50
Power Socket 51
Antenna 51
Roof Lamp 51
Roof Grab Handles 52
Boot Lamp 52
Tag Holder 52
4
Stowage Areas
Storage Compartments 53
Glove Box 54
Utility pockets on doors 54
Pocket on Dashboard 54
Center Console 55
Trunk lid Compartment 55
Card Holder 56
Hooks 56
5
Climate Control
Air Vents & Distribution 57
HVAC Controls 58
Functions & Settings 60
Fully Automatic temperature
Control 62
HVAC sensors 68

CONTENTS
7
6
Starting & Driving
Pre-Driving Checks 69
Driving Tips 70
Seat Adjustments 73
Rear View Mirrors 74
Steering Wheel Adjustments 76
Starting the Engine 77
Gear Shifting & Driving 78
Braking 79
Parking brakes 81
7
Emergency & Break-
down Assistance
Emergency Equipment 85
Hazard Warning Switch 86
In Case of Flat Tyre 87
Jump Lead Starting 92
Towing 93
Fuses 95
Bulb Specification 101
Bulb Replacement 102
24x7 Road Side Assistance 107
8
Maintenance
Maintenance & Service 110
Engine Compartment 111
Engine Oil/Coolant Level 113
Battery 115
Spark Plug 116
Tyres 117
Key Battery Replacement 120
On Board Diagnostic (OBD) 121
Service Instructions 122
Service Schedule 123
Parking for Long Durations 129
Reverse Park Assist 82

CONTENTS
8
9
Technical Information
Fuel Specification 130
Lubricant Specification 132
Technical Specification 133
Vehicle Dimensions 137
Aggregate Identification Nos 138
10
Car Care and Value
Added Services
Car Care 139
Washing 139
Waxing 140
Polishing 140
Interior Fabric Cleaning 140
Paint Care 141
Extended Warranty 142
Value Added Services 144
11
Warranty – Terms and
Conditions
12
Environment Safety

SAFETY
9
Important Information
In this Owner's Manual, you will find the
text under the heading “WARNING” and
“NOTE” which highlights important infor-
mation. Pay particular attention to these
highlighted messages.
WARNING
Indicates procedures or information
that must be followed precisely in or-
der to avoid the possibility of severe
personal injury and serious damage
to the vehicle.
Safe Driving
Safety consciousness not only ensures
your safety and the safety of other road
users, but it also helps to reduce the
wear and tear on your vehicle.
Safe driving depends on:
 How quickly you make decisions to
avoid an accident.
 Your ability to concentrate.
 How well you can see and judge ob-
jects.
 How well familiar you are with your
vehicle controls and its capabilities.
NOTE
Fatigue is a result of physical or men-
tal exertion that impairs judgment.
Driver fatigue may be due to inade-
quate sleep, extended work hours,
strenuous work or non-work activities
or combination of other factors. Take
rest at regular intervals.
Safety Tips
 Always take into account the road
conditions, weather conditions, vehi-
cle speed in order to prevent acci-
dents.
 Turn ‘ON’ the side indicators at least
30 meters before taking a turn or
changing the lane.
 Decelerate to a safe speed before
taking turn. Do not apply brakes dur-
ing cornering.
 When overtaking other vehicles,
watch out for the oncoming vehicle.
 Never drive under the influence of al-
cohol or drugs.
 If your vehicle is equipped with info-
tainment/navigation system, set and
make changes to your travel route
only when the vehicle is parked.
 Program radio presets with the vehi-
cle parked, and use your pro-
grammed presets to make radio use
quicker and simpler.
NOTE
Indicates additional information that
will assist you in gaining the optimum
benefit and care for your vehicle.
!

SAFETY
10
Driving through water
Do not drive through flooded areas.
Judge the depth of water before driving
through it. Otherwise, water may enter
the vehicle interior or the engine com-
partment.
If at all the situation demands that you
have to drive through water then;
 Keep engine in higher RPM and crawl
the vehicle in low gear.
 Flowing or rushing water creates
strong forces. Driving through flow-
ing water could cause the vehicle to
about trying to drive through flowing
water.
 Lightly apply the brake pedal to dry
the liners until the brakes work nor-
mally once you are out of water.
WARNING
Do not attempt to start the engine if
vehicle gets flooded due to water.
Tow the vehicle to a safe place. Con-
tact a nearest TATA MOTORS Author-
ised Service Centre
Driving on a rainy day
 Check wiper blades, lights and
brakes for proper functioning and
condition.
 Check the tyre treads depth, the con-
dition of the tread and tyre.
 Avoid harsh braking and sharp turns.
It may cause loss of control and lead
to a skid.
 For slowing down, shift to lower gears
and brake gently.
 Keep lights ‘ON’ if visibility is poor.
Driving on wet roads
On wet road or during light showers, “Aq-
uaplaning” can occur. “Aquaplaning” is
the loss of direct contact between the
road surface and the vehicle’s tires due
to a water film forming between them.
Steering or braking the vehicle can be
very difficult, and loss of control can oc-
cur.
There is no hard and fast rule about aq-
uaplaning. The best advice is to slow
down when the road is wet.
NOTE
If you have driven for a long time in
heavy rain without braking, there
may be a delayed reaction from the
brakes when braking for the first
time. You have to depress the brake
pedal more firmly. Maintain a greater
distance from the vehicle in front.
!

SAFETY
11
Night driving
 Ensure that all lights are working and
windshield, window glasses are
clean.
 Drive more slowly at night than in the
daytime, as the visual range is re-
stricted at night. Maintain a speed
such that you can stop within illumi-
nated distance of head lamps.
 Do not use the high beam unless in-
evitable. It may dazzle the driver of
the oncoming vehicle, thus causing
an accident.
 Use head lamp main/dip beam to
alert other road users on turns/
cross roads etc.
 Use side indicators for lane change
or turning.
Driving on gradients
When climbing gradient, the vehicle may
begin to slow down and show a lack of
power. If this happens, shift to a lower
gear and apply power smoothly so that
there is no loss of traction.
When driving down a hill, the engine
braking should be used by shifting into a
lower gear. Do not drive in neutral gear
or switch off the engine.
WARNING
On long and steep gradients you
must reduce the load on the brakes
by shifting early to a lower gear. This
allows you to take advantage of the
engine braking effect and helps avoid
overheating of service brakes result-
ing in reduced braking efficiency.
Driving on highway
Stopping distance progressively in-
creases with vehicle speed. Maintain a
sufficient distance between your vehicle
and the vehicle ahead.
For long distance driving, perform safety
checks before starting a trip and take
rest at certain intervals to prevent fa-
tigue.
!

SAFETY
12
Seat Belts
Seat-belt is a safety device designed to
secure the occupant travelling in the ve-
hicle. TATA MOTORS strongly recom-
mends that all the occupants should al-
ways wear seat belts while travelling, ir-
respective of journey duration.
In normal driving, the belt lets you move
freely in your seat. In case of an accident
or sudden braking, inertia reel automati-
cally tightens the belt to help restrain
your body.
Importance of wearing seat belt
 Reduces the risk of being thrown in-
side the vehicle in case of a colli-
sion/sudden braking.
 It will help to keep you in the proper
position when the air bag inflates.
 Reduces the risk of harm in
frontal/angular collisions that are
not enough to activate the air bag.
 Reduces the risk of harm in rollover,
side or rear impact collisions.
WARNING
 Never wear seat belt over rigid or
breakable objects, such as eye-
glasses, pens, keys etc., as these
might cause injuries.
 Make sure the seat belt is always
fitted comfortably.
 Place the seat backrest in a posi-
tion that is as upright as possible.
Make sure that the seat belts are
not twisted which can cause in-
jury in a collision as the full width
of the belt isn’t available to ab-
sorb the impact. This could cause
serious injury.
 The maximum protection which
seat belts can offer is only
achieved if you are correctly
seated.
NOTE
Do not bleach or dye seat belts as
this may severely weaken them. In a
crash they may not be able to pro-
vide adequate protection. Cleaning
should be carried out using mild soap
and water only.
!

SAFETY
13
How to use seat belts
1. Buckle 2. Tongue 3. Press Button
1. Pull the belt tongue across your body
and insert it into the buckle until click
sound is heard.
2. Check and ensure that the belt is not
twisted.
3. Position the lap portion of the belt as
low as possible across your hip bone.
4. Pull up the shoulder part of the belt
to remove the slack. Make sure that
the belt goes over your collar bones
and across chest.
5. The lap portion of the belt should be
worn across the pelvis, not across
the waist.
6. To unlatch the belt, press the red but-
ton on the buckle. Guide the belt to
the pillar as it retracts.
WARNING
 The seat belts are intended for
adults and each belt should be
used by one occupant only.
 Use approved child restraint
system for children.
 If the belt has withstood serious
accident or shows signs of severe
fraying /damage or cut, replace it
with an approved belt kit.
 Do not make any modification
that could change the effective-
ness of the seat belts. If seat belt
needs to be replaced, then it
should be replaced, by TATA
MOTORSAuthorized Service Cen-
tre only.
!

SAFETY
14
Lap belt (for rear middle seat)
Pull the belt tongue to the desired
length. Insert it into the buckle until you
hear a click.
Adjust the belt length. To lengthen the
belt, hold the tongue at a right angle to
the webbing and pull. To shorten, pull
the loose end of the webbing. To unfas-
ten, press the button in the buckle.
WARNING
Position the lap belt as low as possi-
ble on your hip bone and not across
the abdomen. If the lap belt is posi-
tioned across your abdomen, it could
cause serious injuries in a crash.
Pregnant woman
Pregnant women should also always use
a lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hip bones to avoid any possible
pressure on the abdomen.
!

SAFETY
15
Child Restraint System (CRS)
TATA MOTORS strongly recommends
the use of Child Restraint Systems
(CRS) for all children up to age of 12
years.
Children kept unrestrained while trav-
elling, may face serious injuries in case
of an accident.
Selection and installation of CRS
Always select the child restraint system
that complies with latest safety stand-
ards (AIS072 / ECE R44). The CRS are
classified according to the child's size,
height and weight. Select the appropri-
ate CRS for your child. Ensure that the
child fits properly in the CRS and CRS
is securely installed in the vehicle.
For installation, please refer CRS man-
ufacturer’s instruction manual.
Recommended CRS position
The suitability of seat position for carriage of children and recommended category of
child restraint system is shown in the table below.
X - Seat Position not suitable for children in this age group.
U - Suitable for “universal” category restraints approved for use in this age
group.
NOTE
Universal is a category in the AIS072 / ECE R44norm.
Group
Mass
Group
Age Group
Front
Passen-
ger
Rear
Out-
board
LH
Rear
Out-
board
RH
Rear
Center
0
Up to 10 kg
Up to 9 months
X
U
U
X
0+
Up to 13 kg
Up to 24 months
X
U
U
X
I
9 to 18 kg
9 months to 48 months
X
U
U
X
II
15 to 25 kg
Approx. 3 to 7 years
X
U
U
X
III
22 to 36 kg
Approx. 6 to 12 years
X
U
U
X

SAFETY
16
WARNING
When installing CRS in rear seat,
push the front seat fully forward so
that child’s feet do not touch the front
seat back.
If a child is to be seated in the front
seat (if recommended only), push the
vehicle seat fully rearward and keep
the child in an approved for-ward fac-
ing CRS. Adjust the seat backrest to
an upright position.
Storage for CRS
Always secure CRS safely in the vehicle
or stow it in the luggage compartment if
not being used.
While the vehicle is in motion an unre-
strained CRS could flung through the ve-
hicle interior in the event of a sudden
braking, maneuver or an accident. This
could cause injuries to the travelling oc-
cupants.
WARNING
Replace CRS that has withstood any
force during an accident as it could
have sustained damage which may
not be visible.
Check list
1. Never carry children on some-
body’s lap when vehicle is in mo-
tion.
2. Always secure children in the ve-
hicle in a CRS. The CRS must be
suitable for the child’s height,
weight and build.
3. Observe the instructions from the
manufacturer of the CRS and al-
ways keep the instruction manual in
the vehicle.
4. Always make sure that the seat belt
routing is correct for children and
they are sitting in the correct posi-
tion.
5. Do not leave any toys or other ob-
jects loose in the CRS or on the seat
while the vehicle is in motion.
WARNING
Each CRS should be used for one
child only.
!
!
!

SAFETY
17
Anti-Theft Device- Immobilizer
Immobilizer system is designed to pre-
vent vehicle theft by electronically disa-
bling the engine ignition system. The en-
gine can be started only with vehicle’s
original Immobilizer ignition key which
has an electronic identification pro-
grammed code.
NOTE
Use only E-key, the other should be
kept in a safe location. Note down
“key Tag no.” information (and keep
it safe) which is required while get-
ting new/spare keys. Remember that
it is not possible to prepare
new/spare keys without the “key Tag
number.” Take pre-caution about E-
key, as without E-key vehicle cannot
be started.
Vehicle Condi-
tion
Immobilizer
Lamp Status
Vehicle State
Meaning / Function of the state
Ignition OFF
Blinking
Locked
Vehicle Immobilized and awaiting electronic key
Ignition ON
OFF
Unlocked
Normal condition and ready to start the vehicle
Ignition ON
ON
Locked
-Problem with key (Wrong key used to start vehicle)
-Problem with Immobilizer system. Contact a TATA MOTORS Author-
ized Service Centre
Ignition ON
Blinking
Unlocked
- Contact a TATA MOTORS Authorized Service Centre immediately

SAFETY
18
E- Key
An E-Key is an electronic access and au-
thorization system which is provided as
a standard feature on your vehicle.
Unlocking principle
The transponder which is built into the
ignition E-Key carries a unique identifica-
tion code. The vehicle unlocks when the
code on the E-Key matches with the
code on the Engine Management Sys-
tem (EMS).
Engine starting
When the key is inserted and the ignition
is switched ‘ON’, all codes are communi-
cated within E-Key, Immobilizer and
EMS. The engine will start only if all the
codes match.
Loss of keys
If one of the keys is lost, contact your
nearest TATA MOTORS authorised
dealer immediately.
WARNING
 Do not turn ‘ON’ ignition switch by
using E-key with any type of metal
wound around its grip or in con-
tact with it. This may be detected
as abnormal condition by immo-
bilizer and prevent engine from
starting.
 Do not leave the E-key in areas of
high temperature. The tran-
sponder in it will behave abnor-
mally when reused.
 Do not try to start the vehicle
when the Immobilizer indicator
lamp on the instrument cluster is
glowing. In this condition the ve-
hicle will not start and the vehi-
cle’s battery will also be drained
due to frequent cranking.

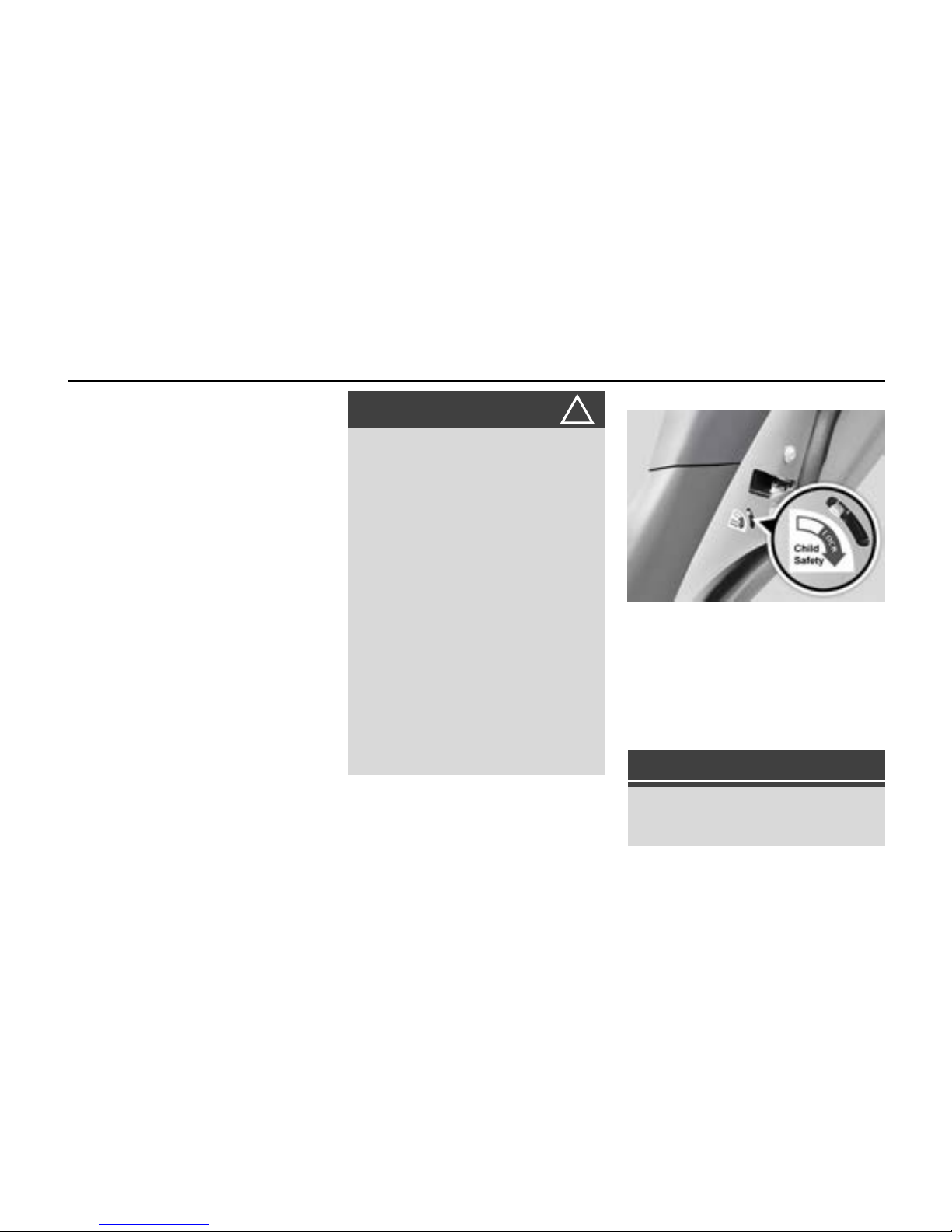

Child Lock
Both the rear doors of the vehicle are
provided with a child proof lock. Push the
lock lever located on vertical face of the
door downward before closing the door.
The door which has been locked by acti-
vating the child lock cannot be opened
from inside, it can be opened only from
the outside.
NOTE
Lift the lock lever upward to deacti-
vate the childproof lock when not re-
quired.
!
