TATA Motors SUMO GOLD 2017 User manual

1
Owner's Manual & Service Book
Passenger Vehicle Business Unit (PVBU)
SUMO GOLDSUMO GOLD
SUMO GOLDSUMO GOLD
SUMO GOLD
SUMO GOLDSUMO GOLD
SUMO GOLDSUMO GOLD
SUMO GOLD AMBAMB
AMBAMB
AMBULANCEULANCE
ULANCEULANCE
ULANCE
CR-4 (BS-IV) & 4SPTC (BS-III)
CR-4 (BS-IV)

2
•This manual explains important features and instructions intended to assist you in gaining
maximum use and satisfaction. Therefore, always keep this in the vehicle for ready reference.
• All information, illustrations and specifications contained in this manual are based on the latest
product information available at the time of publication.
•TATA MOTORS LIMITED reserves the right to make changes in design and specifications and/or
to make additions or improvements in this product without obligation to install them on the vehicles
previously sold.
•This owner's manual includes information on the operation and maintenance of various features
installed on the different variants. Please note that this manual applies to all the variants and
explains all features including options which may not be applicable to your vehicle.
•All rights reserved. The information in this manual may not be reproduced or copied, in whole or in
part, or in any form without prior written permission from TATA MOTORS.
© Copyright 2017 TATA MOTORS
VERSION : SUMO GOLD & SUMO GOLD AMBULANCE/OSB/MAR-2017/Ver.1.30
NOTE

3
DearCustomer,
Welcome to the TATA MOTORS family.
We congratulate you on the purchase of your new vehicle and
areprivilegedtohaveyouasourvaluedcustomer.Yourselection
of our product exhibits the trust you have in us.
This manual will familiarize you with operational, maintenance
andsafety informationofyour new vehicle.Weurge youtoread
thismanual carefullyand followtherecommendations toensure
enjoyableand safe operation ofyournew vehicle.
Werecommendthat allserviceandmaintenanceonyourvehicle
should be performed by an authorized TATA MOTORS
DEALER / TATA MOTORS Authorised Service Centres
(TASCs) to ensure that only latest methods and genuine
replacement parts are used for continued reliability, safety and
performanceof your vehicle.
You are welcome tocontactourdealerorCustomerAssistance
toll free no. in case of any query or support.
We wish you a safe and pleasant driving experience.
FOREWORD

4
DearCustomer,
In our constant endeavour to provide assistance and
completeservicebackup,TATAMOTORShasestablished
an all India customer assistance centre.
In case you have a query regarding any aspect of your
vehicle, our Customer Assistance Centre will be glad to
assistyouon our TollFree no. 1800-209-7979
You can also approach nearest TATA MOTORS dealer.
A separate Dealer network address booklet is provided
withtheOwner’smanual.
TATA MOTORS 24X7 Roadside Assistance Program
offers technical help in the event of a breakdown. Call to
the toll-free Roadside Assistance.
For additional information, refer to "24X7 Roadside
Assistance"section inthe Owner’smanual.
CUSTOMERASSISTANCE

5
CONTENTS
1SAFETY & SECURITY
01
Important Safety Notes 9
Safety Guidelines 9
Seat Belts 10
Child Restraint System 13
Driving in Adverse Conditions 15
2OPENING & CLOSING
02

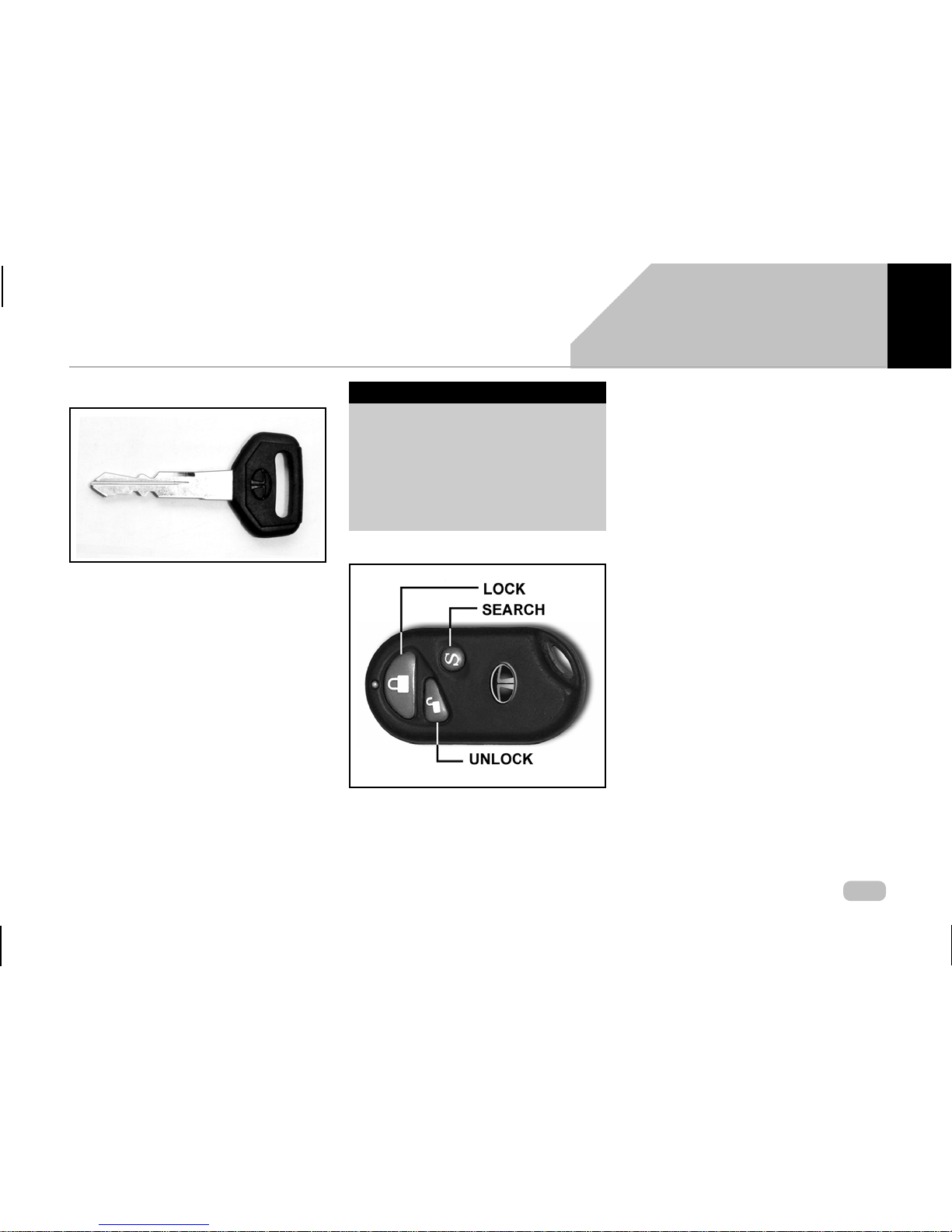

Key 17
Doors 18
Window Glasses 18
Bonnet 20
Fuel Lid 21
INSTRUMENTS & CONTROLS
03
Driving Controls 22
Instrument Cluster 23
Instruments (Gauges) 25
Tell tales (Indicators) 29
Combination Switch 31
Fascia Switches 33
Music System 35
Roof Lamp 36
Interior Lights in Ambulance 37
3

6
4STOWAGE&FEATURES 6STARTING & DRIVING
CONTENTS
04 06
Glove Box with Cup Holder 38
Utility Pockets 38
Mobile Holders 38
Power Socket 39
Roof Grab Handle 39
Exclusive Ambulance Fitments 40
Cupboard for Medical Kit 40
Oxygen Cylinder Stand 40
Saline Bottle Holder 40
Fan for patient 41
Stretcher 41
Pre-driving Checks 47
Safety Checks 48
Fuel Saving Tips 49
Good Driving Practices 50
Running-In Period 50
Seat & SeatAdjustments 51
Seats-Ambulance 54
Rear View Mirrors 55
Sun Visors 56
Steering Lock cum
Ignition Switch 56
Gear Lever & Shifting Pattern 57
Parking Brake 57
Brakes & Braking 58
Stopping the engine 59
Vehicle Parking 59
Voice Messaging System (VMS) 60
5CLIMATECONTROLS
AirVents& Distribution 42
HVAC 43
05

7
7EMERGENCY&BREAKDOWN
ASSISTANCE 8MAINTENANCE & SERVICING 9TECHNICALINFORMATION
CONTENTS
07 08 09
Hazard Warning Switch 66
FirstAid Kit 66
Advance Warning Triangle 67
Tool Kit 67
Jack & Handle 67
Flat Tyre Replacement 68
Spare Wheel 68
Jump Lead Start 71
Towing The Vehicle 73
Fuses 75
Bulb Specifications & Bulb 81
Replacement
24 X 7 On Road Assistance 84
General Information 88
Engine Compartment 89
Engine Oil Level 91
Brake Fluid Level 91
Engine Coolant Level 92
Windshield Washer Fluid Level 92
Power Steering Fluid Level 93
Tyres 94
Battery 97
Remote Battery 98
On Board Diagnostic (OBD) 99
Routine Service 100
Vehicle Service 101
Service Schedule 102
Fuel Specification 107
Lubricants Specification 108
Coolant Specification 108
Lubricants & Coolant
Co-branding 109
Technical Specifications 110
Vehicle Dimensions 113
Identification Plates 114

8
10 VEHICLE CARE 11 WARRANTY- TERMS AND
CONDITIONS 120
12 ENVIRONMENTSAFETY 122
CONTENTS
10
Vehicle Care 116
Washing 116
Waxing 117
Polishing 117
Interior Fabric Cleaning 117
Paint Care 118
Wiper Care 118
Vehicle Parking For Long
Duration 119

9
SAFETY 01
IMPORTANT SAFETY NOTES:
In this Owner's Manual, you will find
the following safety notes.
NOTE
Indicatesadditional informationthat
will assist you in gaining the
optimum benefit and care for your
vehicle.
WARNING
Indicates procedures or information
that must be followed precisely in
order to avoid the possibility of
severe personal injury and serious
damage to the vehicle.
SAFETY GUIDELINES:
Safe driving depends on:
•How quickly you make decisions
to avoid an accident.
•Your ability to concentrate.
•How well you can see and judge
objects.
Few safe driving general tips are
listed below.
•Take into account the traffic, road,
and weather conditions, particularly
with regard to stopping distance.
•Never drive under the influence of
alcohol or drugs.
•Refrain from using a cell phone
while driving.
•Fatigue is a result of physical or
mental exertion that impairs judge-
ment. Driver fatigue may be due to
inadequate sleep, extended work
hours, strenous work or non-work
activities or combination of other
factors. Take rest at regular inter-
vals.
•If your vehicle is equipped with a
navigation system, set and make
changes to your travel route only
with the vehicle parked.
•Program radio presets with the
vehicle parked, and use your
programmed presets to make
radio use quicker and simpler.
IMPORTANTSAFETYNOTES&SAFETYGUIDELINES

10
SAFETY
01 SEATBELTS
SEAT BELTS:
Seat-belt is a safety device designed
to secure the occupant of the vehicle.
Use of seat-belt reduces the chance
of injury and severity of injury in case
of an accident. TATA MOTORS
strongly recommends that all the
occupants should always wear seat-
belts while travelling, irrespective of
journey duration.
Your vehicle is equipped with seat
belts, for front and rear seats as a part
of occupant restraint system.
WARNING
Be sure everyone in your vehicle is
seated and using a seat belt
properly.
In normal driving, the belt lets you
move freely in your seat. In case of an
accident or sudden braking, inertia reel
automatically tightens the belt to help
restrain your body.
This vehicle has front and rear seat
belts in the out board positions and a
lap belt for middle passenger on rear
seat. The lap belt has a manually ad-
justed belt that fits across the hip bone.
Make sure that your seat is adjusted
to a good driving position and the back
of the seat is upright.
Importance of Wearing Seat Belt :
1. It will help to keep you in the proper
position when the air bag inflates.
2. Reduces the risk of harm in rollover,
side or rear impact collisions
3. Reduces the risk of harm in
frontal/angular collisions that are
not enough to activate the air bag.
4. Reduces the risk of being thrown
inside the vehicle in case of a
collision.
NOTE
Do not bleach or dye seat belts as
this may severely weaken them. In
a crash they may not be able to
provideadequateprotection.Clean-
ingshouldbe carried out using mild
soapand wateronly.
WARNING
Make sure that the seat belts are
not twisted which can cause injury
in a collision as the full width of the
belt isn’t available to absorb the
impact. This puts more force on the
bones beneath the belt, which could
cause serious injury.
The maximum protection which seat
belts can offer is only achieved if you
are correctly seated. The seat back
should not be tilted too far back.

11
SAFETY 01 SEATBELTS
How to use seat belts: 1. Pull the belt tongue across your
body and insert it into the buckle.
2. Check and ensure that the belt is
not twisted.
3. Position the lap portion of the belt
as low as possible across your hip
bone.
4. Pull up the shoulder part of the belt
to remove the slack. Make sure that
the belt goes over your collar bones
and across chest.
5. To unlatch the belt, press the red
button on the buckle. Guide the belt
to the pillar as it retracts.
WARNING
1. The belts are intended for adult
occupants only.
2. Each belt should be used by one
occupant only. The belt must not
be put round a child, seated on
passengers lap.
3. Use approved child restraint
system for children
4. If the belt was in use in a serious
accident or shows signs of severe
fraying / damage or of having been
cut, replace it with an approved
belt kit.
5. The belt must not be altered or
modified during use and if required
to be replaced, then it should be
replaced, by TATA MOTORS
Authorized Service Centre only.
LATCH
UNLATCH
1. Buckle 2.Tongue 3.Press Button

12
SAFETY
01 SEATBELTS
Lap belt:
Pull the belt tongue to the desired
length. Insert it into the buckle until
you hear a click.
Adjust the belt length. To lengthen the
belt, hold the tongue at a right angle
to the webbing and pull. To shorten,
pull the loose end of the webbing. To
unfasten, depress the button in the
buckle.
WARNING
Positioning the lap portion of the
Seat Belt too high can be danger-
ous as in a collision; this would
concentrate the impact force directly
on the abdominal area, causing
serious injury. Wear the lap portion
of the belt snugly and as low as
possible.
Pregnant Woman:
A pregnant woman should wear a Lap-
shoulder belt and the lap portion should
be worn as low as possible, below the
womb, throughout the pregnancy.
When a safety belt is worn properly, it
is more likely that the foetus will not
be hurt in a crash. Pregnant women
should wear the lap part of the belt
across the thighs and as snug across
the hips as possible. Keep the belt low
so that it does not come across the
abdomen. By doing this, the strong
structure of the hips will take the force
if there is a collision.

13
SAFETYSEATBELTS 01
CHILD RESTRAINT SYSTEM (CRS):
if applicable
TATA MOTORS strongly recommends
the use of Child Restraint Systems
(CRS) for all children up to age of 12
years.
Children kept unrestrained while
travelling, may face serious injuries in
case of an accident.
Selection and Installation of CRS:
Always select the child restraint
system that complies with latest
safety standards (AIS 072, ECE
R44).The CRS are classified accord-
ing to the child's size, height and
weight. Select the appropriate CRS for
your child. Ensure that the child fits
properly in the CRS and CRS is
securely installed in the vehicle.
For installation, please refer CRS
manufacturer’s instruction manual.
Recommended CRS position:
The suitability of seat position for carriage of children and recommended
category of child restraint system is shown in the table below.
Group Massgroup AgeGroup Front 2nd Row 2nd Row 2nd Row 3rd Row 3rd Row
Passenger Outboard Outboard Center RH LH
LH RH
0 Upto10kg Upto9months U X X X X X
0+ Upto13 kg Upto24months U X X X X X
I 9to18kg 9-48months U X X X X X
II 15to25kg Approx 3-7 yrs U X X X X X
III 22to36kg Approx 6-12 yrs U X X X X X
X : Seat Position not suitable for children in this age group.
U : Suitable for “universal” category restraints approved for use in this age group.
NOTE
Universal is a category in the AIS072 / ECE R44 norm.
NOTE
When installing CRS in rear seat, push the front seat fully forward so that
child’s feet do not touch the front seat back.
NOTE
If a child is to be seated in the front seat (if recommended only), push the
vehicle seat fully rearward and keep the child in an approved forward facing
CRS. Adjust the seat backrest to an upright position.

14
SAFETY SEATBELTS
01
Storage for CRS:
Always secure CRS safely in the ve-
hicle or stow it in the luggage
compartment if not being used.
While the vehicle is in motion an unre-
strained CRS could flung through the
vehicle interior in the event of a sud-
den braking, maneuver or an acci-
dent. This could cause injuries to the
travelling occupants.
WARNING
Replace CRS that has withstood any
force during an accident as it could
have sustained damage which may
not be visible.
Check list:
1. Never carry children on somebody’s
lap when vehicle is in motion.
2. Always secure children in the ve-
hicle in a CRS. The CRS must be
suitable for the child’s height,
weight and build.
3. Observe the instructions from the
manufacturer of the CRS and al-
ways keep the instruction manual
in the vehicle.
4. Always make sure that the seat
belt routing is correct for children
and they are sitting in the correct
position.
5. Do not leave any toys or other ob-
jects loose in the CRS or on the
seat while the vehicle is in motion.
WARNING
Each CRS should be used for one
child only.

15
SAFETYDRIVINGINADVERSECONDITION 01
DRIVING IN ADVERSE CONDITION:
Driving Through Water :
Your vehicle’s engine may get
seriously damaged if attempted to
drive through deep water.
If at all the situation demands that you
have to drive through water then;
•Keep engine in higher RPM and
crawl the vehicle in low gear.
•After driving through water apply
brakes several times to dry liners
and to regain original braking.
Do not attempt to start the engine
if vehicle gets flooded due to
water. Tow the vehicle to a safe
place.
Take the vehicle to the nearest TATA
MOTORS authorised workshop to
check entry of water in cylinders.
If water has entered the engine,
gearbox or transfer case, the
lubricants will have to be replaced. Get
the starter and alternator checked.
Driving on a Rainy Day :
•Check brakes, steering and
windows.
•Check tyres for wear and tyre
pressure.
•Check wiper blades for proper
functioning.
•Avoid harsh braking and sharp
turns. It may cause loss of control
and lead to a skid.
•For slowing down, shift to lower
gears and brake gently.
•Keep lights ON if visibility is poor.
Night Driving :
•Dip the head lamp for oncoming
traffic during night driving.
•Maintain a speed such that you can
stop within illuminated distance of
head lamps.
•Use head lamp main/dip beam to
alert other road users on turns/
cross roads etc.
•Use side indicators for lane change
or turning.
•Put on hazard warning switch in
case of hazardous parking or if
your vehicle is disabled to warn the
passing traffic.

16
SAFETY DRIVINGINADVERSECONDITION
01
Climbing Sharp Gradients on
Loose Surfaces :
•Start off smoothly in any suitable
gear. Apply power smoothly so that
there is no loss of traction by over-
revving of the engine.
•Select the appropriate gear so that
gear changing in the middle of the
climb is not required.
•Changing gears in the middle of the
climb can cause loss of
momentum and engine stalling.
Shifting to a lower gear has to be
done cautiously to avoid loss of
traction.
•If the wheels start to slip within few
feet of the end of the climb, motion
can be maintained by swinging the
steered wheels left and right,
thereby providing increased grip.
Descending Sharp Gradients :
•Depending on the severity of the
gradient, shift into appropriate gear.
Use engine braking judiciously
without over-revving the engine.
•Brake application under such
situations should be done very
smoothly to avoid loss of control.
Select appropriate gear so that gear
changing or clutch disengagement
is not involved while descending
the gradient.

17
OPENING&CLOSINGKEY&ANTI-THEFTDEVICE 02
KEY : NOTE
Do not use a locally made key, but
obtain a duplicate through your TATA
MOTORS Authorised Service Out-
let.
Do not leave the key inside the
vehicle.
ANTI-THEFT DEVICE (if provided)
Two identical keys are provided. With
this key, you can operate :
1. Door Locks
2. Steering Lock cum Ignition switch
3. Tail gate Lock
4. Glove Box
5. Fuel Flap lock (if fitted).
It is advisable to keep one of the keys
in a safe place for use in case of an
emergency.
This is an electronic vehicle security
system with remote (keyless)
operation for door Unlock / Lock. It
immobilises the vehicle by disabling
vital circuits related to engine.
Please refer supplier’s instruction
manual supplied along with the
vehicle for further details of operations
and features.
1. Locking the vehicle : Press
LOCK button.
2. Unlocking the vehicle : Press
UNLOCK button.
3. Search : Press SEARCH button

18
DOOR OPENING / CLOSING :
Locking / unlocking door with key:
Front driver door has separate locking
facility. All doors can be locked or
unlocked from outside using the key.
Insert the E-key and turn it anti-
clockwise to open or clockwise to lock
the door. Pull the Door handle to open
the unlocked door.
Locking without a key from inside:
All the doors can also be locked or
unlocked independently from inside by
pressing or pulling the knob (1). Press
to lock and Pull to unlock.
NOTE
Whenlocking doorsthisway,do not
leave the key inside the vehicle.
Opening the doors from inside :
All doors can be opened from inside.
To open, pull the door opening knob
(1) and then lever (2).
OPENING&CLOSING DOOROPENING/CLOSING&WINDOWWINDING
02
Window Winder Handle
WINDOW WINDING :
MANUAL WINDOW WINDING :
In some versions, power windows are
not provided. Use window winder
handle manually for lowering or raising
up window glasses.
