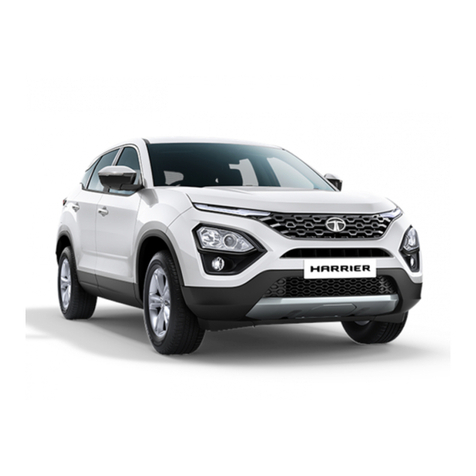

TATA Motors Harrier XE User manual

OWNER’S MANUAL

CUSTOMER ASSISTANCE
ii
In our constant endeavour to provide assistance and complete
service backup, TATA MOTORS has established an all India cus-
tomer assistance centre.
In case you have a query regarding any aspect of your vehicle,
our Customer Assistance Centre will be glad to assist you on
our Toll Free no. 1800 209 7979
You can also approach nearest TATA MOTORS dealer. A sepa-
rate Dealer network address booklet is provided with the
Owner’s manual.
TATA MOTORS 24X7 Roadside Assistance Program offers tech-
nical help in the event of a breakdown. Call the toll-free Road-
side Assistance.
For additional information, refer to "24X7 Roadside Assis-
tance" section in the Owner’s manual.

iii
Dear Customer,
Welcome to the TATA MOTORS family.
We congratulate you on the purchase of your new vehicle and are privileged to have you as our valued customer.
We urge you to read this Owner's Manual carefully and familiarize yourself with the equipment descriptions and operating instruc-
tions before driving.
Always carry out prescribed service / maintenance work as well as any required repairs at an authorized TATA MOTORS Dealers
or Authorized Service Centre’s (TASCs). Use only genuine parts for continued reliability, safety and performance of your vehicle.
You are welcome to contact our dealer or Customer Assistance toll free no. (1800 209 7979) in case of any query or support
required.
We wish you a safe and pleasant driving experience.
Bombay House, 24, Homi Modi Street,
Hutatma Chowk, Fort, Mumbai –400001

IMPORTANT INFORMATION
iv
Before driving, read this Owner’s manual carefully and familiarize yourself with your vehicle. For your own safety and a longer
vehicle life, follow the instructions, ‘Warnings’ and ‘Notes’ in this manual. Ignoring them could result in damage to the vehicle
or personal injury to you or others.
The Owner’s manual and other booklets are important documents and should always be kept in the vehicle. If you sell the
vehicle, always pass on the documents to the new owner.
This Owner's Manual describes all variants of the model and all standard/optional equipment of your vehicle available at the
time of printing. Please note that your vehicle may not be equipped with all features described.
TATA MOTORS Limited reserves the right to introduce changes in the design, equipment and technical features without any
obligation to install them on the vehicles previously sold. The equipment in your vehicle may therefore differ from that shown
in the descriptions and illustrations.
Do not carry out any modification including fitment of non-genuine accessories on your vehicle. Safety, handling, performance
and durability, may otherwise be adversely affected and may violate government regulations. TATA MOTORS Limited accepts
no liability for damage resulting from the modifications or use of non-genuine accessories.
All rights reserved. The information in this manual shall not be copied, translated or otherwise reproduced, in whole or in
part, without written permission from TATA MOTORS.
© Copyright 2019 TATA MOTORS

CONTENTS
v
1
Safety
Important Information 01
Safe Driving 01
Seat Belts 03

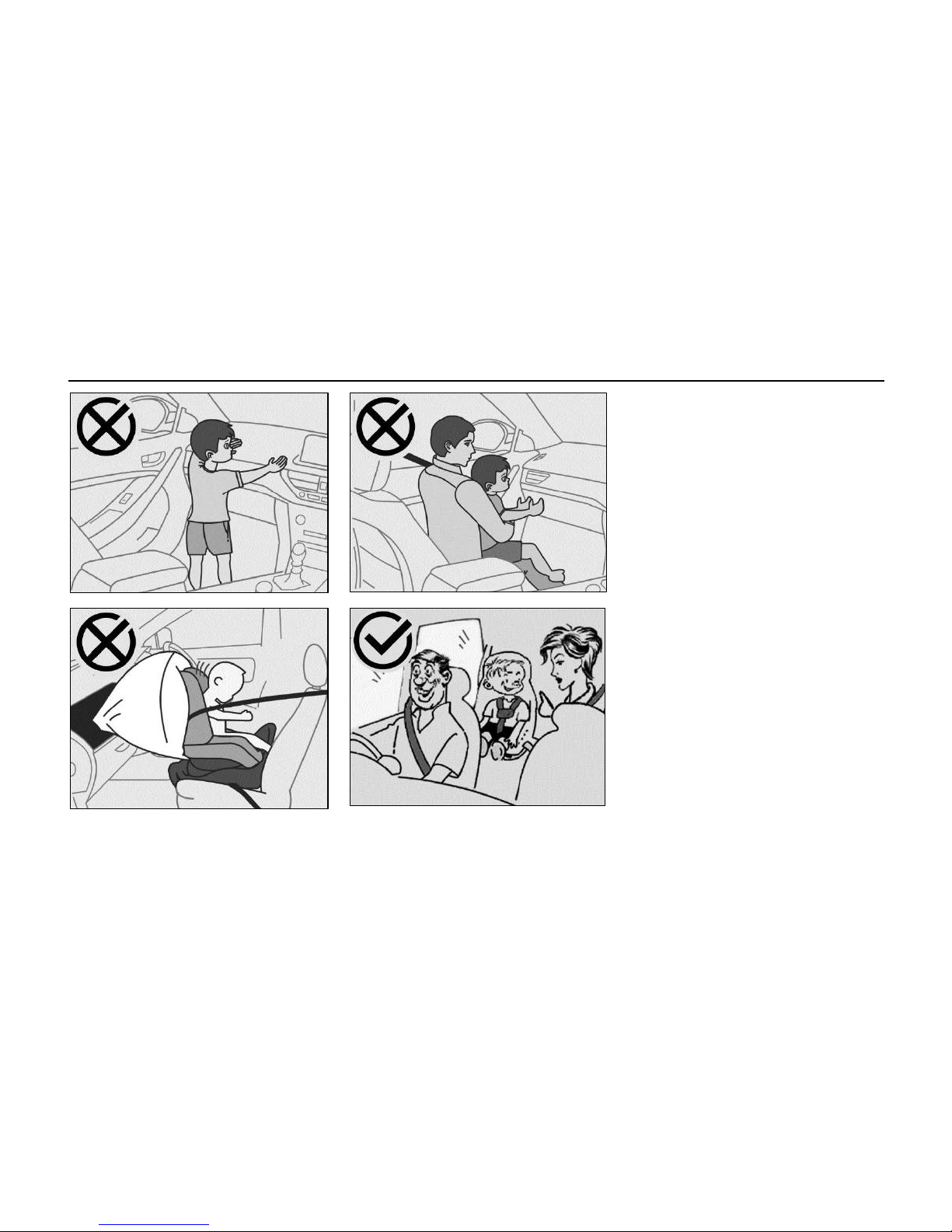

Child Restraint System (CRS) 06
Air Bags 10
Child Lock 17
Anti-theft Device: Immobilizer 18
12
ABS 19
EBD 20
Additional safety features 20
20
2
Opening & Closing
Keys 23
Doors 31
Windows 32
Bonnet Opening 34
Tailgate Opening 36
Fuel Lid 37
3
Dashboard & Features
Cockpit 39
Instrument Cluster (for TFT) 40
Driver Information System 43
Display Messages 49
Instrument Cluster (for LCD) 56
Driver Information System 59
Display Messages 63
Tell Tales 65
Audio Reminders 74
Combi Switches 75
Fascia Switches 78

CONTENTS
vi
3
Dashboard & Features
Steering Wheel Switches 79
Mic 81
Infotainment System Display 81
Speakers & Tweeter 82
USB/AUX 82
Smart charger 83
Power Socket 83
Antenna 84
Roof Grab Handles 84
Front Fog Lamp 85
Rear Fog Lamp 85
3
Dashboard & Features
Puddle / Ajar Lamp 85
Roof Lamp 86
Boot Lamp 87
Outer Mirror with Logo
projection 87
Side Indicator Lamp on ORVM 87
Front Lamp 88
Tail Lamp 88
4
Stowage Areas
Storage Compartments 89
Glove Box 90
Goggle Holder 91
Utility Pockets on Front Doors 91
Utility Pockets on Rear Doors 92
Mobile / Wallet Stowage 92
Cup Holder 92
Stowage for Rear Passenger 93
Stowage belowArm Rest 93
Foldable Arm Rest 93
Tailgate Compartment 94

CONTENTS
vii
4
Stowage Areas
Hooks 95
Front seat back pockets 95
5
Climate Control
Air Distribution 97
Air Vents 98
Side vent for rear passenger 98
HVAC Controls 99
Fully Automatic Temperature
Control (FATC) 103
Quick Cooling 108
HVAC Sensors 108
6
Starting & Driving
Pre-Driving Checks 109
Driving Tips 110
Seat Adjustments 113
Rear Seat folding 115
Rear View Mirrors 117
Sun Visors 119
Steering Wheel Adjustments 120
Steering Lock Cum
Ignition Switch 121
Starting and Stopping 121
Gear Shifting & Driving 126

CONTENTS
viii
6
Starting & Driving
Reverse Gear 126
Braking 128
Driving 129
Drive Mode 130
Terrain Response Mode 130
Parking Brake 132
Vehicle Parking 134
Reverse Park Assist 134
Reverse Park Assist with
Sensor 137
Reverse Park Assist with
Camera 137
7
Emergency & Break-
down Assistance
Emergency Equipment 145
Hazard Warning Switch 148
In Case of Flat Tyre 148
Jump Lead Starting 151
Towing 153
Fuses 155
Bulb Specification 163
24x7 Road Side Assistance 165
8
Maintenance
Maintenance & Service 169
Engine Compartment 170
Oil / Fluid Level 171
Battery 175
Tyres 176
Remote Key Battery
Replacement 178
On Board Diagnostic (OBD) 180
Diesel Particulate Filter 180
(DPF) waring Indicator
Service Schedule 183
Parking for Long Durations 188

CONTENTS
ix
9
Technical Information
Fuel Specification 189
Lubricant Specification 190
Technical Specification 191
Vehicle Dimensions 195
Aggregate Identification Nos 196
10
Car Care and Value
Added Services
Car Care 197
Washing 197
Waxing 198
Polishing 198
Interior Fabric Cleaning 198
Paint Care 199
Wiper Care 199
Value Care AMC 200
Extended Warranty 204
Value Added Services 206
11
Warranty –Terms and
Conditions
Warranty –
Terms & Conditions 211

CONTENTS
x
Environment Safety 213
12
Environment Safety

SAFETY
1
Important Information
In this Owner's Manual, you will find the
text under the heading “WARNING” and
“NOTE” which highlights important infor-
mation. Pay particular attention to these
highlighted messages.
WARNING
Indicates procedures or infor-
mation that must be followed pre-
cisely in order to avoid the possibil-
ity of severe personal injury and se-
rious damage to the vehicle.
Safe Driving
Safety consciousness not only ensures
your safety and the safety of other road
users, but it also helps to reduce the
wear and tear on your vehicle.
Safe driving depends on:
How quickly you make decisions to
avoid an accident.
Your ability to concentrate.
How well you can see and judge ob-
jects.
How well familiar you are with your
vehicle controls and its capabilities.
NOTE
Fatigue is a result of physical or
mental exertion that impairs judg-
ment. Driver fatigue may be due to
inadequate sleep, extended work
hours, strenuous work or non-work
activities or combination of other
factors. Take rest at regular inter-
vals.
Safety Tips
Always take into account the road
conditions, weather conditions, vehi-
cle speed in order to prevent acci-
dents.
Turn ‘ON’ the side indicators at least
30 meters before taking a turn or
changing the lane.
Reduce to a safe speed before taking
turn. Do not apply brakes during cor-
nering.
When overtaking other vehicles,
watch out for the oncoming vehicle.
Never drive under the influence of al-
cohol or drugs.
If your vehicle is equipped with info-
tainment/navigation system, set and
make changes to your travel route
only when the vehicle is parked.
Program radio presets with the vehi-
cle parked, and use your pro-
grammed presets to make radio use
quicker and simpler.
NOTE
Indicates additional information
that will assist you in gaining the
optimum benefit and care for your
vehicle.

SAFETY
2
Driving through water
Do not drive through flooded areas.
Judge the depth of water before driving
through it. Otherwise, water may enter
the vehicle interior or the engine com-
partment.
If in case you have to drive through water
then:
Keep engine in higher RPM and crawl
the vehicle in low gear.
Flowing or rushing water creates
strong forces. Driving through flow-
ing water could cause the vehicle to
drive away through flowing water.
Lightly apply the brake pedal to dry
the liners until the brakes work nor-
mally once you are out of water.
WARNING
Do not attempt to start the engine
if vehicle gets flooded due to water.
Tow the vehicle to a safe place.
Contact a nearest TATA MOTORS
Authorised Service Centre
Driving on a rainy day
Check wiper blades, lights and
brakes for proper functioning and
condition.
Check the tyre treads depth, the con-
dition of the tread and tyre.
Avoid harsh braking and sharp turns.
It may cause loss of control and lead
to a skid.
For slowing down, shift to lower gears
and brake gently.
Keep lights ‘ON’ if visibility is poor.
NOTE
If you have driven for a long time in
heavy rain without braking, there
may be a delayed reaction from the
brakes when braking for the first
time. You have to depress the brake
pedal more firmly. Maintain a
greater distance from the vehicle in
front.
Night driving
Ensure that all lights are working and
windshield, window glasses are
clean.
Drive more slowly at night than in the
daytime, as the visual range is re-
stricted at night. Maintain a speed
such that you can stop within illumi-
nated distance of headlamps.
Do not use the high beam unless re-
quired. It may dazzle the driver of the
oncoming vehicle, thus causing an
accident.
Use headlamp main/dip beam to
alert other road users on turns/
cross roads etc.
Use side indicators for lane change
or turning.

SAFETY
3
Driving on gradients
When climbing gradient, the vehicle may
begin to slow down and show a lack of
power. If this happens, shift to a lower
gear and apply power smoothly so that
there is no loss of traction.
WARNING
On long and steep gradients you
must reduce the load on the brakes
by shifting early to a lower gear.
This allows you to take advantage
of the engine braking effect and
helps avoid overheating of service
brakes resulting in reduced braking
efficiency.
Seat Belts
This section describes your vehicle seat
belt, airbag and child restraints system.
Please read and follow all these instruc-
tions carefully to minimise risk of severe
injury or death.
Seat belts are the primary re-
straints system in the vehicle. All
occupants, including the driver,
should always wear their seat belts
to minimize the risk of injury.
Sit back and adjust the front seat.
Make sure that your seat is ad-
justed to a good driving position
and the back of the seat is upright.

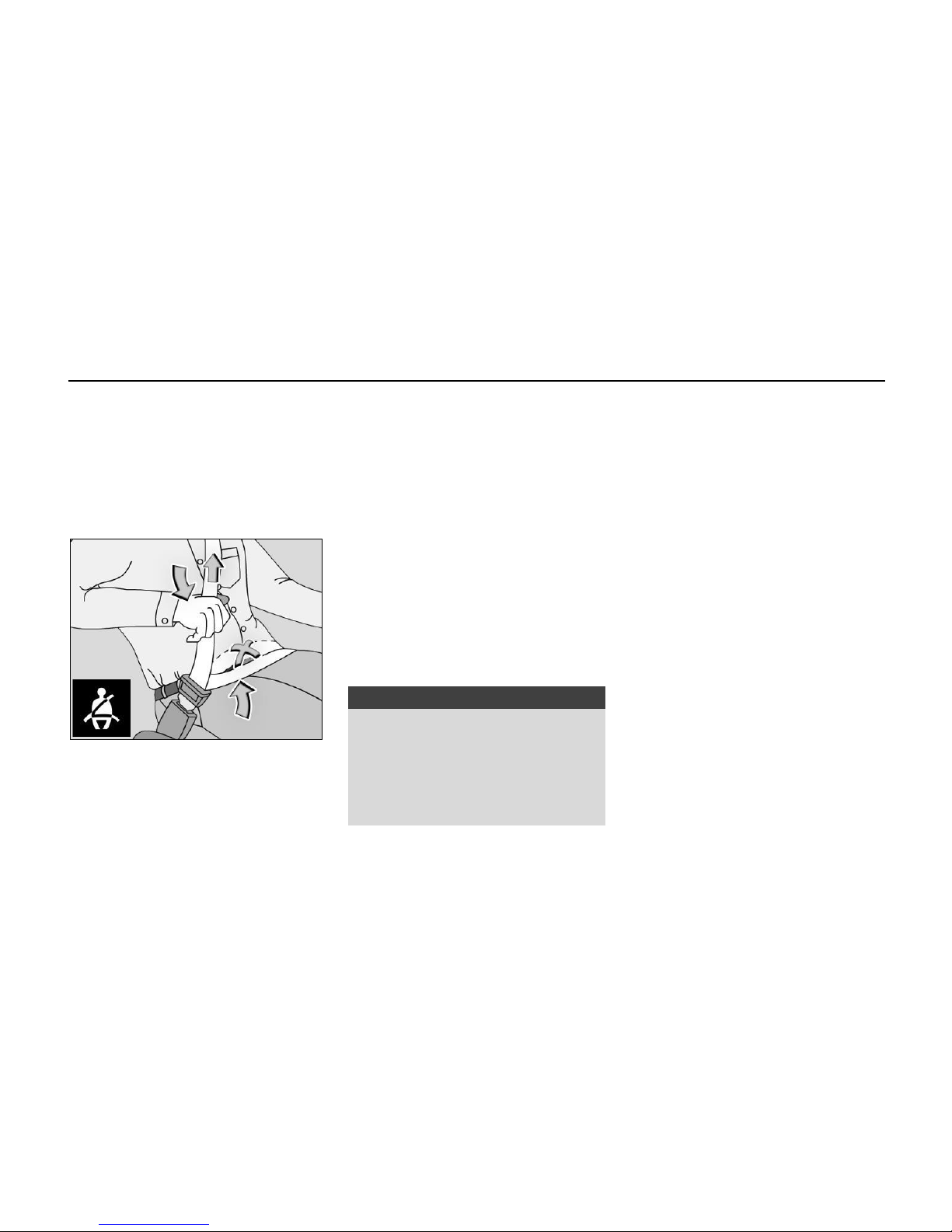

Buckling the shoulder seat belt
Grasp the tongue and slowly pull out
the seat belt over the shoulder and
across the chest. When the seat belt
is long enough to fit, insert the
tongue into the lock buckle until you
hear a “CLICK” which indicates that
the seat belt is securely locked.
Position the lap portion of seat belt
across your thighs, below your abdo-
men. To remove slack, pull up a bit
on the shoulder seat belt. To loosen
the lap portion seat belt if it is too
tight, tilt the tongue and pull on the
lap seat belt. A snug seat belt re-
duces the risk of sliding under the
seat belt in a collision. Ensure that
the seat belt running over the body
(shoulder segment and lap segment)
does not have any twist. Twisted seat
belt may not offer effective protec-
tion when required.
Releasing the seat belt
To release the seat belt, push the red
button on the lock buckle. The seat belt
will automatically retract to its stowed
position. If necessary, slide the tongue
down the webbing to allow the seat belt
to retract fully.

SAFETY
4
Fixed rear centre lap seat belt
When buckling, make sure you hear
a click confirming that the tab is
latched into the seat belt lock. To
tighten it, pull the loose end through
the buckle until the seat belt is com-
fortably adjusted around the hips.
Seat Belts with Pre –tensioner
(If equipped)
You can use pre-tensioner seat belts in
the same manner as ordinary seat belts.
The seat belt pre-tensioner system
works in conjunction with the
SUPPLEMENTARY RESTRAINTS SYSTEM
(SRS-Air Bags).
In the event of a collision, as may be
necessary, pre-tensioner tightens the
seat belt so that it fits the occupant’s
body more snugly. When pre-tensioner
activates, there could be some noise
and release of smoke. This is normal
and there are no health hazards or fire
risk.
WARNING
The pre-tensioner seat belt
assembly mechanisms become
hot during activation. Do not touch
the pre-tensioner seat belt
assemblies for several minutes
after they have been activated.
If the vehicle has been involved in a
collision, get it inspected immediately at
authorised TATA MOTORS SERVICE
Center.
Seat Belt with Load Limiter
(If equipped)
You can use the load limiter seat belts in
the same manner as ordinary seat belts.
The seat belt load limiter system works
in conjunction with the SUPPLEMEN-
TARY RESTRAINTS SYSTEM (SRS-Air
Bags).
In the event of a collision, as may be nec-
essary, load limiter reduces the load on
the rib cage region of the occupant.
If the vehicle has been involved in a col-
lision, get it inspected immediately at Au-
thorised TATA MOTORS SERVICE Center.

SAFETY
5
Use of seat belts for pregnant
woman
WARNING
Pregnant woman must wear a
correctly positioned seat belt. It
is safer for mother as well as
unborn child.
Pregnant woman should wear
the lap part of the seat belt
across the thighs and as snug
across the hips as possible. Keep
the seat belt low so that it does
not come across the abdomen.
That way the strong bones of the
hips will take the force if there is
a collision.
Seat belt warning lamp
(If equipped)
The seat belt warning lamp reminds you
to fasten the seat belt.
For Driver For Front
Passenger
If the driver does not fasten seat belt,
seat belt reminder lamp will blink
and a buzzer will sound for pre-
defined duration until the driver’s
seat belt is buckled.
If front passenger seat is occupied by
adult and does not fasten seat belt,
seat belt reminder lamp will blink
and a buzzer will sound for pre-
defined duration until the front
passenger seat belt is buckled.
If this system is also provided for
other than Front row seats, apllicable
above warning will appear until seat
belts are buckled.
If front passenger seat is occupied by
child, system may detect occupancy
and warn with front passenger seat
belt warning. It is not taken to mean
child can occupy front passenger
seat and use seat belt. Please refer
CRS section for recommended
seating position.
NOTE
Using unauthorized aftermarket
seat cover may affect function of
occupant sensor. TATA motors
does not recommended any non-
validated seat covers on seats.

SAFETY
6
Child Restraint System (CRS)
(if applicable)
TATA MOTORS strongly recommends the
use of Child Restraint Systems (CRS) for
all children up to age of 12 years and to
be placed at recommended positions
only. Children travelling without recom-
mended CRS and seated at other posi-
tions may face serious injuries in case of
a collision.
CRS can be installed in the vehicle using
seat belts and/or ISOFIX only (if
equipped) or ISOFIX with Top Tether (if
equipped).
The harness system of CRS holds the
child in place, and in a collision, acts to
keep the child positioned in the seat and
reduce the risk if injuries.
All children below age of one year must
always ride in a rear-facing infant CRS.
Keep children in a forward-facing CRS
with a harness until they reach the size
or weight limit allowed by your CRS man-
ufacturer.
Once your child outgrows the forward-
facing CRS, your child is ready for a
booster seat.
Selection and installation of CRS:
Always select the CRS that complies with
latest safety standards (AIS072 / ECE
R44). The CRS are classified according
to the child's size, height and weight.
Select the appropriate CRS for your
child. Ensure that the child fits properly
in the CRS and it is securely installed in
the vehicle. For installation, please refer
CRS manufacturer’s instruction manual.

SAFETY
7
Recommended CRS posi-
tion as per the vehicle ma-
trix
The suitability of seat position
for carriage of children and rec-
ommended category of CRS is
shown in the table below as per
the child group.
X - Seat Position not suitable for
children in this age group.
U- Suitable for “universal”
category restraints
approved for use in this age
group.
Universal is a category in the
AIS072 / ECE R44 norm.
WARNING
If a child is seated in the
front seat it may cause
serious injury or even death
during any collision.
Group
Mass
Group
Age
Group
Front
Passenger
Rear
Outboard
LH
Rear
Outboard
RH
Rear
Center
Interme-
diate
Outboard
Interme-
diate
Centre
0
Up to
10 kg
Upto9
months
X
U
U
X
X
X
0+
Up to
13 kg
Upto24
months
X
U
U
X
X
X
I
9to18
kg
9months
to 48
months
X
U
U
X
X
X
II
15to 25
kg
Approx. 3
to
7 years
X
U
U
X
X
X
III
22to 36
kg
Approx. 6
to
12 years
X
U
U
X
X
X

SAFETY
8
WARNING
If your vehicle is equipped with a
front passenger air bag (PAB) and
do not have PAB deactivation
switch, do not install a rear-facing
CRS in the front passenger seat. If
the PAB inflates, a child in a rear
facing CRS could be seriously
injured or killed.
If you install a CRS in the rear seat, slide
the front seat far enough forward so that
the child’s feet do not touch the front
seatback. This will help avoid injury to
the child in the event of a collision.
WARNING
Do not use an infant carrier or a
child safety seat that "hooks“ over
a seatback, it will not provide
adequate protection in a collision.
After a collision, we recommend to get
seat belts, seats, ISOFIX and top-tether
anchorages (as may be applicable)
investigated at TATA MOTORS
Authorised service centre.
NOTE
A CRS in a closed vehicle can
become very hot. To prevent burns,
check the seating surface and
buckles before placing your child
in CRS.
WARNING
Do not leave unattended children
in your vehicle.
Do not modify CRS in any way.
NOTE
Do not install a booster seat or a
booster cushion with only the lap
strap of the seat belt.
Do not install a booster seat or a
booster cushion with a seat belt
that is slack or twisted.
Do not put the safety seat belt
under your child’s arm or behind
its back.
Do not use pillows, books or
towels to boost your child’s
height.
Make sure that your children sit
in an upright position.
Do not allow children to stand up
or kneel on either the rear or the
front seats. An unrestrained
child could suffer serious or fatal
injuries during a collision.
Do not leave any toys or other
objects loose in the CRS or on
the seat while the vehicle is in
motion.
NOTE
Children could be endangered in a
collision if their CRS are not
properly secured in the vehicle. Be
sure to secure the child in the
restraint system according to the
manufacturer’s instructions.

SAFETY
9

SAFETY
10
Supplementary Restraint System
(SRS - Air bags)
The airbag ‘SRS’ system comprises of
the following components depending
upon the provided safety features in
vehicle.
Seat belt Pre-tensioners
Seat belt with load limiters
Driver Airbag
Front Passenger Airbag
Side Airbags (if equipped)
Curtain Air Bag (if equipped)
Airbag ‘SRS’ ECU (Electronic
Control Unit)
Collision Sensors
SRS wiring harness
SRS Warning lamp
The System is active when ignition
switch is in the “ON” position or the
ignition mode is “ON”. Air bags are
designed to inflate in collisions. In the
event of a collision, the collision sensors
will detect signals, and if the Airbag ECU
judges that the signals represent a
severe collision, will trigger the airbags.
The inflated air bags provide a cushion
to the occupants. The air bag inflates
and deflates so quickly that you may not
even realize that it has activated. The air
bag will neither hinder your view nor
make it hurdle to exit the vehicle.
Airbag inflation is virtually instantaneous
and occurs with considerable force,
accompanied by loud noise and smoke,
which is normal. The inflated airbag,
together with seat belts, limit the
movement of an occupant, thereby
reducing the risk of injury.
When an airbag inflates, you may see
some smoke-like particles. The particles
are a normal by-product of the process
that generates the non-toxic gas used for
airbag inflation. These airborne particles
may irritate the skin, eyes, nose, or
throat. If you have skin or eye irritation,
rinse the area with water. For nose or
throat irritation, move to fresh air. Also
sometimes the smoke can cause
breathing problems , in such cases get
fresh air promptly.
After inflation, airbag provides a gradual
cushioning effect for the occupant
thereafter deflates. It is not advisable to
drive your vehicle after the airbags have
been deployed. If you are involved in
another collision, the airbags will not be
in place to protect you.
