Tatung V17AFTW User manual

V
V1 1
7
7A A
F
F
T
T
W
W
LCD-TV

Table of contents
1. Precautions & Notice.......................................………………….2
2. Features & Specifications.........................................………………….4
3. Connection & Applications…………………….....…………………..6
4. Controls Location ....................................................…………………..8
5. Remote Control........................................................…………………...9
6. Disassembly Instructions.......................………………………………11
7. Block Diagram....................................................………………………14
8. Troubleshooting Flow Chart...............................................…………..14
9. Electronic Circuit Description.....................................………………14
10. Circuit Diagram...................................................…………………….14
11. PCB Layout....................................................…………………………14
12. Electrical Part List..................................................………………….14
13. Mechanical Disassembly....….............................................…………..14
14. Mechanical Part List.................................................…………………14

1. Precautions ＆Notice
1.1 Safety Precautions
1) Cleaning: Unplug the power cord from the AC outlet before cleaning the
product. Use a damp cloth to clean the product. Do not use liquid cleaners
or aerosol cleaners.
2) Heat sources: Keep the product away from heat sources such as radiators,
heaters, stoves and other heat-generating products (including amplifiers).
3) For added protection for this television equipment during a lightning
storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna. This will
prevent damage to the equipment due to lightning and power-line surges.
4) If an outside antenna is connected to the television equipment, be sure the
antenna system is grounded so as to provide some protection against
voltage surges.
Example of antenna grounding
as
p
er national electrical code
Antenna lead in wire
Ground clamp
Antena discharge unit
Grounding conductors
Electric service
equipment Ground clamps
Power service grounding
Electrode system unit

5) An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where it
can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
6) Ventilation-The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since
insufficient ventilation can cause overheating and/or shorten the life of
the product. Do not place the product on a bed, sofa, rug or other similar
surface, since they can block ventilation opening. This product is not
designed for built-in installation, do not place the product in an enclosed
place such as a bookcase or rack, unless proper ventilation is provided or
the manufacturer’s instructions are followed.
1.2 Product Safety Notice
1) Many electrical and mechanical parts in this chassis provide special
visual safety protection. The protection afforded by them cannot
necessarily be obtained by using replacement components rated for
higher voltage, wattage, etc.
2) Before replacing any of these components, read the parts list manual
carefully. The use of substitute replacement parts, which do not have the
same safety characteristics, as specified in the parts list may create shock,
fire or other hazards.
1.3 Service Notes
1) When replacing parts or circuit boards, wrap the wires around terminals
before soldering.
2) Keep wires away from high temperature components.
3) Keep cable and their shielding in their original position so as to reduce
interference.

2. Features ＆Specifications
Specification
Screen size 17” wide TFT-LCD Panel
Aspect Ratio 16：9
Resolution 1280x768(XGA-Wide)
Brightness 400 cd/m² (Typical)
Viewing Angle Over 160° (Hor.) / 160° (Vert.)
Display
OSD Language English
TV standard (CCIR) NTSC
TV Turning system PLL 181 Ch.
STEREO MTS+SAP
TV I/P
CATV 125 CH.
Composite Signal CVBS
Y, C Signal S-Video
Video I/P Component Signal
Y, Pb/Cb, Pr/Cr EDTV system (480i, 480p)
Signal I/P Analog: 15 pin D-Sub Connector
PnP compatibility DDC / 2B
I/P Frequency Analog: FH: 31.5Hz to 60kHz
F
v: 56Hz to 75Hz
PC I/P
Recommended Analog: 1024x768 (60Hz)
Audio 1 for CVBS ＆S-Video
Audio 2 for Y, Pb/Cb, Pr/Cr
Audio I/P Audio I/P: L/Rx3
Audio 3 for PC
Video O/P Composite Signal TV only
Speaker (Build-in): 3.5W+3.5W (rms)
3.5 mm miniature stereo phone jack
Audio O/P Audio O/P: L/Px3
Line –out (L/R) for TV only
PIP, V-Chip, C.C. Settings Yes
Other Functions Aspect Ratio Switching Normal →Periscope →Zoom →Full
Power Supply 12V 6.25A / 12V 5A (optional)
AC 110V~240V, 50/60Hz
Power
Power Consumption < 60W
Panel Tilt Forwards/ Backwards /Rotation -5°/ +20° / ±180°
Weight (net) 6.5 Kg (Without Accessories)
Accessories Remote Control, Batteries, AC adapter, AC cord, Antenna Cable 2m, 15 Pin D-Sub
Signal Cable

PC I/P Preset Timing Table
Analog Input
Mode No. Mode Name
Resolution H.Freq. (kHz) V.Freq. (Hz) H. Polarity V. Polarity
Pixel
CLK
(MHZ)
1 VGA 70Hz
640x350
31.469
70.087
+
-
25.175
2 VGA 60Hz
640x480
31.469
59.941
-
-
25.175
3 VGA 72Hz
640x480
37.861
72.81
-
-
31.5
4 VGA 75Hz
640x480
37.5
75.0
-
-
31.5
5 SVGA 60Hz
800x600
35.16
56.25
+
+
36.0
6 SVGA 60Hz
800x600
37.876
60.317
+
+
40.0
7 SVGA 72Hz
800x600
48.077
72.118
+
+
50.0
8 SVGA 75Hz
800x600
46.875
75.0
+
+
49.5
9 XGA 60Hz
1024x768
48.363
60.004
-
-
65.0
10 XGA 70Hz
1024x768
56.476
70.069
-
-
75.0
11 XGA 75Hz
1024x768
60.023
75.029
+
+
78.75
12 MAC VGA
640x480
35.0
66.667
-
-
30.24
13 MAC VGA
832x624
49.725
74.550
-
-
57.283
14 US TEXT
720x400
31.469
70.087
-
+
28.322

3. Connection ＆Applications

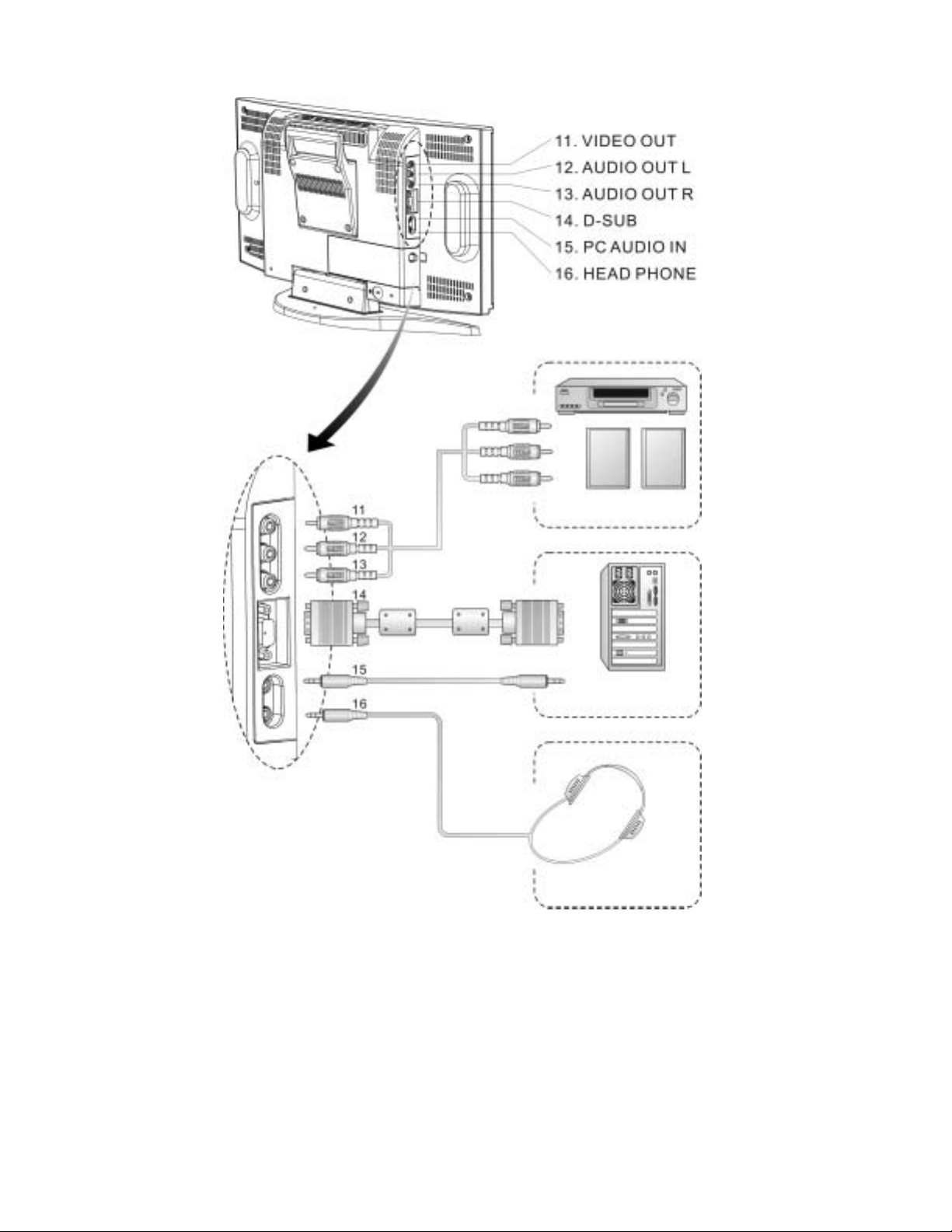

Note:
! Audio out: The level of Audio O/P is constant. It won’t be affected by aligning volume, treble and
bass. This connecter should be connected to outer audio amplifier to enlarge the volume.
! Video O/P: When user wants to connect Audio and Video O/P of our LCD-TV to VCR for recording
program, the O/P has only one choice that is TV mode.
! Audio O/P: IF the main display is TV, the Audio O/P must be TV sound; otherwise, if sub display is
TV, the Audio I/P must be selected to “Sub”, so that the Audio O/P will be TV sound.

4. Controls Location
The buttons control your TV’s basic features, including the on-screen menu. To use the
more advanced features, you must use the remote control.
POWER: turn on or turn off the LCD TV.
SOURCE: set up the input source (PC, AV, SV, TV or CV.)
MENU: displaythemainmenu.
CHANNEL (down/up): change channels on sequence.
VOLUME (-/+): turn up or turn down the volume.
ASPECT RATIO: set up the ratio of display (Normal, Periscope, Zoom or Full.)
ASPECT RATIO VOLUME(-/+ ) CHANNEL(down/up) MENU SOURCE POWER
S
p
eake
r
S
p
eake
r
Remote sensor window
A
im the remote control
towards this region on the
TV.
Power indicator
A
green indicator lights when the power is on
and a red indicator lights when in the standby
mode (the indicator will not light when the main
power is off).

5. Remote Control

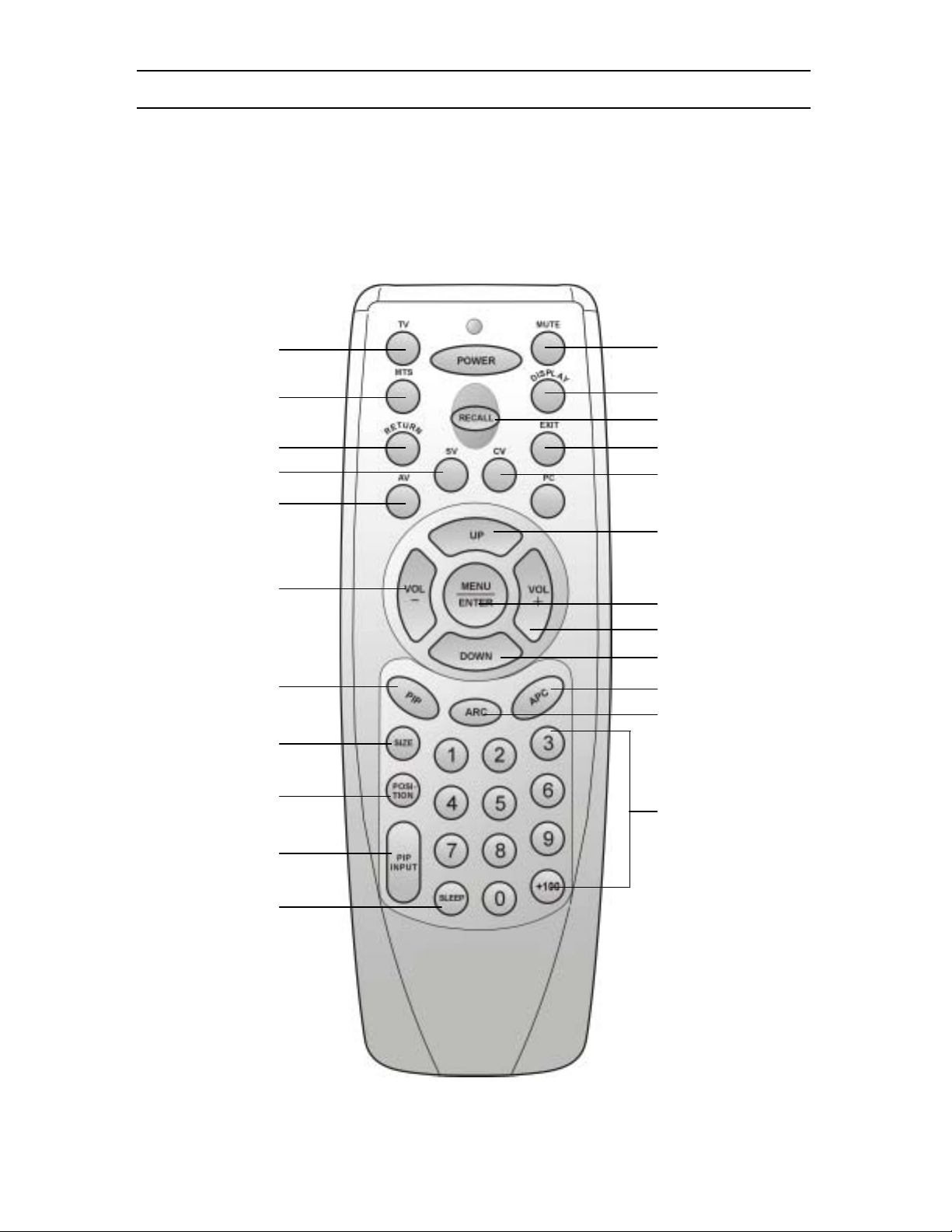

The remote control pad works almost same as ordinary TV remote control
that includes the basic function needed while viewing a live video.
Power ON/OFF
Mute
T
V
MTS Dis
p
la
y
CH. di
g
ital
Memor
y
Recall
Exit
Return
S-Video Y PbPr/YCbCr
PC
AV
Channel U
p
Volume Down Menu/Enter
Volume Up
Channel Down
Enter PIP Function Automatic Picture Control
A
s
p
ect Ratio Control
PIP Size
PIP Position Channel selection
PIP in
p
u
t
Slee
p

Summary of Control Buttons
Selecting the Signal Source
Press TV button Switch to the TV mode.
Press AV button Switch to the CVBS mode (Composite Signal).
Press SV button Switch to the S-Video mode.
Press CV button Switch to the Component mode( YPbPr or YCbCr)
Press PC button Switch to the PC mode(VGA).
Menu Setting
Press MENU/ENTER
button Display the main on –screen menu or enter the next menu.
Press UP/DOWN button Press to select the item you want to adjust.
Press DISPLAY button Display the current channel digits.
Press EXIT button Exit from the menu.
Changing Channels
Press UP button
Press DOWN button Press Up or Down to change channels on the TV.
Press 0~9, +100 button Select channels directly on the TV.
Sound Control
Press VOL+ button
Press VOL- button Press to turn up or turn down the volume.
Press MUTE button Press to temporarily cut off the sound.
Press MTS button Press to choose Stereo, Mono or Separate Audio Program (SAP broadcast), i
f
the TV programs supply the Multi-Channel Sound services.
PIP Control
Press PIP button Press to watch one of the video sources on Sub-display, under PC mode.
Press again to make the Sub-display disappear.
Press PIP INPUT button Press to select one of the PIP window input source as :
AV→SV→CV→TV→R+epeat
Press SIZE button To make the PIP window double, large or small.
Press POSITION button Press to move the PIP window to: Top Left →Top Right→Bottom Right →
Bottom Lift →Repeat.
Note: When you set Main –display at 1024x768 resolution of PC mode and Sub-display YPbPr, the screen
may appear unstable or “Not Available”. You could reduce the PC resolution to 800x600 or
640x480. The PIP function will work well.
Other Function
Press RETURN button At TV mode, the TV channel return to previous state.
Press PECALL button Return to the original factory settings, such as the Luminance/ Contrast/
Color Temp.
Press ARC button Set the picture window to Normal (4:3) →Periscope →Zoom →Full (16:9)
Press APC button To select Clear, Dark, Normal mode for picture control.
Press SLEEP button Press to select a preset time interval for automatic shut off.

6. Disassembly Instructions
1. Face down the LCD-TV :
Face down the LCD-TV on a smooth plane with a soft material to protect
the panel faceplate .

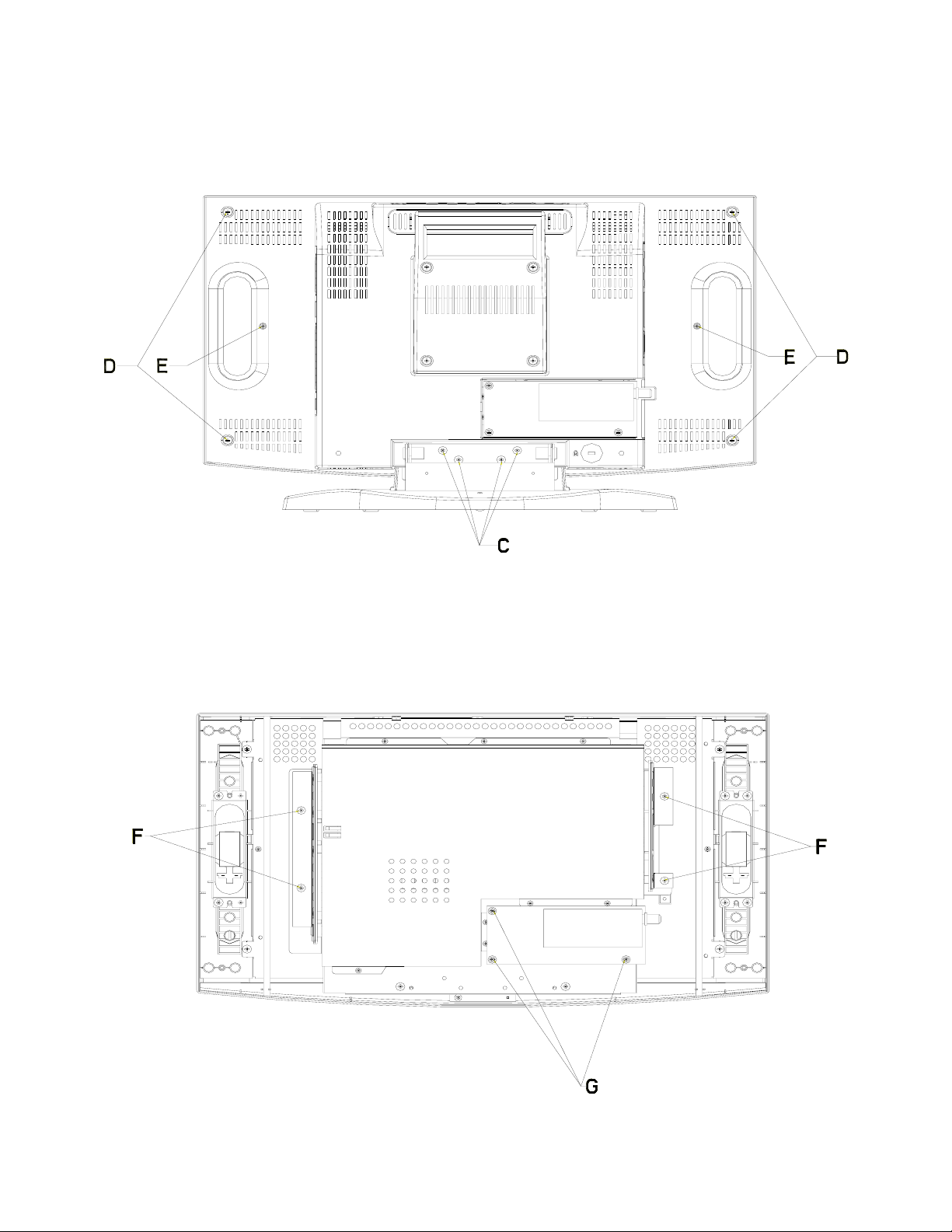

2. Swival Base Removal :
2.1 Remove 2 screws from Neck Cover . (Indicated as “A” )
2.2 Remove Tuner Cover . (Indicated as “B” )
2.3 Remove 4 screws from Neck Bracket. (Indicated as “C” )
Then you could take the base apart from the LCD-TV.

3. Back Cover Removal :
3.1 Remove 6 screws from the back cover . (Indicated as “E” and “D”)
Then you could take Back Cover apart from the LCD-TV .
4. Right & Left Side Covers and Tuner Board Removal :
4.1 Remove 4 screws from Right & Left side Covers .(Indicated as “F”)
4.2 Remove 3 screws from the Tuner Board . (Indicated as “G”)

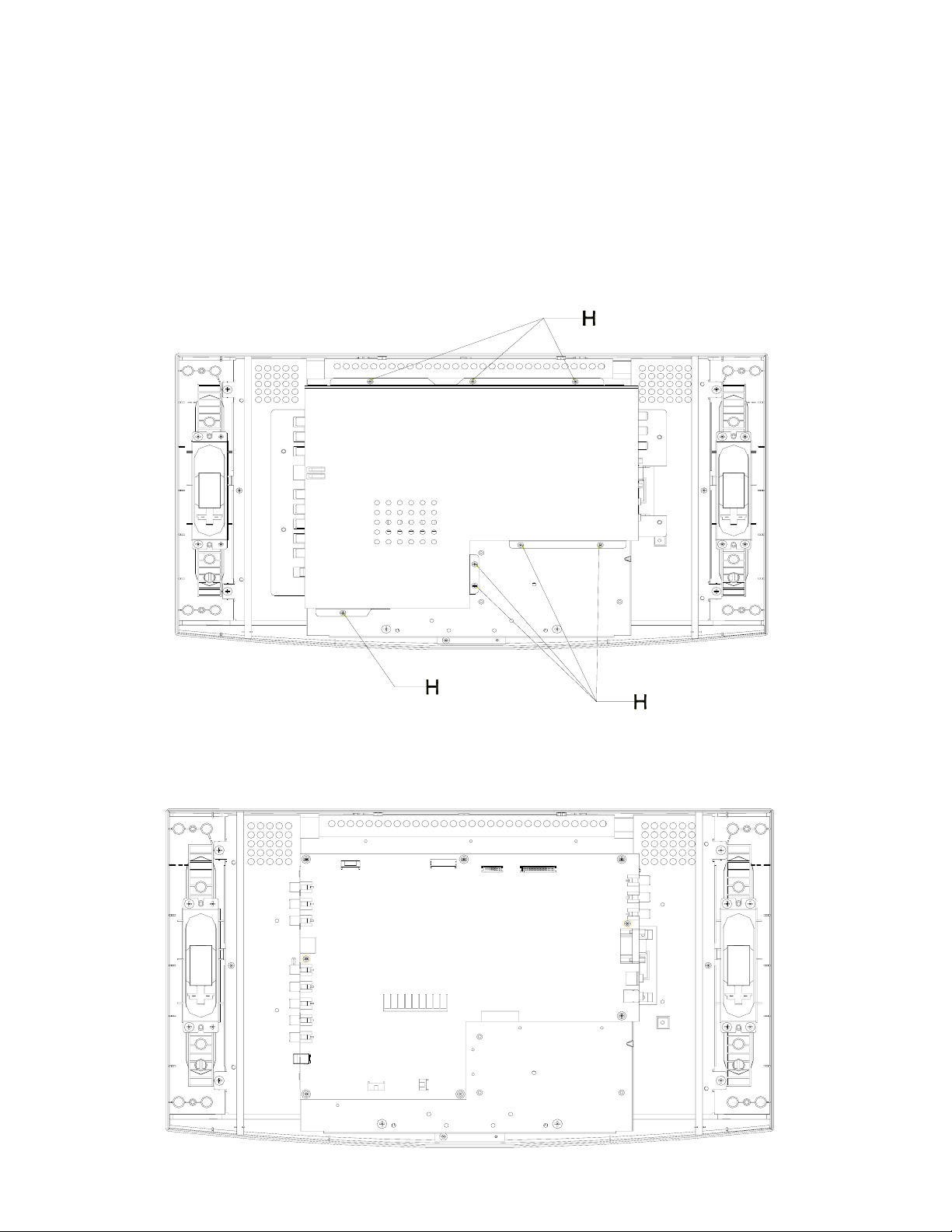

5. Metallic Cover Removal :
5.1 Remove 8 screws from Metallic Covers .(Indicated as “H”)
Then you could take Metallic Cover apart from Main Bracket and the
PCB Board will show up .

8. Troubleshooting Flow Chart
(1) Power start NG
N
o
Restart signal to
ensure video
signals are not
absent.
End
shows
Still no
N
o
Yes
Yes
Yes
Yes
Yes
Yes
Yes
N
o
N
o
N
o
N
o
N
o
Restart Signal to
ensure H. V. sync.
are not absent
End
End
MCU (I012) hangs
Replace I012
Reset the MCU(I012)
by pressing the power
key or re-plugging the
DC 12V cable.
End
Is it entering into
power saving on PC
mode ?
Is LED display
Amber ?
Does the LED
light up?
Is the Voltage of
I015 #2
2.5V?
Is the Voltage of
I016 #02
3.3V?
Is the Voltage of
L045 5V ?
Is the Voltage of
L046 12V ?
Replace F001
Replace I014 & D017
Replace I016
Replace I015
No picture Appear

(2) Frame slant
rce.
Yes
End End
End
N
o
Yes
Yes
Yes
Replace I019
( TP6760 )
End
Are the input
waveforms of
TP6760 normal ?
Are the output of
I019 TP6760
normal ?
( SHCLK,PVSync,
PHSync,PDE)
Connect the cable
firmly with the
interface connector o
f
Panel.
N
oYes
N
o
Are the cables
attached firmly at
P018 & P019 ?
Are the cables
attached firmly at
the LCD panel
connectors ?
Connect two housings
of cable firmly
with P018 & P019.
Replace V901
(LCD Panel )
The Ver. or Hor.
Sync. does not
hold in any sou

(3) Picture abnormal
Steps to Clean EEPROM :
StepsM
N
o
Yes
Clean
EEPROM
End
Does the picture
recover normal
after pressing
Recall key ?
abnormal
1. Press Power key to turn off
the LCD-TV.
2. Press Power key quickly to
turn on the LCD-TV and
then press the Aspect Ratio
key promptly.
3. When “ Initial EEPROM ”
appears on the screen, the
Clean EEPROM is
complete.

12. Electrical Parts List
12.1 Main PCB (PWB-0452 )
CKT
No Specification Part Number Vender
C001 Chip capacitor SMD X7R 50V 8200.00pFK T 0603 5230682291 PHILIPS
C002 Chip capacitor SMD Y5V 16V 82000.00pFZ T 0603 5230019091 PHILIPS
C003 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C004 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C005 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C006 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C007 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C008 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C009 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C010 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C011 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C012 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C013 Chip capacitor SMD X7R 50V 47000.00pFK T 0603 5230647391 PHILIPS
C014 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C015 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C016 Chip capacitor SMD X7R 50V 47000.00pFK T 0603 5230647391 PHILIPS
C017 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C018 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C019 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C020 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C021 Chip capacitor SMD X7R 50V 47000.00pFK T 0603 5230647391 PHILIPS
C022 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C023 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C024 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C025 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C026 SMD Electrolytic- capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C027 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C028 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C029 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C030 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C031 Chip capacitor SMD NPO 50V 27.00PFJ T 0603 5240627091 PHILIPS

CKT
No Specification Part Number Vender
C032 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C033 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C034 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C035 SMD Electrolytic capacitor 16V 4.70UFM T 4.0x5.5 5218014791 TEAPO
C036 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C037 Chip capacitor SMD NPO 50V 47.00PFJ T 0603 5240647091 PHILIPS
C038 Chip capacitor SMD NPO 50V 100.00PFJ T 0603 5240610191 PHILIPS
C042 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C044 Chip capacitor SMD X7R 50V 8200.00pFK T 0603 5230682291 PHILIPS
C045 Chip capacitor SMD Y5V 16V 82000.00pFZ T 0603 5230019091 PHILIPS
C046 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C047 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C048 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C049 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C050 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C051 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C052 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C053 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C054 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C055 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C056 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C057 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C058 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C059 Chip capacitor SMD X7R DC 50V47000.00pF 0603 5230647391 PHILIPS
C060 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C061 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C062 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C063 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C064 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C065 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C066 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C067 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C068 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS

CKT
No Specification Part Number Vender
C069 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C070 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C071 SMD Electrolytic- capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C072 Chip capacitor SMD X7R 50V 1000.00PFK T 0603 5230610291 PHILIPS
C073 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C074 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C075 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C076 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C077 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C078 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C079 Chip capacitor SMD NPO 50V 27.00PFJ T 0603 5240627091 PHILIPS
C080 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C081 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C082 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C083 SMD Electrolytic capacitor 25V 470.00UFM * 10X13 5205447102 TEAPO
C084 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C085 SMD Electrolytic capacitor 16V 10.00UFM T 4x5 5218007891 TEAPO
C086 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C087 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C088 Chip capacitor SMD NPO 50V 47.00PFJ T 0805 5240847091 PHILIPS
C089 Chip capacitor SMD NPO 50V 47.00PFJ T 0805 5240847091 PHILIPS
C090 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C091 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C092 SMD Electrolytic capacitor 16V 100.00UFM T 6.0x5.0 5218007991 TEAPO
C093 DIP Electrolytic capacitor 16V 1000.00UFM 13x13 5214019102 ENGEL
C094 Chip capacitor SMD Y5V 16V 0.15uFZ T 0603 5230019191 PHILIPS
C095 SMD Electrolytic capacitor 16V 100.00UFM T 6.0x5.0 5218007991 TEAPO
C096 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
C097 Chip capacitor SMD X7R 50V 2700.00PFJ T 0603 5230627291 PHILIPS
C098 Chip capacitor SMD X7R 50V 2700.00PFJ T 0603 5230627291 PHILIPS
C099 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C100 Chip capacitor SMD Y5V 25V 0.10UFZ T 0603 5230005491 PHILIPS
C101 Chip capacitor SMD Y5V 16V 2.20uFZ T 0805 5230007791 PHILIPS
