Taurus Stomp-Head 1 User manual

DESIGNED BY MUSICIANS FOR MUSICIANS
Stomp-Head
Box Electronics ul Cieszyńskiego 4, 81-88 Sopot Poland
tel [phone] tel/fax [phone]
e-mail [email protected] www.taurus-amp.pl
RoHS
PRECAUTIONS
Amplifier produces high volume levels. Staying in places of high volume levels could cause
permanent hearing loss.
Do not use the amplifier in humid and dusty places.
Do not operate the amplifier through the unearthed socket.
Do not leave the amplifier in the vicinity of children.
Do not use the amplifier with broken power outlet or improper power cord.
Do not install nor use the amplifier near any heat sources, in case of overheating the
amplifier turns off Do not cover the vent holes!
In order to ensure proper air circulation, do not block any of the ventilation openings.
Never put any liquid containers near the amplifier.
In case of any objects or liquid access inside the amplifier, urgently switch the apparatus off
and unplug the power supply cord.
Protect the amplifier from any strikes.
ATTENTION: To reduce the risk of electrical shock, do not remove the back cover of the
amplifier. Inside parts can be repaired only by qualified service personnel.
WARNING: To prevent the risk of electrical shock do not expose this appliance to moisture,
rain or any liquid.
and will return to work after cooling the unit.
Signal without speaker simulation
Stereo jackMono jack
Ground
Ground Fig.A
LINE−OUT wire connection
Signal with speaker simulation Signal with speaker simulation
EXTERNAL DEVICES CONNECTION
GUITAR AMPLIFIERS
MANUAL
Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other
European countries with separate collection programs)
This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when
you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to
the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of
materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact
your local city office, household waste disposal service or the retail store where you purchased this product.
Effect
IN
IN
OUT
OUT
Effect
Mixer
OUT
Mixer

OPIS FUNKCJI
The Stomp−Head is an ultralight, very compact floor amplifier with integrated footswitch, designed to
be set on the pedal board, along with effects or placed directly on the stage floor. It greatly benefits the
player with immediate access to all amp’s potentiometers and options. When the amp is set on a pedal
board only one wire (speaker wire) is needed to setup the guitar sound on stage. This amplifier can also be
placed on a top of a cabinet like a regular head.
The Stomp−Head 1.CL is an analog guitar amplifier design with class D power amp and SMPS (Switched−
Mode Power Supply).
These features determine extreme compact dimensions. The amp features two channels: CLEAN & LEAD
which are accessible by the foot switch mounted on the top of the chassis.
The dynamics, compression and nature of the distortion are exactly the same as in classic tube amps.
To obtain required parameters, the amplifier is driven by a much higher rated power amp. Even though
the power of the amplifier is set at 50Watts RMS, in reality the real power of the amp is 100 Watts.
The SH 1.CL is also equipped with a power selector allowing the player to use the amp in two different
power ratings of 50 and 25Watt RMS. It is also designed to auto adjust itself to different speakers
impedance. The amp handles the speakers with 4, 8, and 16 Ohm of impedance.
The Stomp−Head can also be used as a guitar preamp. LINE OUT with a Speaker Cabinet Simulation
permits the player to connect preamps independently to a mixer or an external power amp. The Speaker
Cabinet Simulation imitates the sound of the CELESTION Vintage 30 cabinet. The amp is also equipped with
a serial EFFECT LOOP.
Power output: 50 W / 4−8−16ohm
Power brake to 25Watt
Auto detection speakers impedance
2 channels: CLEAN and LEAD
FOOT SWITCH − channel CLEAN / channel LEAD
Clean controls:
BASS, MIDDLE, TREBLE, VOLUME
Lead controls:
DRIVE, BASS, MIDDLE, TREBLE, VOLUME
Serial effect loop
LINE OUTPUT with speaker simulation
Universal AC input range 90−260V/AC 50−60Hz
Dimensions: [H x W x D] 90 x 160 x 190 mm
Weight: 1,2kg
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
−
−
−

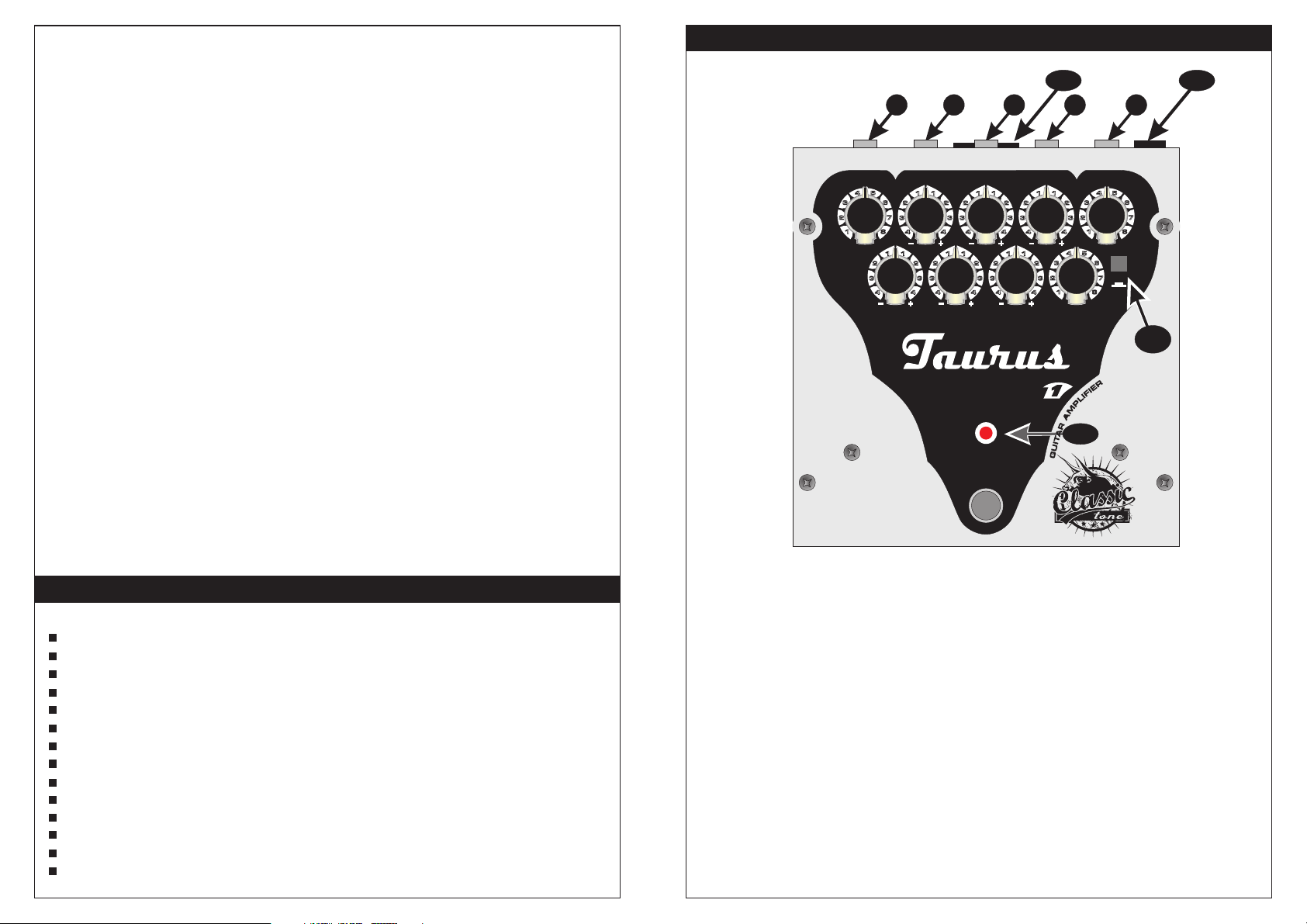

− LINE OUTPUT with speaker cabinet simulation
−
−
−
−
−
−
−
−
−
−
−
−
−
− A . Range: 90−260V / 50−60Hz
−
INPUT
Effect−loop SEND
Effect−loop RETURN / PA input
Speakers output / impedance: 4−8−16ohm [auto detect. impedance]
DRIVE control / LEAD channel
BASS control / LEAD channel
MIDDLE control / LEAD channel
TREBLE control / LEAD channel
VOLUME control / LEAD channel
BASS control / CLEAN channel
MIDDLE control / CLEAN channel
TREBLE control / CLEAN channel
VOLUME control / CLEAN channel
Power selector 50Watt/25Watt
LED indicator of the selected channel
C POWER input
POWER on/off switch
CLEAN / LEAD foot−switch
Signal can be lead in different ways: with simulation, without simulation or both − see Fig.A.
SPECIFICATIONS
123 4 5
DRIVE
INPUT SEND RETURN LINE OUT SPEAKER
4-16ohmEFX EFX
BASS TREBLE VOLUMEMIDDLE
54
3
2
1
6
7
8
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
BASS TREBLE VOLUME
MIDDLE
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
25W
C
H
A
N
N
E
L
Stomp-Head
50W
6 7 8 9 10
1413
12
11
18 19
16
17
15
100W/rms power stage INSIDE
