Taurus Stomp-Head 2.VT User manual

DESIGNED BY MUSICIANS FOR MUSICIANS
Box Electronics ul Cieszyńskiego 4, 81-88 Sopot Poland
tel [phone] tel/fax [phone]
e-mail [email protected] www.taurus-amp.pl
RoHS
PRECAUTIONS
Signal without speaker simulation
Stereo jackMono jack
Ground
Ground Fig.A
LINE−OUT wire connection
Signal with speaker simulation Signal with speaker simulation
EXTERNAL DEVICES CONNECTION
Amplifier produces high volume levels. Staying in places of high volume levels could cause
permanent hearing loss.
Do not use the amplifier in humid and dusty places.
Do not operate the amplifier through the unearthed socket.
Do not leave the amplifier in the vicinity of children.
Do not use the amplifier with broken power outlet or improper power cord.
Do not install nor use the amplifier near any heat sources, in case of overheating the
amplifier turns off Do not cover the vent holes!
In order to ensure proper air circulation, do not block any of the ventilation openings.
Never put any liquid containers near the amplifier.
In case of any objects or liquid access inside the amplifier, urgently switch the apparatus off
and unplug the power supply cord.
Protect the amplifier from any strikes.
ATTENTION: To reduce the risk of electrical shock, do not remove the back cover of the
amplifier. Inside parts can be repaired only by qualified service personnel.
WARNING: To prevent the risk of electrical shock do not expose this appliance to moisture,
rain or any liquid.
and will return to work after cooling the unit.
Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other
European countries with separate collection programs)
This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when
you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to
the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of
materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact
your local city office, household waste disposal service or the retail store where you purchased this product.
GUITAR AMPLIFIERS
MANUAL
Stomp-Head
2
Effect
IN
IN
OUT
OUT
Effect
Mixer
OUT
Mixer

The Stomp−Head 1.Vintage
MTD (Master Tube Design) technology.
is dedicated to supporters of single−purpose amplifiers and prefer a
vintage like type of sound.
The amp is based on a It is our own groundbreaking
technology which permits us to create powerful guitar amplifiers in very compact shapes. This technology
uses all the significant features of tubes which determine the warm, classic sound of guitar amps. We offer
players an amplifier with extremely light weight, very compact dimensions and powerful sound. The sound
characteristics and power of the amplifiers based on our MTD technology are equal to the classic tube amps
with the same power rating.
To abtain required parameters, the amplifier is driven by a much higher rated power amp. Even though
the power of the amplifier is set at 50Watts RMS, in reality the real power of the amp is 100 Watts.
The SH 1.VT is also equipped with a power selector allowing the player to use the amp in two different
power ratings of 50 and 25 Watts RMS. It is also designed to auto adjust itself to different speaker
impedance. The amp handles the speakers with 4, 8, and 16 Ohm of impedance.
The Stomp−Head 2.VT features a classic, three point EQ ( BASS, MIDDLE, TREBLE), PRESENCE, DRIVE and
REVERB. The amplifier is characterized by very smooth, warm sound with soft compression and long
sustain.
The Stomp−Head can also be used as a guitar preamp. LINE OUT with a Speaker Cabinet Simulation permits
the player to connect independently the preamps to a mixer or an external power amp. The Speaker
Cabinet Simulation imitates the sound of the CELESTION Vintage 30 cabinet. The amp is also equipped with
a serial EFFECT LOOP.

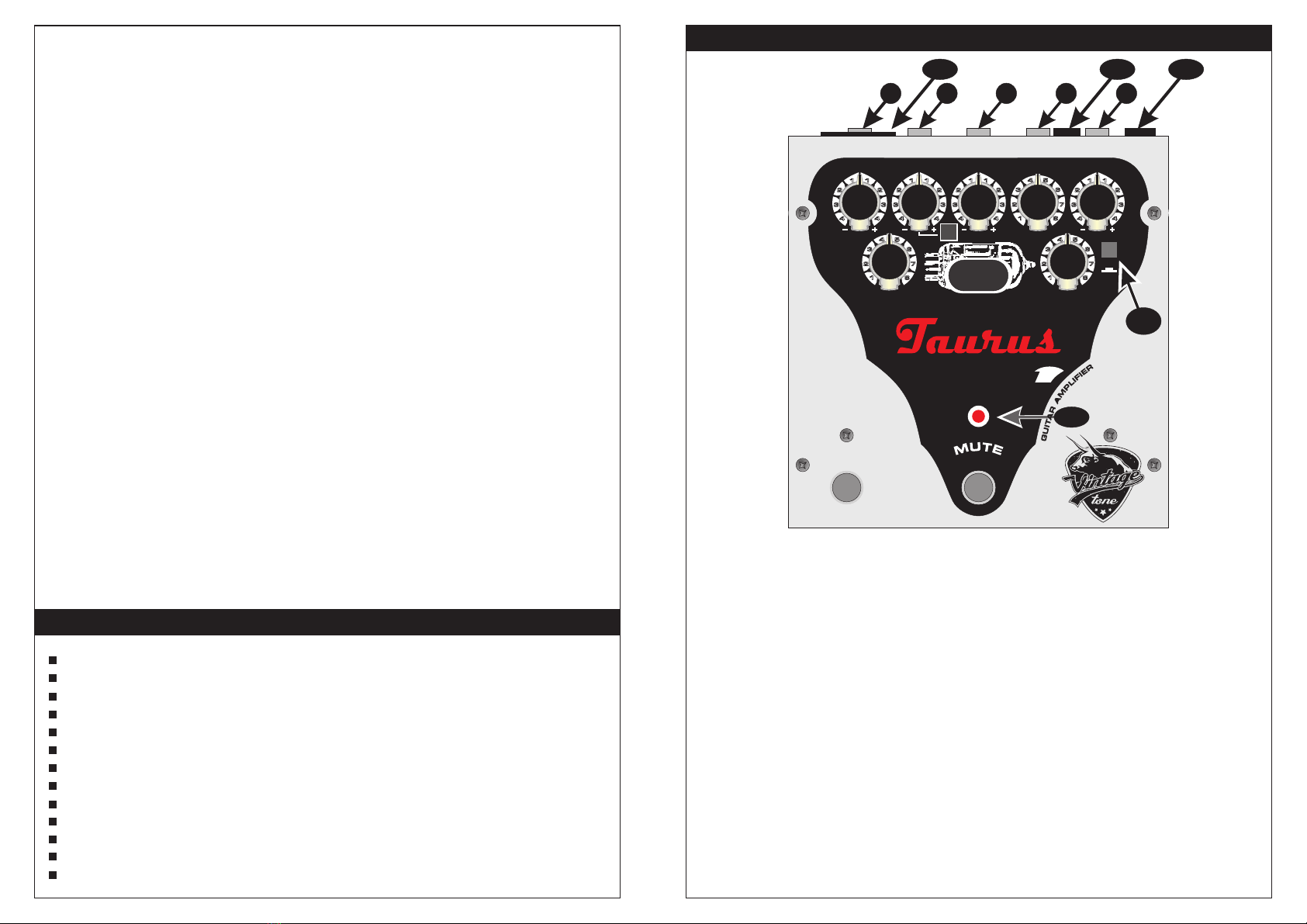

FRONT PANEL
SPECIFICATIONS
Power output: 50 W / 4−8−16ohm
Power brake to 25Watt
Auto detection speakers impedance
Tubes: 12AX7
1 channel
FOOT SWITCHES − MUTE and REVERB
Controls:
BASS, MIDDLE, TREBLE, PRESENCE, DRIVE, REVERB, VOLUME
Serial effect loop
LINE OUTPUT with speaker simulation
Universal AC input range 90−260V/AC 50−60Hz
Dimensions: [H x W x D] 90 x 160 x 190 mm
Weight: 1,3kg
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
−
−
−
− LINE OUTPUT with speaker cabinet simulation
−
−
−
− REVERB control
−
− DRIVE
− PRESENCE rol
−
− VOLUM
−
−
−
− REVER
− A . Range: 90−260V / 50−60Hz
−
−[20]
INPUT
Effect−loop SEND
Effect−loop RETURN / PA input
Speakers output / impedance: 4−8−16ohm [auto detect. impedance]
BASS control
MIDDLE control
TREBLE control
control
cont
REVERB control.
E control
Power selector: 50Watt/25Watt
LED indicator of the selected channel
MUTE
C POWER input
FUSE 2A
POWER on/off switch
foot−switch
foot−switch
Signal can be lead in different ways: with simulation, without simulation or both − see Fig.A.
.
DRIVE PRESENCE
INPUT SEND RETURN LINE OUT SPEAKER
4-16ohmEFX EFX
BASS
REVERB
TREBLEMIDDLE
54
3
2
1
6
7
8
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
11
2
3
4
2
3
4
VOLUME
54
3
2
1
6
7
8
54
3
2
1
6
7
8
25W
Stomp-Head
MASTER TUBE
DESIGN
RANGE
50W
123
8
45
18 19 20
6 7 9 1110
13 12
15
1617
14
100W/rms
power stage INSIDE
REVERB
2
