SERVICE MANUAL
MODEL: 21M62S
CHASSIS: M123SP

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous
1、

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.

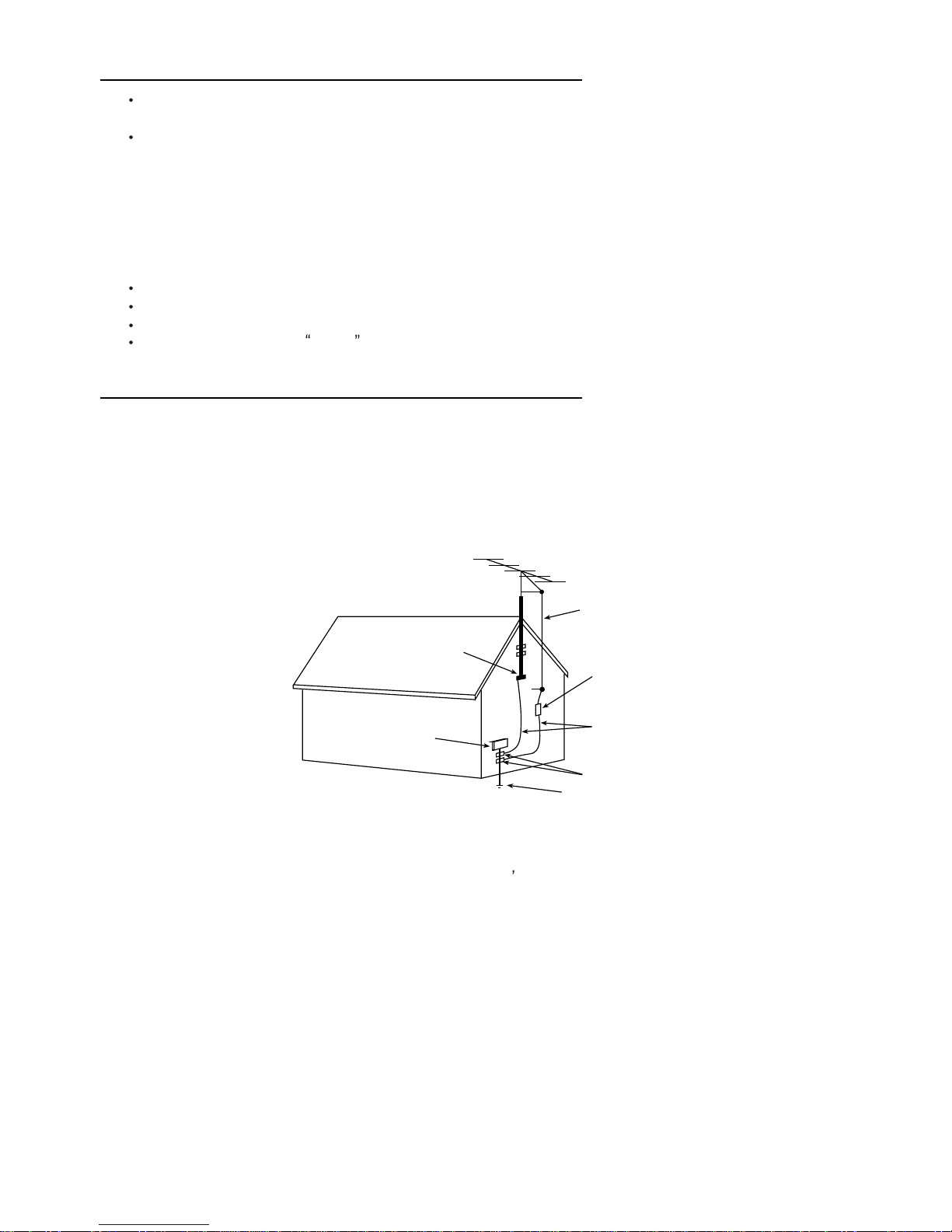

ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off

Model 机型
Item 内容
Master Data 主要数据
-Customer ID -顾客ID
-Destination -目的地 南美
-Brand -牌子
-BOM NO. -BOM号
-Assembling Way -走货方式 Unit
-Chassis -机芯号 M123SP
Reception 接收
-Tuning [Channels Amt.] -频道数量 181
-Tuning [Technology] -调谐技术 PLL
-Tuning [Indication] -搜台指示 ---------
-Frequency Bands -频率波段 Full-Cable
-IF Frequency -中频频率 45.75MHZ
-TV Systems (Color+ Sound) -TV制式 (彩色+声音)PAL-M,PAL-N,NTSC-M(3.58+4.5)
-AV Systems -AV制式 PAL,NTSC
Picture-Processing 图像处理
-SCAN -扫描方式 Standard
-Wide Screen Switching -宽屏幕转换
-Comb filter -梳状滤波器 X
-Picture Enhancement -图像提升
LTI / CTI 亮度/色度提升电路
Black Stretch 黑电平延伸 X
Blue Stretch 蓝电平延伸
Dynamic Skin 动态肤色
Others 其他 Blue mute
-Picture Control [General] -图像控制 [普通的]
Brightness 亮度 X
Sharpness 清晰度 X
Contrast 对比度 X
Tint 色调 X
Color 色度 X
-Picture Control [Special] -图像控制 [特殊的]
Smart Pictures * modes 几种图像美化模式 4
VM 速率调制
Color Temperature 色温 X
Others 其他
-Picture Noise Reduction -图像降噪
Picture – Display 图像显示
-CRT Type -CRT类型
Normal Flat 普平
Pure Flat 纯平 X
Super Flat 超平
-Deflection system -偏转系统
1Fh 1Fh X
2Fh 2Fh
-Tube Technology -显象管技术(具体看CRT规格书而定)
Iron 铁（材料）
AK AK钢
Inver 铟瓦钢
Black Matrix 黑色聚阵(关机后CRT屏幕颜色)X
Others 其他
-CRT Deflection ( * Deg.) -CRT偏转度（90，110...）90 degr
-CRT Magnetic Field -CRT磁场区域
-Screen Ratio -屏幕比率 4:3
-Screen Size / Vis. Size -屏幕尺寸/ 视觉尺寸 21"
Sound 声音
-Audio Power Consumption -伴音功耗 5W+5W
-Surround Sound -环绕立体声 Stereo wide
-Mono (TV) -单声道(TV)
-Mono (AV) -单声道(AV)
-Nicam -丽音
-America Stereo (MTS,BTSC,MPS) -美国立体声 X
Chassis: M123SP(南美)Page: 1 of 7
2、Specification
6
SOUTH AMERICA

TCL-Thomson Electronics R D Center (Shen’Zhen Lab)
Model 机型
Item 内容
-America SAP -美国SAP X
-Korea Stereo -韩国立体声
-Thai Bilingual -泰国双语
-Super Woofer -超重低音
-AVL -自动音量平衡
-Sound Control [General] -声音控制（普通的）
Volume 音量 X
Mute 静音 X
-Sound Control [Special] -声音控制（特殊的）
Treble 高音 X
Bass 低音 X
Balance 平衡 X
Equalizer 均衡
Smart Sound * modes 几种声音美化模式 4
Others 其他
-Speakers Quantity -喇叭数量 2
-Speakers Size -喇叭尺寸
User Interface 用户界面
-Menu Language -菜单语言 English, Portuguese, Spanish，french
-Features [General] -特点（普通的）
AT 音响电视
Auto Sleep 自动睡眠(是指X小时不操作电视,电视自动休眠)
AV Lock AV锁
Biological clock 生物钟
Calendar 日历 X
Clock 时钟 X
Channel Skip 频道跳跃
Channel Swap 频道互换(两个频道互换位置)
Channel Adjustment 频道互换(1个频道取代另一个)
Channel Naming 频道命名
Channel Lock 频道锁
Child Lock 童锁 X
Favorite Channel 喜爱频道 X
Game 游戏 X
Hotel Mode 宾馆模式
High Sensitive 超强接收
Notebook 记事簿 X
On/Off Timer 定时开/关机 X
Panel Lock 按键锁 X
Parent Guide 父母指导 X
Preset 频道预置(宾馆模式中，用户不可调)
Programe prearrange 节目预置（用户可调）
Recall 回看 X
Rotation 地磁校正(旋转)
Others 其他
-Features [Special] -特点(特殊的）
V-chip / CCD V-chip / CCD X
Teletext *Pages 图文
FM Radio FM收音机
Others 其他
Tuning Features 调谐特点
-Auto Channel Program -自动频道编排 X
-Auto/Manual Tuning -自动 / 手动搜台 X
-Auto/Manual Store -自动 / 手动存储 X
-Fine Tuning -微调 X
-Factory Mode -工厂模式 X
-Service Mode -维修模式 X
Cabinet 外壳
-Cabinet Name -外壳名称 21A71
-Front Cabinet Color -前壳颜色
-Middle Cabinet Color -中壳颜色
-Rear Cabinet Color -后壳颜色
Chassis: M123SP(南美)Page: 2 of 7
7

TCL-Thomson Electronics R D Center (Shen’Zhen Lab)
Model 机型
Item 内容
-Number of Local Control(incl.Mains) -本机控制按键孔数量(包括主开关)7
-Number of Indicator Control(incl.Mains) -本机指示灯数量(包括主开关上的灯)1
Local Controls Front -正面的控制孔数量
-Mains Switch 电源开关 X
-CH+ CH- VOL+ VOL- 频道+-，音量+-
-TV/AV TV / AV
-Menu 菜单
-Auto Search 自动搜台
Local Controls Top -顶部的控制孔数量
-CH+ CH- VOL+ VOL- 频道+-，音量+- X
-TV/AV TV / AV X
-Menu 菜单 X
-Auto Search 自动搜台
Local Controls Side -侧面的控制孔数量
-CH+ CH- VOL+ VOL- 频道+-，音量+-
-TV/AV TV / AV
-Menu 菜单
-Auto Search 自动搜台
Indicator -指示灯
-RC Received LED 遥控接收灯
-Color of RC Received LED 遥控接收灯颜色
-Standby LED 待机灯 X
-Color of Standby LED 待机灯颜色 RED
Remote Controller 遥控器
-Type -类型 R
-Batteries Type -电池 2XAA
Connectors Rear 后壳端子接口
-SCART Full (RGB) w/o Y/C 不含Y/C的SCART
-SCART Full with Y/C 含Y/C的SCART
-SCART Single (CVBS) -单SCART接口(CVBS)
-Component In (YCbCr) Cinch YUV X
-In Y/C+Cinch(CVBS+ Stereo) -In Y/C+Cinch(CVBS+ Stereo) X
-In Y/C+Cinch (CVBS+ Mono) -In Y/C+Cinch (CVBS+ Mono)
-In Cinch(CVBS+ Stereo) -In Cinch(CVBS+ Stereo) X
-In Cinch (CVBS+ Mono) -In Cinch (CVBS+ Mono)
-Out Cinch(CVBS+ Stereo) -Out Cinch(CVBS+ Stereo) X
-Out Cinch(CVBS+ Mono) -Out Cinch(CVBS+ Mono)
-Super Woofer -超重低音接口
-Digital Audio Out -数字音频输出
-Loudspeakers -外接喇叭口
-Control Busses -控制总线
-After Service Slot -售后维修口
-ITV Smart Port -ITV 通信端口
- Antenna in -天线输入端口
75 Ohms (IEC Type) 75 ohms (IEC类型） X
Connectors Front 正面端子接口
-In Y/C+Cinch(CVBS+ Stereo) -In Y/C+Cinch(CVBS+ Stereo)
-In Y/C+Cinch (CVBS+ Mono) -In Y/C+Cinch (CVBS+ Mono)
-In Cinch(CVBS+ Stereo) -In Cinch(CVBS+ Stereo)
-In Cinch (CVBS+ Mono) -In Cinch (CVBS+ Mono)
-Out Headphone -耳机输出端口
Mini-Jack 3.5mm 袖珍插孔 3.5mm
Connectors Side 侧面端子接口
-In Y/C+Cinch(CVBS+ Stereo) -In Y/C+Cinch(CVBS+ Stereo)
-In Y/C+Cinch (CVBS+ Mono) -In Y/C+Cinch (CVBS+ Mono)
-In Cinch(CVBS+ Stereo) -In Cinch(CVBS+ Stereo) X
-In Cinch (CVBS+ Mono) -In Cinch (CVBS+ Mono)
-Out Headphone -耳机输出端口
Mini-Jack 3.5mm 袖珍插孔 3.5mm
Final Equipment 出厂资料
-Packing –Methods -包装方法
* Colors Printing 几种颜色彩印
Chassis: M123SP(南美)Page: 3 of 7
8

TCL-Thomson Electronics R D Center (Shen’Zhen Lab)
Model 机型
Item 内容
Carton Color 纸箱颜色
-Documents and Manuals -文件和手册
Instruction Book 说明书 X
Screen Sticker 屏幕贴纸
Plastic Bag 塑料袋
Warranty Card 保修卡
Guarantee Doc. 保证书
Warning Label 警告标签 X
Approbation Label 认证标签
Others 其他
-Languages Instruction Book -说明书语言 English
-Indication on BACKOVER -后壳的标示
Made-in in family sheet 制造产地标签 X
FCC/Elect Shock Caution Label FCC/ Elect 小心警告标签
CE/Elect Shock Caution Label CE/ Elect 小心警告标签
Warning Label 警告标签
Others 其他
Approbation 认证
FCC FCC
FDA FDA
UL/CUL UL/CUL
CB CB X
VDE VDE
Others Others
Miscellaneous 其他的
-Mains Voltage -电源电压 100v-240v
-Mains Frequency -电源频率 50/60Hz
-Type Mains Cord -电源线类型
-Type Mains plug -电源插头类型
-Power Consumption TV in ON -开机功耗 Less than 80W
-Power Consumption TV in Standby -待机功耗 Less than 3W
Chassis: M123SP(南美)Page: 4 of 7
9

Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 4 of 13
Updated on 2006-07-29 Version 2.0
Table of Content
Ⅰ. SUMMARIZE...........................................................................................................................5
Ⅱ. ALIGNMENT CONTENTS：................................................................................................6
1.ADJUSTMENT OF B+ VOLTAGE................................................................................................ 6
2. RFAGCADJUSTMENT............................................................................................................ 6
3. SCREEN &FOCUS VOLTAGE ADJUSTMENT.............................................................................. 7
4. 1ADJUSTMENT OF SUB-CONTRAST,SUB-TINTAND SUB-COLOR FOR NSTCAND PAL SIGNAL
4. 2WHITE BALANCE ADJUSTMENT (NORMAL)................................................................... 8
5.ADJUSTMENT OF SUB-BRIGHTNESS ........................................................................................ 8
6. PICTURE GEOMETRIC ADJUSTMENT ........................................................................................ 8
7.X RAYS OVER VOLTAGE PROTECTING CIRCUIT TEST : .............................................................. 8
8. PS LINE POLARTITIES TEST : ................................................................................................... 9
9.PS POWER TEST (RANDOM TEST):........................................................................................... 9
10. HIGH VOLTAGE AND IB VALUE LIMIT TEST(RANDOM TEST )............................................... 10
11.HEATER VOLTAGE TEST (RANDOM TEST )............................................................................ 10
12. CCDAND VOL-CHIP FUNCTION TEST............................................................................... 10
13. INITIALIZATION .................................................................................................................. 10
14.EEPROM DATA：............................................................................................................. 10
3、Alignment Procedure
10

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 5 of 13
Updated on 2006-07-29 Version 2.0
M123SP Alignment Procedure
Ⅰ. Summarize
M123SP，is NTSC-PAL system model developed for TCL market specially. In trial run,
burn the software to TMPA8873PSNG IC by OTP method. After the trial run, make the
mask，please take care in production. To solve the probable problems in production, for the
workers participate in alignment, please be familiar with the Alignment Procedure, and be
master of the features.
There are 2 operation modes：user mode and factory mode. You can use the Remote
control or buttons on the panel to operate in user mode, but only Remote control works in
factory mode.
The way to enter factory mode：Press “D-MODE”button on RC，press“OK”and
“CH+”“ CH-”to select the parameter you want to adjust.，Press“VOL+”“ VOL-”to
change the parameters. To quit factory mode，press“D-MODE”button（on the right of
SURR button），the factory data changed will be memorized.
A few special modes：
Aging mode —used before the aging before alignment. The aging could start in
factory mode.
Vertical stop mode—used to confirm the screen voltage. Press “INPUT”button in
factory mode to enter Vertical stop mode. Then press “INPUT”
button again to exit.
White balance alignment mode—used for white balance auto alignment. Press“BUS
OFF”button near the left of MTS button to enter White balance
alignment mode.
Factory mode—. Press “SOUND”button in factory mode to initialize the set. The
screen displays“WAIT ”， after the initialization，the screen
displays “OK”，and exit the Factory mode automatically.
Then press “D-MODE”button again，it will not enable you to enter Factory mode if you
want to enter again，you need operate as follows：turn down the volume to 0 press“Volume
down”button on the panel，press“INFO”button on the RC meantime.
11

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 6 of 13
Updated on 2006-07-29 Version 2.0
Ⅱ. Alignment contents：
1. Adjustment of B+ voltage
Receive Philips standard testing pattern to RF input.
If the VR800 exists in the board, adjust it in STANDARD mode until voltage at following
value：
Model B+ (v)
M123SP 110±2.0
21E10 110±2.0
2. RF AGC adjustment
AGC Alignment Procedures:
1) Apply 8-scale gray signal (80dB), then adjust AGC data in D-mode to get the noise
picture ( snow picture) disappear exactly. Test Pin 1 of TU101 (IF output) and
record the voltage value as V1P-P.
<Illustrate as Picture A>
2) Apply 8-scale gray signal (80dB), and then adjust AGC data in D-mode until the
synchronization signal distortion appear exactly. Test Pin 1 of TU101 (IF output)
and record the voltage value as V2P-P. <Illustrate as Picture A>
3) Calculate the value of VP-P with the formula: VP-P＝(V2P-P×V1P-P)1/2
Apply 8-scale gray signal (80dB), test Pin 1 of TU101 (IF output), adjust AGC data
until the voltage of Pin 1 of TU101 VP-P＝(V2P-P×V1P-P)1/2。
4) Test three units according to 1)，2)，3) steps, and record the values of AGC in three
units. Take the average value as benchmark.
Remarks:
Comparing test is necessary due to different probe of Oscilloscope and different Test
Circuit (Picture A).
1) AGC voltage value should be tested afresh, due to the type/supplier of Tuner
or Saw filter changed, or other related components changed.
IN60
3P f
outpu
t
in
p
ut
100KIN60
(Picture A)
12

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 7 of 13
Updated on 2006-07-29 Version 2.0
3. Screen & Focus voltage adjustment
①Apply pattern signal in normal status, enter Factory mode，press“INPUT”button
to stop vertical scan. Note：(the RC/GC/BC is preset to be 40，GD/BD is 40）
Adjust the SCRREEN switch on the flyback transformer to make a horizontal shining②
line just visible on the screen.
Turn on the vertical output, adjust the “FOCUS” on the flyback transformer to obtain the③
optimum focus.
4. 1 Adjustment of Sub-contrast, Sub-tint and Sub-color for NSTC and PAL signal
(NORMAL)(Press KEY 5 in D-Mode)
1. connect the probe of Oscilloscope to the conjunction between R201 and P201 (B-out).
2. Apply the Grey-scale/Color-bar (NTSC signal) to the AV\TV input, in STANDARD status.
3. Select CNTC to adjust the contrast, until that the amplitude “A” is 2.0V P-P as shown below.
4. Select COLC to adjust the color by tuning the amplitude of “a” and “d” to the same.
5. Select TNTCV\T to adjust the tint by tuning the amplitude of “b” and “c” to the same.
6. Apply the Grey-scale/Color-bar (PAL signal) to the AV input, in STANDARD status.
7. Select COLP to adjust the sub-color by tuning the amplitude of “a”, “b”, “c” and “d” to the
same.
4.2 White balance adjustment (NORMAL)
1) Apply the black and white pattern in normal status;
2) Alignment of normal color temperature
① Change Color Temperature to normal status
② Use a color analyzer to measure the black side of the screen. By changing the value
of RC, GC and BC, set the reading of the color analyzer to standard, x=285+8,
y=294+8.
③ Use a color analyzer to measure the white side of the screen. By changing the value
of GD, BD, set the reading of the color analyzer to standard, x=285+8, y=294+8.
④ Separately set the brightness and contrast from min. to max., repeat the step 2 and 3
until the reading of the color analyzer is correct.
Note: Provided the production line is equipped with the self- White balance adjusting
A
a
b
c
d
13

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 8 of 13
Updated on 2006-07-29 Version 2.0
equipment, white balance can be adjusted automatically as following: Press “BUS OFF”
button under factory mode, the TV set will adjust automatically.
standard：
Warm X=310+8, Y=314+8
Cool X=278+8, Y=282+8
Remark:
1) Provided the production line is equipped with the self- White balance adjusting
equipment, white balance of M123SP chassis can be adjusted automatically as following:
Press “I2C BUS” button under factory mode, the TV set will adjust automatically.
2) Free-alignment of warm and cool temperature by presetting the value of RC-W,
GC-W, BC-W, GD-W, BD-W (for warm temperature) / RC-C,GC-C,BC-C,GD-C,BD-C(for
cool temperature ) into memory
5. Adjustment of Sub-brightness
Apply the Grey-scale/Color bar (NTSC signal) to the AV input, in normal status. Enter
factory alignment menu 8, Select BRTS to adjust the sub-brightness, until that the 2nd dark
bar of 8 level Grey scale just can be seen.
6. picture geometric adjustment
1. Apply the Philips standard testing pattern NTSC (PAL-N) in normal status, then
enter menu 3, adjusting the following data to get the min-distortion.
HPOS6(HPOS5)（Horizontal Center）
2. Apply the Philips standard testing pattern in normal status, then enter menu 2,
adjusting the following data to get the min-distortion.
HIGH6 (HIGH5) (Height)
VLIN6（VLIN5）(Linearity）
VSC6（VSC5）(Vertical-S Correction）
VCEN6（VCEN5）(Vertical Center）
7.X rays over voltage protecting circuit test :
TV enter working mode，apply more than 26V DC voltage between two ends of C431，
the set should enter protecting mode，or check X rays protecting circuit.
14

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 9 of 13
Updated on 2006-07-29 Version 2.0

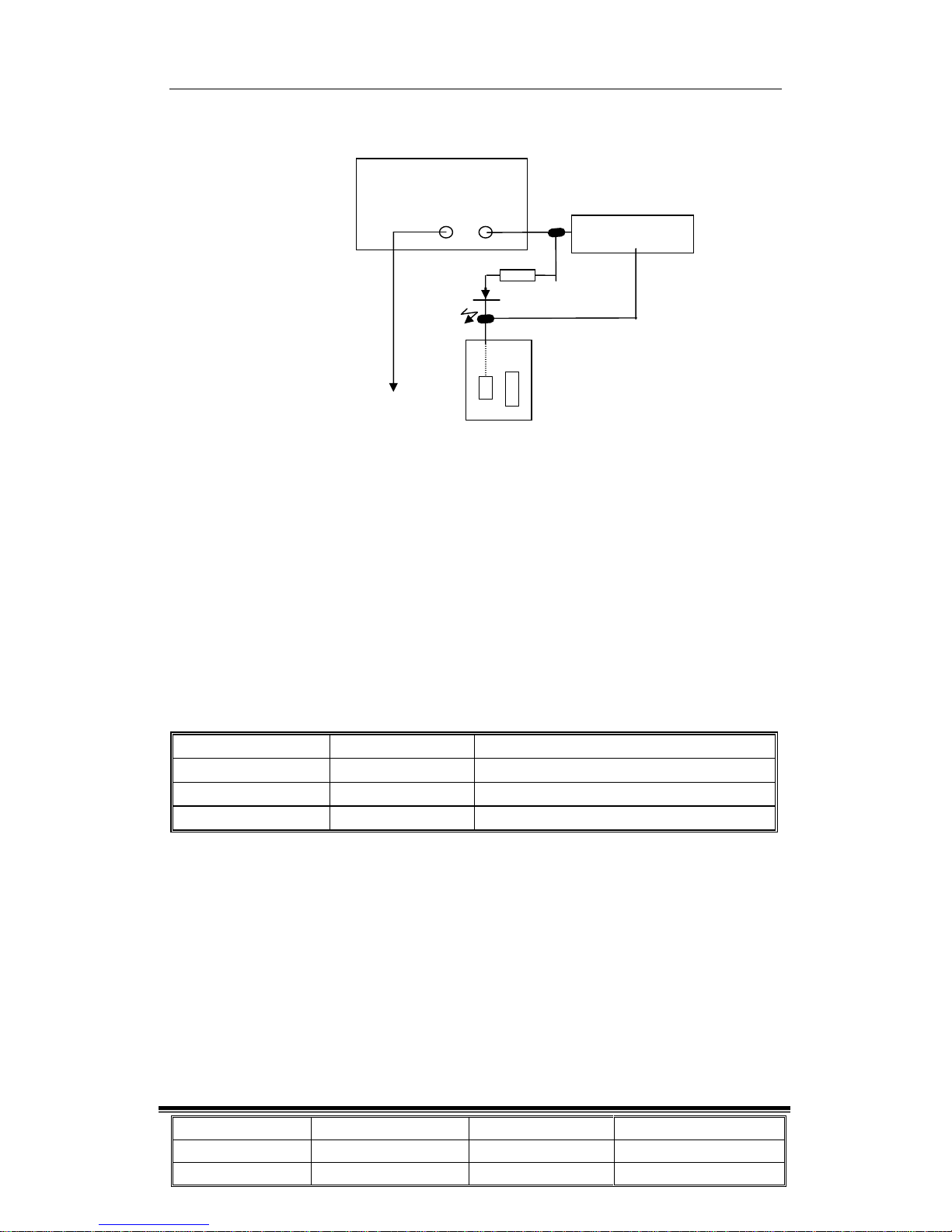

8. PS line polartities test :
Connect follow the graphic below：
DX 2.2k
PS socket M
TO F801
Plug the PS line onto the PS socket M, then touch any pin of F801 with the probe, the LED
DX will shine at the moment, with sound reminder, or it is disqualification.
9.PS power test (Random test) :
Instruments：Powermeter.
Input signal pattern：Color bar，Sound 1KHZ ，100% modulation.
Input signal intensity：≥60dBuv (1 Mv rms)
Test points：find the graphic below
Test means：Set the Brightness, CR to the highest, adjust the volume to make
the sound output to be 0.5W. Connect the power meter to test the
power consumption. Transfer the set to be standby, and test the
power consumption at the moment, which should meet the
requirements below：
Model Power
Standby power (110V～220V)
M123SP ≤80W <3W
M123SP ≤80W <3W
DC PS
9V
- +
Sound reminder
15

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 10 of 13
Updated on 2006-07-29 Version 2.0
10. High voltage and Ib value limit test( random test )
Instruments：High voltage meter，Ib meter.
Input signal pattern：White vertical
Input signal intensity：60dBuv (1 Mv rms)
Test means：Connect High voltage meter and Ib meter. Test voltage of different
Ib separately, It should meet the requirements below：
Anode high voltage (Kv)
21”
Model Ib, Ib scope
Value Diff.
Ib=50µA
Scope:
50µA&1200µA 28.0±2.5 <2
11.Heater voltage test ( random test )
Instruments ：RMS voltage meter
Input signal pattern ：Philips test graphic
Input signal intensity ：1 mVrms（60dBuV）to 50 mVrms
Connect the RMS voltage meter to the 2 ends of CRT glowers，test the heater voltage of
highest CR and Brightness, It should meet：6.3±0.3Vrms
12. CCD and VOL-CHIP function test
VOL-CHIP and CCD function test，please find the service manual in detail.
13. Initialization
Under the factory mode，press“SOUND”button，the screen displays“WAIT”,
when the screen displays “OK”, the initialization finished. You can enter the next
working procedure.
14.EEPROM DATA：
Note：the items with * are adjustable，the items with BLUE COLOR are work in CRT
parameter，other items are not，pls do not adjust them；
Use TMPA8873*SANG(13-PA8873-PSP),D-Mode\ G2_FLAG04 posit 00
Use TMPA8873*SBNG(13-PA8873-PSPB),D-Mode\ G2_FLAG04 posit 40
FAC 01
Data
Model RC*GC*BC*GD*BD*
南美 M123SP 40 40 40 40 40
20E10 40 40 40 40 40
FAC 02
Data
Model HIGH6* VP60 VLIN6*VSC6*VBLK6 VCEN6*
南美 M123SP 26 00 0E 19 00 2A
20E10 26 00 10 17 00 21
HIGH5* VP50 VLIN5*VSC5*VBLK5 VCEN5*
南美 M123SP 26 06 0B 17 00 2D
20E10 24 06 0B 16 00 24
16

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 11 of 13
Updated on 2006-07-29 Version 2.0
FAC 04
Data
Model CNTX CNTN BRTX BRTN COLX COLN TNTX TNTN
南美 M123SP 7F 10 20 1B 7F 0E 2C 30
20E10 7F 10 20 1B 7F 0E 2C 30
FAC 05
Data
Model BRTC COLC COLP SCOL SCNT CNTC TNTCT TNTCV
南美 M123SP 48 37 00 07 0F 36 45 3D
20E10 48 37 00 07 0F 45 45 3D
FAC 06
Data
Model ST3 SV3 SV4 SVD ASSH SHPX SHPN
南美 M123SP 1B 1B 1B 1B 07 1A 1A
20E10 1B 1B 1B 1B 07 1A 1A
FAC 07
Data
Model MOD1 MOD2 MOD3 OPT OPTM1 OPTM2 HDCNT HSTOP
南美 M123SP 60 F3 88 37 C2 83 09 FF
20E10 60 F1 88 37 C2 83 09 FF
FAC 08
Data
Model RFAGC*BRTS*OSD OSDF CCD OSD CCD OSDF TXCN RGCN
南美 M123SP 25 00 21 53 4A 65 10 09
20E10 25 00 21 53 4A 65 10 09
FAC 09
Data
Model V01 V05 V10 V25 V50 V75 V90 V100 VOLMAX
南美 M123SP 38 41 48 59 65 6A 6D 70 32
20E10 38 41 4B 63 6D D73 75 78 32
FAC 03
Data
Model HPOS6*HPOS5*
U
BLACK*
V
BLACK*STRAP F0SIF FREQ
STRAP
HL QG PIF FREQ
南美 M123SP 11 0D 08 08 08 06 00 02
20E10 11 0D 08 08 08 06 00 02
17

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 12 of 13
Updated on 2006-07-29 Version 2.0
FAC 10Data
Model CURTCEN VOLX PWTM MODE4 MODE5 MODE6 MODE7 MODE8 MODE9
南美 M123SP A5 7F 08
FF 7F 61 D7 2D CA
20E10 A5 7F 08
FF 7F 61 D7 2D CA
FAC 11
Data
Model CON1 CON2 CON3 STSADJ ALI 1 ALI 2 ALI3
南美 M123SP 06 06 02 00 0A 0A 03
20E10 06 06 02 00 0A 0A 03
FAC 12
Data
Model SVM SVM1 OSD2 OSDF2 PYNX PYNN PYXS PYNS
南美 M123SP 10 10 20 64 28 18 22 10
20E10 10 10 20 64 28 18 22 10
FAC 13
Data
Model CLTM CLVO CLVS ABL DCBS FLG0 FLG1
南美 M123SP 04 03 03 27 14 82 0C
20E10 04 03 03 27 14 82 0C
FAC 14
Data
Model HAFC AGCC NOIS ONTM NSHP PVLVL PLMT
南美 M123SP 09 1C 01 08 1A 80 80
20E10 09 1C 01 08 1A 80 80
FAC 15
Data
Model RC-C GC-C BC-C GD-C BD-C YUV-RC YUV-RC YUV-RC
南美 M123SP 10 0D 06 01 10 00 00 00
20E10 -- -- -- -- -- -- -- --
FAC 16
Data
Model RC-W GC-W BC-W GD-W BD-W YUV-RC YUV-RC
南美 M123SP 10 08 0D F3 E3 00 00
20E10 -- -- -- -- -- -- --
FAC 17
Data
Model D-COL D-BRI D-CON D-SHP
南美 M123SP 32 32 5A 32
20E10 32 32 5A 32
18

TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab)
Chassis Name M123SP 南美软件 Serial No.
Issued on 2006-04-29 Page 13 of 13
Updated on 2006-07-29 Version 2.0
FAC 21
Data
Model THEATER-BAS THEATER-TRECONCERT-BAS CONCERT-TRE BROCAST-BAS BROCAST-TRE
南美 M123SP 2D 4A 38 3E 19 2C
20E10 2D 4A 38 3E 19 2C
FAC 22
Data
Model VOL_MAI GATE VOL-OUT AV GAIN OPTM3
南美 M123SP 03 2A 75 2D 40
20E10 03 2A 75 2D 40
FAC 25
Data
Model G2_FLAG00 G2_FLAG01 G2_FLAG02 G2_FLAG03 G2_FLAG04 G2_FLAG05
南美 M123SP 30 06 00 02 40 00
20E10 30 06 00 02 40 00
FAC 18 FAC 19
Data
Model S-COL S-BRI S-CON S-SHP M-COL M-BRI M-CON M-SHP
南美 M123SP 32 32 32 32 32 32 1E 32
20E10 32 32 32 32 32 32 1E 32
FAC 20 Data
Model SEG-POINT1 SEG-POINT2 DATA-VL DATA-VH DATA-UF SPE-POS1 SPE-DATA1 SENSI-ON SENSI-OFF
南美 M123SP 173 407 01 02 08 06 05 00 00
20E10 173 407 01 02 08 06 05 00 00
19
