TCL L39F3300 User manual

4#,
3%26)#%-!.5!,
















/F30MS63F-LA
 #AUTION…………………………………………………………………………
 SPECIFICATION……………………………………………………………………………
  !LIGNMENT0ROCEDURE…………………………………………………………
ˊ"LOCKDIAGRAM…………………………………………………………………
ˊ3CHEME$IAGRAM ……………………………………………………………
 4ROUBLESHOOTING
………………………………………………………………
 "om list
………………………………………………………………




4HISM ANUALI ST HEL ATESTAT T HET IMEOF PR INTING ANDDOE S NOT
INCLUDETHEMODIFICATIONWHICHMAYBEMADEAFTERTHEPRINTINGBY
THECONSTANTIMPROVEMENTOFPRODUCT

CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FER SER VIC ING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
2

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Ar ticle 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

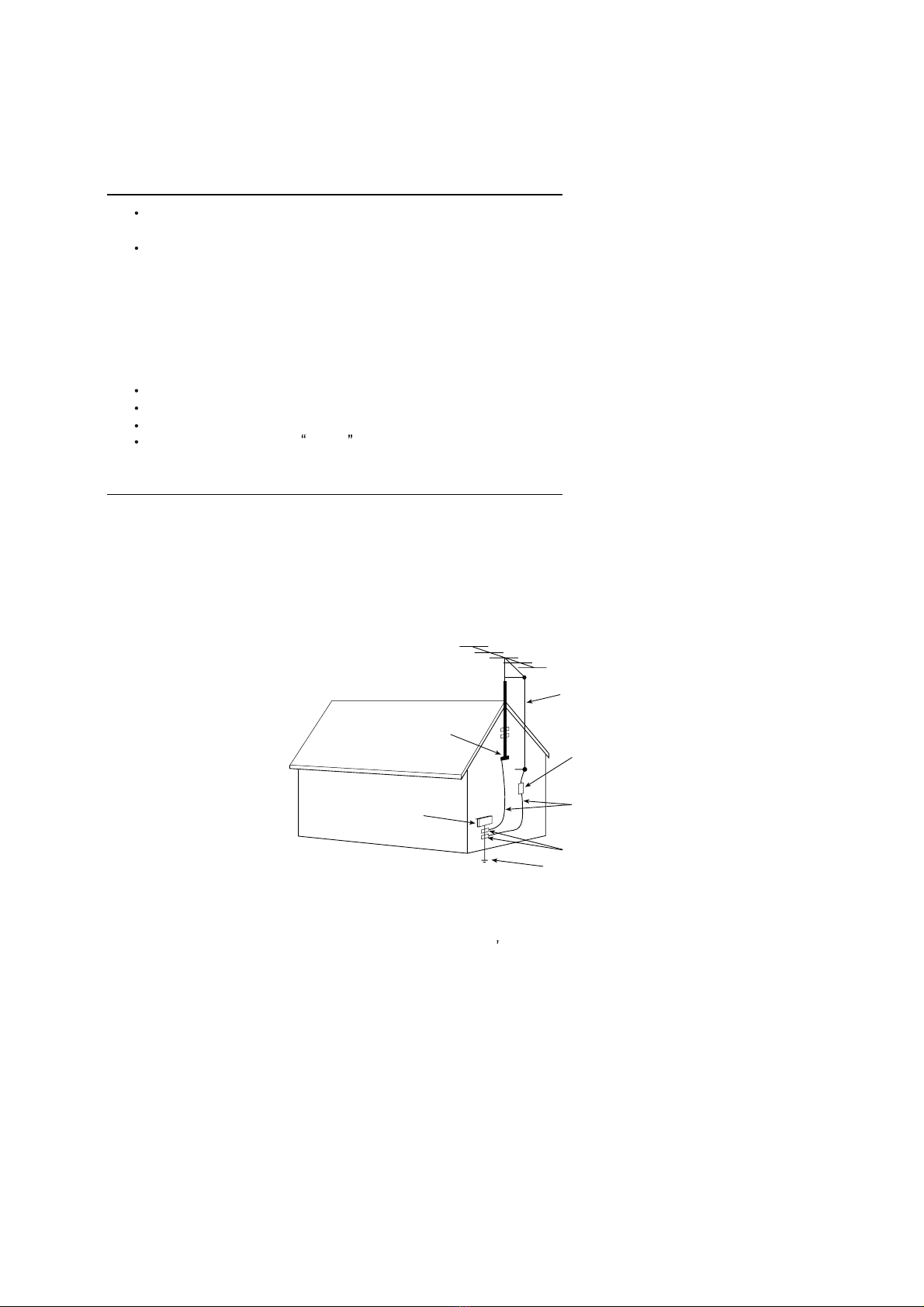

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restore normal operation by following the detailedprocedurein your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required, be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

EM BUSINESS CENTER
FTV PRODUCT PLANNING DEPT.
SPECIFICATION RELEASE
Version: V1.0 Issued Date: 2012.12.26
Panel Size (inch) 39'
Category LED TV(LED BACK LIGHT)
Aspect Ratio 16:9
Color Temperature Warm / Standard / Cold SIGNAL FORMAT CAPABILITY
Backlight Adjustable Yes Component Video Format Y,Pb/Cb,Pr/Cr:up to 720p,1080i,1080p @50Hz/60Hz
Scaler Mode Auto, 4:3, Cineme,Subtitle,Full Screen DVI Video Format Up to XGA for HDMI-PC
Picture Effect StandardˈVividˈsoftˈUserˈHDMI Video Format Up to 720p,1080i,1080P
Picture Enhancement PC Compatibility VGA: up to UXGA@60Hz
Comb Filter 3D TERMINALS
Core Technology High-quality scaling engine & 3-D video de-interlacer Audio/CVBS Input (Composite) 2 R/L+2 Video: AV1, AV2(Bottom)
MstarACE Yes YPbPr Input 1
Motion Compensation Yes Audio Input for YPbPr 1˄Share with AV1˅
DLTI Yes YCbCr Input Share with "YPbPr"
DCTI Yes Audio Input for YCbCr Share with Audio for "YPbPr"
Dynamic Skin Tone Correction Yes VGA Input(RGB) 1 (D-Sub,15 Pins)
DNR Yes Audio Input for RGB 1˄Share with AV2˅
Panel Specification DVI VKDUHZLWK³+'0,´SRUW
Panel supplier CMI LAN 1
Display Resolution 1920*1080 HDMI 1.3+CEC 3
Brightness (cd/m2) 300 Audio/CVBS Output (Composite) 1(R/L+CVBS)
Contrast Ratio 3000:1 SPDIF 1 (Coaxial)
Response Time 8ms (G to G) RF Input 2 (Antenna, Cable)
Viewing Angle (H/V) 178°/178° USB 2.0 2
Life Time 50000hrs Earphone 1
Color 16.7M (8 bit) Basic Info.
SOUND TV System ATV:NTSC PAL/M PAL/N DTV:ISDB-T
Speakers Integrated speakers (Bottom side) AV System PAL,NTSC
Audio Power Output 8W*2 TV Channels (Analog) Cable (1125), Antenna (269)
Sound Processing BTSC (SAP, Stereo, Mono) TV Channels (Digital) Antenna (769)
Dolby Virtual Surround MS10(DD+,DP) Chassis MS63F-LA
AVC (Auto Volume Control) Yes Certification CB
SRS Yes Power Supply AC 100V-240V 50/60Hz
Sound Features MTS, AVC, Equalizer, Surround Power Consumption-TV on 90W
Sound Control Volume, Balance, Power Consumption-Standby Less than 0.5W
Function Default Color of Front Cabinet BLACK
Subtitle Yes Keyboard Position Side
Clock/Timers Yes Base Stand Detachable Yes
Parent Lock Yes Unpackaged Dimension for Main Body (L*H*D) (mm)
OSD Language English/Portuguese With Base Stand (mm) 889.0×231.0×586.3
OSD Features Semi-transparent Without Base Stand (mm) 889.0×91.5×529.2
HDMI CEC Yes Packaged Dimension (L*H*D)
USB Connection Yes Main Body (mm) 1108*200*660
Demo Function Yes Base Stand Packaged with Main Body
GINGA Yes Net Weight (Kg) 12
Picture Freeze Yes Gross Weight (Kg) 13.5
IPTV FEATURE Container Loading
Browser Opera 2.0 20 feet 180
NETFLIX NETFLIX3.1.4 40 feet 366
YouTube V3 40 feet high 488
Terra TV Yes ACCESSORIES
DLNA DLAN DMP 1.5 Operation Manual English(Default)
Wi-Fi IEEE Standards 802.11 g/n Remote Control For TV control (with two batteries)
Software Upgrade HUAN Base Stand Packaged with Main Body
Social Network Facebook & Twitter Speaker Box Integrated
Online Picture/Album Picasa Wall Mount WMB 331
USB Dongle Yes(TP-LINK)
Others AC Power cord,AV Adapter cable
Design and specifications are subject to change without notice! Page 1 of 1
Approved by:
Model: L39F3300F/MS63F-LA/LVF390CMTM E20
Drafted by:jiang yang 2012-12-26

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 1 of 18
TCL World-Wide R&D
FPD CENTER
Factory Test & Alignment Specification
(FTAS)
for MS63F-LA Series
Version 0.10
PREPARED BY : Jianwei Li DATE : 2012-09-12
APPROVED BY : _____ DATE:

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 2 of 18
Disclosure
The information contained in this document is proprietary to TCL SZ FPD lab and shall
not be disclosed by the recipient to third persons without the written permission of the
team leader or GM of R&D.
Revision History
Version Issue Date Description of changes
v0.10 2012-8-12 This is the draft version of normal SIACP
·HDMI as the main absolute input
·The password of factory menu is 9735

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 3 of 18
These chassis are designed for Latin America(LA) markets Ready for IPTV. The main chip is from
Mstar and supports below features matrix:
Class Item MS63F-LA
Inputs
&
Outputs
ATV
( PAL M/PAN N/ NTSC) CABLE&ANTENNA
DTV
(ISDB-T) ANTENNA
HDMI
(480i/p, 576i/p, 720p up to 1080i/p, compliant v1.4
with HDCP)
3
VGA 1
VGA/DVI audio 1
CMP
(YPrPb can support from 480i up to 1080p,audio) 1
AV 1
(CVBS ,audio) 1
Side AV
(CVBS,audio) 1
AV OU T 1
USB thumb drive 2
- Picture,Video,Audio Playback
- Hub, Mouse, Keyboard rd
Headphone output 1
SPDIF output Optical
Functions
OAD •
WIFI Ready USB Dongle accessory
(IEEE 802.11 b/g/n)
DIVX •
DLNA (DMP) •
Internet Opera
3D (auto, top & bottom, side by side, frame
sequencing, …)
1920x2205@24Hz (1920x1080p x2)
1280x1470@50Hz (1280x720p x2)
1280x1470@60Hz (1280x720p x2)
Passive Glasses
Audio Return Channel (ARC) •
Serial connector N/A
Others
VGA connector P508
I2C connector of MEMC module N/A
Main SW Serial NAND Flash
BIN image
U301
V8-6328L01-LF1Rxxx
IC Details
&
Position
Main EEPROM
U302
VGA connector pinout:
VGA/P508 Pin4:RXD VGA Pin11:TXD

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 4 of 18
INFO:
ªAll tests and measurements mentioned hereafter have to be carried out at a normal mains voltage
(220 ~ 240 VAC)
ªAll voltages have to be measured with respect to ground, unless otherwise stated
ªAll final tests have to be done on a complete set including LCD panel in a room with temperature of
25+/-7°C
ªThe Picture Performance assessment such as White Balance (luminance and color temperature)
has to be performed into subdued lighted room after at least 45min of warm-up in order to avoid any
temperature drift influence (colorimetry vs time)
1. PCB/SKD Assembly: Test & Alignment
1.1. Pre-Conditions and DC/DC Check
Before power-on, please check the board according to the relevant block diagram and circuit
diagram, and make sure that no serious issue or mistake can destroy the board. For example, the
output of DC/DC and LDO should not be shorted to ground.
Supply a suited voltage and power-on, then check the voltage according to the relevant block
diagram, circuit diagram and voltage spec . the error should less than 5% .For example, the voltage
for main chip(+3V3, AV3.3, +1V2, CORE1V2, etc.), the voltage for DDR (DDRV) , the voltage for
amplifier (AMP_VCC), etc...
Position Value Remark
U200(U200A) 3.3V ±5% 3V3
U201 2.5V ±5% 2V5
U202 1.5V ±5% 1V5
U203 1.2V ±5% 1V2
U204 5V ±5% 5V
U205 12V ±5% 12V
U208 1.2V ±5% DEMO_1V2
U209 3.3V ±5% TU_3V3
Here enclosed circuit diagram:
'?⭥䐟മ?06?
06/$0$&+*
1.2. SW Image download
Download the latest release SW from below FTP server:
- Link: http://sw.tcl-cctv.com
- Username: TCL_HW_MS6328
- Password: to be requested!

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 5 of 18
In case of starting from blanked flash, it’s necessary to write first “V8-6328L01-LB1Rxxx” file.
Then, following files need to be written down:
- “MS6328LA_FULL_UPGRADE.bin”

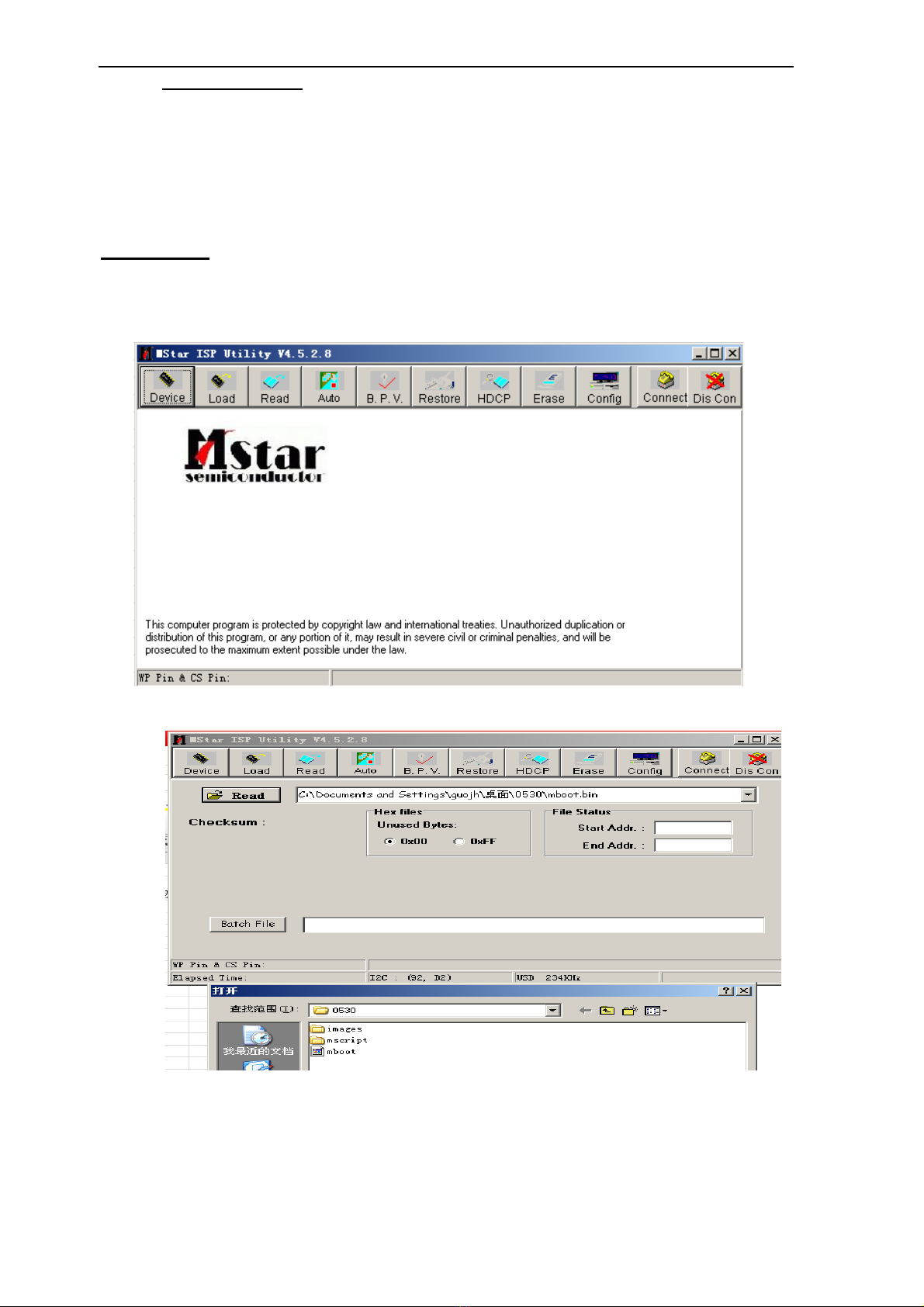

See Appendix n“How to upgrade FLASH SW using Mstar tool”

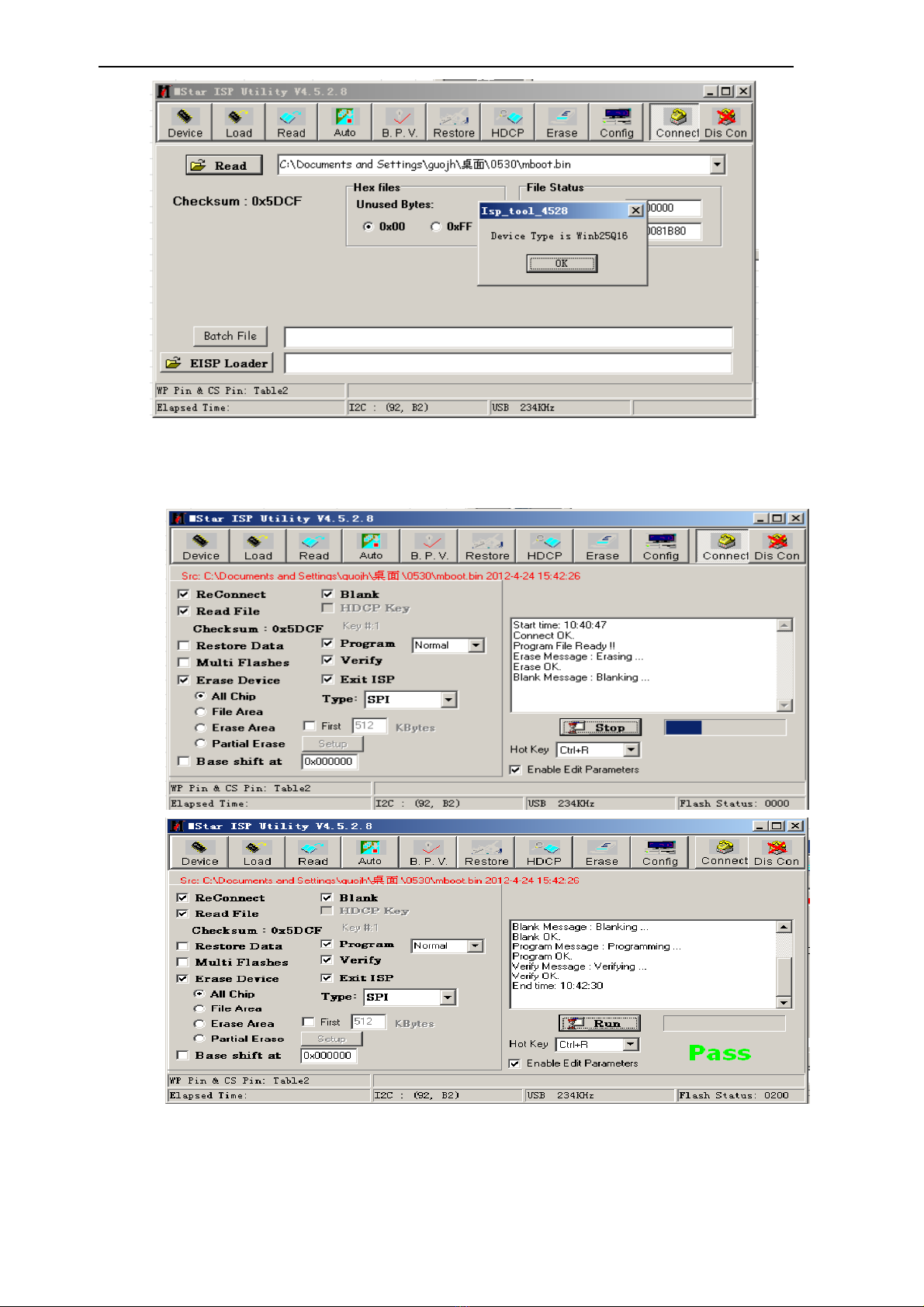

See Appendix o“How to upgrade FLASH SW using USB”
1.3. Project ID Modification
There are different IDs stored into the NVM depending on different Panels settings and Models
features, but there’s only one key branching ProjectID that includes all. So, it’s not recommended to
modify Panel ID with Hyper terminal as other ID features may not change!
To modify Project ID, you need to go through “Design menu
Æ
Service menu
Æ
Project ID”, then
spin left or right with RCU “Zoom±” keys to suitable ID (Project name is dynamically refreshed).
See Appendix p“How to change Project ID with RCU”
Here below is none exhaustive ProjectID table for reference:
MODEL ProjectID Panel Name
L32E5300 001
L46E5300F 002
L42E5300F 003
L42D4330F3D 004
L39E5300F/CMI 005
L39E5300F/AUO…006…
1.4. Functional Test
Once the boards (chassis, KB, IR, PSU…) and the panel are well interconnected, plug all
external generator devices to relevant inputs/outputs below according to their respective test patterns
format and check picture content and sound quality accordingly:
Source Test Signal Test Pattern
Analog /Digital Tuner
(VHF/UHF & CATV) RF cable generator
2D - Movie 1280x720
2D - Static Picture 1920x1080
1. Frequency Range: full band
2. Standard: NTSC /PAL M
3. ISDB-T
SPDIF (optical) Audio Amplifier PCM or Dolby D+
AV 1 I N
(CVBS & AUDIO)
Chroma/Fluke
generator PAL Half Color & Gray bars
AV 2 I N
(CVBS &AUDIO)
Chroma/Fluke
generator
PAL Half Color & Gray bars 720x576
Half Color & Gray bars
VGA Chroma/QuantumData UXGA - 1600x1200@60Hz

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 6 of 18
(VGA&AUDIO) generator Half Color & Gray bars
CMP via mini jack adaptor
(YPrPb & Audio)
Chroma/QuantumData
generator
1920x1080i@60Hz
Half Color & Gray bars
HDMI
(Video & Audio)
with beyond HDMI 1.3
and HDCP compliant
DVD/BD player
2D - Movie 1280x720i@60Hz
3D - Movie 1920x1080@p24Hz
RJ45
(LAN) DHCP Server ICMP packets echo request
Headphone via mini jack adapter RF signal Suitable channel
Loud Speakers / Enclosures RF signal Suitable channel
AV OUT
(Video & Audio) RF signal Suitable channel
Audio tones can be defined by the factory (ie: 1KHz & 3KHz, sweep, …).
Picture video formats can be changed by the factory according to their own standard.
Remark˖1.CMP Audio in shared with AV1.
2.VGA Audio in shared with AV2.
1.5. AD Calibration Test
As SoC as built-in A/D self-calibration mechanism, there’s not any ADC to perform.
1.6. DDC & EDID & T-Link Test
The E-EDID data structures are according to VESA Enhanced EDID 1.3 (and EIA/CEA-861B for
HDMI). CEA Timing Extension structure has been extended to support all 3D capable timings.
All VGA and HDMI structures have their own BIN profile which are part of main SW and uploaded
at power-on into HDMI switch chipset:
For EDID check, it’s needed to check whether the correct EDID is downloaded by checking
corresponding EDID NVM Checksum or read them out to check bit by bit if it is in line with the
released EDID bin file.
1.7. HDCP Test
For HDCP compliancy, it’s needed to check whether the HDCP key has been well set.
1.8. LAN/WLAN Test (MAC address and Device/User ID codes)
MAC Address Upgrade
See Appendix s“How to upgrade MAC Address
DeviceID (DID) and UserID (UID)
Purpose is to allow Other Newtork Download (OND) and further specific Services over dedicated
portal based on UK.
Description/Portal Links/Flow chart are welcome ?
For such, specific DID (32 bytes) and UID (8 bytes) needs to be paired and overwritten into

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 7 of 18
memory for internal client encryption.
Here are below codes examples:
Device ID User ID
BE4F255BBD106BC8F806AE456350D91F 3546187
Those DID/UID codes can only be set using UART commands following enclosed SIACP
requirements (rev. v3.9).
SIACP v3.9
(EN_20110613).pdf
See Appendix u“,QVWUXFWLRQVRI8pdating DID,UID and MAC”
LAN Test
A rough LAN test can be done by connecting DHCP server to TV’s RJ45 and check that IP,
subnet mask, DNS addresses, … are visible on “User menuÆ
Æ
SettingÆ
Æ
Network
SettingÆ
Æ
Cabal NetworkÆ
Æ
OK” (ensure that “Internet Connection” is Enabled at first).
More in-depth test can be performed faster using suitable UART/IR commands following SIACP
requirements. SW will internally manage Network ID (NID) flag controlling all MAC/DID/UID
integrity to facilitate PA screening further.
Note: It’s not necessary to check video and audio from DLNA server.
See Appendix v
v
“NETWORK CONNECTION AND TEST”
2. Product Assembly (PA): Test & Alignment
2.1. Factory Menu
Follow the below steps to pop-up the Factory menu in case of “FactoryKey” is disabled:
- Press RCU “MENU” key to display main menu
- Select “Setting” and press “OK” key to enter into Setting submenu
- Select “Picture” and press “OK” key to enter into Picture submenu
- Scroll down to “Contrast” item
- Press the subsequence RCU keys “9”, “7”, “3” and “5”
In case of “FactoryKey” is enabled, just press RCU “Return” key to pop-up again the Factory
menu.
The status of “Factory Key” can be changed in Factory Menu->Hotkey.
Press RCU “OK” key or “RIGHT” key to enter the submenu.
Press RCU “Menu” key to go back to the root menu.
Press RCU “RIGHT”or “LEFT” key to change the values.
Press RCU “OK” key run the function.

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 8 of 18
Press RCU “Exit” key exit the Factory menu.

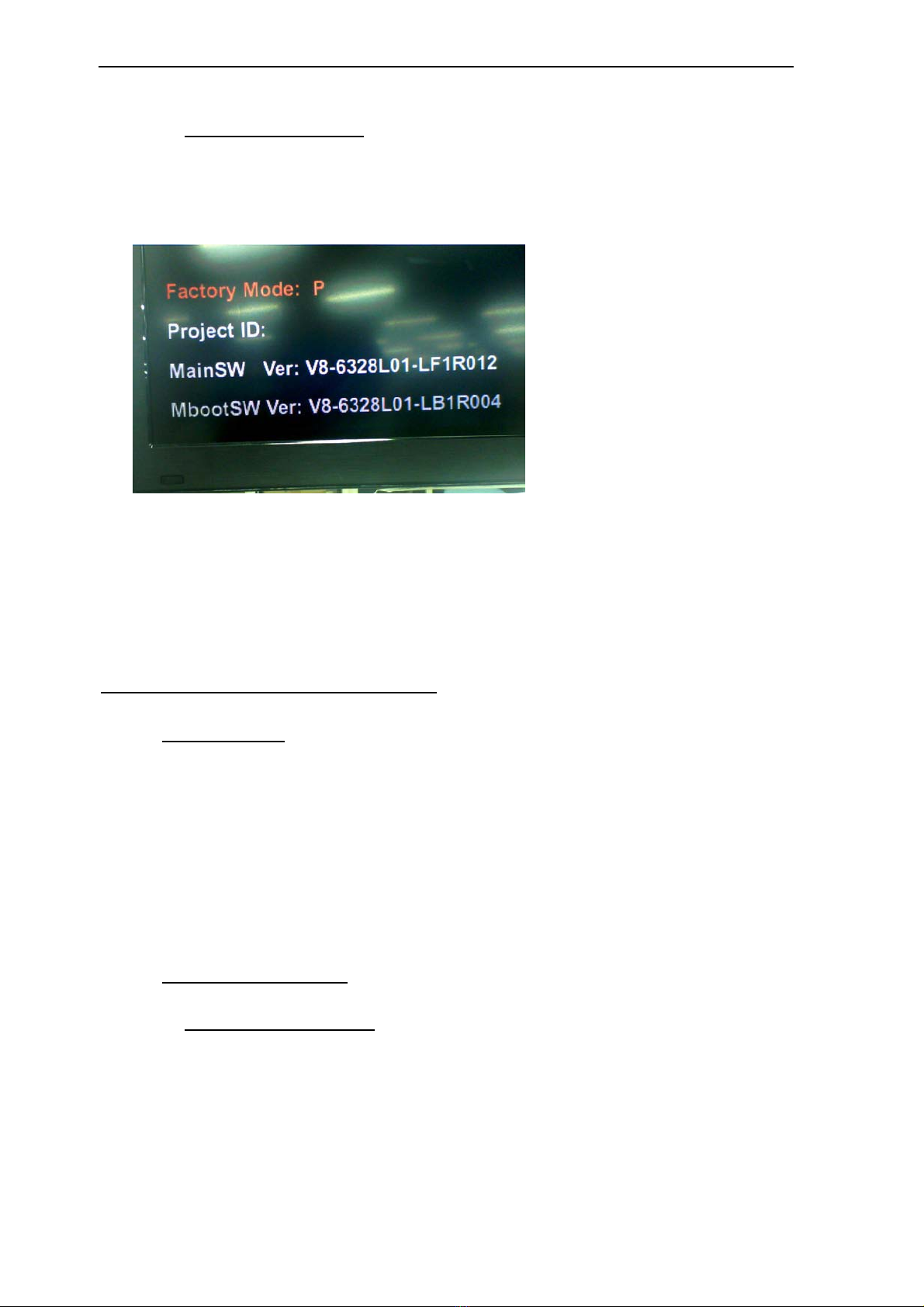

Factory Captions Info.
While “FactoryKey” is enabled, there’re some toggled display informations relative to SW,
ProjectID, ADC Status, to facilitate 100% quick screening without accessing to whatever else
menu:
ÎMboot SW Version
ÎMain SW Version
ÎProject ID
ÎP(Production/Factory mode flag) / S(Factory UART
Parser mode flag) / W(Warm-Up mode flag)
See Appendix
t
“Factory Menu Description”
2.2. Warm-up Test
Following TCL standard and practices, it’s required minimum 15min of Warm-Up that can be
considered as Burn-In.
Additional Aging for White Balance alignment is no more necessary due to consistent Picture
Performance with Cloning usage.
This function is accessible by selecting “Factory menu
Æ
WARM-UP”, pressing RCU “Zoom+”
key and then leaving Factory menu. Other faster methods are available on above enclosed
SIACP requirements (rev. v3.9).
2.3. White Balance (WB)
White Balance Touch-Up
As some color coordinates discrepancies can be noticed from panel batches to others, it may
necessary to perform slight touch-up.

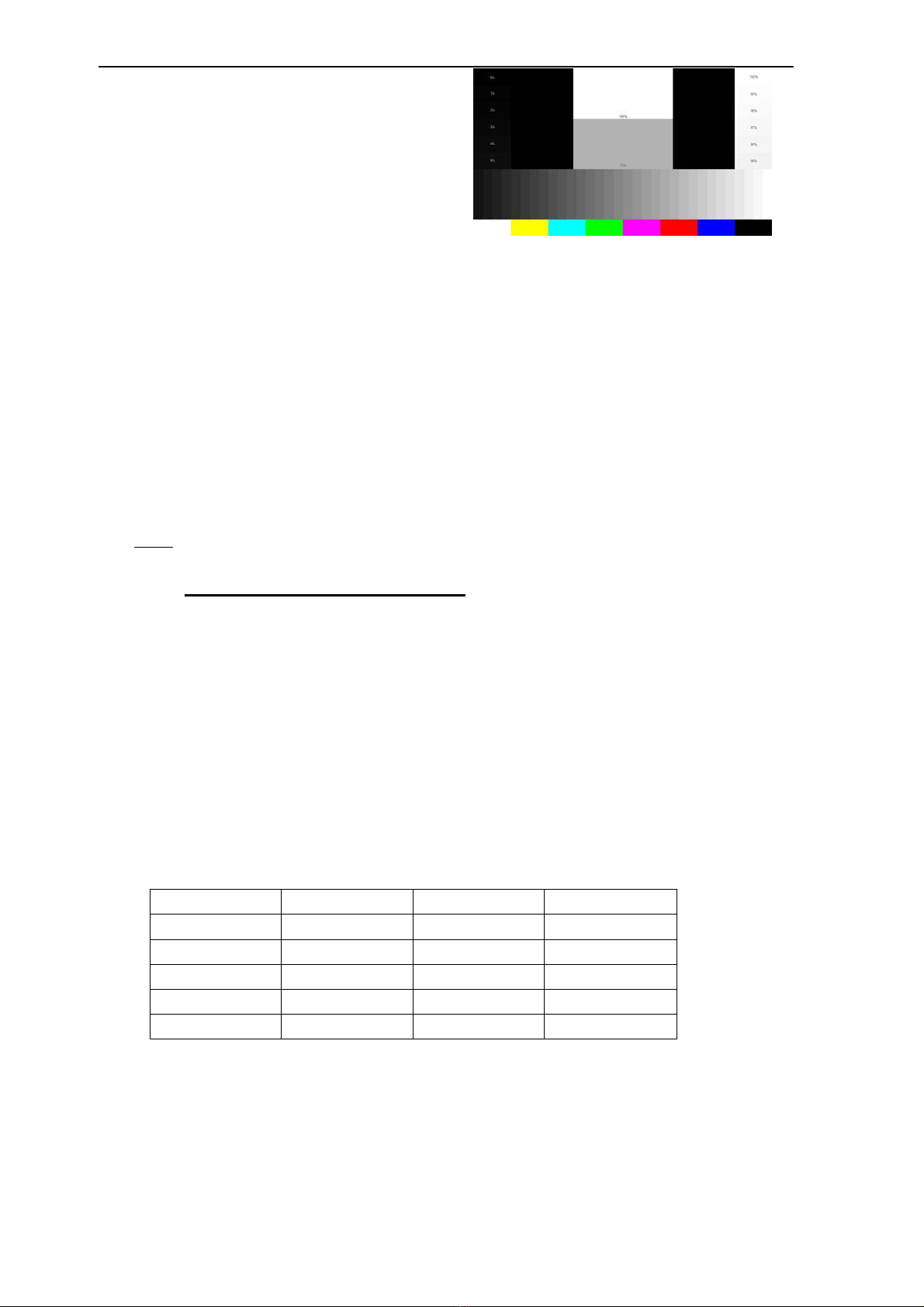

For Color temperature adjustment, switch TV on leading HDMI input where should be connected
suitable generator providing following format 1280x720p@60Hz test pattern. A 32 steps grey scale is
recommended to assess relevant colorimetry tracking and low/high light saturation points.

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 9 of 18
Make sure that Picture Preset is set to “VIVID” mode, “Contrast” bargraph is set to maximum
(100%) and “Active BackLight” is set to “Off”.
Ensure that TV is in Factory mode to access to ”White Balance” adjustment submenu, then
scroll down to toggle off “Pic. Enhance” flag.
PC VGA, CMP YPrPb, RGB,CVBS_PAL Gain/Offset matrix offsets locations are relative to
HDMI/DTV.
CVBS_SECAM and CVBS_NTSC Gain/Offset matrix offsets locations are relative to
CVBS_PAL.
Warm and Cool Tone are relatives to Normal mode.
¾“Gain” registers set need to be adjusted at 70IRE.
¾“Offsets” registers set can be adjusted at 30IRE, but it’s not recommended to keep them
defaulted.
Note: All matrix offsets locations can be individually fine-tuned.
Targets and Tolerances for all inputs
The measured parameters should be mainly “x”, “y” coordinates.
The “Y” peak luminance measurement at 100IRE is depending on achievable panel
performance and less important than saturation on high light. If necessary, “Scaling Contrast”
register can be adjusted.
The “BlackLevel” measurement need to be within 1% ±2. If necessary, “Scaling Brightness”
register can be adjusted.
The White Balance alignment should be performed using a well calibrated and contact less
analyzer (ex: Minolta CA210 or CA310). The analyzer may not touch the screen surface, and
measurement must be performed in a dark environment keeping the probe(s) at 90+/-2° from the
panel center.
The result should fulfill TCL matching specification (Minolta CA310 reference with CH00):
MODEL COOL(x/y) NORMAL(x/y) WARM(x/y)
L32E5300 275/280 280/290 302/307
L42E5300F 270/280 282/297 302/307
L46E5300F 270/280 280/295 302/307
……
……
within below tolerances:
¾for Alignment: ± 0.003
¾for Measurement: ± 0.015

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 10 of 18
2.4. SHOP-END Test
At final process stage, it’s necessary to perform “Reset shop” before any packing to leave
Factory mode and restore User default presets.
This function is accessible by selecting “Factory menu
Æ
SHOP init”, then pressing RCU “OK”
key. Other faster methods are available on above enclosed SIACP requirements (rev. v3.9).
Appendix n“How to upgrade SW FLASH using Mstar tool”
¾Open Mstar “Mboot” software programming tool “ISP_Tool_4528”
¾Click on “Read”,and select “mboot.bin”file
¾
¾Then click “Connect”,it will check SPI FLASH’s tape----correct,it will display OK.

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 11 of 18
¾Next,click on “Auto” menu,then click “Run”,it begin programming “Mboot.bin”,when
programming success,it will display a word “Pass”.
¾
¾

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 12 of 18
Appendix o“How to upgrade FLASH SW using USB”
There are two methods to upgrade SW using USB,the first one like below˖
¾In the previous of upgrade SW using USB,should program mboot bin file”
V8-6328L01-LF1Rxxxbin” by ISP_Tool .
¾Then switch off TV by removing AC cord.
¾Copy the SW BIN image “MS6328LA_FULL_UPGRADE.bin” into USB stick (pen drive)
root path
Note:
¾Plug USB stick to the TV
If there’s already other “MS6328LA_FULL_UPGRADE.bin” into USB root, it needs
to be deleted or renamed
¾Press and hold the power key of key board before reconnect AC cord to restart TV for
5-8seconds.
¾Once USB stick starts blinking, TV is uploading SW BIN image.
¾When update is successful, TV should restart automatically.
¾Remember to perform “Factory menu
Æ
NVM reset“and then press RCU “OK” key
¾Switch off TV by removing AC cord
¾Reconnect AC cord to restart TV and wait few seconds for Eeprom update
The second method ˖
¾To use this method,there should be SW in mainboard to ensure TV can display normally.
¾Copy the SW BIN image “V8-6328L01-LF1RXXX.bin” into USB stick (pen drive) root
path
¾Press RCU MENU
Æ
Setting
Æ
Function
Æ
software upgrade
Æ
OK
Æ
By USB
¾TV display a warning information ,that means it is upgrading,almost 3minutes later,when
upgrade successful,TV should restart automatically.
Appendix p“How to change ProjectID with RCU”
¾Process following subsequence IR codes to change projectID: 062598+MENU+xxx
(xxx:ProjectID, ex: 003)
¾Restart TV
Appendix q“How to upgrade MAC Address
¾Upgrading MAC address need to use the tool in factory and through serial command, The
specific methods according to the operation of the factory guidance.
Appendix
r
“Factory Menu Description”
1-Factory hotkey submenu
Item Sub-item Value Note
)DFWRU\
KRWNH\ Off/On OFF᧶hotkey is invalid
ON ᧶hotkey(Return key) is availability

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 13 of 18
2-Warm-Up Mode submenu
Item Sub-item Value Note
Warm-UP
Mode Off/On
Select panel On with left/right key, Press
“EXIT” key to enter the burning mode;
Press “Menu” key on keyboard to exit the
burning mode
3-ADC submenu
As SoC as built-in A/D self-calibration mechanism, there’s not any ADC to perform.
4-White Balance submenu
Item Sub-item Value Note
White
Balance
Source HDMI,etc
Balance source are˖
HDMI, VGA, DTV, PAL, SECAM, NTSC,
Scart RGB, CMP
Color Temp Normal
/Warm/Cool
Warm and cool value is relative to Normal
one. Normal is the default Tone mode
R Gain 000..255 R White balance (-127..+128 for gain)
G Gain 000..255 G White balance (-127..+128 for gain)
B Gain 000..255 B White balance (-127..+128 for gain)
R Offset 000..255 R Gray balance (-127..+128 for offset)
G Offset 000..255 G Gray balance (-127..+128 for offset)
B Offset 000..255 B Gray balance (-127..+128 for offset)
White Balance Init DO
Press “OK” key to initial the preset RGB
Gain/Offset value
VGA ADC Status NG
YPbPr ADC Status NG
5-Shop init submenu
Item Sub-item Value Note
Shop Init DO
Clear date of NVM in user menu,include
the value related installation,and Clear
date of factory menu except the item of
Balance and sound ,set to default value
6-NVM Reset submenu
Item Sub-item Value Note
Reset ALL DO Clear NVM values ˈand set to default
value

Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 14 of 18
7-Preset Factory Channel submenu
Item Sub-item Value Note
Preset Factory
Channel
HZ/CD/NM/W
X/POLAND
Preset the channel table of factory.To
preset the channel table of certain
factory,firstly,choose the corresponding
factory name,then press OK button of
remote control and wait until the
disappearance of Factory Menu.
8-Power On Mode submenu
Item Sub-item Value Note
Power On
Mode ON/LAST/STB
ON: The set will power on after switching
on power
STB: Force TV to start in standby
Last: Force TV to start from last power
status
9-USB UPDATE submenu
Item Sub-item Value Note
USB
UPDATE
Main Upgrade Upgrade software
MEMC Upgrade Upgrade MEMC
HDCP Uprade Upgrade HDCP
Mboot upgrade Upgrade Mboot
NVM Upgrade Upgrade NVM
NVM backup Backup NVM
CH list Upgrade Upgrade CH list
CH list backup Backup CH list
0- DeviceID test submenu
Item Sub-item Value Note
USB
Clone
USB Clone Mode
All
ChannelList
EEPROM
User Setting
Select to choose the things you want to
clone
TV TO USB DO
Press “Right” key to copy the
data(WB,ADC,picture setting,etc) to USB
USB TO TV DO
Press “Right” key to set the
data(WB,ADC,picture setting) from USB
