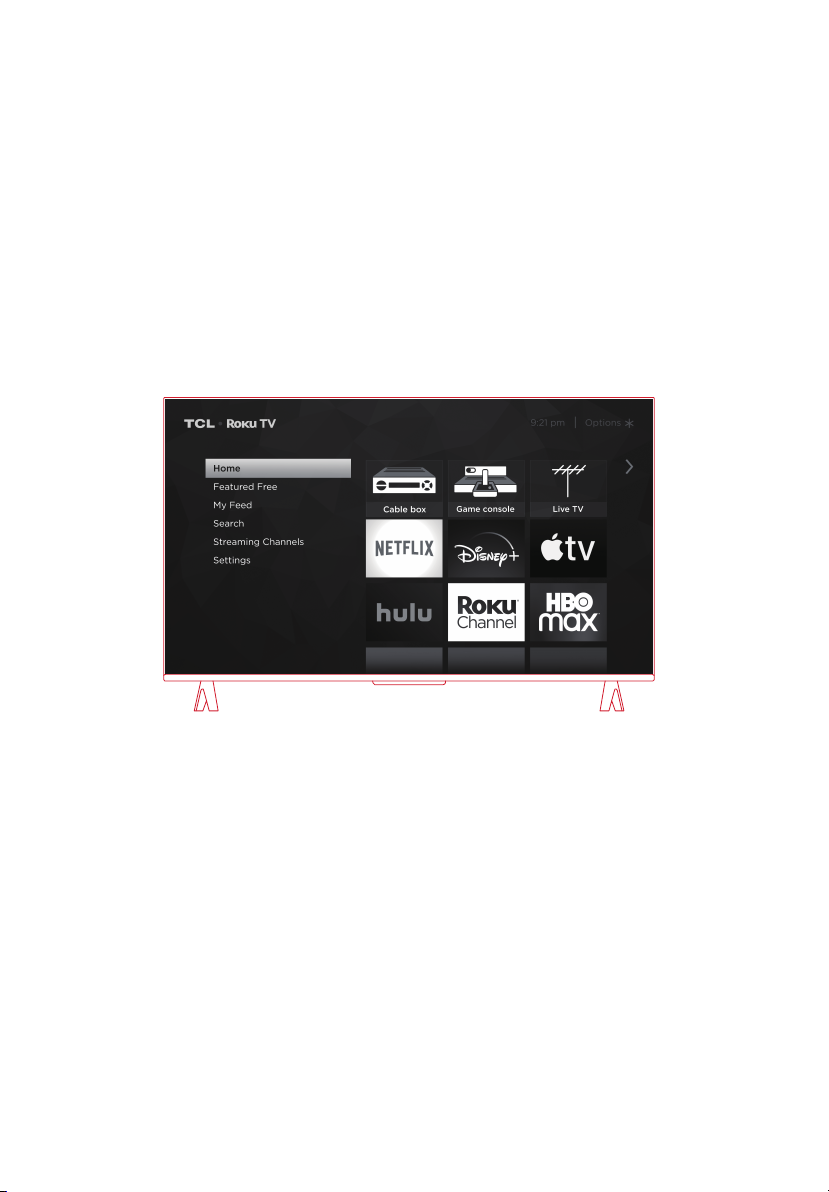

TCL S451 Installation instructions

Hi! Let’s get started.
4-Series
S451/S453/S455
REGISTER NOW
See inside for details &
protect your purchase

Product Replacement
Free 1-time replacement if product cannot be fixed.
TCL Parts & Service
Genuine TCL parts & factory certified service.
No Deductible
$0 out of pocket expense.
Pixel Repair and Burn-In Coverage
Don’t let shadow xels prevent you from clear viewing.
Accidental Damage Protection
Coverage for drops, breaks and spills starts after 30 days.
Complimentary Remove & Reinstall
Don’t risk it-we’ll remove and reinstall televisions 65” and larger.
Lost Your Remote?
No problem! We’ll replace your remote, so you never have to
leave your couch. One time only.
Priority Service
Free shipping and rapid turn-around time.
Extended Manufacturer Coverage
Extended parts & labor coverage for manufacturer defects.
PROTECT PROTECT PLUS
Thank you for choosing TCL. We want your ownership experience to bring you as much joy as the
you purchase during registration. Add a TCL Protection Plan within your first 30 days of ownership
to receive the best value and we won’t let anything get in the way of your viewing pleasure.
Add a TCL Protection Plan when you register your
product and be covered from life’s mishaps
Benefits & Description
Up To 4 Years
3-5 Days 3-5 Days
Up To 4 Years
Text a photo of the
camera icon to 71403
TEXT TO REGISTER
Or register online at register.tcl.com
Need help? Visit photoregister.com/help or text HELP to 71403
Register and protect your purchase
TCL4RKUTV

DO NOT RETURN TO STORE
TCL SUPPORT:
support.tcl.com/us
1-877-300-8837
contact us first
with any questions
WE ARE
READY TO
HELP
TAKE CARE WHEN
REMOVING THE TV

1
Model No.
Purchase Date
Serial No.
Dealer/Address/Phone
For the best viewing experience, remove the energy guide label from the TV front panel or TV screen
before use.
Input Signal Compatibility
480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz, 2160p/24/30/60Hz
480i
480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
HDMI
Composite Video
Antenna/Cable
Important Information
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here
and record the serial and model numbers in case you need them. These numbers are located on the
product.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Keep the apparatus at least 8
inches away from the human body.
Warning: The batteries should not be exposed to excessive heat, such as prolonged direct
sunlight, open flame, or fire of any kind.
Refer to the identification/rating label located on the back
panel of your product for its proper operating
voltage.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National
Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper
grounding and, in particular, specifies that the cable ground should beconnected to the grounding system
of the building as close to the point of cable entry as practical.
Important: This television is a table model and is designed to sit on a firm, flat surface. Do not
place the TV on soft carpeting or on a similar surface as this may cause the ventilation slots located on
the bottom of the unit to be blocked and may result in reduced product lifespan from overheating.
To assure
adequate ventilation for this product, maintain a spacing of one (1) inch from the top and
side of the
TV receiver and two (2) inches from the rear of the TV receiver and other surfaces.
Make sure the TV stand or base you use is of adequate size and strength to prevent the TV from
being accidentally tipped over, pushed o, or pulled o. This may cause personal injury and/or damage
the TV. Refer to the Important Safety Instructions on the next page.
The Power button on this TV and your remote control puts the TV into a very low-power standby
mode but will not completely turn the power o. In order to completely shut the power o, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used to
completely turn o the device. If you prefer to completely turn o the device, you should install
the TV in a manner that allows you to disconnect the power cord when desired.
WARNING
To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
This product should not be exposed to dripping
or splashing. No objects filled with liquids, such
as vases, should be placed on the apparatus.
WARNING
The TV is unstable if it is not properly attached to
the base or mounted to the wall. Please follow the
base or wall mounting instructions provided in the
User’s Guide to ensure your safety.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
This symbol indicates that this product incorporates
double insulation between hazardous main voltage
and user accessible parts. When servicing, use only
identical replacement parts.
CAUTION: Neutral fusing. Disconnect mains before servicing.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
Warning: The batteries should not be exposed to excessive heat, such as prolonged direct
sunlight, open flame, or fire of any kind.
Refer to the identification/rating label located on the back
panel of your product for its proper operating
voltage.

2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
10. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information
before installing or operating the apparatus.
11. WARNING:The main plug is used to disconnect the device and should remain readily operable.
12. When not in use, tie up the power cordset with a cable tie or with something similar. It should not be
near sharp edges as it may cause abrasion of the power cordset. When put into use again, please make
sure the power cordset is not damaged. If any damage is found, please use a replacement power cord
specified by the manufacturer or that is identical to the original one.
13. No open flame sources, such as lit candles, should be placed on, under, or near the apparatus.
14.
Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Only use attachments/accessories specified by the manufacturer.
16. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid any injury.
17. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
18. For safe operation of the apparatus, please follow these installation requirements:
Keep at least 2 inches of ventilation space between the rear cover of the apparatus and the wall.
Keep at least 1 inch of ventilation space between the apparatus and all other surfaces. Do not allow
any of the apparatus’ ventilation openings to be blocked by objects that might obstruct them, such
as newspapers, curtains, table-cloths or any other objects. Do not expose the apparatus to any external
heat sources. Do not place any heat sources such as candles, lamps, etc. on the apparatus. Do not expose
the device to high levels of humidity or to any possible sources of moisture. When disposing of used
batteries
from the remote control, consult local regulations regarding proper disposal.
19. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system
is grounded so as to provide some protection against voltage surges and built-up static charges. Section
810 of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code,
Part 1) provides information with respect to proper grounding of the mast and supporting structure,
grounding of the lead in wire to an antenna-discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
See following example:
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART
250, PART H)

3
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and
the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
The terms HDMI, HDMI High-Definition MultimediaInterface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
4-series, include models (S451/S453/S455)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Supplier Name: TTE Technology, Inc. (dba TCL North America)
Supplier Address: 1860 Compton Avenue, Corona, California 92881, USA
Supplier phone number and internet contact information: 1-877-300-8837 support.tcl.com/us.
Battery Caution & Disposal Information
1. For best results, use alkaline type batteries.
2. Install only new batteries of the same type in your product.
3. Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may
shorten the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not use Rechargeable (Nickel Cadmium or Nickel Metal Hydride) batteries.
6. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium or Nickel Metal
Hydride) batteries.
7.
8. Batteries should be recycled or disposed of as per state and local guidelines.
Do not dispose of batteries in fire.
9. Replacement of a BATTERY with an incorrect type that can defeat a SAFEGUARD (for example,
in the case of some lithium BATTERY types).
ELECTRONICS & PACKAGING RECYCLING INFORMATION
For information on recycling your old TVs, sound bars, and home comfort products, and to find drop-o
locations in your area, please visit the “Electronics Recycling” area of the TCL website at www.tcl.com.
Click on our convenient interactive map to quickly locate a solution in your community. TCL encourages
consumers to always look for a recycling or reuse alternative to discarding televisions and other electronics,
and in many areas TCL has programs for consumers to drop-o and recycle televisions free of charge.
Look for convenient How2Recycle® labels on the product box for help preparing your new TV packaging for
recycling. These labels show important information identifying the various types of packaging material included
with your new TV along with easy-to-understand recycling instructions.

4
What’s in the box
What you need
Phillips head
screwdriver
For additional support, please see User Manual at: support.tcl.com/us
Key things to know: A paid subscription or other payments may be required for some streaming channels.
Channel availability subject to change and varies by country.
Make the most of your Smart TV
Router + Internet Connection
(needed for streaming)
TCL Roku TV Power cable
2 x AAA batteries
for remote
TV remote
4 x Stand screws
43”/50’’/55’’: M4x25mm
65”: M4X36mm
75’’: M5X35mm
TV stands
43’’/50’’/55’’/65’’ 75’’
or

5
Step 1 Set up your TV
Ready for the step-by-step? You’re only minutes away from TV bliss!
the TV. Secure the stands to the TV with four (4) screws.
Put the column of the stands into the TV, align the stands with the screw holes located on
Remove your TV from the box
To prevent damage to the screen, carefully place your TV on a soft, cushioned surface.
A
B
To use the stand
Warning:
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be avoided by taking simple
precautions such as:
- Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
-
Not placing the television set on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television set to a suitable support.
-
Not placing the television set on cloth or other materials that may be located between the
television set and supporting furniture.
-
Educating children about the dangers of climbing on furniture to reach the television set
or its controls.
If your existing television set is being retained and relocated, the same considerations as
above should be applied.
Screws
(43’’/50”/55”: M4X25mm 65’’: M4x36mm 75’’: M5X35mm)
A
B
Note: Make sure the installation direction of the stand is the same as illustrated.
Be careful, it’s heavy!

Optional - To mount on a wall
(wall mount not included)
Preparation must be done before mounting your TV on a wall.
To mount on a wall
1-1
Place your TV on a soft, cushioned surface.
Remove the 2 screws on the back of the TV.
1-2
2 3
75”43”/50”/55”/65”
43”/50”/55”
/65”/75”
The VESA number is the horizontal and vertical measurement of the mounting holes. For
example, 200X200 refers to the fact that the mounting measurements are 200mm horizontally
and 200mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net weight to avoid
causing damage.
Purchase a VESA 200x200 (4 M6x12mm screws)
If you are mounting your TV to the wall, don’t attach the stands.
To mount your TV to the wall, purchase a VESA wall mount
Models of 43’’
Models of 50’’ Purchase a VESA 200x200 (4 M6x12mm screws)
Models of 55’’ Purchase a VESA 200x200 (4 M6x12mm screws)
Models of 65’’ Purchase a VESA 200x200 (4 M6x12mm screws)
Models of 75’’ Purchase a VESA 300x300 (4 M6x25mm screws)
Place your TV on a soft, cushioned surface.
Remove the 4 screws on the back of the TV.
Screw the VESA bracket tightly onto the
back cover with 4 VESA screws.
Follow the instructions that come with the
wall mount to hang the TV on the wall.
6
Note: 1. For the 43/50/55/65model, if you select wall mounting, you should connect to
the Ethernet which placed on the back of the TV before mounting your TV on a wall.
2. Do not place your TV in a location exposed to direct sunlight, heat, fire, or moisture.
Exposure will damage the TV.

7
Power up
Step 2
Step 3
In this step, we’ll make sure all systems are GO!
Insert batteries in the correct polarity
as indicated in the battery compartment.
Power your TV remote by inserting the included
batteries.
Connect your power cable to the TV, then plug
it into the wall outlet.
Connect external devices by referencing port
label and descriptions on the next pag.
Power Tip!
batteries from the same manufacturer. Never use damaged batteries.a
If your remote gets warm/hot during use, discontinue use and contact
customer support immediately at support.tcl.com/us
Always replace depleted batteries with two same brand-new
Grab your remote
The TV remote should feel right at home in your hand. We designed it to be
incredibly intuitive for watching TV and navigating on-screen menus.
A
H
BC
D
E F
G
Tip! The button gives
you easy access to picture
settings, display options, and
more. Try it on every screen!
POWER
BACK Return to previous screen
HOME Return to Roku Home screen
VOLUME Raise and lower volume
INSTANT REPLAY Replay the last few seconds of streaming
video
OPTIONS View more options
RWD SCAN Rewind streaming video, scroll left one page
at a time
FWD SCAN Fast forward streaming video, scroll right
one page at a time
A
B
D
E
C
F
G
H
Here are some buttons you should know about.

8
Step 4 Get to know your TV
E
home Internet router or switch.
For 43”/50’’/55’’/65’’ , the Ethernet is on the
back of the TV.
ETHERNET Connect an Ethernet cable to your
HDMI (e)ARC PORT Connect HDMI (e)ARC
(audio return channel) capable audio devices
like sound bars or AV receivers.
G
PORT Highest quality audio/video
connection. Connect cable box, Blu-ray player,
gaming console, or other devices to your TV
using HDMI cables.
HDMI
RESET BUTTON Press once to restart your TV.
Press and hold for factory reset, and careful,
you will lose all your settings!
USB PORT Connect a USB device to access
photos, music and movies.
ANTENNA/CABLE IN Connect an outdoor VHF/
UHF antenna or Cable TV feed.
OPTICAL (DIGITAL AUDIO OUT) Connect an
optical cable to an external digital audio system.
The AV Input can be used to connect older devices
that use analog audio/video outputs. Compatible
adapter (not included) connects to the RCA cable
(video - yellow and audio - white and red) that you
normally use to connect to that device.
AV IN adapter AV Input (analog audio/video).
HEADPHONE OUT Connect headphones or
other external speakers.
TV SIDE
E
F
F/G
H
I
J
K
C
D
(75’’)(43”/50’’/55’’/65’’)
C
D
F/G
H
I
J
K
TV FRONT
TV BACK
A
IR RECEIVER Receives signal from
the TV remote.
STATUS LIGHT
Glows when the
TV is in standby.
A
POWER PORT Connect your TV
B
to the power source with the
included power cable.
POWER and OPTIONS BUTTON
Press once to open the menu.
Press and hold to turn o the TV.
F
CABLE/ANT
(e)ARC
RESET
AV IN
AUDIO OUT
RESET
CABLE/ANT
AV IN
AUDIO OUT
(e)ARC
B

Step 5 Complete guided setup and activation
It’s the final stretch—hurray!
Let’s Connect
Your TV will automatically detect wireless networks in your area. Have your network name and
password handy and follow the easy on-screen instructions.
And setup is done... Congratulations!
Continue using the remote to personalize your Home screen and channel line-up, stream movies,
and so much more.
If you have an antenna or cable connected, just click the tuner tile to watch broadcast TV channels.
The fun has just begun!
Your Roku account: Activate your TCL Roku TV using your computer,
smartphone, or tablet to link to a Roku account. You need a Roku
account to activate your TV and access entertainment across
thousands of streaming channels.
IMPORTANT: Roku doesn’t charge for activation support - beware of scams.
9
Roku accounts are free and while a valid credit card number is not required
to create a Roku account, saving your credit card information makes renting,
purchasing, and subscribing to entertainment from the Roku Channel Store
fast and convenient.
Once connected to your account, your TV will automatically update with the
latest software, and you can start streaming immediately.
If you aren't ready to connect your TV to a wireless network, you can still use
it as a regular TV.
TCL SUPPORT:
support.tcl.com/us
1-877-300-8837
contact us first with any questions
WE ARE READY TO HELP

10
Viewing 4K Ultra HD Content
Roku TV menu may vary and is subject to change.
4K Spotlight Channel
The Roku 4K Spotlight channel is the easiest way to find movies, TV shows, and more in stunning resolution.
Browse regularly updated, hand-curated selections of 4K titles in categories like Most Popular, Action, Drama,
and more.
Key things to know: A paid subscription or other payments may be required for some channels. Channel availability subject to change and varies
by country. 4K content will not be available on all channels.
Next Generation 4K HDR Devices
With HDMI inputs supporting the latest HDMI standards, connect next-gen game systems, Ultra HD blu-ray
and more to enjoy highest-quality 4K high dynamic range sources.
Upscale 1080p HD to 4K Ultra HD
Enjoy your favorite shows upscaled to near 4K Ultra HD quality with TCL Creative Pro upscaling.
players
Connecting brings out your TV’s full potential!
Access thousands of streaming channels*.
*Subscription or other payment may be required to access certain channels. Content may not be available in all areas in which the TCL Roku TVs are sold and channel
availability is subject to change.
Make any night a movie night
Whether you want to watch the hits or the
classics, thousands of channels are now yours
to choose from.*
Stream live news and sports
Over 100 sports channels put you right in the
middle of the action. Stay in the know with live
news from your trusted channels.
Explore your passions
Free, live, and premium TV
Hit movies, shows, live news, and more are free on The
Roku Channel. Add Premium Subscriptions to stream
your favorites. Enjoying your favorite entertainment
has never been easier.
From fitness and cooking to religion and international
programming, we’ve got you covered. Thousands of
streaming channels are easily available for you to find
and enjoy.

11
Easy Voice Control
Find movie titles, launch or change channels, even switch inputs, using the voice control feature available
through the Roku mobile app (iOS or Android™ mobile device required), or with compatible third-party
voice assistant-enabled devices and voice enabled remote controls that can be purchased separately. This
feature works with Apple HomeKit (Siri), Alexa, and Hey Google plus requires a free Roku account to set up.
NOTE:
Some Roku Voice capabilities may not be supported when using HomeKit, Alexa or Google Assistant-enabled
devices.
Apple HomeKit
Apple HomeKit provides an easy and secure way for you to use Siri and the Home app on your iPhone, iPad,
Apple Watch, HomePod or Mac to control your compatible Roku device. And, you can use scenes to group
your Roku device with other HomeKit-enabled devices to control an entire room at once.
To learn more, scan
QR code or visit:
go.tcl.com/airplay-homekit
Amazon Alexa
You can use Amazon Alexa-enabled devices, or the Amazon and Alexa Apps to search and control playback
of content, and the ability to launch select streaming channels. Plus, you can power the TV screen on and o,
adjust the volume, switch between dierent input devices such as Over-The-Air antenna, cable box, game
consoles, etc. once connected.
To use Alexa to search and control your TCL Roku TV, you need to link your Roku account to your Alexa
account.
To learn more, scan
QR code or visit:
go.tcl.com/alexa
Google Assistant
You can use Google Assistant-enabled devices to search and control playback of content, and the ability to
launch select streaming channels with just using your voice. Additionally, you can turn your TV on and o,
turn up the volume, mute, switch inputs and change channels, if there is an Over-The-Air antenna connected.
To learn more, scan
QR code or visit:
go.tcl.com/hey-google
To control your TCL Roku TV using your voice with Google, you need to link your Roku account in the
Google Home mobile app on your iOS or Android device.
Apple, HomeKit and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. Amazon, Alexa
and all related logos are trademarks of Amazon.com, Inc. or its aliates. Alexa enabled device is required to work
with Alexa. Google, Google Home, and Android are trademarks of Google LLC. Third party features and services
may be subject to change or removal without notice.

12
TCL North America Limited Warranty
All TCL LCD/LED Models
What your warranty covers
New LCD/LED Televisions (Commercial Use)
For how long after your purchase:
Six (6) months from date of purchase for parts and labor for commercial use.
Commercial use includes, but is not limited to, the use of this product in a commercial or business
environment, the use of this product in an institution or for institutional purposes, or other commercial
purposes including rental purposes.
One (1) year from date of purchase for parts and labor for non-commercial use.
Please have your original purchase receipt or proof of purchase (bill of sale or receipted invoice) which
states that condition of the unit (New, Used, etc.), the unit’s date of purchase, place of purchase and model/
serial number ready. The model/serial number information can be found on the back of your unit.
Call 1-877-300-8837 or visit support.tcl.com/us
A representative must troubleshoot your problem over the telephone or through e-mail before receiving
service. If it is determined that your unit requires service, the service location will be at the sole discretion
of TCL North America based upon the TCL North America Limited Warranty Statement.
At the sole discretion of TCL North America, television screen sizes 43” and smaller will either be repaired
at an Authorized TCL Service Center or directly exchanged for a new or refurbished/recertified unit. At the
sole discretion of TCL North America, television screen sizes 44” through 75” or larger will either be repaired
or directly exchanged for a new or refurbished/recertified unit at an Authorized TCL Service Center or
repaired in-home. In the event of a service visit where the on-site technician, in his-her sole discretion,
deems the home or property conditions to be hazardous and/or unsafe, TCL North America reserves the
right to cancel or re-schedule the service visit, or opt for an exchange of the in-warranty unit for a
refurbished/recertified unit lieu of the in-home service visit.
If repaired at an Authorized TCL Service Center, TCL North America is not responsible for transportation
costs to the Authorized TCL Service Center. However, TCL North America will pay for return shipping.
TCL North America will provide instructions for packaging and shipping the unit. Units that are improperly
packed and damaged during shipping are not covered under your product warranty.
Proof of purchase in the form of a bill of sale or receipted invoice from an Authorized Dealer which is
evidence that the product is within the warranty period must be presented to obtain warranty service.
In the event that a unit is to be replaced, a picture of the back of the unit showing the model and serial
number and picture of the issue itself may be required.
PRE-AUTHORIZATION MUST BE OBTAINED BEFORE (1) SENDING ANY PRODUCT TO AN AUTHORIZED
TCL SERVICE CENTER, OR (2) OBTAINING ANY IN-HOME REPAIR/REPLACEMENT/ RENTAL SERVICES.
Defects in materials or workmanship to the original owner of this TCL product when purchased as new from
an Authorized Dealer of TCL brand products in the United States and packaged with this warranty statement.
How to get service
What we will do
At TCL North America’s discretion, (1) pay an Authorized TCL Service Center for both labor charges and
parts to repair your television, or (2) replace your television with a new or refurbished / remanufactured
equivalent value product. The decision to repair or replace will be made solely by TCL North America.
See “How to get service”.
New LCD/LED Televisions (Non-Commercial Use)
For how long after your purchase:

13
TCL North America Limited Warranty
THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. NO
VERBAL OR WRITTEN INFORMATION GIVEN BY TCL NORTH AMERICA, ITS AGENTS OR EMPLOYEES
SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. TCL NORTH AMERICA SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF
WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE
APPLICABLE WARRANTY AND WARRANTY PERIOD SET FORTH ABOVE. THIS WARRANTY IS SUBJECT TO
CHANGE WITHOUT NOTICE. PLEASE VISIT WWW.TCL.COM TO VIEW THE MOST CURRENT VERSION.
LIMITATION OF WARRANTY
How State Law relates to this warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you also may have other rights that vary from state to
state.
If you purchased your unit outside the United States or seek warranty coverage
outside the United States:
This warranty does not apply. Contact your dealer for warranty information.
Service calls which do not involve defective materials or workmanship are not
covered by this warranty. Costs of such service calls are the sole responsibility
of the purchaser.
What your warranty does not cover
A unit sold in “As-Is”, “Used”, “Factory Reconditioned”, “Factory Re-Certified”, or “Refurbished”, condition
or with faults.
Units physically broken during shipment from a Retailer. Please contact your Retailer for assistance.
Extended Service Plans purchased from Retailers. Please contact your Retailer for assistance.
Customer instruction. (Your Owner’s Manual describes how to install, adjust, and operate your unit. Any
additional information should be obtained from your Authorized Dealer).
Installation and related adjustments, or damage resulting from installation.
Damage resulting from non-approved installation or repair methods.
Signal reception problems not caused by your unit.
Damage from misuse, abuse, neglect, insects, normal wear and tear, cosmetic damage, mishandling,
faulty installation, or power line surges.
Markings or images on the television’s panel resulting from viewing fixed images (including but not limited
to certain 4:3 images on wide screen televisions, or data or images in fixed screen locations from banners,
video games, or certain broadcast networks).
Units that have original factory serial numbers that are unreadable or missing, or that have been changed,
defaced, or altered in any manner.
Batteries.
A television that has been modified or incorporated into other products, or that has had the serial number
removed or altered.
A unit purchased or serviced outside the USA.
Acts of nature or God, such as but not limited to earthquake or lightning damage.
Special, incidental or consequential damages.

141
Broadcasting & Operating Environment
Broadcasting system US System NTSC-M
ATSC standard (8VSB), QAM
Receiving Channels VHF2-13
UHF14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Tuner type Frequency synthesized
Operating Temperature 5°C to 35°C (41°F to 95°F)
Operating Humidity 20% to 80%, non-condensing
Storage Temperature -15°C to 45°C (5°F to 113°F)
Storage Humidity 10% to 90%, non-condensing

How do I turn the Text-to-Speech (TTS)
audio guide on or off?
• Press “*” key on the remote controller four times to
Select “Settings” at home screen
Select “Accessibility”
Or
1.
2.
3.
Troubleshooting
Having trouble completing the guided setup? Don’t worry, it’s usually an easy fix.
4K Picture Quality
• 4K picture quality is largely dependent on the
source. Make sure your source content is 4K.
• To stream 4K, we recommend a broadband
speed of 25Mbps for optimum viewing.
• For Cable, Satellite, Gaming Consoles, and
Blu-Ray players, we recommend using
“High-Speed HDMI cables.”
Cannot connect to wireless network (WiFi)
• Select the correct wireless network name and
verify the password entered (case sensitive).
• Relocate the router from objects that interfere
with performance (cordless phones, baby
monitors, etc.).
• Reboot the router by disconnecting the power
for more than 2 minutes and reconnect.
My picture istoo small (black bars on the side)
• Play your movie/video and press the (*)
asterisk button.
• Select Picture Size, select the picture size of
your preference.
Problems connecting my cable/satellite
box or antenna through a coax cable
• Make sure the cable connections to the TV and
your device are securely fastened.
• Select cable/satellite box or antenna TV input.
• Select “start finding channels” and follow the
on-screen instructions to perform a full
channel scan.
• For best performance, use the HDMI connection.
If not available, then:
What is the remote code for programming
my Universal or Cable/Satellite box
remote control
How to install the Remote Control
Mobile App
• Download the Roku app to your phone or tablet
through Google Play or iTunes.
• Simply search for “Roku App” and choose the
Roku app by Roku Inc.
• Follow the onscreen prompts and you’re on
your way!
The free Roku app allows you to use your mobile
device as a full functioning remote control with
voice search & keypad.
Providers Codes for TCL Roku TVs
ATT U-verse 1346
Charter2
/ Spectrum 11756
Comcast311756
DIRECTV 11756
DISH 1756, 535
Time Warner / Spectrum 387, 1566, 268
Don’t see your provider listed, visit https://go.tcl.com/codes
15
1-877-300-8837
Need more help?
support.tcl.com/us
*
https://go.tcl.com/tts-roku

STUNNING SOUND. MADE SIMPLE.
Complete your home theater with a TCL Sound Bar.
provide stunning sound and simple setup. Available features including, Dolby
Atmos surround sound and exclusive RAY·DANZ technology for a wider
soundstage, deliverpremiumsound. With Roku TV Ready, you’ll enjoy
smooth setup, easyaccess tosound settings, and compatibility
with your TCL Roku TV remote.
Learn more at TCL.com orvisit your favorite retailer.
Alto 9+
Part No.: 80123-000194
Copyright © 2022 by Roku, Inc. and TCL. All rights reserved.
Roku, Roku TV, and the Roku logo are trademarks or registered
trademarks of Roku, Inc. TCL and the TCL Logo are owned by
TCL Corporation and under license to TCL North America.
Other brand and product names are the trademarks or
registered trademarks of their respective owners.
TCL North America
1860 Compton Avenue, Corona, California 92881, USA
To read the End User License Agreement (for Roku TV),
visit: www.tcl.com/us/en/roku-tv/eula
