TCL HYLED-58UHD4 User manual

HYLED-58UHD4 1MS586C2ISA
SERVICE MANUAL
1. Caution…………………………………………………………………………
2. specification……………………………………………………………………
3. Alignment Procedure…………………………………………………………
4．Block diagram…………………………………………………………………
5．Scheme Diagram ……………………………………………………………
6. Troubleshooting………………………………………………………………
([SORGHGUDZLQJ
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product

CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FER SER VIC ING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTR I
ELECTR IC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

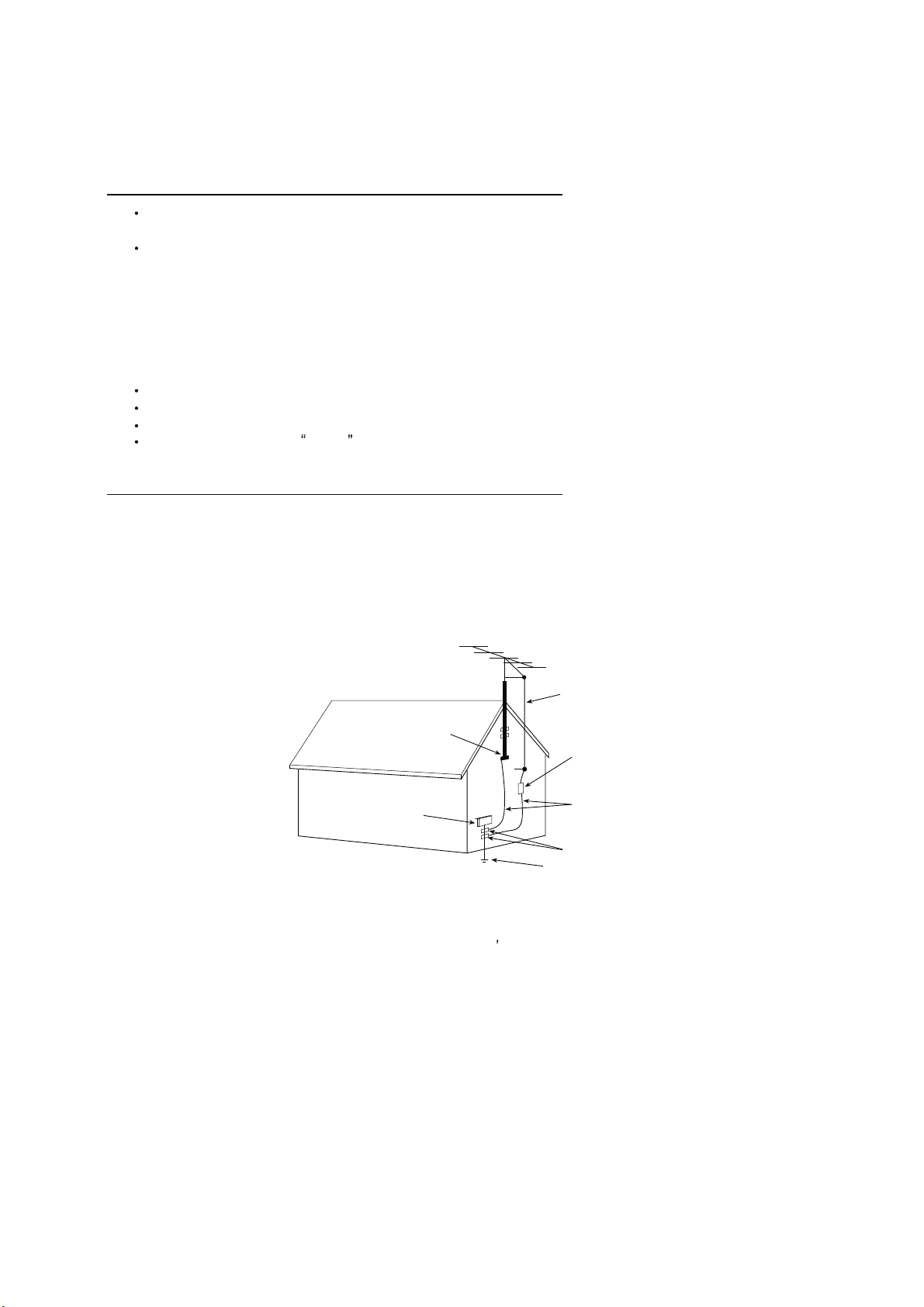

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restorenormal operation by followingthe detailedprocedurein your operatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required, be sure the service technicianhas used replacementparts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION

Product Type LCD UHD Smart TV Music MP3, EAC-3, LPCM
Chassis MS6586-LA(1MS586C2ISA) Picture JPEG, PNG, BMP
CPU CA9 *2, 1.0GHz
GPU GPU Mali-400*2
OS Linux File No
Memory 1G DDR +4G EMMC
OSD Language English, Spanish,Portuguese
PAL-M/N,NTSC-M Component Video Format ——
ISDB USB Video Format UP to 3840×2160
AV System NTSC,PAL HDMI Video Format HDMI 2.0 ,support 4k2k /60hz
Channels CH2～CH69 AIR / CH1～CH135 CABLE PC Compatibility ——
Power Supply AC 110V-240V 50/60Hz
Power Consumption（TV On）150W
Power Consumption（Standby）≤0.5W
Certification —— Backlight Unit DLED
Energy Efficiency Level —— Panel supplier CHOT
RJ45 Aspect Ratio 16:9
Built-in wireless Panel Size (inch) 58"
LED Indicator Status Stand-by: Red / Power-on: Off Display Resolution UHD (3840×2160)
Brightness (cd/m2) 280 (typ.)
Contrast Ratio 5000:1(typ)
Auto Source Yes Response Time Typ.8ms
PVR Yes Viewing Angle (H/V) Typ.178°/Typ.178°(CR≥10)
TimeShift Yes Life Time(Typ.) 30,000hrs
Blue tooth No Color 1.07B (Dithered 10bit)
HDMI-CEC Yes Refresh Rate 50/60Hz
HDMI-ARC Yes
EPG Yes
CC YES HDMI 3
Parental Control YES USB 1
Sleep Timer Yes AV in 1(Mini)
System Update from Internet or USB Yes YPbPr in No
Hotel Mode Yes Line out(Audio out) 1
Input Method —— VGA in No
MHL No VGA audio in No
Ginga —— RJ45 1
No SPDIF out Optical
Picture Earphone out 0
RF Input 1F Type
Natura Light Technology No
DCC（Dynamic Contrast Control）Yes
Backlight Adjustable Yes
Color Temperature standard/Cool/Warm NetFlix Yes
Picture Mode Standard/Movie/Personal/stadium/Natural,Dynamic Youtube Yes
Picture Size Auto,16:9,4:3, zoom1，zoom2 Golive3.0 ——
Gamma Adjustable Yes Browser Yes
Dynamic Noise Reduction Yes APP Store Yes(Foxxum)
Wireless Display Yes
File Share Yes
Fast cast Yes
Sound
Speakers Integrated speakers (Bottom side) Operation Manual English
Audio Power Output（THD=7%）2×8W Remote Control and batteries RC320
Smart Volume AVC 3D TV Glasses No
Sound Mode
standard,music,movie,,game,news,stadiu
m,personal Base Stand Integrated Packaging
Sound Control Balance AC power cord 1 pcs
Dolby MS12 AV adapter 1 pcs
Essential Accessories（Default）
USB Device Media Format
Signal Format Capability
Panel Specification
Basic Information
Other APP
MPEG2, H.264, H.265, MPEG4
Dailymotion,Deezer,Radioline,Playkids
Terminals
Basic Function
Applicaitions
PRODUCT SPECIFICATION RELEASE
Model: 58D1200/MS6586
Version：V01 Issued On: 2019-11-13
TV System
Internet Link
Video

Camera No
Wall Mount WMB333
RF Converter(IEC Type to Type F) No
Mechanical Ke
y
S
p
ecification
Diagonal size（cm）146 L1（mm）1303
Slim Edge Design---Up（mm）14 W1（mm）86
Slim Edge Design---Bottom（mm）19.9 H1（mm）757.9
Slim Edge Design---L&R（mm）14 L2（mm）1081
Carton Dimensions LxWxH（mm）1436*152*879 W2（mm）258.8
Container Loading---20 feet（pcs）120 H2（mm）827.8
Container Loading---40 feet（pcs）246 Net Weight With Stand（Kg）14.5
Container Loading--40 feet High (pcs) 369 Net Weight Without Stand (Kg) 14.3
VESA Mounting Dimensions LxH（mm）400x300 Gross Weight With Packaging（Kg）18.2
RF 2.4G and Air mouse No
IR Remote Yes
Voice Control No
+
Design and specifications are subject to change without notice!
Drafted b
y
: Confirmed b
y
: A
pp
roved b
y
:
Remote Performance and ID Picture
Optional Accessories
Thispictureisonlyformechanical
dimensions
(Pictureforreferenceonly)

Rev:A/0
1. Introduction
0）SHIPPING INIT：TV Initilization，and All Parameter to
be default. Designed for Shipment.
1）BURING MODE: TVAging Mode Switch.
2）ADCADJUST：ChangeADC Parameters.

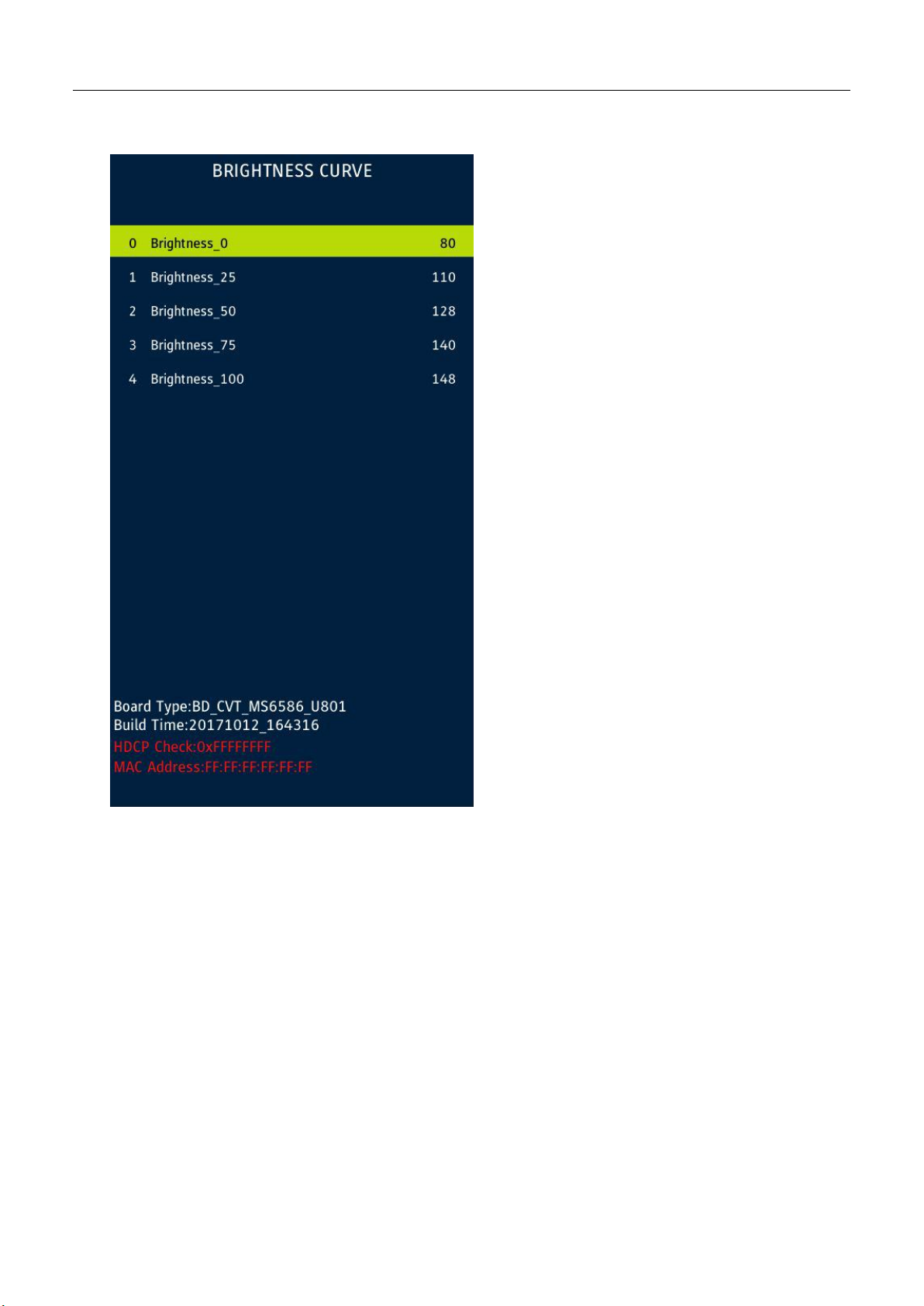

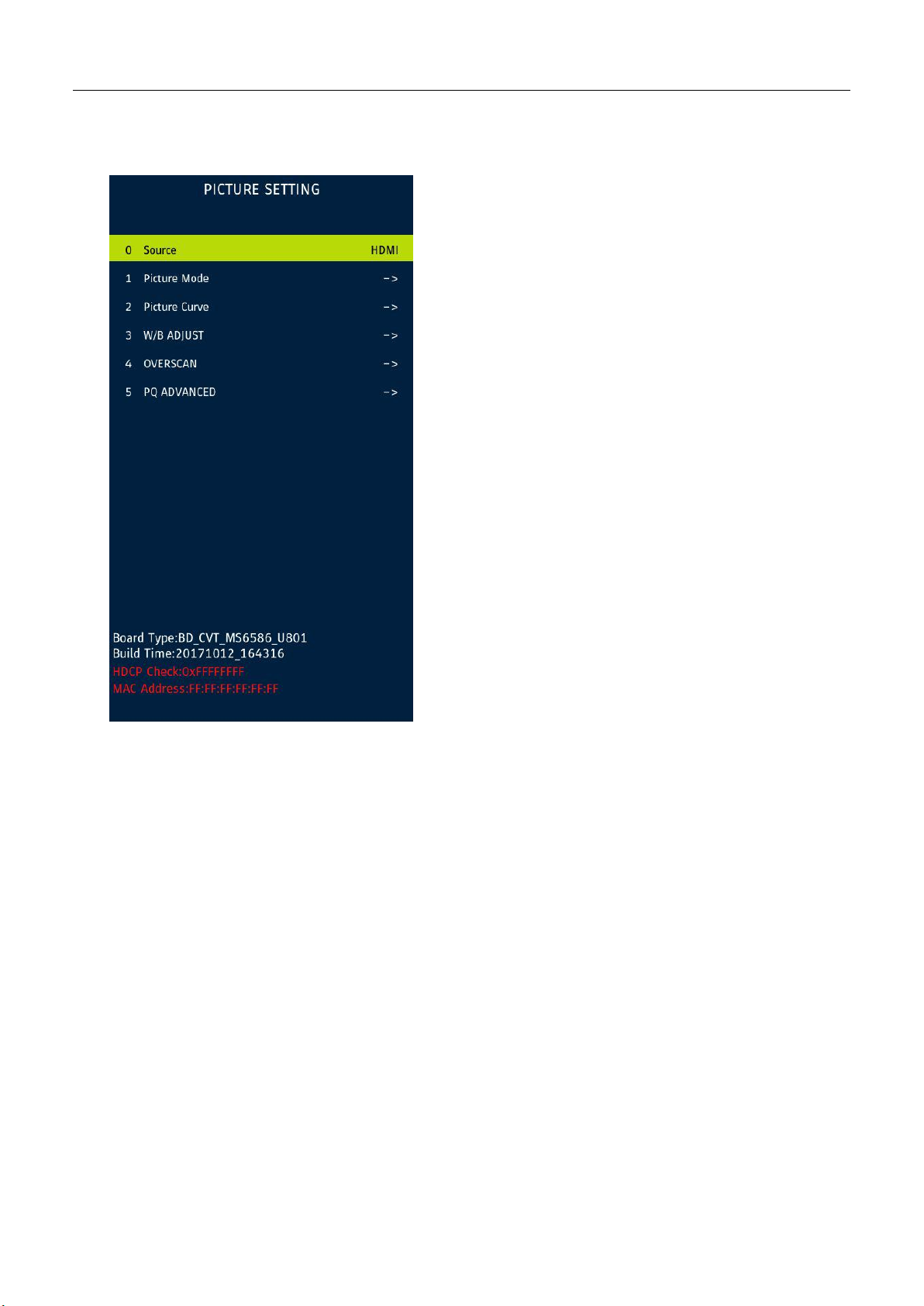

3）PICTURE SETTING：Change Picture Setting.

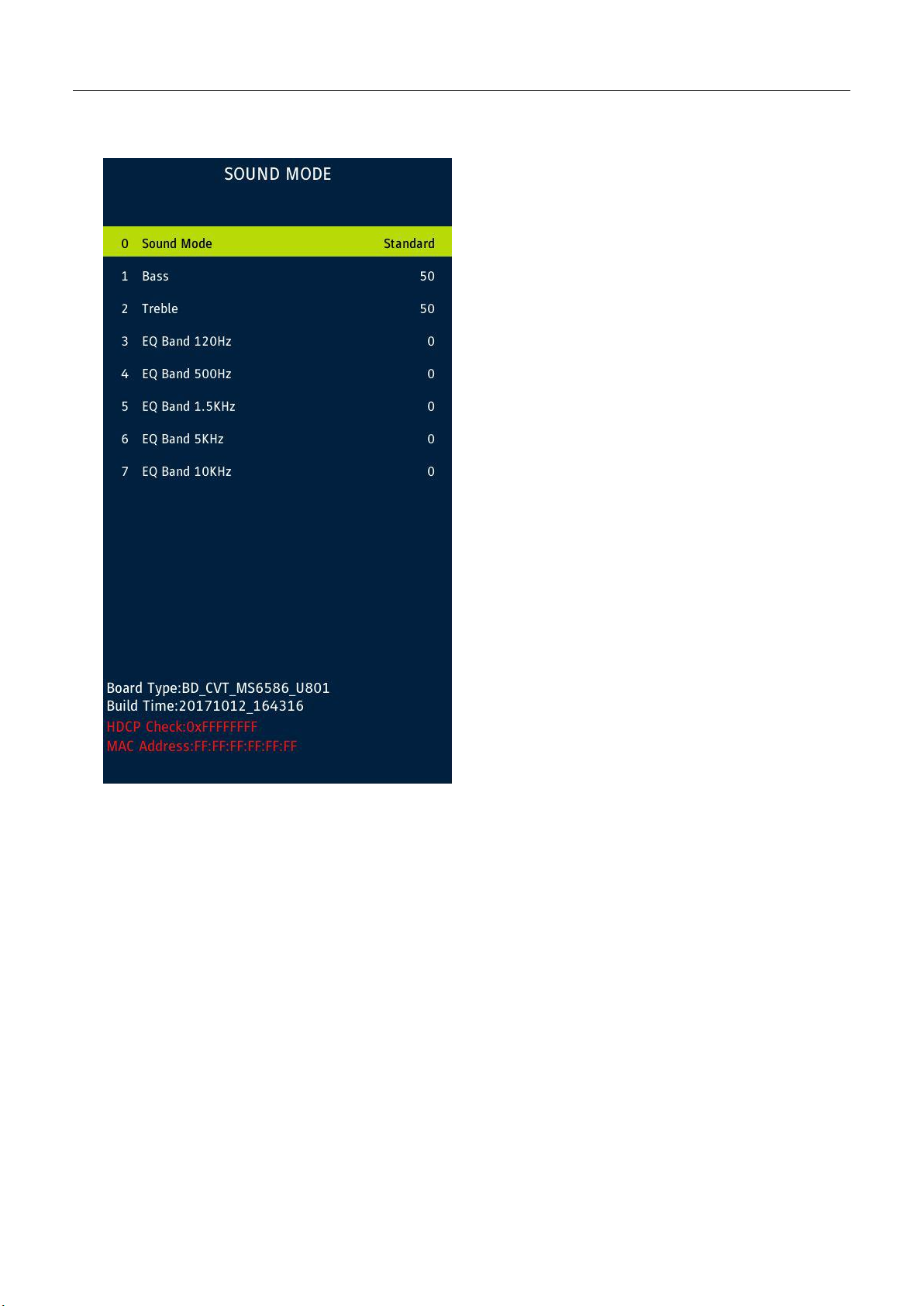

4）SOUND SETTING：Change Sound Setting.
5）GENNERAL SETTING：Some other settings usualy used.
6）DEBUG: Debugging Mode Switch.
7）PANNEL SETTING：Change Panel Paramters .
8）EMC SETTING：EMCAuthentication Parameters.
9）SYSTEM INFO：Display Some Systtem Information.
10）BOARD INIT：Factory Reset .
11）SW UPGRADE：Software Update Item.
12）OAD_SETTING: OAD Update Item.
13）Project ID: Project ID information
-
Board Type: The currently used board type.
Build Time: Program compilation time.
HDCP Check: HDCP Key Status.
MACAddress: MACAddress

2. ADC Adjust&WhiteBalance Auto Adjust

Rev:A/0
3. PICTURE
0）Source：Choose source
1）Picture Mode:Change picture mode parameters
2）Picture Curve: Picture mode parameter curve.
3）W/BAdjust: White Balance parameter setting
4）Overscan : Overscan setting
5）PQAdvanced: For PQAdjustment.

Rev:A/0
3.1 PICTURE MODE
0）Source：Choose sources
1）Picture Mode：Select picture mode which is same
with main menu.
2）Contrast：Adjust contrast which is same with main
menu.
3）Brightnesst: Adjust brightness which is same with
main menu.
4）Colour：Adjust Colour which is same with main
menu.
5）Sharpness：Adjust Sharpness which is same with
main menu.
6）Tint：Adjust tint which is same with main menu.

Rev:A/0
3.2 PICTURE CURVE
Adjust the real value of main menu from 0 to 100
0）Source：Choose source
1）Picture Mode:Adjust Pic mode.
2）Contrast：Adjust the real contrast for main menu from
osd 0 to osd 100.
3）Brightnesst: Adjust the real brightness for main menu
from osd 0 to osd 100.
4）Colour：Adjust the real colour for main menu from
osd 0 to osd 100.
5）Sharpness：Adjust the real sharpness for main menu
from osd 0 to osd 100.
6）Tint：Adjust the real tint for main menu from osd 0 to
osd 100.

3.2.1 Contrast
1）Brightness_0：The real value of main menu
brightness osd 0
2）Brightness_25：The real value of main menu
brightness osd 25
3）Brightness_50：The real value of main menu
brightness osd 50
4）Brightness_75：The real value of main menu
brightness osd 75
5）Brightness_100：The real value of main menu
brightness osd 100
The Brightness, Colour, Sharpness, Tint are same
with the contrast.

3.3 WB ADJUST
WhiteBalanceAdjustment
This page only for current source White Balance
Adjustment.
There are Warm, Cool, Normal modes and save
every source seperately.We can change the R-GAIN,
G-GAIN, B-GAIN, R-OFFSET, G-OFFSET,
B-OFFSET.

3.4 OVERSCAN
This page can adjust overscan.
Note : Overscan should check with every timing .

3.5 PQADVANCED
PQAdjustment Page
Adjust VIP ,NR and etc.

4. SOUND
0）Source：Choose Source.
1）Sound Mode: BASS, TREBLE, EQSettings.
2）Volume Curve:Adjust Volume Curve.
3）Volume Setting: Include DRC AVC prescale For
Designer Use Only.
4）SRS: Surround Sound Parameter.
5）SPDIF Delay：Coaxial Sound Delay Setting For
Desginer Only.
6）Speaker Delay：Speaker Sound Delay Setting.

4.1 SOUND MODE

4.2 VOLUME CURVE
NOTE：
1）Volume Offset : User overall volume control,
every source has a unique value.
2）VOL1---VOL100 : All sources share a same
value, make sure the next value bigger than
the before.

5. GENERAL SETTING
0）Test Pattern: TestAnd Judge the Screen
1）Timer Test: Menu Time Acceleration Test.
2）WDT: Watch Dog Switch.
3）Power Mode: On/Standby/Last boot status.
4）Channel Table: Channel List Function.
5）EN ADC Value: Whether the ADC Value of
Keypad is Displayed in the Menu.
6）ADC Value: the ADC Value of Keypad In The
Menu.
7）Logo Import: Import LOGO.
8）Capture Screen: Capture Screen Swtich.
